BendPak 10APX PRO Two-Post Lift

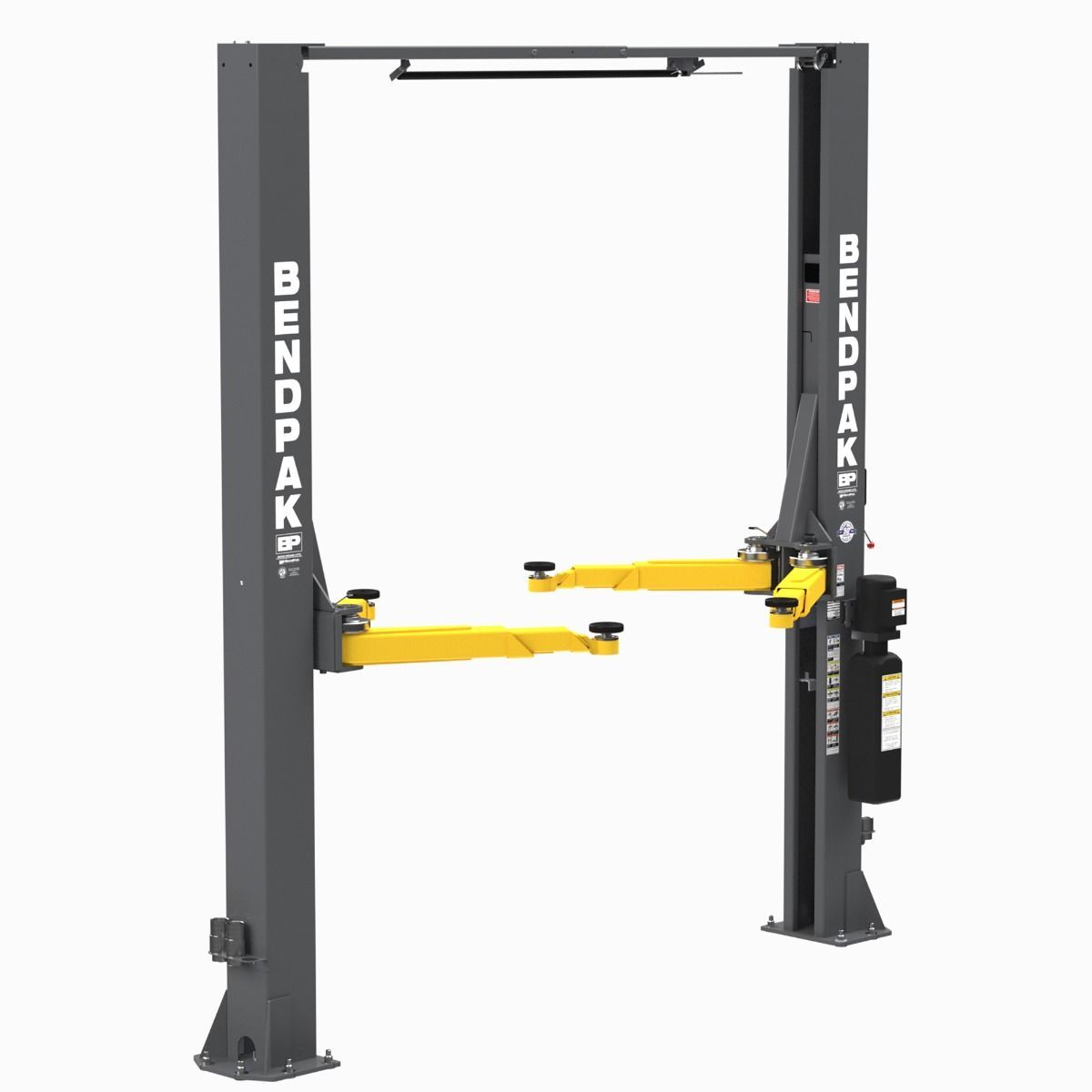

The BendPak 10APX PRO is a 10,000 lb clearfloor two-post lift for professional shops handling cars, light trucks, and EVs. It features 79.5" lifting height, Bi-Metric arms for symmetric or asymmetric configurations, and the ASARS safety system. The PRO package includes a WSA-100 workstation and complete adapter set.
Who It's For
Professional Automotive Shops
Busy repair facilities servicing a mix of passenger cars, SUVs, and light trucks daily. The Bi-Metric arms eliminate setup time between configurations, and the integrated workstation keeps tools and power accessible without running cords across the bay.
EV Service Centers
Shops working on electric vehicles need low-profile arm geometry to clear battery packs. The Low-Pro arms and 4" minimum pad height accommodate Tesla, Rivian, and other EVs without adapter stacking issues.
Fleet Maintenance Operations
Commercial facilities servicing delivery vans and mixed fleets. The 10,000 lb capacity handles most Class 1-2 vehicles, and the 79.5" rise height gives technicians room to work under taller vehicles.
Key Features

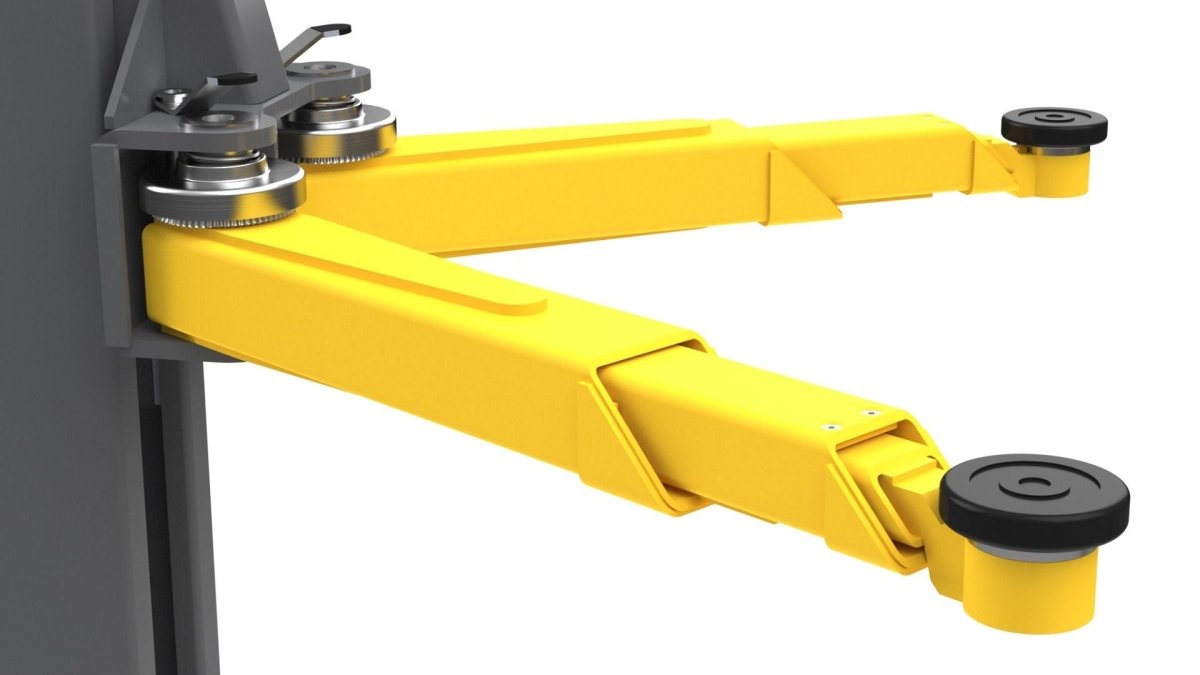

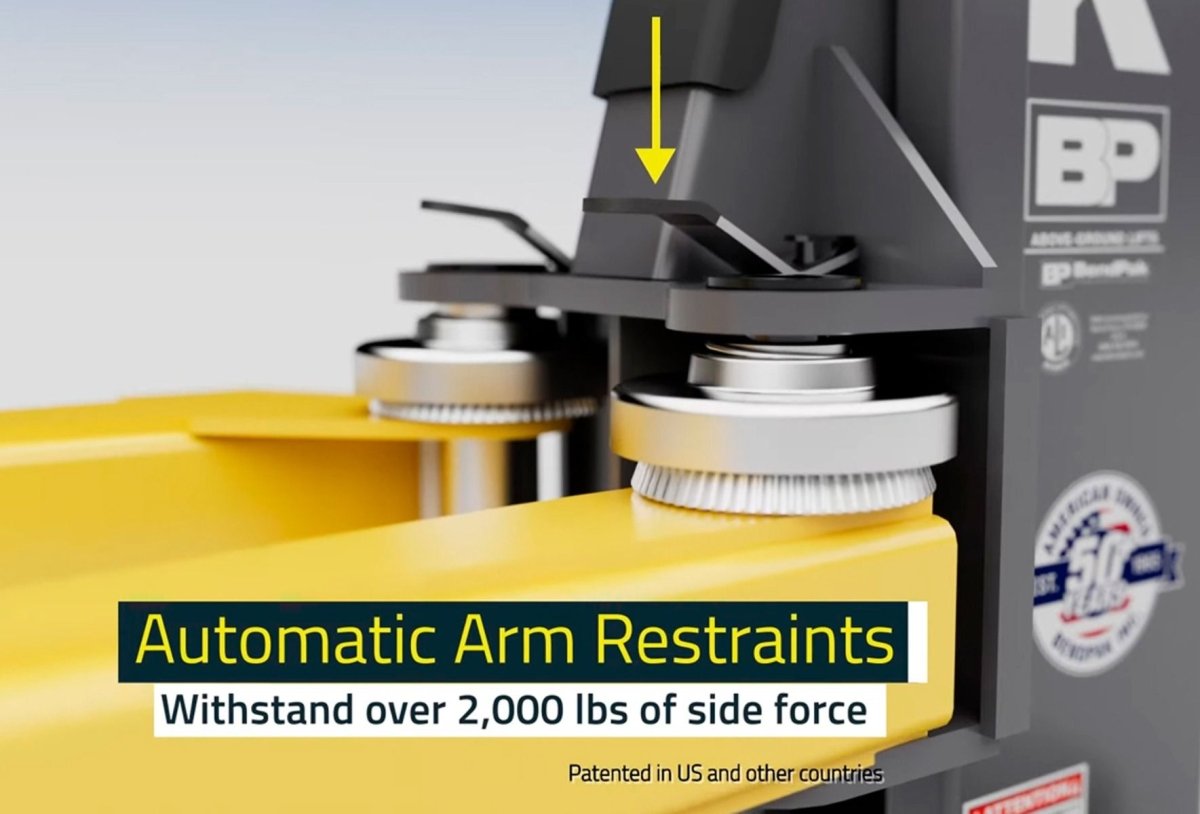

ASARS Automatic Swing Arm Restraint
The ASARS delivers 2,000+ lb of clamping force through a 360-degree grip that locks swing arms automatically. The forged steel mechanism engages on vehicle contact and holds position even under heavy side loads, with a quick-release lever for repositioning.
Bi-Metric Arm Technology

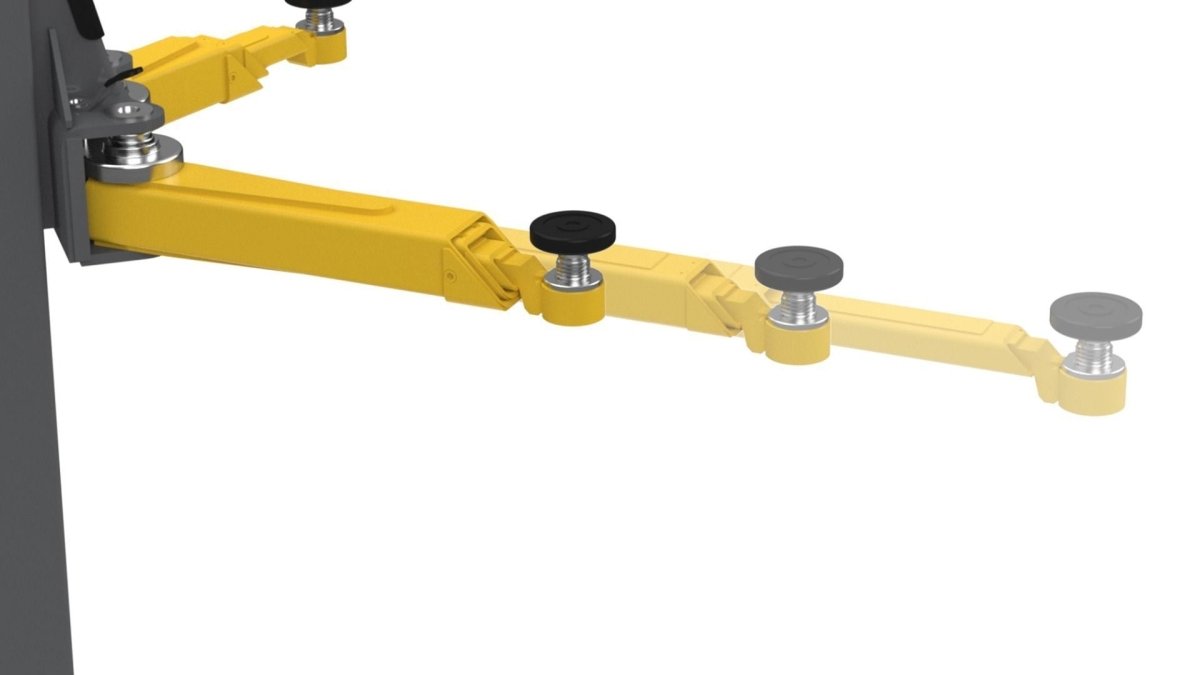

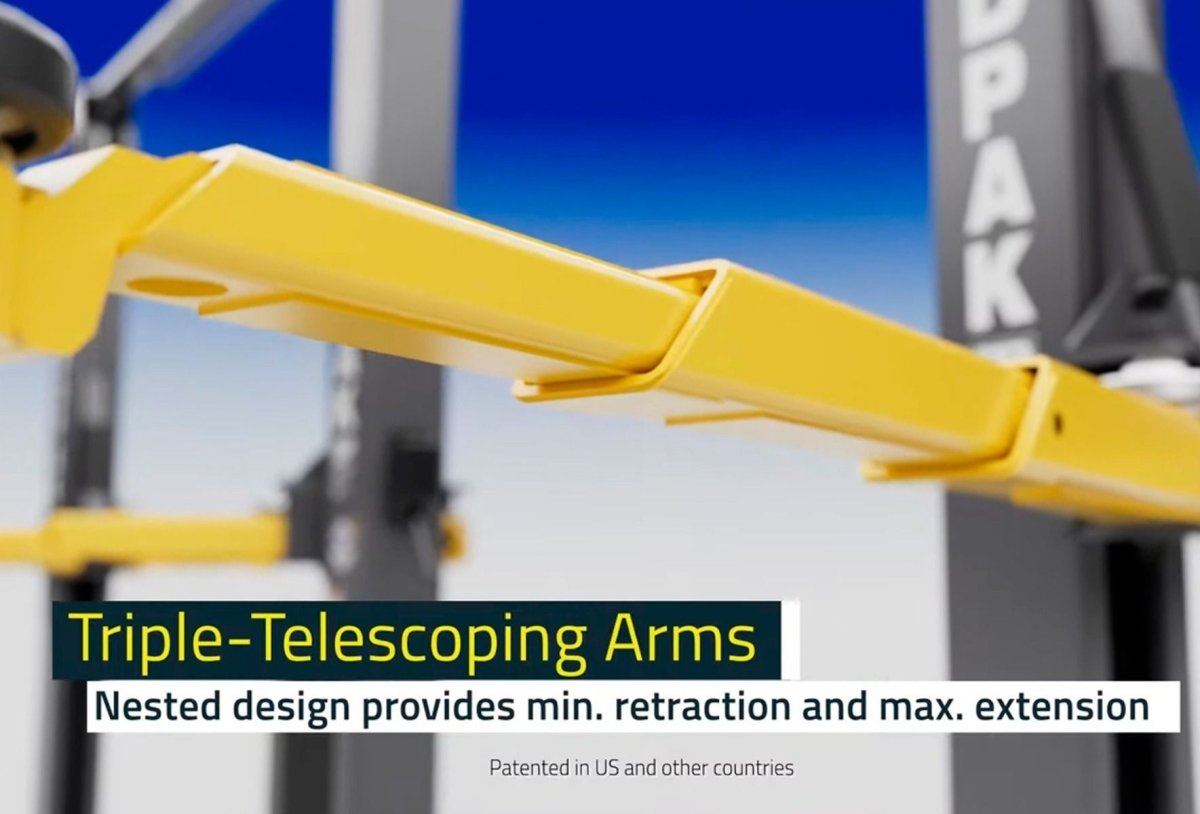

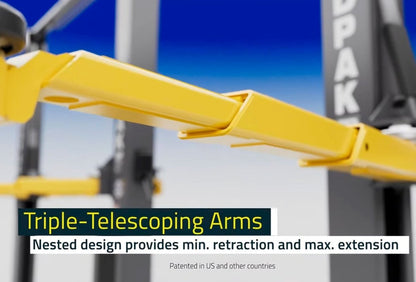

The Bi-Metric arms work in both symmetric and asymmetric configurations without swapping hardware. Triple-telescoping reach adjusts from compact cars to full-size trucks, and the Low-Pro geometry clears EV battery packs. Just rotate the arms during positioning.
79.5" High-Rise Design
Standard two-post lifts top out around 72-74". The 10APX PRO reaches 79.5" with standard pads and 89" with stackable adapters. Taller technicians can work without hunching, and you get better access for transmission and exhaust work.
WSA-100 Air-Electric Workstation
The column-mounted workstation provides 4 electrical outlets and 2 air outlets at the lift. No extension cords across the floor, no separate air drops to install. Circuit-protected connections handle continuous shop use.
Complete Adapter Package

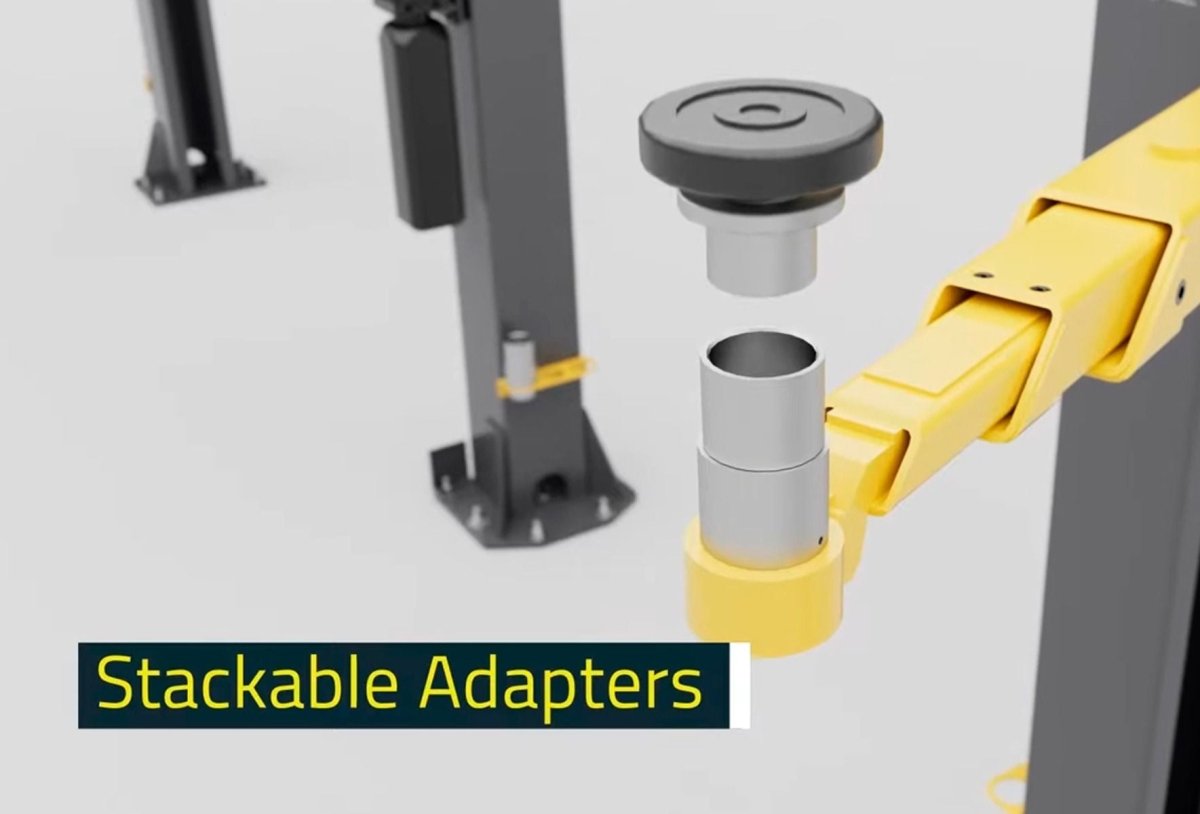

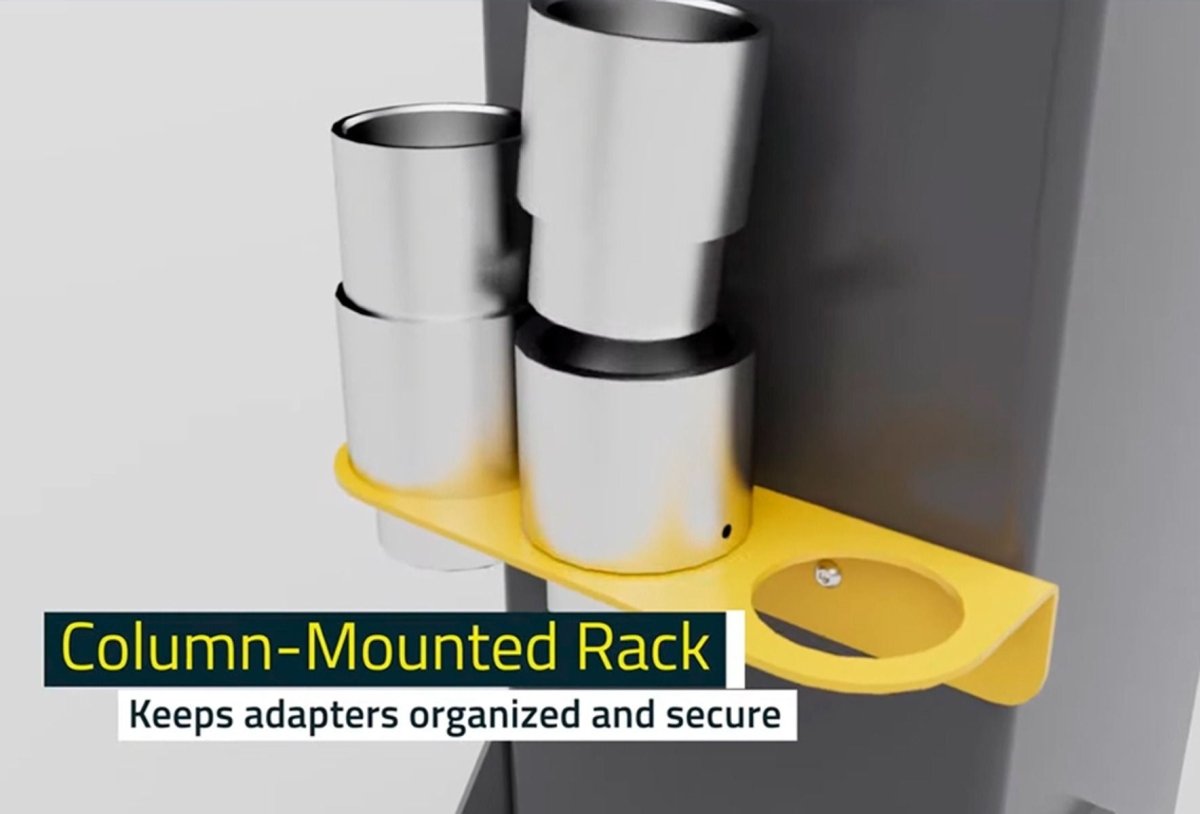

The PRO package includes frame cradle pads, medium stackable adapters (2.5"), and tall stackable adapters (5"). Height range spans 4" minimum to 89" maximum. Storage trays keep adapters organized.
Direct-Drive Hydraulics
The 3 HP power unit runs on 220V single-phase and lifts to full height in 45 seconds. Direct-drive design eliminates chain-over-cylinder setups that need periodic adjustment. Operating noise stays under 70 dB.
Product Video
Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Max Per Arm | 2,500 lb (1,134 kg) |
| Max Per Axle | 5,000 lb (2,268 kg) |
| Rise Time | 45 seconds |
| Sound Level | <70 dB |
| Specification | Value |
|---|---|
| Overall Height | 157" (3,988 mm) |
| Overall Width (Narrow/Wide) | 135" / 145" |
| Inside Columns (Narrow/Wide) | 108.25" / 118.25" |
| Drive-Through (Narrow/Wide) | 92" / 102" |
| Rise + Pad | 79.5" (2,007 mm) |
| Max Height with Adapters | 89" (2,261 mm) |
| Minimum Pad Height | 4" (102 mm) |
| Specification | Value |
|---|---|
| Front Arm Reach | 22" to 47.5" |
| Rear Arm Reach | 29.5" to 57" |
| Safety Lock Spacing | Every 3" |
| Motor | 220 VAC, 60 Hz, single-phase, 3 HP |
Installation Requirements
Ceiling & Space
- Ceiling Height: Minimum 157" (13+ ft) clear
- Column Spacing: 135" or 145" adjustable width
Foundation & Electrical
- Foundation: Reinforced concrete per BendPak anchor specs
- Power: 220 VAC, 60 Hz, single-phase dedicated circuit
- Installation: Professional installation required for warranty
What's Included
PRO Package
- 10APX two-post lift with columns and overhead beam
- WSA-100 Air-Electric Workstation (4 electrical, 2 air outlets)
- Bi-Metric triple-telescoping arms (4)

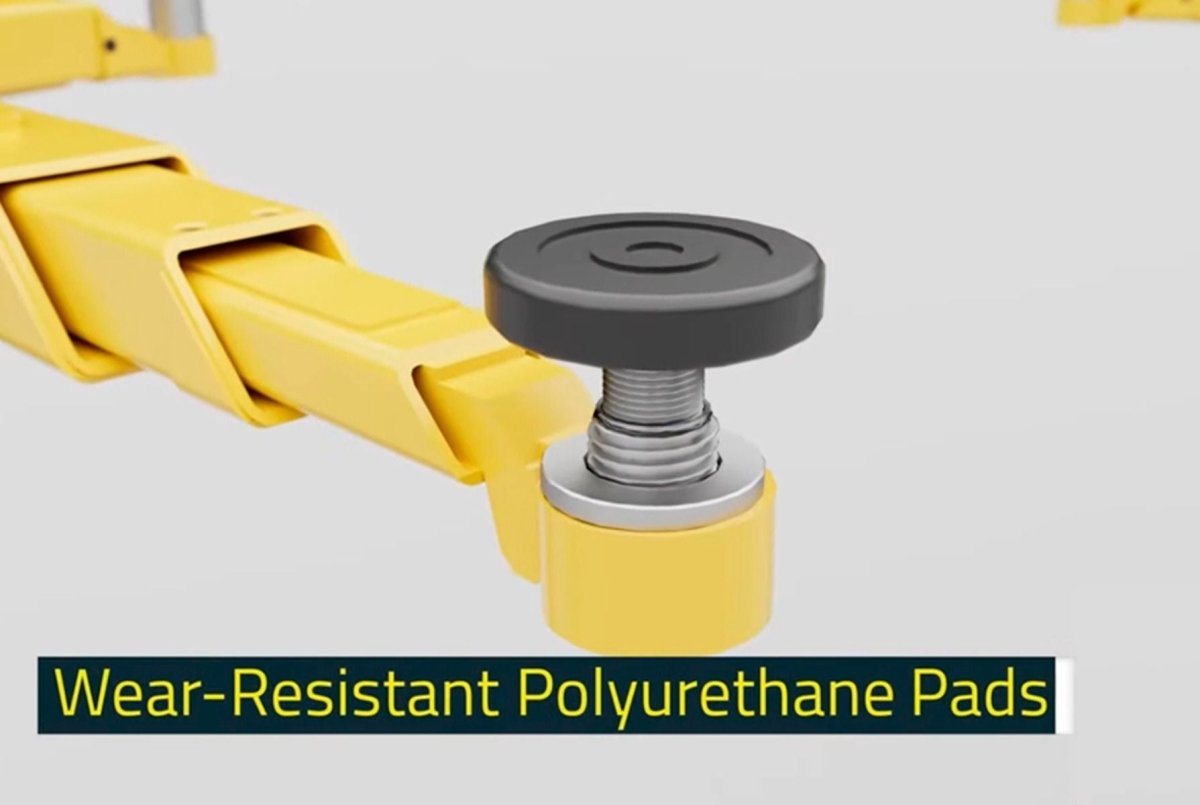

- Double-telescoping screw pads
- Frame cradle pads
- Medium stackable adapters (2.5")
- Tall stackable adapters (5")
- Adapter storage trays
- 3 HP power unit
- Padded overhead shutoff bar
- Installation hardware and anchor kit
Not Included
- Installation labor
- Electrical wiring
- Compressed air supply line to workstation
- Concrete work
Shipping & Delivery
Freight
Free shipping to commercial addresses in 48 states. Alaska, Hawaii, and rural locations may have surcharges. Typical delivery is 2-4 weeks from order.
Receiving
Curbside freight delivery. You need a forklift with 5,000 lb minimum capacity for unloading. Inspect all packages before signing BOL and note any damage.
- Within 15 days: 100% coverage
- Within 30 days: 50% coverage
- After 30 days: No coverage
Warranty
5-2-1 Coverage
- 5 Years: Structural (columns, beam, welded assemblies)
- 2 Years: Hydraulic (cylinders, power unit)
- 1 Year: Operating and electrical components, labor, parts shipping
Requirements: Register within 30 days. Original purchaser only. Installation per manufacturer specs.
Documents
Click to open in a new tab.
Questions About the BendPak 10APX PRO?
Our team can help with product selection, installation planning, and technical specs.
Frequently Asked Questions
What is the lifting capacity and maximum rise?
The 10APX PRO lifts 10,000 lb with 79.5" rise using standard pads. With the included stackable adapters, maximum height reaches 89". Minimum pad height is 4" for low-clearance vehicles.
What accessories come with the PRO package?
The PRO package includes the WSA-100 workstation (4 electrical, 2 air outlets), frame cradle pads, medium adapters (2.5"), tall adapters (5"), double-telescoping screw pads, and adapter storage trays.
What electrical service is required?
220 VAC, 60 Hz, single-phase on a dedicated circuit. The 3 HP motor must be wired per NEC requirements by a licensed electrician.
What ceiling height do I need?
Minimum 157" (13 ft 1 in) from floor to lowest obstruction. The adjustable width fits 135" or 145" column spacing.
Can I use this lift for electric vehicles?
Yes. The Low-Pro arm geometry and 4" minimum pad height provide clearance for EV battery packs. The lift handles electric sedans, trucks, and SUVs within the 10,000 lb capacity.
What certifications does the lift have?
ALI certified to ANSI/ALI ALCTV-2017 standards with ETL validation on electrical components. ASARS provides over 2,000 lb of arm-holding force.
How do the Bi-Metric arms work?
The arms rotate to switch between symmetric and asymmetric configurations without removing hardware. Triple-telescoping reach handles wheelbases from compact cars to full-size trucks.
What warranty is included?
5 years structural, 2 years hydraulics, 1 year electrical and operating components with labor and parts shipping. Register within 30 days.
