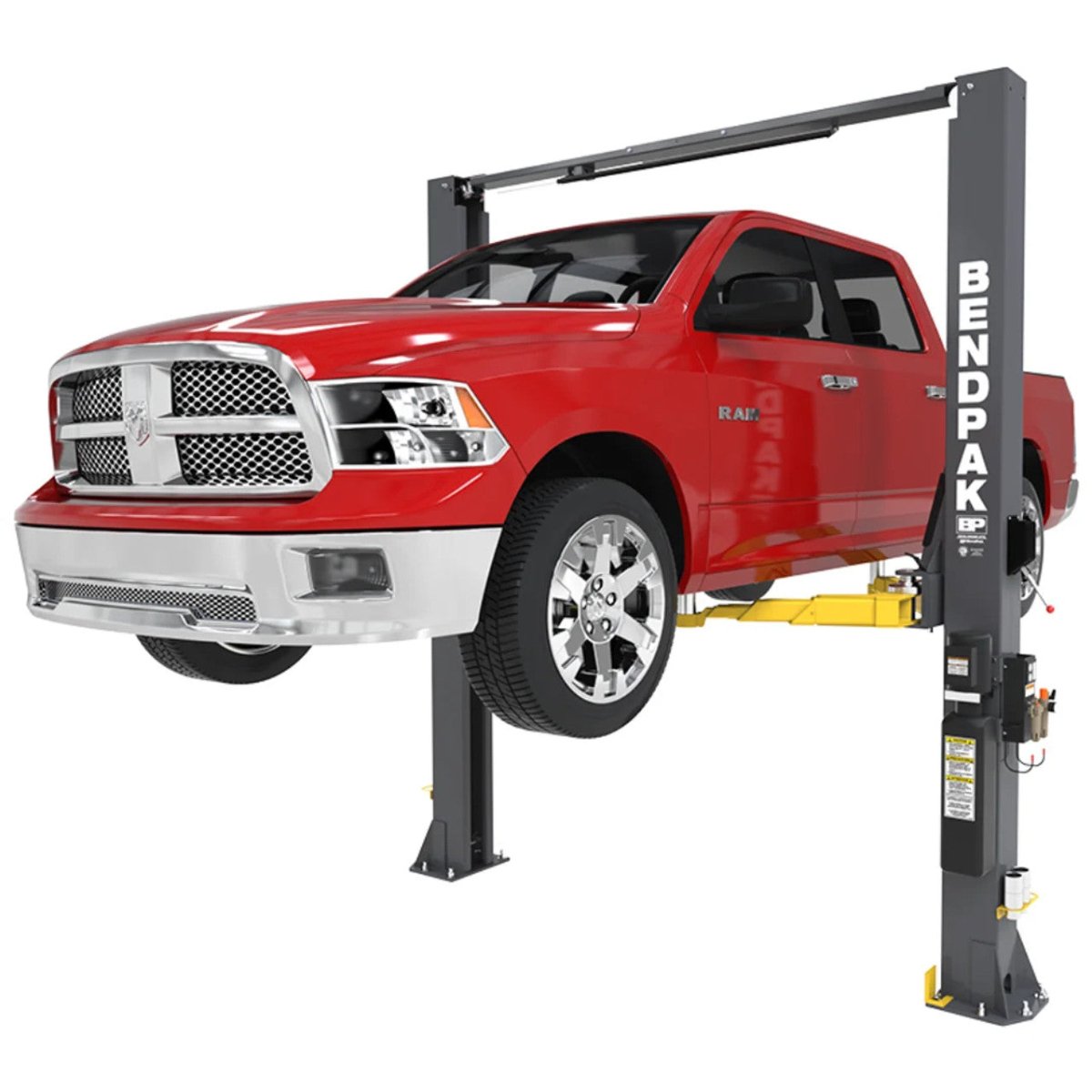

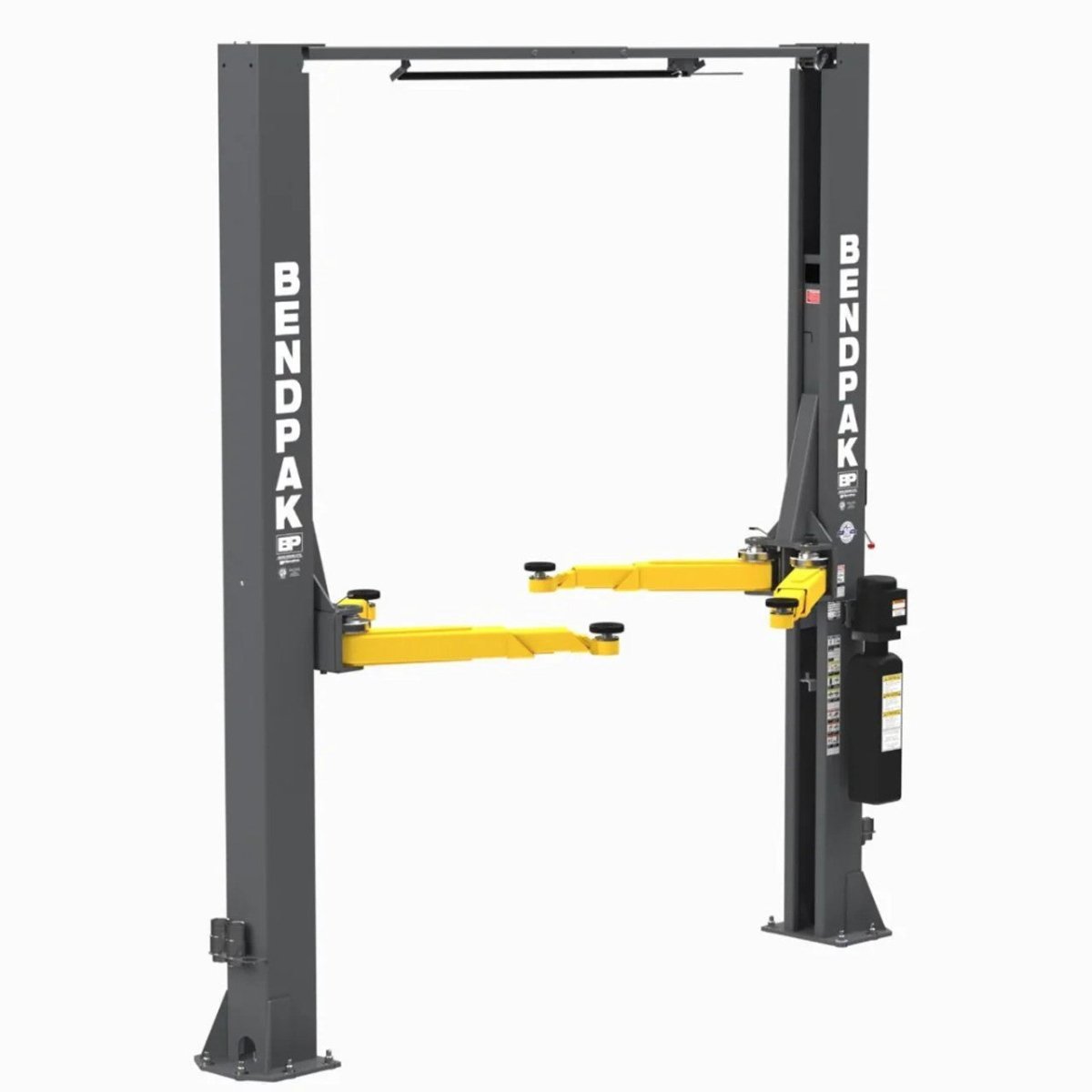

BendPak 10AP PRO Two-Post Lift
The BendPak 10AP PRO is a 10,000 lb capacity clearfloor two-post lift bundled with the WSA-100 Air-Electric Workstation and complete adapter set. It features Bi-Metric swing arms, ASARS safety restraints, and adjustable width installation (135" or 145" column spacing).
Who It's For
Professional Shops Wanting a Complete Setup
If you're equipping a new bay or replacing an old lift, the PRO Package bundles the accessories you'd buy anyway. The WSA-100 workstation puts air and electric power at the column, and the included adapters cover most vehicle types. One purchase, one delivery, ready to install.
High-Volume Service Centers
The Bi-Metric arms switch between symmetric and asymmetric positioning without hardware changes. When cycling through mixed vehicles all day, that flexibility cuts setup time. The 45-second rise and direct-drive hydraulics keep bays moving.
Serious Home Garages
The 145" overall height fits standard 12-foot residential garage ceilings. If you're doing your own maintenance and want professional-grade equipment with integrated air and power, the PRO Package delivers without piecing together separate accessories.
Key Features
WSA-100 Air-Electric Workstation
The WSA-100 mounts to the lift column and provides compressed air and electrical outlets at the work area. No more running air hoses across the floor or extension cords to wall outlets.
ASARS Automatic Arm Restraint
The ASARS delivers 2,000+ lb of clamping force through a 360-degree forged steel grip. Arms lock automatically when positioned and stay put even when weight distribution shifts during engine or transmission work. Quick-release lever disengages for repositioning.

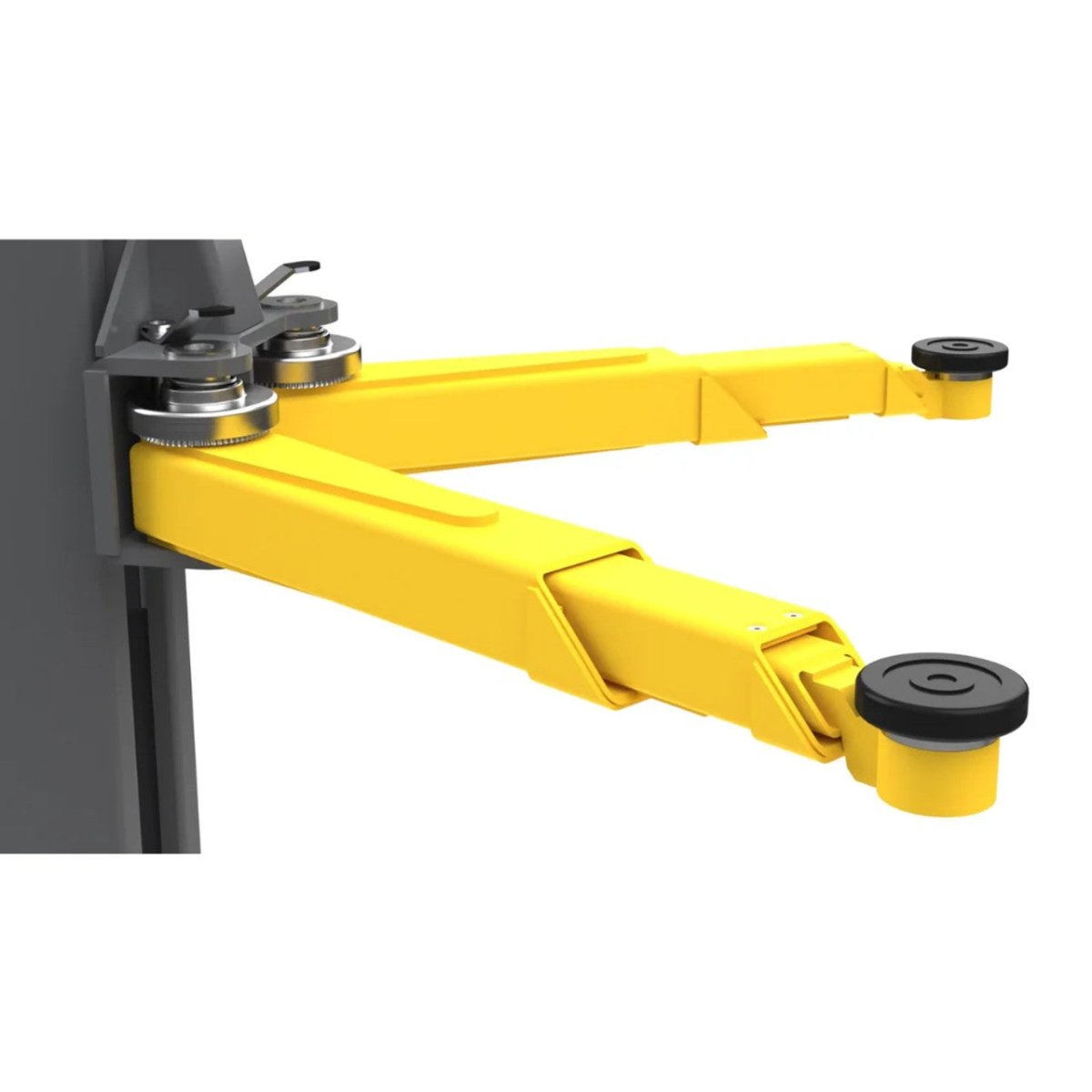

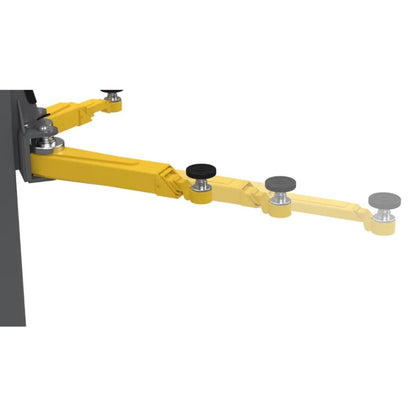

Bi-Metric Triple-Telescoping Arms
Each arm handles 2,500 lb and works in both symmetric and asymmetric configurations. The Low-Pro design reaches down to 4" minimum pad height for lowered cars and EVs. Front arms reach 22" to 47.5", rear arms reach 29.5" to 57".
Direct-Drive Hydraulics
Dual hydraulic cylinders connect directly to the carriages with no chains or cables to maintain. The power unit runs on 220 VAC, 60 Hz, single-phase and reaches full height in 45 seconds at under 70 dB.

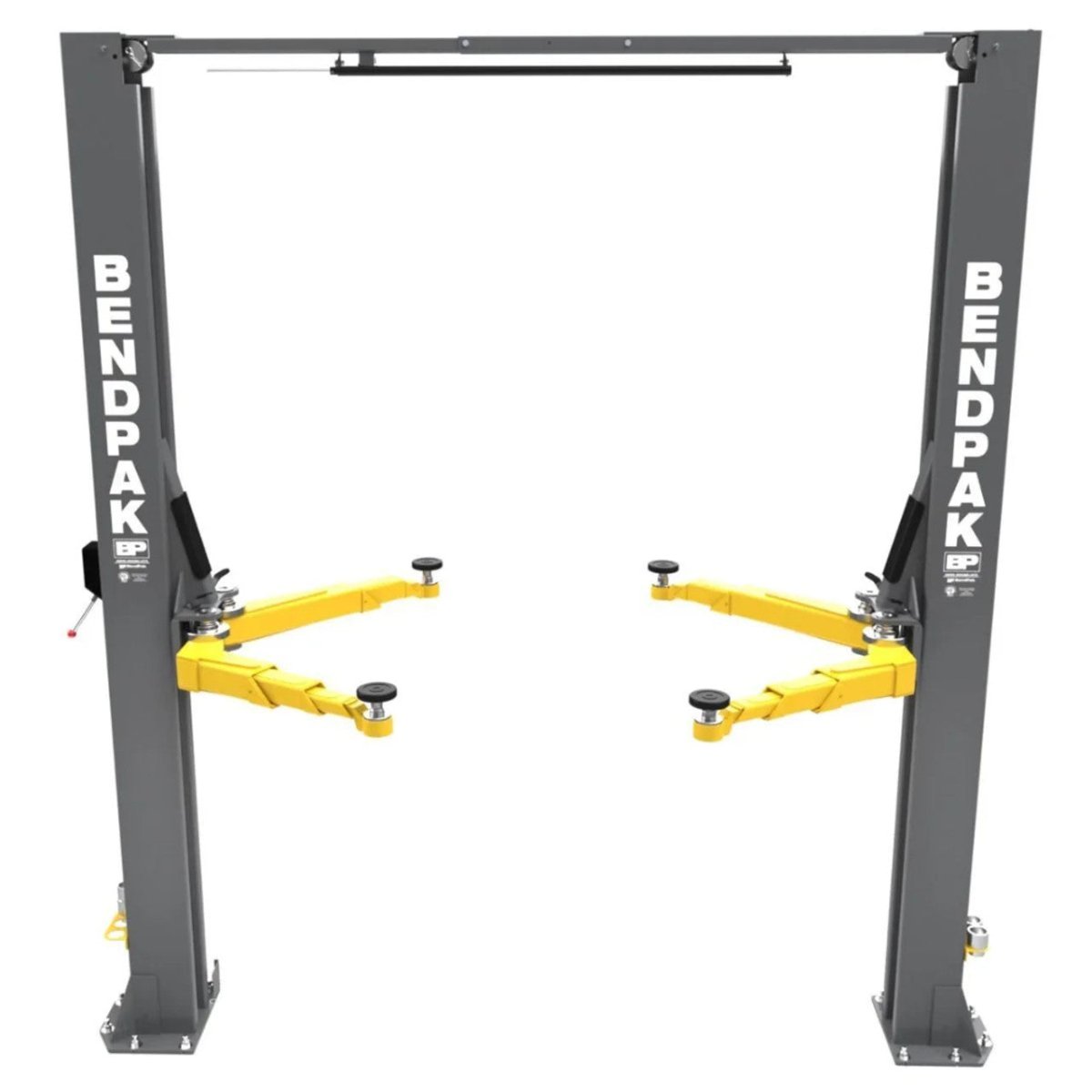

Adjustable Width Clearfloor Design
Install at 135" or 145" overall width based on your bay dimensions. Inside column spacing is 108.5" or 118.5" with 92" or 102" drive-through clearance. The overhead beam leaves the floor completely clear.
Product Video
Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Max Per Arm | 2,500 lb (1,134 kg) |
| Max Per Axle | 5,000 lb (2,268 kg) |
| Rise Time | 45 seconds |
| Sound Level | <70 dB |
| Specification | Value |
|---|---|
| Overall Height | 145" (3,683 mm) |
| Overall Width (Narrow/Wide) | 135" / 145" |
| Inside Posts (Narrow/Wide) | 108.5" / 118.5" |
| Drive-Through (Narrow/Wide) | 92" / 102" |
| Lifting Height | 73" (1,854 mm) |
| Max Lifting Height | 82.5" (2,095 mm) |
| Min Pad Height | 4" (102 mm) |
| Specification | Value |
|---|---|
| Front Arm Reach | 22" to 47.5" |
| Rear Arm Reach | 29.5" to 57" |
| Motor | 220 VAC, 60 Hz, single-phase |
| ALI Certification | Yes |
Installation Requirements
Concrete
- Slab: Single continuous slab under both columns
- Thickness: Minimum 4"
- Strength: 3,000 PSI, cured 28 days
- No installation over: Expansion joints, asphalt, or hollow decks
Ceiling & Electrical
- Ceiling Height: Minimum 145" (just over 12 ft)
- Power: 220 VAC, 60 Hz, single-phase dedicated circuit
- Installation: Licensed electrician required
What's Included
Lift Components
- Four triple-telescoping Bi-Metric swing arms
- Dual direct-drive hydraulic cylinders
- ASARS (Automatic Swing Arm Restraint System)
- Double-telescoping screw pads with polyurethane contacts
- Column-mounted adapter holder racks (2)
- Padded overhead safety shutoff bar
- Anchor hardware

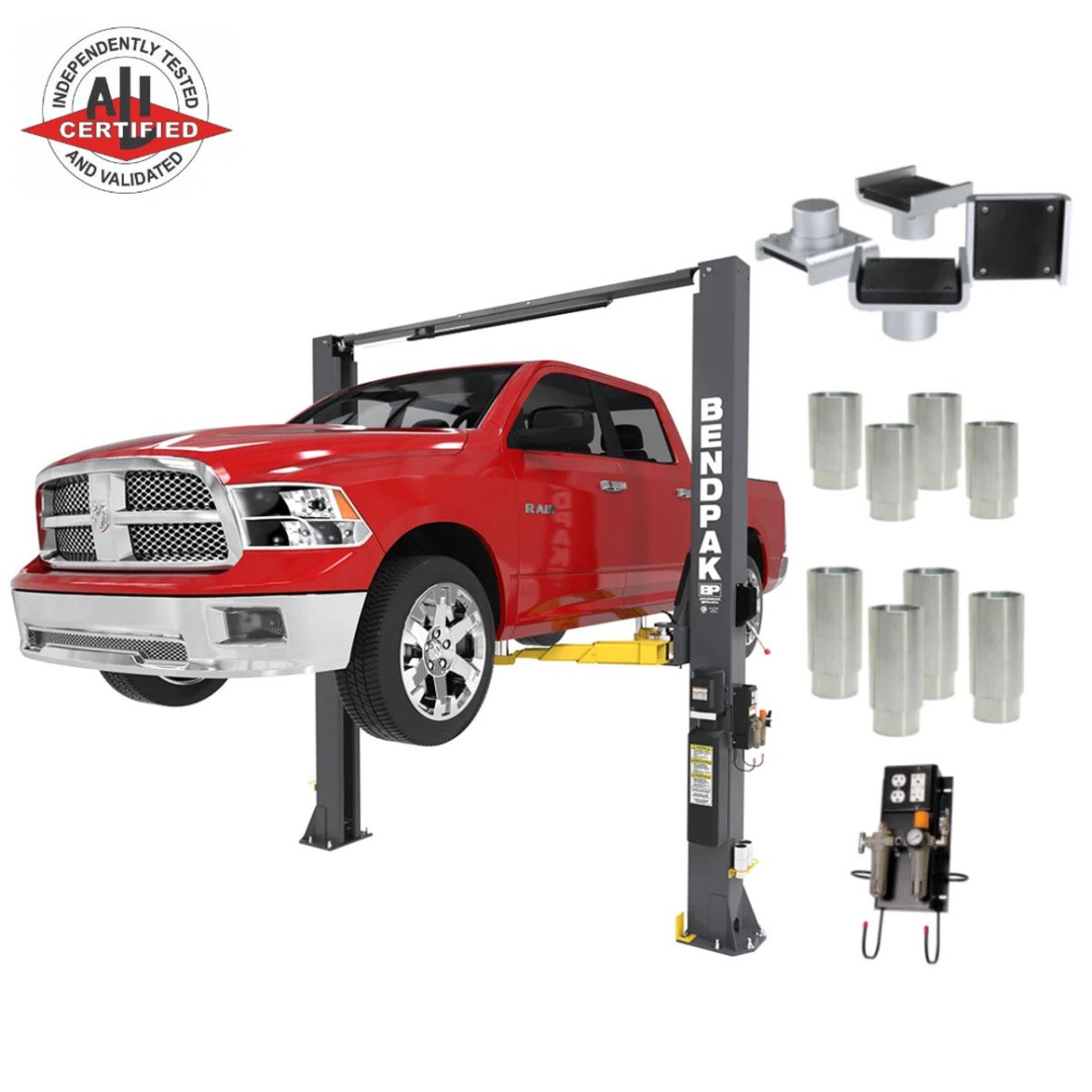

PRO Package Accessories
- WSA-100 Air-Electric Workstation
- Frame cradle pads, set of 4
- Medium stackable adapters (60mm), set of 4
- Tall stackable adapters, set of 4
Not Included
- Installation labor
- Electrical wiring
- Air compressor and lines
- Concrete work
- Forklift for unloading
Shipping & Delivery
Freight
Free shipping to commercial addresses in 48 states. Residential delivery available with surcharge. Typical delivery is 3-5 business days depending on inventory and location.
Receiving
Shipping weight is approximately 1,729 lb in a crate measuring 150" x 24" x 28". You need a forklift with at least 2,000 lb capacity. Liftgate not available due to equipment size. Inspect all crates before signing BOL.
- Within 15 days: 100% coverage
- Within 30 days: 50% coverage
- After 30 days: No coverage
Warranty
5-2-1 Coverage
- 5 Years: Structural (columns, arms, carriage, framework)
- 2 Years: Hydraulic (cylinders, power unit)
- 1 Year: Operating and electrical components, labor, parts shipping
Requirements: Register within 30 days. Original purchaser only. Installation per manufacturer specs.
Documents
Click to open in a new tab.
Questions About the 10AP PRO Package?
Our team can help with lift selection, installation planning, and accessory questions.
Frequently Asked Questions
What's the difference between the PRO Package and the standard 10AP?
The PRO Package bundles the standard 10AP with the WSA-100 Air-Electric Workstation, frame cradle pads (set of 4), medium stackable adapters (set of 4), and tall stackable adapters (set of 4). The lift itself is identical. If you'd buy these accessories anyway, the package saves money.
What ceiling height do I need?
Minimum 145" (just over 12 ft) of clear ceiling height. This fits standard 12-foot commercial and residential garage ceilings. For higher-roof vans, look at the 10AP-168 or 10APX-181 models.
What accessories come with the PRO Package?
WSA-100 Air-Electric Workstation for air and power at the column, frame cradle pads (set of 4), medium stackable adapters 60mm (set of 4), and tall stackable adapters (set of 4). The lift includes screw pads, adapter holder racks, and safety equipment.
What are the concrete requirements?
Minimum 4" thick concrete with 3,000 PSI strength, cured at least 28 days. Single continuous slab under both columns with no expansion joints in the anchor area.
Can this lift handle lowered cars and EVs?
Yes. The Low-Pro arms reach 4" minimum pad height, which clears most lowered vehicles and EV battery packs. Polyurethane pads protect aluminum and composite lift points.
How do the Bi-Metric arms work?
Bi-Metric arms configure for symmetric or asymmetric loading without swapping hardware. Each arm supports 2,500 lb. Front arms reach 22-47.5", rear arms reach 29.5-57".
What does the WSA-100 workstation provide?
The WSA-100 mounts to the lift column and provides compressed air outlets and electrical receptacles. It connects to your shop's air system and the lift's electrical circuit.
What warranty is included?
5 years structural, 2 years hydraulics, 1 year electrical and operating components with labor and parts shipping. Register within 30 days.
