BendPak 10APX-181 PRO Extended-Height Two-Post Lift
The BendPak 10APX-181 PRO is a 181" tall clearfloor two-post lift built for high-roof cargo vans and commercial vehicles. It features 10,000 lb capacity, 89" max lifting height with adapters, and 45-second rise time. The PRO package includes the WSA-100 air-electric workstation, frame cradle pads, and stackable adapter sets. ALI certified with 5-2-1 warranty.
Who It's For
- High-Roof Cargo Van Service: Ford Transit, Mercedes Sprinter, Ram ProMaster, Nissan NV. The 181" height clears vehicles that won't fit under standard 144-168" lifts.
- Electric Vehicle Service: Tesla, Rivian, F-150 Lightning, and commercial EVs. Bi-Metric arms reach outboard lift points on battery-heavy vehicles.
- Fleet Maintenance: Delivery vans, utility trucks, and mixed commercial fleets requiring extended height clearance.
- Professional Shops: High-volume facilities servicing trucks, SUVs, and commercial vehicles up to 10,000 lb.
Key Features
181" Extended Height
The 181" overall height provides clearance for high-roof cargo vans that won't fit under standard lifts. Maximum lifting height is 89" with adapters, and rise to pads is 75.5". If you service Transit, Sprinter, or ProMaster high-roof models, this is the lift.

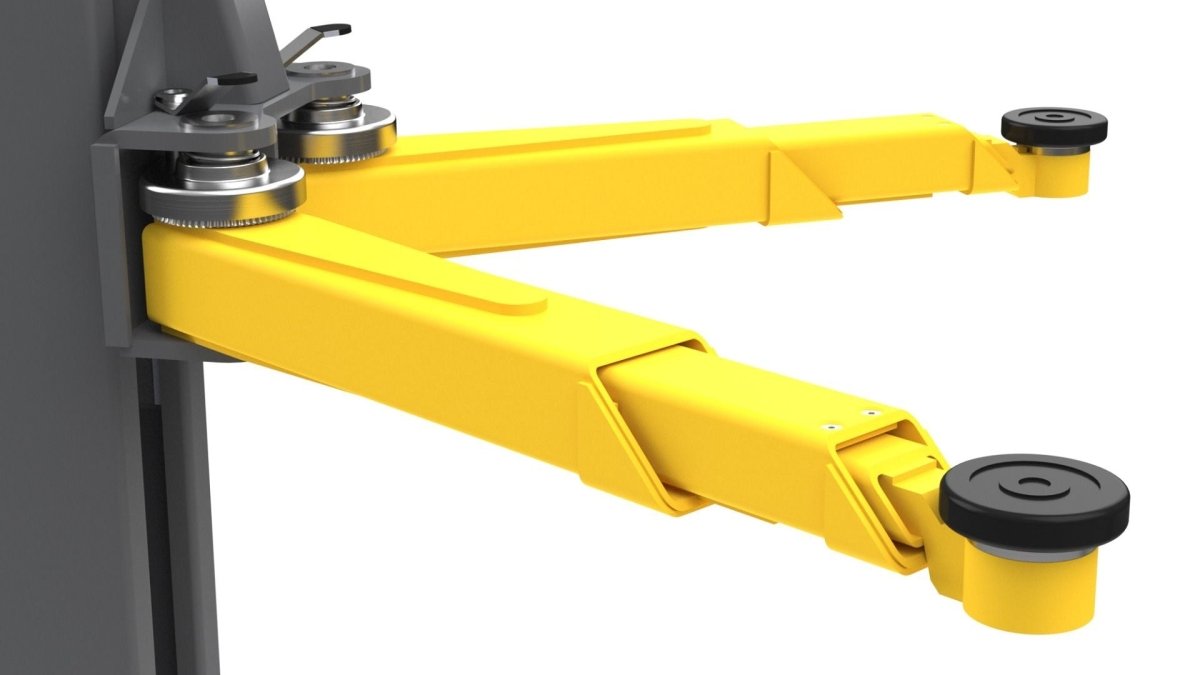

Bi-Metric Swing Arms

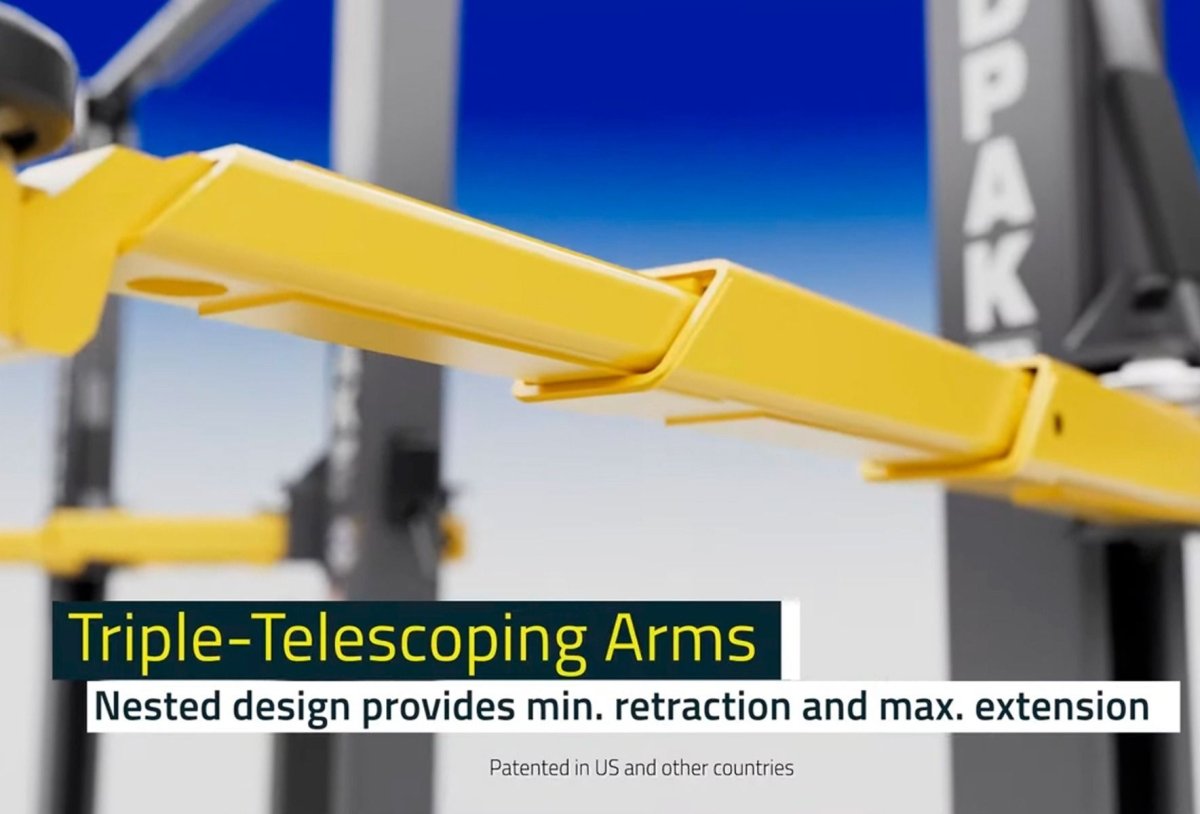

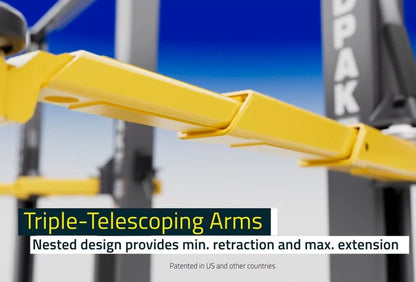

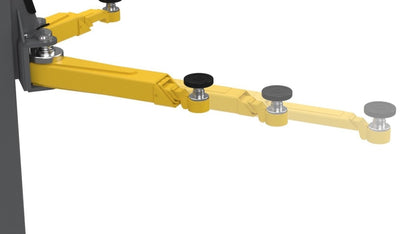

Bi-Metric arms support both symmetric and asymmetric lifting without reconfiguration. The triple-telescoping design provides extended reach for outboard lift points on EVs and trucks with non-standard chassis geometry.

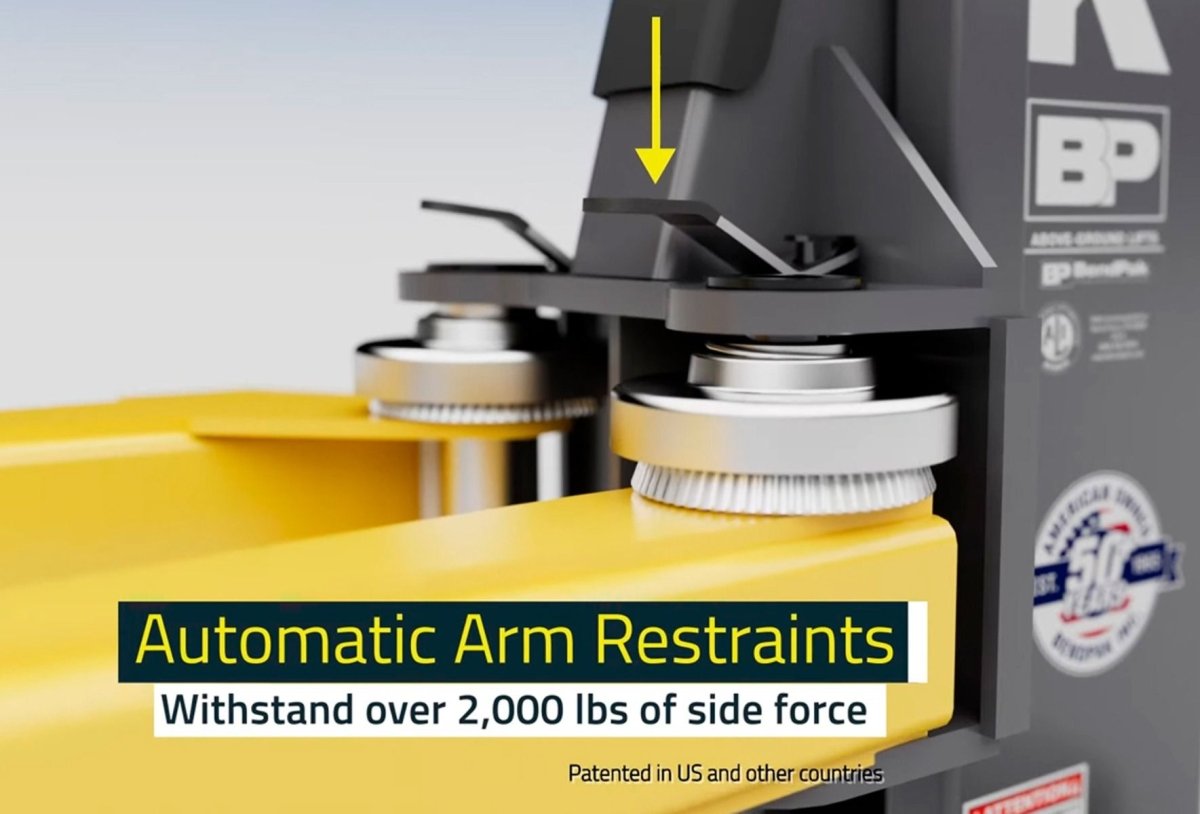

ASARS Arm Restraint
The patented Automatic Swing Arm Restraint System provides 2,000+ lb holding force with 360-degree engagement. This prevents arm slippage during heavy component removal and includes single-point release when you need it.
Direct-Drive Hydraulics
Dual direct-drive cylinders eliminate chains or screws to maintain. Rise time is 45 seconds to full height with an HVLP hydraulic system and 3 HP motor.
Clearfloor Design
No floor plate or crossbeam obstructions. Full drive-through access with adjustable width from 135" to 145" between columns.
What's Included (PRO Package)
- WSA-100 Air-Electric Workstation: Four 110V/20-amp GFI outlets, dual air service outlets with filtration and pressure regulation
- Frame Cradle Pads: Set of 4

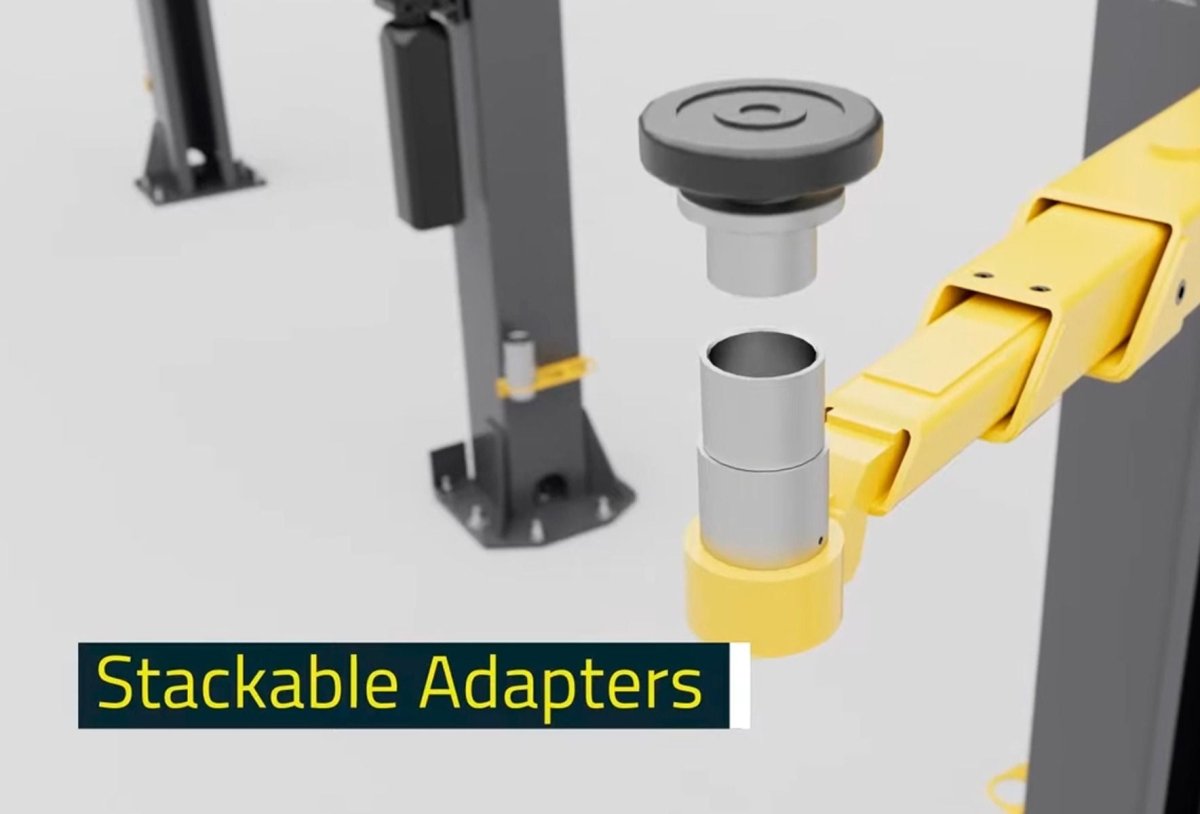

- Medium Stackable Adapters: Set of 4
- Tall Stackable Adapters: Set of 4

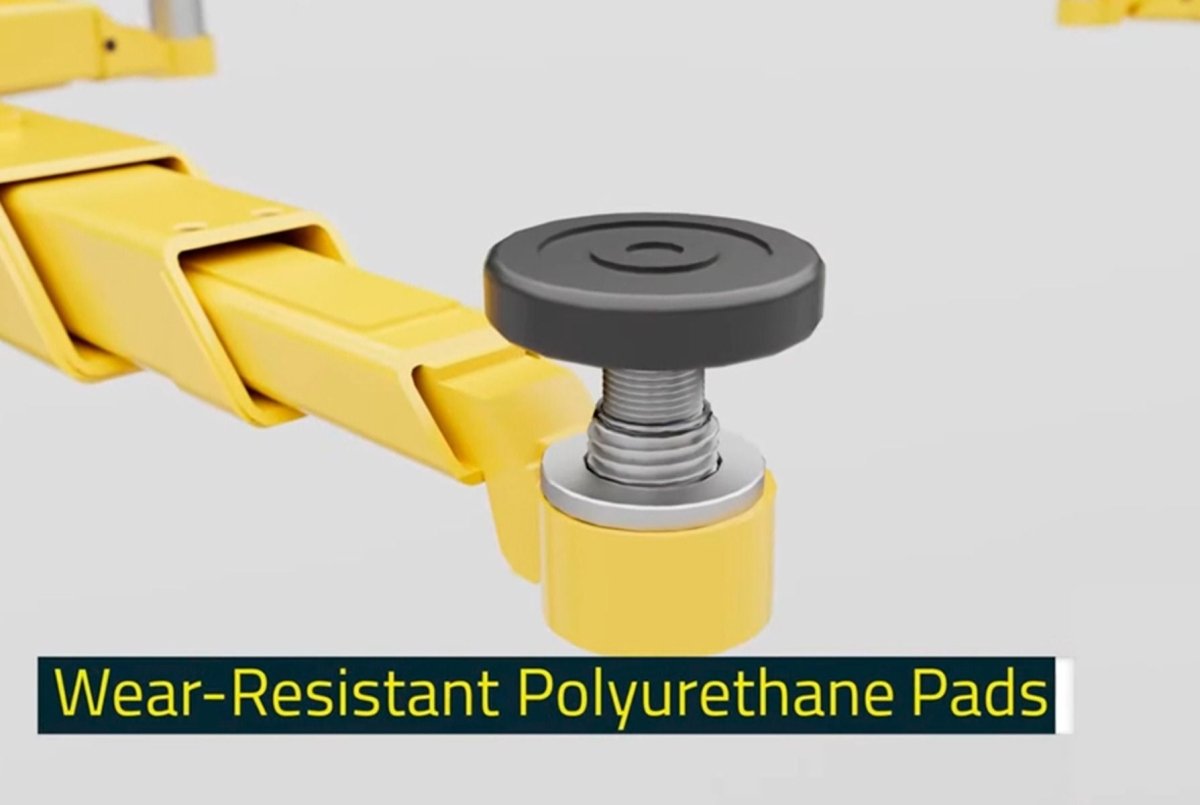

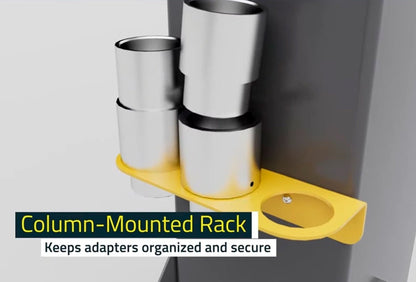

- Standard screw pads and adapter holders
- All installation hardware and anchor bolts
Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Max Per Arm | 2,500 lb (1,134 kg) |
| Max Lift with Adapters | 89" (2,261 mm) |
| Rise to Pads | 75.5" (1,918 mm) |
| Min Pad Height | 4" (102 mm) |
| Rise Time | 45 seconds |
| Specification | Value |
|---|---|
| Overall Height | 181" (4,597 mm) |
| Overall Width | 135-145" adjustable |
| Overhead Shutoff | 176" (4,470 mm) |
| Specification | Value |
|---|---|
| Motor | 3 HP, 220 VAC, 60 Hz, single-phase |
| Sound Level | <70 dB |
| Shipping Weight | 1,840-1,902 lb |
| Shipping Dimensions | 162" x 24" x 30" |
Installation Requirements
Concrete
- Thickness: Minimum 4.25", 3,000 PSI
- Curing: 28 days minimum
- Level: Within 3/8" across installation area
- Edge Clearance: 6" minimum from slab edges
Ceiling & Electrical
- Ceiling Height: Minimum 181" (15 ft 1 in)
- Power: 220 VAC, 60 Hz, single-phase
- Installation: Licensed electrician required
Shipping & Delivery
Freight
Commercial freight to business addresses in the lower 48 states. Residential delivery surcharges may apply.
Receiving
Forklift required. Shipping weight is 1,840-1,902 lb. Liftgate not available due to weight. Inspect all packages before signing the BOL and note any visible damage before the driver leaves.
Warranty
5-2-1 Coverage
- 5 Years: Structural (frame, columns)
- 2 Years: Hydraulic (power unit, cylinders)
- 1 Year: Electrical, accessories, labor
Requirement: Installation by qualified personnel per manufacturer specs.
Documents
Click to open in a new tab.
Questions?
Ceiling height requirements, PRO package contents, or installation planning.
FAQ
What ceiling height do I need?
Minimum 181" (15 ft 1 in) overhead clearance. This is a high-rise lift designed for facilities with tall ceilings.
What's the difference between the PRO and standard 10APX-181?
The PRO package includes the WSA-100 air-electric workstation, frame cradle pads (set of 4), medium adapters (set of 4), and tall adapters (set of 4). The standard model requires separate accessory purchases.
Can this lift handle high-roof cargo vans?
Yes. The 181" height is specifically designed for Ford Transit, Mercedes Sprinter, Ram ProMaster, and similar high-roof vans that won't clear standard 144-168" lifts.
What does Bi-Metric mean?
Bi-Metric arms support both symmetric (centered) and asymmetric (offset) vehicle positioning without swapping or reconfiguring arms. This is useful for vehicles with non-standard lift points.
Is this lift ALI certified?
Yes. ALI certified to ANSI/ALI ALCTV-2017 standards with ETL listed electrical components.
What is ASARS?
Automatic Swing Arm Restraint System is a patented mechanism that locks arms in place with 2,000+ lb holding force to prevent slippage during service. It includes single-point release to disengage.
Do I need a forklift for delivery?
Yes. Shipping weight is 1,840-1,902 lb. Liftgate service is not available due to weight.
