BendPak 10APX-181 Two-Post Car Lift for Garage - 10,000 lb - High-Rise
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

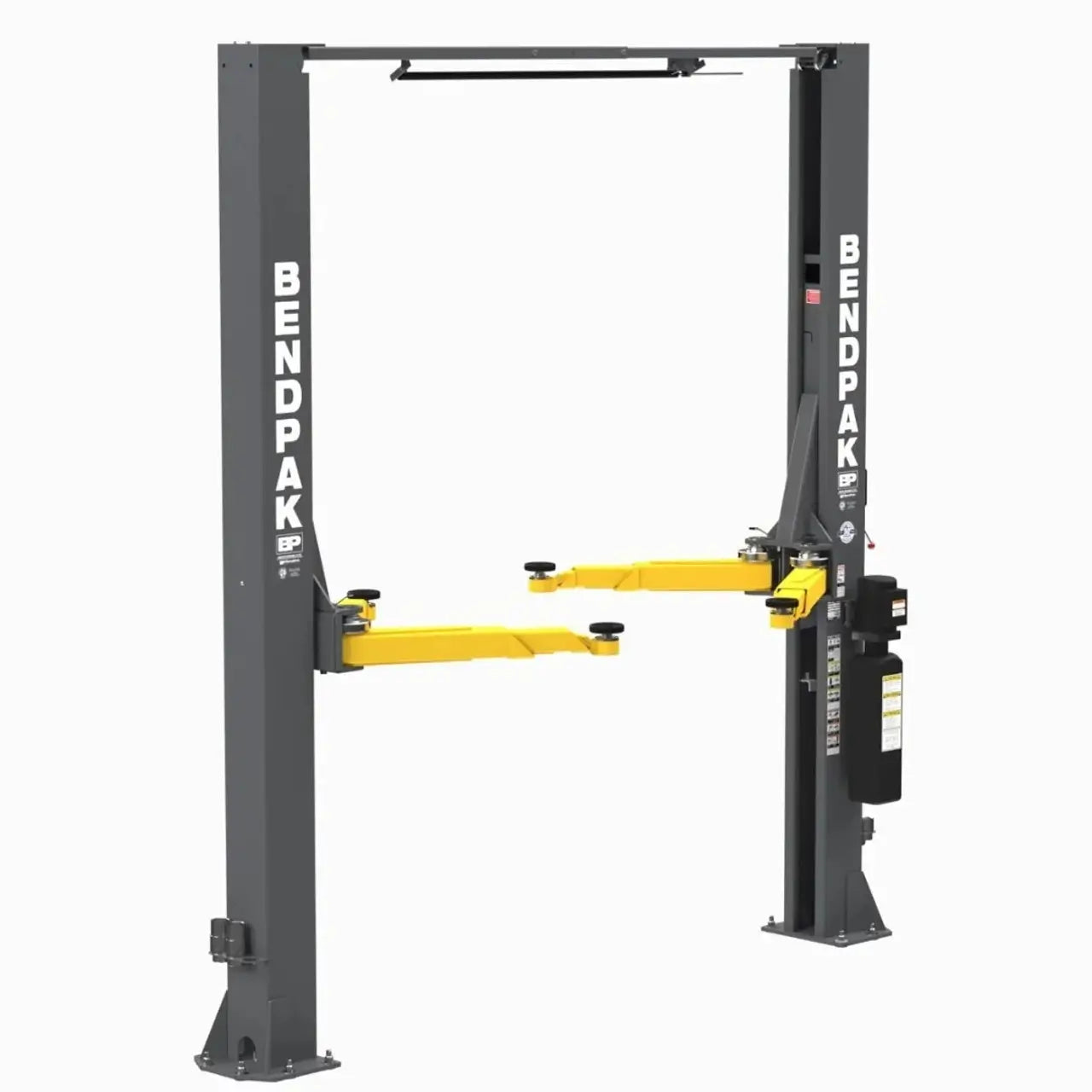

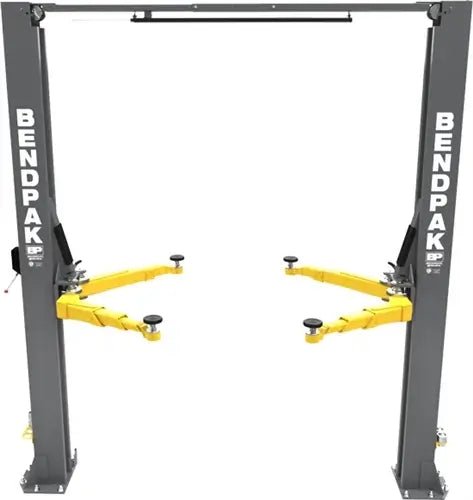

BendPak 10APX-181 Extended-Height Two-Post Lift
The BendPak 10APX-181 is a 10,000 lb capacity two-post lift with 181" overall height, built for shops that service high-roof cargo vans, electric vehicles, and commercial fleets. The clearfloor design with patented Bi-Metric swing arms handles everything from compact cars to tall Sprinter vans without reconfiguration.
Who It's For
Commercial Fleet Service Centers
If your shop services delivery vans, commercial vehicles, or mixed fleets, the 181" height lets you work on tall cargo vans that won't fit under standard lifts. One lift handles the whole fleet instead of needing dedicated equipment for different vehicle types.
EV Service Shops
Electric vehicles run 20-30% heavier than comparable gas vehicles due to battery packs. The 10APX-181's reinforced structure and 10,000 lb capacity handles Tesla, Ford Lightning, Rivian, and commercial electric vans without concerns about weight limits.
Full-Service Automotive Shops
Dealerships and independent shops that see everything from sedans to lifted trucks benefit from the Bi-Metric arm system. Switch between symmetric positioning for quick services and asymmetric for transmission or drivetrain work without changing hardware.
Features
181" Extended Height

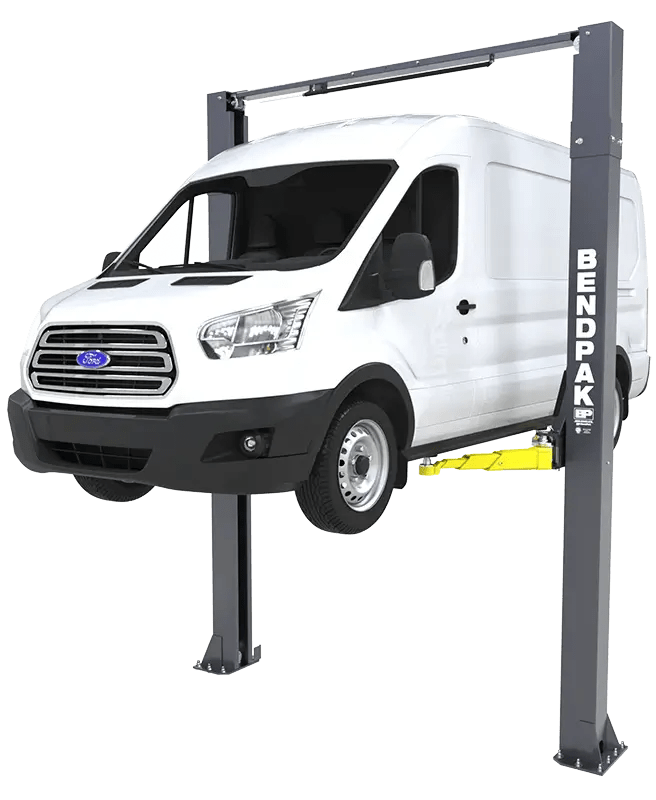

Standard 10,000 lb two-post lifts top out around 140-160". The 10APX-181 adds 20-30" of overhead clearance, so Mercedes Sprinters, Ford Transits, and RAM ProMasters fit with room to spare. Technicians get full undercarriage access without crouching.
ASARS Automatic Arm Restraint
The patented Automatic Swing Arm Restraint System uses forged steel and delivers 2,000+ lb of clamping force with a 360-degree grip. Arms lock automatically when you position them. When pulling engines or transmissions, the arms stay put even as weight distribution shifts.
Bi-Metric Swing Arms
Each triple-telescoping arm extends from 22" to 57". Position the vehicle symmetrically for oil changes and tire rotations, or asymmetrically for better door clearance during interior or drivetrain work. Same hardware, both configurations.
Direct-Drive Hydraulics
Dual hydraulic cylinders connect directly to the carriages with no chains or cables to stretch, adjust, or replace. The lift reaches full height in 45 seconds and operates under 70 dB, quiet enough for conversation in the bay.
EV-Ready Construction
High-tensile steel columns and reinforced bases handle the concentrated weight of battery packs. Lift points accommodate the different weight distribution of EVs compared to ICE vehicles. Your equipment investment stays relevant as more electric vehicles hit the road.
Clearfloor Design
No base plates between the columns. Roll jacks, transmission stands, and tool carts move freely under the vehicle. The adjustable width configuration (135" or 145" overall) fits different bay sizes while maintaining 92-102" drive-through clearance.
Product Video
Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Max Rise | 75.5" (1,918 mm) |
| Lifting Height | 79.5" (2,019 mm) |
| Max Lifting Height | 89" (2,261 mm) |
| Min Pad Height | 4" (102 mm) |
| Rise Time | 45 seconds |
| Max Load per Arm | 2,500 lb (1,134 kg) |
| Specification | Value |
|---|---|
| Overall Height | 181" (4,597 mm) |
| Overall Width | 135" / 145" (3,431 / 3,683 mm) |
| Outside Columns | 127" / 137.5" (3,238 / 3,492 mm) |
| Inside Posts | 108.5" / 118.5" (2,756 / 3,010 mm) |
| Drive-Thru Clearance | 92" / 102" (2,477 / 2,731 mm) |
| Front Arm Reach | 22" - 47.5" (559 - 1,207 mm) |
| Rear Arm Reach | 29.5" - 57" (750 - 1,448 mm) |
| Specification | Value |
|---|---|
| Motor | 220 VAC, 60Hz, 1 Phase |
| Sound Level | <70 dB |
| Screw Pad Adjustment | 2" (51 mm) |
| Floor to Top Switch | 176" (4,470 mm) |
Installation Requirements
Concrete Foundation
Minimum thickness: 4.25". Minimum strength: 3,000 PSI compressive. Cure time: 28 days minimum before installation. The floor must be level, solid concrete without cracks or expansion joints at anchor locations. Keep anchors at least 6" from edges, cracks, or walls.
Electrical
Power: 220 VAC, single-phase, 60 Hz dedicated circuit. Installation must comply with local electrical codes and NEC standards. Hire a licensed electrician for the power connection.
Ceiling and Bay Space
Ceiling height: Minimum 181" for overhead beam clearance. Width options: 135" or 145" configuration based on your bay width. A forklift with 3,000 lb minimum capacity is required for positioning during installation.
What's Included
- Four triple-telescoping Bi-Metric swing arms
- Dual direct-drive hydraulic cylinders
- ASARS (Automatic Swing Arm Restraint System)
- Single-point safety release
- Double-telescoping screw pads with polyurethane contacts
- Column-mounted adapter holder racks (2)
- Padded overhead safety shutoff bar
- Anchor hardware
Optional accessories (sold separately): 5" tall adapters, 2.5" medium adapters, 2" low adapters, frame cradle pads, wide frame cradle pads, steel lift pads.
Not included: Installation labor, electrical wiring, permits, engineered slab work, forklift for unloading.
Shipping and Delivery
Free Freight Shipping
SKU: 5175307. Free LTL freight to commercial addresses in the contiguous 48 states. Residential delivery available with surcharge. Rural and remote locations may incur additional fees. Estimated delivery is 2-4 weeks depending on inventory and location.
Receiving Requirements
You'll need a forklift with at least 3,000 lb capacity to unload. Liftgate service is not available due to equipment size. Inspect all crates before signing the bill of lading and note any visible damage on the paperwork before the driver leaves.
Damage Claims
Within 15 days: 100% coverage for replacement parts and freight. Within 30 days: 50% coverage (shared cost). After 30 days: No coverage available.
Warranty
Coverage Period
- 5 Years: Structural components including columns, overhead beams, and framework
- 2 Years: Hydraulic cylinders and power unit
- 1 Year: Operating and electrical components
- 1 Year: Labor (on-site or factory)
- 1 Year: Free shipping on warranty parts (48 continental U.S.)
Warranty Requirements
Register your product within 30 days of purchase. Warranty is valid for the original purchaser only and is non-transferable. Installation must follow the manufacturer's manual and local codes.
Documents
Click to open in a new tab.
Questions About the 10APX-181?
Our team can help with product selection, installation planning, and technical questions.
FAQ
What is the lifting capacity and rise height of the BendPak 10APX-181?
The 10APX-181 has a 10,000 lb lifting capacity with 75.5" of rise. Lifting height is 79.5", or 89" with stackable adapters. This handles everything from compact cars to full-size trucks and high-roof cargo vans.
What ceiling height do I need for the 10APX-181?
You need at least 181" (15' 1") of ceiling clearance for the overhead beam. This is 20-30" taller than standard two-post lifts, so measure your bay carefully before ordering.
What accessories come with the lift?
The lift includes four Bi-Metric swing arms, dual hydraulic cylinders, ASARS safety system, double-telescoping screw pads, column-mounted adapter holder racks, and a padded overhead shutoff bar.
What are the concrete requirements?
Minimum 4.25" thick concrete with 3,000 PSI compressive strength. The slab must cure at least 28 days before installation. Anchors need to be 6" minimum from any edges, cracks, or walls.
Can the 10APX-181 lift electric vehicles?
Yes. The reinforced structure handles EVs that run 20-30% heavier than comparable gas vehicles. Tesla, Ford Lightning, Rivian, and commercial electric vans all fit within the 10,000 lb capacity.
What's the difference between symmetric and asymmetric positioning?
Symmetric places the vehicle centered between the columns. Asymmetric shifts it forward so the doors open past the columns. The Bi-Metric arms let you do either without changing hardware.
How does the ASARS safety system work?
The Automatic Swing Arm Restraint System uses forged steel components to deliver 2,000+ lb of clamping force. Arms lock automatically when positioned under the vehicle. A quick-release lever disengages the grip when you need to reposition.
What electrical connection is required?
220 VAC, 60Hz, single-phase power on a dedicated circuit. Have a licensed electrician run the connection per local codes. The lift operates at under 70 dB.
Will a Sprinter van fit under this lift?
Yes. The 181" overall height specifically accommodates high-roof cargo vans including Mercedes Sprinter, Ford Transit, and RAM ProMaster. Standard lifts at 140-160" cannot clear these vehicles.
What does the warranty cover?
5 years on structural components, 2 years on hydraulics, 1 year on electrical and operating components. The first year also includes labor and free shipping on warranty parts. Register within 30 days to activate coverage.
