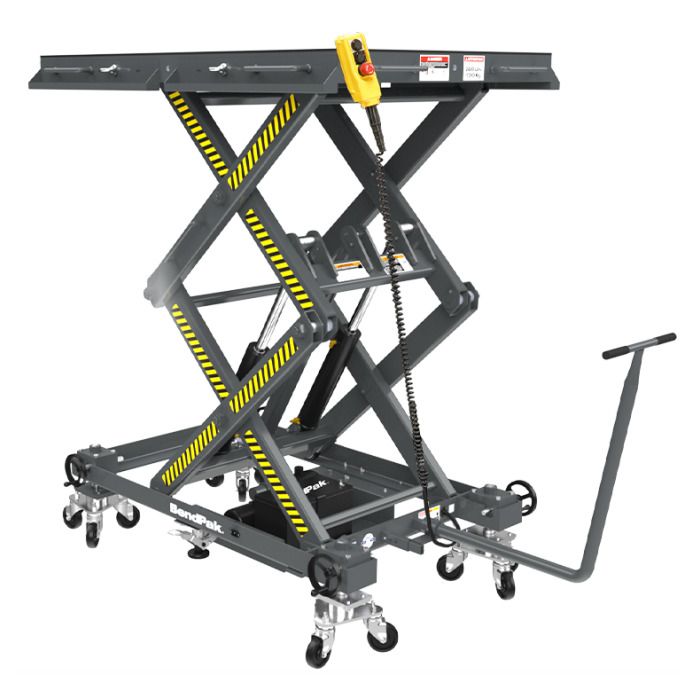

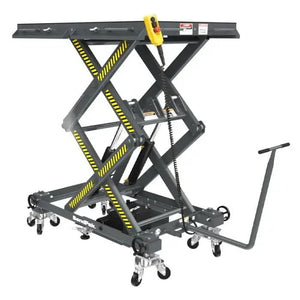

BENDPAK EV2400SL EV Battery Pack and Powertrain Lift Table
BendPak EV2400SL - 2,400 lb Battery -Powered EV Battery Pack & Powertrain Lift Table
The BendPak EV2400SL delivers 2,400 lb capacity in a portable, full-rise scissor lift engineered for electric vehicle battery pack and powertrain service. Featuring zero-throw casters, 12V deep-cycle power, and 18-second lift cycles, this mobile lifting system handles EV battery removal and installation for multi-bay shop workflows.
Key Features & Benefits
Zero-Throw Caster Mobility System
The zero-throw caster design provides omnidirectional movement with single-action floor locking mechanisms on all four corners. These advanced casters eliminate the dead space typical of conventional swivel designs, enabling precise positioning in tight service bays without requiring additional maneuvering clearance.
Traditional lift table casters require extra space for turning radius and often lock poorly on uneven shop floors. The zero-throw system addresses this industry-wide challenge by providing stable positioning regardless of floor imperfections, while the manual floor locks secure the table during lifting operations.
This enables efficient multi-bay workflows by allowing technicians to move the lift table directly between service positions. The compact footprint and superior maneuverability reduce setup time and improve bay utilization in busy EV service facilities.
12V Deep-Cycle Battery Power System
The onboard *2V deep-cycle battery with automatic 15A charger delivers 18-second lift cycles to full 75.75-inch height without requiring shop air or tethered power connections. The thermal-protected charging system maintains optimal battery performance and extends service life through intelligent 3-stage charging protocols.
Pneumatic and corded systems limit mobility and require dedicated connections that may not be available in all service bays. This cordless power system addresses these workflow constraints by providing consistent lifting performance regardless of bay location or available utilities.
This eliminates setup delays and enables rapid repositioning between service bays. Technicians can complete battery pack removal and installation cycles without waiting for system charging or managing air hoses and power cords during critical service operations.
Twin Hydraulic Cylinder Safety System
The twin hydraulic cylinders feature chrome-plated rods and integrated velocity fuses that monitor fluid flow rates to prevent uncontrolled descent. Multi-position mechanical safety locks engage at low, mid, and maximum height positions, providing redundant protection during service operations.
Single-cylinder systems and basic manual locks fail when technicians perform heavy component extraction or experience hydraulic system failures. This dual-cylinder design with automatic flow monitoring addresses critical safety gaps in conventional lift table designs.
This improves technician safety by providing fail-safe protection during EV battery pack handling. The mechanical locks prevent platform collapse even during hydraulic system maintenance, while the velocity fuses automatically engage if rapid fluid loss occurs during operation.
UHMW Polyethylene Platform Surface
The 40-inch × 60-inch platform features ultra-high molecular weight polyethylene decking that provides low-friction component positioning with superior impact resistance. The slip-plate design enables side-to-side adjustment for precise EV battery pack alignment during installation procedures.
Standard steel platform surfaces create friction during heavy component positioning and lack the electrical insulation properties required for EV service applications. UHMW decking addresses these material handling challenges while providing chemical resistance to automotive fluids and cleaning solvents.
This enables precise component alignment without scratching or damaging EV battery pack housings. The low-friction surface reduces the physical effort required for positioning heavy assemblies, while the electrical insulation properties provide additional safety margins during high-voltage component handling.
Adjustable Screw Jack Alignment System
Individual screw jacks at each corner provide pitch and roll adjustment capabilities for precise EV battery pack and powertrain alignment during removal and installation. The recessed mounting anchors accept modular fixtures and OEM-specific adapters for secure component positioning.
Fixed-height platforms cannot accommodate the varied mounting angles and attachment points found across different EV manufacturers and model configurations. This adjustable system addresses the precision alignment requirements for high-voltage battery pack connections and mechanical fastening points.
This reduces installation time and prevents connection damage by enabling exact component alignment before final fastening. The modular fixture system supports multiple vehicle platforms without requiring separate lifting equipment for different EV battery pack designs.
Applications & Use Cases

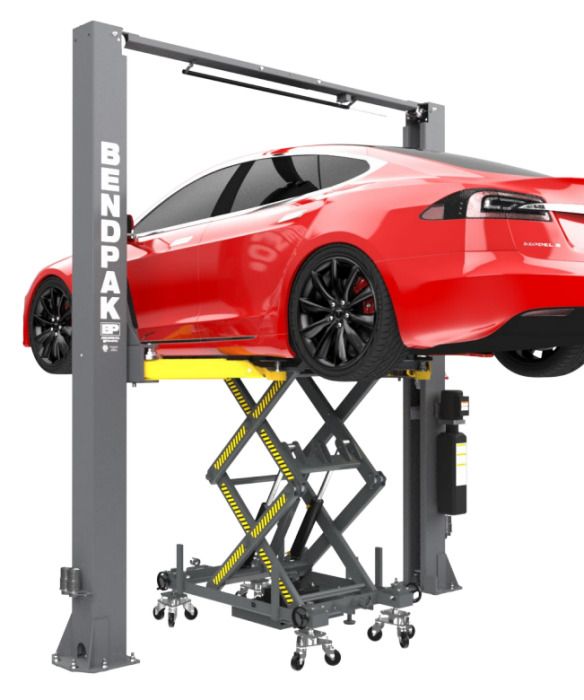

- Electric Vehicle Service: EV battery pack removal, service, and installation for BEV and PHEV vehicles including Tesla, Nissan Leaf, Chevrolet Bolt, and other passenger electric vehicles
- Collision Repair: EV battery removal for structural access during collision repair operations, enabling safe high-voltage system isolation while maintaining component integrity
- Internal Combustion Powertrain Service: Engine, transmission, and transaxle handling for traditional vehicles requiring under-body component access at standing height
- Multi-Bay Shop Operations: Shared lifting equipment across multiple service bays with portable design enabling rapid repositioning between work stations
- Fleet Maintenance: Commercial and municipal vehicle maintenance operations requiring portable lifting capabilities for varied vehicle configurations
- Subframe and Drivetrain Service: Complete drivetrain assembly removal and installation for both electric and conventional powertrains requiring precision alignment
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Capacity | 2,400 lb (1,090 kg) |
| Platform Size | 40" × 60" (1,016 × 1,524 mm) |
| Maximum Height | 75.75" (1,924 mm) |
| Stowed Height | 21.5" (546 mm) |
| Lift Range | 54.25" (1,378 mm) |
| Specification | Value |
|---|---|
| Overall Length | 90" (2,286 mm) |
| Overall Length (handle stowed) | 65" (1,651 mm) |
| Overall Width | 46" (1,168 mm) |
| Net Weight | 896 lb (406 kg) |
| Shipping Weight | 1,518 lb (689 kg) |
| Specification | Value |
|---|---|
| Raise/Lower Time | 18 seconds to max rise |
| Power Source | 12V deep-cycle DC battery |
| Battery Charger | Automatic 15A with thermal sensor |
| Platform Surface | UHMW polyethylene deck |
| Safety Locks | Multi-position mechanical (low/mid/max) |
Installation Requirements
Environmental Requirements
- Usage Environment: Indoor use only - outdoor use prohibited
- Operating Temperature: +41°F to +104°F (+5°C to +40°C)
- Floor Requirements: Level, stable shop floors with lift resting firmly on adjustable support feet
- Clearance: Adequate space for omnidirectional movement and load positioning
Power Requirements
- Electrical: AC power access for onboard 15A battery charger
- Charging: Plug-in charging - no permanent electrical connections required
- Operating Power: Self-contained 12V DC battery system
Installation Notes
- Setup: No concrete anchoring required - portable design with adjustable feet
- Personnel: Authorized, trained operators only with required PPE
- Permits: Verify local code compliance and permit requirements before installation
Model Comparison
| BendPak EV2400SL | 2,400 lb platform capacity; 21.5"–75.75" lift height; 40" x 60" platform size. | Battery-powered scissor lift using a single 12V deep-cycle DC battery with automatic 15 A, 3-stage charger; approx. 18 s raise/lower time to max rise. | Push-around full-rise EV battery & powertrain lift table designed for multi-bay EV service; compact footprint for tight workshops; zero-throw casters on all four corners for easy omnidirectional movement; adjustable screw jacks on each corner for pitch/roll alignment of high-voltage battery packs and drivetrains; full-length utility trays for tools and fasteners; recessed mounting anchors for modular fixtures; twin hydraulic cylinders with chrome-plated rods for durability. Limitation: lower lifting capacity than heavier-duty EV tables (3,300–3,500 lb class), so not ideal for the very largest battery packs. |
|---|---|---|---|
| Rotary LT35A EV & Hybrid Hydraulic Lifting Table | 3,500 lb lifting capacity for EV batteries, motors, and powertrain assemblies; ergonomic adjustable working height (hydraulic lift table). | Air-hydraulic operation with easy foot-pedal controls and pendant control for fine adjustments; relies on shop air supply rather than on-board battery power. | Purpose-built EV/hybrid hydraulic lifting table; heavy-duty construction for long-term shop use; multi-directional 360° swivel casters with locking mechanisms for mobility and stable positioning; split sliding top and adjustable secondary platform for precise component alignment; threaded fixture holes on the top surface for secure mounting of large components; compatible with additional repair table to streamline EV battery transfers and service workflows. Limitation: requires a compressed air source and is heavier and more complex than a simple push-around battery-powered unit like the EV2400SL, which can reduce portability in smaller or less-equipped shops. |
| Challenger BT3300 Electric Vehicle Battery Lift Table | 3,300 lb lifting capacity; rise height up to ~76.77"; collapsed height ~29.53"; platform length 68.54"–81.34", width 31.5". | Electric-hydraulic system with 2 HP motor; 110V, 60 Hz, single-phase power (approx. 14 A draw); full-stroke lift time ~45–70 s and descent ~55 s under rated load. | Scissor-style EV battery lift table designed for removing and installing EV batteries and other heavy components; pallet-jack style handle for easier maneuvering around the shop; extending, adjusting, and tilting top plate with ~6° angle adjustment for precise battery alignment; fastener holes every 4" to accept various OEM adapters; side-shift feature to move the table top laterally for faster installs; plugs into any standard 120V outlet and complies with ASME PASE-2019. Limitation: tethered to 110V power and has a longer full-stroke lift cycle compared with the EV2400SL's fast 18-second rise; larger overall length can be harder to maneuver in very tight service bays. |
Choose the BendPak EV2400SL when mobility, fast battery-powered lifting, and a compact footprint are the top priorities. It outperforms these alternatives with its cordless 12V power, rapid 18-second full-rise lift, and highly maneuverable zero-throw casters, making it the best fit for busy multi-bay EV service shops that need to move quickly and safely between bays in constrained spaces.
Warranty Coverage
Multi-Tier Limited Warranty Program
Multi-tier limited warranty coverage with component-specific terms. Due to discrepancies between manufacturer marketing materials and dealer warranty documentation, specific durations should be confirmed directly with BendPak and authorized dealers before purchase commitments.
Warranty Requirements
Registration: Product registration may be required within specified timeframe
Installation: Installation must be performed by qualified personnel following manufacturer installation manual
Compliance: ASME PASE 2019 compliance certification provides documented safety standards adherence
Ready to Upgrade Your EV Service Capabilities?
Get expert guidance on EV battery pack lifting equipment for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and installation requirements for your facility.
Frequently Asked Questions
What is the maximum capacity of the BendPak EV2400SL?
The EV2400SL has a maximum platform capacity of 2,400 lb (1,090 kg) and can lift to a maximum height of 75.75 inches (1,924 mm). The 40-inch × 60-inch platform accommodates most passenger EV battery packs and internal combustion powertrain components.
What components are included with the EV2400SL?
The lift table includes the 40-inch × 60-inch UHMW polyethylene deck platform, zero-throw casters with manual floor locks, adjustable screw jacks at each corner, hand pendant remote control with emergency stop, twin hydraulic cylinders with velocity fuses, full-length utility trays, 12V deep-cycle battery, onboard 15A automatic charger, and stowable tow bar.
What are the installation requirements for the BendPak EV2400SL?
The EV2400SL requires indoor use only within operating temperatures of +41°F to +104°F. It needs level, stable shop floors and AC power access for the onboard battery charger. No concrete anchoring is required due to the portable design with adjustable feet.
How fast does the EV2400SL lift cycle operate?
The EV2400SL completes a full lift cycle in approximately 18 seconds to maximum rise using its 12V deep-cycle battery power system. This rapid cycle time enables efficient multi-bay workflows without waiting for slow hydraulic systems or compressed air buildup.
What safety certifications does the BendPak EV2400SL have?
The EV2400SL meets ASME PASE 2019 compliance standards for portable automotive service equipment. It features twin hydraulic cylinders with velocity fuses, multi-position mechanical safety locks at low/mid/max height positions, and emergency stop capability on the hand pendant controller.
Can the EV2400SL be used for both EV and traditional vehicle service?
Yes, the EV2400SL handles both EV battery pack removal/installation and traditional internal combustion powertrains including engines, transmissions, transaxles, and subframes. The adjustable screw jacks and modular fixture system accommodate diverse component configurations.
What makes the zero-throw casters different from standard casters?
Zero-throw casters eliminate the dead space required by conventional swivel casters, providing omnidirectional movement without extra maneuvering clearance. They include single-action floor locking mechanisms that secure the table during lifting operations, even on uneven shop floors.
How does the EV2400SL compare to higher capacity lift tables?
The EV2400SL's 2,400 lb capacity covers most passenger EV battery packs efficiently while maintaining superior portability compared to 3,300-3,500 lb capacity tables. Higher capacity tables typically require compressed air systems, permanent power connections, or have larger overall dimensions that reduce maneuverability in tight service bays.
