BendPak 10AP-168 Two Post Lift
Also known as: 10AP-168, AP-168, AP Series 168, BendPak 10AP

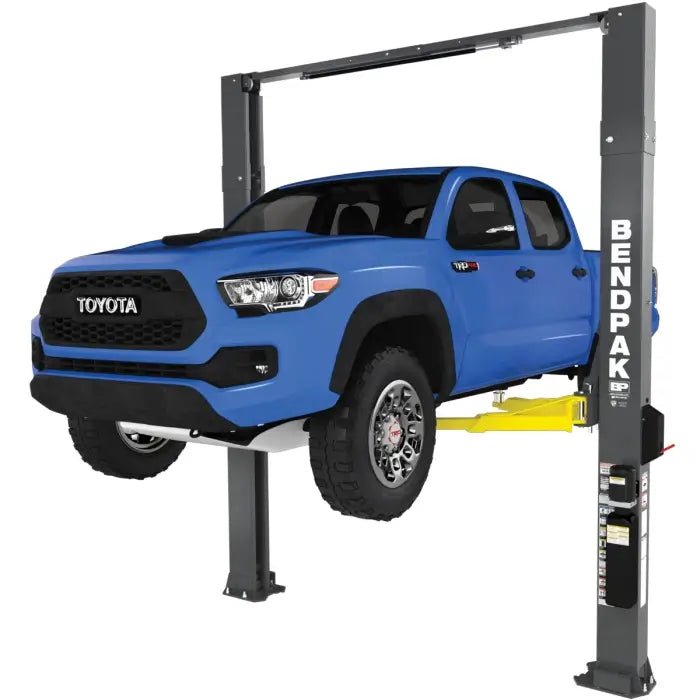

The BendPak 10AP-168 is a 10,000 lb two post lift with an extended 168 in overhead beam height designed to accommodate high-roof cargo vans. It delivers the same 73 in lifting height as the standard 10AP, but with the upper crossbar positioned two feet higher. The BI-METRIC arm system switches between symmetric and asymmetric configurations without arm swaps, and the clearfloor design keeps your bay floor unobstructed for jacks, drains, and equipment.
BendPak 10AP-168 Key Features
BI-METRIC Symmetric and Asymmetric Arms
Why it matters: You're not swapping arms every time you switch between symmetric and asymmetric vehicle positioning. Each arm handles 2,500 lb (1,134 kg) and reconfigures in seconds. Load vehicles either symmetrically (centerline at column) or asymmetrically (centerline behind column) with the same hardware.
Real-world benefit: When your shop handles mixed fleets, this 2-in-1 design cuts setup time dramatically. No arm storage, no hunting for the right configuration. Just position and lift.
Technical reach: The triple-telescoping design retracts to 22 in (559 mm) on front arms and extends to 47.5 in (1,207 mm). Rear arms extend to 57 in (1,448 mm). You're hitting virtually any OEM lift point without repositioning vehicles.
Extended 168 in Height for High-Roof Cargo Vans
The height advantage: The 10AP-168 features an upper crossbar positioned two feet higher than the standard 10AP to accommodate high-roof cargo vans. Overall height is 168 in (4,267 mm) with the overhead shutoff at 163 in (4,140 mm).
Same lifting height: This model shares the same 73 in (1,854 mm) lifting height as the standard 10AP. The extended height is for overhead clearance when parking tall vehicles under the lift, not additional rise.
Vehicle compatibility: Perfect for shops servicing Sprinters, Transits, ProMasters, and other high-roof commercial vans alongside standard passenger vehicles in the same bay.
Automatic Swing Arm Restraint System (ASARS)
Beyond traditional restraints: BendPak's patented ASARS generates over 2,000 lb of automatic restraining force with a full 360 degrees of load-holding grip the moment arms move into position.
How it works: The heavily forged-steel design secures arms against the column without operator intervention. A handy quick-release lever allows instant release of clamping pressure when repositioning.
Safety first: In high-volume shops where technicians move fast, there's no step to forget. The system activates automatically every time you position an arm.
Low-Pro Arms for Electric Vehicles and Low-Profile Cars
EV-compatible design: BendPak's patented Low-Pro arm design features three telescoping stages with a dropped-end pad receiver. Minimum pad height drops to just 4 in (102 mm) - critical when you're lifting modern EVs, lowered performance cars, or vehicles with factory aero packages and battery packs.
Extended range without damage: The patented nesting feature allows inner tubes to retract fully through the back of the arm assembly, even beyond the arm pin. That nested configuration eliminates bind points, giving you clean access to challenging lift points without scraping side skirts or ground effects.
Precision adjustment: Double-telescoping screw pads with gouge and tear-resistant polyurethane pads can be screwed up or down for 2 in (51 mm) of vertical fine-tuning. Optional short and medium stackable adapters provide even greater vertical pad placement.
Adjustable Width Clearfloor Design
Installation flexibility: The 10AP-168 mounts in narrow or wide configuration - inside column spacing of 108.5 in or 118.5 in (2,756 mm or 3,010 mm) with drive-thru clearance of 92 in or 102 in (2,477 mm or 2,731 mm). The expandable top beam accommodates either setup.
Unobstructed workflow: The overhead beam leaves the floor between columns completely clear. Roll your tool carts, transmission jacks, oil drains, and diagnostic equipment right under the vehicle.
Single-piece columns: Manufactured using single-piece construction for added strength and less fatigue under heavy load conditions.
Dual Direct-Drive Hydraulic System
Direct-drive advantage: Two low-pressure Direct-Drive cylinders eliminate the need for lifting chains or screw mechanisms. This technology offers better reliability, smoother operation, and less maintenance.
Performance specs: The HVLP (high volume, low pressure) power unit runs on 220 VAC, 60 Hz, 1-phase power and lifts the full 10,000 lb capacity to maximum rise in approximately 45 seconds with operating sound below 70 dB.
Reliability: Industrial-grade hydraulic cylinders feature a single-piece, pilot-fitted, machined steel piston with pressure-loaded U-cup seals that virtually eliminate fluid bypass. The Dual-Synchro equalization system maintains level lifting. Safety locks in each column spaced every 3 in provide redundant mechanical lockout protection.
Maintenance-Free Load Bearings
No lubrication required: Rather than roller bearings that need constant lubrication, every AP series lift carriage uses ultra-high molecular weight (UHMW) polyethylene load bearings that never need lubrication and last virtually the life of the lift.
Oversized carriages: The 10AP-168 features 53 in and 59 in tall carriages - considerably taller than most two-post styles - which minimizes stress on the load bearings and columns.
Video: BendPak 10AP-168 Demonstration
Watch the 10AP-168 in action to see the BI-METRIC arm system, extended height, and clearfloor design in real-world shop conditions.
Applications
Professional automotive repair shops: Built for facilities servicing cars, light trucks, SUVs, and mixed fleets. The extended 168 in overhead height and adaptable BI-METRIC arms handle everything from compact sedans to high-roof cargo vans in the same bay.
Fleet service and commercial work: When you're maintaining delivery vans, box trucks, and commercial vehicles alongside passenger cars, the clearfloor design and 10,000 lb capacity give you the flexibility to handle diverse vehicle types without dedicating separate bays.
EV-capable facilities: The Low-Pro arms reach down to 4 in minimum pad height, making this lift compatible with low-chassis electric vehicles and battery pack designs. Polyurethane pads protect aluminum and composite lift points common on EV chassis. BendPak specifically engineered the AP series with heavier EVs in mind.
High-volume shops prioritizing workflow: The clearfloor layout keeps the bay floor unobstructed. BI-METRIC arms switch between symmetric and asymmetric configurations without hardware swaps. Single-point safety release with dead-man style controls makes operation simple and safe.
BendPak 10AP-168 Specifications
The BendPak 10AP-168 (SKU 5175305) is rated at 10,000 lb (4,536 kg) total capacity with a maximum of 5,000 lb (2,268 kg) per axle and 2,500 lb (1,134 kg) per individual swing arm.
| Specification | Value |
|---|---|
| SKU | 5175305 |
| Lifting Capacity | 10,000 lb / 4,536 kg |
| Max Capacity per Axle | 5,000 lb / 2,268 kg (front); 5,000 lb / 2,268 kg (rear) |
| Max Load per Lift Arm | 2,500 lb / 1,134 kg |
| Max Rise | 69 in / 1,753 mm |
| Lifting Height (Pad Low) | 73 in / 1,854 mm |
| Max Lifting Height (with Adapters) | 82.5 in / 2,095 mm |
| Min Pad Height | 4 in / 102 mm |
| Overall Height | 168 in / 4,267 mm |
| Overall Width | 135 in / 3,431 mm (narrow); 145 in / 3,683 mm (wide) |
| Outside Columns | 127.5 in / 3,238 mm (narrow); 137.5 in / 3,492 mm (wide) |
| Inside Posts | 108.5 in / 2,756 mm (narrow); 118.5 in / 3,010 mm (wide) |
| Drive-Thru Clearance | 92 in / 2,477 mm (narrow); 102 in / 2,731 mm (wide) |
| Floor to Top Switch | 163 in / 4,140 mm |
| Front Arm Reach | 22 in / 559 mm (min); 47.5 in / 1,207 mm (max) |
| Rear Arm Reach | 29.5 in / 750 mm (min); 57 in / 1,448 mm (max) |
| Screw Pad Adjustment | 2 in / 51 mm |
| Safety Lock Spacing | Every 3 in |
| Time to Full Rise | ≈ 45 seconds |
| Motor | 220 VAC, 60 Hz, 1-phase |
| Sound Level | <70 dB |
BendPak 10AP-168 Installation Requirements
Concrete Foundation
Foundation basics: BendPak 10AP installation requires a properly engineered concrete slab - a single, continuous slab under both columns. No seams, separate pads, or expansion joints spanning the lift footprint.
Minimum specifications:
- Slab thickness: 12 in (305 mm) minimum
- Slab width: 48 in (1,219 mm) minimum
- Slab length: At least 12 in (305 mm) wider than the lift's overall width
- Concrete strength: 4,000 PSI minimum, machine-mixed, cured 28 days before anchor installation
- Reinforcement: Grade 60 #4 rebar in grid pattern
- Anchors: 3/4 in (19 mm) wedge anchors with 6.3 in (160 mm) minimum embedment
- Anchor placement: Minimum 6 in (152 mm) from control joints, cracks, or edges
Not permitted: Installation over expansion joints, hollow decks, suspended floors, asphalt, pavers, or hand-mixed concrete without written BendPak engineering approval.
Ceiling Height and Bay Clearance
Minimum clearance required: You need 168 in (4,267 mm) clear ceiling height directly above and between the columns. That means no beams, garage door tracks, HVAC ducts, sprinklers, or lighting fixtures in the lift's path.
Practical planning: Plan for a true 14 ft clear bay to accommodate the overhead beam, shutoff hardware at 163 in, plus the vehicle's roof height and safe working clearance above.
Important fitment note: If your facility has a 12 ft or 13 ft ceiling, this extended height model won't fit. Consider the standard 10AP (145 in overall height) instead.
Electrical Requirements
Power supply: The 10AP-168 operates on 220 VAC, 60 Hz, 1-phase power as standard. Special voltages available upon request.
Installation: Refer to the BendPak installation manual for exact breaker size and wire gauge requirements. Licensed electrician required for code-compliant hookup.
Compare BendPak 10AP Series Models
The 10AP-168 is one of four models in BendPak's AP Series. All share the same 10,000 lb capacity and BI-METRIC arm system, but differ in lift rise and overhead height.
| Model | Overall Height | Lifting Height | Max Lifting Height | Best For |
|---|---|---|---|---|
| 10AP | 145 in / 3,683 mm | 73 in / 1,854 mm | 82.5 in / 2,095 mm | Standard ceiling shops, most vehicles |
| 10AP-168 | 168 in / 4,267 mm | 73 in / 1,854 mm | 82.5 in / 2,095 mm | High-roof cargo vans, standard lift height |
| 10APX | 157 in / 3,988 mm | 79.5 in / 2,019 mm | 89 in / 2,261 mm | Taller technicians, more under-car clearance |
| 10APX-181 | 181 in / 4,597 mm | 79.5 in / 2,019 mm | 89 in / 2,261 mm | High-roof vans + maximum lift height |
Key difference: The 10AP and 10AP-168 share the same lifting height (73 in). The 10APX and 10APX-181 offer 6.5 in more rise (79.5 in) for taller technicians or more under-car clearance. If you need both extended overhead height AND higher lift rise, consider the 10APX-181.
BendPak 10AP-168 Shipping and Delivery
Packaging: The 10AP-168 (SKU 5175305) ships as heavy truck freight in a single crate measuring 150 in L x 24 in W x 30 in H (3,810 mm x 610 mm x 762 mm). Shipping weight is 1,840 lb (835 kg).
Free shipping eligibility: Most BendPak lifts qualify for freight-prepaid or free shipping to eligible commercial addresses in the 48 contiguous United States. Rural, residential, limited-access, or special-service deliveries typically incur additional surcharges.
Receiving requirements: The receiving location must have forklift, telehandler, or dock-height capability. Lift-gate service on a 1,800+ lb, 12.5 ft crate isn't standard and often isn't feasible.
Buyer responsibilities:
- Unloading from truck (carrier delivers curbside only)
- Inspecting for freight damage at delivery and documenting any issues on the bill of lading
- Moving components indoors and staging for installation
Not included: Installation, permits, engineered slabs, and electrical work are separate.
Warranty
BendPak 5-2-1 Warranty Coverage:
- 5 years: Lift structure (columns, arms, carriage, and structural components)
- 2 years: Hydraulic cylinder and power unit
- 1 year: Operating components (mechanical), electrical components, labor, and ground-freight shipping on approved warranty claims
Coverage requirements: Warranty applies to lifts purchased from authorized BendPak distributors and installed/used per BendPak instructions. Commercial use is covered.
Documentation
- AP Series Sales Sheet (PDF) - Specifications and features for the BendPak AP Series lineup
For additional support or technical questions, contact your authorized BendPak distributor.
Questions About the BendPak 10AP-168?
Our team is here to help with lift selection, installation planning, and concrete requirements.
Frequently Asked Questions
What's the difference between the 10AP-168 and the standard 10AP?
Both models have the same 73 in lifting height and 10,000 lb capacity. The 10AP-168 has an upper crossbar positioned two feet higher (168 in vs 145 in overall height) to accommodate high-roof cargo vans. Choose the 10AP-168 if you service Sprinters, Transits, or similar tall commercial vehicles.
What is the minimum ceiling height required for the BendPak 10AP-168?
The 10AP-168 requires a minimum clear ceiling height of 168 in (14 ft) with no obstructions. The overhead shutoff is at 163 in. If your ceiling is lower, consider the standard 10AP (145 in) or 10APX (157 in).
How does the BI-METRIC arm system work?
BI-METRIC arms can be configured for either symmetric (centerline of vehicle at column) or asymmetric (centerline behind column) loading without swapping arms or hardware. Each arm supports 2,500 lb and repositions in seconds.
What are the concrete requirements?
BendPak requires a single continuous concrete slab with minimum 12 in thickness, 4,000 PSI compressive strength, and Grade 60 #4 rebar reinforcement. Anchors must be 3/4 in wedge anchors with 6.3 in embedment, positioned at least 6 in from joints, cracks, or edges.
Can the BendPak 10AP-168 lift electric vehicles?
Yes. The Low-Pro triple-telescoping arms reach a minimum pad height of 4 in, suitable for low-profile EVs and battery pack designs. BendPak specifically engineered the AP series for heavier electric vehicles with outer-positioned lift points.
What electrical is required?
The 10AP-168 operates on 220 VAC, 60 Hz, 1-phase power as standard. Special voltages available upon request. Consult a licensed electrician for code-compliant installation.
How does the Automatic Swing Arm Restraint System (ASARS) work?
ASARS automatically secures swing arms with over 2,000 lb of 360-degree load-holding force without operator intervention. The system activates as arms are positioned, preventing unplanned movement. A quick-release lever allows instant release when repositioning.
What's the warranty?
BendPak's 5-2-1 warranty covers: 5 years on lift structure, 2 years on hydraulic cylinder and power unit, 1 year on operating components, electrical, labor, and shipping on approved claims. Requires purchase from authorized distributor and installation per BendPak specs.
