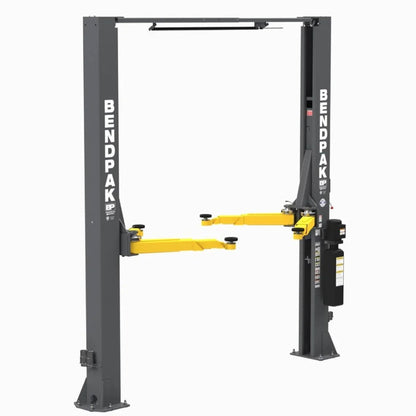

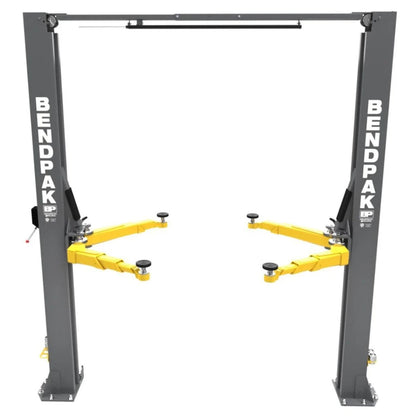

BendPak 10AP-168 PRO Extended Height Two-Post Lift
The BendPak 10AP-168 PRO delivers 10,000 lb capacity with 168" overall height in a clearfloor design for professional repair facilities. It features Bi-Metric triple-telescoping arms, ASARS automatic restraint, and the complete PRO-series WSA-100 workstation package. This lift handles everything from low-profile EVs to high-roof cargo vans.
Key Features
Extended Height Design

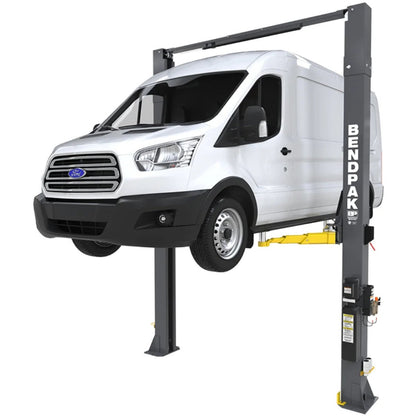

The 10AP-168 PRO's 168" overall height with 89" maximum lifting capability (with adapters) provides clearance for high-roof commercial vans and tall vehicles while fitting standard 14-foot ceiling shops. This enables shops to service Sprinter vans, box trucks, and delivery vehicles without turning them away or investing in specialized high-bay facilities.

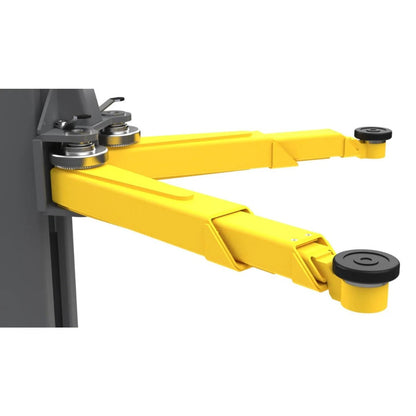

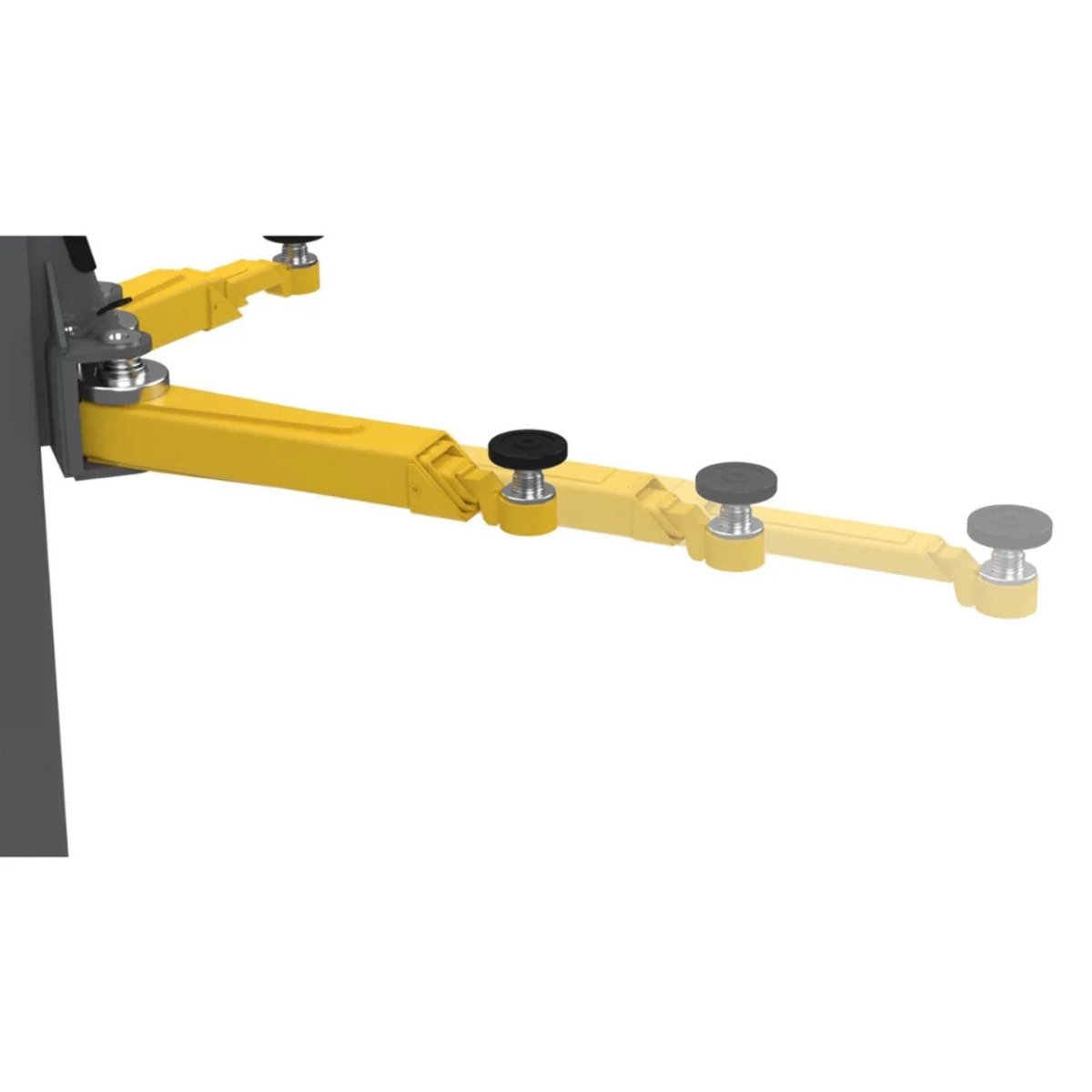

Bi-Metric Triple-Telescoping Arms
The Bi-Metric arms accommodate both symmetric and asymmetric vehicle positioning without hardware changes. They provide 22-59" reach capability and 4" minimum pad height for EVs and sports cars. Switch from a Tesla Model S to a Ford F-150 in the same bay without swapping components.
ASARS Safety System
The Automatic Swing Arm Restraint System delivers over 2,000 lb holding force through a 360-degree forged steel grip. Arms lock automatically when positioned and hold even under heavy side loads during engine or transmission removal. Quick-release lever provides instant disengagement when repositioning.

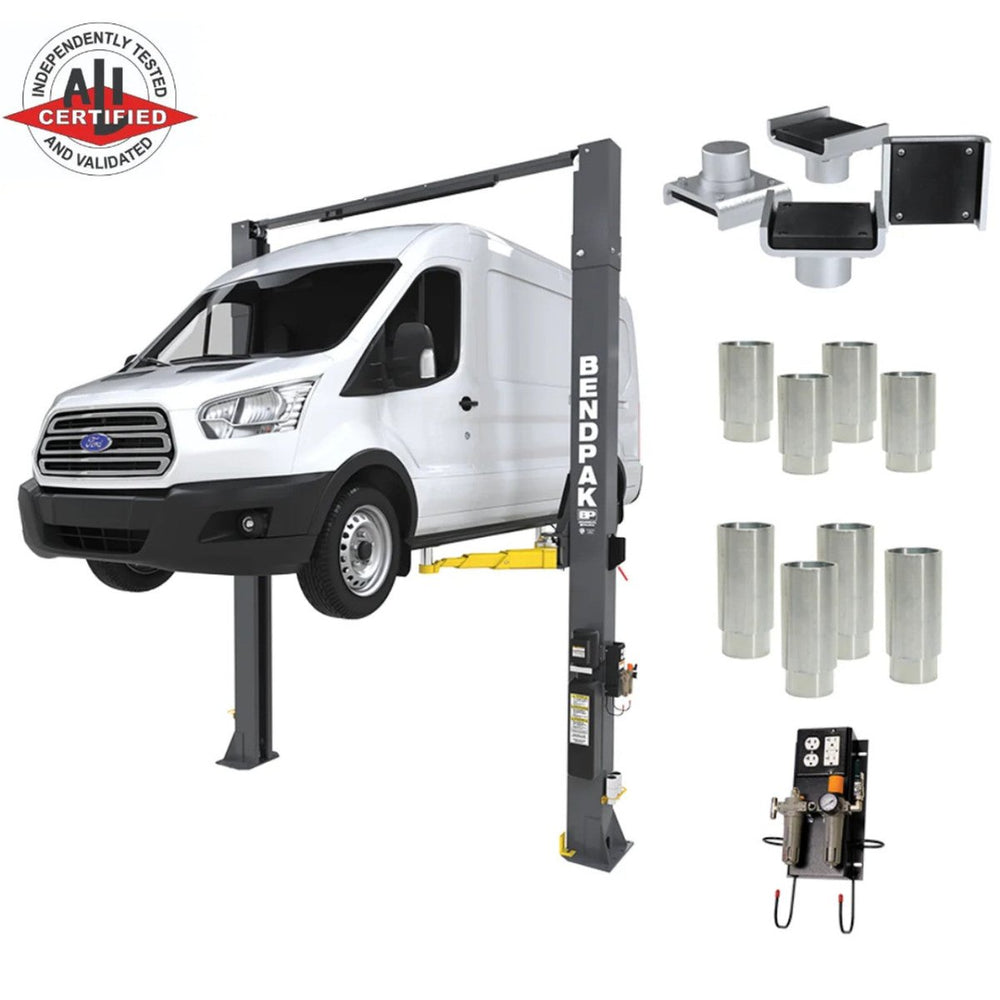

Complete PRO Package
The PRO configuration includes the WSA-100 Air-Electric Workstation with compressed air and 110V GFCI outlets, plus frame cradle pads and medium/tall stackable adapters (2.5" and 5" heights). This bundle provides complete lifting capability without separate accessory purchases.
ALI Certified Construction
ALI certified to ANSI/ALI ALCTV standards with US Patent protection (US11820632B2). Mechanical safety locks engage every 3", and the single-point safety release provides quick lowering access.
Product Demonstration
Applications
- Professional Repair Shops: Mixed-fleet service from compact cars to light commercial vehicles
- Fleet Maintenance: Sprinter vans, box trucks, and cargo vehicles requiring extended height clearance
- EV Service Centers: Tesla, BMW i-series, and other low-profile EVs with 4" minimum pad height
- High-Volume Operations: Clearfloor design with drive-through access for maximum bay utilization
- Multi-Brand Dealerships: Diverse portfolios from sports cars to full-size trucks
Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Max Per Arm | 2,500 lb (1,134 kg) |
| Max Rise Height | 75.5" (1,918 mm) |
| Max Lift with Adapters | 89" (2,261 mm) |
| Min Pad Height | 4" (102 mm) |
| Rise Time | 45 seconds |
| Specification | Value |
|---|---|
| Overall Height | 168" (4,267 mm) |
| Overall Width (Narrow/Wide) | 135" / 145" |
| Inside Posts (Narrow/Wide) | 108.5" / 118.5" |
| Drive-Through (Narrow/Wide) | 92" / 102" |
| Overhead Shutoff | 163.5" |
| Specification | Value |
|---|---|
| Motor | 220 VAC, 60 Hz, single-phase |
| Drive System | Dual direct-drive hydraulic cylinders |
| Sound Level | <70 dB |
| Safety Locks | Every 3" |
Installation Requirements
Concrete
- Slab: Continuous single slab
- Strength: 4,000 PSI minimum
- Thickness: 12" recommended
- Anchors: 3/4" wedge anchors, 5-7" embedment
Ceiling & Electrical
- Ceiling Height: Minimum 168" (14 ft recommended)
- Power: 220 VAC, 60 Hz, single-phase dedicated circuit
- Installation: Authorized BendPak dealer recommended
Shipping & Delivery
Freight
Shipping weight is approximately 1,840 lb in a crate measuring 150" x 24" x 28-30". Commercial freight carrier with lift gate or dock-high delivery available.
Receiving
Forklift or equivalent required for unloading. Curbside delivery standard. Inspect all packages before signing BOL and note any visible damage before the driver departs.
Warranty
5-2-1 Coverage
- 5 Years: Structural (columns, swing arms, carriages)
- 2 Years: Hydraulic (cylinders, power unit)
- 1 Year: Labor and electrical components
Requirements: Professional installation per manufacturer specs. Coverage administered through authorized BendPak dealer network.
Documents
Click to open in a new tab.
Questions About the 10AP-168 PRO?
Our team can help with product selection, installation planning, and foundation requirements.
Frequently Asked Questions
What is the maximum lifting capacity?
10,000 lb total with 2,500 lb per arm and 5,000 lb per axle. This covers most fleet vehicles including F-150 trucks, Sprinter vans, and commercial delivery vehicles.
What accessories are included with the PRO package?
WSA-100 Air-Electric Workstation with air and 110V GFCI outlets, frame cradle pads (set of 4), medium stackable adapters (2.5"), tall stackable adapters (5"), and complete installation hardware.
What are the concrete requirements?
Continuous single slab with 4,000 PSI minimum strength and 12" recommended thickness. Uses 3/4" wedge anchors with 5-7" embedment depth. Concrete must be properly cured and level.
How does the Bi-Metric arm system work?
Bi-Metric triple-telescoping arms accommodate both symmetric and asymmetric positioning without hardware changes. They offer 22-59" reach and 4" minimum pad height, so you can switch between compact cars and extended cab trucks without swapping components.
What safety certifications does this lift have?
ALI certified to ANSI/ALI ALCTV standards with ASARS (over 2,000 lb holding force), mechanical safety locks every 3", single-point safety release, and US Patent protection (US11820632B2).
What types of vehicles can this lift handle?
Everything from compact cars to full-size trucks and commercial vans. EVs and low-profile vehicles work with the 4" minimum pad height. High-roof commercial vehicles like Sprinter vans fit under the 89" maximum lifting height with adapters.
How does the 168" height compare to standard lifts?
Most lifts range from 140-150" overall height. The 168" design provides 89" maximum lifting (with adapters) and fits standard 14-foot ceiling shops while accommodating high-roof cargo vans that wouldn't clear standard lifts.
What warranty is included?
5 years structural, 2 years hydraulics, 1 year labor and electrical. Coverage administered through authorized BendPak dealer network with professional installation required.
