Compare Triumph Two-Post Lifts by Application
The current collection spans light automotive service through heavier truck and commercial work. The C7000 is the portable outlier; the NT and NTO families are fixed two-post lifts offered at several capacities. That makes the useful comparison vehicle range and installation format rather than simply moving to the largest number.
| Model family |
Rated capacity |
Main reason to compare it |
| C7000 |
7,000 lb |
Portable two-post format for shops that value a movable lifting solution rather than a permanently fixed bay. |

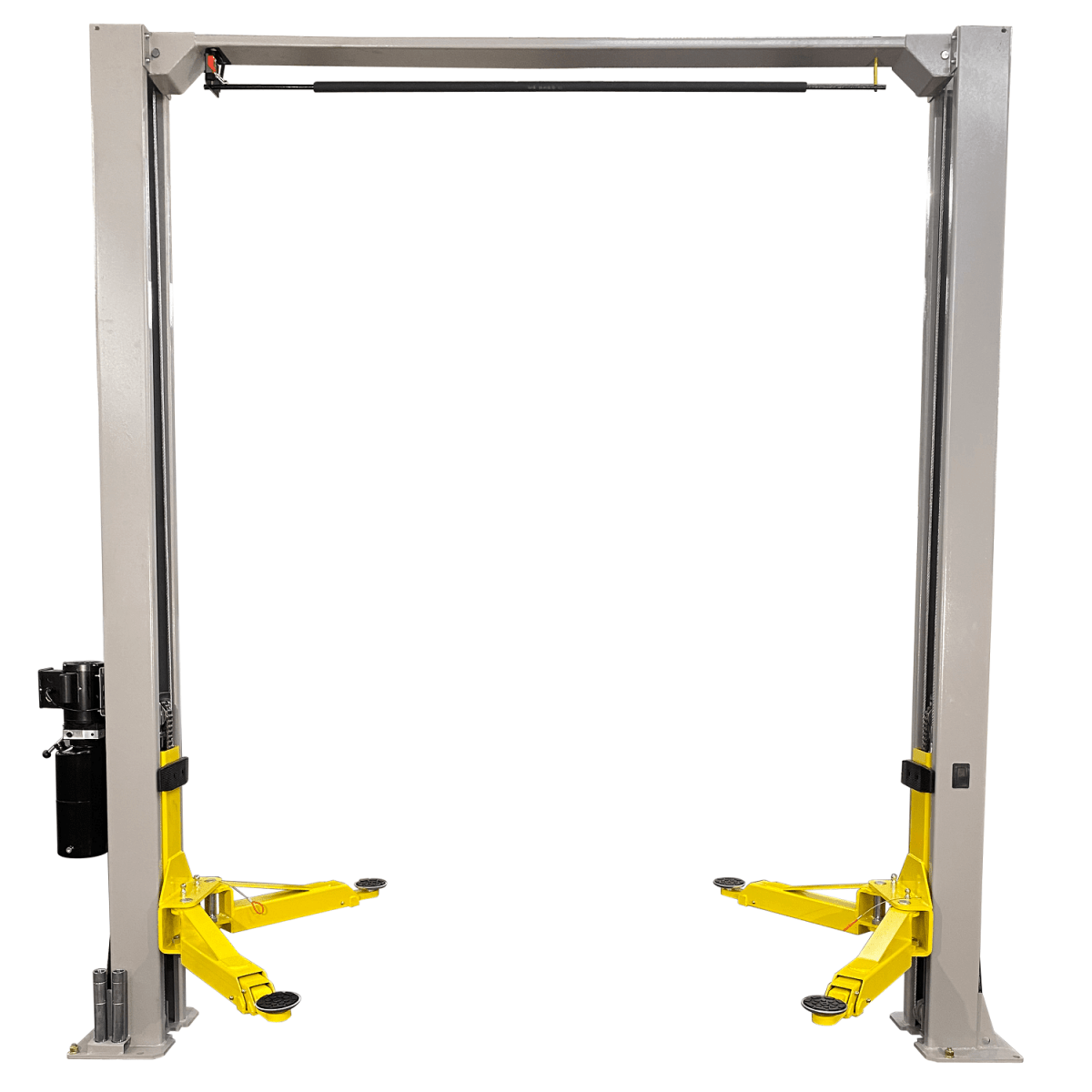

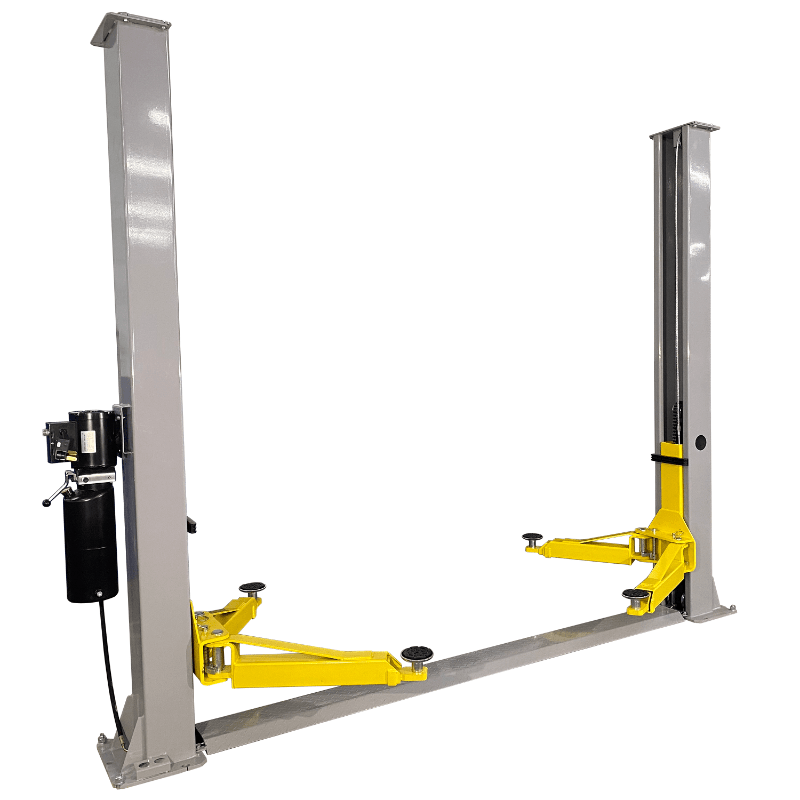

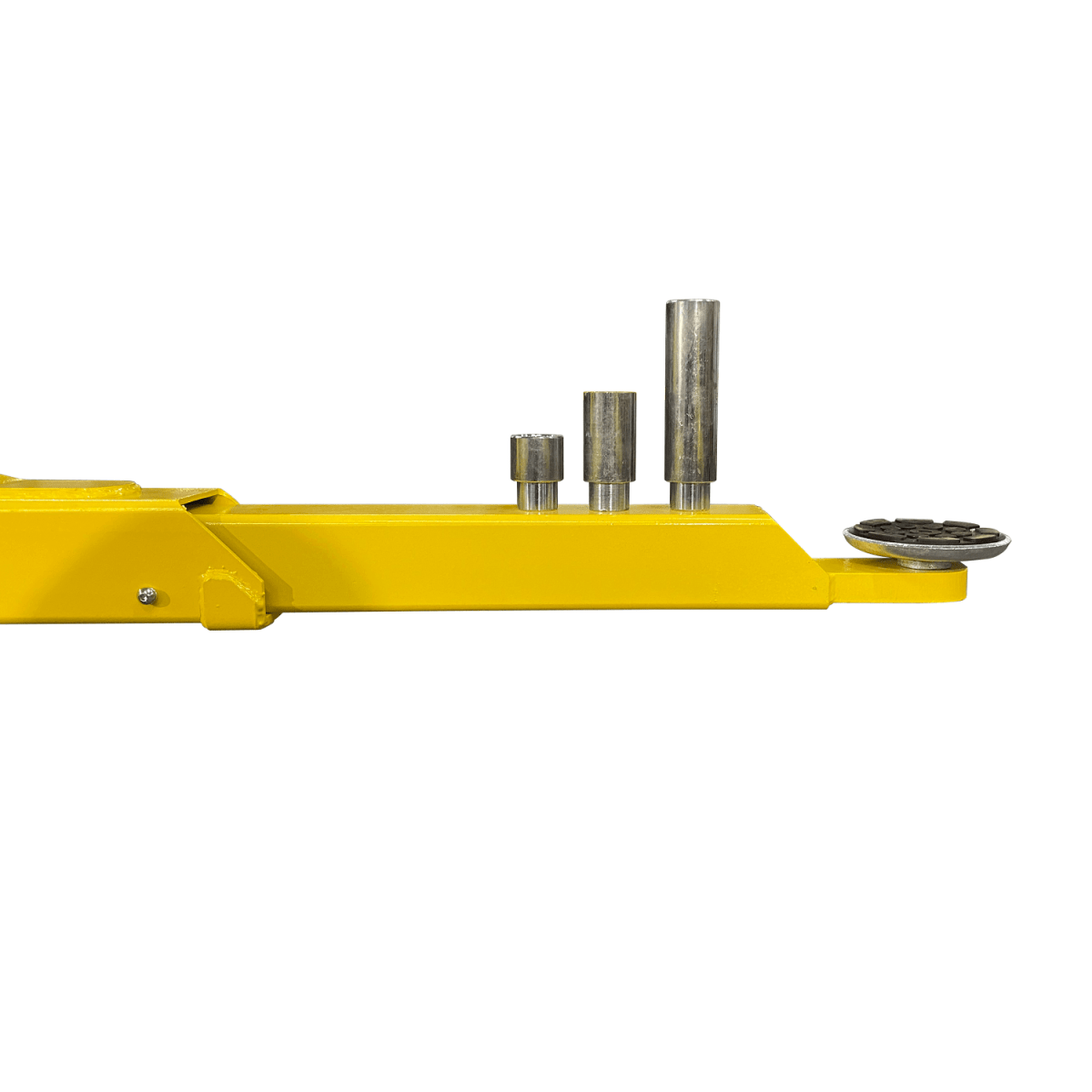

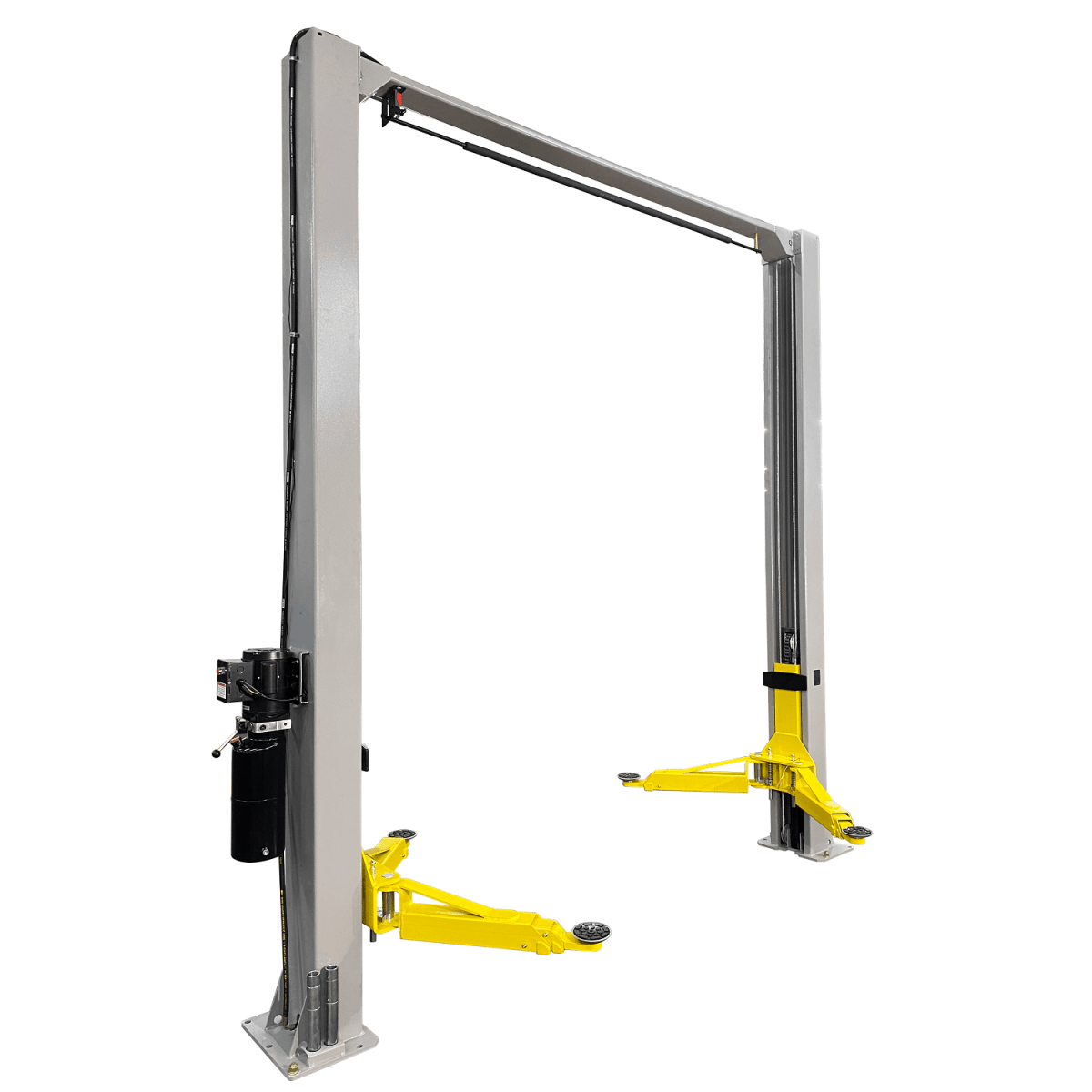

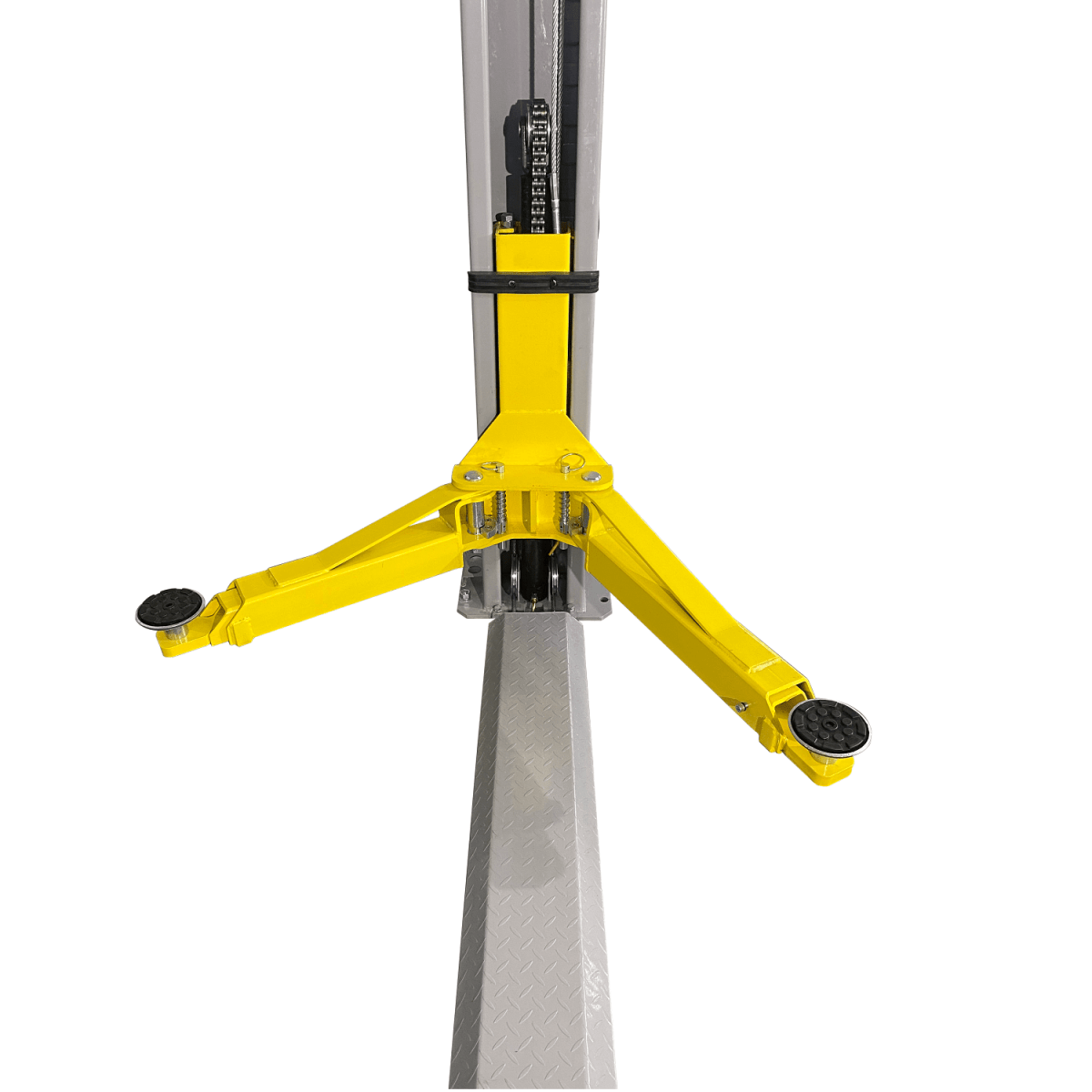

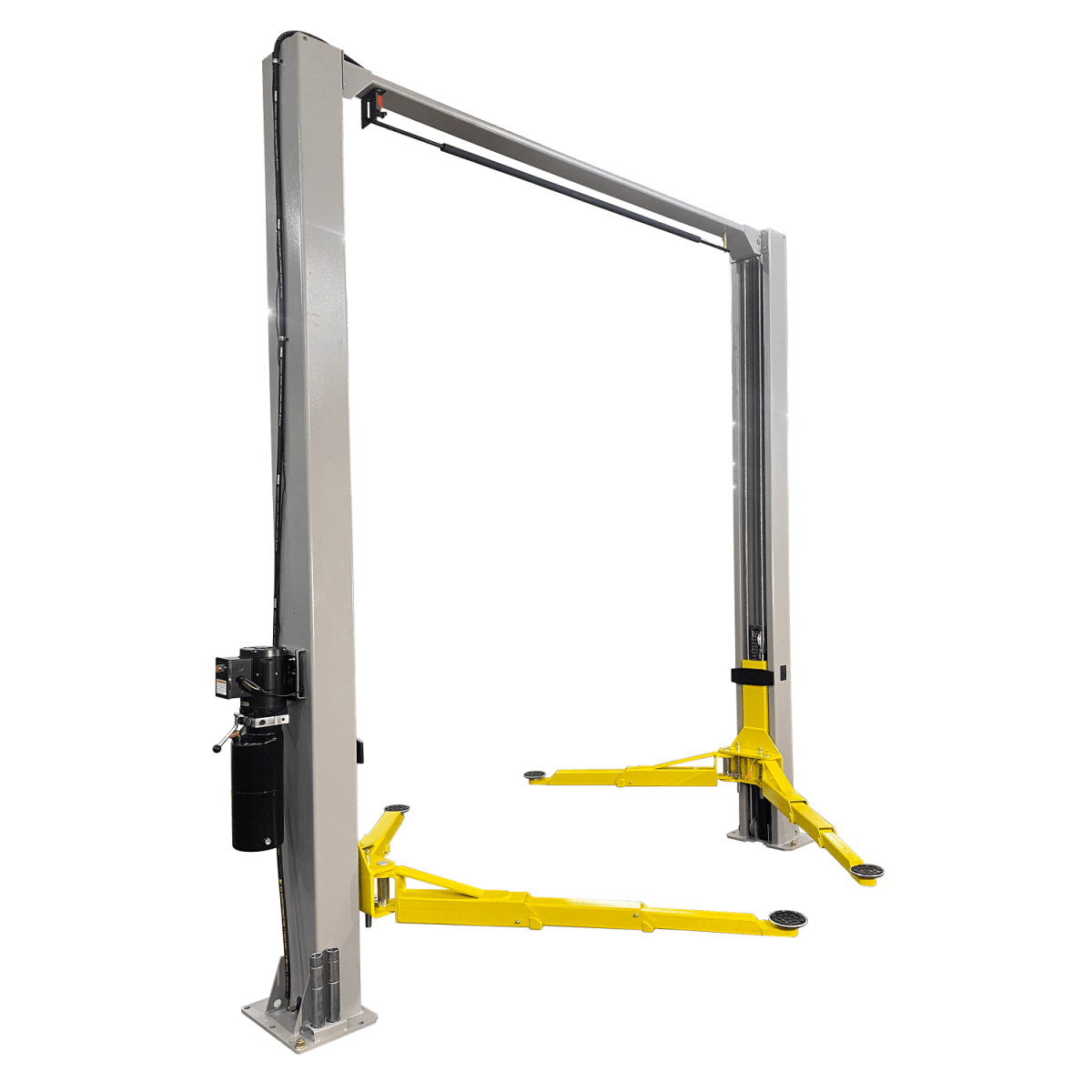

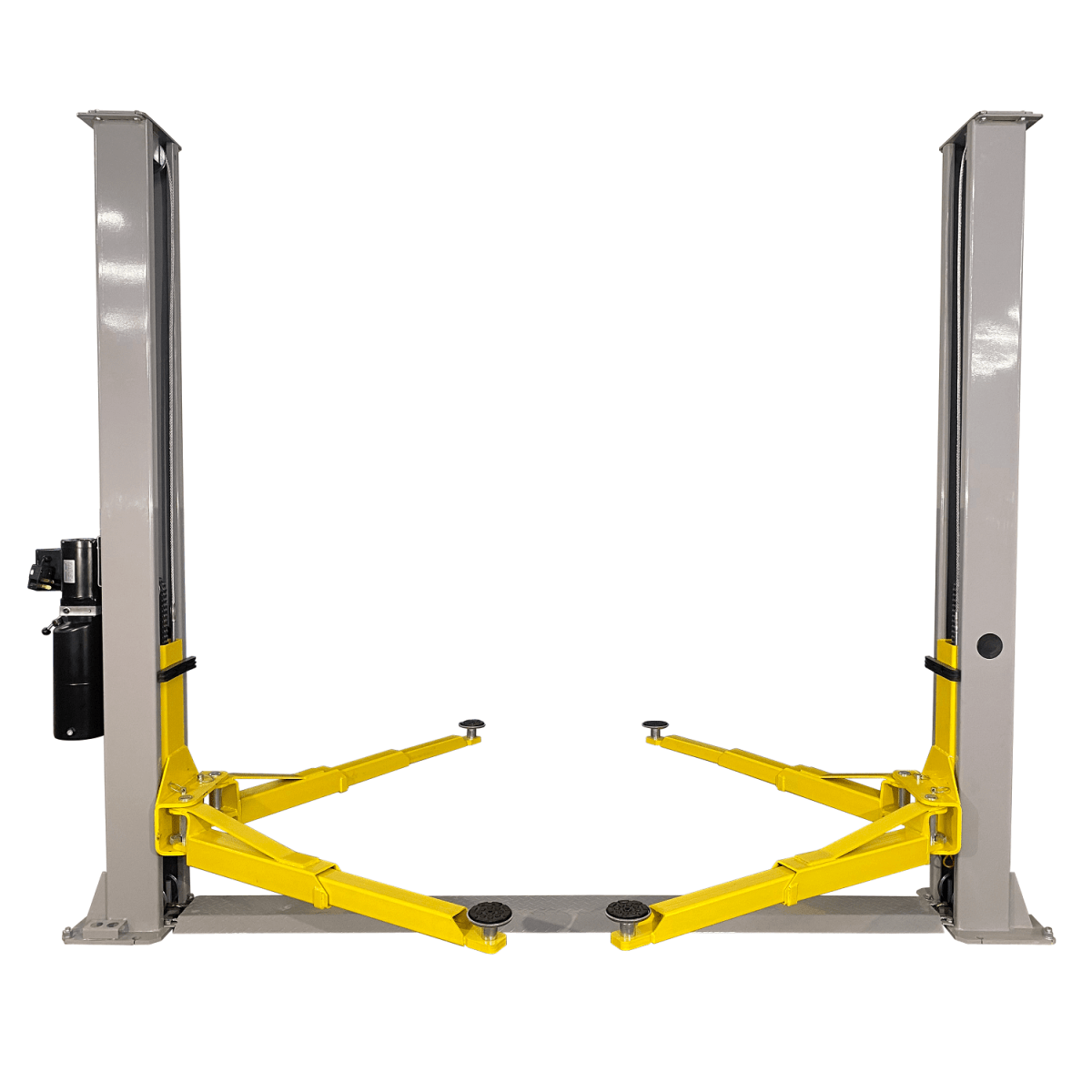

| NT-9 / NTO-9AE |
9,000 lb |
Core 9K choices; verify the exact column, arm and cable/hose routing configuration before selecting between models. |

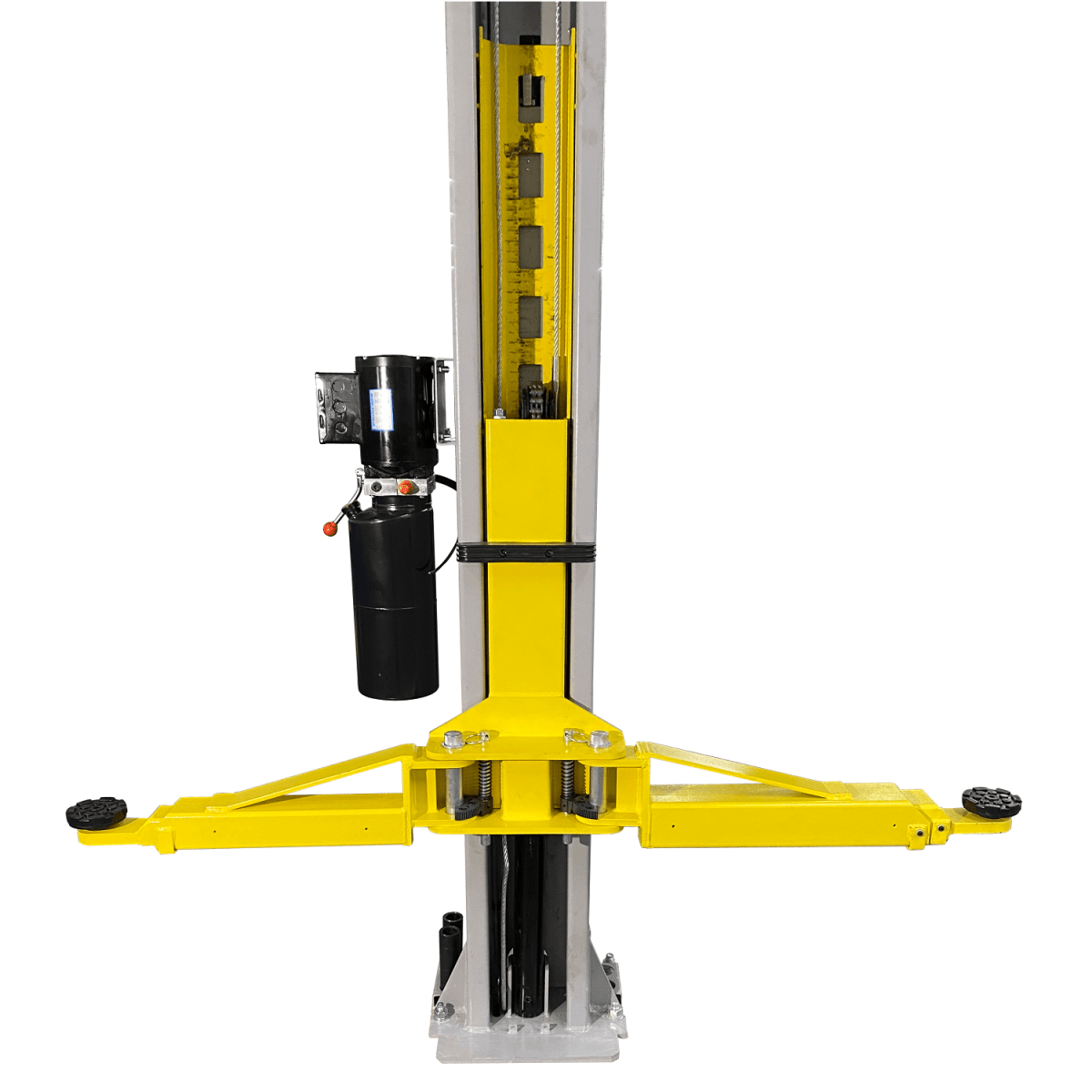

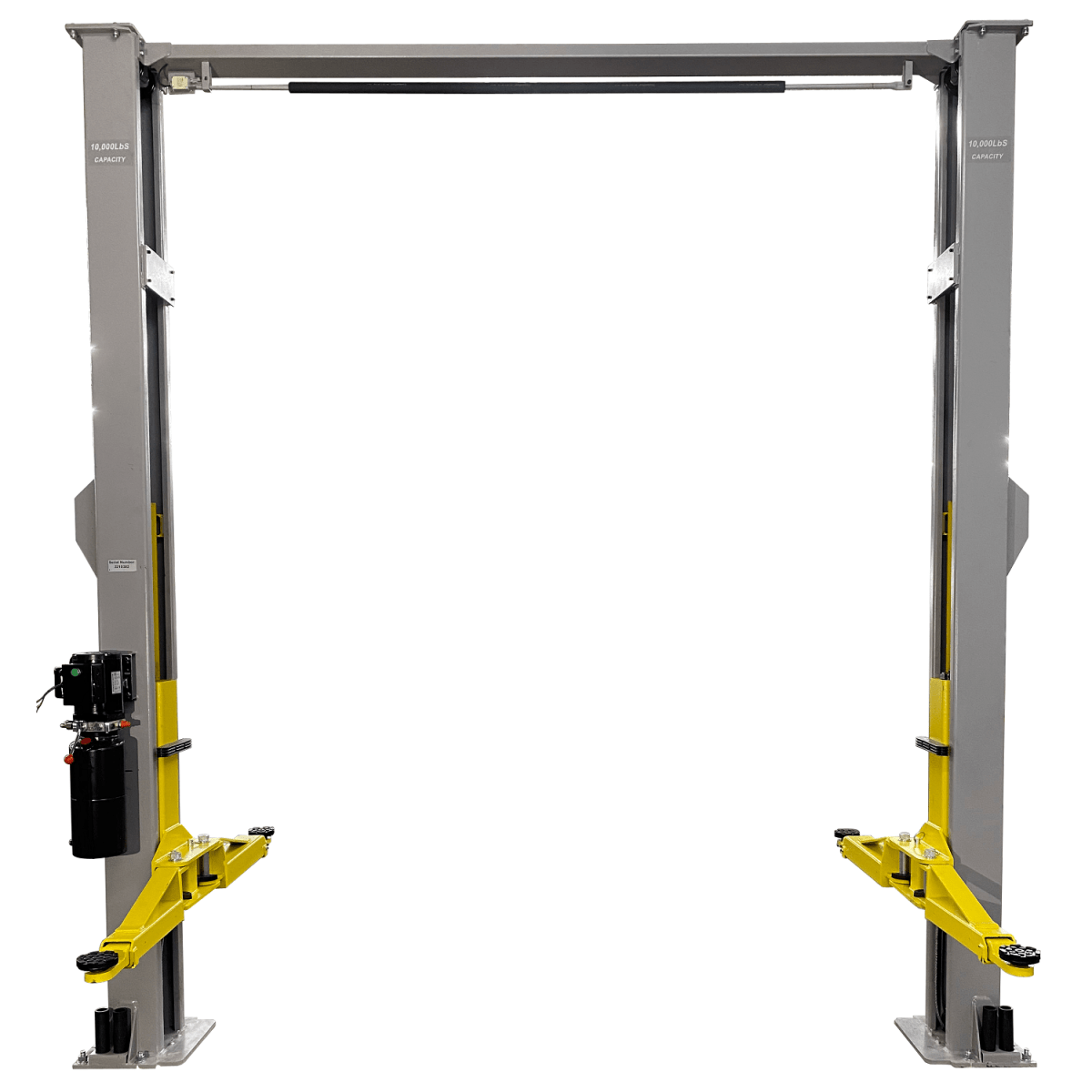

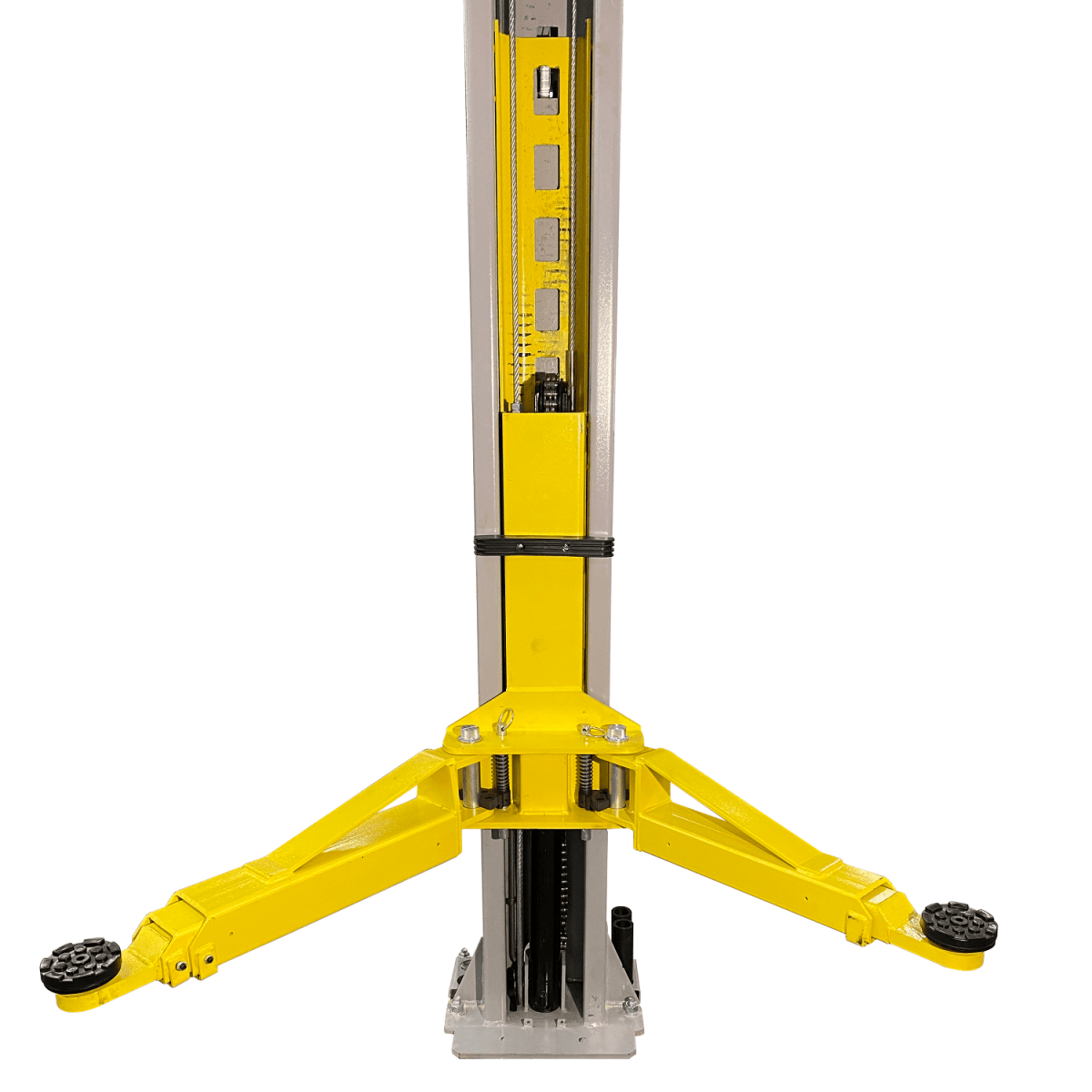

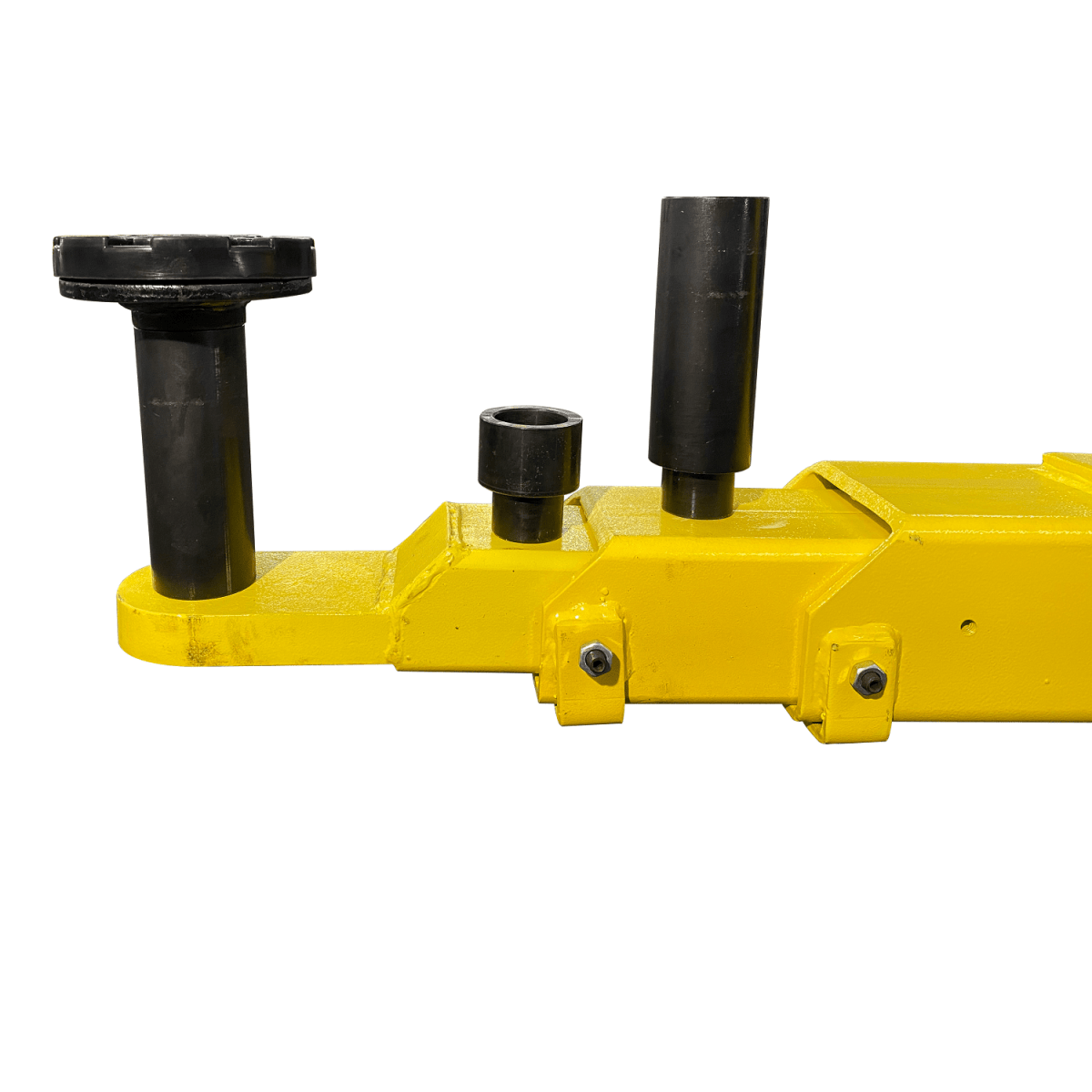

| NTO-10A |
10,000 lb |
Steps into the 10K class for a broader automotive and light-truck vehicle mix. |

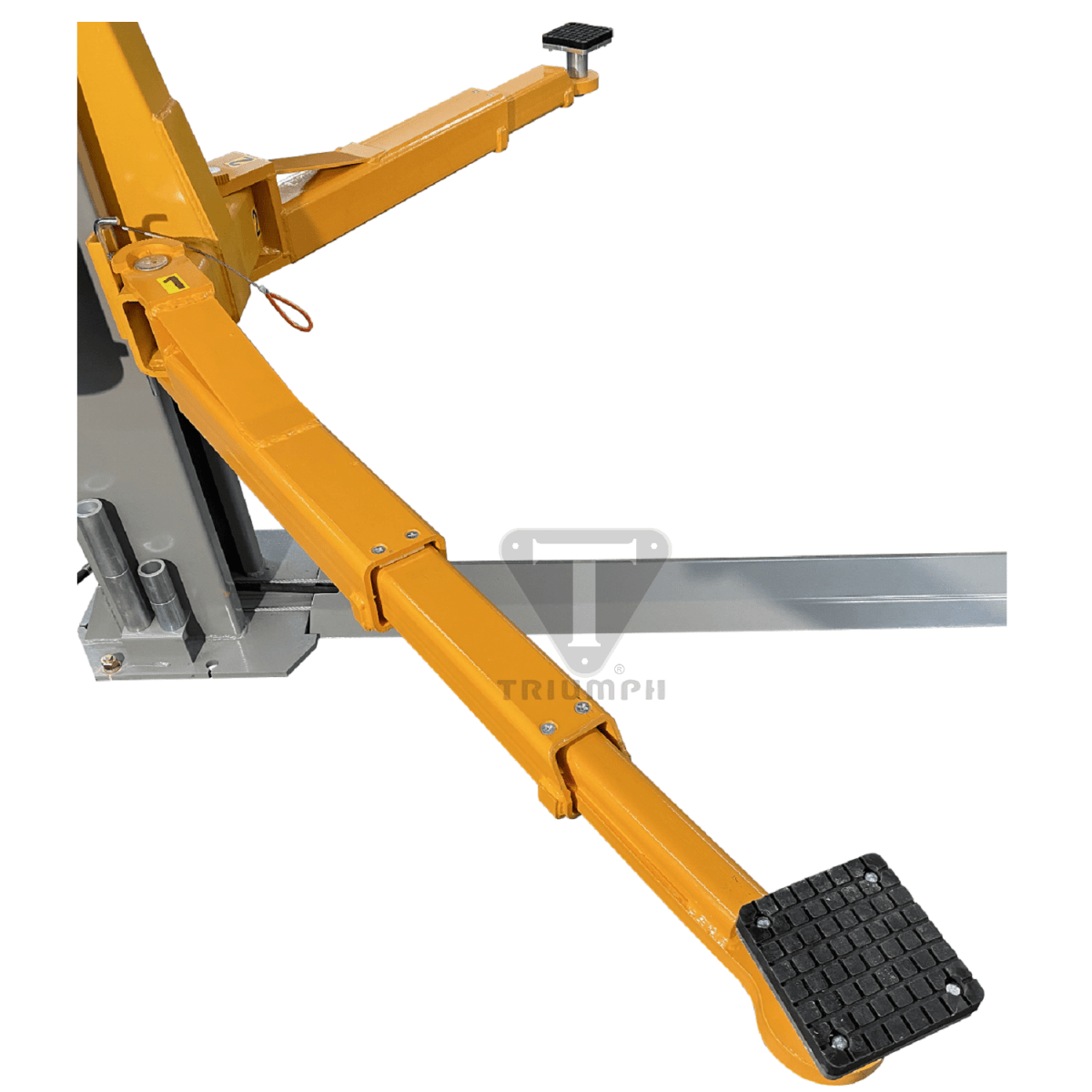

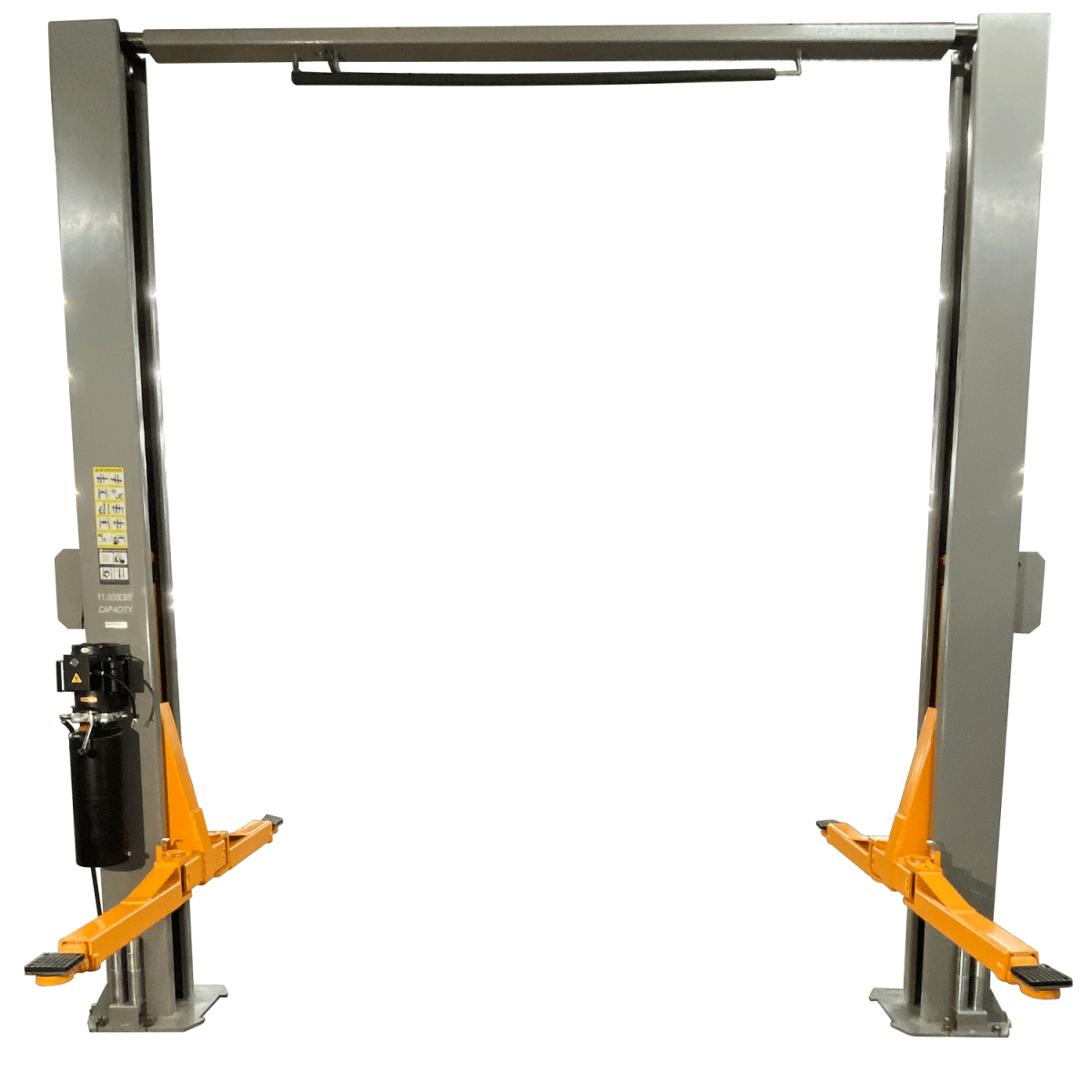

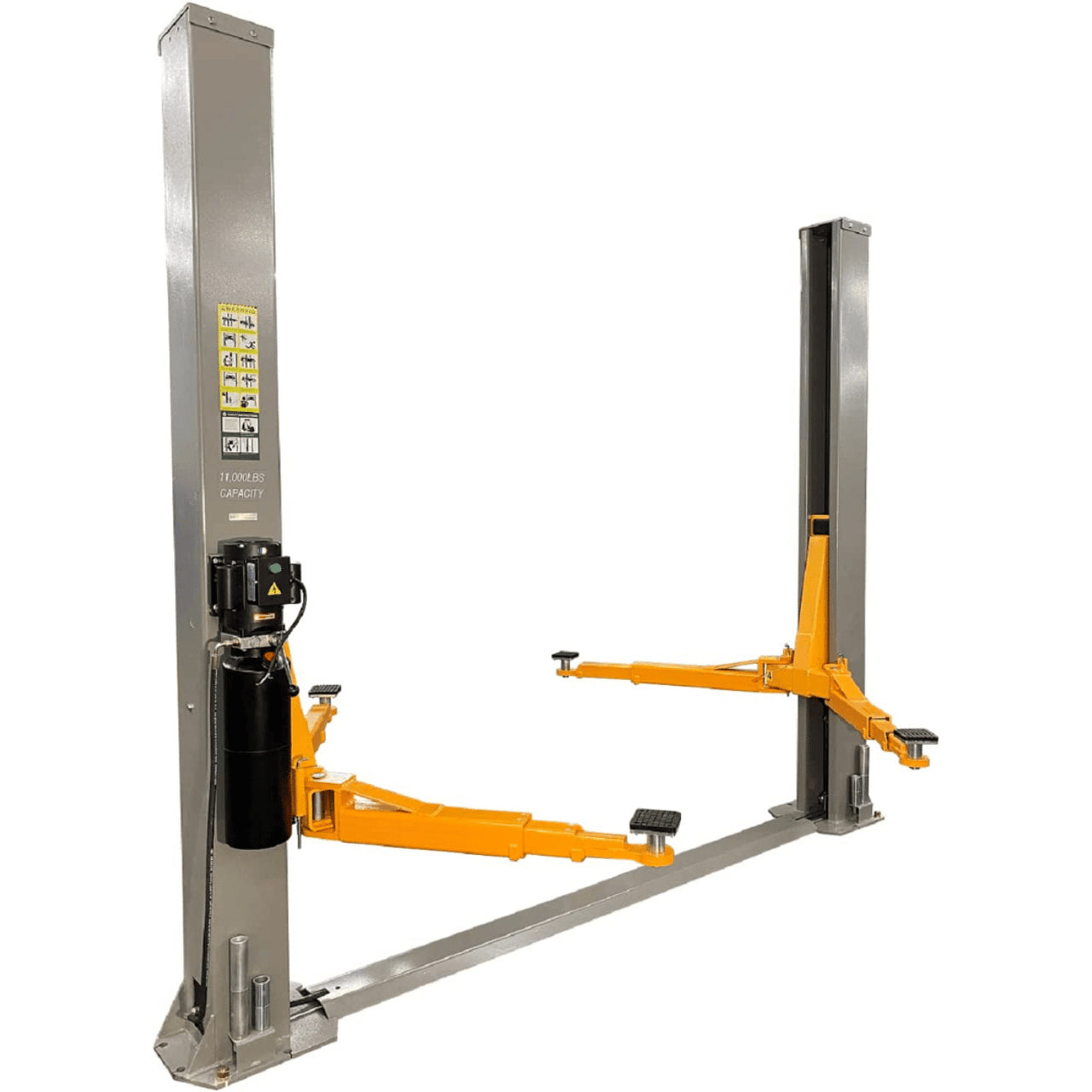

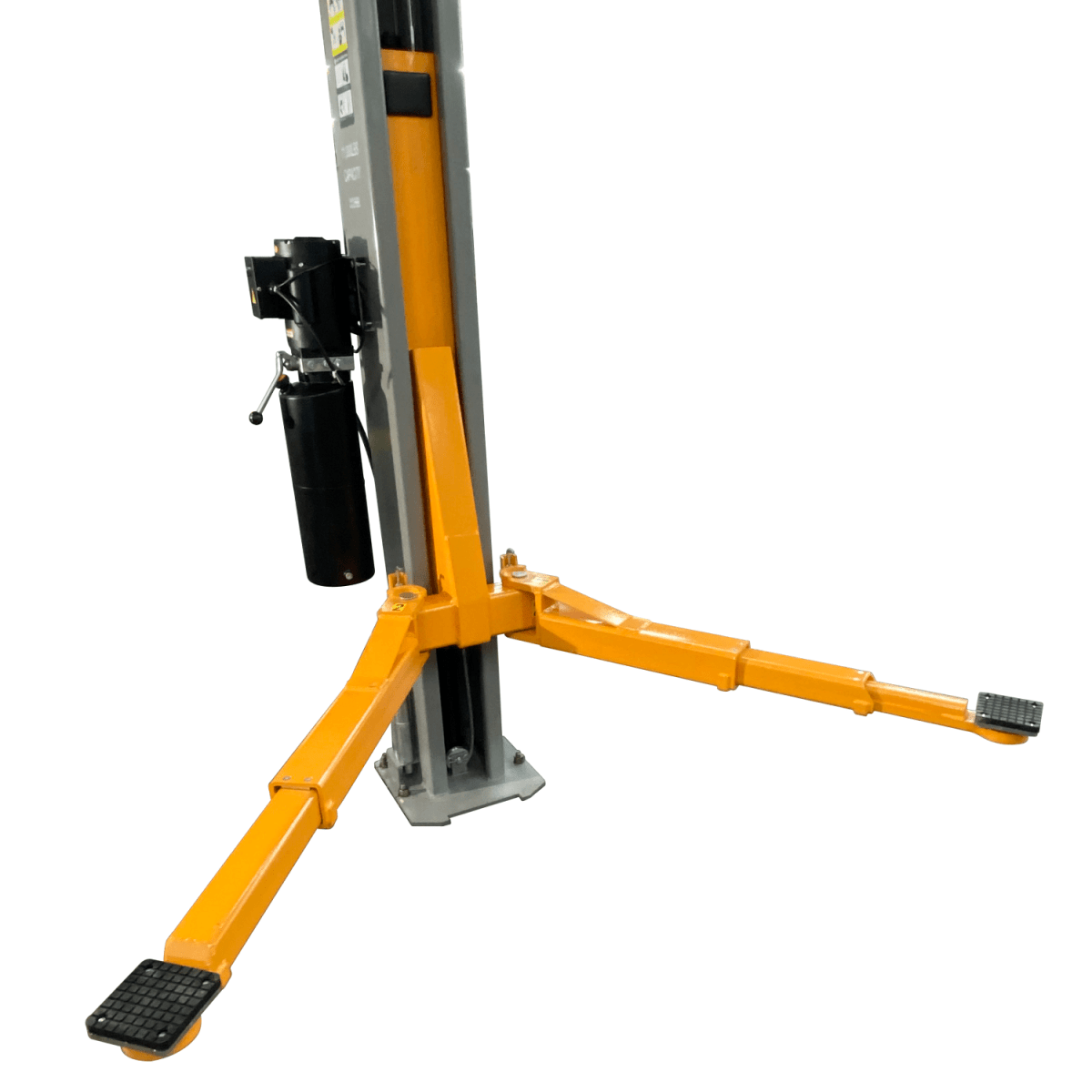

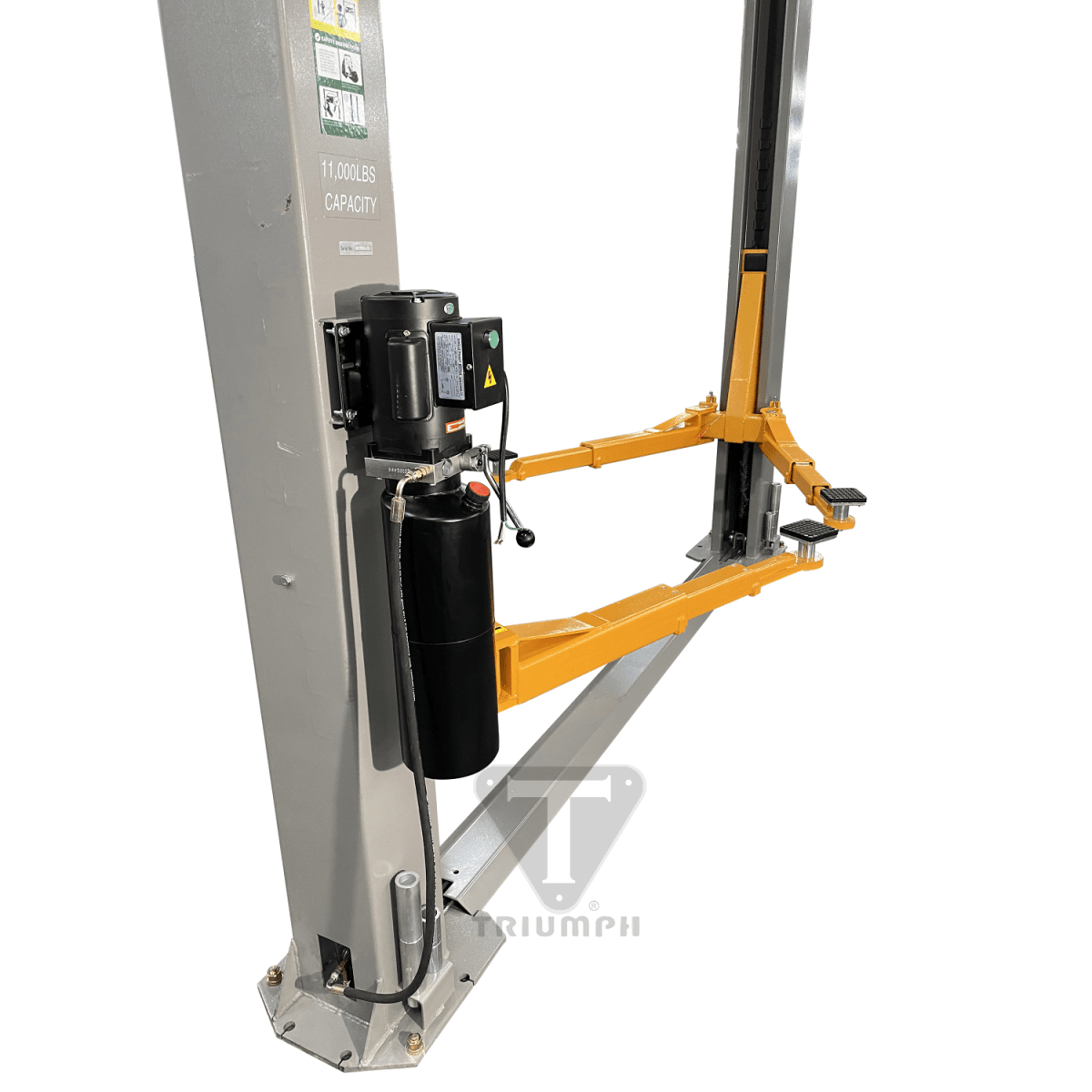

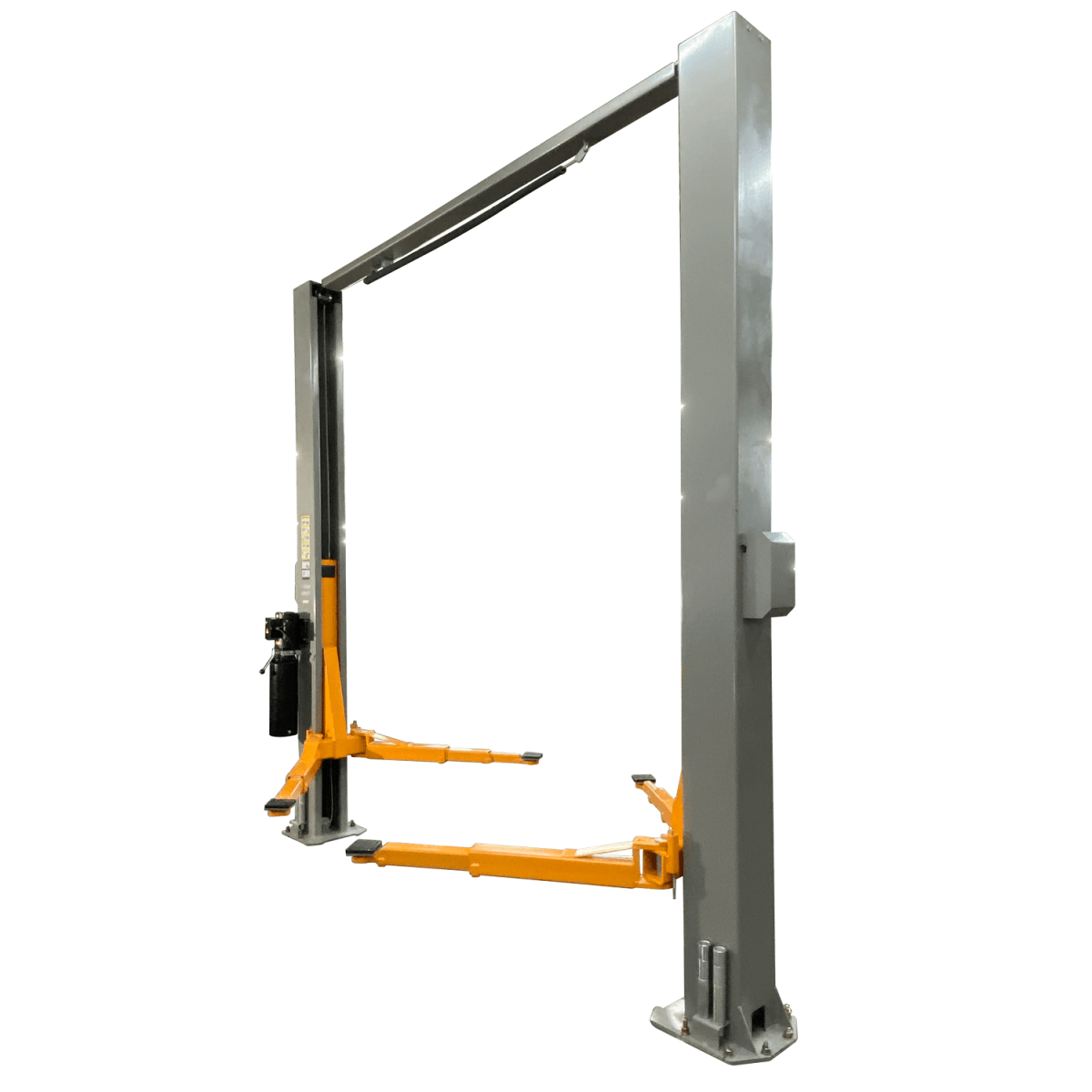

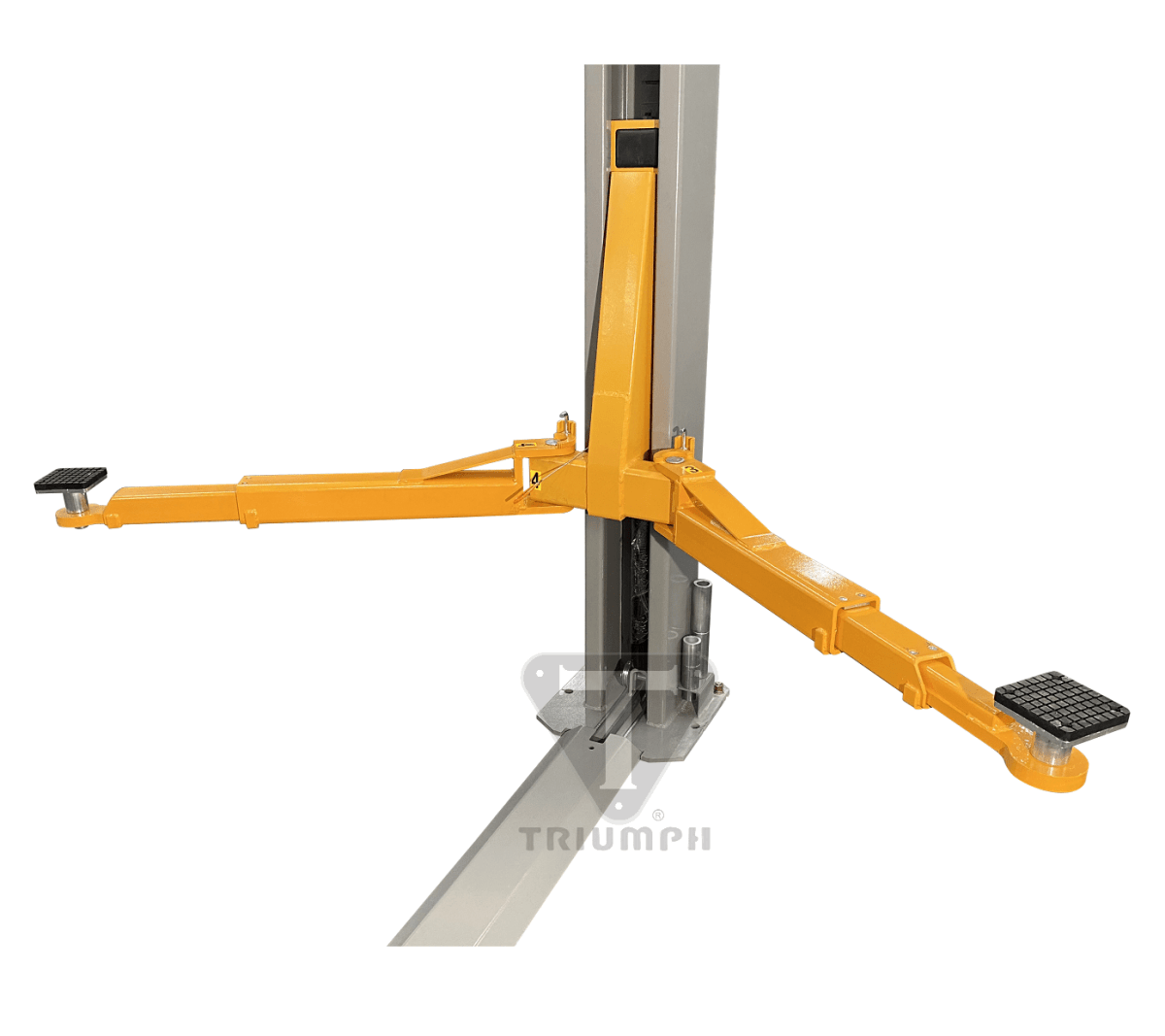

| NT-11 / NTO-11A |
11,000 lb |
Higher-capacity two-post options where pickup-point reach and bay dimensions still need to be checked. |

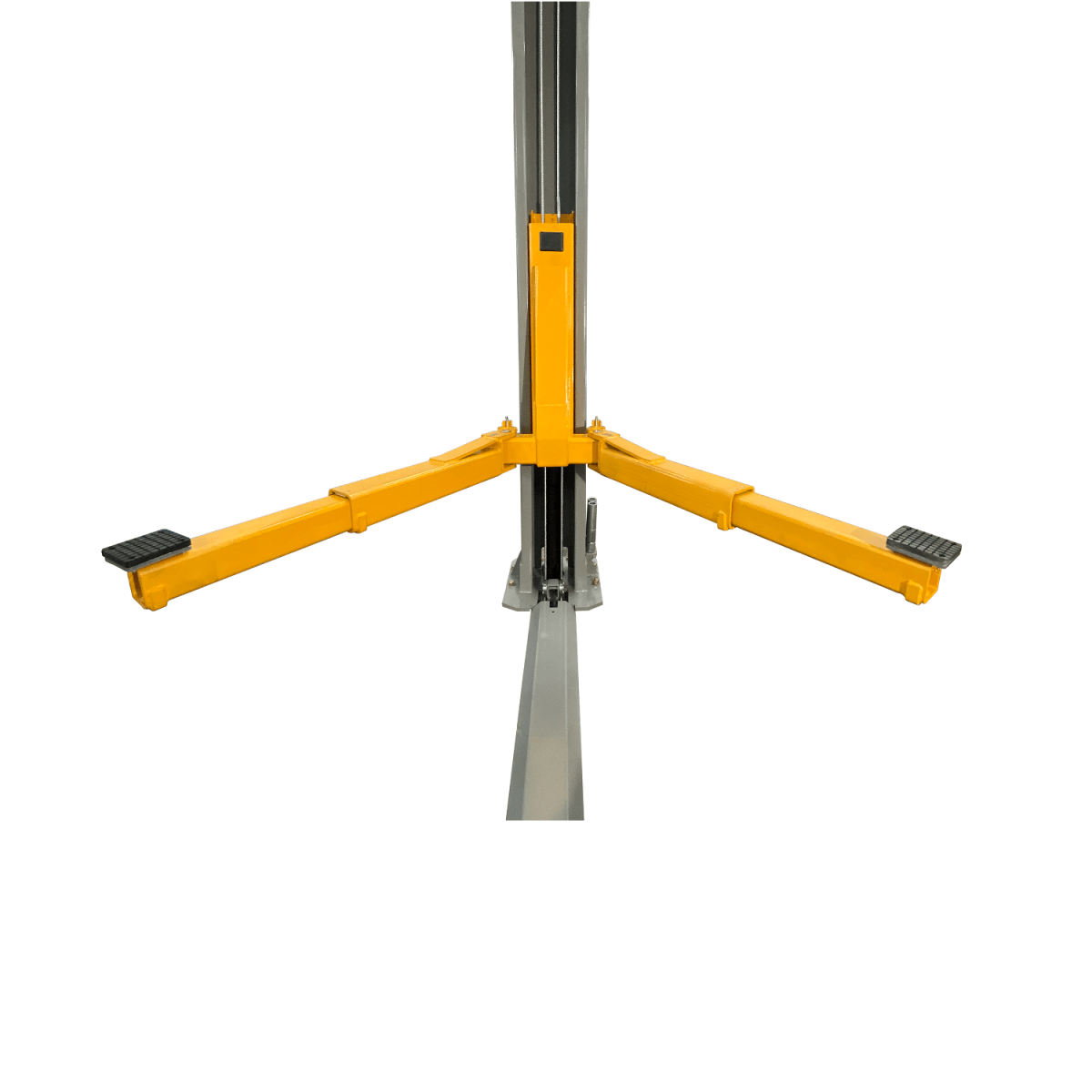

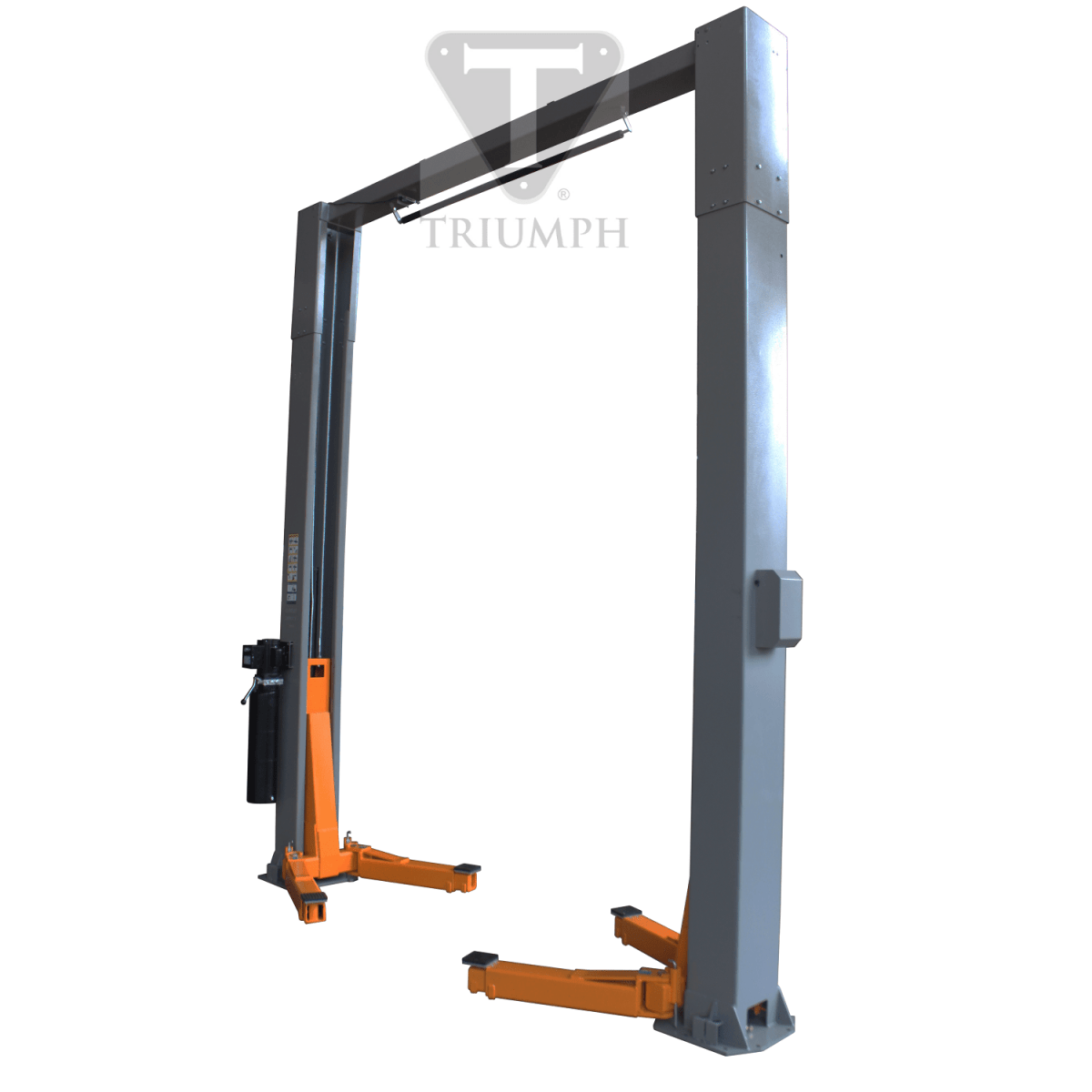

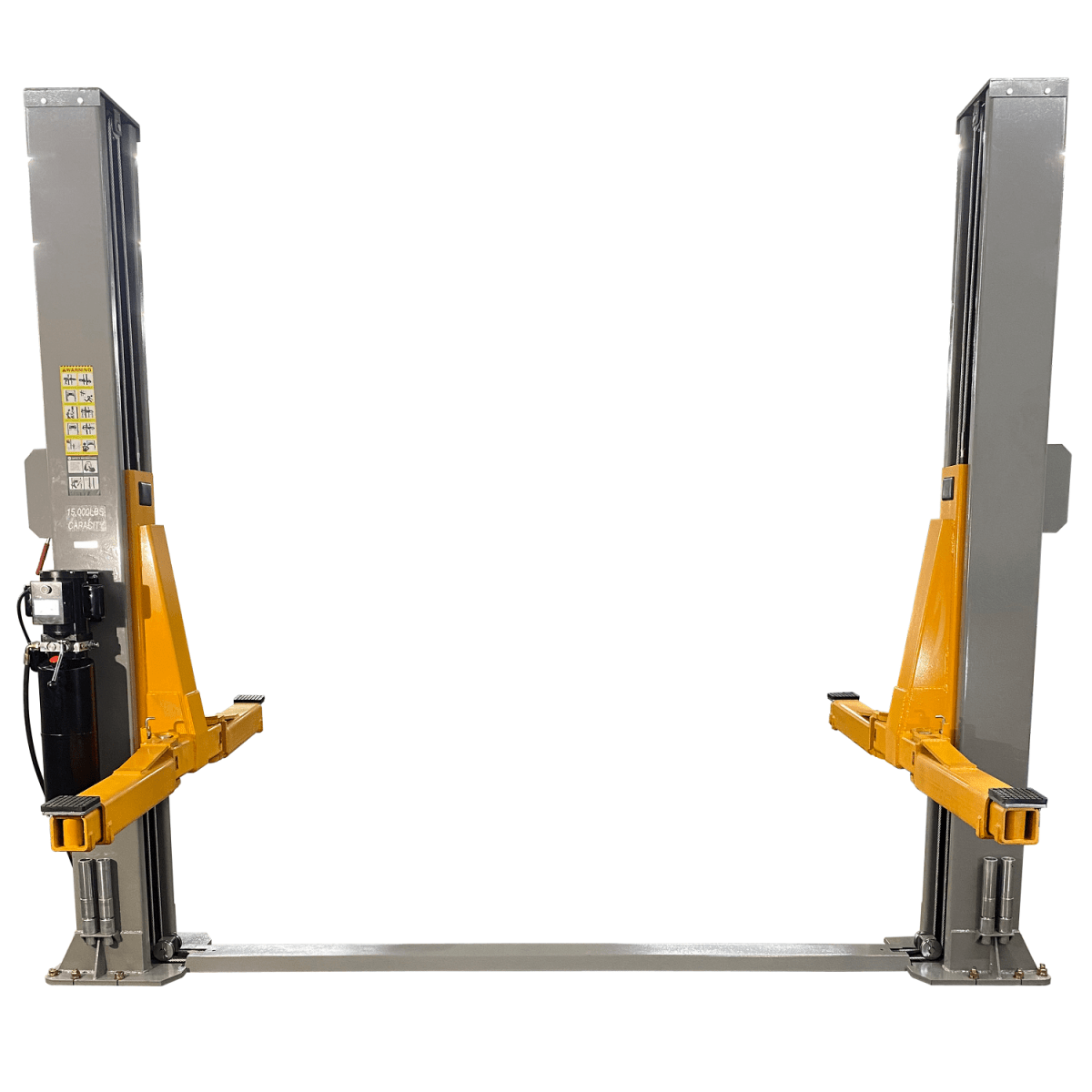

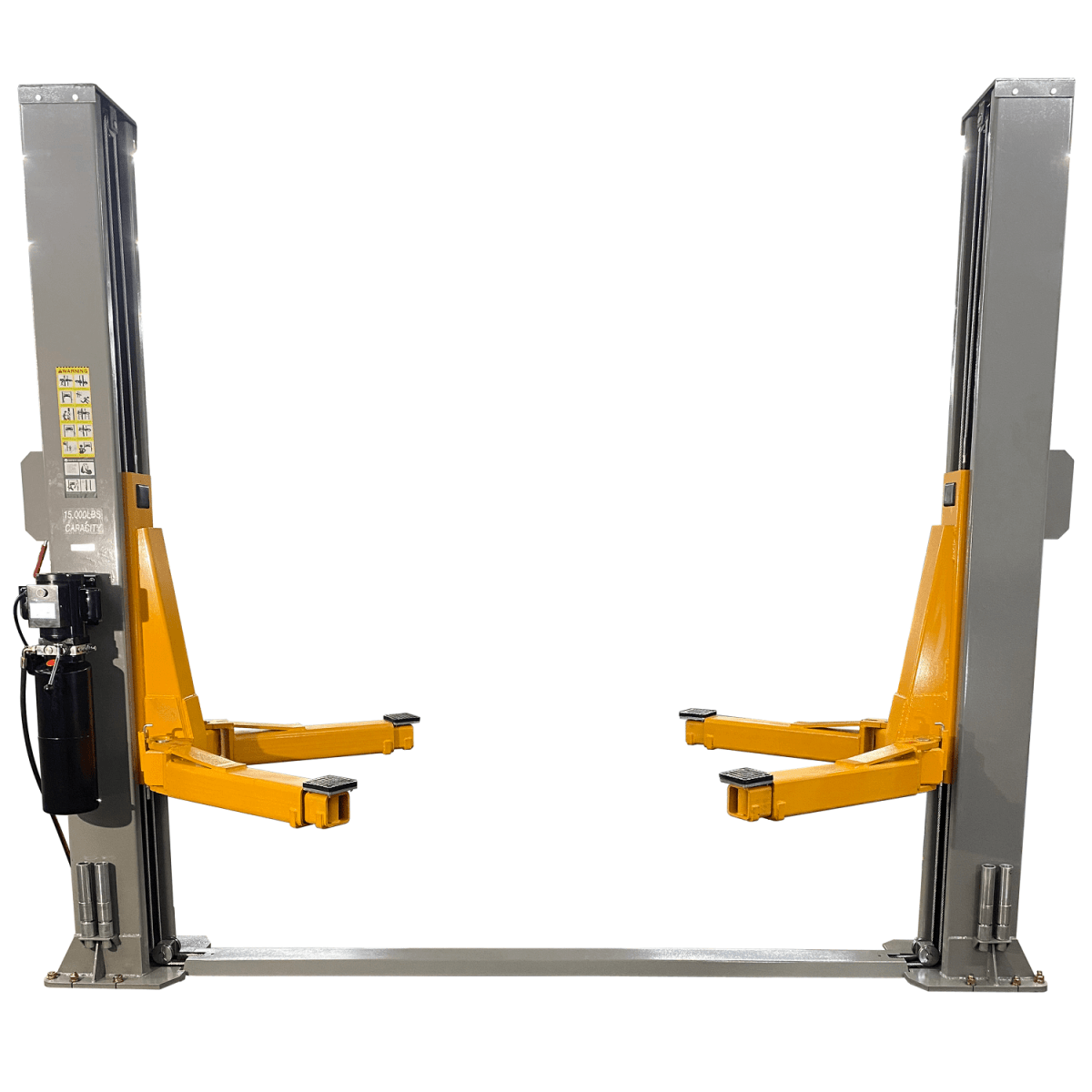

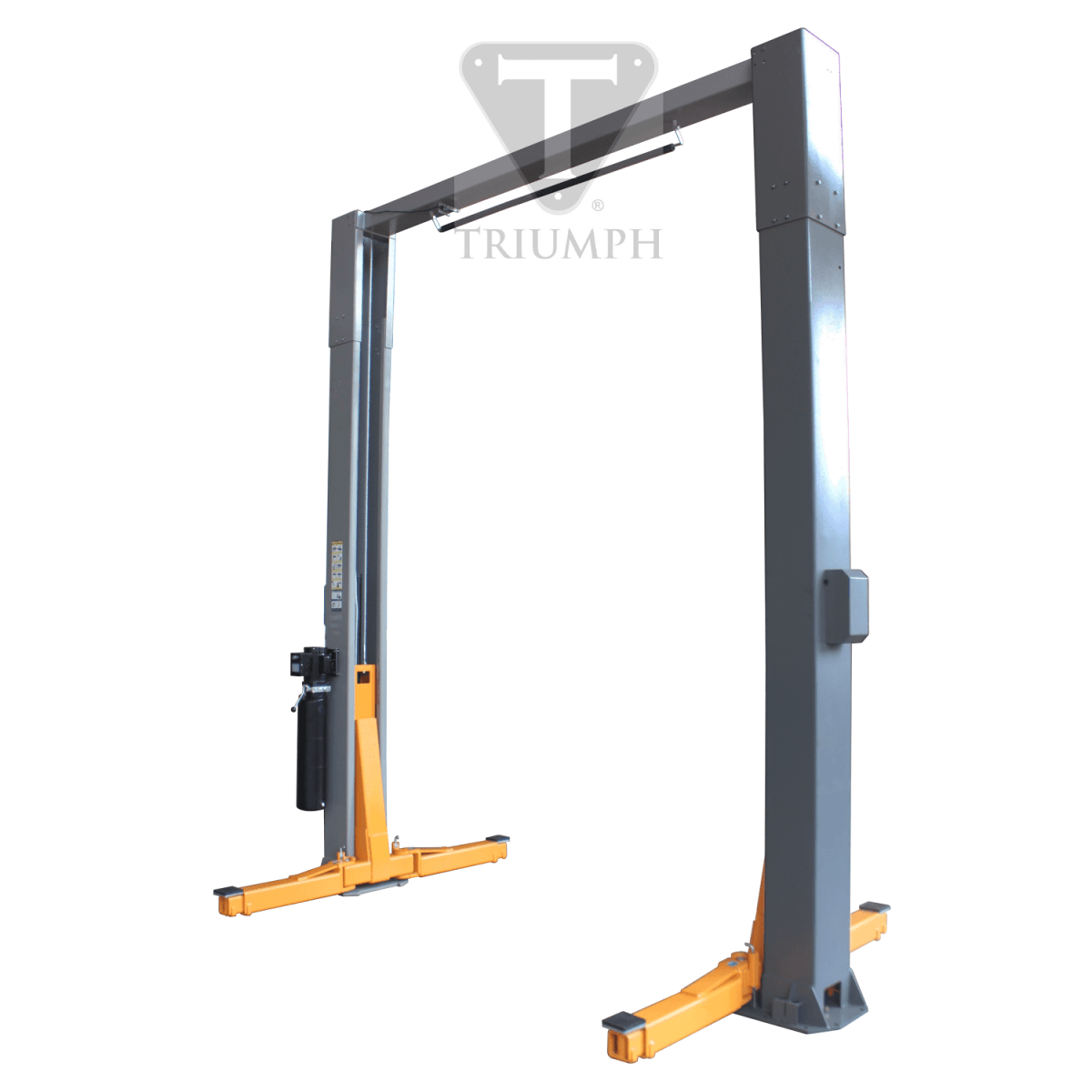

| NT-15 / NTO-15 |
15,000 lb |
For heavier vehicles that justify more capacity and the larger physical lift that comes with it. |

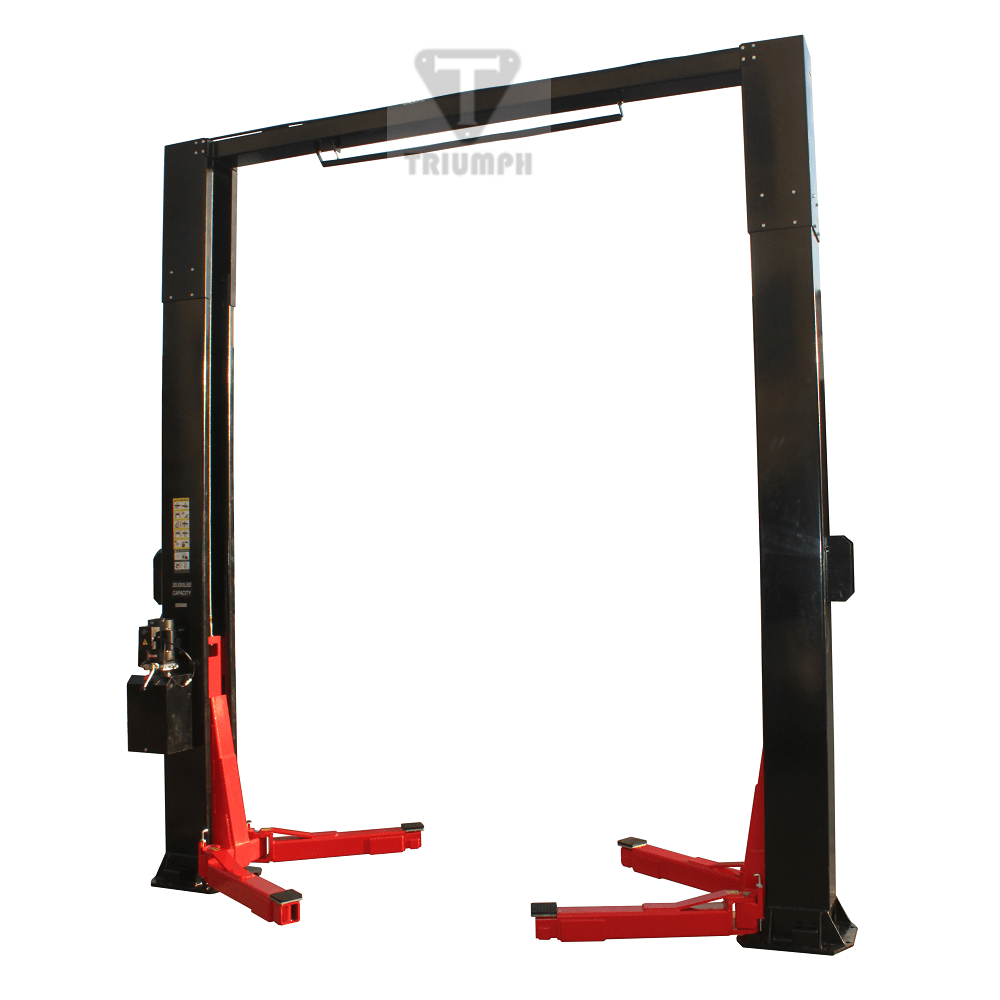

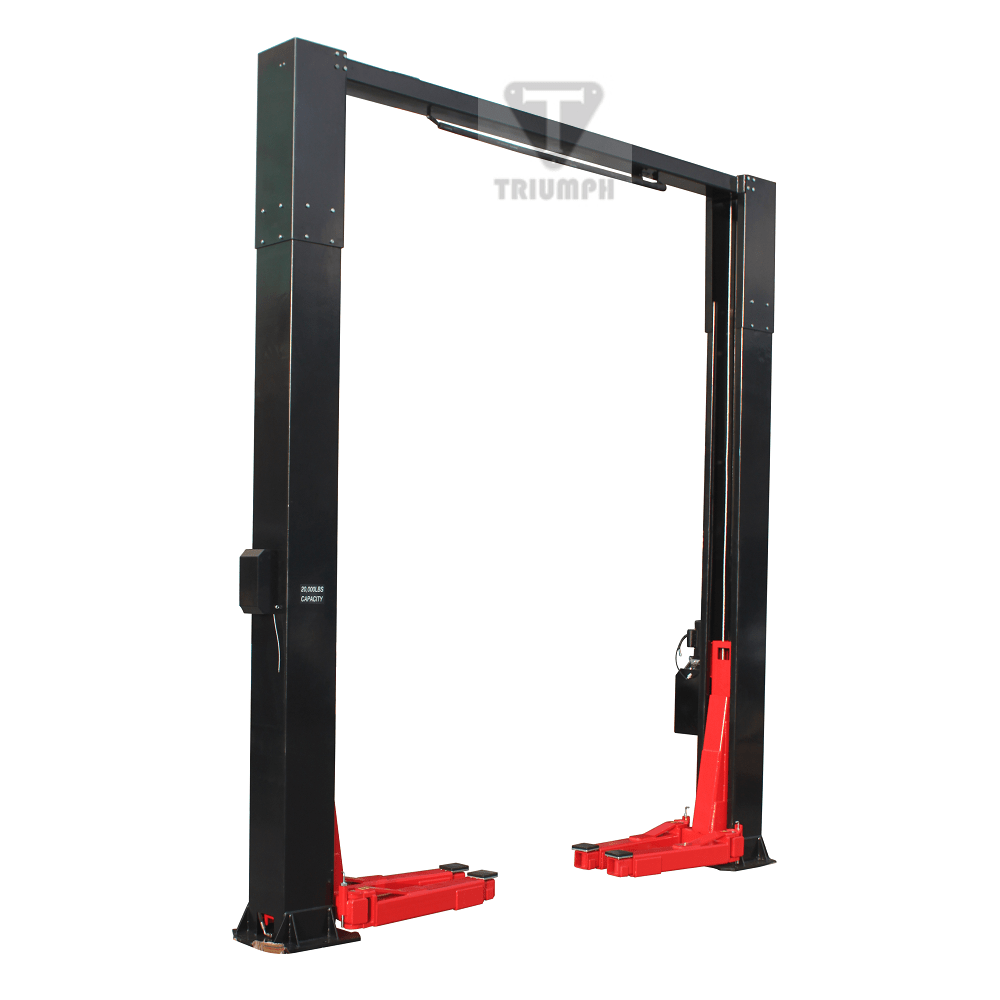

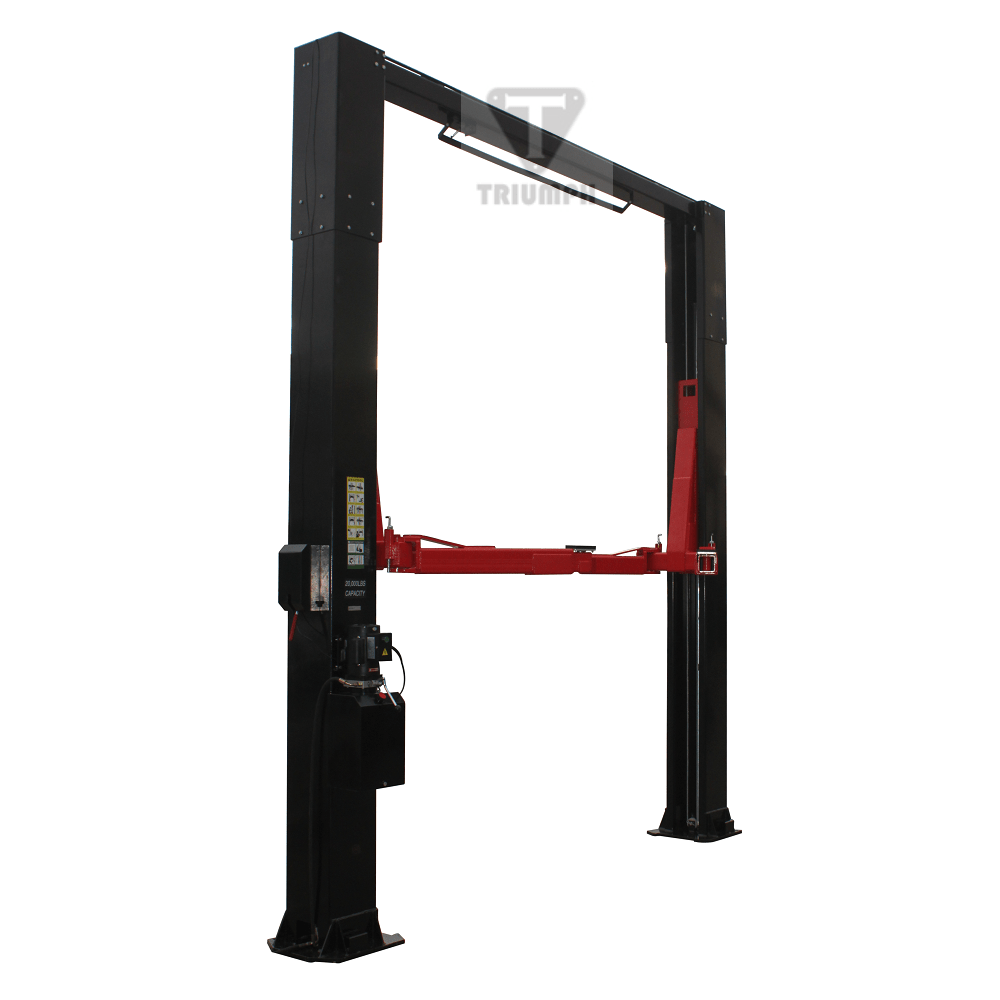

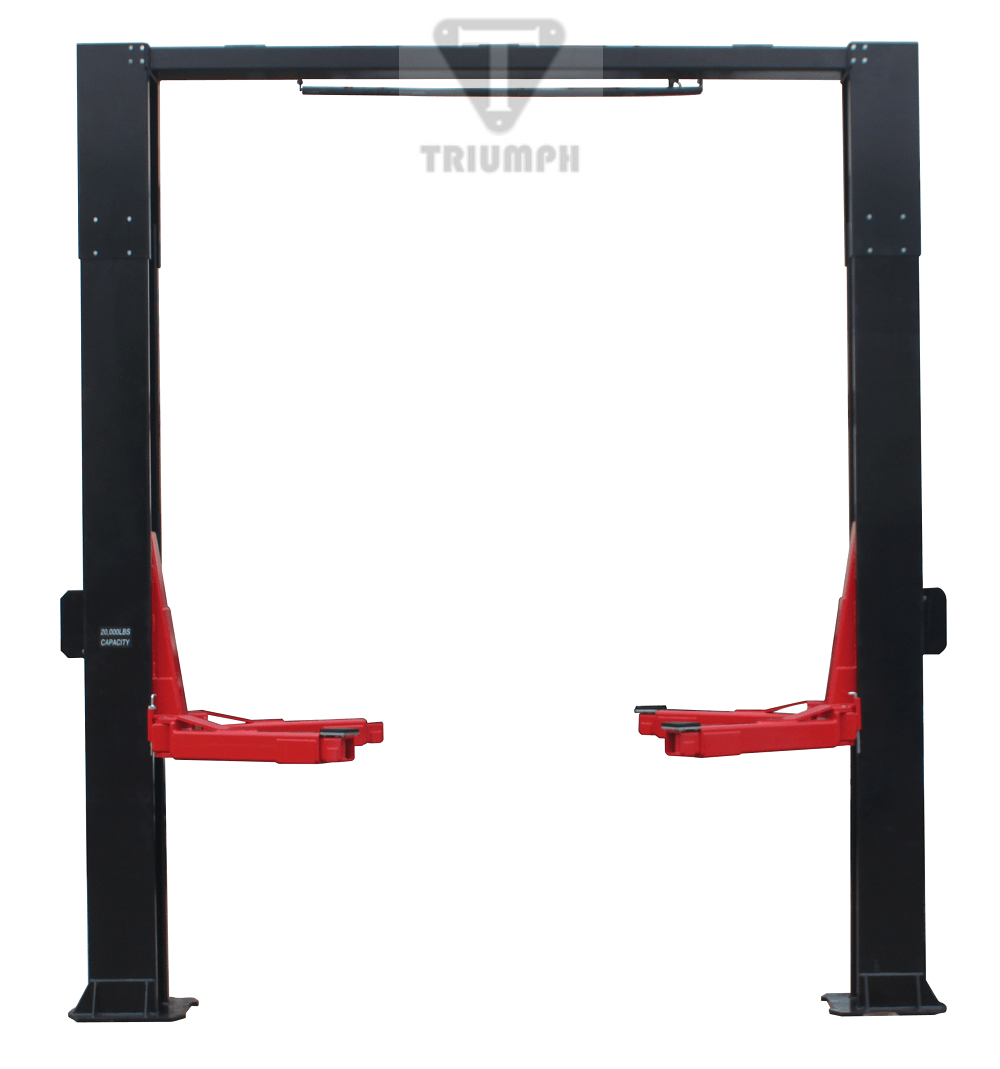

| NTO-20 |
20,000 lb |
The highest-capacity two-post model represented in this collection. |
Portable C7000 or a Fixed Two-Post Bay?
The Triumph C7000 attracts its own search demand because it solves a different space problem from a conventional fixed two-post lift. A portable lift can make sense when the bay needs to remain flexible, but portability does not remove the need to confirm vehicle pickup points, floor conditions, working clearances and the correct setup for the vehicle being raised.
Capacity Is Not the Same as Vehicle Fit
A vehicle can be below the lift's total rated capacity and still be wrong for a particular arm reach, adapter setup, center-of-gravity position or per-arm loading. As capacity rises from 9K and 10K into the 15K and 20K classes, the physical lift and required bay space also change. Extra capacity only helps when the building and vehicle geometry still work.
Measure the bay and map the vehicle pickup points before ordering. Do not use the capacity badge as a substitute for checking arm reach, drive-through width, column spacing, ceiling clearance and model-specific installation requirements.
Concrete, Power and Installation
Triumph two-post lift installation requirements are model-specific. Use the current instructions for the exact NT, NTO or C7000 model to confirm the slab, anchors, electrical supply and installation dimensions. Do not apply a concrete or electrical specification from one Triumph lift to the rest of the collection.
Triumph Two-Post Lift FAQs
What capacity Triumph 2 post lift should I buy?
Start with the heaviest vehicles and their approved pickup points, then check arm reach, weight distribution and the bay itself. The current collection ranges from 7,000 to 20,000 lb, but buying more capacity than the vehicle mix requires can also mean a larger lift and more demanding installation.
Is the Triumph C7000 a portable 2 post lift?
Yes. The C7000 is represented as a 7,000 lb portable two-post auto lift. Treat it as a distinct layout choice rather than simply the smallest fixed lift in the lineup.
What is the difference between Triumph NT and NTO lifts?
The collection contains both NT and NTO models, but the exact structural and routing differences must be verified model by model. Use the current specification and installation information for the specific lift rather than assuming every NT or NTO shares one geometry.
Where can I find Triumph 2 post lift installation instructions?
Use the installation documentation for the exact model and revision being installed. Dimensions, anchoring, utilities and assembly details can differ across C7000, NT and NTO models, so a generic two-post instruction set is not a safe substitute.
Match the Lift to the Vehicles and the Building
Use the product grid for current Triumph two-post configurations, then verify the selected model against vehicle pickup points, rated load, bay dimensions, slab conditions and utilities before ordering. If runway support or storage is a better fit for the bay, compare Triumph four-post lifts. For the full equipment lineup, browse Triumph lifts and tire service equipment.
