Triumph NT-9, 9,000 lb Two Post Auto Lift
SKU: NT-9
$1,900.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- Floor Plate Instead of an Overhead Bar
- Three-Stage Front Arms
- Dual-Point Lock Release
Talk to a lift specialist
Expert product and freight support before you order
855-498-2147
- Authorized Triumph Dealerdirect manufacturer relationship
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax

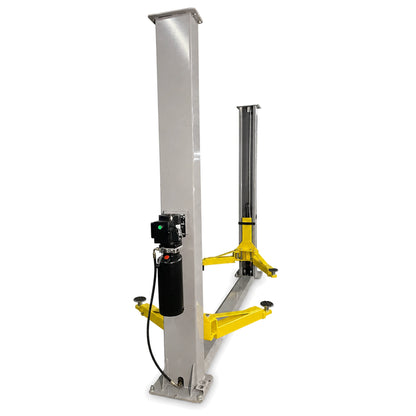

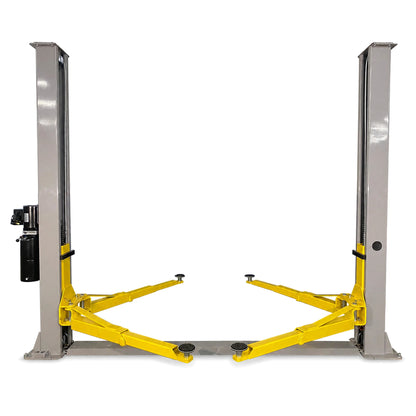

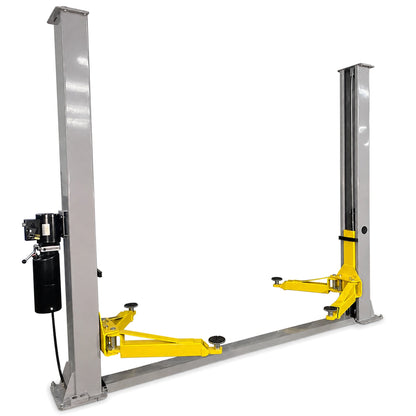

The Triumph NT-9 is a 9,000 lb two post car lift built around a floor plate design: the equalizer cables and hydraulic hoses run under protective plates between the columns instead of through an overhead bar. That is what gets the overall height down to 111 in and makes this one of the few full-capacity two post lifts that fits under a standard residential garage ceiling.
Three-stage front arms reach lift points on everything from narrow compacts to wide-stance pickups, and stackable truck adapters come in the crate for frame-rail vehicles with more ground clearance. The dual-point lock release requires both columns to be released before the lift lowers, and the 3 HP motor on 220V single-phase takes a vehicle up 72 in in about 40 seconds.
This is the right pick when ceiling height is the constraint. Confirm 220V service and 3,000 PSI concrete before ordering, and expect the floor plate between the posts as the trade for the low profile.
Features

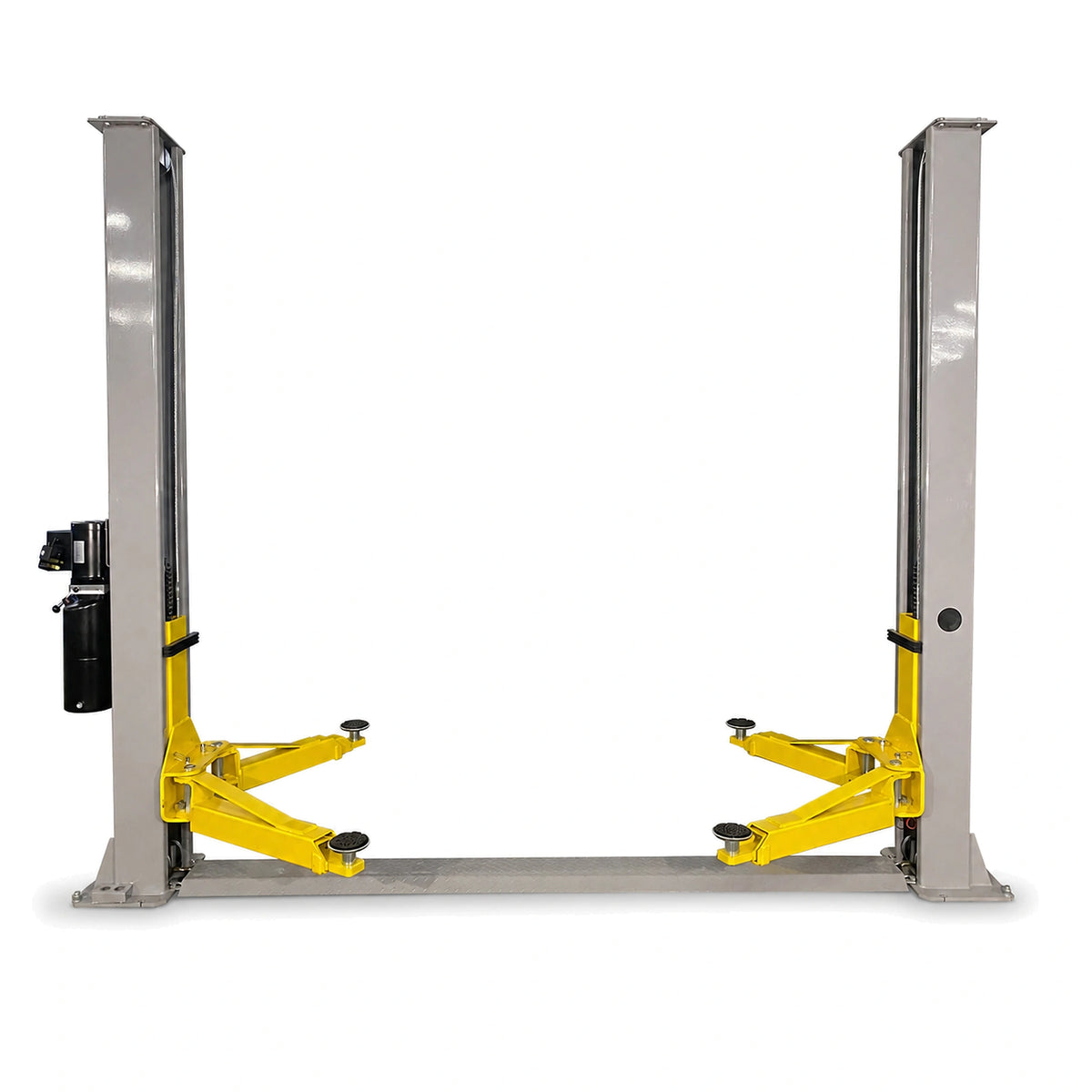

Floor Plate Instead of an Overhead Bar
Cables and hydraulic hoses route beneath protective floor plates, which drops the overall height to 111 in. That is what makes the NT-9 viable in residential garages and older commercial buildings where an overhead-style lift will not clear the ceiling, and it keeps the lines themselves out of harm's way.

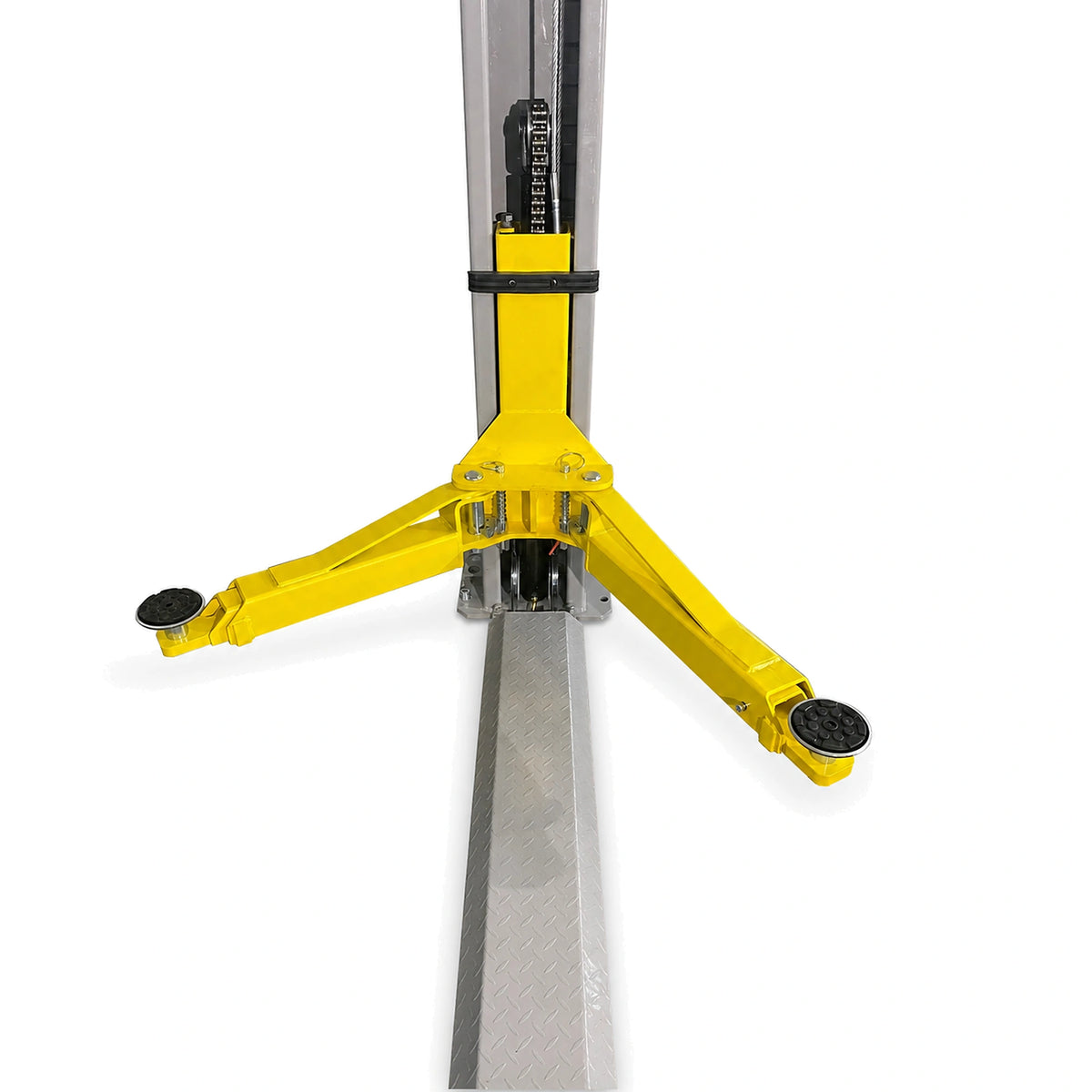

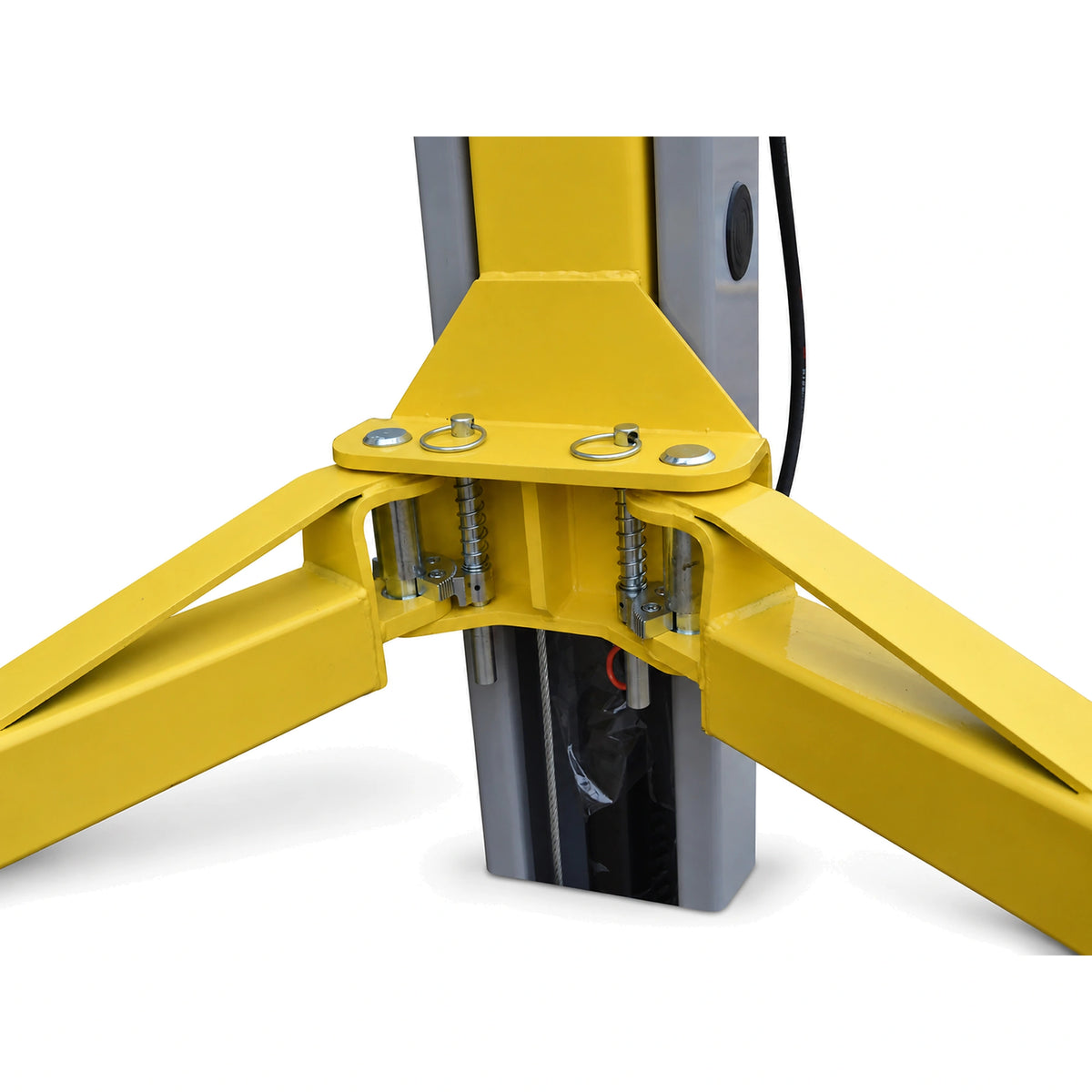

Three-Stage Front Arms
The telescoping three-stage front arms give enough reach range to put pads on manufacturer lift points across narrow-wheelbase compacts and wide full-size trucks without compromising vehicle position between the posts.
Dual-Point Lock Release
Lowering requires releasing the locks at both columns, so one bumped handle cannot start a descent. When you spend time under raised vehicles, that second required action is worth having.
Truck Adapters in the Crate

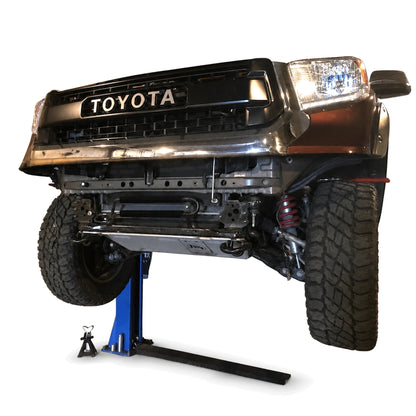

Stackable truck adapters are included rather than sold separately. They add the pad height needed to reach frame lift points on pickups and body-on-frame SUVs with taller ground clearance.

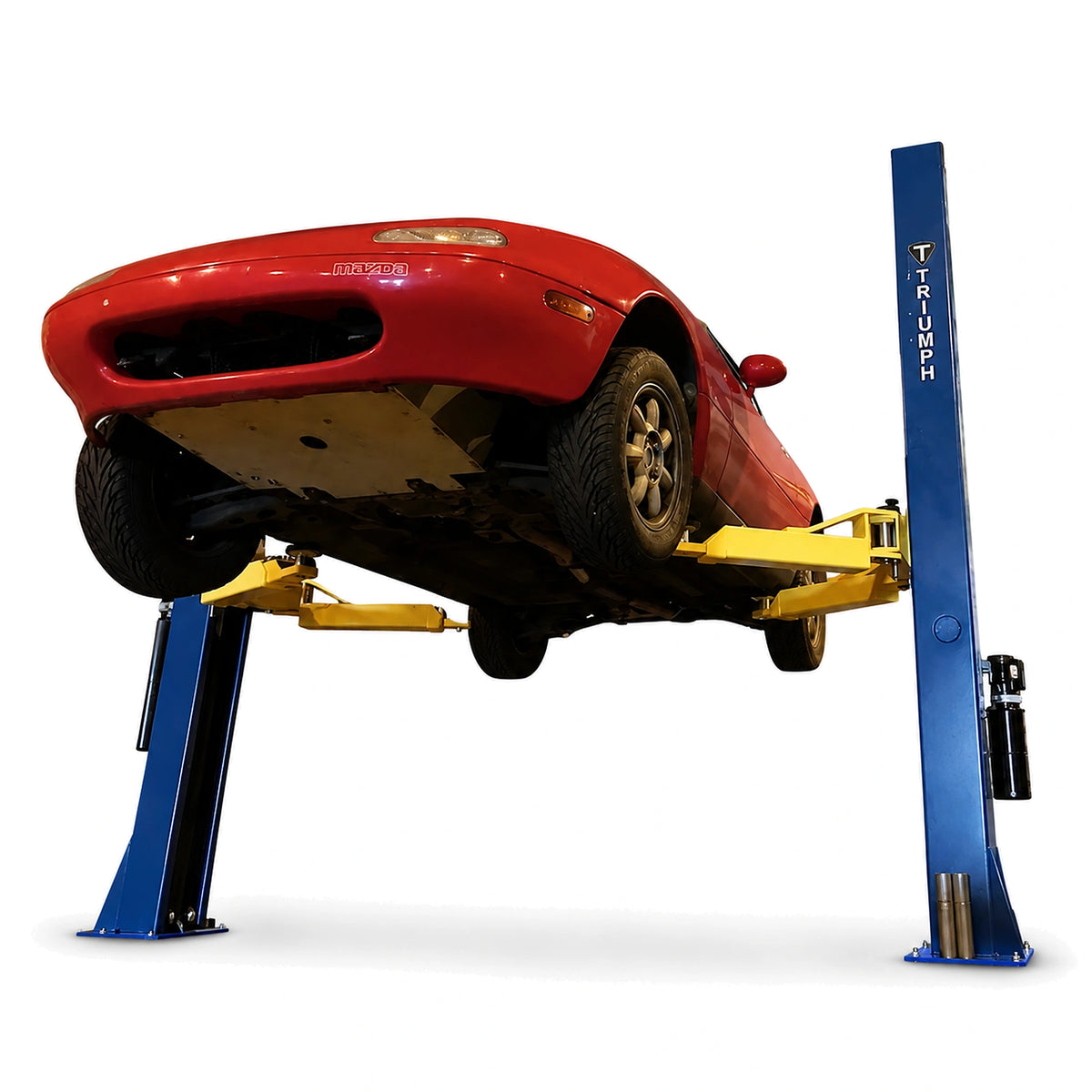

72 in of Rise from a 4.5 in Pad Height
The arms start at 4.5 in to slide under lower cars and rise 72 in to a comfortable standing work height. The 96 in drive-thru width at tire level and 106 in between posts at mirror height leave room for wide vehicles.

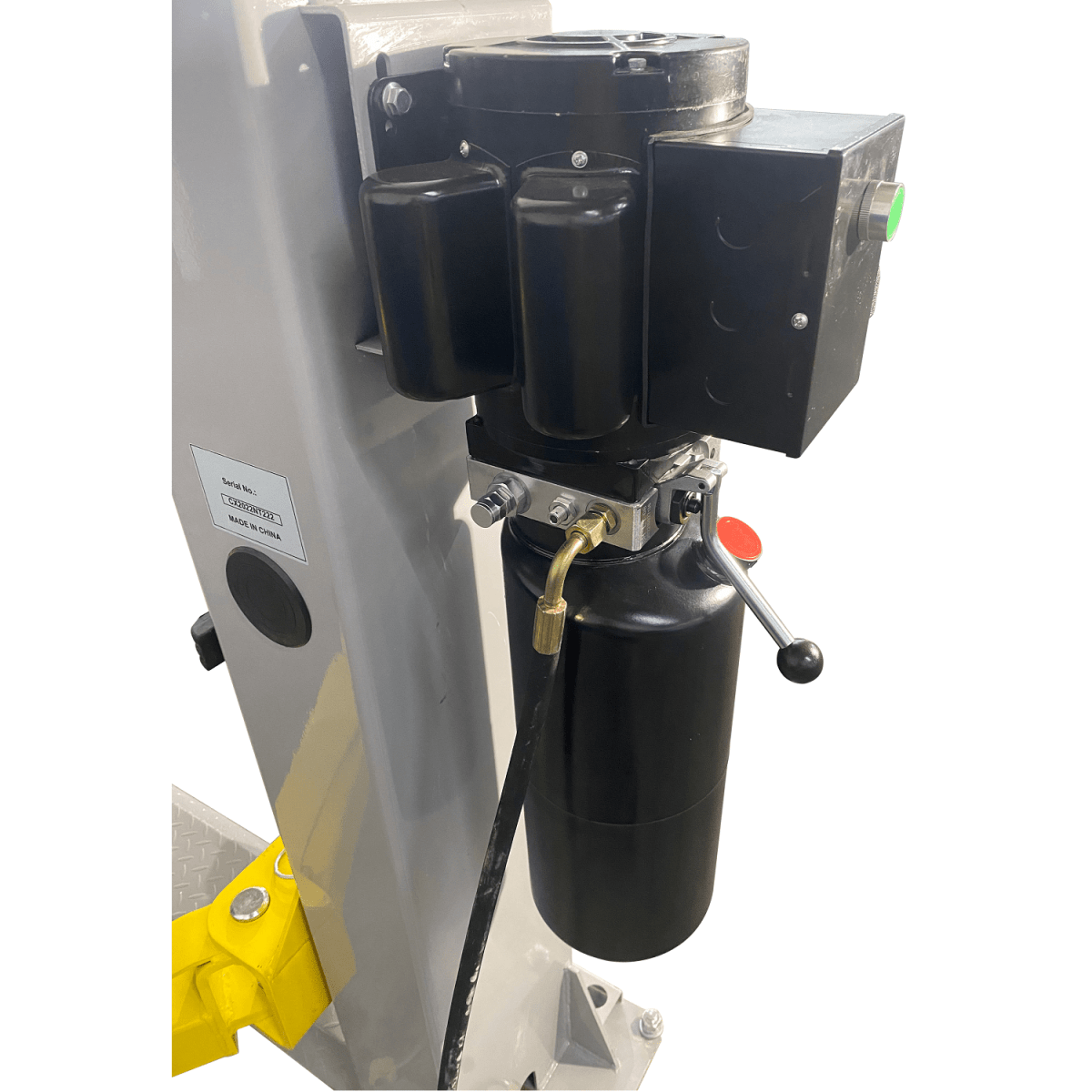

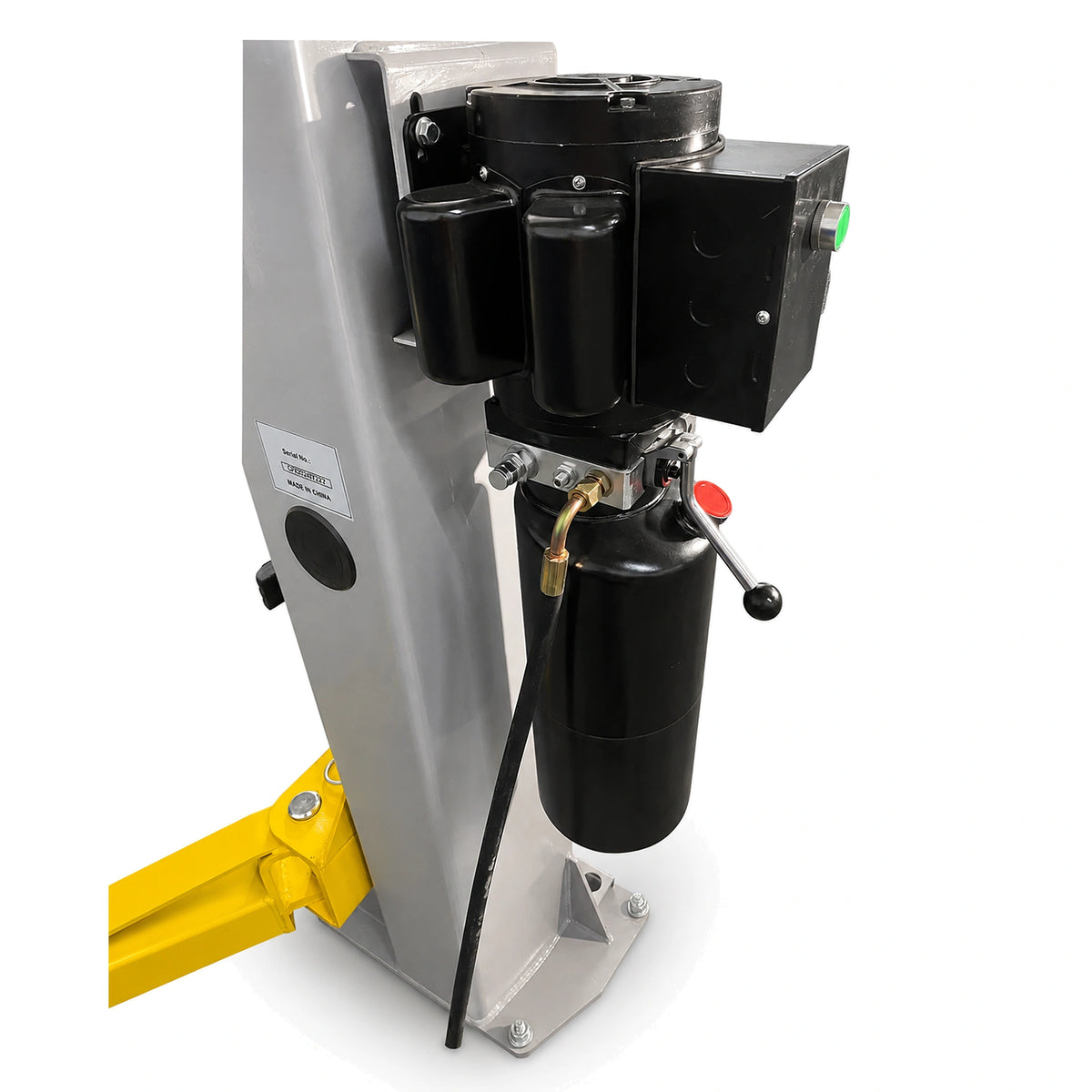

3 HP Motor on 220V Single-Phase
The 3 HP power unit runs on 220V single-phase, the same service class as an electric dryer, so most garages can support it without commercial power. Full rise takes about 40 seconds.
Specifications
| Lifting Capacity | 9,000 lb |
|---|
| Lifting Height | 72 in |
|---|---|
| Lowered Height | 4.5 in |
| Lifting Time | 40 seconds |
| Lock Release | Dual Point |
| Electric Safety Shutoff | No |
| Shipping Weight | 1,303 lb |
|---|
| Overall Height | 111 in |
|---|---|
| Overall Width | 132 in |
| Width Between Posts | 106 in (at mirror height) |
| Drive-Thru Width | 96 in (at tire level) |
| Base Plate Size | 19 x 17 in |
| Motor | 3 HP |
|---|---|
| Voltage | 220V |
Installation Requirements
Concrete and Floor
The NT-9 anchors to a level, crack-free concrete slab with a minimum strength of 3,000 PSI and at least 4 in of thickness. Each base plate measures 19 x 17 in, and the lift spans 132 in overall width. New pours should cure at least 28 days before installation.
Electrical
Plan for 220V single-phase service to run the 3 HP motor, with a dedicated circuit recommended. If your garage only has 110V today, budget for an electrician before the lift arrives.
Ceiling Height
The lift itself needs 111 in of clearance. A 12 ft or taller ceiling is recommended so raised vehicles have working clearance underneath.
Installation Notes
Floor mounting hardware ships with the lift. Professional installation is recommended for correct anchoring and column alignment, and it is worth checking local permit requirements before the install.
Shipping & Delivery
Warranty
Documents
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
Will the NT-9 fit under a 10-foot ceiling?
In most cases, yes. The overall height is 111 in (9 ft 3 in), which leaves about 9 in of clearance under a 10 ft ceiling. Also account for your tallest vehicle when raised: the lift provides 72 in of rise from a 4.5 in pad height, so measure ceiling and vehicle together before ordering.
What vehicles can the NT-9 lift?
The 9,000 lb capacity covers sedans, coupes, crossovers, SUVs, and full-size pickups. Drive-thru width is 96 in at tire level with 106 in between posts at mirror height, and the included truck adapters extend reach for body-on-frame vehicles with higher ground clearance.
What power does the NT-9 require?
220V single-phase for the 3 HP motor. That is the same voltage class as an electric dryer or water heater, so most residential garages can accommodate it. A dedicated circuit is recommended; have a licensed electrician add 220V service if you do not have it.
What are the concrete requirements?
A minimum of 3,000 PSI concrete at least 4 in thick, level and free of significant cracks where the 19 x 17 in base plates anchor. If you are pouring new concrete, let it cure at least 28 days before installing the lift.
Is the NT-9 symmetric or asymmetric?
Symmetric. Both columns and arm assemblies are identical and the vehicle centers between the posts, which gives balanced lifting for trucks and SUVs and suits general service and home garage use.
How do I unload the lift on delivery?
You need machinery capable of lifting the 1,303 lb shipping weight: a forklift, bobcat, tractor with loader, tow truck, or backhoe. The driver does not assist, and an auto lift cannot be unloaded by hand.
