Product highlights
- Open-front access where technicians need it
- 14,000 lb capacity for mixed vehicle service
- Standard and Extended runway choices
Rotary SMO14 - Four-Post Lift, Open Front Lift
SKU: RTY-SMO14L-BL
$13,649.00
FREE FREIGHT SHIPPING
Residential, liftgate, and limited-access delivery included at no extra charge.
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Talk to a lift specialist
Expert product and freight support before you order
855-498-2147
- Authorized Rotary Dealerdirect manufacturer relationship
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax

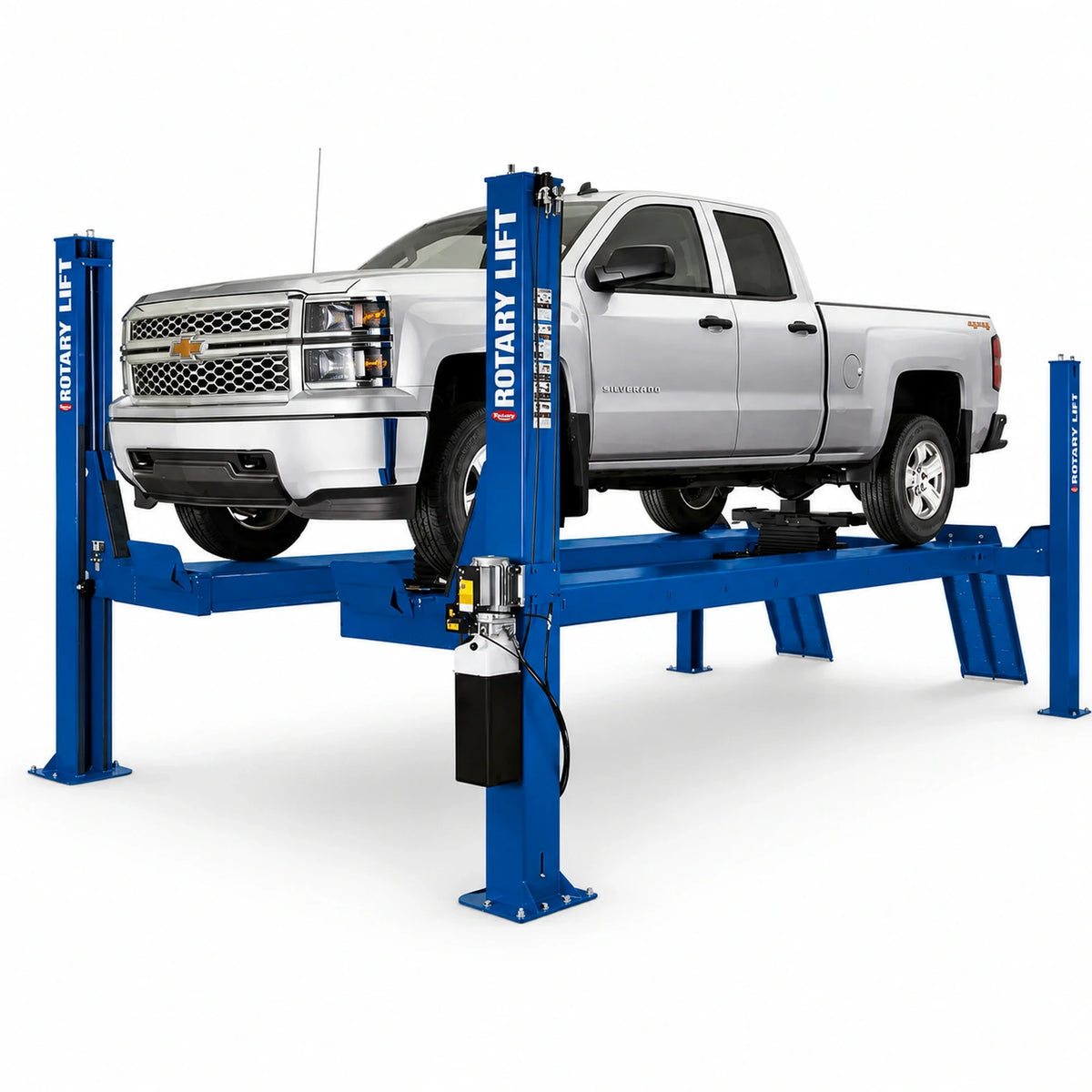

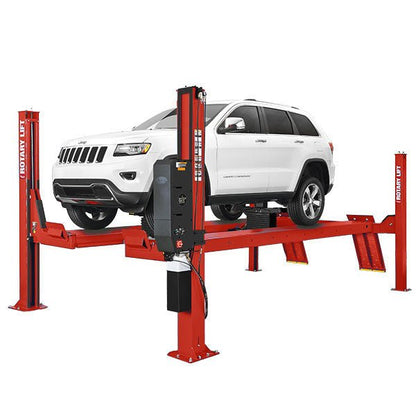

The Rotary SMO14 is a 14,000 lb open-front four-post lift for professional general service, inspection, and alignment-ready bays. This drive-on lift removes the front crossbeam to give technicians a clearer approach to the vehicle's front end. Shops that do not need the open-front layout can compare the Rotary SM14 closed-front counterpart. Single-piece 20-inch runways, air-operated locks, and adjustable lock ladders support work on cars, vans, trucks, and light-duty commercial vehicles within the lift's capacity and wheelbase ratings.
Choose the Standard configuration for wheelbases up to 182 inches or the Extended SMO14EL2 for wheelbases up to 215 inches. Conventional models use a 2 HP, 208-230V power unit with a published 65-second rise. Shockwave-equipped models use a 5 HP DC system with a published 35-second rise and require two Group 24 batteries.
Rotary offers drive-through ramps, lighting, oil-drain equipment, alignment-conversion components, rolling jacks, and other service-bay accessories for the SMO14. The Garage Supply Guys four-post lift collection provides additional runway-lift configurations for shops comparing capacities and layouts. Before ordering, confirm the vehicle wheelbases, runway length, power system, 15 x 26 ft or 15 x 28 ft minimum bay, electrical service, 100-120 psi compressed-air supply, concrete, and unloading plan. Garage Supply Guys can help verify the configuration and coordinate a Rotary Authorized Installer.
Features
Open-front access where technicians need it

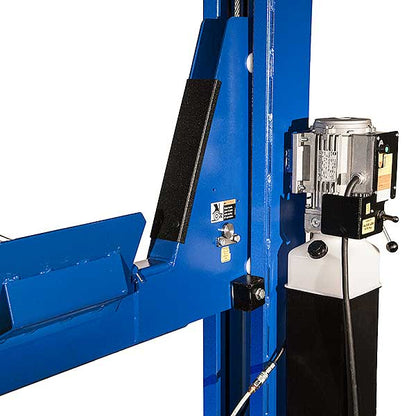

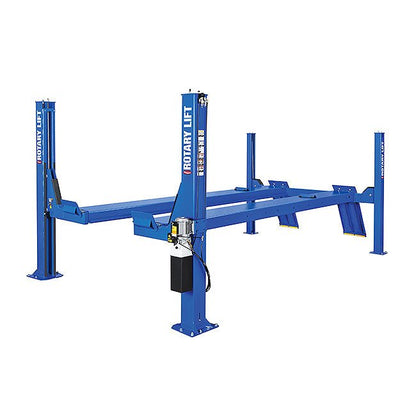

The open-front structure eliminates the crossbeam at the vehicle's front end, leaving a clearer path for inspection, engine-bay access, front suspension work, and general undercarriage service.
14,000 lb capacity for mixed vehicle service
Rotary engineers the SMO14 for cars, vans, trucks, and light-duty commercial vehicles within its 14,000 lb total rating and 7,000 lb per-axle limit. Vehicle weight distribution and wheelbase must remain within the selected configuration's ratings.
Standard and Extended runway choices

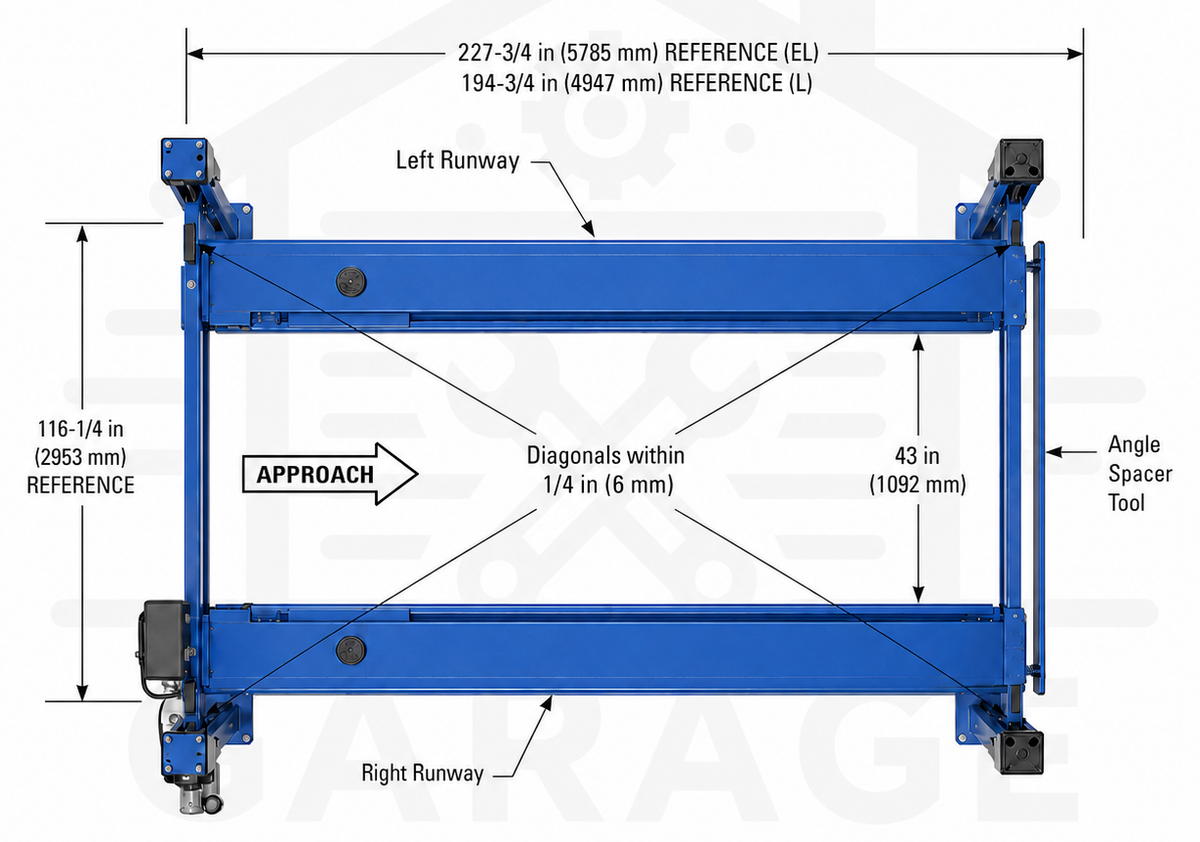

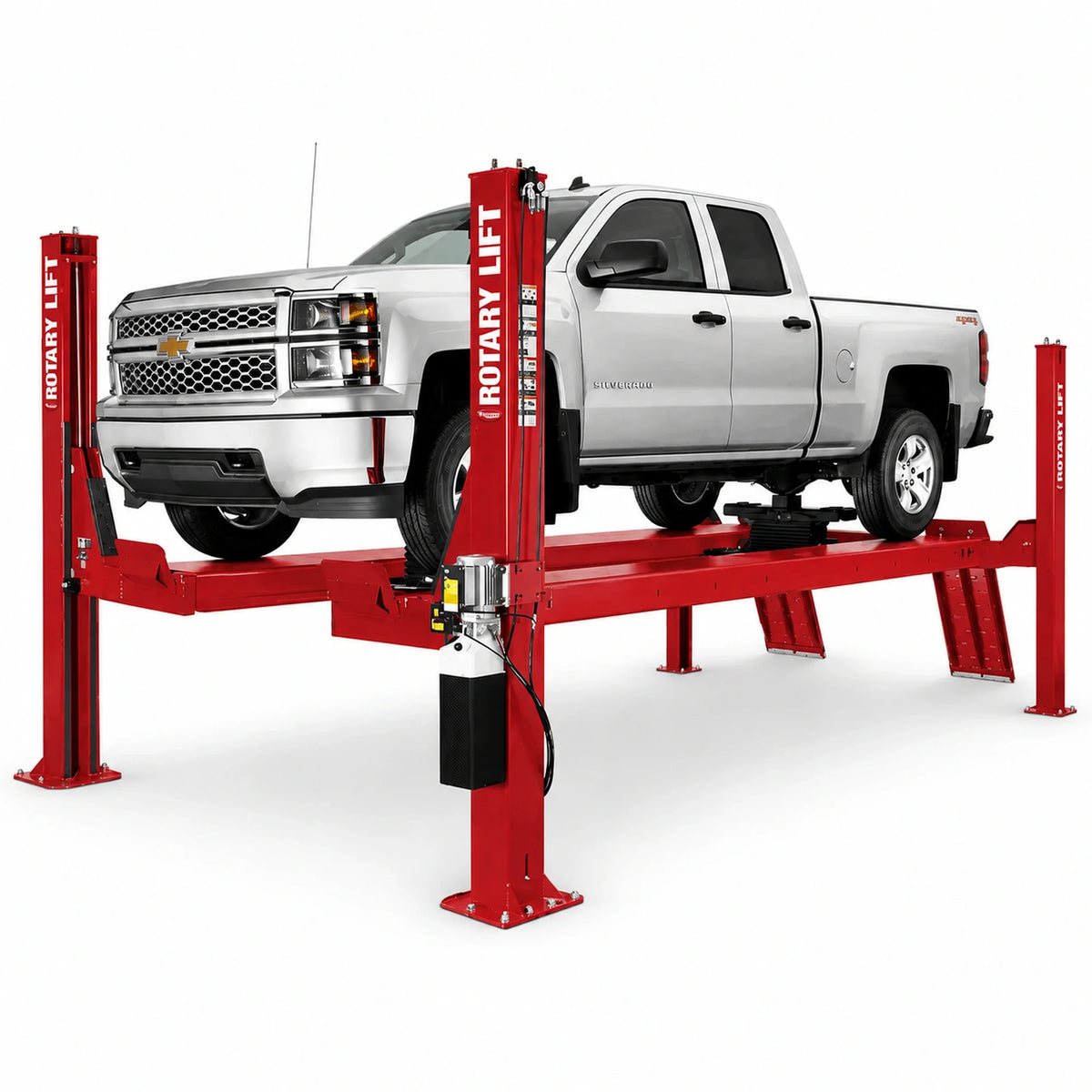

Standard runways provide a 253-inch overall length and support wheelbases up to 182 inches. Extended runways increase overall length to 286 inches and maximum wheelbase to 215 inches for longer vans, pickups, and commercial vehicles.
Conventional or Shockwave power

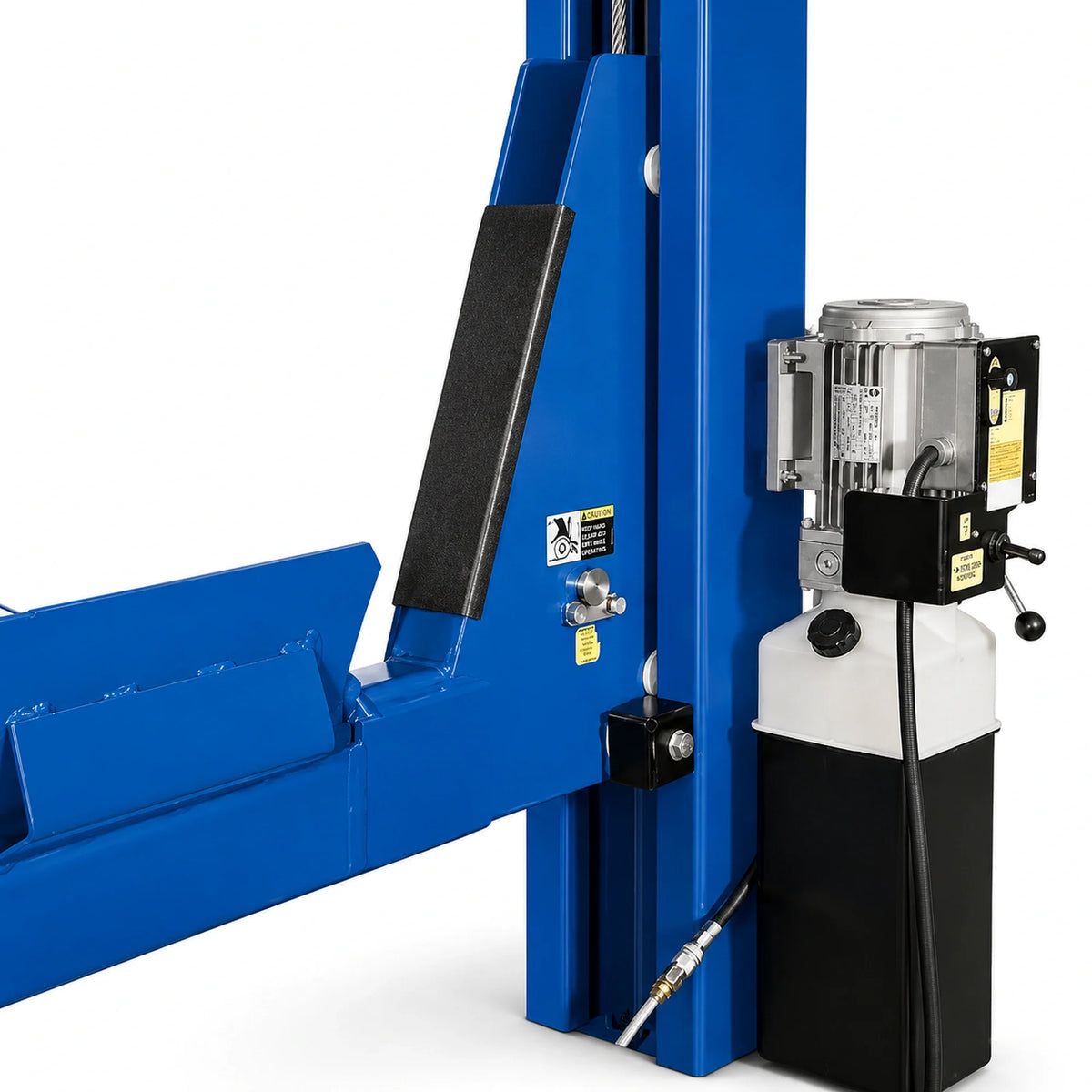

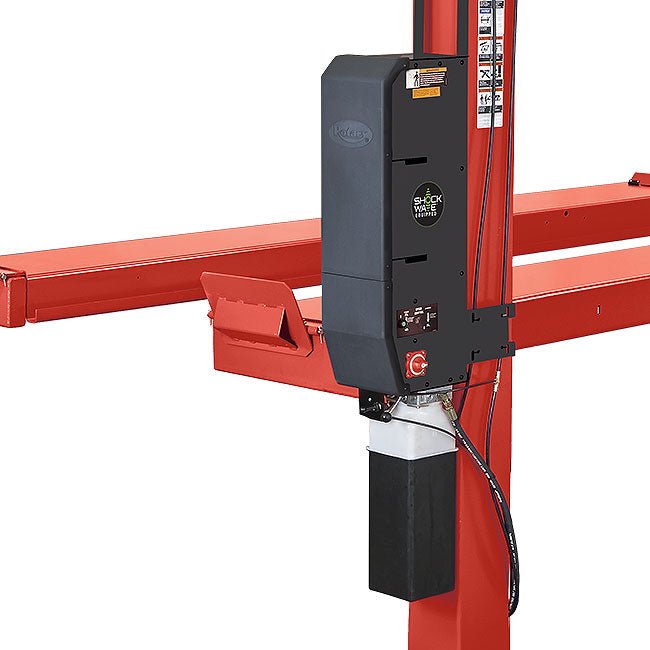

Conventional configurations use a 2 HP, 208-230V system with a published 65-second rise time. Shockwave configurations use a 5 HP DC power system with a published 35-second rise time, two Group 24 batteries, and a built-in 110V charger. Actual rise time varies with vehicle weight.
Single-piece runways and controlled locking

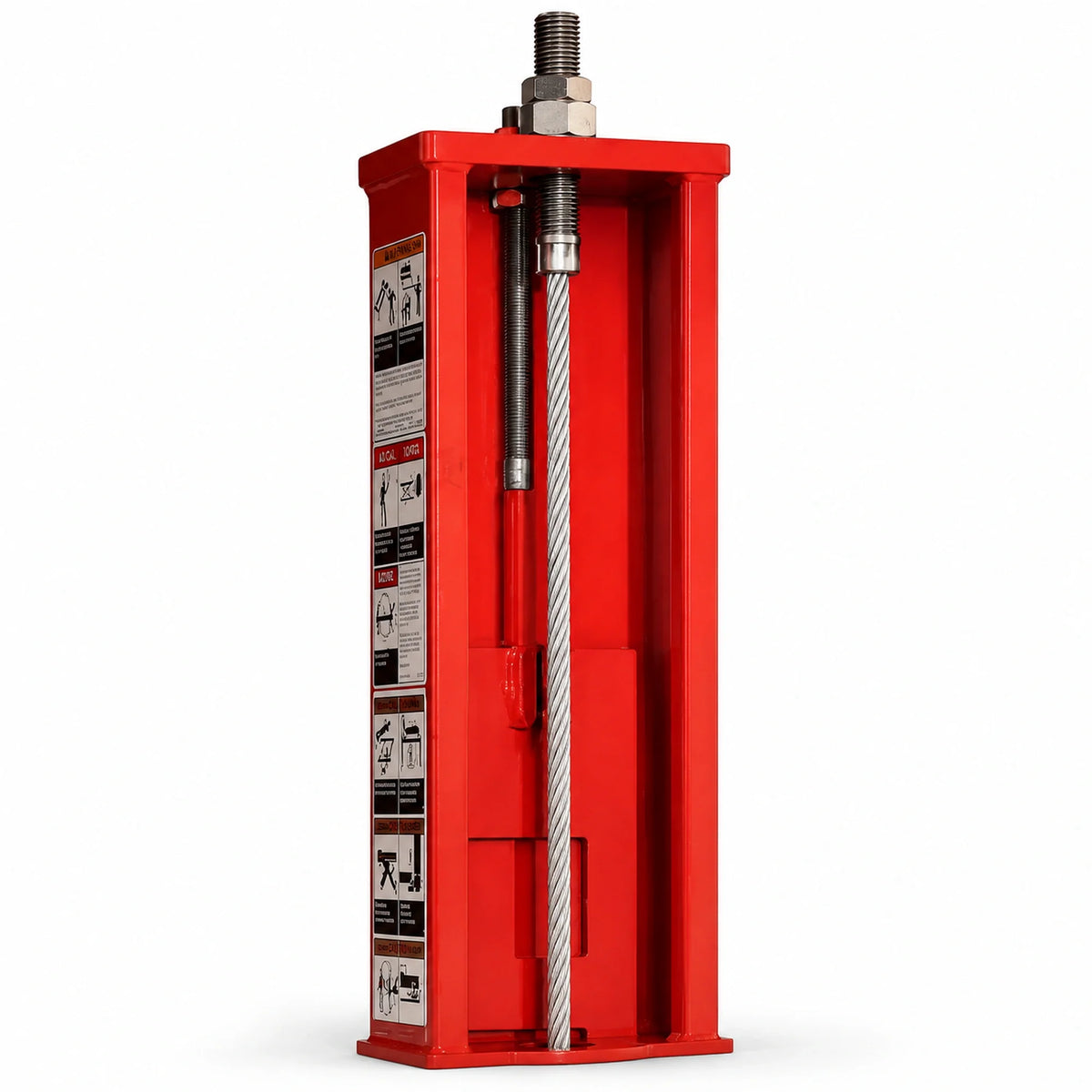

Non-welded 20-inch runways provide the driving surface, while adjustable lock ladders help keep the lift level. The dual-function Sentinel Lock system and air-operated release give the technician controlled access to the mechanical locks.
Built to accept service-bay upgrades
Alignment-conversion equipment and drive-through ramp kits let the lift adapt as the bay changes. Rotary also offers lighting, oil-drain, spotting, utility, and lock-status accessories for a more complete workstation.
Video
Best For
General repair and inspection
A strong fit for commercial shops that need drive-on access for oil service, exhaust work, inspections, and routine undercarriage repairs across a mixed vehicle population.
Fleet, van, and light-commercial service
The 14,000 lb capacity and two available runway lengths support many pickups, vans, fleet vehicles, and light-duty commercial vehicles. Select the runway length from the vehicle wheelbase, not capacity alone.
Alignment-ready bays
The SMO14 can be converted for alignment work with the applicable Rotary equipment. Rolling jacks and alignment components are optional and must be selected for the exact lift configuration.
Specifications
| Lift capacity | 14,000 lb (6,350 kg) |
|---|---|
| Maximum load per axle | 7,000 lb (3,175 kg) |
| Rise | 78 3/4 in |
| Conventional full-rise time | 65 seconds |
| Shockwave full-rise time | 35 seconds |
| Standard overall length | 253 in |
|---|---|
| Standard maximum wheelbase | 182 in |
| Extended overall length | 286 in |
| Extended maximum wheelbase | 215 in |
| Extended model identity | SMO14EL2 |

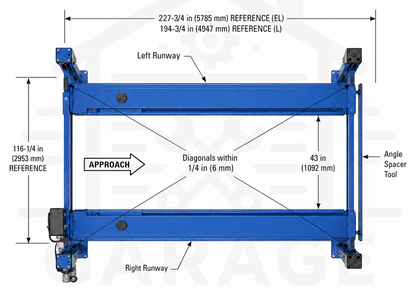

| Overall width | 140 1/2 in |
| Drive-through width | 116 1/4 in |
| Runway width | 20 in |
| Width between runways | 43 in |
| Runway height | 7 in |
| Shockwave mounting allowance | Length and/or width increases 10 1/2 in when the Shockwave unit is mounted on the column side or front |
| Conventional power system | 2 HP, 208-230V, single-phase |
|---|---|
| Conventional circuit | 20A |
| Shockwave power system | 5 HP DC system with two Group 24 batteries |
| Shockwave charging supply | 110-120V, 15A receptacle |
| Compressed-air supply | 100-120 psi |
| Hydraulic fluid | Dexron III ATF or ISO 32 hydraulic fluid |
| Conventional hydraulic-system capacity | 14 qt |
| Standard minimum bay size | 15 x 26 ft |
|---|---|
| Extended minimum bay size | 15 x 28 ft |
| Ceiling-clearance requirement | 110 in plus the height of the tallest vehicle |
| Certification | ALI Certified |
What's Included
- Four-post lift structure with open-front yoke x1
- Single-piece 20-inch runways x2
- Louvered ramp and ramp-chock assemblies x2

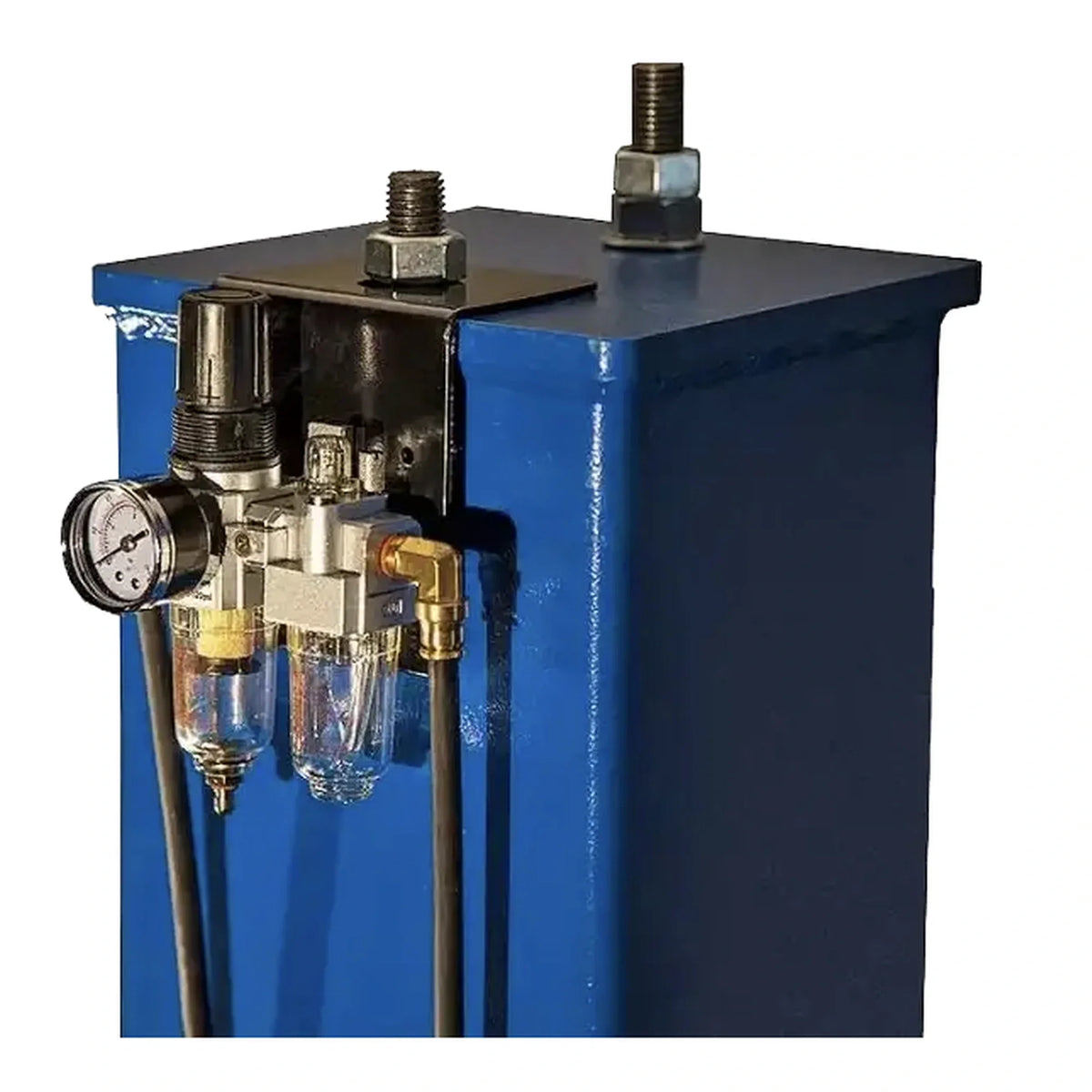

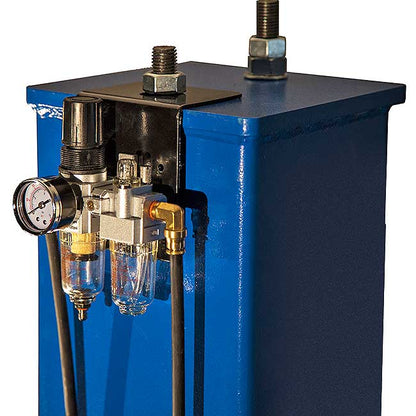

- Air filter, regulator, and lubricator assembly x1
Optional Accessories
- Oil Drain PanFC5967
- Drive Through RampsS100151Y
- TechLight4 LED Light KitFA5700
- Air / Utility Box
- Spotline Laser Kit
- TECH LIGHT Line Light R LED Inspection Lamp
- Lock Light
- SMO14 Standard Alignment Conversion KitS100136M182 in wheelbase (Standard)
- SMO14 Extended Bolt-On Alignment Conversion KitS100137M215 in wheelbase (Extended)
- Compatible Rolling Jacks
Not Included
- Shockwave configurations only: Group 24 batteries required for the Shockwave power system
- Rolling jacks shown in some manufacturer images
Installation Requirements
Choose the runway length from the vehicles
Use the longest vehicle wheelbase expected in the bay. Standard supports up to 182 inches and calls for a 15 by 26 foot minimum bay. Extended supports up to 215 inches and calls for a 15 by 28 foot minimum bay. Confirm vehicle overhang and shop circulation in addition to wheelbase.

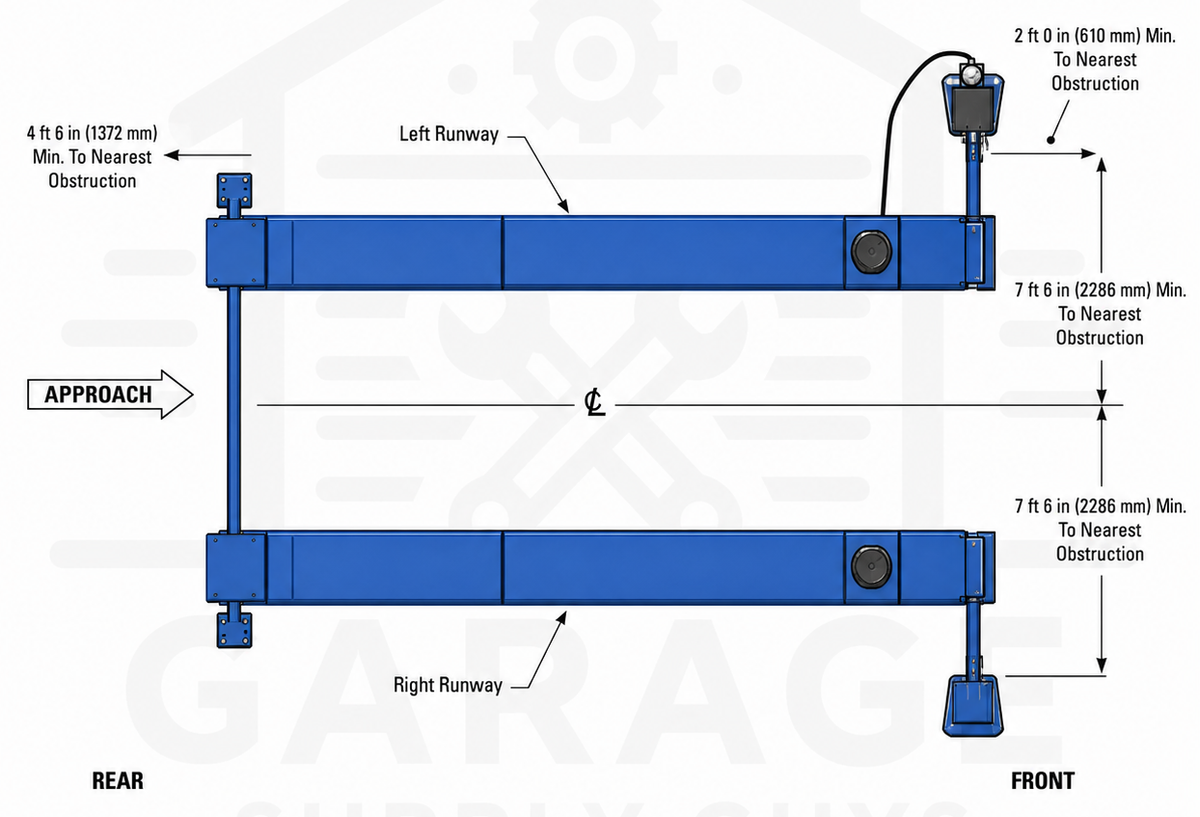

Verify overhead and side clearances
Rotary requires ceiling or overhead clearance equal to 110 inches plus the height of the tallest vehicle. Shockwave configurations require an additional 10 1/2 inches of length and/or width when the power unit is mounted on the column side or front. The installation layout also calls for clearance from nearby obstructions. Check doors, lights, heaters, roof structure, walls, and traffic paths before locating the columns.

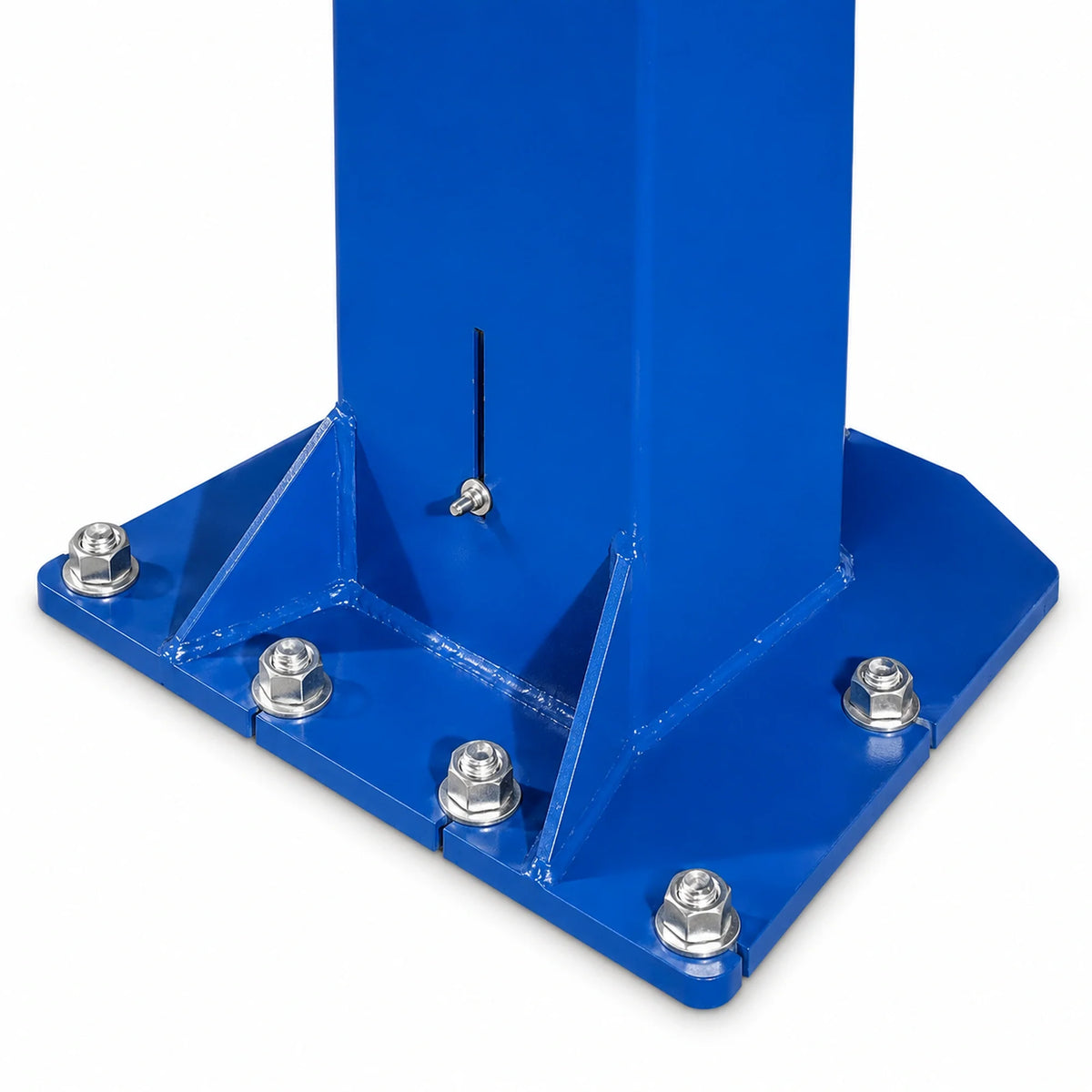

Have the slab and anchors reviewed

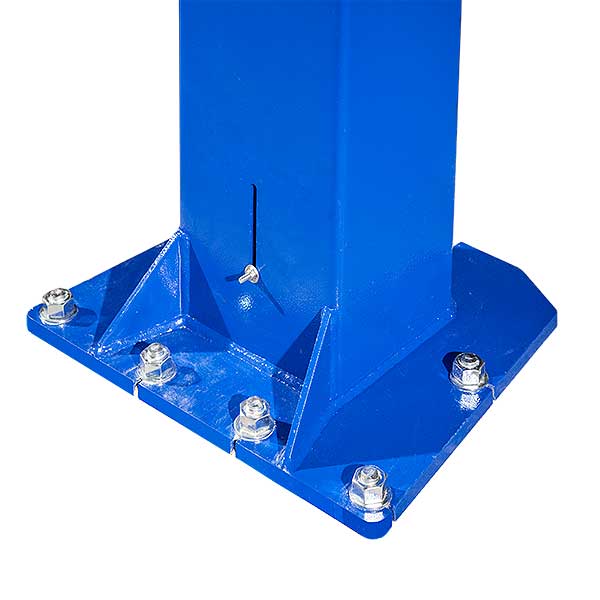

Install the lift on sound, level concrete, never asphalt or a similar unstable surface. Anchor size, embedment, edge distance, slab design, and seismic requirements depend on the applicable installation condition and local code. Have the foundation reviewed before drilling.
Prepare electrical and compressed-air service
Conventional single-phase power requires 208-230V service with a 20A fuse or circuit. Shockwave requires two Group 24 batteries and a 110-120V, 15A charging receptacle. The air-operated locks require clean, dry compressed air at 100-120 psi through the supplied filter, regulator, and lubricator. Electrical work must follow NEC and local code.
Install and level the complete lift

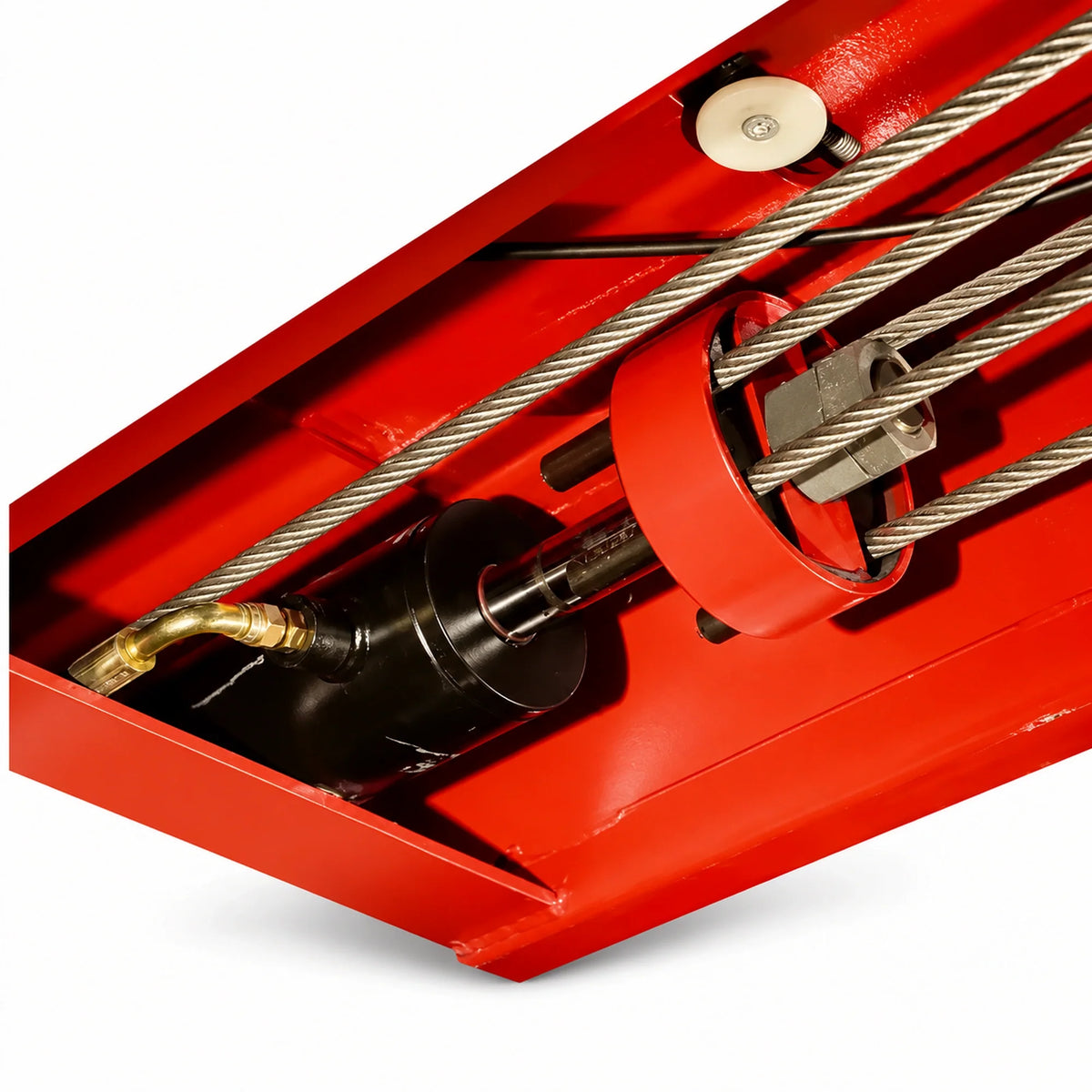

The runways, yokes, columns, cables, latch bars, hydraulic system, air controls, ramps, and wheel stops must be assembled and commissioned as one system. The installer must square and level the lift, adjust cables and lock ladders, fill and bleed the hydraulic circuit, and verify synchronized travel and lock engagement before service.
Use qualified installation support
Rotary recommends trained installation and service support for its lifts. Contact Garage Supply Guys at +1 (855) 498-2147 for help selecting the configuration and coordinating a Rotary Authorized Installer.
Warranty
Certifications
- ALI
Documents
SMO14 Cut Sheet (2025)Specifications, configurations, and optional accessories
Drive-On Lifts BrochureRotary general service runway lift family
Installation InstructionsARO14/SMO14 200 Series, Rev. H
Parts BreakdownARO14/SMO14 200 Series, Rev. G
WarrantyVSG/Rotary warranty terms and coverage periods
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
What dimensions and wheelbases are available for the Rotary SMO14?
The Standard SMO14 is 253 inches long and supports wheelbases up to 182 inches. The Extended SMO14EL2 is 286 inches long and supports wheelbases up to 215 inches. Both configurations have a published 14,000 lb lifting capacity, 78 3/4-inch rise, 20-inch runways, and 140 1/2-inch overall width before any Shockwave mounting allowance.
What does the SMO14 open-front design change?
The open-front structure removes the crossbeam from the vehicle's front end. That gives technicians a clearer path into the front undercarriage and engine-bay work area while the vehicle remains supported on the runways. The lift still provides a 14,000 lb capacity and a published 78 3/4-inch rise, so the access improvement does not reduce its rated lifting performance.
What power does the Rotary SMO14 require, and how does Shockwave differ?
Conventional power uses a 2 HP, 208-230V single-phase unit on a 20A circuit, with a published 65-second rise time. Shockwave uses a 5 HP DC system with a published 35-second rise and a 110-120V, 15A charging supply. Shockwave requires two Group 24 batteries, which are not included. Both systems also require 100-120 psi compressed air for the lock release.
Can the Rotary SMO14 be used for alignments?
Yes. Rotary offers alignment-conversion equipment for the SMO14. The conversion components and rolling jacks are optional rather than standard equipment. Confirm the complete package against the selected Standard or Extended runway length and the vehicles your shop aligns. Standard supports wheelbases up to 182 inches, while Extended supports wheelbases up to 215 inches.
Are rolling jacks included with the SMO14?
No. Rolling jacks shown in some Rotary images are optional equipment and are sold separately. They are commonly added when the shop needs wheel-free brake, tire, steering, or suspension service while a vehicle is positioned on the runways. Contact Garage Supply Guys to match the correct jack capacity and fitment to the selected SMO14 configuration.
What warranty does Rotary provide for the SMO14?
Rotary provides a 5-year structural-parts warranty, a 1-year functional-parts warranty, and a 1-year labor warranty for surface lifts rated at or below 30,000 lb. Registration and Rotary Authorized Installer installation are required for second-year functional-parts coverage. On Shockwave-equipped configurations, first-year parts and labor coverage also requires Rotary Authorized Installer installation and factory registration. Coverage applies to the original owner and is not transferable.
Where can I find a Rotary Authorized Installer?
Contact Garage Supply Guys at +1 (855) 498-2147. We can help coordinate a Rotary Authorized Installer for installation, inspection, and service support. Before calling, identify whether you need the 182-inch Standard or 215-inch Extended wheelbase configuration and have the bay dimensions, electrical service, compressed-air supply, and available overhead clearance ready for review.
Have a question we didn't cover? Call (855) 498-2147 and our team will help.
Also known as: SMO14L, SMO14EL2, SMO14L-SW, SMO14EL2-SW, SMO14N201Y, SMO14N202Y, SMO14U201Y, SMO14U202Y
