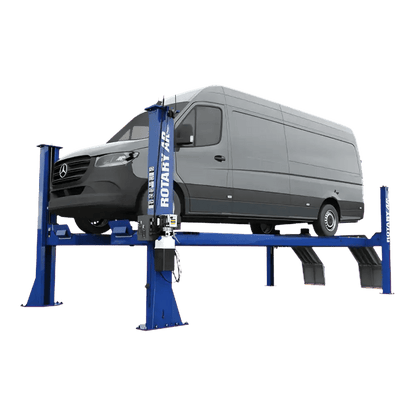

Rotary ARO16EL - 16,000 lb Rotary 4 Post Lift for Wheel Alignment
If your shop does alignment work, your lift is either your biggest asset or your biggest bottleneck. The Rotary ARO16EL is a rotary alignment lift built around a 16,000 lb capacity and an extended 18-foot max wheelbase, so you're not turning away trucks, vans, or long-wheelbase SUVs because your rack can't handle them. Two-wheel and four-wheel alignments, covered. Completely.
The open-front design isn't just a detail. It means your tech has a clean, unobstructed approach to the front wheels, which makes a real difference when you're running alignments back to back and every minute of turnaround counts. The ARO16EL integrates with all Rotary systems and most major wheel alignment systems on the market, so if you're already running an aligner, there's a strong chance you won't need to change a thing. It fits your bay and your workflow without requiring you to rebuild either one.
This is a rotary 4 post lift that comes fully loaded out of the box. LED runway lighting, stainless steel turntables, a 7k and 9k rolling jack, an airline kit, an air inflation system, and a full filter-regulator-lubricator setup. You're not piecing accessories together after the fact. Everything you need to start running alignments is in the crate. Replacement parts and service support are available, so when something needs attention down the road, you're not stuck waiting.
Free shipping to the lower 48 and direct support through Garage Supply Guys means buying this alignment lift for sale is a straightforward transaction, not a guessing game. Call us if you have questions about fitment, bay requirements, or aligner compatibility before you order.
Specifications
| Capacity | 16,000 lbs |
| Rise Height | 79 in |
| Rise Time | 80 seconds |
| Voltage | 208-230V |
| Overall Width | 140 in |
| Overall Length (with Ramp) | 290-1/8 in |
| Distance Between Columns | 217-3/4 in |
| Minimum Bay Size | 15 ft x 28 ft |
| Runway Width | 26 in |
| Ramp Length | 41 in |
| Minimum Runway Height | 8 in |
| Max Wheelbase | 18 ft (extended) |
| Model / Ref No. | ARO16EL, ARO16N002 |
What's Included
- 7,000 lb Rolling Jack (x1)
- 9,000 lb Rolling Jack (x1)
- Stainless Steel Turntables - Set (x1)
- Airline Kit (x1)
- LED Runway Lighting Kit (x1)
- Air Inflation System (x1)
- Filter, Regulator, Lubricator (x1)
Installation & Setup
Before your ARO16EL ships, make sure your bay is ready to receive it. A few key requirements to confirm ahead of time:
Minimum Bay Size: 15 ft wide x 28 ft deep. This is the hard floor minimum. If your bay is tighter, call before ordering.
Electrical: The ARO16EL requires a dedicated 208-230V supply. Single-phase power is the typical shop setup. Confirm your panel capacity and run length with your electrician before installation day.
Concrete: Four-post alignment lifts require a solid, level concrete floor with adequate thickness to anchor the column base plates. Review Rotary's installation requirements for slab thickness and anchor specifications prior to scheduling your install.
Aligner Compatibility: The ARO16EL integrates with all Rotary wheel alignment systems and most major third-party aligners. Verify your aligner's turn plate and slip plate positioning requirements against the lift's column spacing (217-3/4 in between columns) to confirm fit.
Applications
The ARO16EL is built for shops where alignment volume is real and downtime is not an option. Here's where this four post alignment lift earns its keep:
High-volume alignment work demands a lift that keeps up. The extended wheelbase and open-front design keep cycle times tight and techs moving.
Pre-delivery inspections, post-sale service, and warranty work all need a reliable alignment car lift that handles passenger cars and light trucks without a second setup.
With an 18-foot max wheelbase, the ARO16EL handles long-wheelbase vans and commercial trucks that shorter racks can't fit. Fleets run a wide range of vehicles. This lift runs with them.
Government vehicle fleets need consistent, documented maintenance. A wheel alignment lift with 16,000 lb capacity and Rotary's service support keeps compliance straightforward.
Model Comparison
Rotary's ARO16 family includes a few configurations. Here's how they line up so you can pick the right one for your bay and your work:
| Model | Wheelbase | Front Design | Best For |
|---|---|---|---|
| ARO16 / ARO16N001 | Standard | Standard | Shops with standard-length bays running primarily passenger cars and mid-size SUVs |
| ARO16L | Long | Standard | Shops needing longer wheelbase coverage without the open-front configuration |
| ARO16EL (This Model) | Extended - 18 ft max | Open Front | High-volume shops, truck dealers, and fleet operations that need maximum wheelbase reach and optimized front-end technician access |
If you're unsure which model fits your bay and aligner setup, call us. We'll sort it out with you before you order.
Product Video
Shipping
Free Shipping to the lower 48 states. This is a freight delivery. Coordinate a receiving time with your shop before placing your order so the delivery goes smoothly.
Warranty
The ARO16EL falls under Rotary's light-duty lift warranty category (under 30,000 lb capacity):
Structural Parts: 5 years
Functional Parts: 1 year
Labor: 1 year
Questions about warranty coverage or claims? Call us directly at (855) 498-2147.
Documents
Click to open in a new tab.
Sale Sheet
Have Questions Before You Order?
Our team knows these lifts. Call us to confirm bay compatibility, aligner fit, or lead times before you buy.
(855) 498-2147
Frequently Asked Questions
What's the minimum bay size required for the ARO16EL?
You'll need at least 15 ft wide by 28 ft deep. That's the hard floor minimum to accommodate the lift's overall width of 140 in and its overall length of 290-1/8 in with the ramp. If your bay is close to the limit, call us before ordering so we can help you confirm fit.
Is the ARO16EL compatible with my existing wheel aligner?
The ARO16EL integrates with all Rotary wheel alignment systems and is compatible with most major third-party aligners. Confirm your aligner's turn plate and slip plate positioning requirements against the lift's 217-3/4 in column spacing. If you're unsure, call us with your aligner model and we'll verify compatibility before you order.
What electrical supply does the ARO16EL require?
The ARO16EL requires a dedicated 208-230V electrical supply. Have your electrician confirm your panel capacity and run length before scheduling the installation. This is a lift-specific requirement and cannot be adapted to standard 120V circuits.
What's the difference between the ARO16EL and the standard ARO16?
The ARO16EL is the extended, open-front version of the ARO16 family. It offers an 18-foot maximum wheelbase versus the standard model's shorter reach, and its open-front column design gives technicians unobstructed access to front wheels during alignment work. The standard ARO16 is a solid choice for passenger car-focused shops. The ARO16EL is the pick when you're regularly working on trucks, vans, or long-wheelbase vehicles.
Does the ARO16EL ship for free and how does delivery work?
Yes, the ARO16EL ships free to any address in the lower 48 states. This is a freight delivery, so coordinate a receiving window with your shop before placing your order. Have someone available to receive and inspect the shipment on delivery day.
