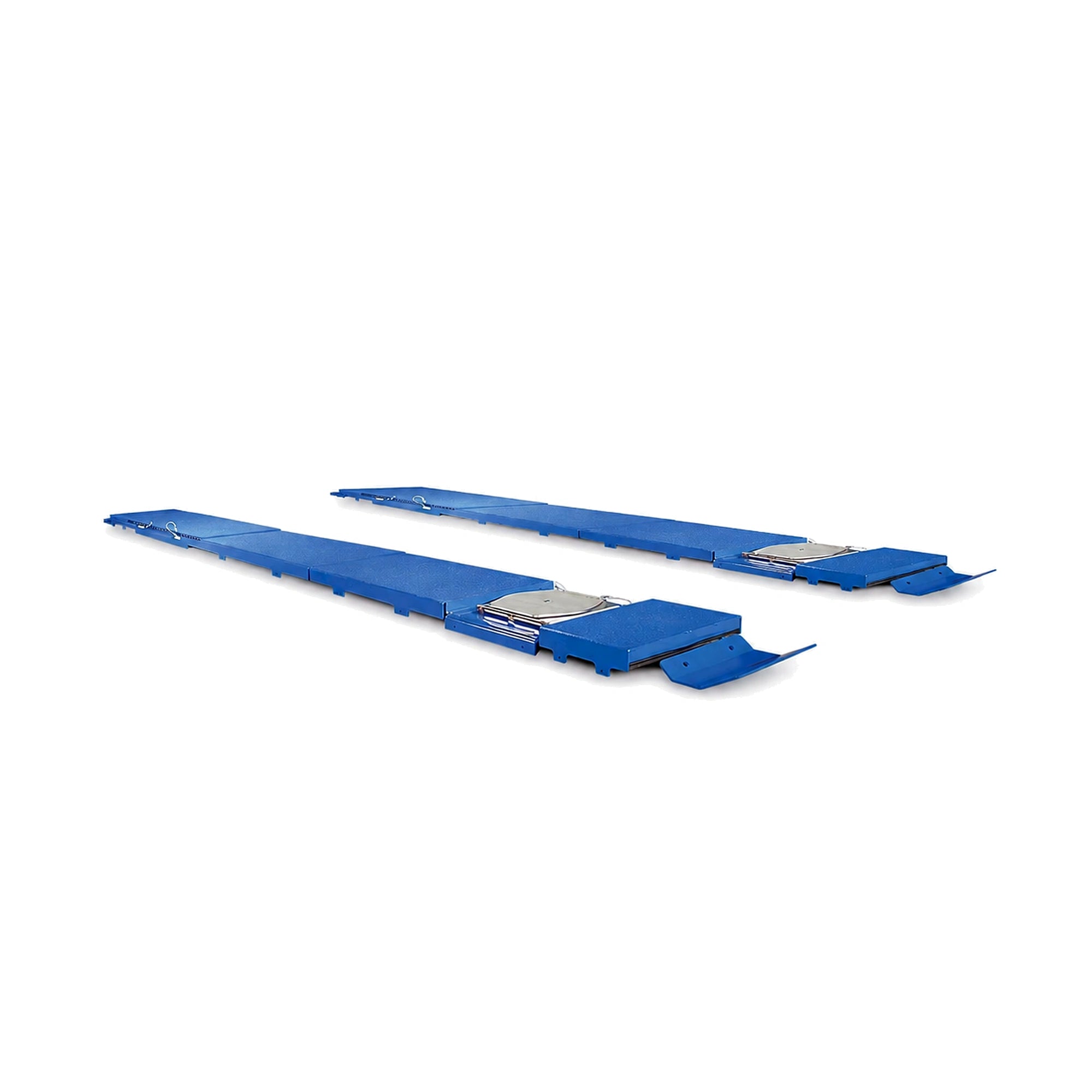

Forward S100137M Bolt-On Alignment Kit for SM SMO14 Lifts
- Authorized Forward Lifts Dealer direct manufacturer relationship
- Manufacturer Warranty included with purchase
- Expert Product & Freight Support +1 (855) 498-2147
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- No Sales Tax outside PA where applicable
Forward S100137 Bolt-On Extended Length Alignment Kit for SM/SMO14 Lifts
Convert your Rotary SM14 or SMO14 four-post drive-on lift into a professional alignment rack with the S100137 extended length bolt-on kit. This conversion accessory enables full-function wheel alignment service on vehicles with wheelbases up to 215", providing your shop with expanded service capability without requiring a dedicated alignment lift investment. The kit includes slip plates, extended-length ramp modifications, mounting hardware, and all necessary components for bolt-on installation on 100 Series lifts. 5-year structural warranty.
Forward S100137 Features
Dual-Function Equipment Capability
The S100137 transforms your SM/SMO14 four-post drive-on lift into a working alignment rack during the day, then converts back to standard drive-on operation when needed. This flexibility maximizes equipment utilization on a single bay without requiring separate lift systems for different service functions.
Extended Wheelbase Coverage
With 215" wheelbase capacity, the S100137 accommodates full-size trucks, extended SUVs, and commercial vehicles that exceed standard four-post wheelbase limitations. This extended range opens new service revenue opportunities without expanding your bay footprint.
Precision Slip Plate System
Integrated slip plates enable lateral and longitudinal vehicle movement during alignment measurement and adjustment, providing the precise positioning required for accurate wheel alignment work without vehicle damage or technician strain.
Bolt-On, Non-Welded Installation
The S100137 attaches directly to your existing SM/SMO14 lift using bolt-on mounting hardware. No cutting, welding, or structural modifications are required, preserving your lift's warranty and maintaining equipment integrity for resale.
Forward S100137 Applications
- Multi-Service Automotive Repair Shops: Shops combining general service, maintenance, and alignment work benefit from converting a single bay to perform alignment without capital investment in dedicated alignment equipment.
- Dealership Service Departments: Dealerships handling warranty alignment work and pre-delivery vehicle inspections can cost-effectively add alignment capability by converting existing drive-on lift infrastructure.
- Independent Tire and Alignment Facilities: Shops specializing in wheel service can use the S100137 to leverage existing four-post lift investment while adding full-function alignment capability.
- Fleet Maintenance Facilities: Commercial fleet maintenance operations managing extended-wheelbase vehicles benefit from equipment that accommodates the full range of vehicles in their service portfolio.
- Municipal and Government Garages: Government fleet maintenance operations benefit from flexible equipment that delivers alignment capability without dedicated single-purpose lift requirements.
Forward S100137 Specifications
| Specification | Value |
|---|---|
| Compatible Lift Models | SM14, SMO14 (all variants: S, L, EL) |
| Lift Series | Rotary 100 Series |
| Lift Capacity | 14,000 lb |
| Wheelbase Coverage | Up to 215" (extended length) |
| Component | Description |
|---|---|
| Slip Plates | Enable lateral and longitudinal vehicle positioning for alignment work |
| Extended Ramp Modifications | Extended-length configuration for longer wheelbase vehicles |
| Mounting Hardware | Bolt-on fasteners, brackets, and installation components |
| Installation Type | Direct bolt-on attachment, no welding required |
What's Included
- Slip plate assemblies with locking mechanisms
- Extended-length ramp kit with modifications
- Complete mounting hardware and fasteners
- Installation and assembly instructions
Not Included: Rolling jacks (sold separately), alignment measurement equipment, professional installation labor.
Forward S100137 Shipping and Delivery
Freight Shipping
Coverage: Free shipping to commercial addresses in the 48 contiguous US states. Lead Time: 14-21 business days. Specialized equipment shipping applies due to kit weight and configuration. International: Contact sales for pricing and availability.
Delivery and Receiving
Crate Delivery: Equipment ships on a pallet or crate requiring forklift offloading. Receiving Area: Ensure 16' x 12' clear access space near bay entrance. Inspection: Verify all components and hardware presence before signing for delivery. Placement: Arrange for equipment to be moved directly to installation bay.
Returns and Restocking
Returns accepted within 30 days of purchase if unopened and in original packaging with receipt. 25% restocking fee applies to kit returns due to specialized components. Buyer pays return freight. Installed or used kits are non-returnable.
Forward S100137 Warranty
Alignment Kit Warranty Coverage
- 5 Years Structural: Mounting brackets, slip plate frames, and ramp assemblies against defects in materials and workmanship
- 2 Years Functional: Slip plate rollers, locking mechanisms, and operational components
- 1 Year Parts: Fasteners, wear items, and replacement components
Warranty Activation: Begins upon invoice to authorized distributor or purchase date. Installation by a Rotary Authorized Installer is recommended for extended functional parts warranty eligibility.
Requirements: Proper installation per provided instructions, regular maintenance of slip plate surfaces and locking mechanisms, and operation within Rotary specifications ensure full warranty protection.
Questions About the Rotary S100137 Alignment Kit?
Need help determining compatibility with your lift model, planning installation, or understanding alignment service capability? Our product specialists are ready to help.
Rotary S100137 FAQ
What vehicles can the S100137 alignment kit accommodate?
The S100137 extended length kit accommodates vehicles with wheelbases up to 215", which covers most passenger cars, SUVs, vans, full-size trucks, and many commercial vehicles. Confirm your target vehicle wheelbase specifications before purchase.
Is the S100137 compatible with my SM14 or SMO14 lift?
The S100137 is engineered for all variants of the Rotary 100 Series SM14 and SMO14 lifts (including S, L, and EL configurations). Verify your lift model from the nameplate on the air lock release valve. The open-front SMO14 design provides enhanced access during alignment work.
What is the difference between bolt-on and permanent alignment kit installation?
The bolt-on design attaches using fasteners without welding or cutting the lift structure. This preserves the lift's original configuration and warranty while enabling conversion. Bolt-on kits can be removed if needed, whereas permanent installations modify the lift structure.
Can I install the S100137 myself or do I need a professional?
Installation involves bolting components to the lift frame and is typically manageable for shops with mechanical capability. Professional installation by a Rotary Authorized Installer is recommended to ensure proper alignment, activate extended warranty coverage, and verify load distribution.
What does the alignment kit include and what needs to be purchased separately?
The S100137 includes slip plates, extended ramps, mounting hardware, and installation components. Rolling jacks (for wheel access during alignment) are sold separately and must be purchased per your shop's needs. Alignment measurement equipment is also not included.
How is wheelbase capacity measured on my lift?
Wheelbase is the distance between the front and rear axle centers on a vehicle. The S100137 accommodates vehicles with wheelbases up to 215" from front to rear axle. Check your vehicle specifications sheet or consult the vehicle owner manual for specific wheelbase measurements.
What is the warranty coverage on the S100137 alignment kit?
The S100137 includes a 5-year structural warranty on mounting brackets and frame components, 2-year functional warranty on slip plates and locking mechanisms, and 1-year parts warranty on fasteners and wear items. Professional installation may qualify you for extended warranty eligibility.
What is the lead time for delivery?
Standard lead time is 14-21 business days from factory for continental US commercial addresses with free freight included. Specialized equipment shipping applies due to kit weight and configuration. Contact sales for expedited delivery options or international shipping information.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
