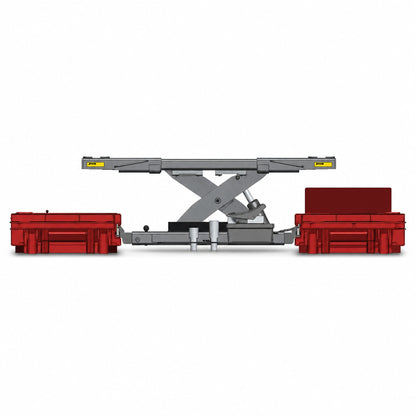

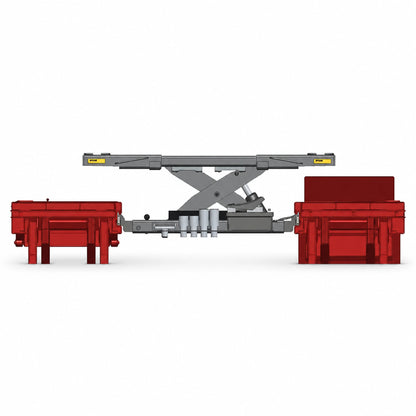

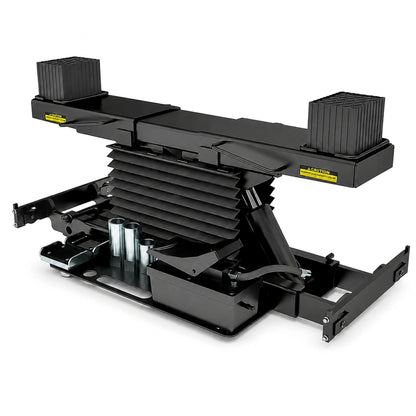

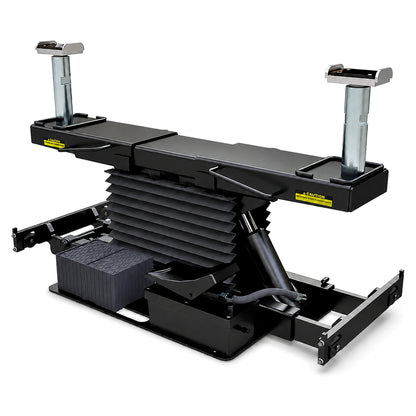

Rotary RJ7100 7,000 lb Rolling Jack for Lift Runways
The Rotary RJ7100 is a heavy-duty rolling jack that enables wheels-free service while a vehicle remains positioned on four-post or scissor runway lifts. Featuring an air-operated scissor mechanism, adjustable runway width from 36 3/4" to 46 1/16", and included rubber pads and adapters, this unit expands service capabilities for brake, suspension, and tire work across professional automotive facilities.
Key Features & Benefits
Air-Operated Scissor Mechanism
The RJ7100 uses a direct air-operated scissor design that raises and lowers smoothly through a shop's standard compressed air supply. The 7,000 lb rated capacity is achieved through precision-engineered scissor linkages that distribute load evenly across the entire lift range.
Traditional rolling jacks require manual pump handles or electric motors, adding operational complexity to routine service work. This air-operated design addresses that challenge by integrating seamlessly with existing shop infrastructure, allowing technicians to operate the jack from any location where compressed air is available.
This enables faster wheels-free service on suspension and brake work, since technicians can raise and lower the jack as needed without stopping to engage manual mechanisms. The smooth operation reduces fatigue and keeps work pace consistent throughout the service day.
Mechanical Locking Latch System
The integrated mechanical latch automatically engages at full rise, securing the jack's lifting platform without requiring continuous air pressure or manual lock activation. This full-rise locking design holds position securely during active service operations on wheels and undercarriage components.
Conventional rolling jacks rely on continuous operator vigilance or electrical solenoid locks that can fail under elevated service loads. This mechanical latch addresses the industry-wide safety challenge by providing passive holding strength that doesn't depend on power supply or operator attention once the vehicle is fully raised.
This eliminates unplanned platform drift and enables safer brake bleeding, suspension removal, and tire service operations. The handle-operated release mechanism provides instant pressure relief when the job is complete, with no delay or mechanical adjustment required.
Adjustable Runway Width Accommodation
The jack's runway width range spans 36 3/4" to 46 1/16" (934 mm to 1,170 mm), enabling installation on multiple four-post and scissor lift configurations without custom adapters. The width adjustment mechanism is integral to the jack frame, maintaining structural rigidity across the entire adjustment range.
Different lift models and facility installations use varying runway spacing, creating a common compatibility problem when purchasing rolling jacks. Shops often need multiple units to cover different lift widths, increasing capital expense and floor space requirements. This design addresses that challenge by accommodating the most common runway configurations in a single unit.
This flexibility reduces inventory requirements and enables the jack to serve multiple lifts across a multi-bay facility. New facility expansions can adopt the same jack model without purchasing additional equipment or worrying about incompatibility with different lift brands or series.
Heavy-Duty Urethane Compression Wheels
Four heavy-duty urethane compression wheels provide smooth rolling across lift runways while accommodating the jack's full 7,000 lb load rating. The urethane material provides gripping traction on painted steel surfaces without marring or damaging lift runway finishes.
Standard rubber wheels or plastic casters degrade quickly under repeated heavy loads and frequent movement across textured lift surfaces. This design addresses shop floor durability challenges by using compression-molded urethane that resists permanent deformation and maintains traction across thousands of positioning cycles.
This improves operator control during positioning, reduces repositioning effort, and extends component life compared to wheels requiring annual replacement. Maintenance costs decrease since urethane wheels don't leave residue marks on runways or require periodic lubrication.
Included Rubber Pads and Adapters
The jack ships with rubber pads in 1 1/2" and 3" sizes, plus adapter blocks and extensions that provide immediate compatibility with a wide range of vehicle lift points. This included accessory set eliminates the need for separate aftermarket purchases and adapts to different vehicle frames and geometries.
Professional shops encounter vehicles with varying suspension heights, frame widths, and lift point configurations. Accessory jacks without comprehensive pad and adapter sets force technicians to improvise contact points or fabricate custom solutions, compromising both safety and positioning accuracy. This design includes the most commonly required pads and adapters as standard equipment.
This reduces setup time for wheels-free service, improves positioning accuracy on different vehicle types, and ensures consistent load distribution across varied lift points. Technicians can move between different job types throughout the day without searching for compatible accessories or waiting for equipment to arrive.
Compact Rolling Design for Professional Facilities
The RJ7100's four rail-engaging wheel assemblies with heavy-duty urethane provide smooth mobility across lift runways in busy service environments. The compact footprint allows the jack to fit efficiently between lift runways without requiring excessive floor space or special positioning procedures.
Rolling jacks with oversized wheels or poor maneuverability create operational friction in multi-bay shops with tight runway spacing. This design addresses the practical challenge of facility constraints by maintaining precise control and smooth rolling across various runway configurations and surface finishes without binding or marring.
This enables quick repositioning between service bays and supports high-volume service operations where technicians move the jack frequently throughout the day. The efficient design reduces operator fatigue and keeps wheels-free service workflows streamlined across different work stations.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Rated Capacity | 7,000 lb (3,175 kg) |
| Operation Type | Air-operated scissor mechanism |
| Locking Mechanism | Mechanical latch, engaged at full rise |
| Mobility | Four heavy-duty urethane compression wheels |
| Specification | Value |
|---|---|
| Adjustable Runway Width | 36 3/4" to 46 1/16" (934 mm to 1,170 mm) |
| Included Pad Sizes | 1 1/2" and 3" |
Installation Requirements
Compressed Air Supply
- Air Source Required: Standard shop compressed air supply for jack operation
- Air Quality: Clean, filtered compressed air recommended to prevent seal contamination and ensure consistent operation
Runway Compatibility
- Runway Width Range: Lift runways must accommodate the adjustable width range of 36 3/4" to 46 1/16" (934 mm to 1,170 mm)
- Surface Condition: Painted steel or finished runway surfaces compatible with urethane wheel operation
- Clearance: Adequate clearance needed on lift runways for jack positioning and rolling movement during setup and service operations
Installation Notes
- Operator Training: Technicians should be trained on proper jack operation and safety procedures before wheels-free service
- Load Center Positioning: Position jack directly under vehicle lift points to ensure even load distribution and stability during service
Shipping & Delivery
Freight Coverage
Shipping: Due to size and weight, the unit ships via LTL freight. Additional charges may apply for residential or limited-access delivery locations.
Delivery: Timeframe from order placement is subject to inventory availability and freight carrier scheduling.
Delivery Requirements
Equipment Required: Receiving dock with lift capability or forklift access to unload palletized unit. Inspect all packages before signing bill of lading and note any visible damage on the BOL before driver departs.
Warranty Coverage
Manufacturer Warranty
Warranty coverage is provided through the selling dealer and is manufacturer-backed. Specific terms are available upon request and vary by dealer. Contact your authorized Rotary dealer for detailed warranty information and coverage scope.
Ready to Add Wheels-Free Service Capability?
Get expert guidance on rolling jack selection and integration with your facility's lift configuration. Our team can help with product selection, runway compatibility verification, and technical specifications. Call to confirm included accessories and components for your specific application.
Frequently Asked Questions
What is the maximum capacity of the Rotary RJ7100?
The RJ7100 delivers 7,000 lb (3,175 kg) of lifting capacity, making it suitable for passenger vehicles, SUVs, and light trucks used in professional automotive service shops. This capacity accommodates a wide range of vehicle platforms from compact economy models to full-size trucks, enabling consistent wheels-free service across different customer vehicles without switching equipment. The 7,000 lb rating provides sufficient safety margin for suspension component removal and brake service operations.
What rubber pads and adapters are included with the RJ7100?
The RJ7100 ships with rubber pads in 1 1/2" and 3" sizes, plus adapter blocks and extensions included in the standard kit. This comprehensive accessory package eliminates the need to purchase additional pads or adapters separately and accommodates a wide variety of vehicle lift points and frame heights. The included pad sizes cover the most common service scenarios across different vehicle platforms. Specific adapter extension dimensions and quantities may vary by dealer bundle. Call to confirm the exact adapter set configuration for your specific application.
What runway width range does the RJ7100 accommodate?
The adjustable runway width ranges from 36 3/4" to 46 1/16" (934 mm to 1,170 mm), enabling compatibility with multiple four-post and scissor lift configurations across different manufacturers. This width range covers the vast majority of standard lift installations in professional service facilities. The width adjustment mechanism is integral to the jack frame, allowing technicians to quickly set the correct width for each lift model without tools or modifications. This single-unit solution eliminates the need to maintain multiple rolling jacks with different runway spacings.
Does the RJ7100 require electricity or operate on compressed air only?
The RJ7100 operates exclusively on compressed air and requires no electrical power. It connects directly to a standard shop compressed air distribution system, eliminating the need for dedicated electrical installation, circuit breakers, or wiring. This makes it compatible with existing facility compressed air infrastructure without capital expense for new electrical infrastructure. The air-operated design simplifies operation by allowing technicians to control the jack from any location where compressed air is accessible, reducing operational complexity compared to electric-powered rolling jack models.
What vehicle types and service operations is the RJ7100 designed for?
The 7,000 lb capacity makes the RJ7100 suitable for brake service, suspension and steering work, tire and wheel service, and undercarriage inspections on four-post and scissor runway lifts. It handles passenger vehicles, SUVs, and light trucks across professional service facilities including quick-lube shops, independent repair shops, fleet service operations, and alignment facilities. The jack enables technicians to safely remove wheels while the vehicle remains positioned on the lift, improving efficiency and safety during brake bleeding, suspension component removal, and tire service procedures.
Can the RJ7100 be used with four-post and scissor lift configurations?
Yes, the RJ7100 is engineered as an accessory for four-post and compatible scissor-style runway lifts. The adjustable runway width from 36 3/4" to 46 1/16" accommodates the specifications of most standard lift models. The mechanical locking design and air-operated mechanism integrate seamlessly with four-post and scissor runway architecture for safe wheels-free service. Contact sales to confirm compatibility with your specific lift series and facility configuration.
Is compressed air hose and fittings included with the RJ7100?
The RJ7100 ships with the air-operated mechanism and valve assembly but does not include hose, quick-disconnect fittings, or adapters for connecting to your facility's compressed air distribution system. Your shop's existing compressed air lines will connect directly to the jack's air inlet. The unit is compatible with standard compressed air hose and quick-disconnect couplers available from industrial supply shops. Contact sales to confirm air connection specifications, thread size, and any optional factory hose kits available for your facility.
What is the safety feature for holding the jack at full height during service?
The RJ7100 incorporates a full-rise mechanical locking latch that automatically engages when the jack reaches maximum height. This passive locking mechanism holds the lifting platform securely in position without requiring continuous air pressure or manual lock activation. The handle-operated release allows instant pressure relief when service is complete. This mechanical design eliminates the risk of unplanned platform drift and provides reliable holding strength during active brake, suspension, and tire service operations.
