Product highlights

  • 5,000 lb Lifting Capacity
  • 5.3-18.3 in Height Range
  • Fits Three Katool Four-Post Lifts

Katool KT-RJ50 - 5,000 lb Rolling Jack for Four-Post Lifts

Katool

SKU: KT-RJ50

$959.00
Select Delivery Method
Select an option to activate Add to Cart
$ Save 2% with ACH / Wire Payment. Call for details

Financing options available

Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Talk to a equipment specialist Expert product and freight support before you order 855-498-2147

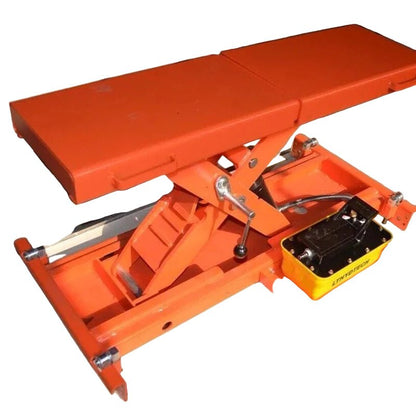

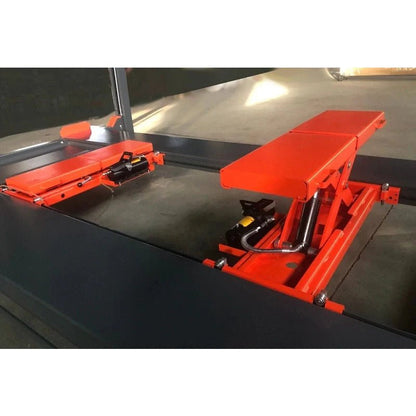

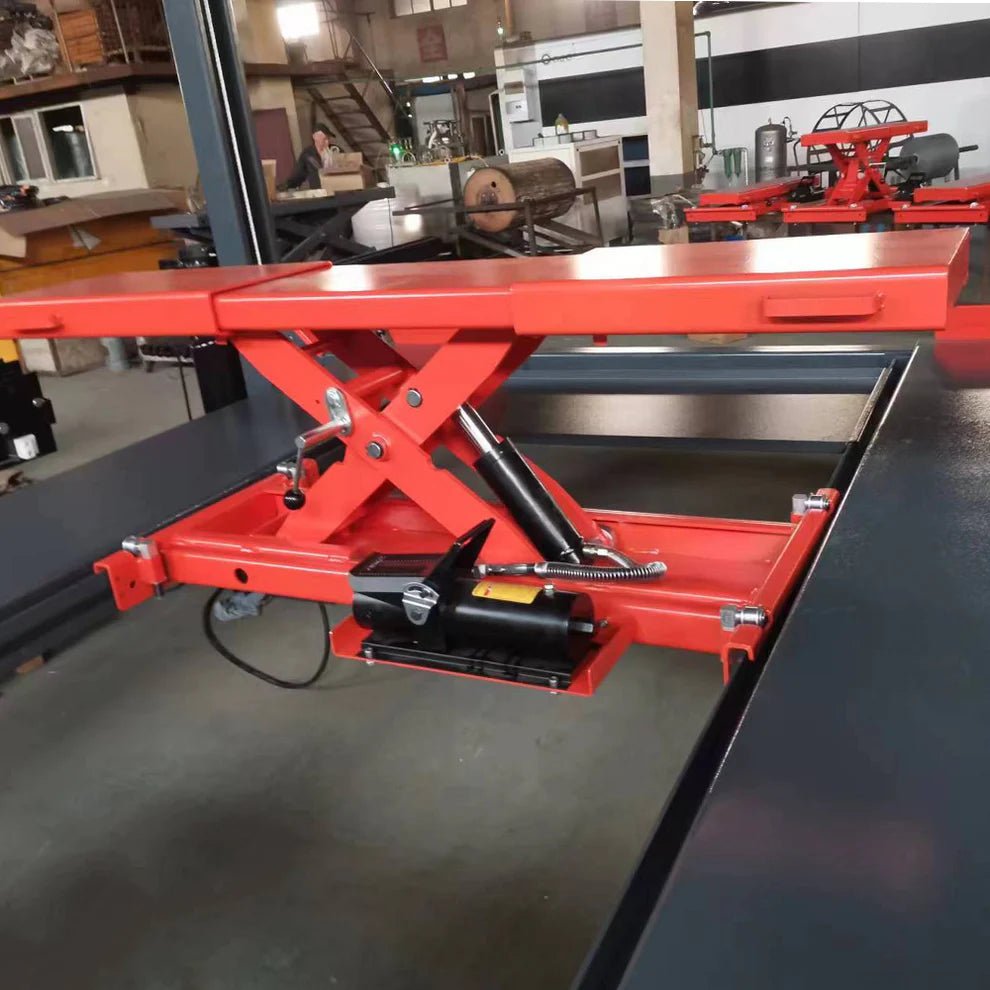

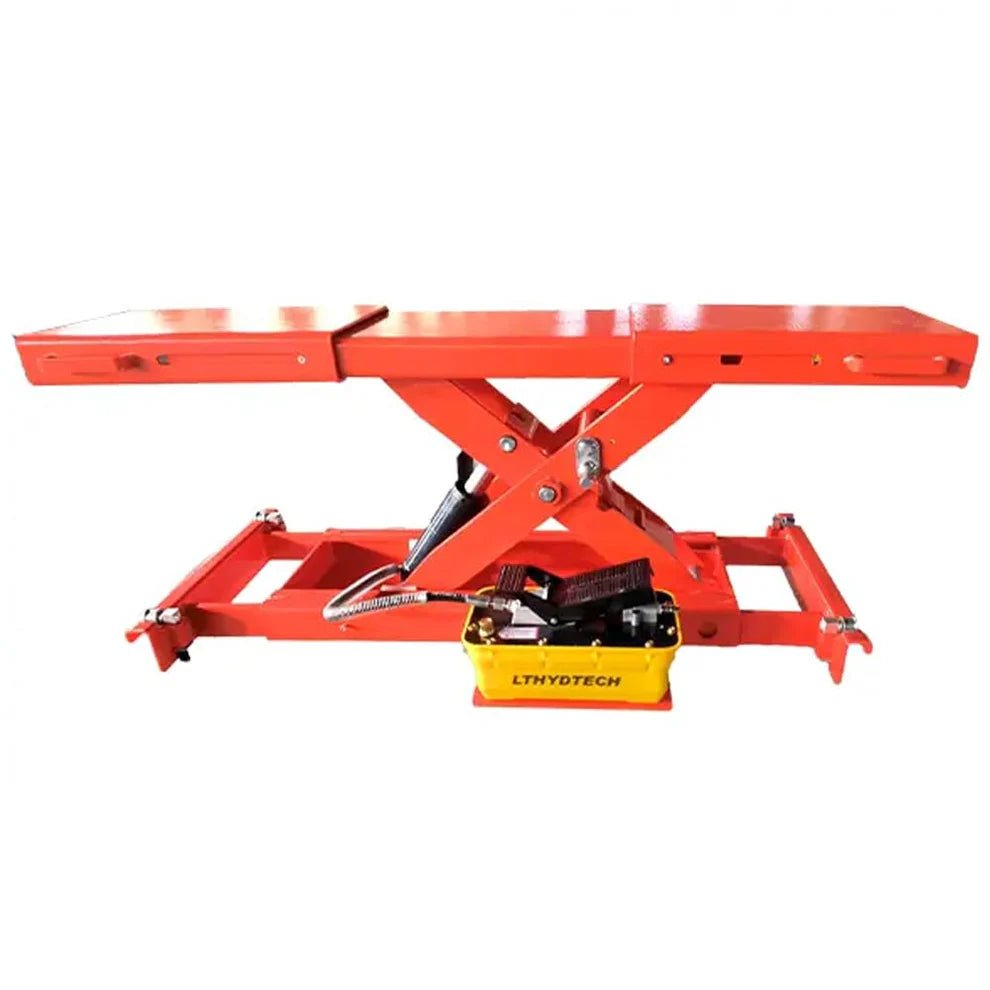

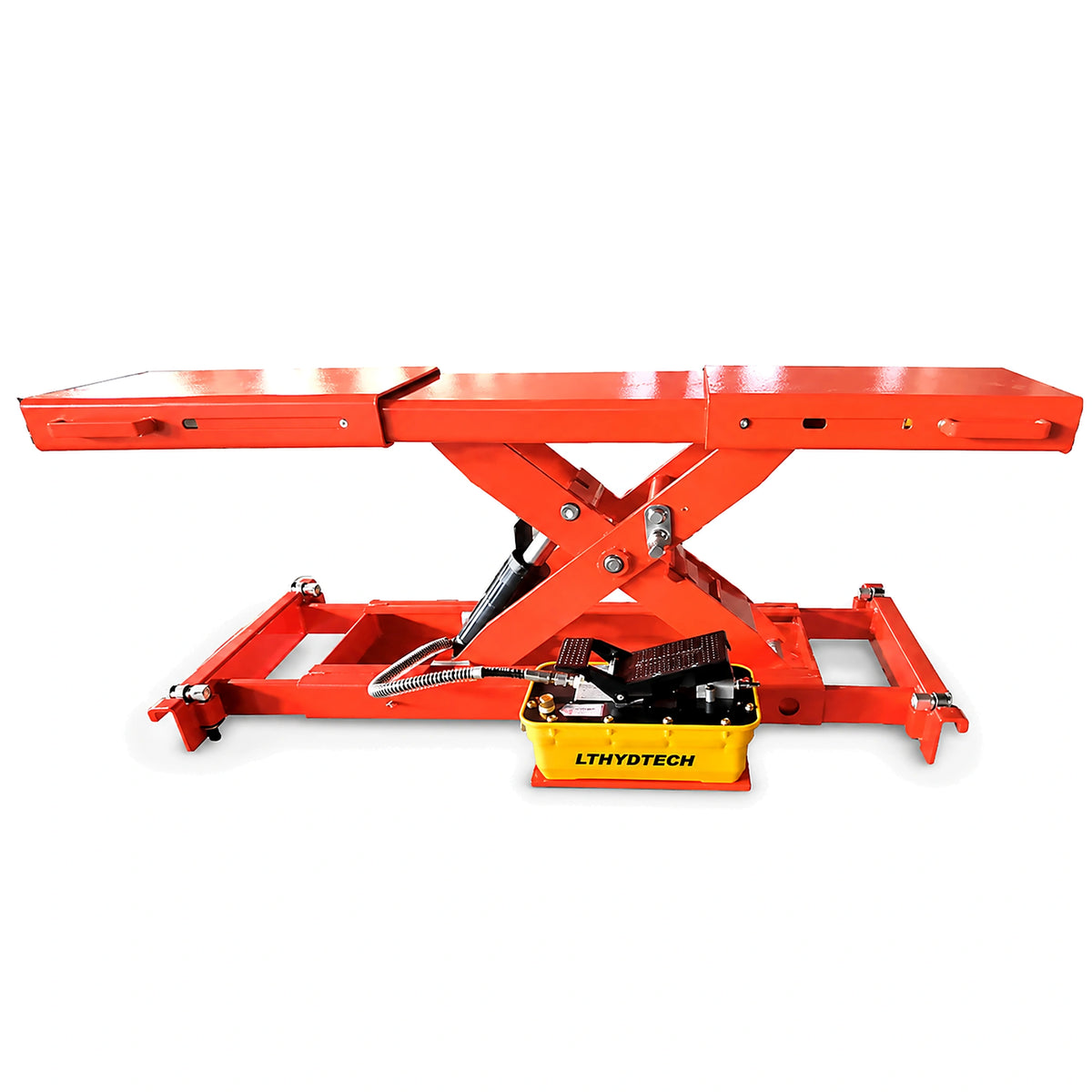

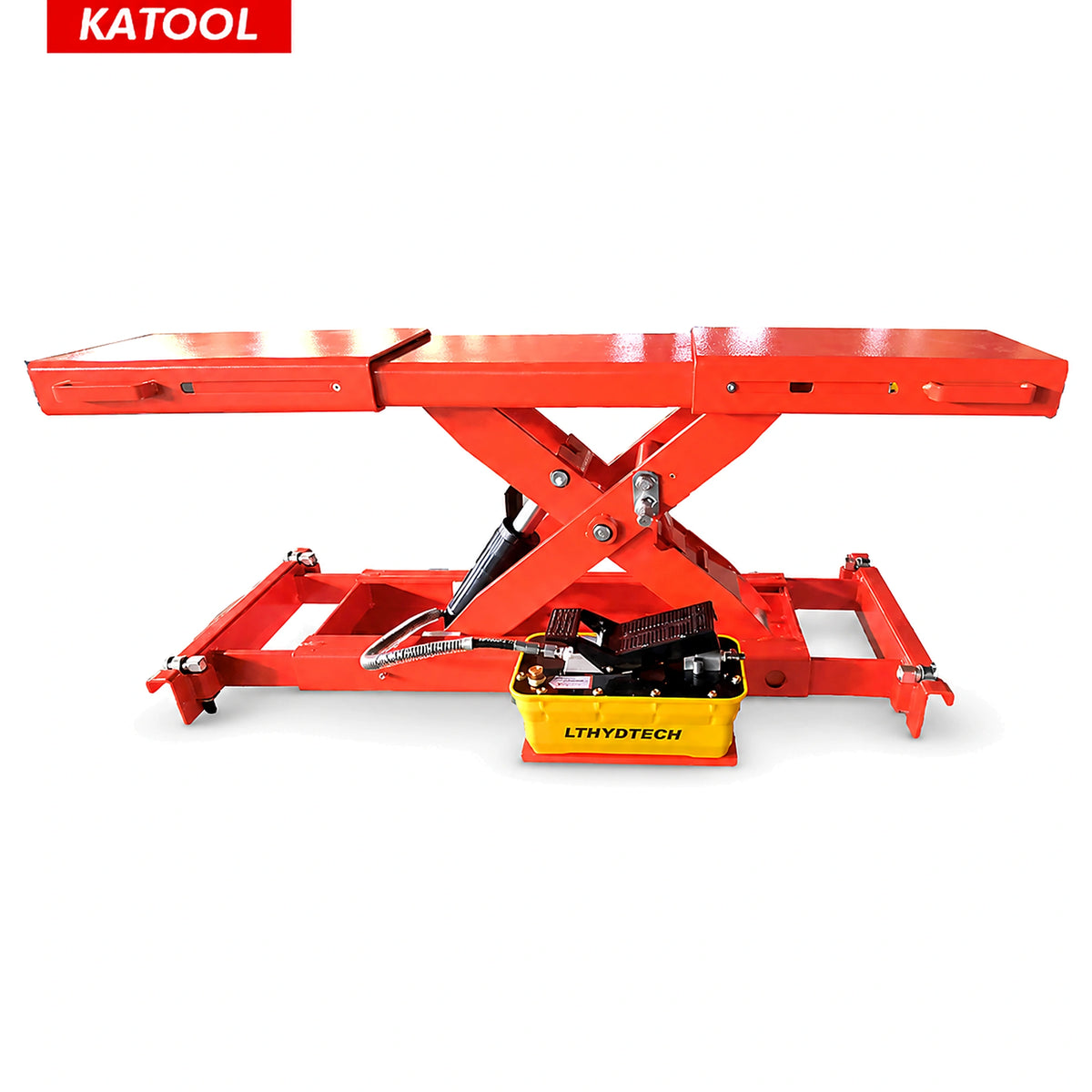

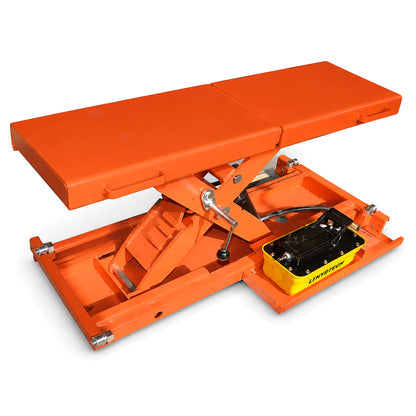

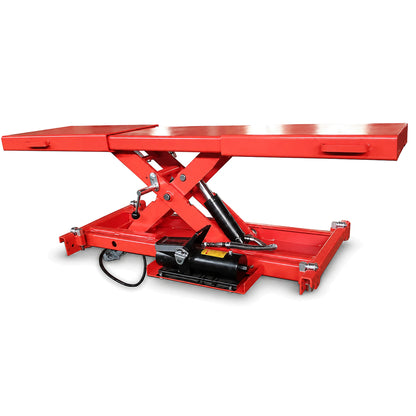

Get the wheels clear without moving the vehicle off its four-post lift. The Katool KT-RJ50 is a 5,000 lb rolling jack that travels along compatible lift runways and uses a scissor mechanism to raise the vehicle at its wheels or support points. Air/hydraulic operation requires an external shop air supply.

It is built for brake work, suspension service, general maintenance, and tire rotation prep. Its adjustable roller frame and extendable top beam support shop positioning, while rubber-padded lifting platform sections provide contact surfaces for the lift.

Katool identifies the KT-RJ50 as fitting the KT-4H110, KT-4H950, and KT-4H850. Need help confirming the model match? Garage Supply Guys can help before you order.

Features

5,000 lb Rolling Jack

Lift a vehicle's wheels or support points for brake work, suspension service, general maintenance, and tire rotation prep.

Scissor Lifting Mechanism

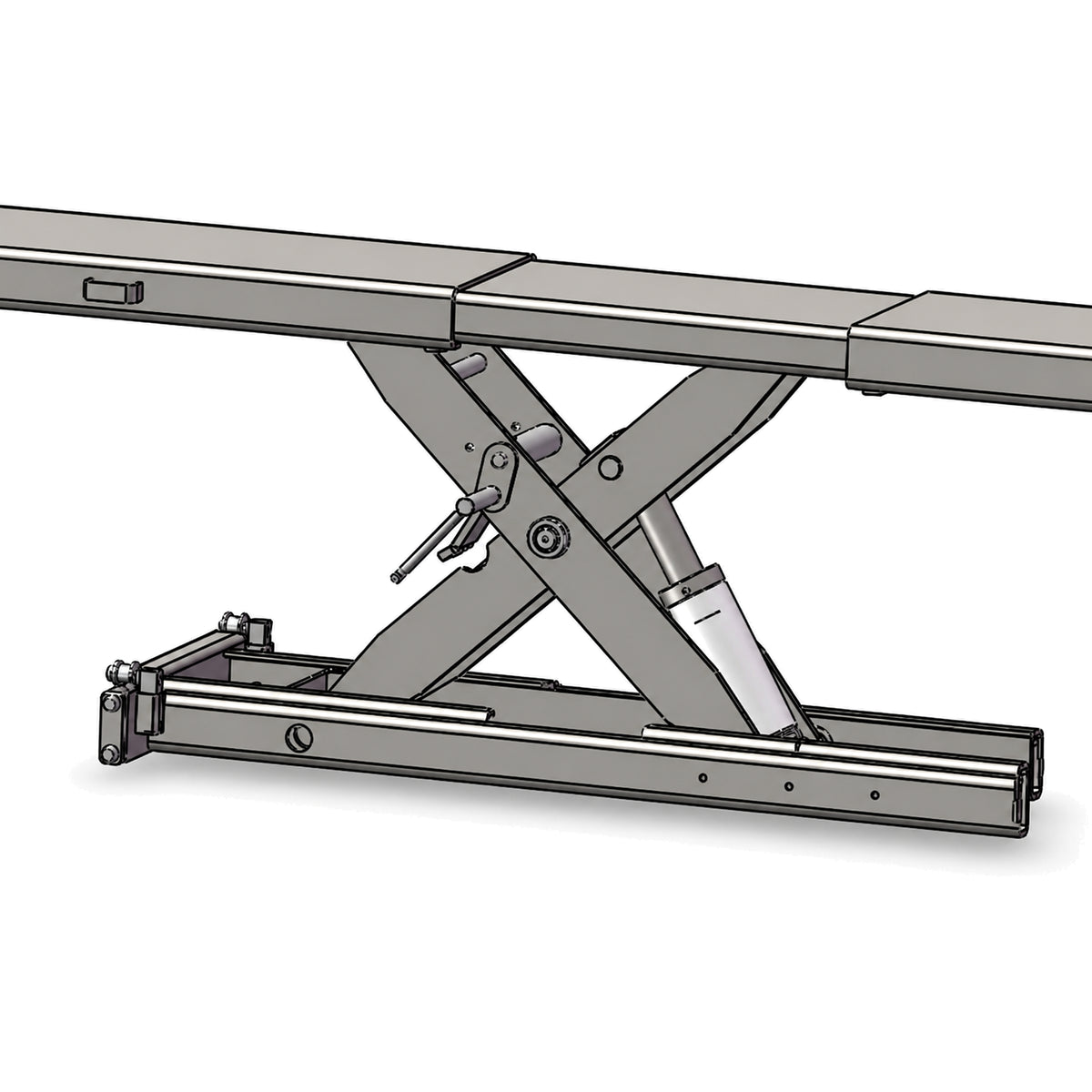

The X-frame scissor mechanism allows for level lifting and raises the platform from 5.3 in to 18.3 in.

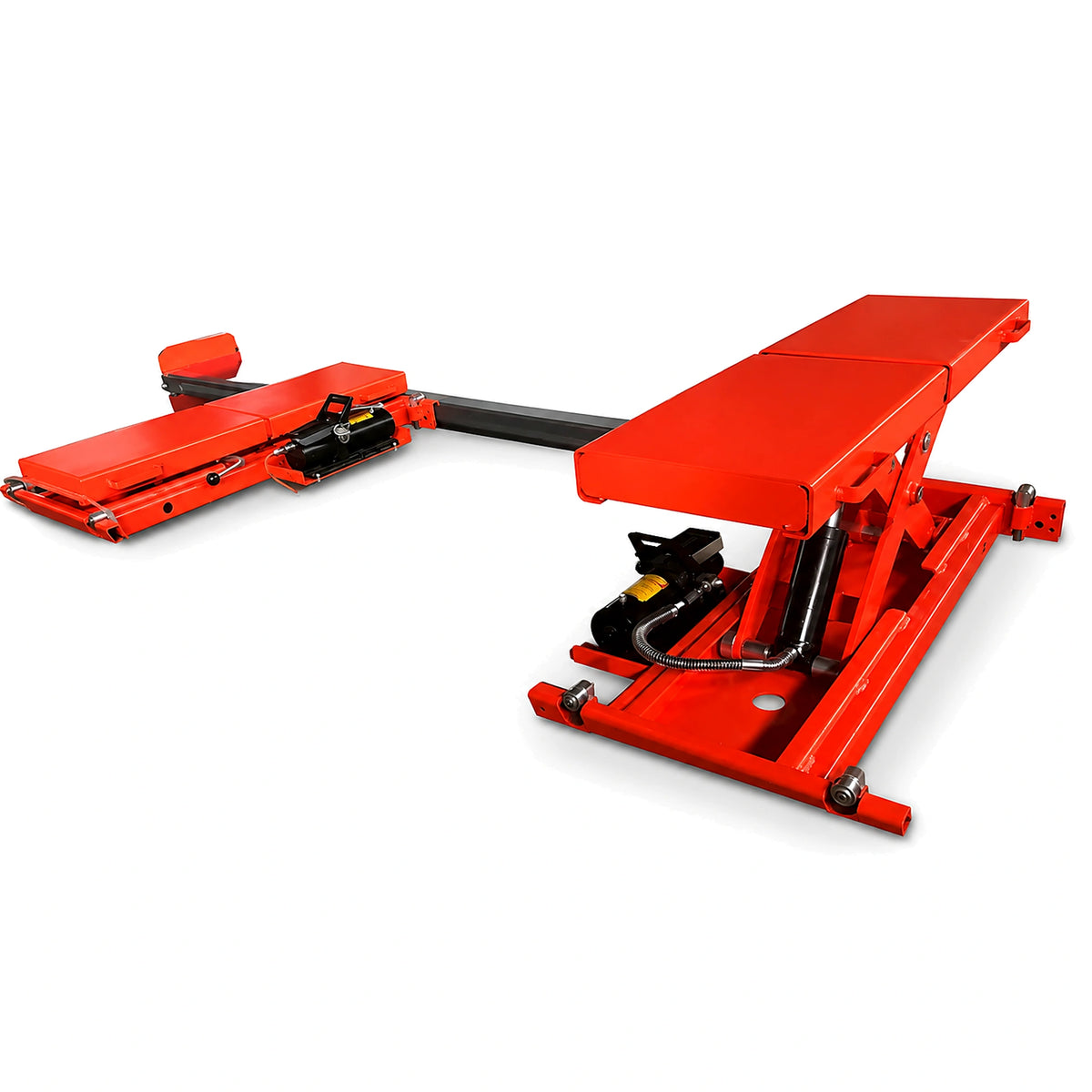

Adjustable Runway Setup

The roller frame spans 33.5-45.3 in, and the top beam adjusts from 36.6-52.6 in wide. Use the manufacturer-qualified lift list as the fitment authority.

Steel Frame and Padded Platform

Q235 and Q245 steel form the frame, protected by a durable powder-coated paint finish, with rubber-padded lifting platform sections at the top.

Best For

Brake and Tire Service

Raise the wheels from a compatible four-post lift for brake work and tire rotation preparation.

Suspension and General Maintenance

Use the 5,000 lb lifting capacity for supported suspension service and routine maintenance tasks within the jack's rated capacity.

Compatible Katool Four-Post Lifts

Katool states that the KT-RJ50 fits the KT-4H110, KT-4H950, and KT-4H850.

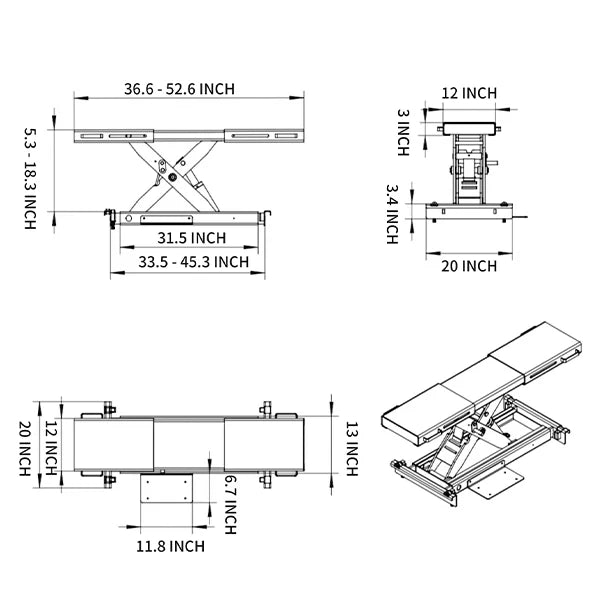

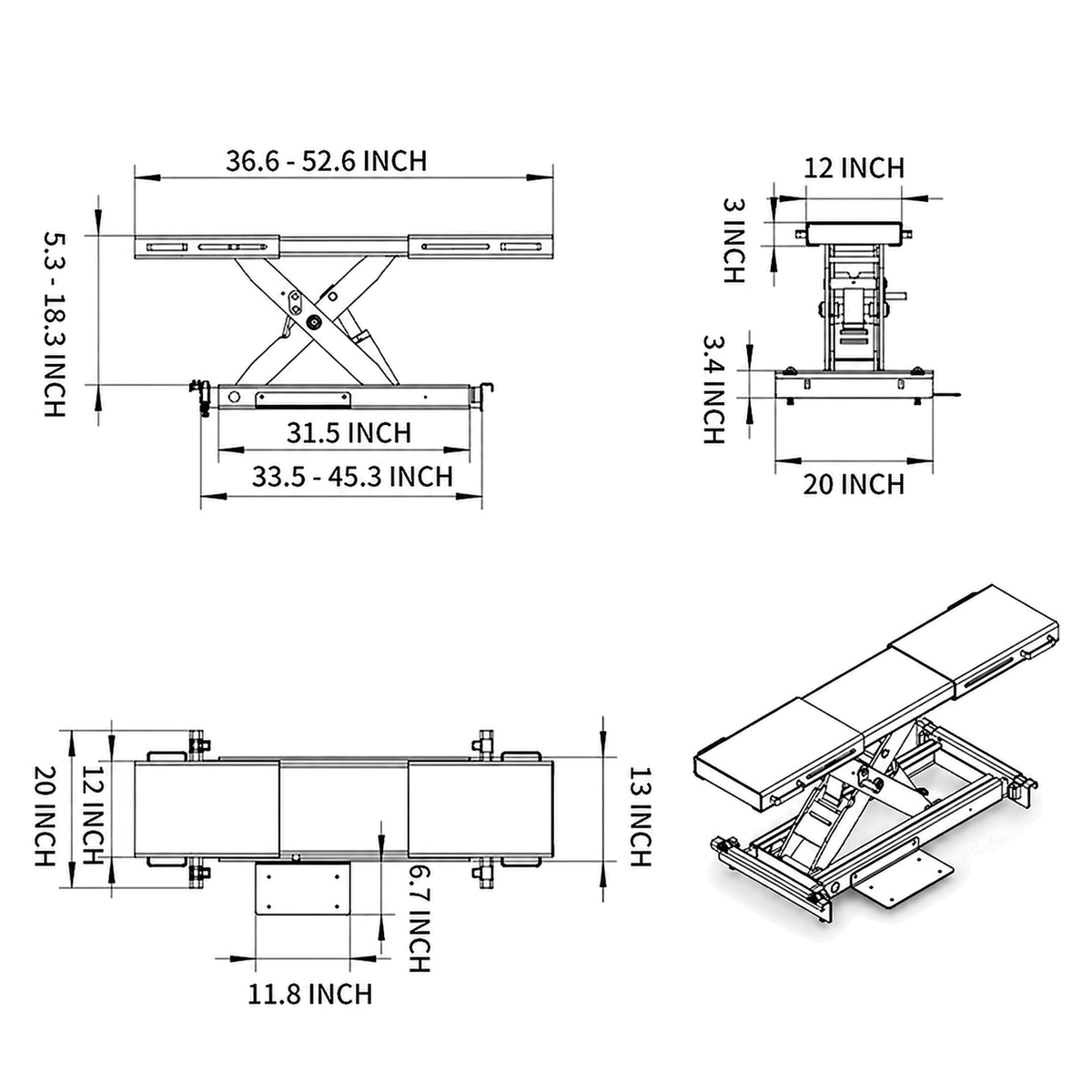

Specifications

Specifications
Lifting Capacity5,000 lb
OperationAir/hydraulic, external shop air supply required
Compatible LiftsKT-4H110, KT-4H950, KT-4H850
Lifting MechanismScissor mechanism for level lifting
Frame MaterialsQ235 and Q245 steel
FinishPowder-coated paint

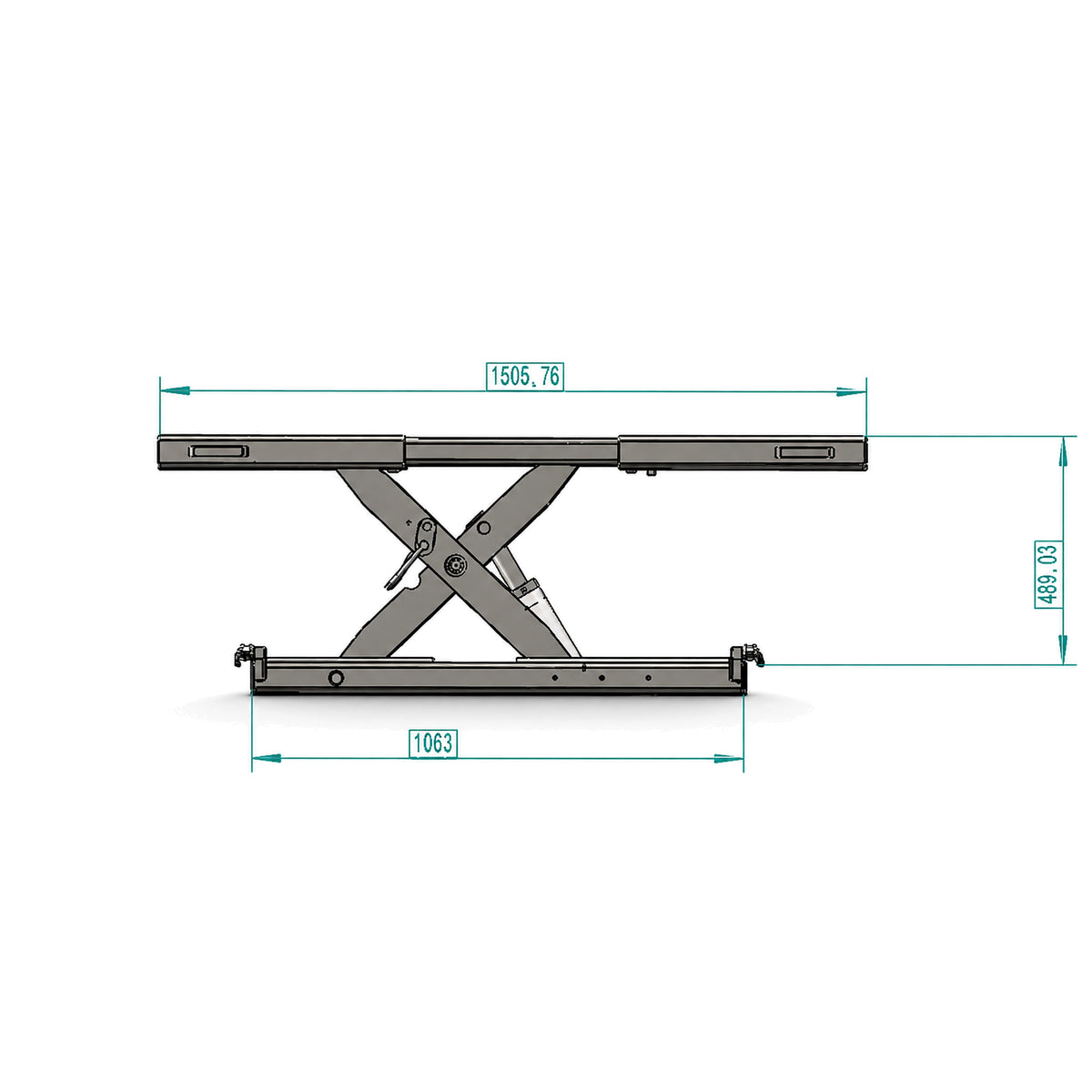

Height Range5.3-18.3 in

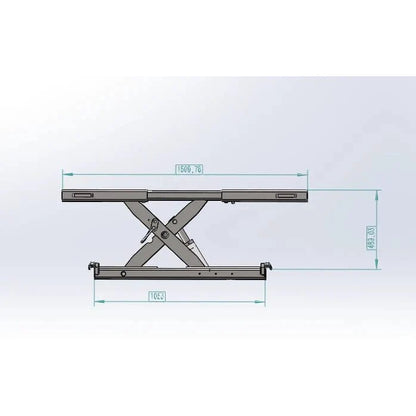

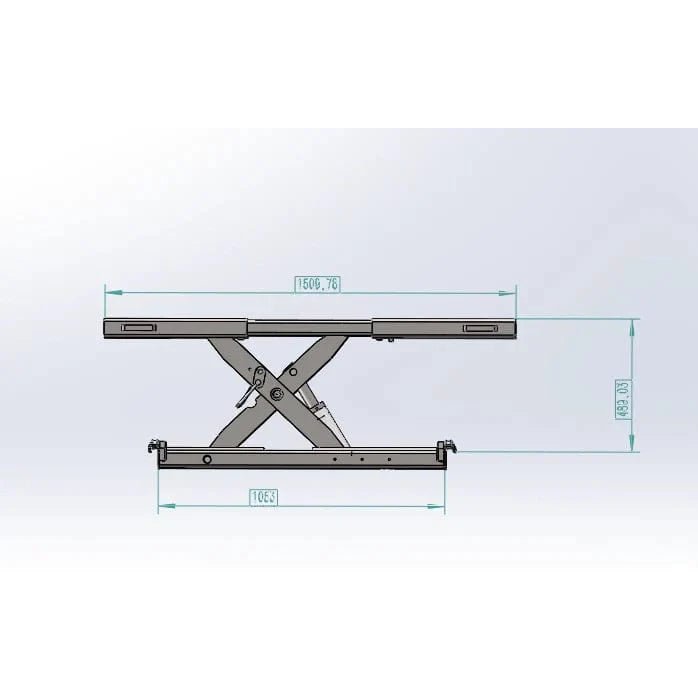

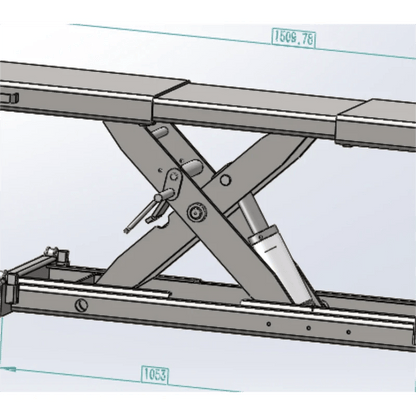

Top Beam Width36.6-52.6 in, retracted to extended
Adjustable Roller Frame Span33.5-45.3 in
Lifting Pad and Center Deck Width12 in
Adapter Heights3 in and 3.4 in

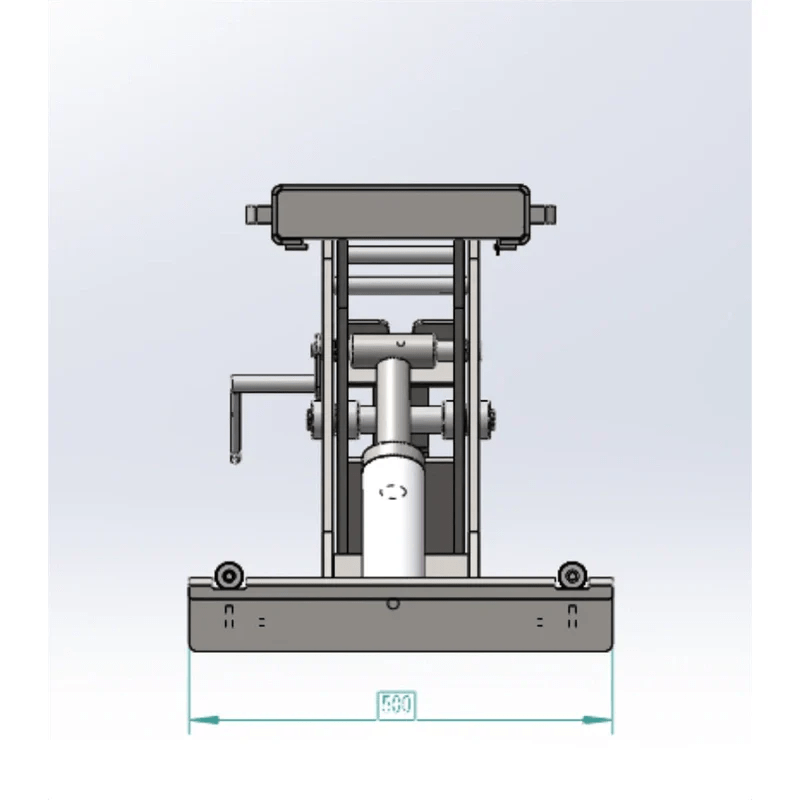

Platform Assembly Depth20 in

Compatibility

Published fitment may depend on the exact configuration. Questions about your setup? Contact us before ordering.

  • Manufacturer-qualified fit: Katool KT-4H110, KT-4H950, and KT-4H850 four-post lifts.

Shipping & Delivery

Our team coordinates freight shipping within the lower 48 states, with fulfillment times of 6-10 business days. Seasonal delays may extend delivery up to 3 weeks. Shipping to Alaska and Hawaii is available; contact us for a quote before ordering.

Residential delivery is available for an additional fee where applicable. Liftgate availability varies by product; see the delivery details for this item or contact us before ordering.

Carefully inspect your order before signing the Bill of Lading. Note any visible damage or missing items on the delivery receipt at the time of delivery. Report concealed damage or shortages within 48 hours. Do not sign for damaged or incomplete shipments; contact our Customer Service team immediately.

Warranty

Katool products are covered by the manufacturer's warranty: 1 year (12 months) on all product parts, including cylinders, power units, motors, displays, and electronics, plus an additional 3 years (36 months) on lift structural components. Replacement warranty parts are provided at no cost with free shipping. Labor is not covered under the warranty.

The warranty is non-transferable, requires the original order number, and applies to equipment purchased from Katool or a registered vendor. Warranty registration may be required after purchase; refer to the included documentation for details.

Related Products

Katool KT-4H110 11,000 lb Four-Post LiftManufacturer-qualified compatible lift for the KT-RJ50. Katool KT-4H950 Four-Post LiftManufacturer-qualified compatible lift for the KT-RJ50. Katool KT-4H850 8,500 lb Four-Post LiftManufacturer-qualified compatible lift for the KT-RJ50.

Questions About This Product?

Our team can help with installation planning, freight coordination, and configuration.

Call (855) 498-2147

Frequently Asked Questions

Which lifts does the Katool KT-RJ50 fit?
Katool states that the KT-RJ50 fits the KT-4H110, KT-4H950, and KT-4H850 four-post lifts. That manufacturer-qualified model list is the fitment authority. The adjustable roller frame can help with positioning, but its dimensions should not be treated as a guarantee of compatibility with any lift outside those three named models.
How much can the KT-RJ50 lift?
The KT-RJ50 has a 5,000 lb lifting capacity. It is intended to raise a vehicle's wheels or support points from a compatible four-post lift for brake work, suspension service, general maintenance, and tire rotation prep. Keep the load within the rated capacity and use it only with a manufacturer-qualified lift model.
What is the lifting height range?
The KT-RJ50 has a 5.3-18.3 in height range from its lowered to raised position. This gives you a clear dimensional reference for planning service access beneath the chassis. Confirm that the range suits the vehicle and service task before beginning work, while following the procedures established for your lift and shop.
How wide is the adjustable roller frame?
The adjustable roller frame span is 33.5-45.3 in. This is the literal dimension shown for the base including both end roller brackets, not a guaranteed runway rail-spacing specification. Use Katool's stated compatibility with the KT-4H110, KT-4H950, and KT-4H850 as the authority when determining whether the jack fits a lift.
What is the KT-RJ50 frame made from?
The manufacturer lists Q235 and Q245 steel as the KT-RJ50 materials and specifies a durable powder-coated paint finish. The jack also uses a confirmed scissor lifting mechanism, with rubber-padded lifting platform sections at the top.
Does the KT-RJ50 need shop air to operate?
Yes. The KT-RJ50 is air/hydraulic operated and requires an external shop air supply. The air/hydraulic power unit drives the scissor mechanism, which allows for level lifting. Plan for an available external air connection where the jack will be used, and account for that requirement when laying out the service bay.
