Katool KT-4H850 – Four-Post Lift (8,500 lb)
4 Post Car Lift for Sale - Katool KT-4H850 with 8,500 lb Capacity
The Katool KT-4H850 is a 4 post car lift for home garage use that delivers professional-grade lifting. This Katool lift features an 8500 lb capacity and 70.87 inch maximum lift height, making it ideal for vehicle service and storage. As a 110V 4 post car lift, it operates on standard household power with no expensive 220V electrical work required. With its low 4.76 inch runway height and fast 75-second rise time, this four post car lift gets vehicles positioned quickly for maintenance or doubles as a 4 post storage lift for seasonal vehicles.
Features

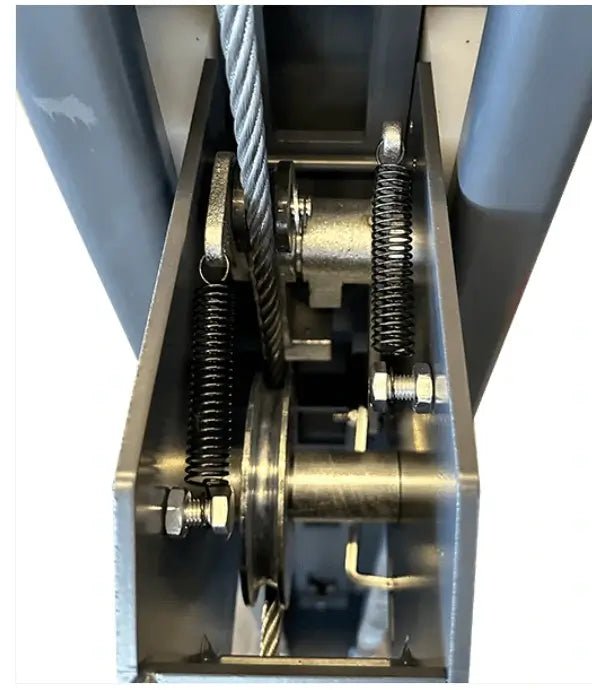

Redundant Safety Lock System on Every Column
Column safety lock assembly with steel cable routing and tension springs prevents sudden drops
Each of the four columns features both primary and secondary safety locks that engage automatically during lifting. The mechanical locking system uses heavy-duty pawls that lock into position every 4.7 inches through 12 different height positions. If a cable failure occurs, these redundant locks prevent the runways from dropping. The single-point manual release allows controlled lowering when you're ready, requiring deliberate operator action to disengage all four locks simultaneously. This dual-safety design exceeds the 115% dynamic load and 150% static load testing standards required for CE certification.

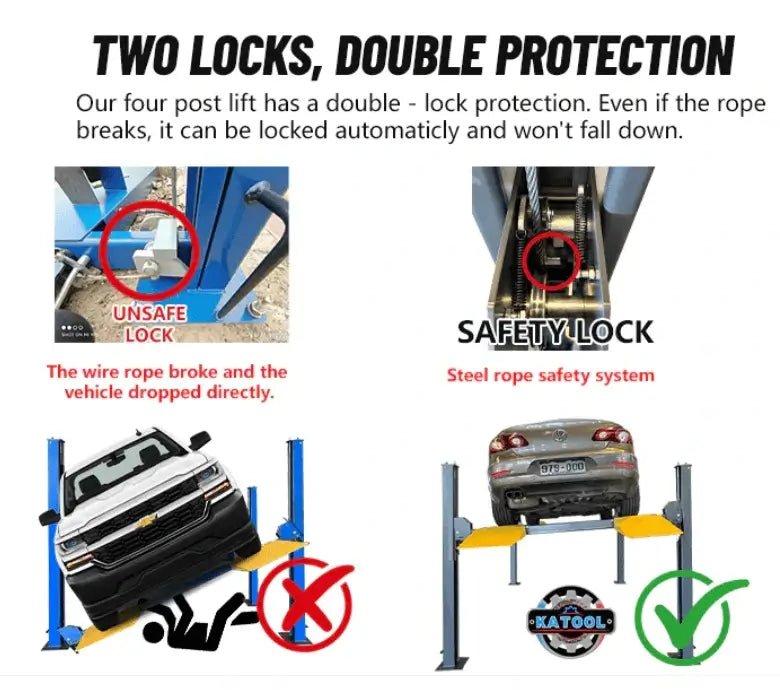

Steel Rope Safety Lock Protection Against Cable Failures
Steel rope safety locks engage automatically to prevent vehicle drops during cable failure
The KT-4H850 uses 3/8 inch diameter steel cables rated far beyond the lift's 8,500 lb capacity. The safety lock system shows how the steel rope safety locks engage if cable tension is lost. Unlike basic lifts that rely on a single locking mechanism, this Katool 4 post lift provides multiple fail-safes. The cables run through enclosed sheaves within each column, protecting them from debris and damage. Regular inspection windows allow you to check cable condition without disassembly. This robust cable and lock combination passed rigorous 150% static load testing, successfully holding 12,750 lbs in testing scenarios.

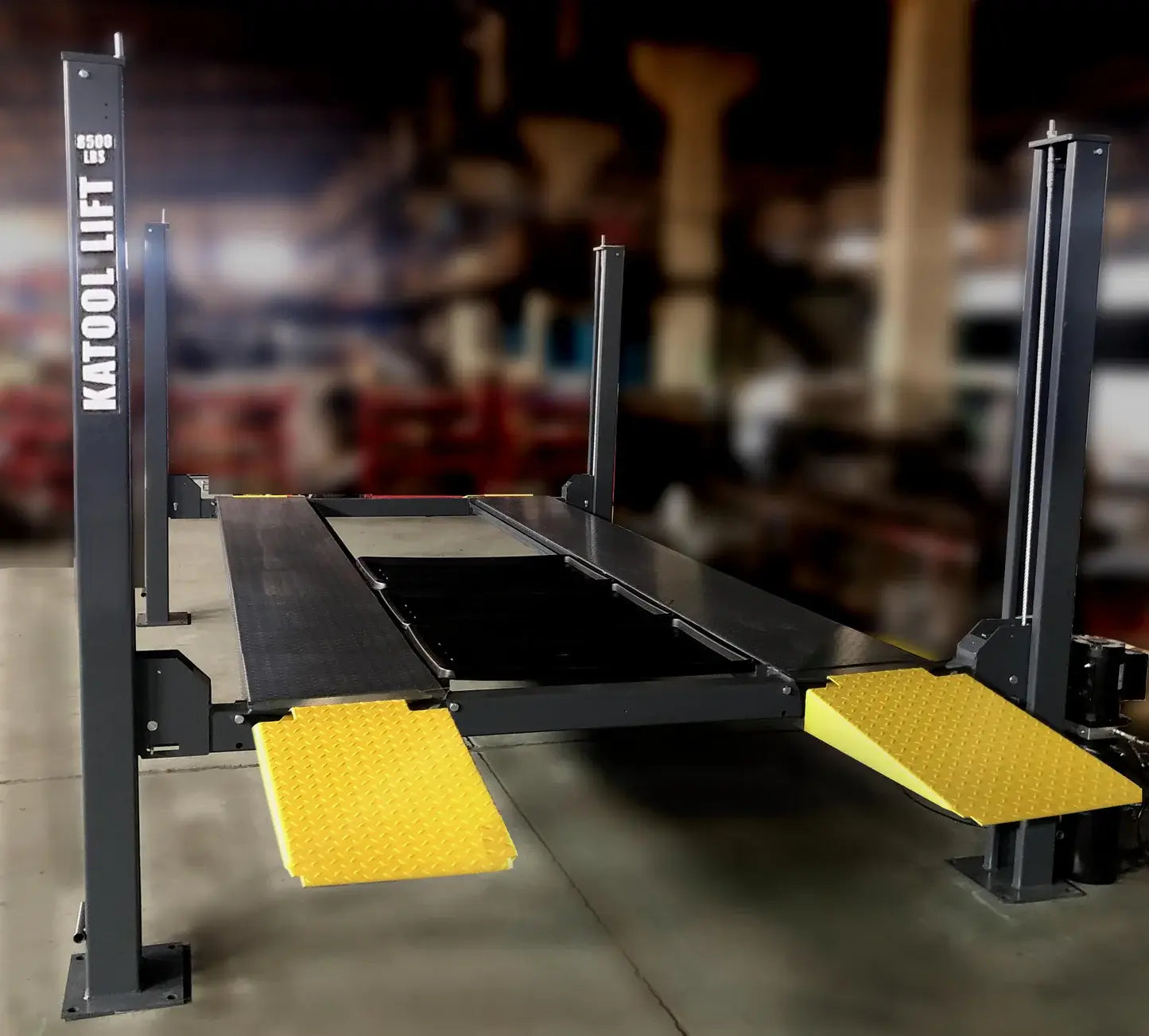

Low-Profile Ramps for Easy 4 Post Lift for Garage Access

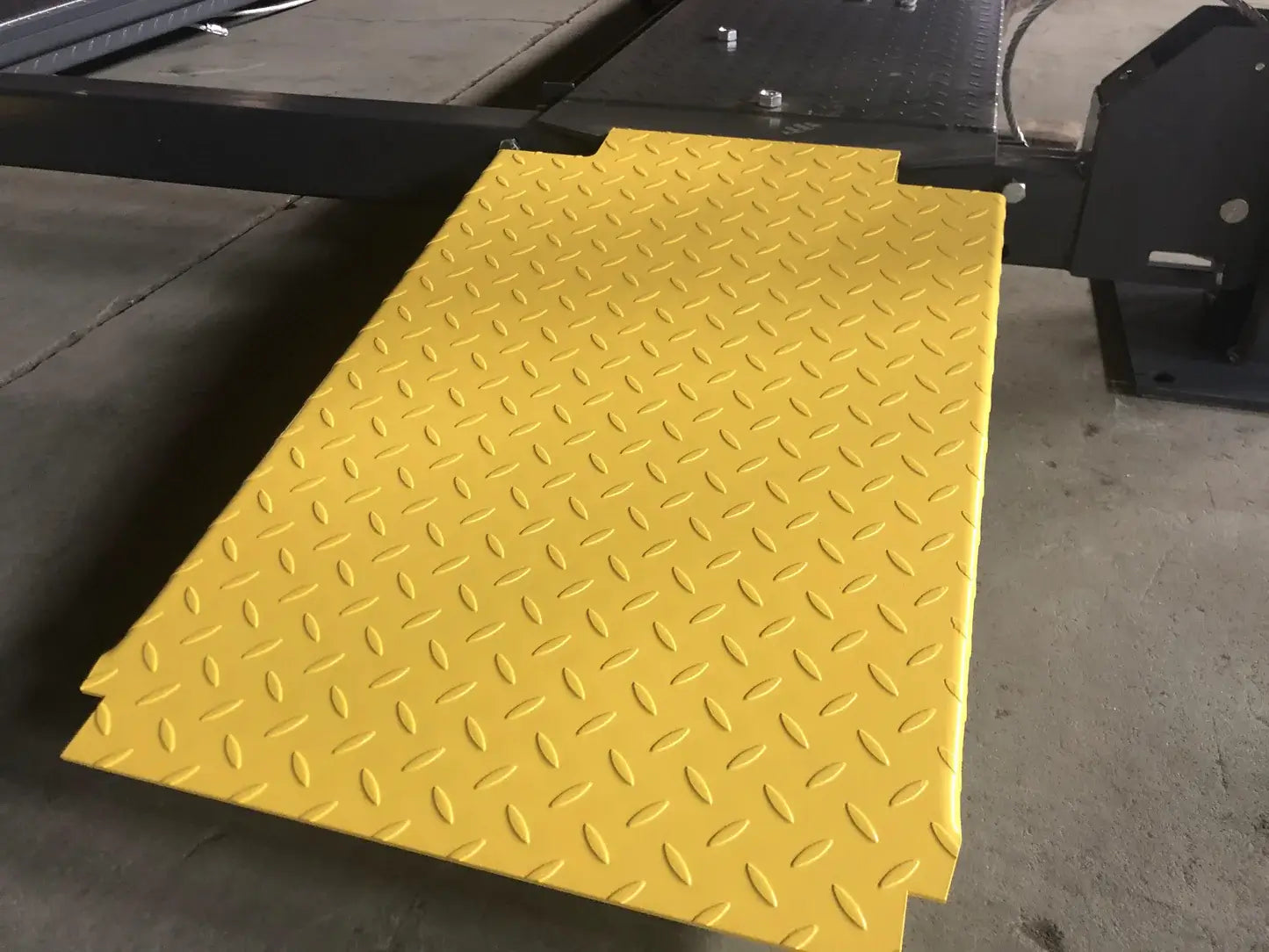

Diamond-plate steel ramps provide secure traction for safe vehicle loading and unloading
At just 4.76 inches minimum runway height, this lift accommodates low-clearance vehicles that struggle with taller ramps. The bright yellow diamond-plate steel ramps provide excellent traction in all weather conditions, reducing slip risk when driving onto the lift. Each ramp connects securely to the main runway frame with heavy-duty hinges that won't loosen over time. The textured surface channels water away while providing grip for tires. The gradual incline angle prevents scraping on vehicles with front spoilers or low-hanging exhausts. When not in use, these ramps can be removed for storage, reducing the overall footprint to 172 inches without ramps.
110V Power - No Special Wiring for Home Garage Installation
Powerside column installs on any side for optimal electrical connection placement
The powerside column containing the motor can be installed on either side, front, or rear of the lift during assembly. This flexibility lets you position the electrical connection where it's most convenient for your garage layout. As a 110V 4 post car lift, the motor draws power through a standard 110V/60Hz/1Ph circuit, eliminating the need for expensive 220V electrical work that many competing lifts require. This makes it one of the more affordable 4 post car lift for garage installations since you skip the electrician costs. During operation, the hydraulic system synchronizes all four columns through the cable system, ensuring level lifting regardless of vehicle weight distribution. With an overall width of 107.95 inches and inside column clearance of 94.72 inches, this lift handles everything from compact cars to full-size trucks.

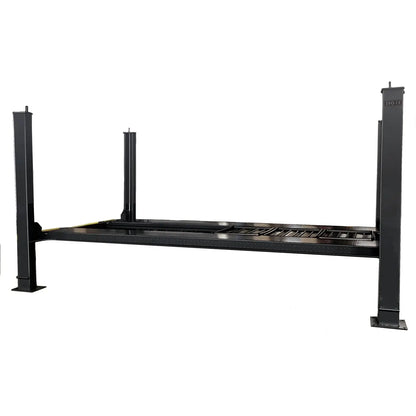

Professional-Grade Construction Meeting CE Certification Standards
Heavy-gauge steel columns stand 83.66 inches tall for maximum vehicle clearance
Built with heavy-gauge steel throughout, this lift weighs 1,820 lbs and provides rock-solid stability during operation. The 83.66 inch tall posts allow a maximum lifting height of 70.87 inches, giving you comfortable working clearance underneath vehicles. Each column anchors to your concrete floor with multiple high-strength bolts (requires minimum 3.93 inch thick concrete rated at 3,000 PSI). The lift includes adjustable safety lock ladders on each column, letting you fine-tune the lock positions for your specific needs. Optional accessories like the sliding jack with hand pump, mobile caster set, and jack tray enhance versatility for different service requirements.
Video: Katool KT-4H850 Installation Guide
Watch the complete installation process for the KT-4H850, including column assembly, cable routing, and safety system setup. This video demonstrates proper concrete anchoring and electrical connections for this 4 post lift for home garage installation.
Applications
Vehicle Service
- Oil changes and fluid maintenance at comfortable working height
- Exhaust system repairs with full undercarriage access
- Brake service on all four wheels simultaneously
- Transmission work with 70.87 inches of clearance
- Suspension repairs with wheels freely hanging
4 Post Storage Lift Applications
- Double parking capacity in single-car garage spaces
- Seasonal vehicle storage with one car elevated
- Classic car preservation off the ground
- Motorcycle or ATV storage underneath lifted vehicle
- Workshop space optimization in home garages

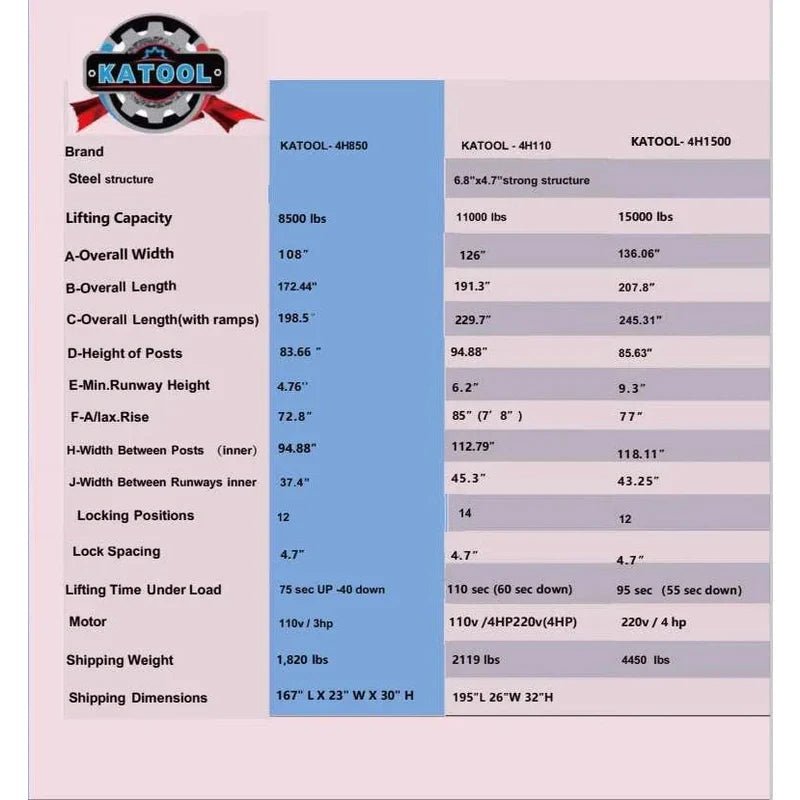

Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 8,500 lbs (3,850 kg) |
| Max Lifting Height | 70.87" (1,800 mm) |
| Lifting Time Up | 75 seconds |
| Lowering Time Down | 40 seconds |
| Lock Positions | 12 positions at 4.7" spacing |
| Cable Diameter | 3/8 inch |
| Motor Power | 110 VAC / 60 Hz / 1 Ph |
| Dynamic Load Test | 115% (9,775 lbs) |
| Static Load Test | 150% (12,750 lbs) |

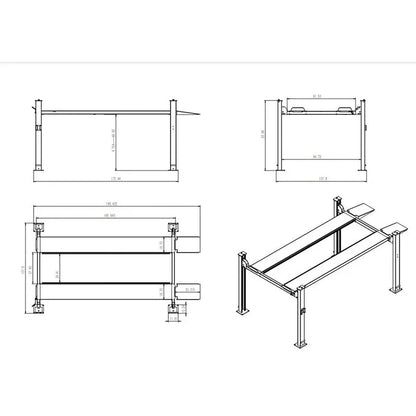

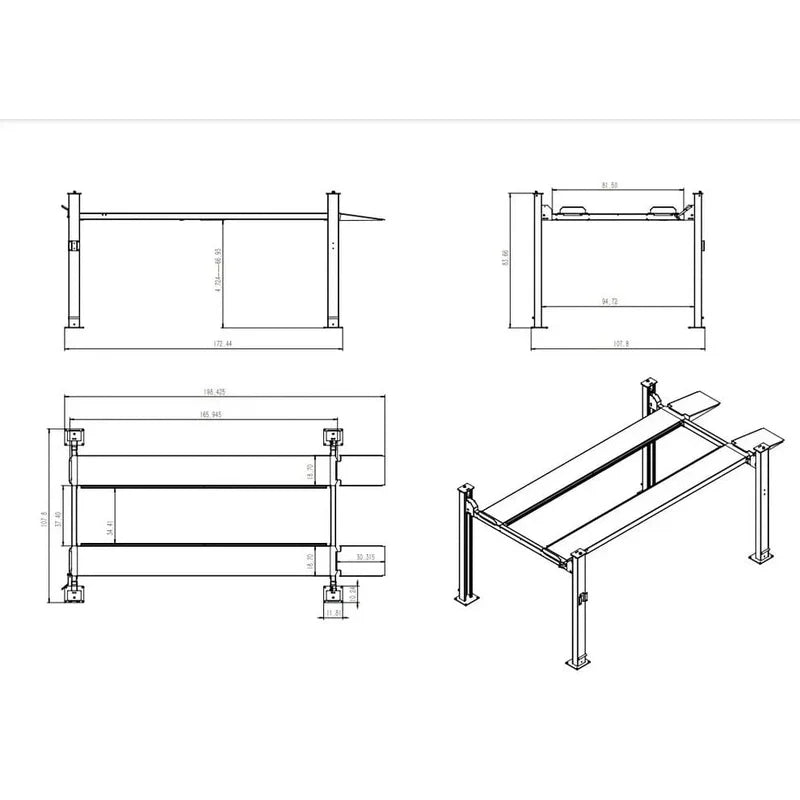

| Dimension | Measurement |
|---|---|
| Height of Posts | 83.66" (2,125 mm) |
| Width Overall | 107.95" (2,742 mm) |
| Length w/ Ramps | 198.43" (5,040 mm) |
| Length w/o Ramps | 172" (4,369 mm) |
| Inside Columns | 94.72" (2,406 mm) |
| Inside Runways | 37 inches |
| Min Runway Height | 4.76" (121 mm) |
| Net Weight | 1,820 lbs (826 kg) |
| Shipping Dimensions | 167" L x 23" W x 30" H |
Installation Requirements
Concrete Requirements
Minimum 3.93 inches (100 mm) thickness with 3,000 PSI rating. Failure to meet these requirements could result in anchor pullout or equipment failure. Verify your concrete specifications before purchase and installation.
Space Requirements
- Minimum ceiling height: 12 feet (allows full 70.87" lift)
- Floor space with ramps: 198.43" x 107.95"
- Floor space without ramps: 172" x 107.95"
- Side clearance for vehicles: 6 inches minimum each side
- Front/rear clearance: 36 inches for safe operation
Electrical Requirements
- Power supply: 110 VAC / 60 Hz / Single Phase
- Dedicated circuit recommended: 20-30 amp breaker
- Outlet location: Within 6 feet of power column
- No 220V electrical work required
- Standard household outlet compatible
Shipping Information
Freight Shipping
This 1,820 lb lift ships via freight carrier on a single pallet measuring 167" L x 23" W x 30" H. Residential delivery includes curbside drop-off with lift gate service. A valid phone number is required for delivery scheduling.
- Typical transit time: 5-10 business days
- Tracking provided upon shipment
- Delivery appointment scheduled by carrier
- Inspect shipment for damage before signing
- Report any damage within 24 hours
Warranty Coverage
1-Year Limited Warranty
Katool provides comprehensive coverage on all parts and product defects for 12 months from purchase date. The warranty includes cylinders, power units, motors, displays, and electronic components.
What's Covered
- Hydraulic cylinders and power units
- Electric motors and controls
- Electronic displays and sensors
- Structural components (3-year coverage)
- Free replacement parts including shipping
Warranty Terms
- Non-transferable to subsequent owners
- Labor costs not included
- Must not disassemble before approval
- Photo/video documentation may be required
- Optional 2-year extension available
Documentation
Product Documentation
Access complete product documentation including installation instructions, safety guidelines, and maintenance procedures.
- Installation and Service Manual (PDF) - Complete setup guide with diagrams
Questions About the Katool KT-4H850?
Our lift specialists can help you determine if this 8,500 lb capacity four post car lift meets your garage requirements and answer questions about installation.
Frequently Asked Questions
What's the actual lifting capacity of the Katool KT-4H850 4 post car lift?
The KT-4H850 has an 8,500 lb maximum lifting capacity, which it successfully tested to 115% dynamic load (9,775 lbs) and 150% static load (12,750 lbs) for CE certification. This capacity handles most passenger vehicles, SUVs, and light-duty trucks with a safety margin.
Is the Katool KT-4H850 a good 4 post car lift for home garage use?
Yes, this is an ideal 4 post lift for home garage installations. It runs on standard 110V household power so you don't need expensive 220V electrical work. The 107.95 inch overall width fits most two-car garages, and the 4.76 inch low runway height accommodates sports cars and lowered vehicles. You'll need at least 12 feet of ceiling height and concrete that's minimum 3.93 inches thick with 3,000 PSI rating.
How long does it take to raise and lower a vehicle?
The lift raises a vehicle to maximum height in 75 seconds and lowers it in 40 seconds, making it one of the faster 110V lifts in its capacity class. These times remain consistent even at full 8,500 lb capacity.
What vehicles fit between the 94.72 inch inside column width?
The 94.72 inch inside column clearance accommodates virtually all passenger cars, SUVs, and most full-size pickup trucks. Only the widest dually trucks or commercial vehicles might exceed this width. The 37 inch inside runway width works for vehicles with standard to wide track widths.
Do I need professional installation or can I set this up myself?
While professional installation isn't required, the manual recommends at least two people for assembly due to the 1,820 lb total weight. Setup takes approximately 4-6 hours with basic tools, and the included manual provides step-by-step instructions with diagrams for proper cable routing and safety system setup.
How does the safety lock system protect against cable failure?
Four mechanical locks (one per column) engage automatically every 4.7 inches through 12 positions during lifting. Each lock has both primary and secondary mechanisms. If cable tension is lost, these locks prevent runway drop, and the single-point manual release requires deliberate operator action to lower the lift safely.

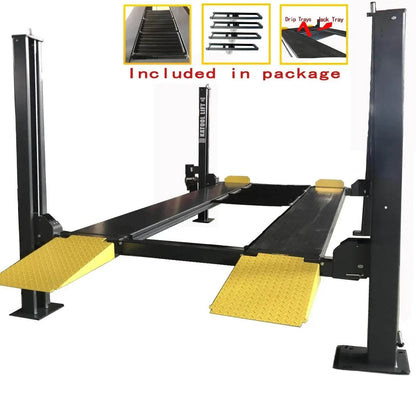

What's included with the lift purchase versus optional accessories?
The lift includes the complete four-post structure with 83.66 inch columns, hydraulic power unit, safety lock systems, diamond-plate runways, and drive-on ramps. Optional accessories sold separately include the sliding jack with hand pump, mobile caster kit for portability, jack tray, and drip trays for fluid collection.
Can low-clearance sports cars drive onto the 4.76 inch runway height?
Yes, the 4.76 inch minimum runway height is specifically designed for low-clearance vehicles. The gradual ramp angle and diamond-plate surface prevent scraping on vehicles with front spoilers or low exhausts. This is notably lower than many competing lifts that start at 6-7 inches.
Can I use this as a 4 post storage lift?
Absolutely. The KT-4H850 works great as a 4 post storage lift for doubling your parking capacity. Raise one vehicle and park another underneath, or store seasonal vehicles, motorcycles, or ATVs in the space below. The 70.87 inch max lift height provides enough clearance for most vehicles underneath, and the mechanical locks hold the platform securely for long-term storage without requiring constant hydraulic pressure.
Is this Katool 4 post lift for sale with free shipping?
Yes, the KT-4H850 ships free via freight carrier. The 1,820 lb lift arrives on a single pallet measuring 167" L x 23" W x 30" H. Residential delivery includes curbside drop-off with lift gate service. Contact us at (855) 498-2147 for delivery timing to your location.
