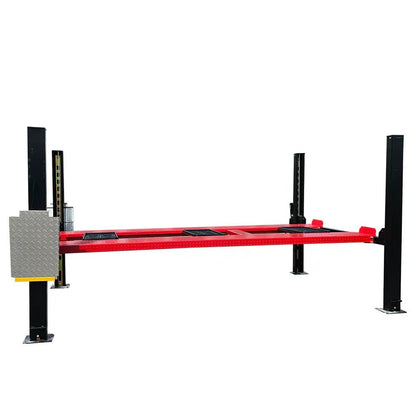

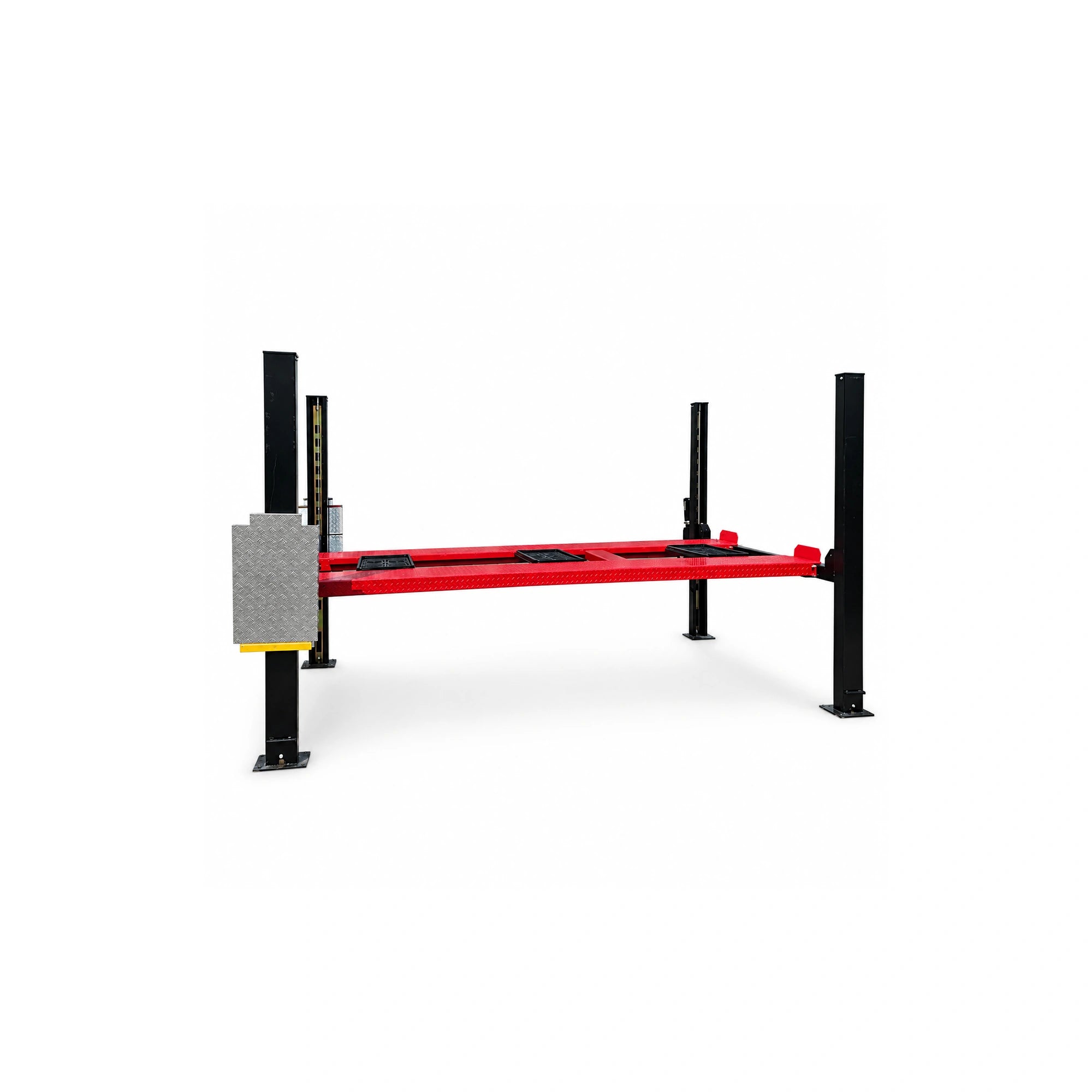

Katool KT-4H950 9,500 lb Four-Post Lift for Storage and Parking
The Katool KT-4H950 is a 9,500 lb capacity four-post lift built for home garages and small shops that need a reliable work platform and space-saving storage solution. Drive on, park underneath, or lift for service. With 84.5 in of lifting height and 81.5 in of clearance underneath, you get full access for undercarriage work or room for a second vehicle below. Runs on 110V power with a 3HP motor. Features 4 mechanical locks with primary and secondary safety systems, single-point manual safety release, and non-skid diamond plate runways. Comes complete with caster kit, aluminum ramps, jack tray, and 3 drip trays. CE certified. 3-year structural / 1-year parts warranty.
Katool KT-4H950 Four-Post Lift: Who It's For

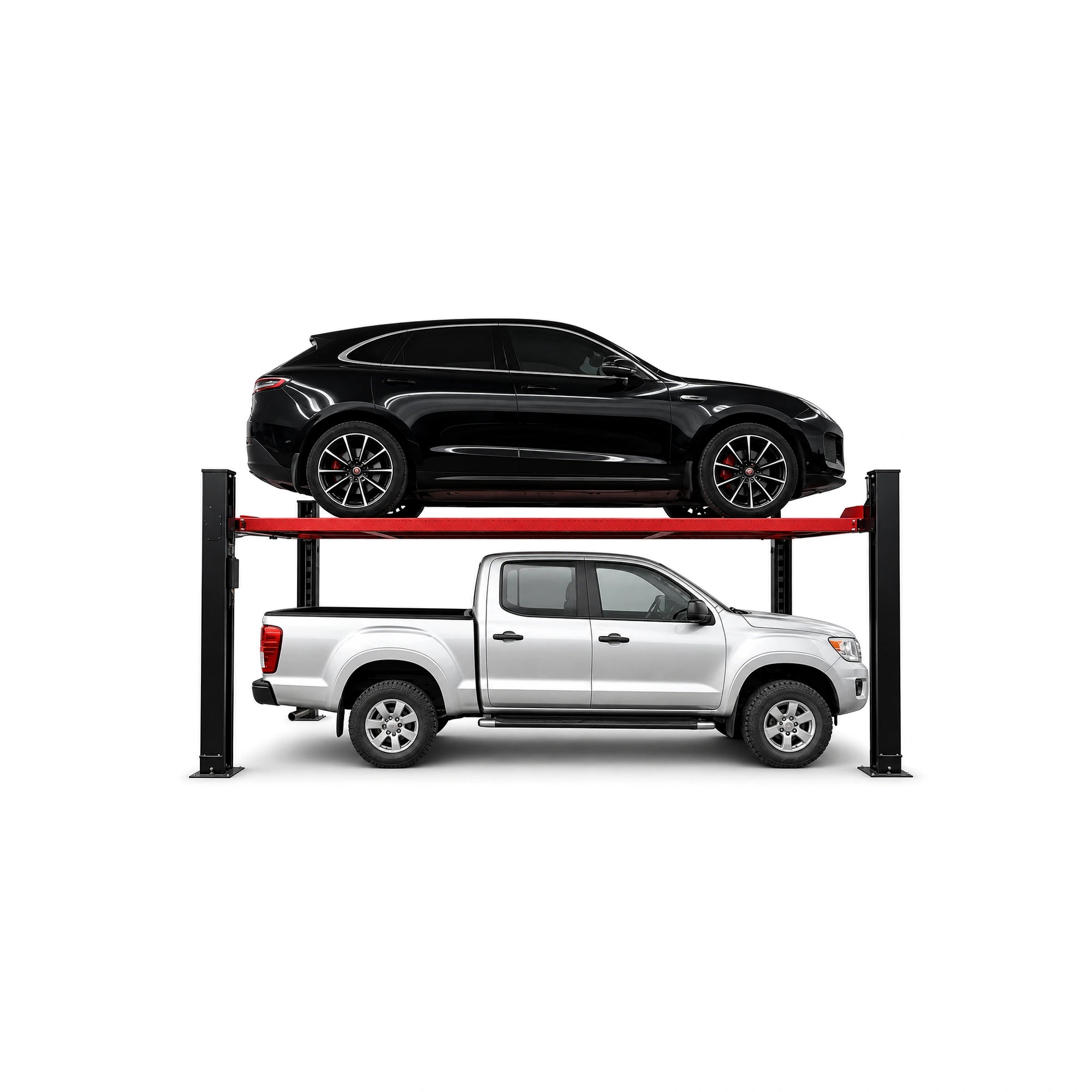

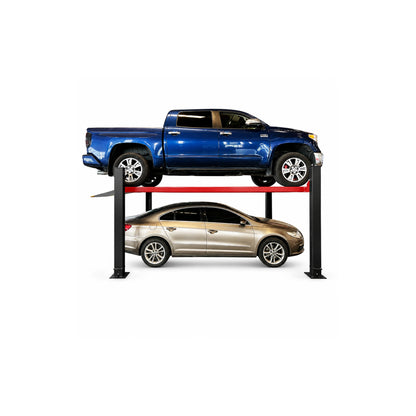

- Home Garage Owners: Double your garage capacity by parking one vehicle on the lift and another underneath. The 81.5 in clearance fits most cars, trucks, and SUVs on the lower level. Drive under it daily with ease.
- DIY Mechanics and Enthusiasts: A stable platform for oil changes, brake jobs, suspension work, and inspections. The included jack tray keeps tools within reach while you work.
- Small Repair Shops: Professional-grade lifting at a price point that works for independent mechanics. The 9,500 lb capacity handles the majority of passenger vehicles and light trucks.
- Car Collectors: Long-term storage with drip trays to protect your floor. Stack vehicles and maximize your collection space without building an addition.
- Dealerships and Detail Shops: Quick access for inspections, detailing, and light service work. The caster kit lets you reposition the lift when needed.
- Motorsports and Track Prep: Stable access for race prep, setup changes, and post-event inspections. The diamond plate runways provide sure footing for the vehicle.
KT-4H950 Four-Post Lift Features
9,500 lb Lifting Capacity
9,500 lb total capacity handles cars, trucks, SUVs, and light commercial vehicles. CE approved and certified with 115% dynamic load capacity standard and 150% static load capacity tested.
This is serious lifting power for a home garage or small shop four-post lift running on household voltage.

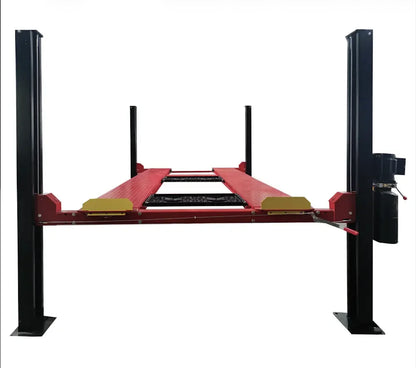

110V Power with Flexible Placement
Runs on 110V / 60Hz / single-phase power with a 3HP motor. Requires a 30 amp breaker. No 220V wiring needed for standard operation.
The power column can be installed on either side, front or rear depending on your workspace layout. Position it where it works best for your garage.

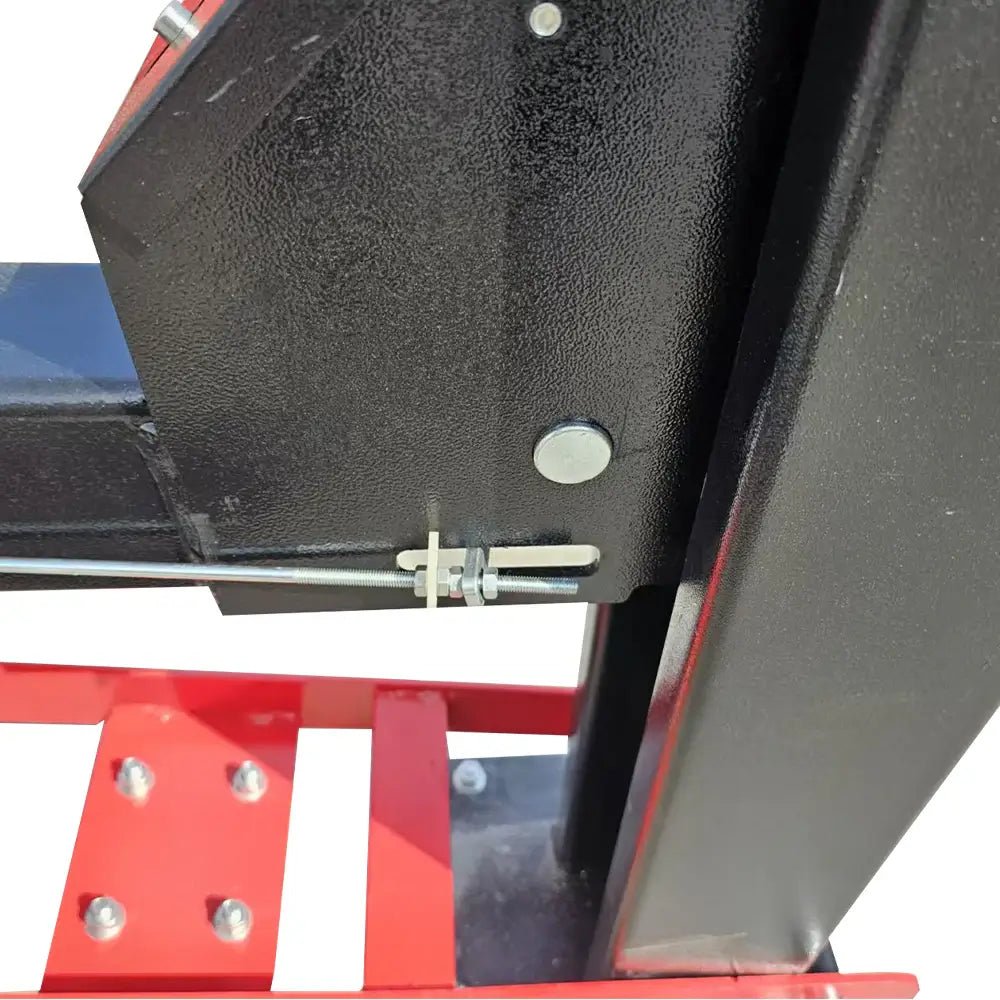

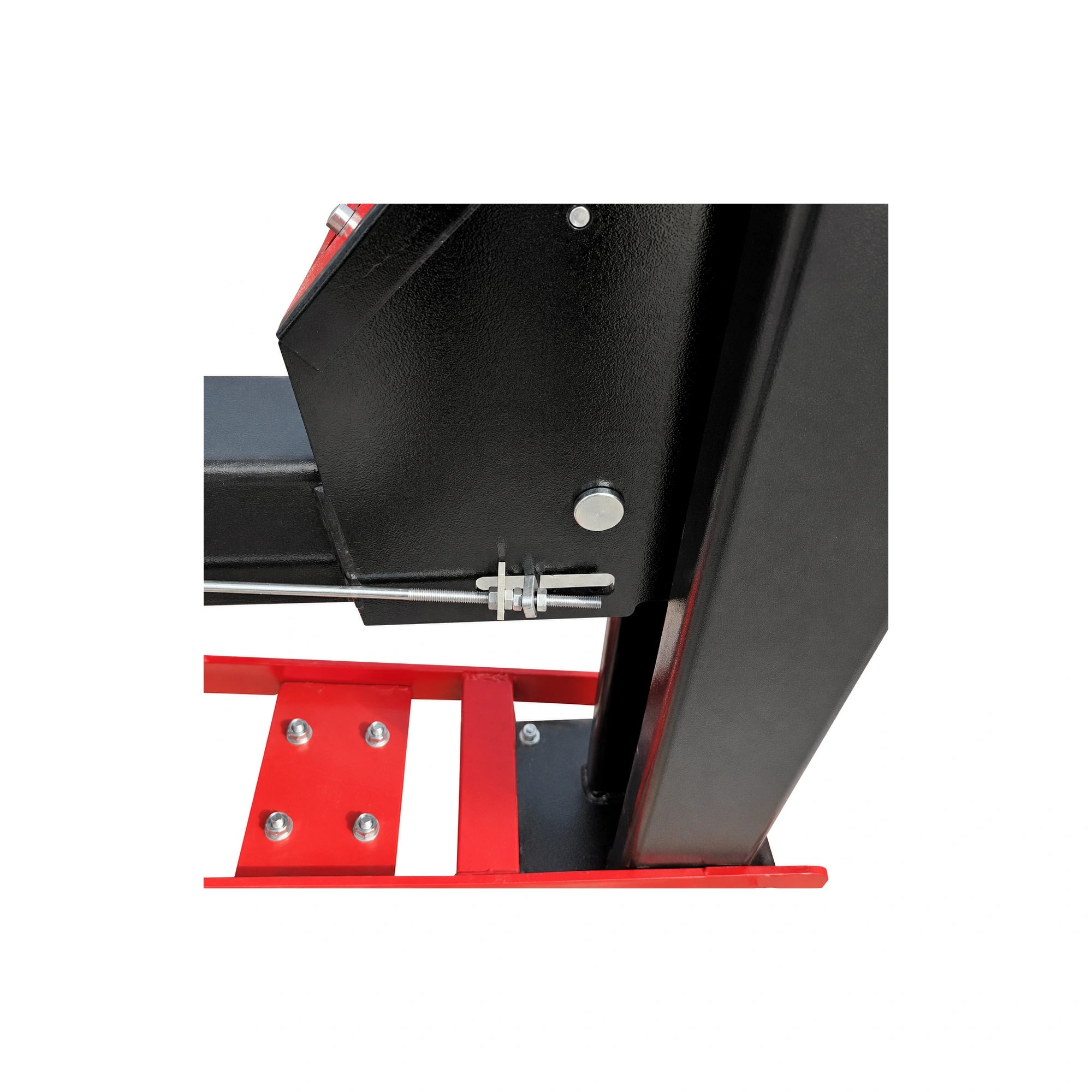

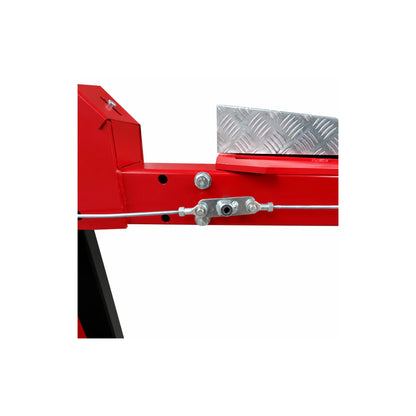

4 Mechanical Locks with Dual Safety Systems
Four mechanical locking devices with both primary and secondary safety locks. The secondary lock system acts as a slack-cable device that engages automatically in the unlikely event of cable failure.
This redundant safety design means multiple systems are protecting you when working under the vehicle.

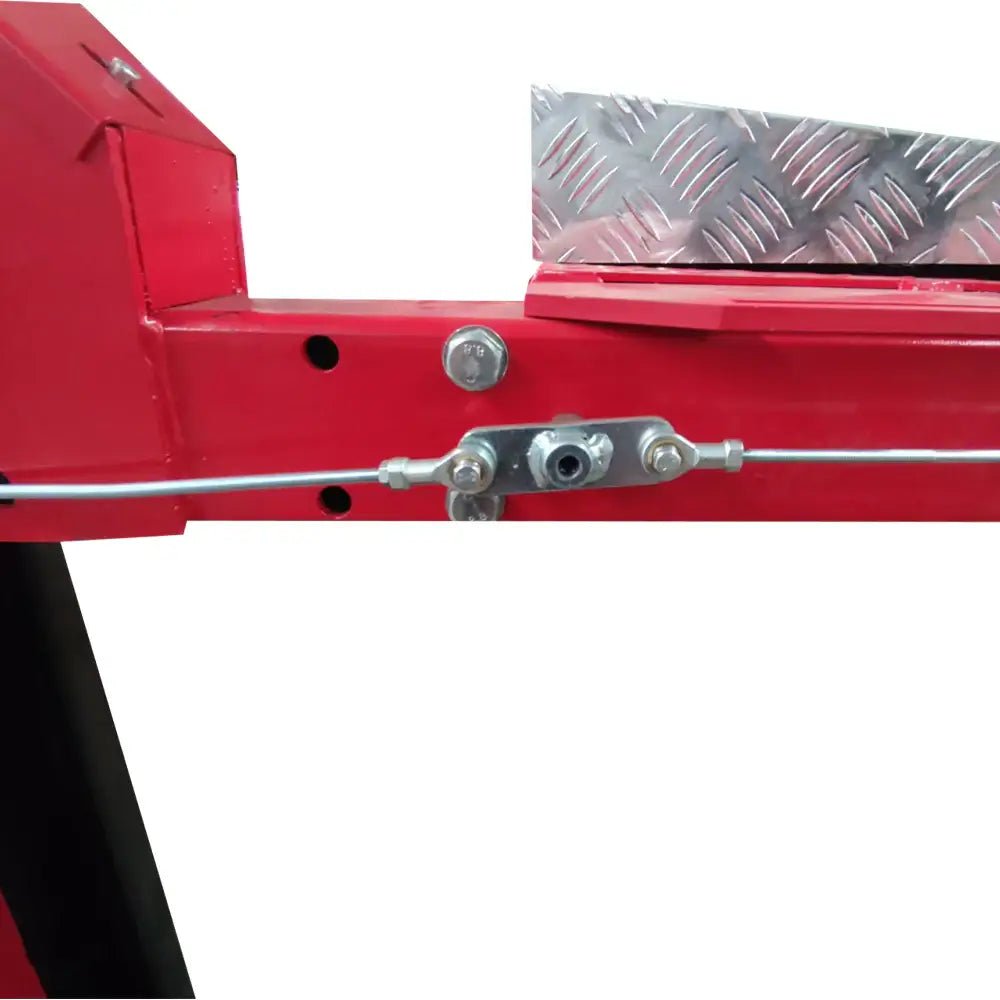

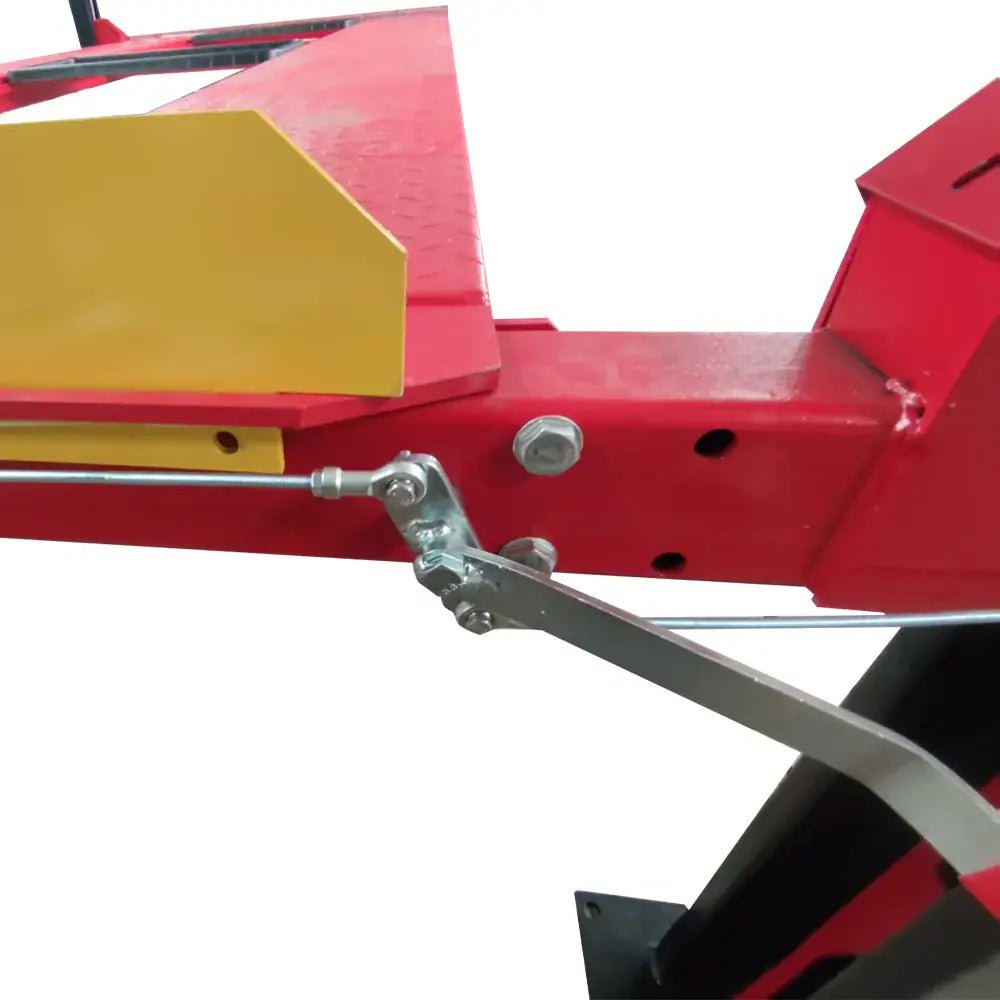

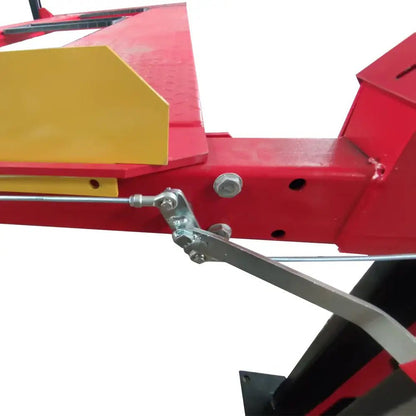

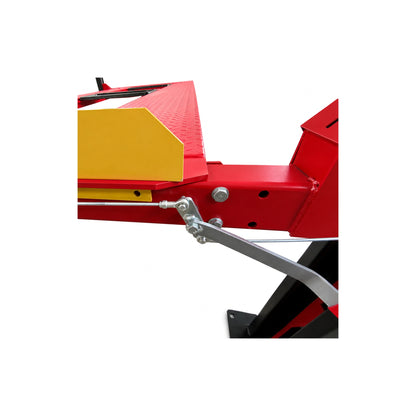

Single-Point Manual Safety Release
Single-point manual safety release lets you disengage all locks from one location. Simple, mechanical operation with no air compressor required.
Turn the safety release handle clockwise to disengage, then lower. Straightforward controls that anyone can learn quickly.
84.5 Inch Lifting Height
84.5 in maximum lifting height with 81.5 in of clearance under the raised platform. Full rise in approximately 50 seconds.
The height provides comfortable standing access for undercarriage work or room for a second vehicle parked below. A true storage lift.
Non-Skid Diamond Plate Runways
Diamond plate runways provide stable, slip-resistant traction for vehicle positioning. The textured surface grips tires during drive-on and prevents movement once parked.
Runway length is 174 in with 86.6 in drive-through clearance between columns.
Adjustable Safety Lock Ladders
Adjustable safety lock ladders let you set your preferred working heights. The cable-and-pulley system keeps both platforms synchronized for level lifting.
Adjust the ladder position to fine-tune lock engagement heights for your specific needs.
Quad Cable Synchronization
A quad cable system provides synchronized, balanced force to all four carriages. This prevents tilting and ensures level platform movement during lifting and lowering.
All cables are fully concealed within the structure for a clean appearance and protection from damage.

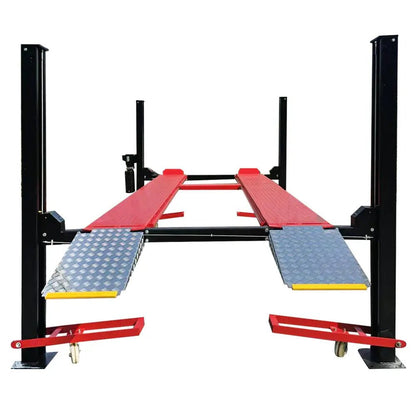

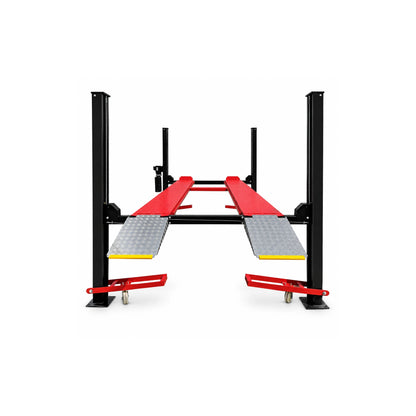

Portable with Caster Kit
Caster kit included for moving the lift around your shop. This lift can be used without anchoring to the ground when mounted on casters.
If you choose to bolt it down permanently, your concrete must meet the minimum thickness and strength requirements.

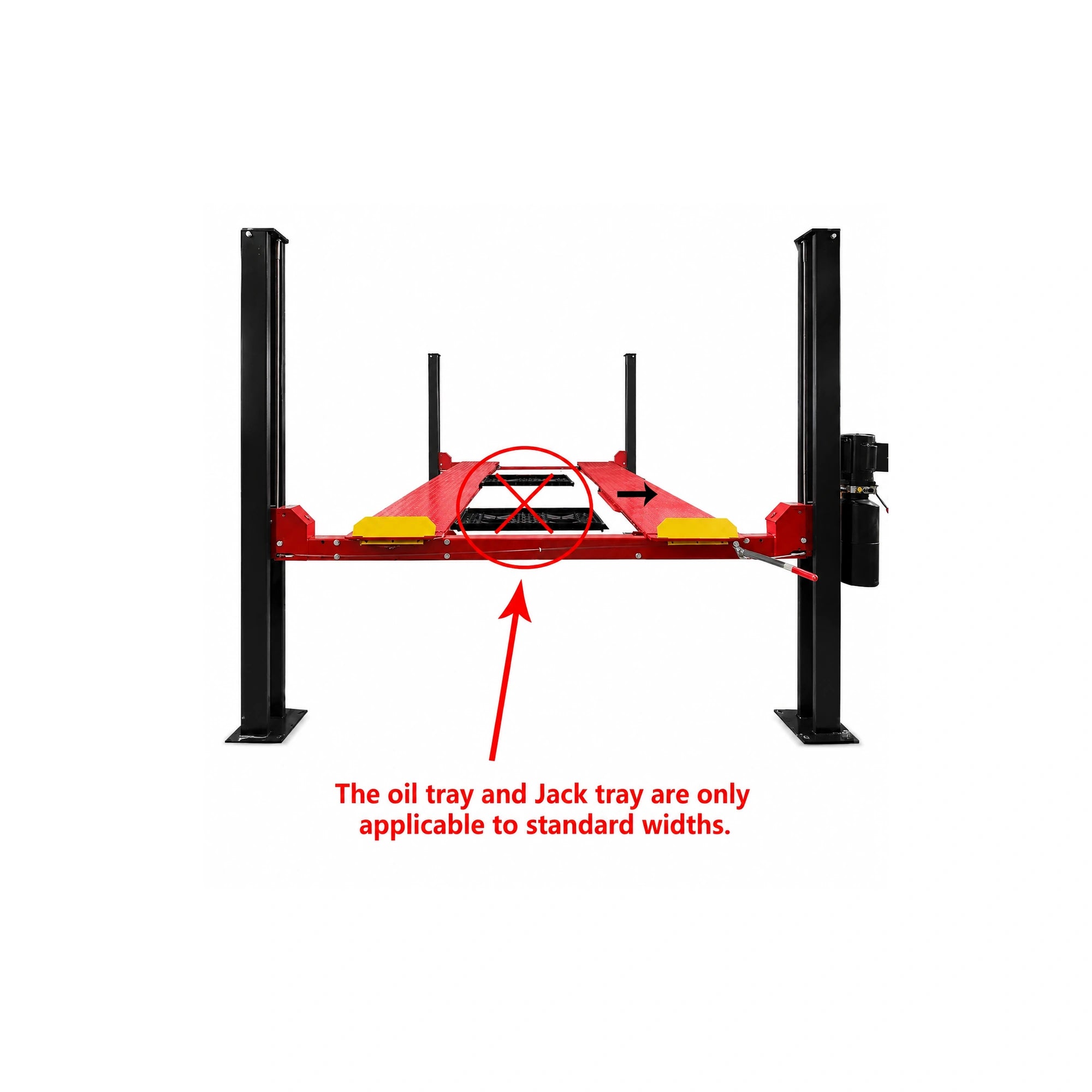

Complete Accessory Package

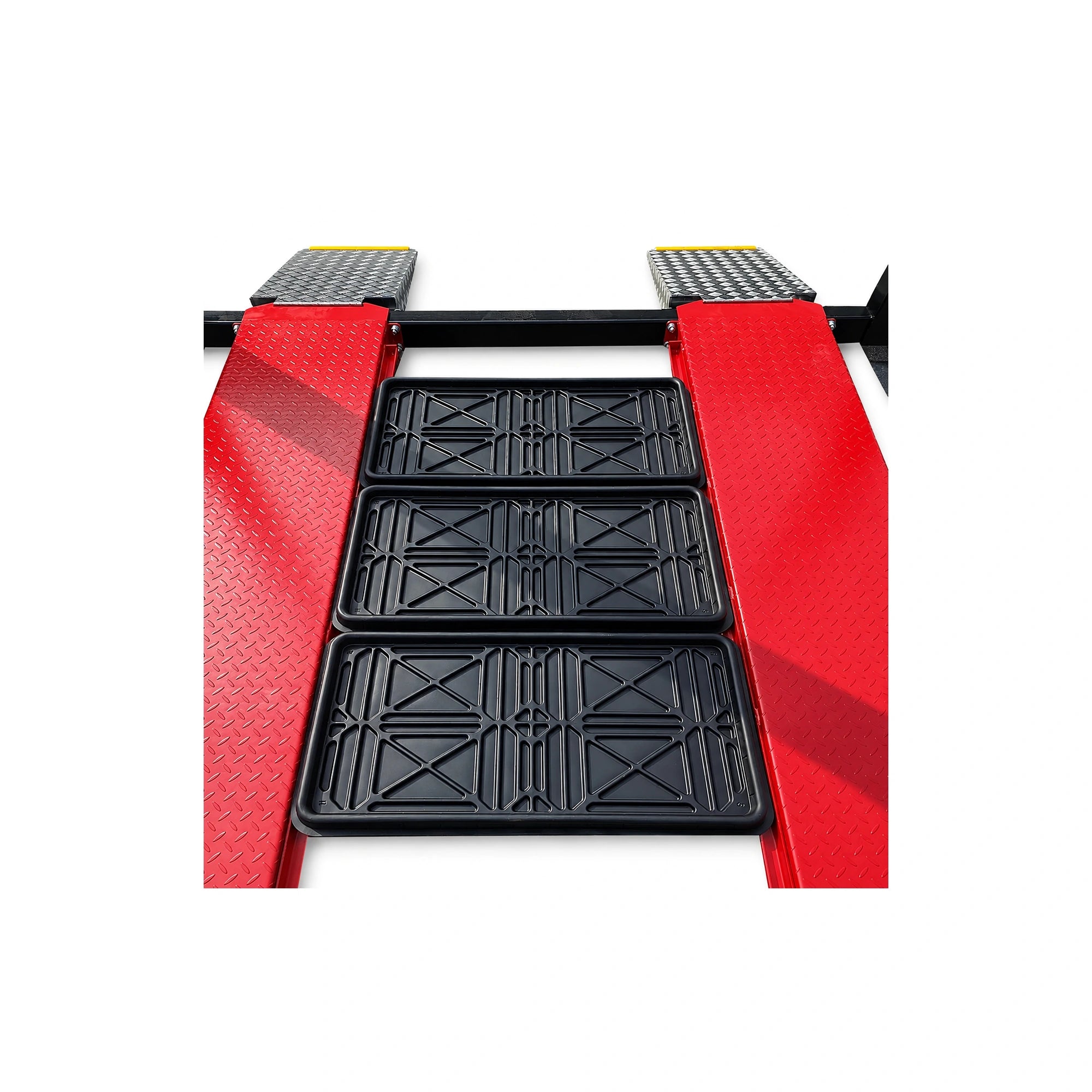

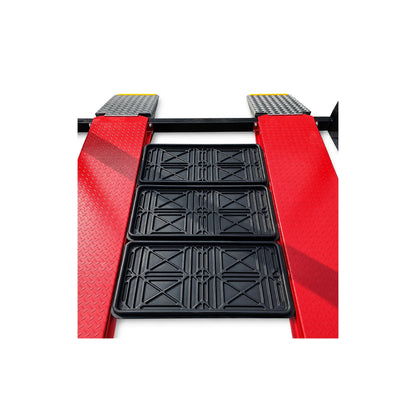

Everything you need is included: aluminum ramps, jack tray, and 3 drip trays. No extra purchases required to start using the lift.
Optional sliding bridge jack with hand pump available for wheel-off service.

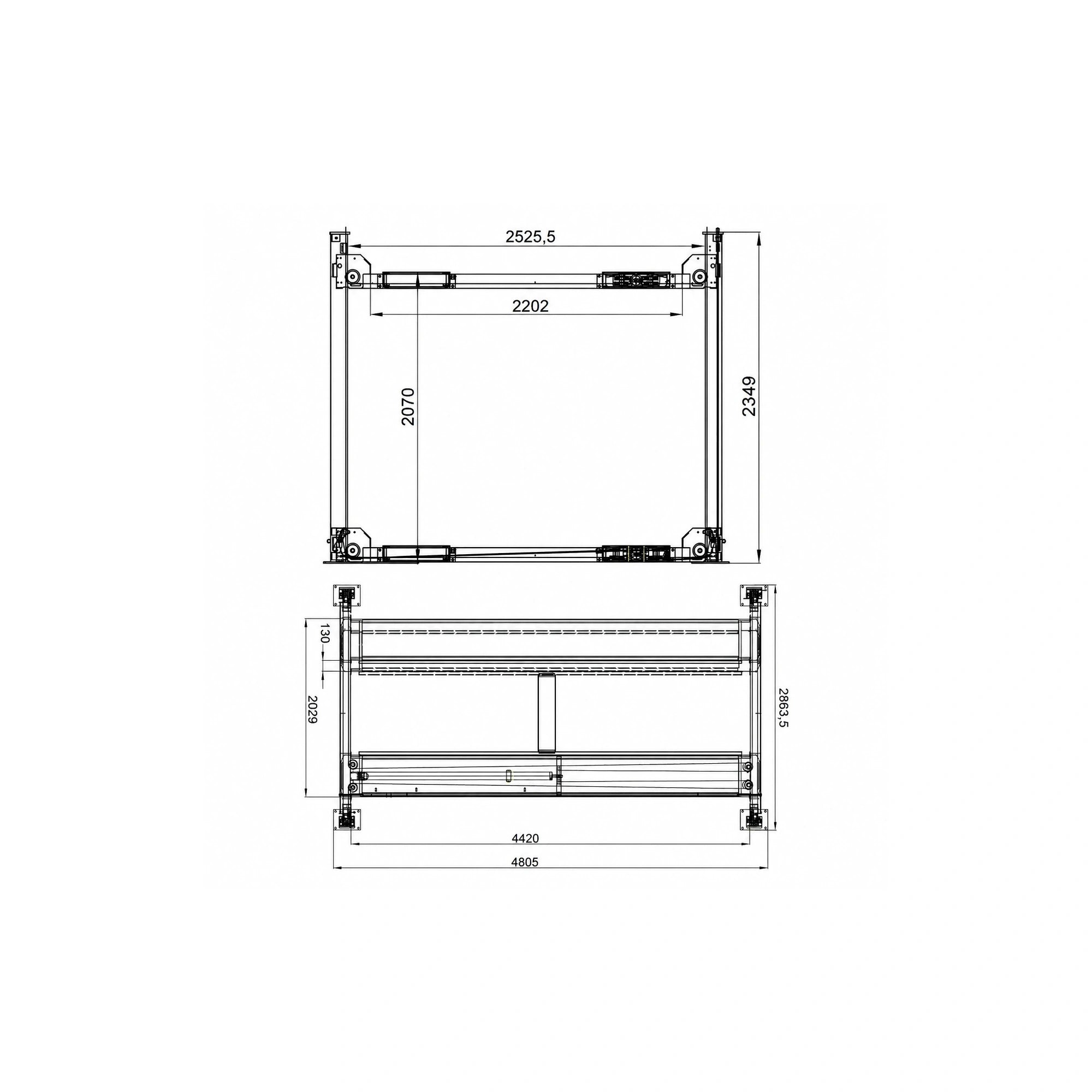

Katool KT-4H950 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,500 lb (4,309 kg) |
| Specification | Value |
|---|---|
| Overall Height | 97 in (2,463 mm) |
| Overall Length | 189 in (4,801 mm) |
| Overall Width | 113 in (2,870 mm) |
| Width Between Columns | 99.5 in (2,526 mm) |
| Specification | Value |
|---|---|
| Runway Length | 174 in (4,420 mm) |
| Outside Runway Width | 79.8 in (2,027 mm) |
| Drive-Thru Clearance | 86.6 in (2,200 mm) |
| Specification | Value |
|---|---|
| Minimum Runway Height | 4.76 in (121 mm) |
| Maximum Lifting Height | 84.5 in (2,146 mm) |
| Height Under Runway | 81.5 in (2,070 mm) |
| Lift Time (Up) | 50 seconds |
| Lowering Time | 40 seconds |
| Working Noise | ≤75 dB |
| Specification | Value |
|---|---|
| Motor | 110V / 60Hz / 1 Phase / 3HP |
| Breaker Required | 30 Amp |
| Alternate Voltage | 220V / 60Hz / 1 Phase available |
| Specification | Value |
|---|---|
| Net Weight | 2,095 lb (950 kg) |
KT-4H950 Installation Requirements
Concrete Foundation (If Anchoring)
- Thickness: Minimum 3.93 in (100 mm) if bolting to the floor
- Strength: Minimum 3,000 PSI
- Surface: Flat, level concrete slab aged at least 7 days
- Condition: No cracks, seams, or defects at anchor points
Important: This lift can be used without anchoring when mounted on the included casters. If you choose to bolt it down, your concrete must meet these specifications. Installing on subpar concrete can cause severe injury or death. It is the buyer's responsibility to confirm slab specifications before installation.
Electrical
- Power: 110V / 60Hz / Single-phase / 3HP motor
- Circuit: 30 amp dedicated breaker required
- Alternate: 220V / 60Hz / 1 Phase available upon request
- Installation: Licensed electrician required for all wiring
Space Requirements
- Ceiling Height: Overall height is 97 in (8.1 ft). Add vehicle height on the platform plus working clearance. Plan for 12-14 ft minimum ceiling height.
- Floor Space: 189 in length x 113 in width (approximately 15.75 ft x 9.4 ft).
- Environment: Indoor use only in a dry, well-ventilated area
Pre-Installation Checklist
- Verify concrete thickness and strength before purchase
- Check for overhead obstructions (HVAC, electrical, supports)
- Ensure adequate space front and rear for vehicle approach
- Verify dedicated electrical circuit availability
- Plan power column location (left, right, front, or rear)
What's Included with the KT-4H950
- Complete four-post lift assembly with columns, crossbeams, and runways

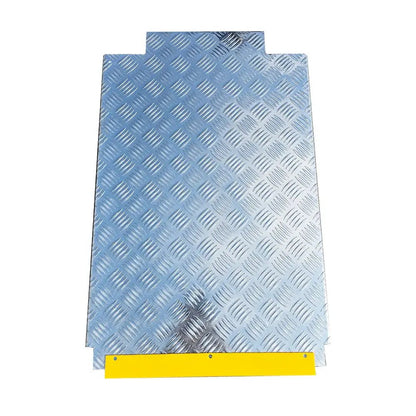

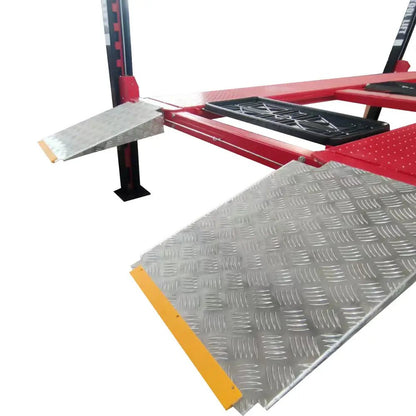

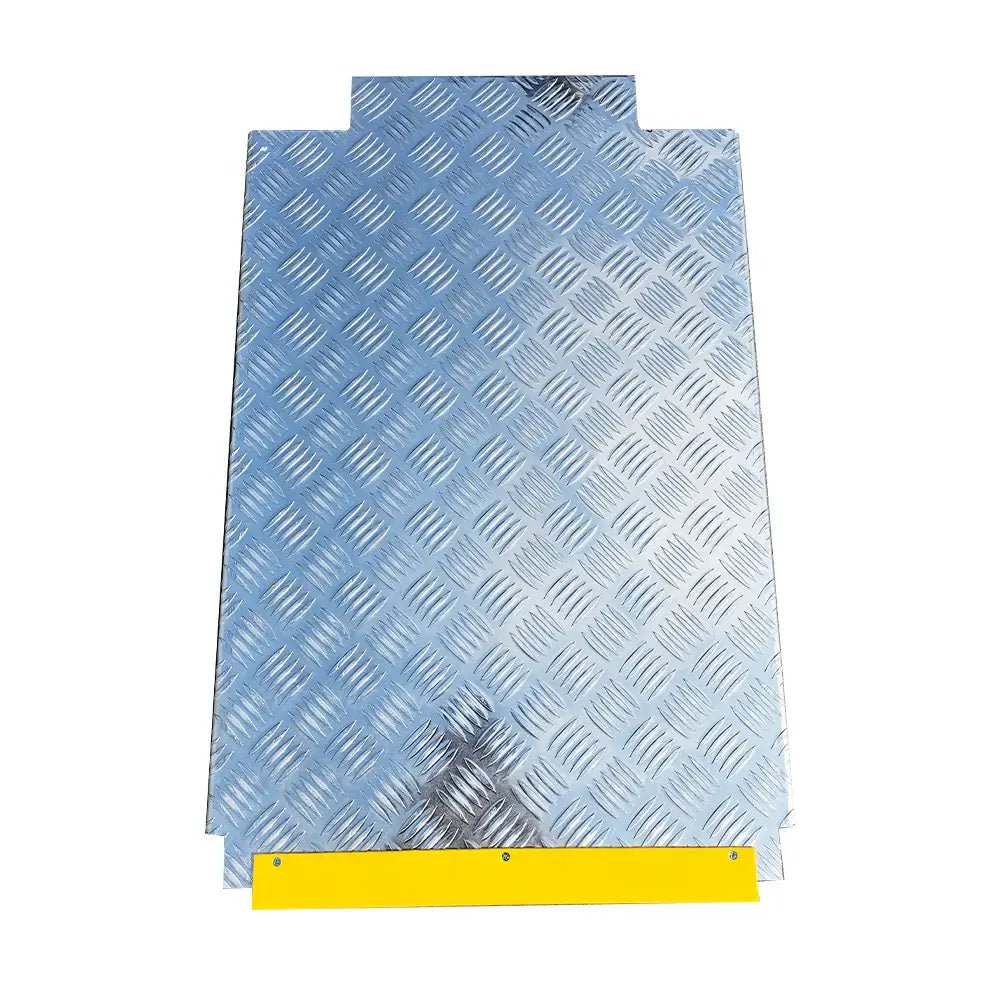

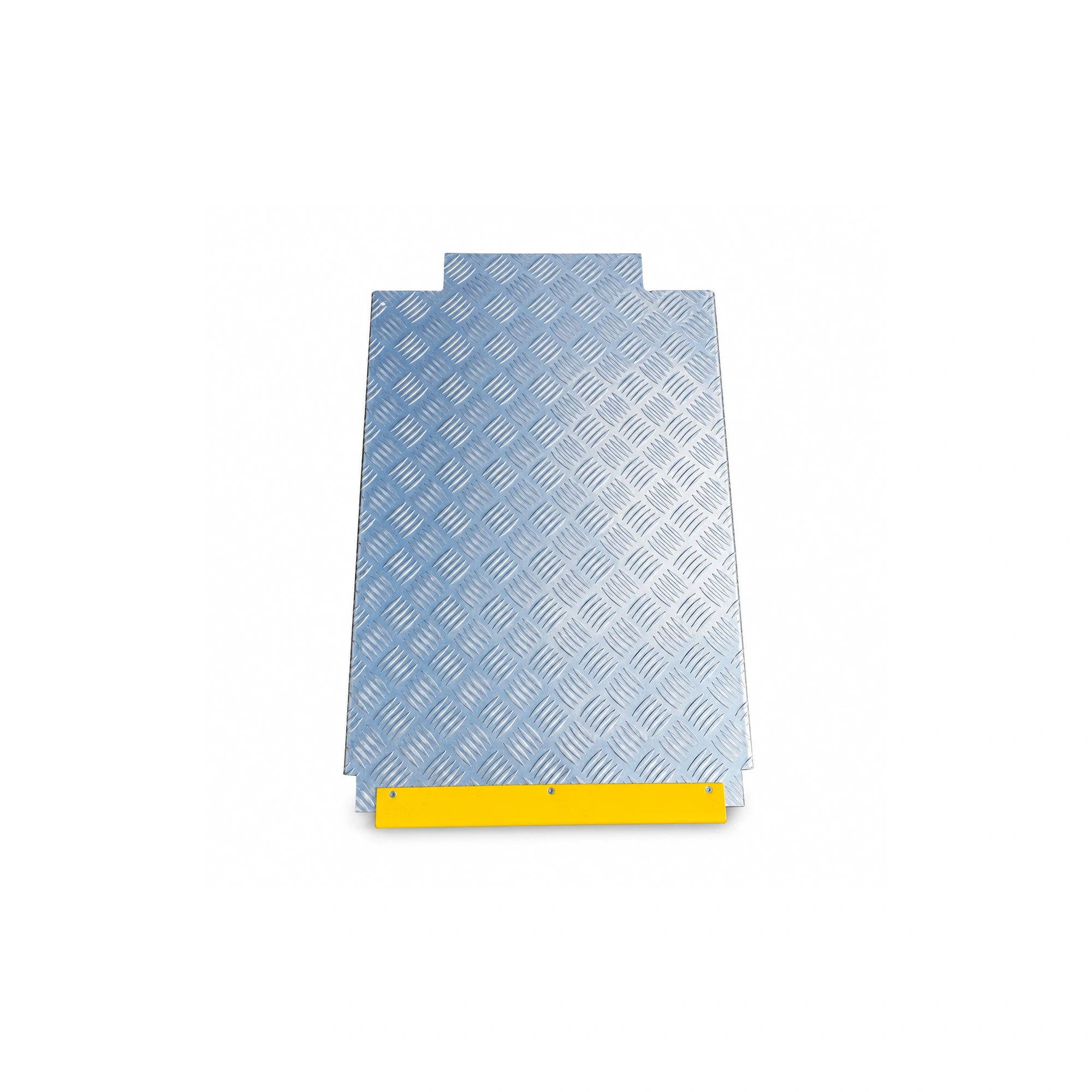

- Aluminum drive-on ramps
- Caster kit for portability
- Jack tray

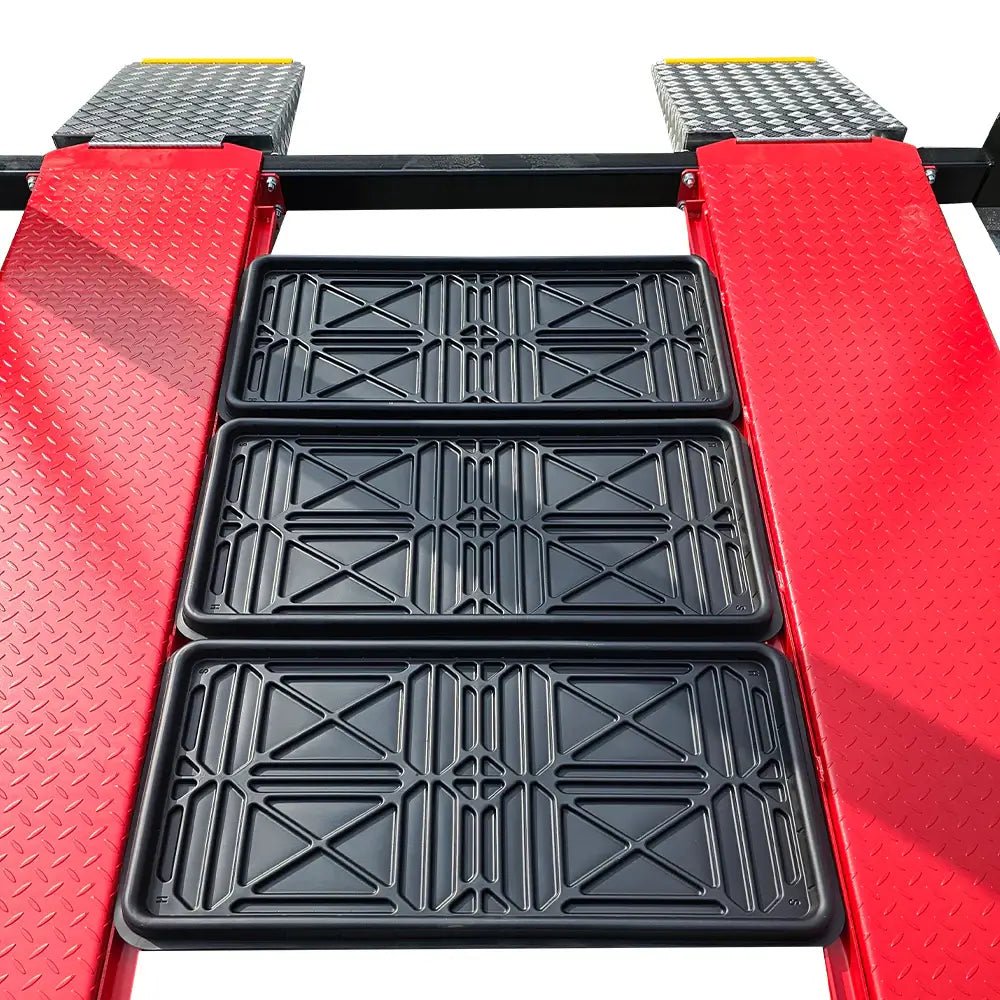

- Drip trays (3)
- Wheel stop plates
- Safety lock ladders (4)
- Single-point safety release handle
- Power unit with hydraulic system
- All mounting hardware and anchor bolts
- Installation manual
Optional Accessories:
- Sliding bridge jack with hand pump for wheel-off service
Required (Not Included):
- Hydraulic oil N32 or N46 (approximately 10L / 2.6 gallons)
- Electrical connection by licensed electrician
Note: Assembly required. Runways are heavy and require more than one person or a forklift/crane to lift. Check cable routing before assembly. Cables #2 and #4 must run along the bottom pulleys on the non-pump side.
KT-4H950 Shipping and Delivery
Freight Shipping
Free shipping to the 48 contiguous United States. LTL freight delivery on a semi truck. Transit time varies based on your location.
Receiving and Inspection
Inspect the shipment thoroughly upon arrival. The signed bill of lading acknowledges receipt in good condition. If any goods are shorted or damaged, do not accept them until the carrier notes the damage on the freight bill.
If hidden damage is discovered after receipt, notify the carrier immediately and request an inspection. File claims with the carrier promptly with copies of the bill of lading, freight bill, invoice, and photos.
Unloading
You are responsible for unloading. Net weight is 2,095 lbs. A forklift, crane, or equivalent equipment is required. Carefully remove crating and packing materials. Use caution when cutting steel banding as items may become loose.
KT-4H950 Warranty
Katool Limited Warranty
- 3 Years: Structural components
- 1 Year: All parts including cylinders, power units, motors, displays, and electronics
- Parts: Replacement parts provided at no cost with free shipping
- Labor: Not included
Requirements: Warranty is non-transferable. Must have original order number. Must be purchased from Katool or a registered vendor. Photos or videos of defects may be requested. Do not disassemble equipment before proof of the original problem has been documented.
What Is Not Covered
- Abuse, neglect, or failure to follow operating instructions
- Damage from overloading beyond rated capacity
- Normal wear items (rubber pads, lifting cables, lubricants)
- Shipping damage or improper installation
- Damage from incorrect voltage or improper wiring
- Corrosion from improper maintenance or corrosive environments
- Cosmetic defects that do not affect functionality
Questions About the KT-4H950?
Capacity requirements, garage space planning, concrete specifications, or help choosing the right four-post lift.
Katool KT-4H950 FAQ
Can I use this lift without bolting it to the floor?
Yes. The KT-4H950 can be used without anchoring when mounted on the included caster kit. If you choose to bolt it down, your concrete must be at least 3.93 in (100 mm) thick with a minimum 3,000 PSI strength.
What vehicles can the KT-4H950 lift?
The 9,500 lb capacity handles most cars, trucks, SUVs, and light commercial vehicles. The 174 in runway length accommodates standard wheelbases. Verify your vehicle weight before loading.
Does this run on standard household power?
Yes. The KT-4H950 runs on 110V / 60Hz / single-phase power with a 3HP motor. A 30 amp dedicated breaker is required. 220V is also available upon request.
What is the clearance under the raised platform?
81.5 in (about 6.8 ft) of clearance under the runway when raised. This provides room for a second vehicle parked below or workspace for service tasks.
Where can I install the power column?
The power column can be installed on either side (left or right) and either end (front or rear). Position it wherever works best for your garage layout and workflow.
Do I need an air compressor?
No. The KT-4H950 uses a single-point manual safety release. No air compressor is required to operate the locks.
What ceiling height do I need?
Overall height is 97 in (8.1 ft). Add the height of your vehicle on the platform plus working clearance. For most applications, plan for 12-14 ft minimum ceiling height.
How long does it take to reach full height?
Approximately 50 seconds to full rise. Lowering takes approximately 40 seconds.
What safety systems are included?
The lift features 4 mechanical locks with both primary and secondary safety systems. The secondary lock acts as a slack-cable device that engages automatically if cable failure occurs. A top limit switch prevents over-travel.
What accessories are included?
The KT-4H950 comes complete with: caster kit, aluminum ramps, jack tray, and 3 drip trays. Optional sliding bridge jack with hand pump available separately.
What oil does the hydraulic system use?
The system uses hydraulic oil N32 or N46. Capacity is approximately 10 liters (2.6 gallons). Do not mix oil types. Check oil level regularly and replace every 6 months after initial 3-month break-in period.
Is this lift CE certified?
Yes. The KT-4H950 is CE Approved and Certified. It has been tested to 115% dynamic load capacity and 150% static load capacity.
