Katool KT-4H110 – Four-Post Lift (11,000 lb)
Katool KT-4H110 Four Post Lift - 11,000 lb Capacity with CE Safety
Also known as: KT-4H110, Katool 4H110, Katool KT 4H110

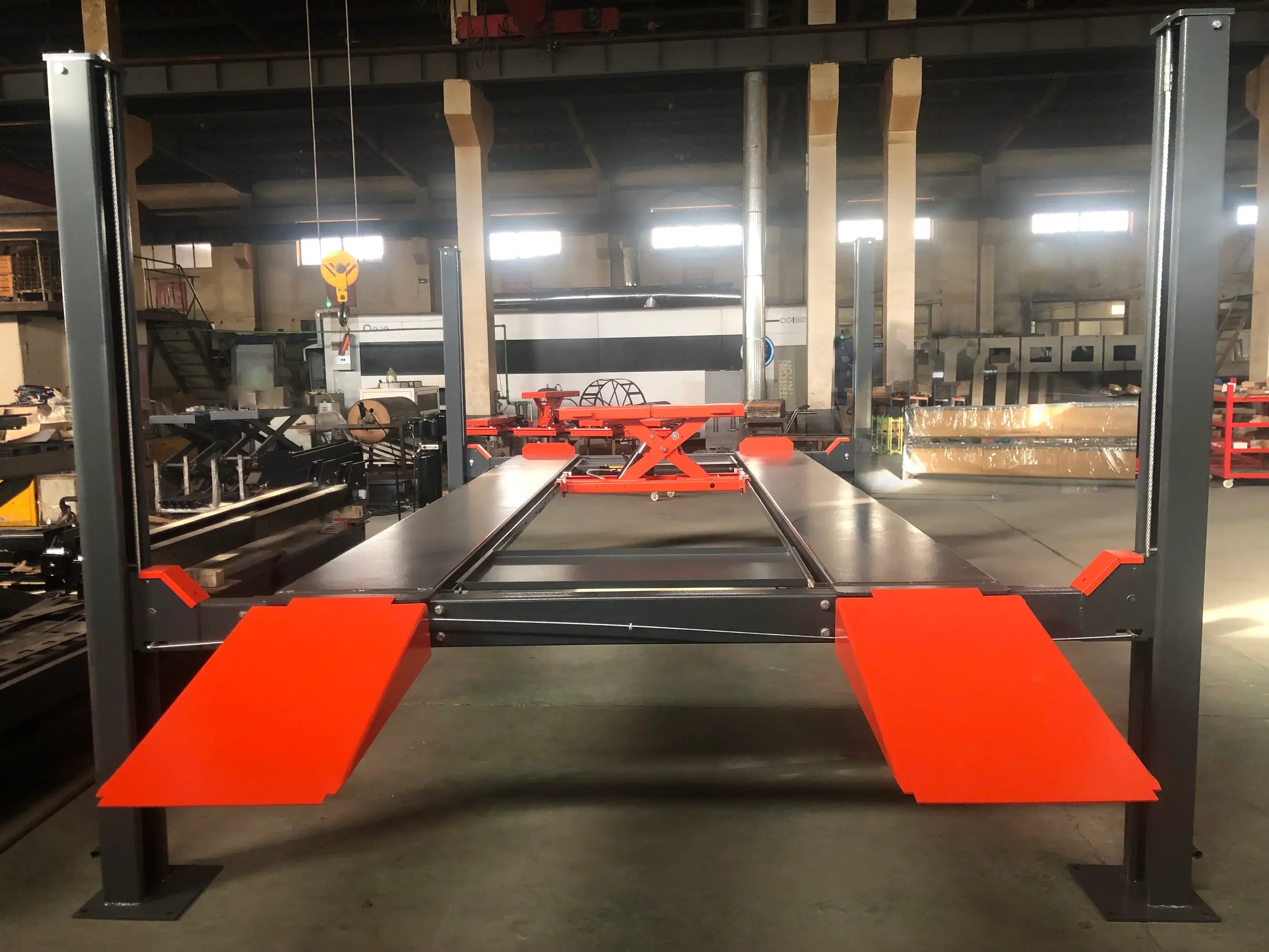

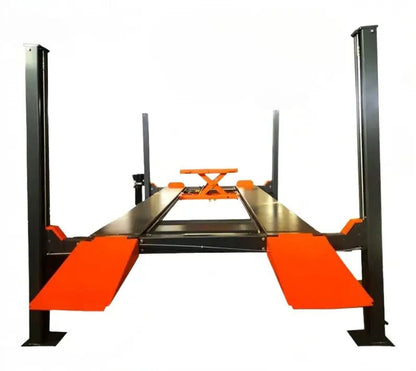

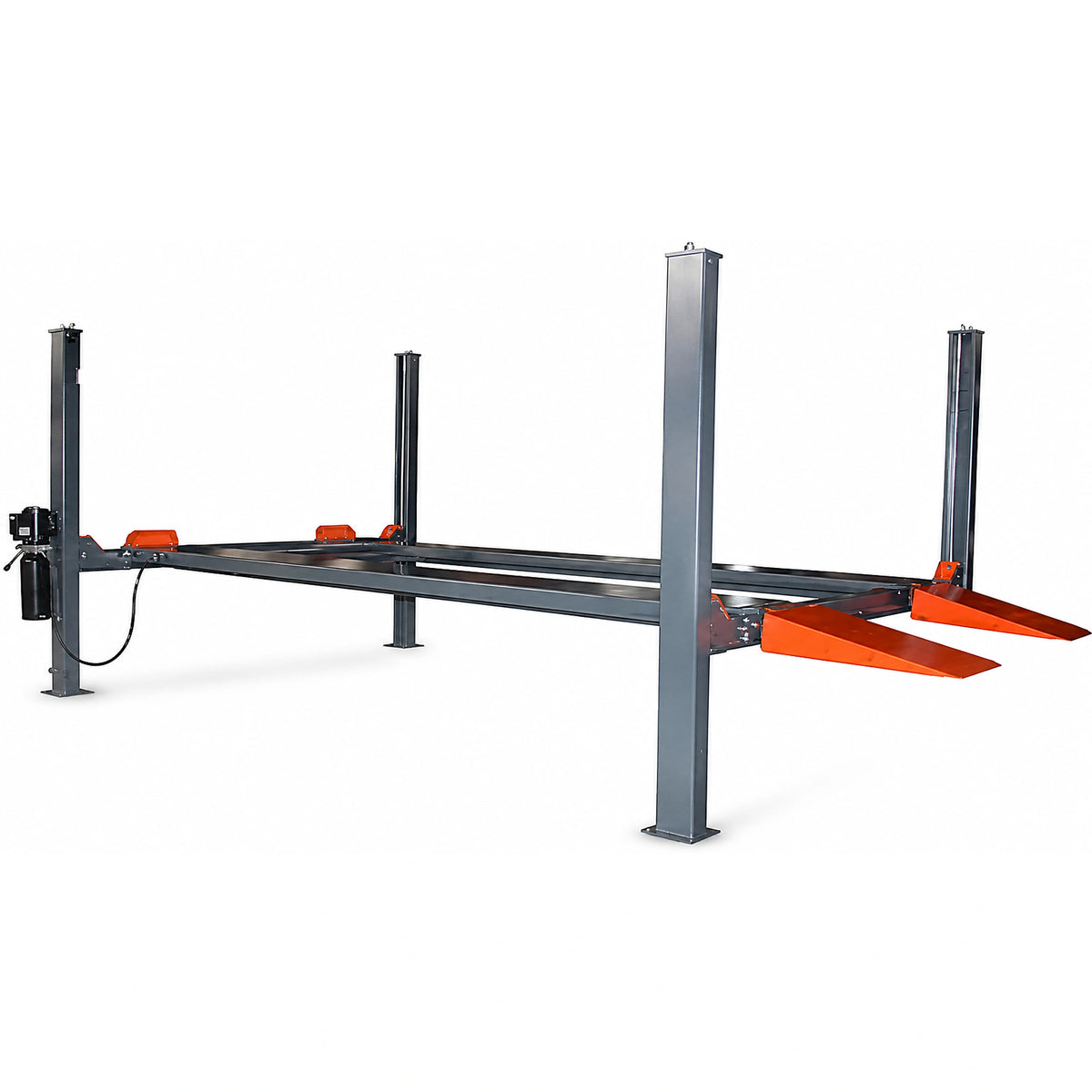

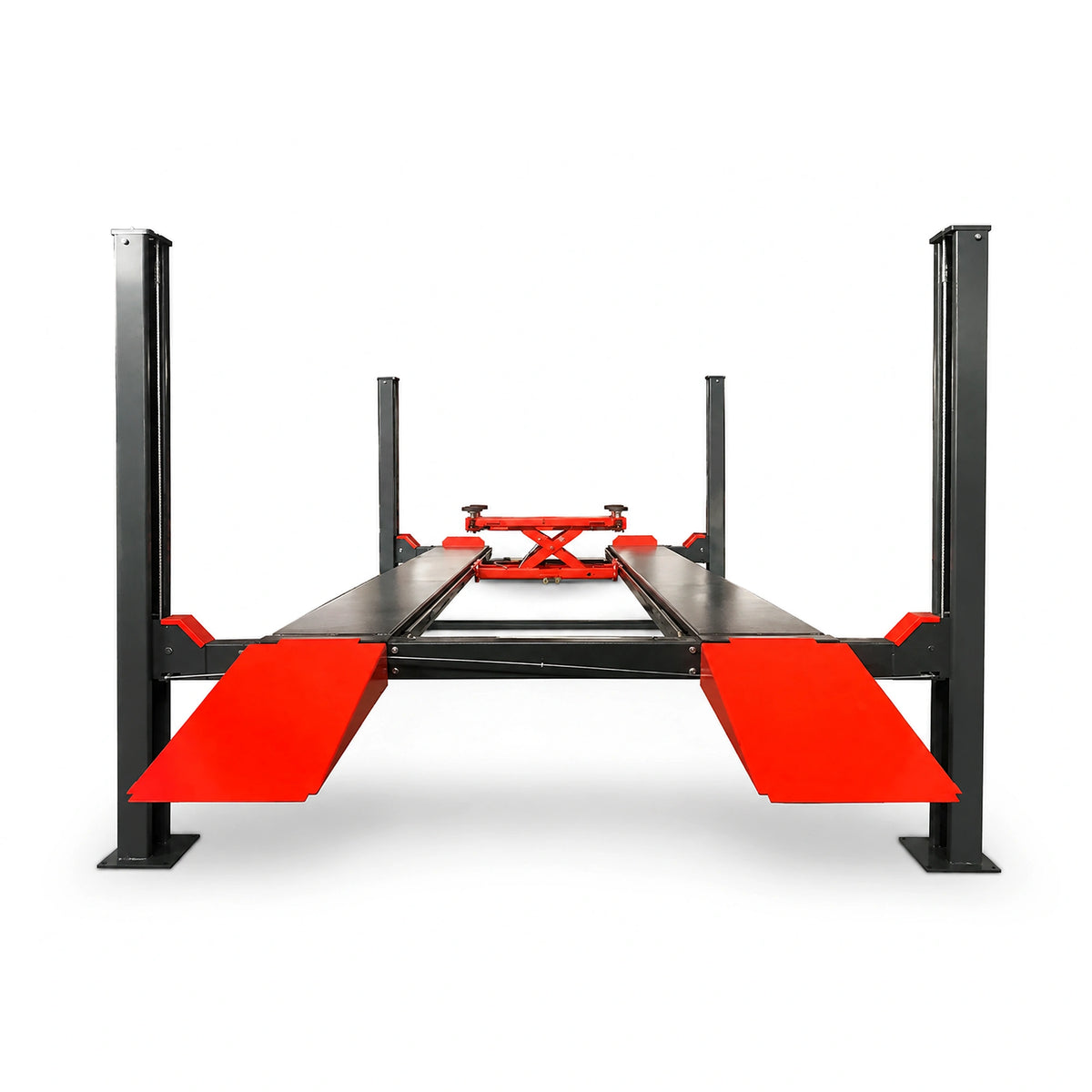

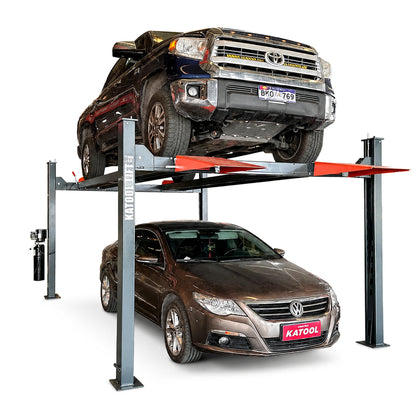

The Katool KT-4H110 four post vehicle lift delivers 11,000 lb (4,990 kg) lifting capacity and 84.25" (2,140 mm) max rise for home garages and professional shops handling heavy trucks and SUVs. Fits garages with standard 10-foot ceilings. CE certification confirms 115% dynamic and 150% static load testing.
Features

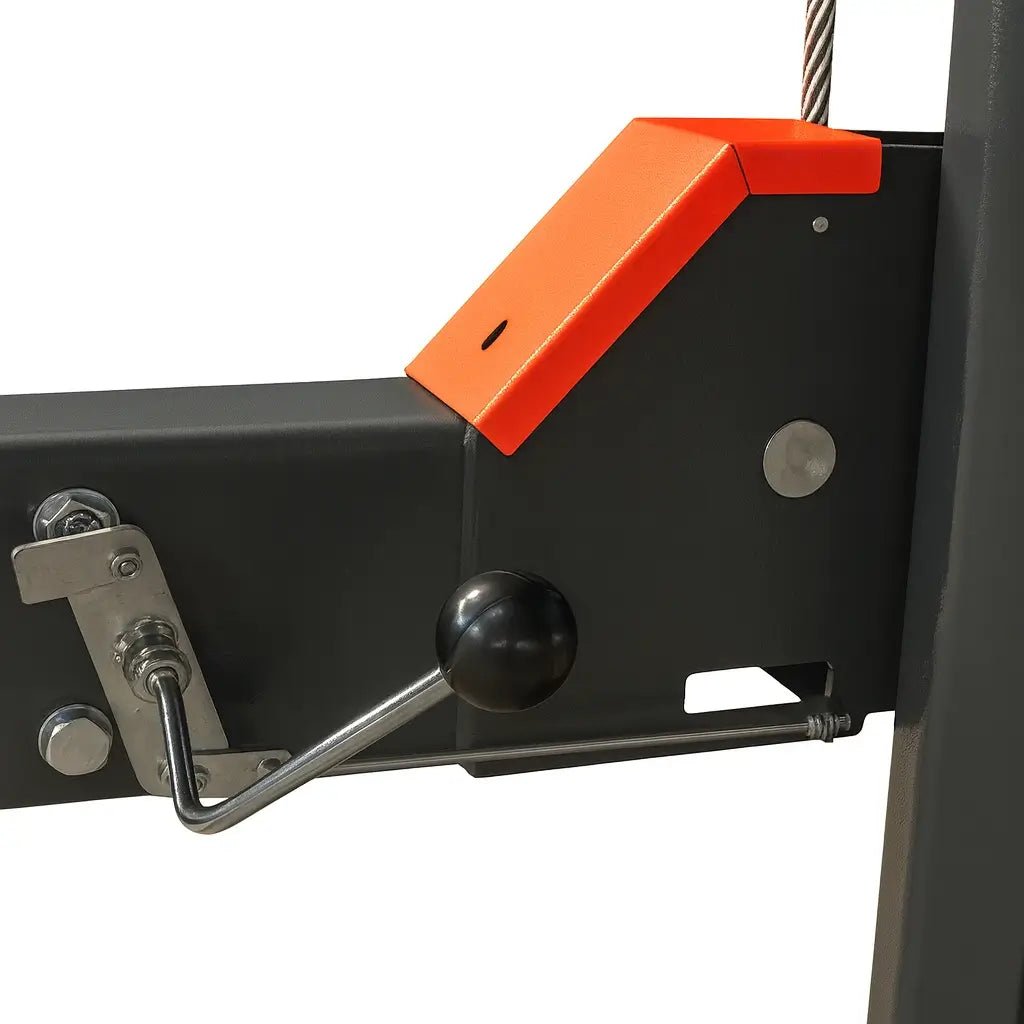

Single-Point Manual Safety Lock Release System

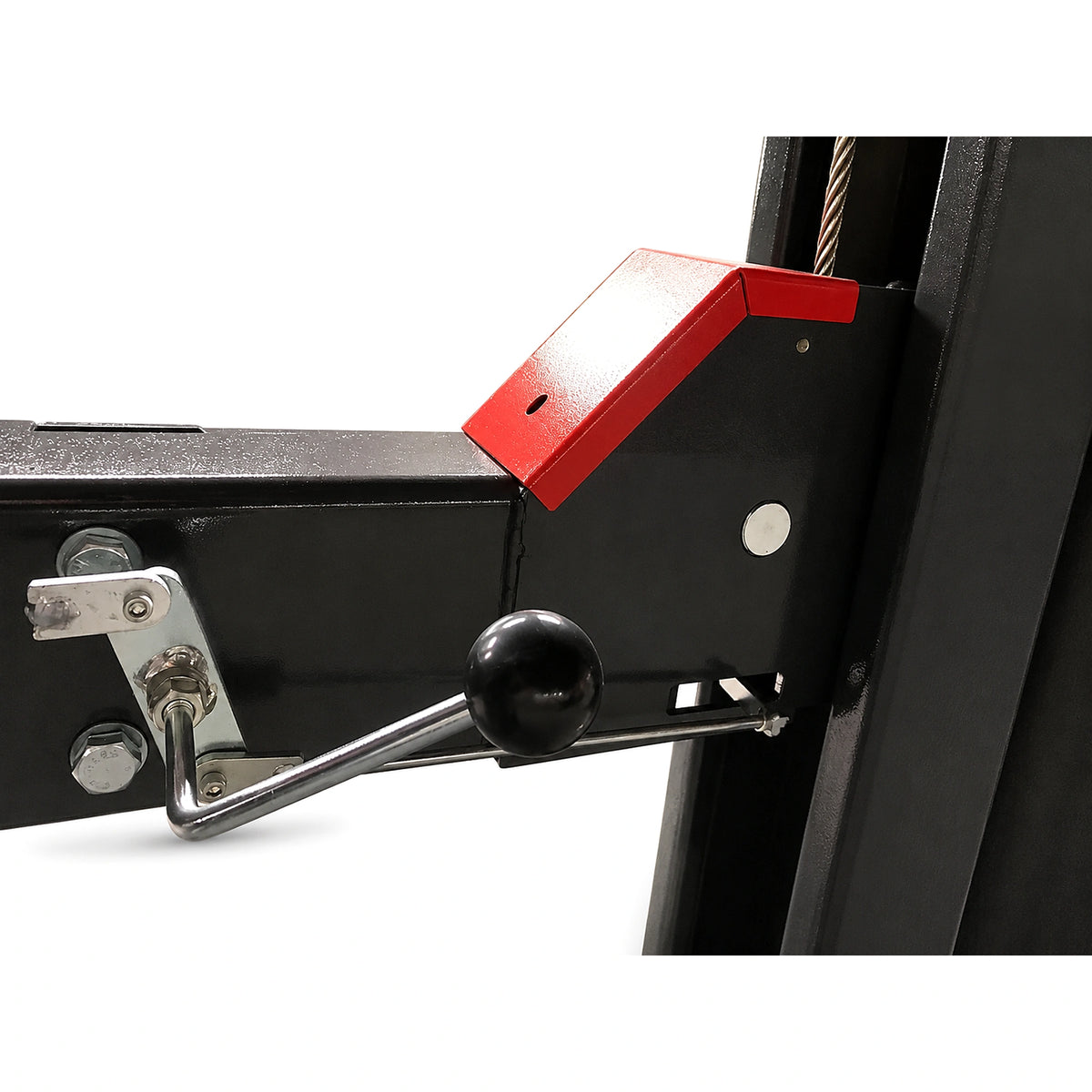

Manual lock release handle ensures precise control when lowering vehicles and prevents unintended platform descent
The KT-4H110 uses a single-point manual release controlling all four mechanical locks from one location. The linkage system connects all four lock points. Pull the release handle and each mechanical pawl disengages simultaneously. During lowering, locks re-engage automatically at adjustable height increments, providing ladder-style positioning throughout the 84.25" travel range.

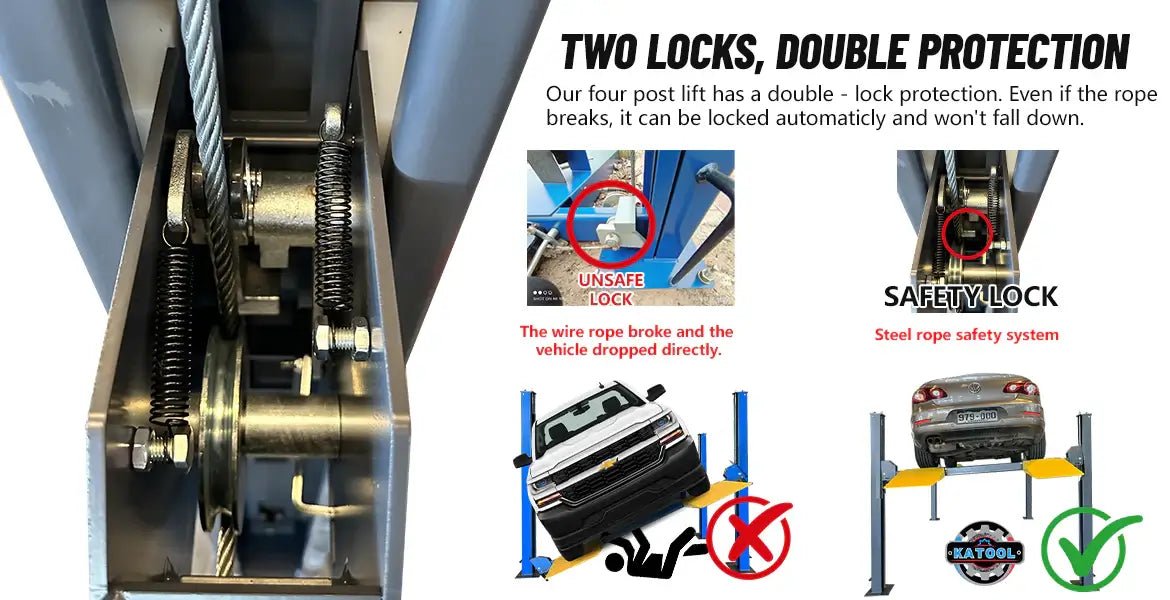

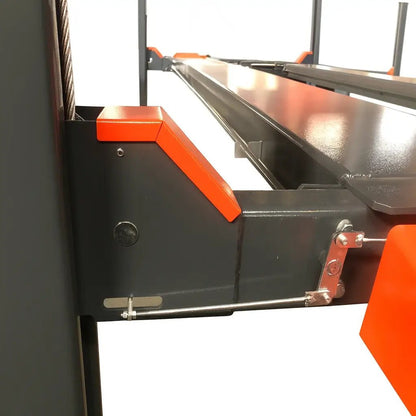

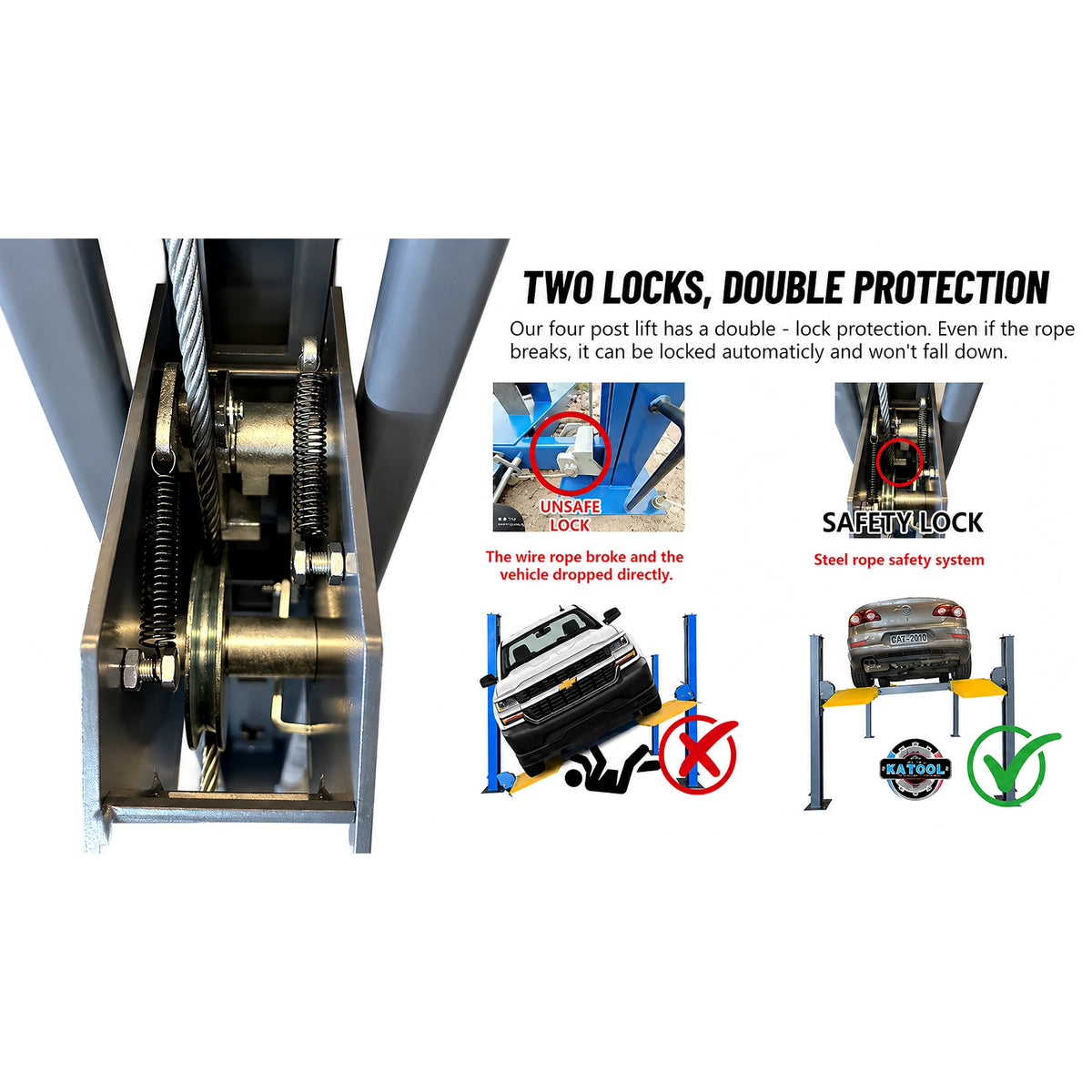

Four Mechanical Locks with Dual Katool KT-4H110 Safety

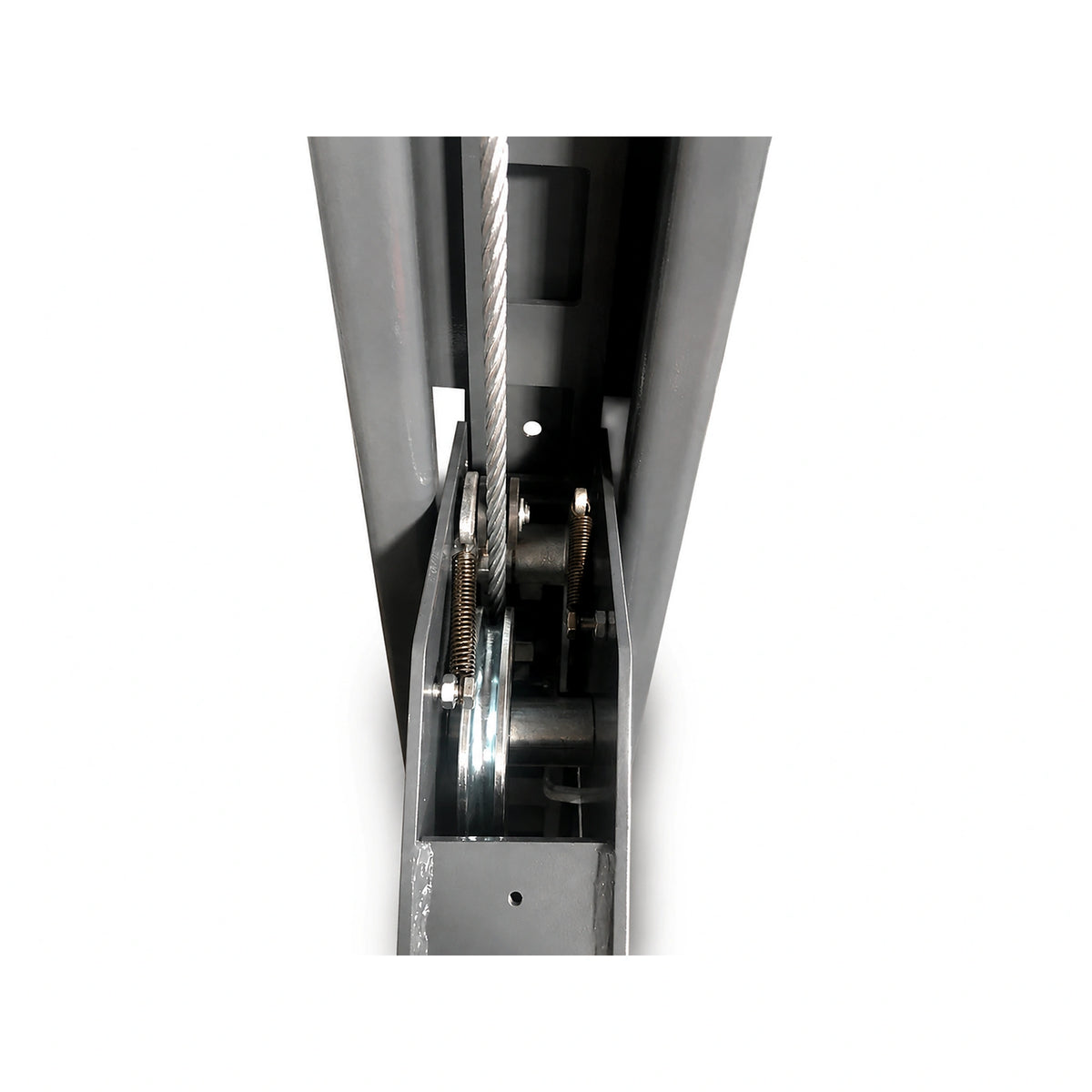

Dual safety lock system combines steel rope and mechanical locks to maintain platform stability even if cable fails
Each post includes primary and secondary mechanical locks with eight total lock points across the platform. If a cable fails, mechanical pawls catch on the ladder rack and hold position without hydraulic pressure. The steel wire rope system acts as separate backup, distributing load even when one mechanical system engages. Locks engage automatically during lifting and require deliberate manual release for lowering.

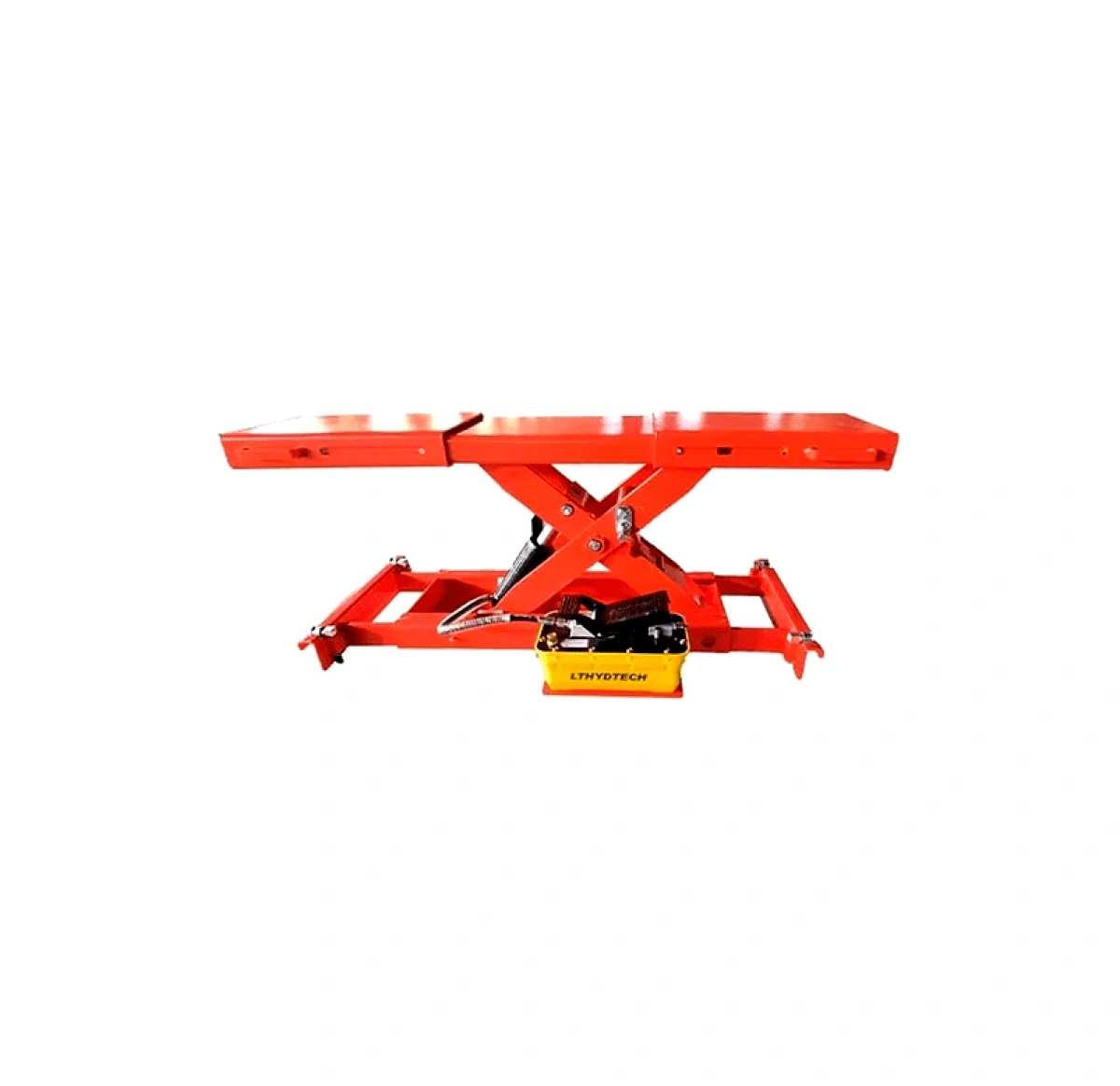

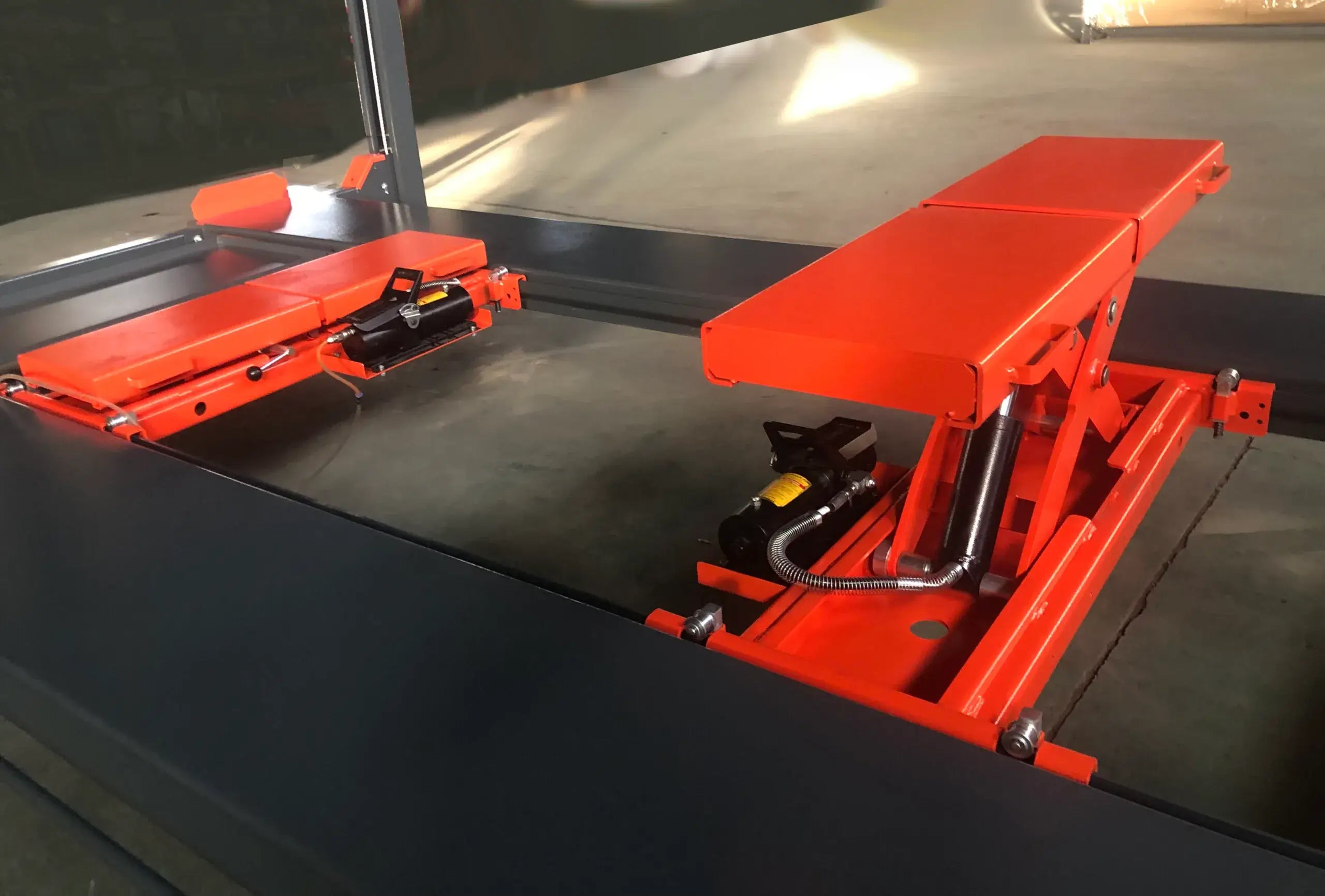

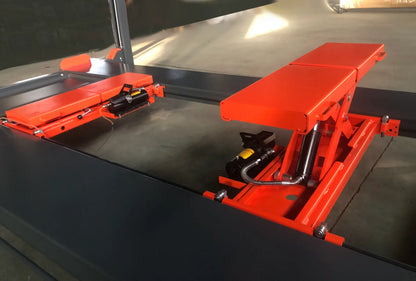

Integrated Hydraulic Scissor Jacks for Wheel-Free Service
Twin hydraulic scissor jacks allow technicians to raise individual axles for tire, brake, and suspension service access

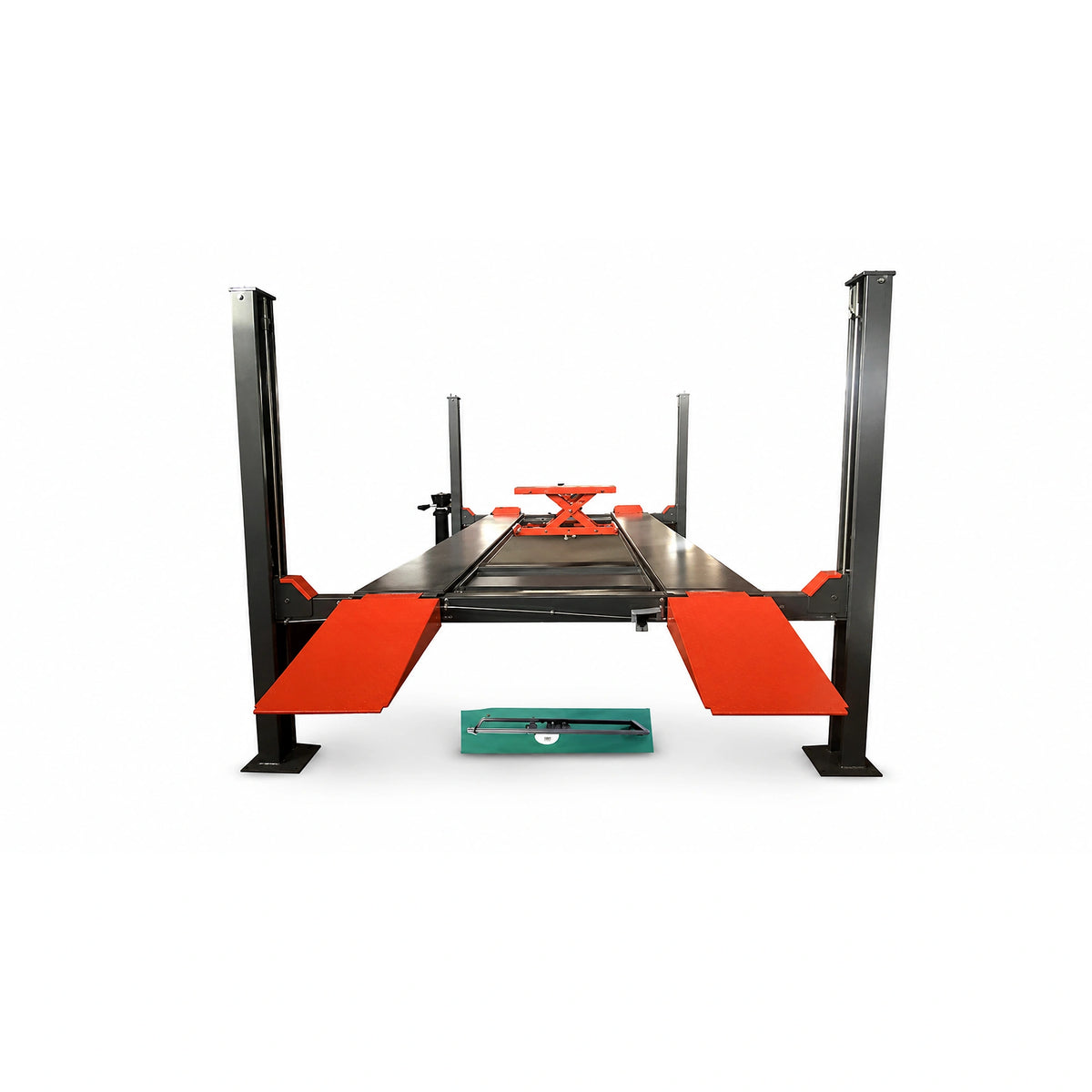

Included twin scissor jacks mount between runways and lift individual axles after the main platform is raised. Critical for tire rotation, brake work, and suspension service. Jacks operate independently with foot pedals. Each jack includes adjustable pads for frame rails or manufacturer lift points. Package also includes two drip trays for a complete service station.

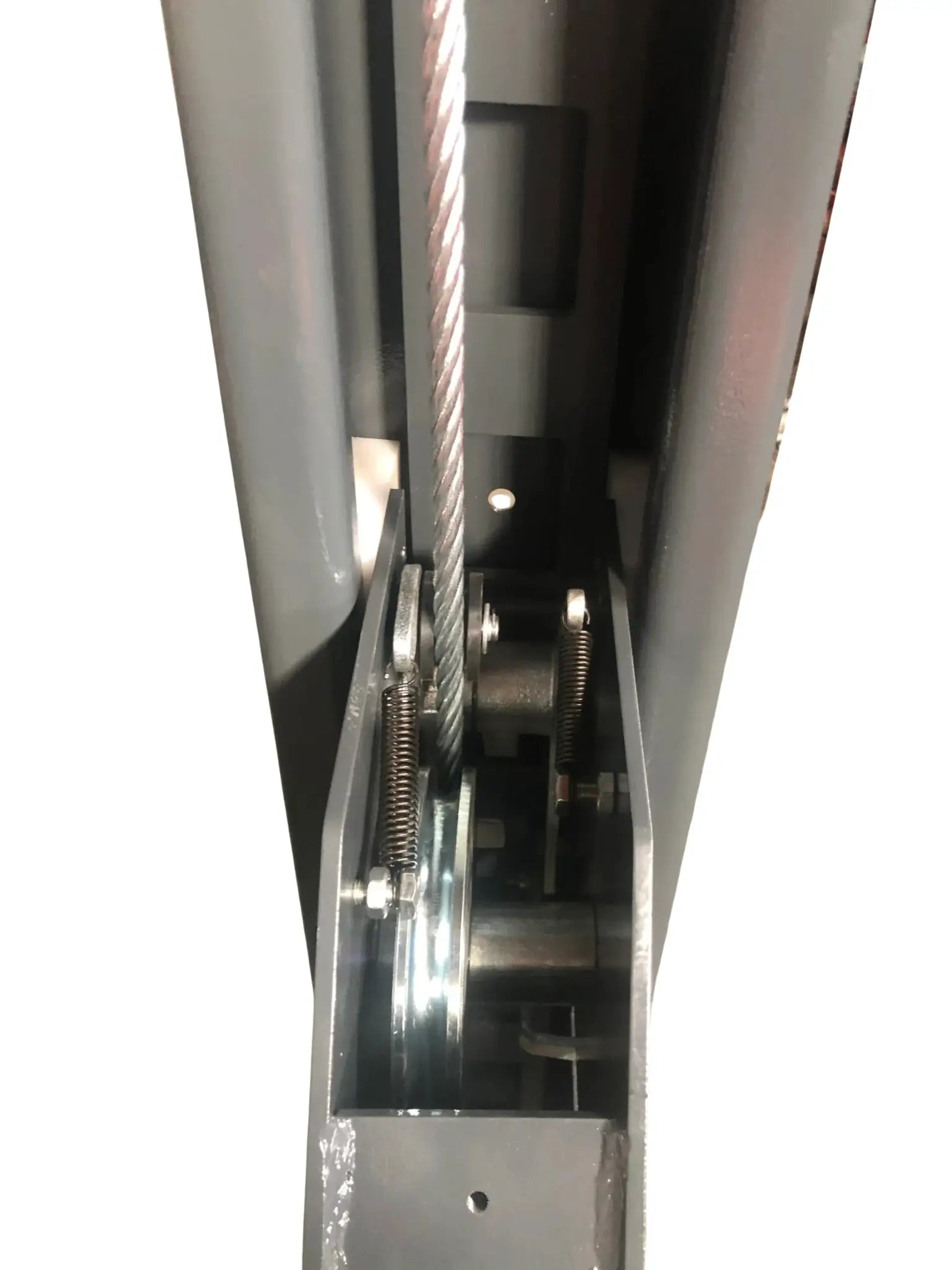

Cable Pulley System with Tension Spring Synchronization

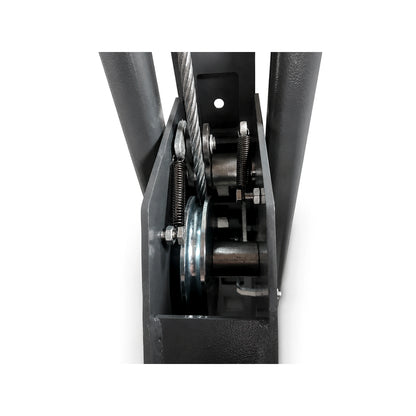

Precision cable pulley system distributes lifting force across all posts ensuring stable operation and smooth synchronization
Steel wire ropes connect all four posts through a pulley network that distributes hydraulic force evenly. Tension springs absorb minor cable length differences, keeping the platform level even with off-center loads like trucks with heavy toolboxes. Guide rollers reduce friction and extend service intervals. Full rise: 83 seconds at 110V; descent: 40 seconds.

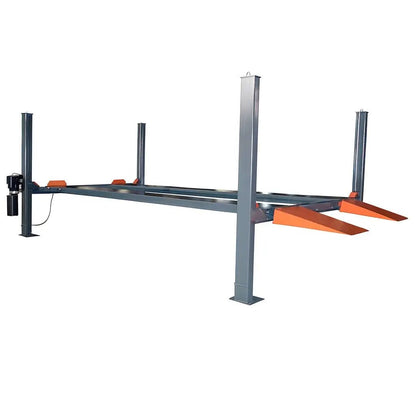

Adjustable Power Column for Flexible Shop Layout

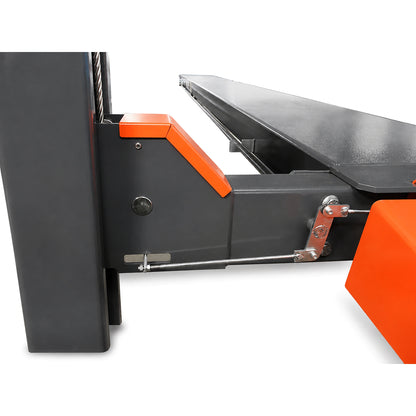

Precision-engineered linkage system engages and releases mechanical locks ensuring platform stays securely in place during use
The hydraulic power unit can mount on any of the four posts, letting you position the electrical connection nearest your circuit breaker panel. Standard unit runs on 110V single-phase at 60Hz from a dedicated 30-amp circuit. 220V option available for reduced amp draw. Post height is 94.88" (2,410 mm). Factor this plus overhead clearance when checking ceiling height.
Video: Katool KT-4H110 Four Post Lift Operation
See the lifting mechanism, lock engagement, and build quality in action.

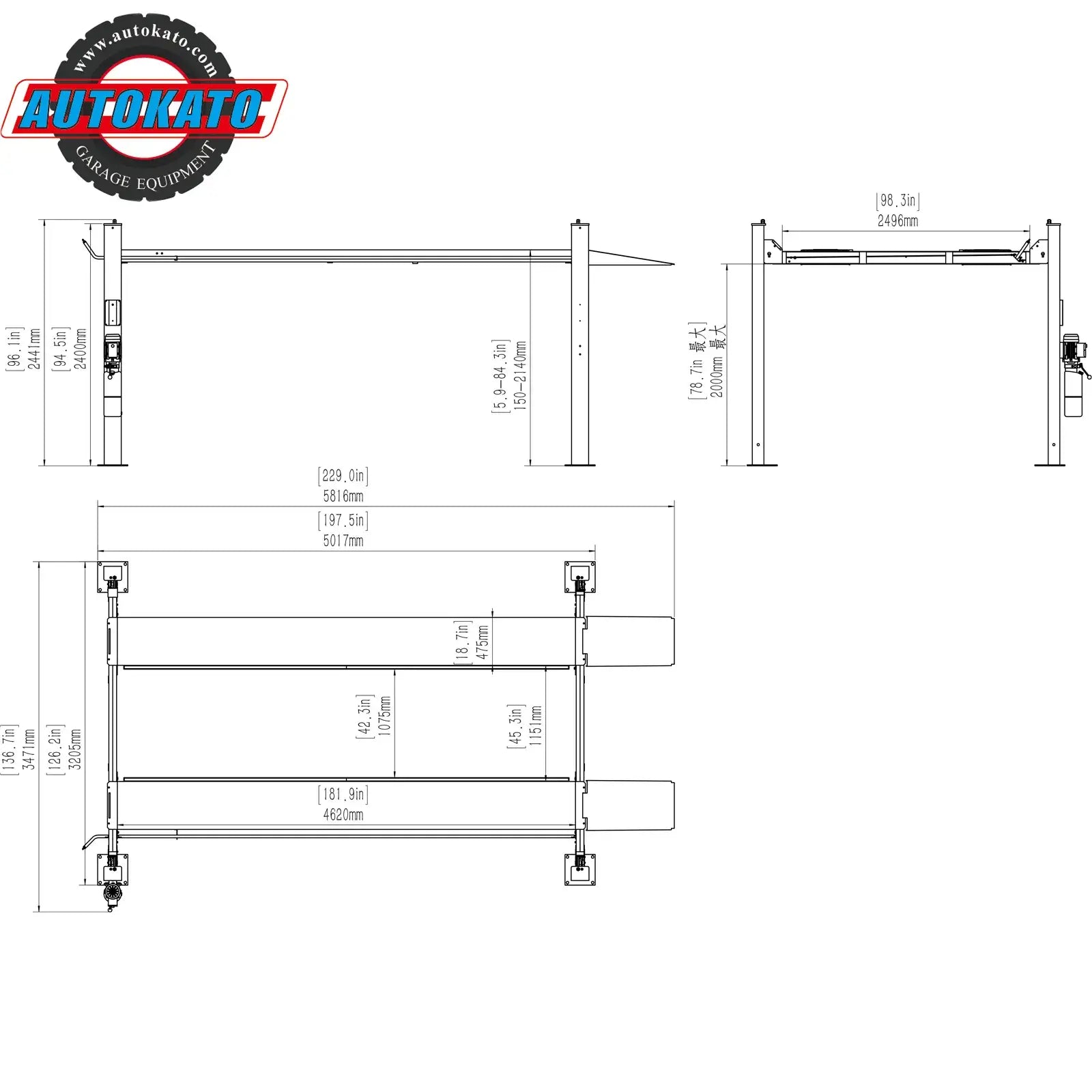

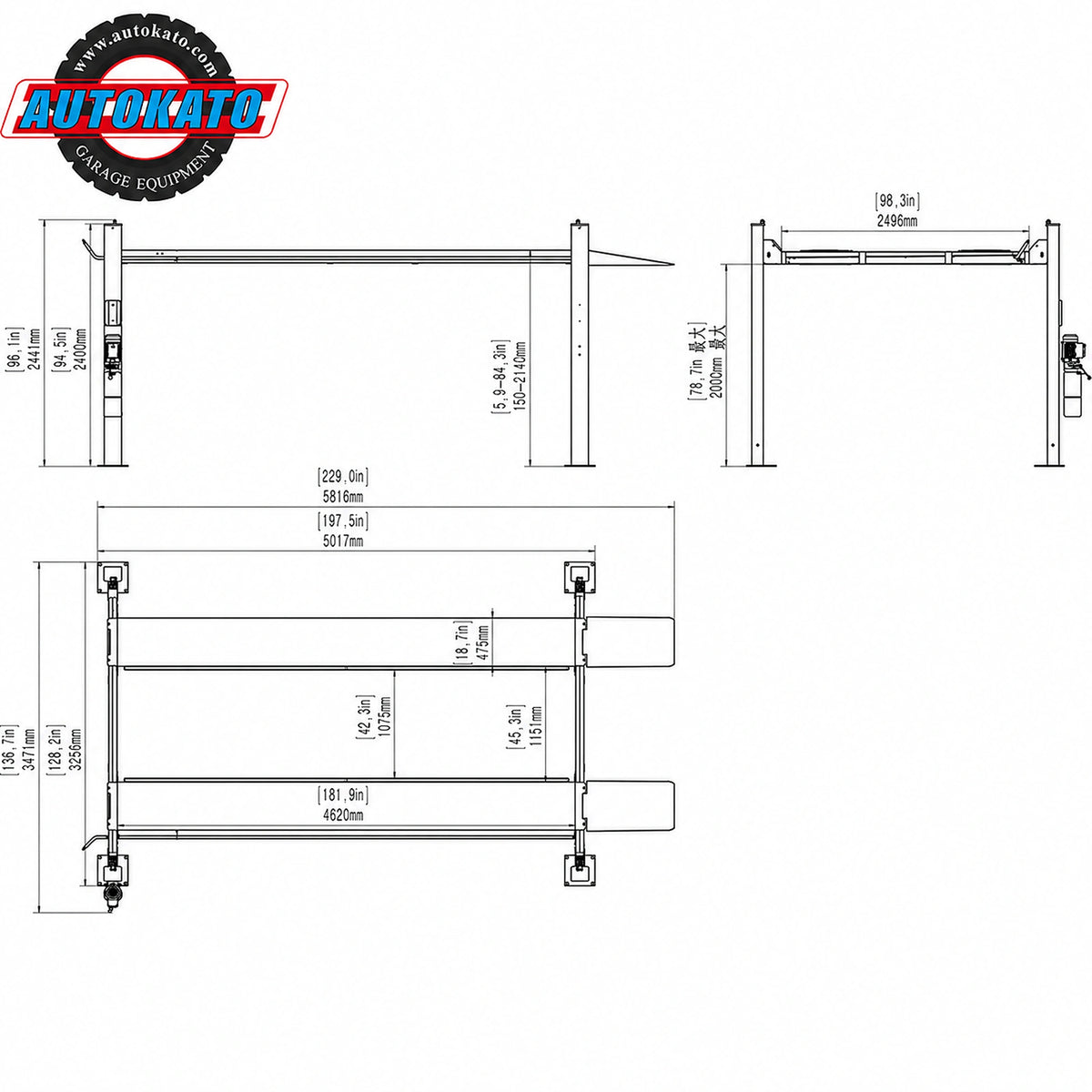

Technical Specifications
Verify your concrete meets 3,000 PSI minimum and check that your vehicle wheelbase falls within the 229.73" overall length including ramps.
| Lifting Capacity | 11,000 lb (4,990 kg) |
|---|---|
| Max Lifting Height | 84.25" (2,140 mm) |
| Lifting Time | 83 seconds up / 40 seconds down |
| Height of Posts | 94.88" (2,410 mm) |
| Width Overall | 126" (3,200 mm) |
| Length Overall | 229.73" (5,835 mm, with ramps) |
| Inside Columns Width | 112.81" (2,865 mm) |
| Min Runway Height | 6.2" (157 mm) |
| Motor Power | 3.0 hp |
| Power Requirements | 110V AC / 60Hz / 1 Phase (220V optional) |
| Net Weight | 2,116 lb (960 kg) |
| Shipping Weight | Approximately 2,400 lb (1,090 kg) crated |
Installation Requirements
Concrete Requirements
Minimum 3.93" (100 mm) thick with 3,000 PSI compressive strength. Slab must be level within 1/8" over the lift's footprint. Use 5/8" diameter wedge anchors or sleeve anchors (four bolts per post). Expansion anchors not recommended.
Electrical Requirements
Standard 110V requires a dedicated 30-amp circuit with 10 AWG copper wire. Keep wire runs under 50 feet. Optional 220V needs a 20-amp circuit with 12 AWG wire. Mount the power unit at the post closest to your electrical panel.
Assembly Notes
Use the anchor template in the installation manual. Check diagonal measurements to confirm the frame is square before drilling. Being off by more than 1/4" can cause platform racking.
Warranty Coverage
1-Year Limited Warranty
1-year limited warranty covers parts and manufacturing defects. Structural components (posts, platform frame, cable assemblies) carry an additional 3-year warranty. Warranty is non-transferable and requires proof of purchase.
Covered for 1 Year
- Hydraulic seals
- Cable pulleys
- Lock pawls
- Electronic components
- Manufacturing defects
Warranty Exclusions
- Improper installation
- Exceeding rated capacity
- Modifications
- Use of non-genuine parts
- Normal wear items
Optional extended warranty available at purchase extends full coverage to five years on structural components. Document your installation process and keep records for warranty support.
Documentation
Product Documentation
The manual includes anchor templates, torque specs, hydraulic bleeding procedures, maintenance schedule, and wiring diagrams for 110V and 220V configurations.

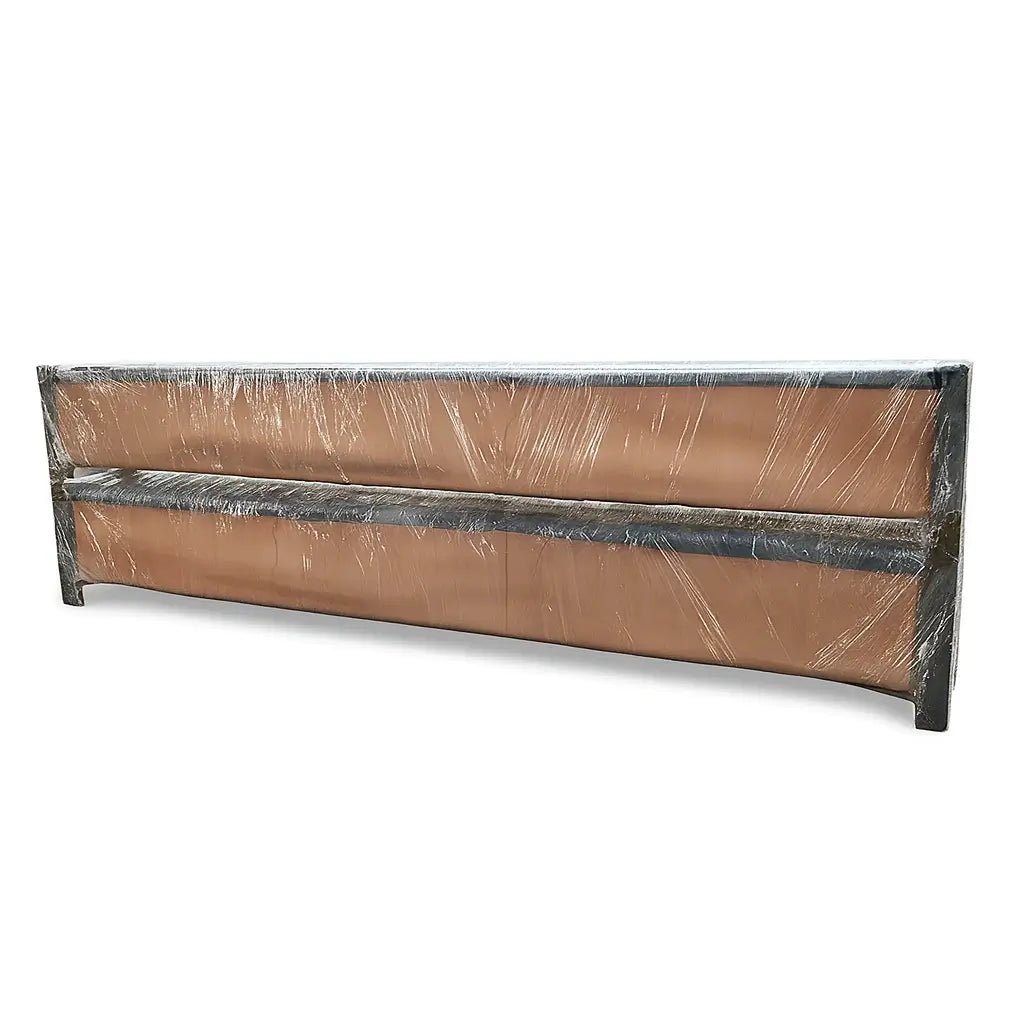

Shipping Information

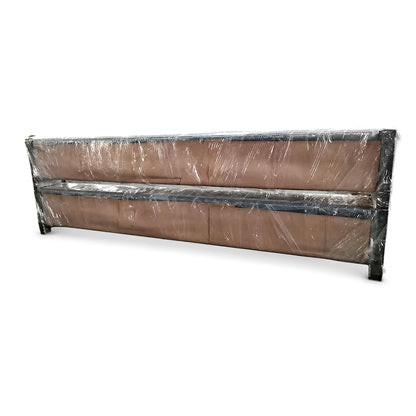

Freight on pallet (~2,400 lb crated). Request liftgate service if needed.
Questions About the Katool KT-4H110?
Need help confirming fitment or installation requirements? Our team can verify concrete specs, electrical setup, and vehicle compatibility.
Frequently Asked Questions
What vehicles can the Katool KT-4H110 lift with its 11,000 lb capacity?
Full-size trucks, heavy SUVs, cargo vans, and most dual-rear-wheel pickups under 11,000 lb. The 112.81" inside column width fits vehicles up to ~96" wide; 229.73" overall length fits wheelbases up to ~165". Covers Ford F-250/F-350, Chevy Silverado 2500/3500, Ram 2500/3500, Suburban, Yukon XL, and Mercedes Sprinter vans.
How much ceiling height do I need for the Katool 4 post lift installation?
Minimum 10-foot ceilings. Post height is 94.88" plus 6-8" clearance above for cable routing. Total minimum 101", though 104" is comfortable. For trucks with roof racks or toppers, add vehicle height to runway height to confirm clearance.
Can I install the Katool KT-4H110 4 post lift myself or do I need professional installation?
DIY is possible if you're comfortable with concrete anchors and electrical connections. Requires 2-3 people, 6-8 hours, and a hammer drill for 5/8" anchors. Manual includes anchor templates and torque specs. Professional installation recommended if inexperienced with concrete anchoring or 220V wiring. Verify 3,000 PSI concrete before starting.
What electrical service does the Katool 11000 lb lift require?
110V: Dedicated 30-amp circuit, 10 AWG copper wire. 220V option: 20-amp circuit, 12 AWG wire. Keep wire runs under 50 feet. The 3.0 hp motor draws ~27 amps at startup on 110V. Don't share this circuit since startup load can trip breakers.
Does the Katool 4 post lift come with rolling jacks for wheel-free service?
Yes, twin hydraulic scissor jacks included, mounting between runways for wheel-free lifting. Package also includes two drip trays and a jack tray. No separate rolling jacks needed.
What maintenance does the Katool KT-4H110 4 post vehicle lift require?
Monthly: Inspect cable tension, lock engagement, hydraulic fluid level. Every 6 months: Lubricate pulley bearings and lock mechanisms with lithium grease. Annually: Replace cables if fraying, inspect hydraulic seals, torque-check anchor bolts. Keep a maintenance log for warranty support.
How does the single-point safety lock release work on the Katool lift?
A linkage system connects all four lock points. Pull the handle and all four pawls disengage simultaneously. During descent, locks re-engage at adjustable intervals. If one lock sticks, none release, which prevents tilting from three-point hold situations.
What concrete specifications are required for Katool 4 post lift installation?
Minimum 3.93" thick, 3,000 PSI compressive strength. Use 5/8" wedge or sleeve anchors, four per post. Level within 1/8" to prevent cable binding. If your slab is marginal, get a core sample to verify PSI before ordering.
