Daytona LTPF9 - 9,000 lb 2-Post Floorplate Lift with 110-Inch Columns
SKU: LTPF9
$2,679.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- Chain-over lift with rope synchronization
- Release both locks from one side
- Arms for mixed general service
Talk to a lift specialistExpert product and freight support before you order855-498-2147
- Authorized Daytona Lifts Dealer
- Manufacturer Warrantyincluded with purchase
- No Sales Tax Collected Outside PAPA orders include sales tax

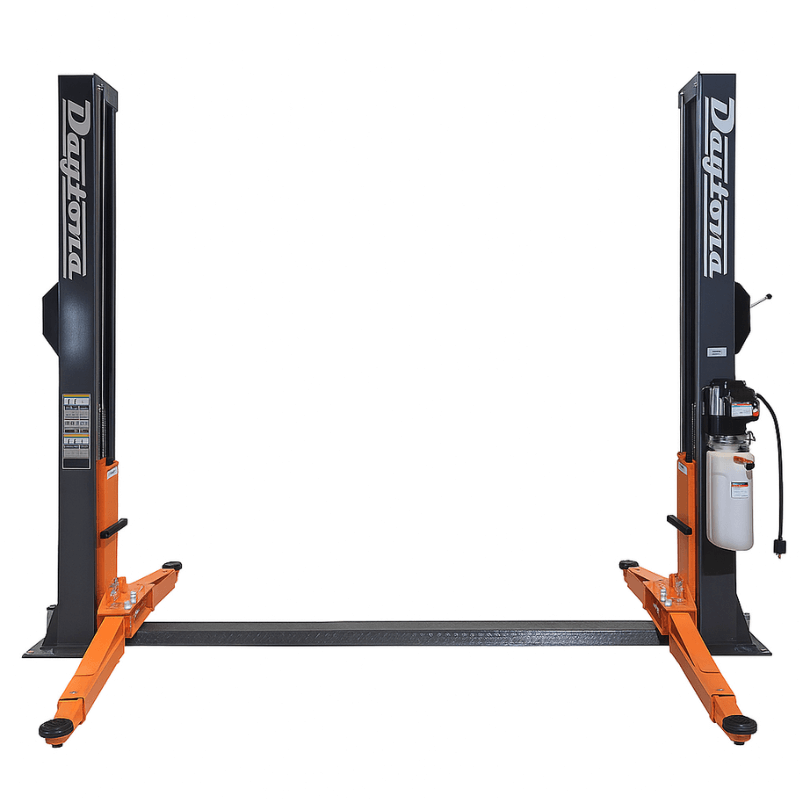

At 110.0 inches, the Daytona LTPF9 has the shortest columns in Daytona's 2-post line. This 9,000 lb 2-post lift has a floorplate instead of an overhead crossbar. The floorplate and short columns make this a 2-post car lift for low ceilings in a home garage or indoor shop too low for an overhead model, provided the vehicle clears the ceiling at full rise. Its 98.9 inch drive-through width accommodates compact cars through light-duty trucks within the lift's rating.
Wire ropes, the oil line, and the safety release cable cross beneath the floorplate, leaving the area above the columns free of lift structure. Compare other bay arrangements in our 2-post lift collection.
Features
Chain-over lift with rope synchronization
A hydraulic cylinder lifts each carriage through a chain. Wire ropes between the columns synchronize their movement.
Release both locks from one side
The safety locks engage automatically during the rise. One release point disengages the locks on both columns for lowering.
Arms for mixed general service
Three-stage front arms pair with two-stage rear arms. Screw-up pads come standard, along with adapters for SUVs and trucks.
Door and travel protection
Rubber guards cover the columns where doors can open against them, and a height limit switch stops upward travel.
Specifications
| Lift capacity | 9,000 lb |
|---|---|
| Lifting pad height | 4.5 to 74.8 in |
| Arm reach, longer arms | 32.7 to 51.9 in |
| Arm reach, shorter arms | 22.8 to 41.3 in |
| Front arms | Three-stage |
| Rear arms | Two-stage |
| Lifting pads | Screw-up pads, standard truck adapters included |
| Safety locks | Automatic, single-point release |
| Power | 240V, 3 HP, 13 A, single-phase, 60 Hz |
|---|---|
| Drive system | Chain-over hydraulic cylinders |
| Hydraulic oil | About 10 L of AW 46 anti-wear hydraulic oil; 32 grade below 50 degrees F |
| Slide blocks | High-polymer polyethylene |
| Finish | Powder coat |
| Overall height | 110.0 in |
|---|---|
| Overall width at base plates | 131.2 in |
| Width across columns | 124.6 in |
| Width between columns | 110.5 in |
| Drive-through width | 98.9 in |
| Base plate | 14.8 x 16.9 in, 0.6 in thick |
| Concrete | 4 in minimum, reinforced, 3,500 psi, cured 28 days |
|---|---|
| Floor level | Within 3/8 in over the installation area |
| Wall clearance | 1,000 mm (39 in) minimum from the columns |
| Location | Indoor use only, 41 to 104 degrees F |
What's Included
- Columns, main and auxiliary x2
- Lift arms, three-stage front and two-stage rear x4
- Screw-up lifting pads x4
- Standard truck adapters
- Power unit, 240V, 3 HP x1
- Floorplate for the hose and wire ropes x1
- Height limit switch x1
- Rubber door guards
Not Included
- Installation, anchoring, and electrical connection
Installation Requirements
Reinforced concrete for the lift
The supporting surface must be level within 3/8 inch and consist of steel-reinforced concrete cured for 28 days. It needs a minimum 4 inch depth and 3,500 psi strength. Do not install over asphalt or tile.
131.2 inch base-plate span
The posts occupy 131.2 inches across their base plates, with 110.5 inches between columns. Leave 1,000 mm of separation from a column to the nearest wall, roughly 39 inches.
Warranty
Documents
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
Can the Daytona LTPF9 2-post lift fit under a 10 foot ceiling?
Only if the vehicle clears the ceiling at full rise. The 110.0 inch columns fit below 120 inches, but column height alone does not establish usable lifting room. Pads rise to 74.8 inches; add the vehicle's height above its lift points and check every overhead obstruction.
How close can a Daytona LTPF9 anchor be to a crack?
Keep every anchor at least 6 inches from a crack, slab edge, or expansion joint. If the installation area cannot meet the concrete and anchor requirements, a suitable pad may be poured.
Is the Daytona LTPF9 suitable for an outdoor bay?
No. It is an indoor lift, and its operating ambient temperature must stay between 41 and 104 degrees F.
When does the LTPF12 make more sense than the Daytona LTPF9?
Choose the LTPF12 when the vehicles exceed the LTPF9's 9K rating or its 98.9 inch drive-through opening. The LTPF12 provides 12,000 lb and a 112.0 inch opening, but its columns are 114.0 inches tall.
Does the Daytona LTPF9 plug into an outlet?
No. Its 240V, 3 HP, 13 A, single-phase, 60 Hz supply cable connects directly to the breaker, without a socket. A power switch lets you shut off the lift for maintenance or in an emergency. Consulting a certified electrician for the wiring is recommended.
