Daytona LTPA12 - 12,000 lb Adjustable 2-Post Overhead Lift, 107 to 119 Inch Drive-Through
SKU: LTPA12
$4,380.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- Arms and pads for varied contact points
- Nothing crosses the working floor
- A roof contact stops the rise
Talk to a lift specialistExpert product and freight support before you order855-498-2147
- Authorized Daytona Lifts Dealer
- Manufacturer Warrantyincluded with purchase
- No Sales Tax Collected Outside PAPA orders include sales tax
Three drive-through openings, 107, 113, or 119 inches, let Daytona's LTPA12 serve passenger cars through heavy trucks within its 12,000 lb rating. For this 12K 2-post truck lift, choose the opening during assembly; the selected width stays fixed between jobs.
A bay under 144 inches rules out the standard build, while the optional height kit requires more room. Compare other configurations in our 2-post lift collection.
Features
Arms and pads for varied contact points
Three-stage front and rear arms pair with three-stage screw-up pads. Standard truck adapters extend the contact options when this 12,000 lb lift is assigned larger vehicles.
Nothing crosses the working floor
The hydraulic hose and equalization cables cross overhead, leaving no plate on the floor between the posts.
A roof contact stops the rise
The overhead limit bar stops the rise when it meets the vehicle's highest point, protecting the roof. Full-length rubber door guards cover the columns where vehicle doors may open.
Hydraulic drive with linked movement
A direct-drive cylinder works inside each column, and equalization cables coordinate the two carriages.
Carriage and arm locking
The safety locks engage during the rise and open from one release point. A separate locking device holds each positioned support arm against turning.
Polyethylene carriage slides
High-polymer polyethylene wear-resistant blocks line the moving carriage surfaces.
Specifications
| Lift capacity | 12,000 lb |
|---|---|
| Lifting pad height | 3.9 to 68.9 in |
| Arm reach | 32.3 to 63.8 in |
| Front arms | Three-stage |
| Lifting pads | 3-stage screw-up pads, truck adapters included |
| Safety locks | Automatic, single-point release |
| Power | 240V, 3 HP, 13 A, single-phase, 60 Hz |
|---|---|
| Drive system | Dual direct-drive hydraulic cylinders |
| Equalization | Cables |
| Hydraulic oil | About 10 L of AW 46 anti-wear hydraulic oil; 32 grade below 50 degrees F |
| Slide blocks | High-polymer polyethylene |
| Finish | Powder coat |
| Overall height | 141.7 in without the extension kit |
|---|---|
| Column height | 135.0 in |
| Drive-through width | 107 / 113 / 119 in (narrow / medium / wide) |
| Overall width at base plates | 150.3 in narrow to 162.1 in wide |
| Width across columns | 140.9 in narrow to 152.7 in wide |
| Width between columns | 122.0 in narrow to 133.9 in wide |
| Base plate | 18.7 x 20.9 in, 0.8 in thick |
| Column width | 9.4 in |
| Minimum ceiling | 144 in (12 ft); 168 in (14 ft) with the extension kit |
|---|---|
| Concrete | 6 in minimum, 4,000 psi |
| Defective concrete | Replace with a 48 x 48 x 6 in pad under each post |
| Wall clearance | 1,000 mm (39 in) minimum from the columns |
| Location | Indoor use only, 41 to 104 degrees F |
What's Included
- Columns, main and auxiliary x2
- Overhead beam with limit switch bar x1
- Lift arms, three-stage front and rear x4
- 3-stage screw-up lifting pads x4
- Standard truck adapters
- Power unit, 240V, 3 HP x1
- Full-length rubber door guards
Optional Accessories

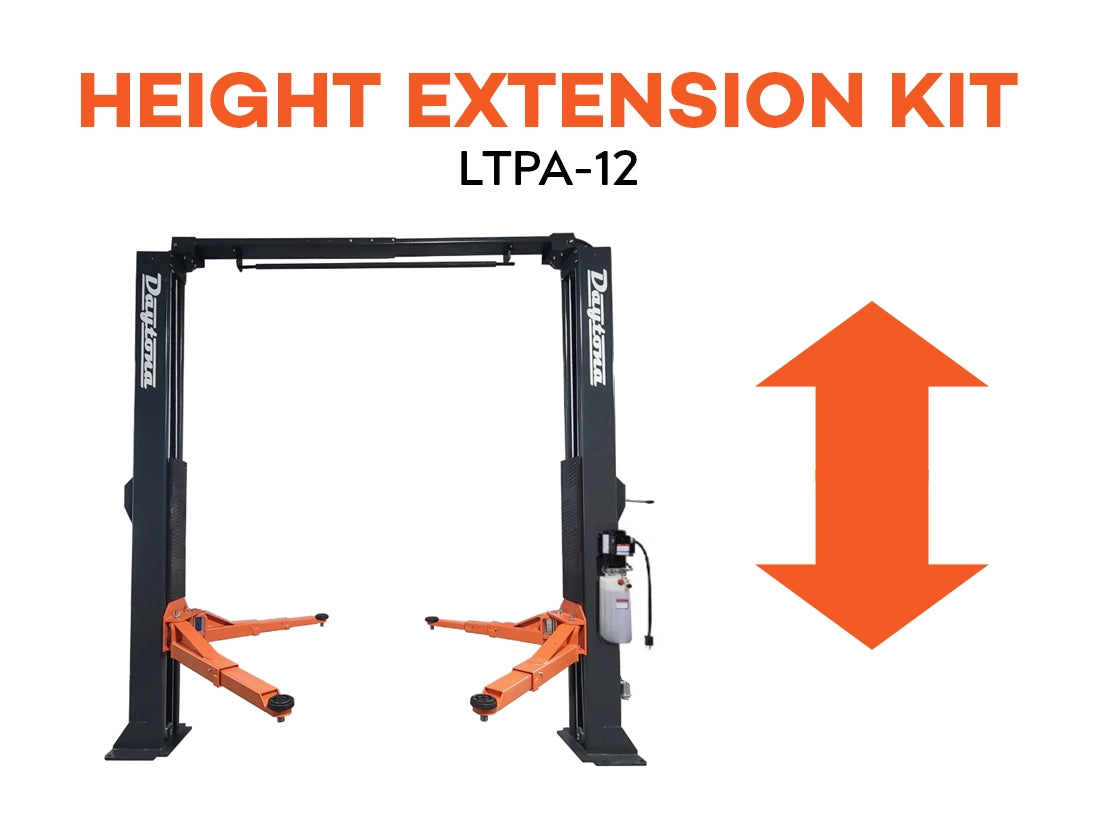

- Daytona 2 ft height extension kit for LTPA12LTPA12-EXTLTPA12 only. Adds post extensions and longer cables for 2 ft more clearance under the overhead bar.
Not Included
- 2 ft height extension kit LTPA12-EXT, sold separately
- Installation, anchoring, and electrical connection
Installation Requirements
141.7 inch standard overall height
The standard structure measures 141.7 inches overall, with the column tops at 135.0 inches.
Concrete and anchor locations
The floor needs at least 6 inches of 4,000 psi concrete. Position anchors 6 inches or more from any crack, expansion joint, or slab edge.
Width and wall clearance
The base plates span 150.3 inches at the narrow setting and 162.1 inches at the wide setting. Keep 1,000 mm or more between the wall and a column.
240V electrical connection
Provide 240V, 3 HP, 13 A, single-phase, 60 Hz power. Wiring by a certified electrician is recommended.
Warranty
Documents
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
What ceiling height does the Daytona LTPA12 2-post lift need?
The standard build is 141.7 inches tall and needs at least 144 inches of ceiling height; with the optional height kit, the lift needs 168 inches. The kit adds 2 ft of clearance beneath the overhead bar.
What if the floor falls short of the Daytona LTPA12 concrete spec?
Use a pad 48 inches square and 6 inches deep beneath each post if the existing concrete fails the lift's floor requirement.
Can the Daytona LTPA12 go in an outdoor bay?
No. The LTPA12 is for indoor use, with an operating ambient temperature range of 41 to 104 degrees F.
Can the Daytona LTPA12 be set on an upper floor or above a basement?
Only if the construction department grants permission and the building's architectural engineer approves the placement in writing. Secure both before choosing that LTPA12 location.
How should a front-engine vehicle sit on the Daytona LTPA12?
Center the vehicle between the columns with its center of gravity, which is not the same as its midpoint, close to the column line, and lift only at the maker's recommended lift points. For a front-engine vehicle, the front and rear distances from the column line run about 2:3; move a vehicle over 3.5 tons slightly rearward. The short arms go at the front and the long arms at the rear.
Have a question we didn't cover? Call (855) 498-2147 and our team will help.
