Daytona LTPF12 - 12,000 lb 2-Post Floorplate Lift for Low Ceilings
SKU: LTPF12
$4,047.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- A covered crossing on the floor
- Reach for truck frame points
- Chains raise the two carriages
Talk to a lift specialistExpert product and freight support before you order855-498-2147
- Authorized Daytona Lifts Dealer
- Manufacturer Warrantyincluded with purchase
- No Sales Tax Collected Outside PAPA orders include sales tax

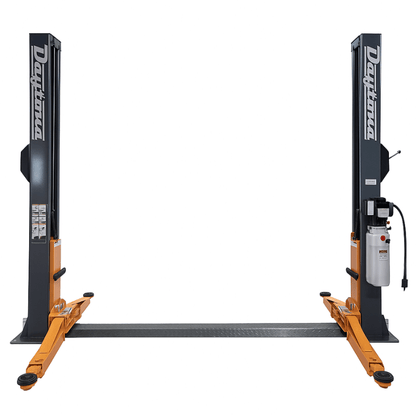

With 114.0 inch columns and no overhead crossbar, Daytona's LTPF12 gives shops with lower ceilings a way to lift heavy pickups, work vans, and commercial vehicles. Its 112.0 inch drive-through opening accommodates those vehicles within the lift's rating.
The space above the posts remains free of lift structure for commercial fleet service. Compare its floor-level crossing with overhead choices in our 2-post lift collection.
Features
A covered crossing on the floor
The 2.1 inch floorplate encloses the hydraulic hose and equalization cables between columns.
Reach for truck frame points
Front arms adjust through three stages and rear arms through two, with 32.3 to 63.8 inches of reach. Screw-up pads and included truck adapters help meet frame contact points on this 12,000 lb lift.
Chains raise the two carriages
Each hydraulic cylinder drives its carriage through a chain. Synchronized wire ropes keep the sides moving together and help prevent the vehicle from tilting.
One handle releases both columns
Automatic locks catch during the rise, and a single handle opens both column locks for lowering. A lock arm device holds each support arm against turning.
Guards at doors and upper travel
A height limit switch cuts off upward movement, while rubber guards line the column areas beside opening doors.
Wear-resistant carriage blocks
High-polymer polyethylene slide blocks provide wear surfaces inside the columns as the carriages travel.
Specifications
| Lift capacity | 12,000 lb |
|---|---|
| Lifting pad height | 4.33 to 74.80 in |
| Arm reach | 32.3 to 63.8 in |
| Front arms | Three-stage |
| Rear arms | Two-stage |
| Lifting pads | Screw-up pads, standard truck adapters included |
| Safety locks | Automatic, single-point manual release |
| Power | 240V, 3 HP, 13 A, single-phase, 60 Hz |
|---|---|
| Drive system | Dual chain-drive hydraulic cylinders |
| Equalization | Synchronized equalization cables |
| Hydraulic oil | About 10 L of AW 46 anti-wear hydraulic oil; 32 grade below 50 degrees F |
| Noise level | Under 80 dB(A) |
| Slide blocks | High-polymer polyethylene |
| Finish | Powder coat |

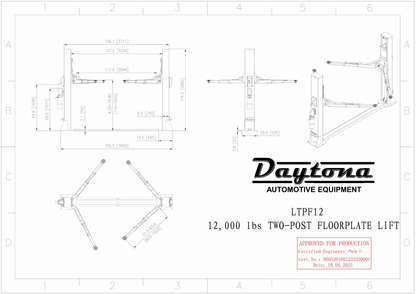

| Overall height | 114.0 in |
|---|---|
| Overall width at base plates | 155.5 in |
| Width across columns | 146.1 in |
| Width between columns | 127.2 in |
| Drive-through width | 112.0 in |
| Floorplate height | 2.1 in |
| Base plate depth | 20.9 in |
| Base plate thickness | 0.8 in |
| Concrete | 4 in minimum, reinforced, 3,500 psi, cured 28 days |
|---|---|
| Floor level | Within 3/8 in over the installation area |
| Wall clearance | 1,000 mm (39 in) minimum from the columns |
| Location | Indoor use only, 41 to 104 degrees F |
What's Included
- Columns, main and auxiliary x2
- Lift arms, three-stage front and two-stage rear x4
- Screw-up lifting pads x4
- Standard truck adapters
- Power unit, 240V, 3 HP x1
- Floorplate cover for the hose and cables x1
- Height limit switch x1
- Rubber door guards
Not Included
- Installation, anchoring, and electrical connection
Installation Requirements
Base plates span 155.5 inches
Allow 155.5 inches across the LTPF12 base plates and 127.2 inches between its columns. A column needs about 39 inches of wall separation, at least 1,000 mm.
Concrete and anchor requirements
Use steel-reinforced concrete rated 3,500 psi, with a minimum 4 inch thickness, a 28 day cure, and no more than 3/8 inch variation in level. Each anchor must be at least 6 inches away from any crack, expansion joint, or edge of the slab. If the existing installation area does not qualify, pour a suitable new pad. Do not install on asphalt or tile.
Direct connection to the breaker
Connect the 240V, 3 HP, 13 A, single-phase, 60 Hz cable straight to the breaker; a socket is prohibited. The electrical setup also needs a switch to cut power for maintenance or emergencies. A certified electrician is recommended to make the connection.
Warranty
Documents
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
Will the Daytona LTPF12 2-post car lift fit under an 8 or 9 foot ceiling?
No. At 114.0 inches, the columns stand taller than both 8 and 9 foot ceilings. In a taller bay, the vehicle roof still needs clearance at the intended raised height; the pads reach 74.80 inches.
Would the shorter LTPF9 cover this bay instead of the Daytona LTPF12?
Only if the vehicles fit its 9,000 lb rating and 98.9 inch drive-through opening. Its 110.0 inch columns save 4 inches of structural height compared with the 12K LTPF12, while the LTPF12 provides the wider, higher-capacity floorplate choice.
Can the Daytona LTPF12 operate in an unheated shop?
Only if the indoor operating temperature remains within 41 to 104 degrees F. Below 10 C (50 degrees F), 32 grade hydraulic oil is an option in place of 46 anti-wear oil.
What needs approval before the Daytona LTPF12 goes over a basement or upstairs?
The building's architectural engineer must approve that location in writing, and the construction department must grant permission. Have both approvals in place before installing the LTPF12 there.
Which maintenance checks are due on the Daytona LTPF12?
Daily, check for hydraulic leaks, test the safety locks and electrical components, inspect wire rope connections and tension, and check the nuts joining plate chains to carriages. Monthly, grease the column slides, lubricate the chains and wire ropes, and torque concrete anchor bolts to 80 ft-lbs. Every six months, adjust the balance and safety ropes for level lifting. Clean the hydraulic tank and replace its oil after the first six months, then yearly.
