Daytona LTPA10 - 10,000 lb 2-Post Overhead Lift with 3 Width Settings
SKU: LTPA10
$3,392.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- 10K at full arm extension
- Choose the drive-through opening
- A cylinder drives each carriage
Talk to a lift specialistExpert product and freight support before you order855-498-2147
- Authorized Daytona Lifts Dealer
- Manufacturer Warrantyincluded with purchase
- No Sales Tax Collected Outside PAPA orders include sales tax

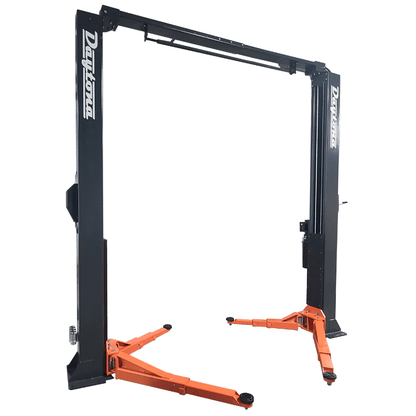

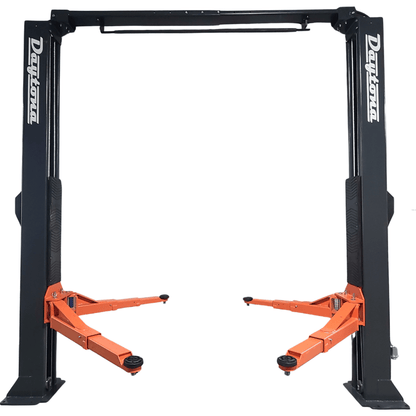

The narrowest span across the base plates in Daytona's overhead 2-post line belongs to the LTPA10, a 10,000 lb car lift. Its three drive-through choices let a shop lay out the bay for the vehicles it services.
Independent repair, dealership service, and light fleet bays get a clear floor between the posts. Ceiling height determines whether the standard build or the optional height kit suits the bay. Compare other layouts in our 2-post lift collection.
Features
10K at full arm extension
The 10,000 lb rating holds with the arms fully extended. Three-stage front arms and two-stage rear arms carry screw-up pads; standard truck adapters let the lift serve larger vehicles.
Choose the drive-through opening
The three assembly settings provide 89.4, 95.3, or 101.2 inches of drive-through room.
A cylinder drives each carriage
Direct-drive hydraulic cylinders work in both columns. Equalization cables coordinate carriage movement across the lift.
Locks also restrain the arms
The carriage locks engage automatically and open from one release point. Separate restraint gears and pins hold the positioned arms against turning.
Overhead travel and door protection
The overhead shutoff stops upward travel; rubber guards cover door-contact areas on the columns.
Wear surfaces inside the columns
The carriages ride on high-polymer polyethylene wear-resistant slide blocks.
Specifications
| Lift capacity | 10,000 lb, arms fully extended |
|---|---|
| Lifting pad height | 4.5 to 70.9 in |
| Arm reach, longer arms | 31.5 to 49.2 in |
| Arm reach, shorter arms | 21.6 to 44.3 in |
| Front arms | Three-stage |
| Rear arms | Two-stage |
| Lifting pads | Screw-up pads, truck adapters included |
| Safety locks | Automatic, single-point release |
| Power | 240V, 3 HP, 13 A, single-phase, 60 Hz |
|---|---|
| Drive system | Dual direct-drive hydraulic cylinders |
| Equalization | Cables |
| Hydraulic oil | Grade 46 hydraulic oil |
| Slide blocks | High-polymer polyethylene |
| Finish | Powder coat |
| Overall height | 141.6 in without the extension kit |
|---|---|
| Clearance under the overhead | 134.2 in without the extension kit |
| Drive-through width | 89.4 / 95.3 / 101.2 in (narrow / medium / wide) |
| Width between columns | 100.8 / 106.7 / 112.6 in |
| Width across columns | 118.9 / 124.8 / 130.7 in |
| Overall width at base plates | 126.8 / 132.7 / 138.6 in |
| Base plate | 15.7 x 19.5 in, 0.6 in thick |
| Column | 9.1 x 10.9 in |
| Minimum ceiling | 144 in (12 ft); 168 in (14 ft) with the extension kit |
|---|---|
| Concrete | 6 in minimum, 4,000 psi |
| Defective concrete | Replace with a 48 x 48 x 6 in pad under each post |
| Location | Indoor installation |
What's Included
- Columns, power side and offside x2
- Overhead beam x1
- Lift arms, three-stage front and two-stage rear x4
- Screw-up lifting pads x4
- Truck adapters
- Power unit, 240V, 3 HP x1
- Height limit switch x1
- Rubber door guards
Optional Accessories
- Daytona 2 ft height extension kit for LTPA10LTPA10-EXTCompatible only with LTPA10. Bolt-on sections extend its posts, with cables sized for the taller build.
Not Included
- Installation, anchoring, and electrical connection
- 2 ft height extension kit LTPA10-EXT, sold separately
Installation Requirements
Base-plate widths and handle clearance
The three settings occupy 126.8, 132.7, or 138.6 inches across the base plates. Reserve another 12 inches where the safety cover handle operates.
Standard overhead clearance
The posts reach 141.6 inches and the space below the overhead bar measures 134.2 inches. A standard installation calls for a 144 inch ceiling.
Concrete beneath each post
Use level, crack-free concrete at least 6 inches thick and rated 4,000 psi. New concrete must cure for at least 28 days. Asphalt cannot support this installation.
Warranty
Documents
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
Can the Daytona LTPA10 opening be changed between jobs?
No. Three bolts secure the selected width so the equalization cables fit that position. Choose the opening for the vehicles that will use the bay before assembly.
What if the Daytona LTPA10's concrete requirements are not met?
Replace the defective section below each post with a pad measuring 48 x 48 x 6 inches. The replacement must meet the 4,000 psi requirement.
What are the Daytona LTPA10's electrical requirements?
The LTPA10 needs 240V, 3 HP, 13 A, single-phase, 60 Hz power on a separate circuit. A certified electrician must connect it with at least 10 gauge wire and a 25 A time-delay fuse or breaker for 208-230V single phase. Motor voltage must never fall below 208V.
What changes when I add the Daytona LTPA10 height kit?
The ceiling minimum rises from 144 to 168 inches (14 ft) with LTPA10-EXT. The taller configuration provides room beneath the overhead structure for taller vehicles or vans.
Can the Daytona LTPA10 be installed outside?
No. Install and use the LTPA10 indoors; an outdoor bay is not an acceptable location.
Can the Daytona LTPA10 lift pickup trucks?
Yes, once five conditions are confirmed: the frame can support the truck's weight and has not been weakened by modification or corrosion; no single axle exceeds 5,000 lb, half the lift's rating; the adapters securely contact the frame at the vehicle maker's recommended lift points; the vehicle is stable on the lift with its center of gravity in balance; and the overhead switch bar will contact the vehicle's highest point.
