Daytona BR10-2OH-33 - 10,000 lb 2-Post Overhead Lift with Symmetric and Asymmetric Arms
SKU: BR10-2OH-33
$4,760.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- Four arms with two lifting arrangements
- Pads reach higher contact points
- Carriage locks release from one point
Talk to a lift specialistExpert product and freight support before you order855-498-2147
- Authorized Daytona Lifts Dealer
- Manufacturer Warrantyincluded with purchase
- No Sales Tax Collected Outside PAPA orders include sales tax
The Daytona BR10-2OH-33 overhead car lift uses three-stage front and rear arms for symmetric or asymmetric lifting. This 10K 2-post model serves passenger cars, light-duty trucks, and SUVs in commercial repair, dealership, and fleet service.
A separately sold height kit raises the posts and beam for taller vehicles. Explore other arm arrangements and bay layouts in our 2-post lift collection.
Features
Four arms with two lifting arrangements
Adjust all four three-stage arms to suit a symmetric or asymmetric vehicle position. The short pair extends between 19.4 and 41.9 inches; the long pair extends between 37.2 and 60.0 inches.
Pads reach higher contact points
Two-stage drop-in pads take the included 1.5, 3, and 6 inch extensions for contact points at different heights.
Carriage locks release from one point
On ascent, the carriage locks set automatically; one release point opens them for descent.
Automatic restraints hold the arms
Automatic arm restraints hold the positioned arms during lifting.
Direct hydraulic drive on both sides
Two direct-drive cylinders raise the carriages, with cables equalizing movement between the columns.
Specifications
| Lift capacity | 10,000 lb |
|---|---|
| Lifting pad height | 4.3 to 74.8 in |
| Arm reach, longer arms | 37.2 to 60.0 in |
| Arm reach, shorter arms | 19.4 to 41.9 in |
| Arms | Three-stage front and rear, symmetric or asymmetric |
| Lifting pads | Two-stage drop-in pads with 1.5, 3, and 6 in extensions |
| Safety locks | Automatic, single-point release |
| Arm restraints | Automatic |
| Power | 240V, 3 HP, 12 A, single-phase, 60 Hz |
|---|---|
| Drive system | Dual direct-drive hydraulic cylinders |
| Equalization | Cables |
| Finish | Matte powder coat |
| Overall height | 144.2 in; 167.8 in with the extension kit |
|---|---|
| Clearance under the beam | 135.5 in; 159.1 in with the extension kit |
| Overall width | 140.9 / 146.8 / 152.7 in (narrow / medium / wide) |
| Width between columns | 111.4 / 117.3 / 123.2 in |
| Post size | 7 x 12 in |
| Base plate thickness | 0.8 in |
| Safety cover clearance | 9 in to operate the cover handles |
|---|
What's Included
- Columns x2
- Overhead beam x1
- Power unit, 240V, 3 HP, attached to the lift x1
- Lift arms, three-stage front and rear x4
- Two-stage drop-in lifting pads x4
- Height extensions, 1.5, 3, and 6 inch
Optional Accessories

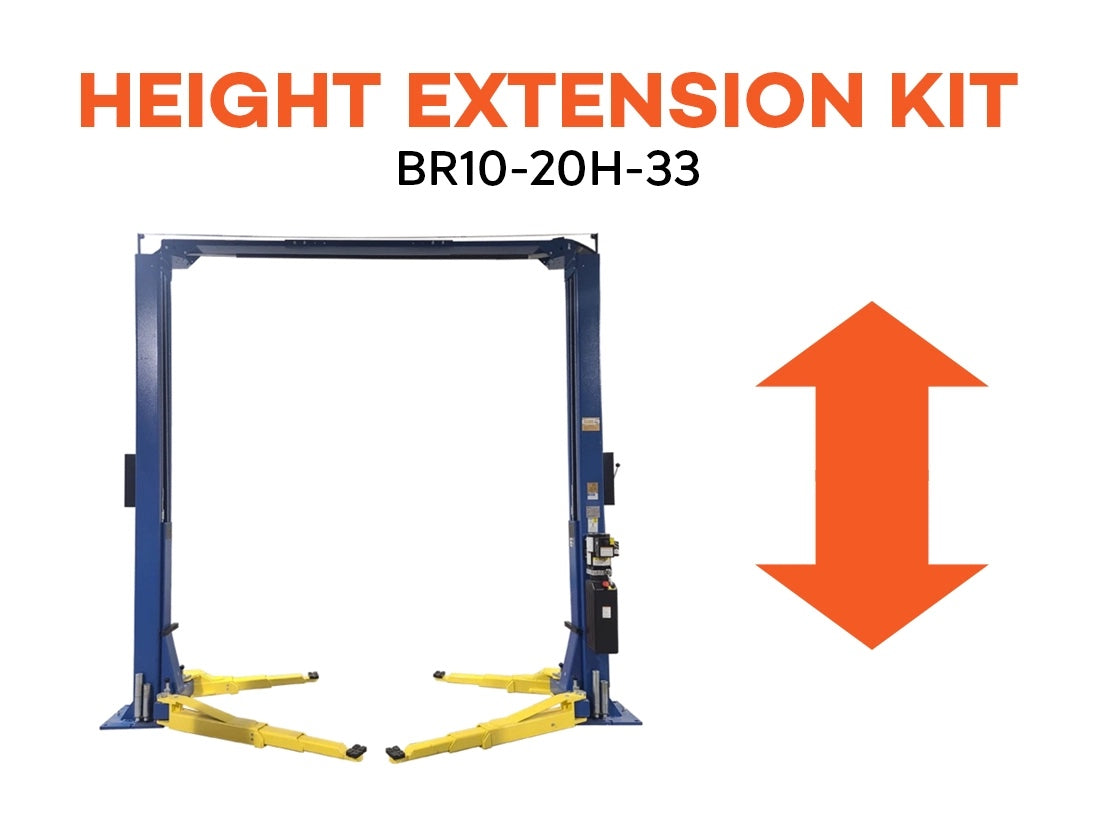

- Daytona 2 ft height extension kit for BR10-2OH-33BR10-2OH-33-EXTFor BR10-2OH-33 only. The separate kit contains longer cables and post extensions for its taller build.
Not Included
- 2 ft height extension kit BR10-2OH-33-EXT, sold separately
- Installation, anchoring, and electrical connection
Installation Requirements
Clearance below the overhead beam
The standard beam leaves 135.5 inches below it; the BR10-2OH-33-EXT build increases that clearance to 159.1 inches.
Three available post spans
Overall width is 140.9, 146.8, or 152.7 inches, with 111.4, 117.3, or 123.2 inches between columns. Reserve 9 inches beside the safety cover for its handles.
Warranty
Documents
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
How much ceiling room does the Daytona BR10-2OH-33 need?
The ceiling must clear the lift structure at 144.2 inches in standard form or 167.8 inches with the BR10-2OH-33-EXT kit, and the vehicle roof at its intended raised height.
When would the LTPA10 fit a bay better than the Daytona BR10-2OH-33?
The LTPA10 spans 126.8 to 138.6 inches at its base plates; this BR10 spans 140.9 to 152.7 inches. The LTPA10 is the narrower overhead choice when available floor width decides the purchase.
What power does the Daytona BR10-2OH-33 require?
Provide 240V, 60 Hz single-phase power for a 3 HP hydraulic unit drawing 12 A. The hydraulic power unit comes attached to the lift.
How high do the Daytona BR10-2OH-33 pads travel?
With the arms down, the pads start 4.3 inches above the floor and reach 74.8 inches at full lifting height.
