Daytona LFPA24 - 24,000 lb Heavy Duty 4-Post Alignment Lift with Slip Plates and Turntables
SKU: LFPA24
$19,865.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- Wide runways carry fleet truck tires
- Jack work begins at a runway lock
- Five inch cylinder and lifting cables
Talk to a lift specialistExpert product and freight support before you order855-498-2147
- Authorized Daytona Lifts Dealer
- Manufacturer Warrantyincluded with purchase
- No Sales Tax Collected Outside PAPA orders include sales tax
Commercial fleets, utility trucks and large dually vehicles are the intended work for the Daytona LFPA24. The 24,000 lb 4-post alignment lift has rear slip plates built into its runways and adjustable turntables.
The wheel alignment computer is separate equipment. For wheel-free work, the 12,000 lb RAJ12 is the separately sold rolling jack designed for the LFPA24. Other capacities are in our alignment lift collection.
Features
Wide runways carry fleet truck tires
The LFPA24 has 25.6 in of driving width per runway and 43.7 in between runways. Dual rear wheel pickups are among the tire layouts this 24,000 lb lift accommodates.
Jack work begins at a runway lock
Starting at 21 in, the LFPA24 lock ladder offers a resting position every 3.5 in. Lower the runways onto an engaged lock before a rolling jack carries vehicle weight, and leave the lift stationary during jack work.
Five inch cylinder and lifting cables
The LFPA24's 24,000 lb lifting system pairs a 5 in hydraulic cylinder with aircraft-quality lifting cables.
One release point controls descent
To come down from a resting lock, raise the LFPA24 until all four latches leave their column slots. A single handle near the power-unit column disengages them; let it go and they engage again. Hold that handle to the bottom, using force on the lowering handle to regulate speed.
Allow 7.5 in for the power unit
Across the LFPA24 base plates, the width is 147.6 in; the post-mounted power unit brings overall width to 155.1 in. The added 7.5 in falls on the power-unit side.
Best For
Alignment Centers
The LFPA24 gives alignment centers a 24,000 lb rated platform for heavy-duty alignment jobs.
Fleet Maintenance
Large commercial and utility vehicles are the fleet work served by the LFPA24's 24,000 lb capacity.
Specifications
| Lift capacity | 24,000 lb |
|---|---|
| Runway height, lowered to full rise | 10.2 to 66.9 in |
| Lock positions | Every 3.5 in, starting at 21 in |
| Lifting system | 5 in hydraulic cylinder with aircraft-quality cables |
| Overall height | 87.9 in |
|---|---|
| Overall width, including power unit | 155.1 in |
| Width across base plates | 147.6 in |
| Overall length, post bases | 284.6 in |
| Overall length with ramps | 330.5 in |
| Base plates | 16.5 x 13.4 in, 0.6 in thick |
| Runway width | 25.6 in |
|---|---|
| Width between runways | 43.7 in |
| Runway center to center | 69.3 in |
| Alignment equipment | Built-in slip plates, adjustable turntables |
| Approach ramps | Tilting, 53.2 in long |
| Power | 240V, 4 HP, 15 A, single-phase, 60 Hz |
|---|---|
| Finish | Dark gray matte powder coat |
What's Included
- Posts x4
- Runways with built-in slip plates x2
- Adjustable turntables
- Tilting approach ramps x2
- Front wheel stops
- 240V, 4 HP hydraulic power unit on a post x1
Optional Accessories

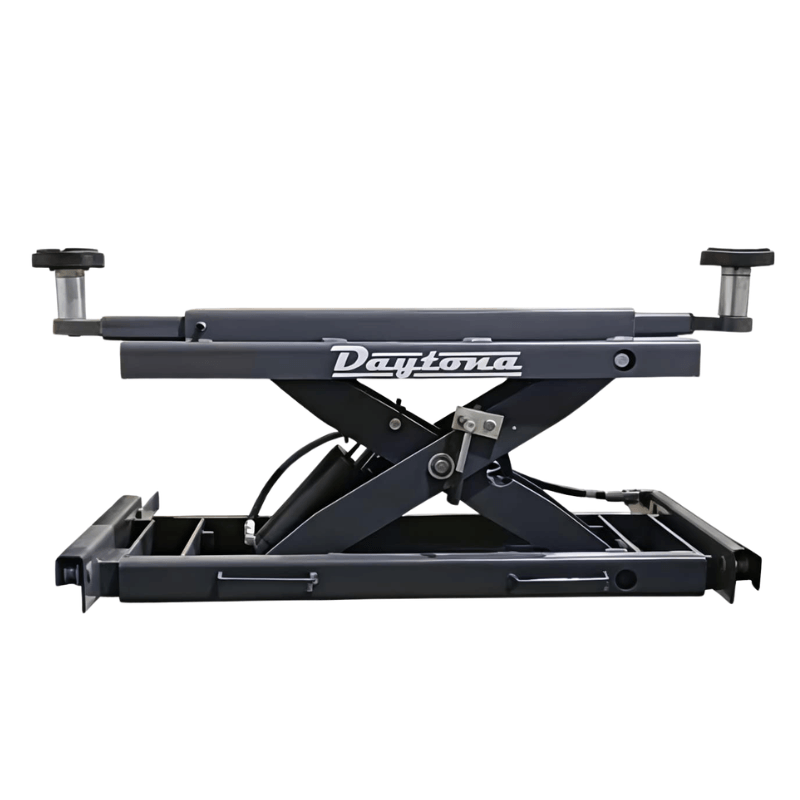

- Daytona RAJ12 12,000 lb Rolling JackRAJ12Designed for the LFPA24; air powered and sold individually
Not Included
- Wheel alignment computer
- Rolling jacks (RAJ12, sold individually)
- Installation, anchoring, and electrical connection
Installation Requirements
330.5 in through the ramps
The LFPA24 is installed indoors. Its post-base length is 284.6 in. With the approach ramps in place, the overall length reaches 330.5 in.
Lower posts, raised-truck clearance
At 87.9 in, LFPA24 posts are shorter than the LFPA12's and LFPA14's. The runways reach 66.9 in at full rise; check the ceiling with the tallest truck the bay will lift.
Concrete at the four columns
A concrete foundation must take the LFPA24's four anchored posts. Each post bears on a base plate measuring 16.5 x 13.4 in, so confirm the slab at all four locations.
Shop air reaches the lift locks
Connect the LFPA24 lock system to shop air during installation, even if no RAJ12 is added.
Warranty
Documents
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
When would the Daytona LFPA14 suit the work instead of the Daytona LFPA24?
Consider the LFPA14 when vehicles fit within its 14,000 lb rating and 247.5 in runways. Between the outer post bases it measures 268.7 in length; the LFPA24 measures 284.6 in at the same points. The smaller model takes an RAJ8, while this lift uses an RAJ12.
Where should the jacks be for loading the Daytona LFPA24?
Before driving onto the LFPA24, bring every installed rolling jack all the way down and roll the rear one inward toward the center. This leaves under-car clearance as the vehicle moves along the runways.
What electrical rating does the Daytona LFPA24 require?
The LFPA24's 4 HP motor calls for 240V single-phase power, 15 A, at 60 Hz.
What care do the Daytona LFPA24 alignment surfaces need?
Use shop air weekly to blow debris out of the LFPA24's turning radius gauges and rear wheel slip plates. Once a month, lubricate each turning radius plate's guide, more often when conditions warrant.
How should the Daytona LFPA24 be cared for in a corrosive shop?
In a salt-belt shop or another corrosive environment, wash the LFPA24 down once a week. Check the runways for level every month and adjust them when needed.
