Daytona LFPA12 - 12,000 lb 4-Post Alignment Lift with Slip Plates and Turntables
SKU: LFPA12
$9,453.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- A shorter alignment footprint
- Dually room on each runway
- The first ladder lock sits at 21 in
Talk to a lift specialistExpert product and freight support before you order855-498-2147
- Authorized Daytona Lifts Dealer
- Manufacturer Warrantyincluded with purchase
- No Sales Tax Collected Outside PAPA orders include sales tax
A shorter alignment bay points to the Daytona LFPA12, a 12,000 lb 4-post alignment lift for compact cars through dual rear wheel pickups.
The 4-post alignment rack includes rear slip plates built into the runways, along with adjustable turntables for different wheelbases; the lift comes without a wheel alignment machine or rolling jacks. The 8,000 lb RAJ8 fits the LFPA12 with 2-3/4 in pad extensions and is sold individually. Compare layouts in our alignment lift collection.
Features
A shorter alignment footprint

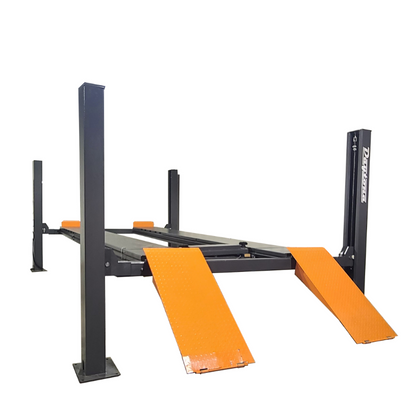

The LFPA12 measures 236.2 in between its outer post bases; including the ramp tips, its overall length is 283.2 in. It is 142.9 in wide across the base plates, with runways 216.5 in long.
Dually room on each runway
Each LFPA12 driving surface is 25.6 in wide; the open distance between them is 43.7 in. The broad tire paths accommodate most dual rear wheel pickups.
The first ladder lock sits at 21 in
The LFPA12's runways sit at 10.2 in when lowered and reach 66.9 in at full rise. Between those heights, the lock ladder gives the shop a resting position at 21 in and then every 3.5 in.
A five inch cylinder drives the cable lift
The LFPA12 uses a 5 in hydraulic cylinder and aircraft-quality lifting cables. Its runways take 110 seconds to rise or drop.

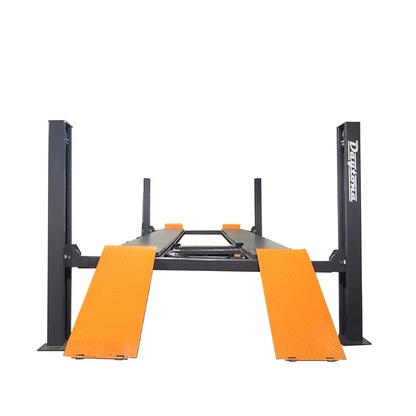

Orange ramps mark the approach
The bright orange approach ramps tilt for vehicle loading. Fully lowered, the ramps, runways and connecting yokes rest on the floor.
Front stops set the loading position
Raise the included front wheel stops before driving onto the LFPA12. Stop the vehicle when it reaches them, with its rear wheels forward of the ramps.
Best For
Alignment Centers
On 216.5 in runways, the LFPA12's slip plate and turntable setup streamlines alignment work.
Dealership Service Centers
At 12,000 lb, the LFPA12 accommodates a wide range of passenger vehicles and light trucks in dealership service.
Heavy Duty & Fleet Maintenance
The LFPA12 can lift commercial service vans and dual rear wheel pickups for fleet maintenance.
Specifications
| Lift capacity | 12,000 lb |
|---|---|
| Runway height, lowered to full rise | 10.2 to 66.9 in |
| Lock positions | Every 3.5 in, starting at 21 in |
| Lifting system | 5 in hydraulic cylinder with aircraft-quality cables |
| Rise and drop time | 110 seconds |
| Overall height | 93.8 in |
|---|---|
| Overall width | 142.9 in |
| Overall length, post bases | 236.2 in |
| Overall length with ramps | 283.2 in |
| Length inside posts | 210.0 in |
| Base plates | 16.5 x 13.4 in, 0.5 in thick |
| Runway width | 25.6 in |
|---|---|
| Runway length | 216.5 in |
| Width between runways | 43.7 in |
| Runway center to center | 69.3 in |
| Alignment equipment | Built-in slip plates, adjustable turntables |
| Approach ramps | Tilting, 53.2 in long |
| Power | 240V, 4 HP, 15 A, single-phase, 60 Hz |
|---|---|
| Finish | Dark gray matte powder coat |
What's Included
- Posts x4
- Runways with built-in slip plates x2
- Adjustable turntables
- Tilting approach ramps x2
- Front wheel stops
- Hydraulic power unit, 240V, 4 HP, mounted on a post x1
Optional Accessories
- Daytona RAJ8 8,000 lb Rolling JackRAJ8Fits the LFPA12 with 2-3/4 in pad extensions; air powered and sold individually
Not Included
- Wheel alignment machine
- Rolling jacks (RAJ8, sold individually)
- Installation, anchoring, and electrical connection
Installation Requirements
Indoor approach and 53.2 in ramps
Install the LFPA12 indoors. Its tilting approach ramps are 53.2 in long.
Ceiling check at full runway rise
The LFPA12 posts stand 93.8 in high. With the runways at their 66.9 in full-rise height, check overhead room for the tallest vehicle the bay will raise.
Concrete under four base plates
The four posts bolt to a concrete foundation through 16.5 x 13.4 in base plates. Confirm the slab at each anchor location before setting the LFPA12 layout.
Warranty
Documents
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
What is the lowering sequence for the Daytona LFPA12?
Raise the LFPA12 high enough for its four latches to clear the slots inside the columns. Hold the latch release handle at the power-unit column throughout descent while pushing the lowering handle; letting go re-engages the latches. How firmly you press the lowering handle sets descent speed.
How should an RAJ8 be used on the Daytona LFPA12?
For wheel-free work, optional RAJ8 units sold separately turn the LFPA12 into a 4-post alignment lift with rolling jacks. Place the LFPA12 runways on engaged locks before using the jack to raise a vehicle. Do not move the lift with weight on the RAJ8. Ahead of the next drive-on, fully lower any installed jacks and roll the rear jack toward mid-lift.
Which electrical supply runs the Daytona LFPA12?
The LFPA12 requires a 15 A supply at 240V, single phase and 60 Hz for its 4 HP power unit. The unit mounts to a lift post.
Is shop air needed for the Daytona LFPA12 without an RAJ8?
Yes. The LFPA12 lock system still needs a shop-air connection when no RAJ8 rolling jack is installed.
How are the Daytona LFPA12 alignment surfaces maintained?
Weekly, clear debris from the LFPA12's rear slip plates and turning radius gauges using shop air. Monthly, lubricate the guide for each turning radius plate and check whether the runways are level; adjust their level if needed.
