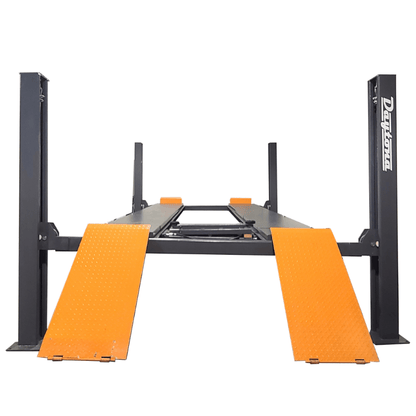

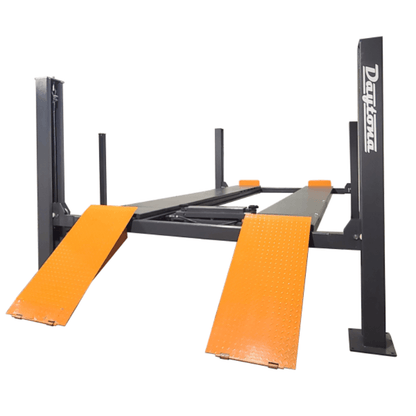

Daytona LFPA14 - 14,000 lb 4-Post Alignment Lift with Slip Plates and 247.5 Inch Runways
SKU: LFPA14
$11,590.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- Longer runways for a mixed vehicle bay
- Runway width for varied vehicle widths
- One handle releases the lock ladder
Talk to a lift specialistExpert product and freight support before you order855-498-2147
- Authorized Daytona Lifts Dealer
- Manufacturer Warrantyincluded with purchase
- No Sales Tax Collected Outside PAPA orders include sales tax
More runway is the reason to consider the Daytona LFPA14. This 14,000 lb 4-post alignment lift serves passenger cars, large SUVs and trucks, and accommodates most dual rear wheel pickups.
Its rear slip plates are built into the runways, with adjustable turntables included. The wheel alignment machine and rolling jacks are separate purchases. Browse other bay layouts in our alignment lift collection.
Features
Longer runways for a mixed vehicle bay
At 247.5 in, the LFPA14 runways are 31 in longer than the LFPA12's. That extra length gives the operator more fore-and-aft room to position a vehicle on the platform.
Runway width for varied vehicle widths
Each LFPA14 runway offers 25.6 in of driving surface, accommodating tires from vehicles of varied widths.
One handle releases the lock ladder
The LFPA14 rests on its lock ladder from 21 in upward in 3.5 in steps. Once raised clear, one handle frees all four latches for lowering; they re-engage when the handle is released.
A 110 second rise and drop
Aircraft-quality cables are paired with a 5 in hydraulic cylinder on the LFPA14. Rise and drop take 110 seconds on this model.
Dark grey matte powder coat
The LFPA14 has an industrial grade dark grey matte powder coat finish. In salt-belt shops or other corrosive environments, wash the lift down weekly and keep its runways and linkages clean.
Best For
Alignment Centers
The LFPA14 sets its runways 43.7 in apart for alignment centers handling a range of vehicle widths.
Dealership Service Centers
The LFPA14 has 242.6 in between its posts for a dealership service mix that extends from passenger cars to large SUVs and trucks.
Heavy Duty & Fleet Maintenance
For dually trucks and fleet vehicles, the LFPA14 provides a 14,000 lb rated platform.
Specifications
| Lift capacity | 14,000 lb |
|---|---|
| Runway height, lowered to full rise | 10.2 to 66.9 in |
| Lock positions | Every 3.5 in, starting at 21 in |
| Lifting system | 5 in hydraulic cylinder with aircraft-quality cables |
| Rise and drop time | 110 seconds |
| Overall height | 94.3 in |
|---|---|
| Overall width | 153.9 in |
| Overall length, post bases | 268.7 in |
| Overall length with ramps | 315.7 in |
| Length inside posts | 242.6 in |
| Base plates | 16.5 x 13.4 in, 0.6 in thick |
| Runway width | 25.6 in |
|---|---|
| Runway length | 247.5 in |
| Width between runways | 43.7 in |
| Runway center to center | 69.3 in |
| Alignment equipment | Built-in slip plates, adjustable turntables |
| Approach ramps | Tilting, 53.2 in long |
| Power | 240V, 4 HP, 15 A, single-phase, 60 Hz |
|---|---|
| Finish | Dark gray matte powder coat |
What's Included
- Posts x4
- Runways with built-in slip plates x2
- Adjustable turntables
- Tilting approach ramps x2
- Front wheel stops
- Post-mounted hydraulic power unit, 240V, 4 HP x1
Optional Accessories

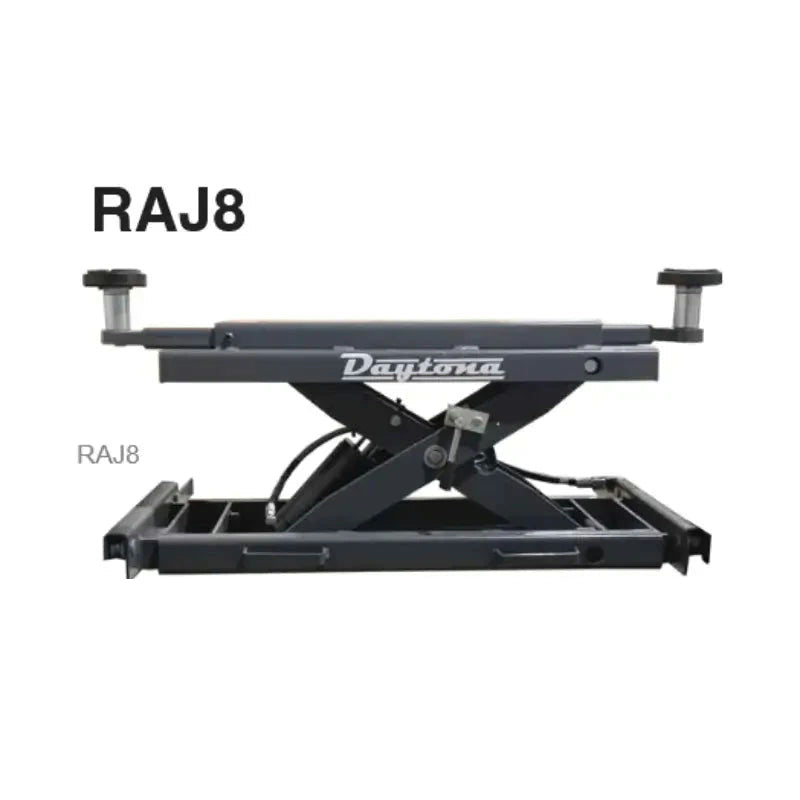

- Daytona RAJ8 8,000 lb Rolling JackRAJ8Fits the LFPA14 with 2-3/4 in pad extensions; operates on air and is sold individually
Not Included
- Wheel alignment machine
- Rolling jacks (RAJ8, sold individually)
- Installation, anchoring, and electrical connection
Installation Requirements
Base-plate width is 153.9 in
The LFPA14 needs an indoor position with 268.7 in of post-base length and 315.7 in overall with ramps. The base plates span 153.9 in across the lift, with the power unit mounted outside that line on one post.
94.3 in posts and overhead room
At full rise, the LFPA14 runways reach 66.9 in. Allow for the tallest intended vehicle above that height when checking the ceiling; the posts themselves stand 94.3 in.
Concrete at every anchor point
Each LFPA14 column is anchored to concrete through a 16.5 x 13.4 in base plate. Verify the slab beneath all four planned column positions.
One post carries the power unit
The post-mounted 4 HP unit uses 240V, 15 A, 60 Hz single-phase power. Shop air connects to the LFPA14 lock system; an added RAJ8 uses air too.
Warranty
Documents
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
What must happen before an RAJ8 lifts a vehicle on the Daytona LFPA14?
The LFPA14 works as a 4-post alignment lift with rolling jacks when optional RAJ8 units are added; they are sold separately. Before an RAJ8 raises a vehicle, bring the LFPA14 down to an engaged runway lock. With the jack loaded, keep the four-post lift still. Any installed jacks must be fully lowered for drive-on, with the rear one rolled toward the middle to clear the vehicle's underside.
How should the front wheel stops be set on the Daytona LFPA14?
The LFPA14 front wheel stops must be upright before a vehicle drives onto the runways. Stop when the tires contact them, and keep the rear tires ahead of the approach ramps so the ramps clear during the lift.
When is the Daytona LFPA12 enough instead of the Daytona LFPA14?
Choose the LFPA12 when its 12,000 lb capacity and 216.5 in runways cover the vehicles. Its outer post bases span 236.2 in length, and the ramps bring the total to 283.2 in. The RAJ8 pairs with either model.
What does the Daytona LFPA14 need checked each day?
Inspect the LFPA14 cables and sheaves for wear, test the locking latches for operation and reset, and examine the front wheel stops and ramps for damage. Replace worn components with genuine Daytona parts.
How are the Daytona LFPA14 lifting cables maintained?
Monthly, spray penetrating oil onto the LFPA14 wire rope cables and wipe them down with the lift lowered and raised. Inspect cable wear each month as well. Have the installer check cable adjustment after the first 50 loaded cycles, then again after 300.
