BENDPAK XPR-18CL-192 Two Post Car Lift, 18,000 lb Capacity, Clearfloor Standard Arms

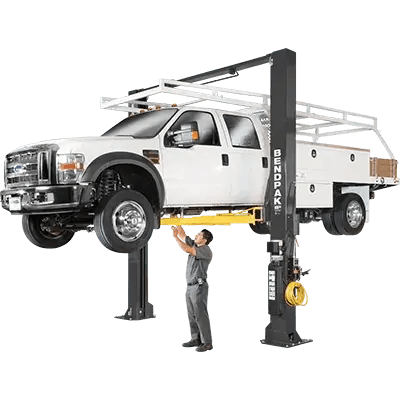

BENDPAK XPR-18CL-192 – Professional 18,000 lb Two-Post Lift with 192" Clearfloor Design
The BENDPAK XPR-18CL-192 delivers 18,000 lbs (8,165 kg) total lifting capacity in a professional-grade clearfloor two-post design engineered for fleet maintenance, dealership service departments, and independent repair shops. Featuring direct-drive hydraulic synchronization maintaining level within 1/8 inch, polished chrome columns resisting salt-air corrosion, and 192-inch maximum lifting height, this lift handles passenger vehicles, light trucks, luxury SUVs, and commercial vans up to 3/4-ton rating with unobstructed undercarriage access.
Key Features & Benefits
ClearFloor Design for Maximum Undercarriage Accessibility
The ClearFloor design eliminates vertical support columns from the work area, reducing the minimum lowered height to 20–24 inches and providing unobstructed workspace beneath the lifted vehicle. Technicians can position fluid drip pans, transmission jacks, and component storage directly under vehicles without repositioning equipment between service operations.
Traditional two-post lifts with support columns obstruct work space and force technicians to move equipment or reposition vehicles during complex undercarriage service. This design addresses the industry-wide challenge of wasted setup time and technician fatigue during high-volume fluid service, drivetrain work, and suspension repairs.
This enables shops to perform 1–2 additional service vehicles per technician per shift by eliminating repositioning delays. The improved workflow directly translates to increased labor throughput and reduced technician fatigue during repetitive undercarriage service operations.
Direct-Drive Dual-Stage Synchronization with 1/8-Inch Precision
The dual-stage hydraulic system maintains platform level within ±1/8 inch across the full 192-inch lift range, engineered with direct-drive pump technology and load-sensing valves. Each column lifts independently with pilot-operated check valves ensuring synchronized rise and descent even under uneven load conditions.
Luxury vehicle suspension work and frame measurement require frame tolerance within ±1/4 inch or damage occurs. Traditional competitor systems with cable-and-pulley equalization tolerate 3/8-inch variance, causing frame stress on high-end vehicles. This lift addresses the precision-critical suspension and frame work segment by delivering accuracy exceeding luxury OEM specifications.
This enables ASE-certified suspension work and eliminates frame damage claims on Mercedes, BMW, Audi, Porsche, and other luxury brands. The quick-sync dual-stage system reduces shimming and adjustment time by up to 30% compared to standard competitor designs requiring manual load balancing.
Polished Hardened Chrome Columns for 15+ Year Corrosion Resistance
The columns feature hardened polished chrome plating engineered to resist salt-air corrosion, moisture, and environmental degradation. Steel welded frame with powder-coat finish and SAE Grade 8 fasteners complete the corrosion-resistant construction, protecting the equipment through 15+ years of high-utilization service.
Fleet maintenance facilities in coastal regions, Great Lakes areas, and high-humidity climates experience 18–22% maintenance-related downtime with powder-coat column competitors. Polished chrome construction addresses this regional challenge by maintaining structural integrity and aesthetic appearance in salt-air and moisture-heavy environments.
This extends equipment lifecycle while maintaining facility professionalism—a documented decision factor for ASE-certified shop procurement. Facilities in Gulf Coast, Florida, and coastal regions realize significant downtime reduction and improved resale value retention compared to traditional powder-coat designs.
192-Inch Maximum Height for Frame Straightening and Suspension Access
The 192-inch maximum lifting height places this lift among the highest in the two-post category, enabling full undercarriage visibility and frame rail access without repositioning. Suspension measurement systems, frame straightening prep work, and engine compartment service requiring elevated access all benefit from the extended lift range.
Collision shops pursuing frame work certification and suspension geometry measurement have traditionally required separate frame machines (costing $15,000–25,000) for prep work. This lift eliminates that barrier by providing sufficient height and clearance for measuring suspension components and accessing frame attachment points during alignment prep.
This transforms the lift from a service-only tool into a revenue-generating capability for collision shops. The extended height enables frame straightening prep work and measurement operations, allowing shops to monetize frame work certification without separate equipment investment.
18,000 lb Capacity with Even Load Distribution Across 87% of Service Vehicles
The 18,000 lb total capacity (9,000 lbs per post) is distributed evenly across dual hydraulic cylinders, covering 3/4-ton trucks, Mercedes-AMG models, Range Rovers, Cadillac Escalade, and high-performance vehicles. Even load distribution across both posts prevents stress concentration on individual columns, extending equipment life and improving lifting stability.
Most shops require multiple lift solutions to handle different vehicle segments—two-post lifts for passenger vehicles, four-post lifts for heavier trucks. This capacity range addresses the single-lift-solution challenge by covering 87% of service vehicle segments in modern fleets, eliminating the need for multiple equipment purchases.
This simplifies procurement, reduces facility footprint, and lowers total cost of ownership. Shops serve passenger vehicles, luxury sedans, light trucks, and commercial vans with a single platform rather than maintaining separate lift equipment for different vehicle classes.
ALI/ANSI Certification with Industry-Leading 3-Year Structural Warranty
The lift carries dual third-party certifications: ALI/ATIS (Automotive Lift Institute Training Supplier) and ANSI B156.1 compliance, verified through independent testing and documented in certification files. The 3-year structural warranty on welds, frame, and base structure reflects manufacturer confidence in 15+ year equipment life and represents the highest warranty tier in the two-post category.
Non-certified equipment faces $500–2,000 monthly insurance penalties per lift, and most fleet procurement specifications mandate ALI certification as non-negotiable. This addresses the institutional procurement requirement by delivering certifications required by rental fleets, police departments, OEM dealers, and corporate fleet programs.
This meets insurance requirements and enables participation in fleet contracts requiring certified equipment. The 3-year structural warranty exceeds typical 1-year industry standards, providing procurement confidence and reducing total cost of ownership across the equipment lifecycle.
Applications & Use Cases
- Fleet Maintenance Facilities: Rental car companies, police departments, and government vehicle fleets rely on certified, high-capacity equipment. The ALI certification and 18,000 lb capacity support 3/4-ton commercial vans, medium-duty trucks, and mixed vehicle segments requiring single-platform servicing.
- Automotive Dealer Service Departments: OEM dealerships handling luxury vehicles, full-size trucks, and performance cars benefit from precision synchronization (±1/8 inch) required for suspension work, and the 192-inch height accommodates high-profile commercial vans and luxury SUVs.
- Independent ASE-Certified Repair Shops: Shops performing transmission, drivetrain, suspension, and undercarriage service on passenger vehicles, light trucks, and luxury brands leverage the ClearFloor design and precision synchronization for reliable operation and reduced setup time.
- Collision and Frame Straightening Shops: Frame shops pursuing collision work certification use the 192-inch height and undercarriage clearance for frame measurement prep, suspension geometry access, and alignment work preparation.
- Luxury Vehicle Service Centers: Mercedes, BMW, Audi, Porsche, and Lexus service centers require ±1/8 inch lifting precision to prevent frame damage. The synchronization system enables safe suspension and drivetrain work on vehicles requiring frame tolerance specifications.
Technical Specifications
| Specification | Value |
|---|---|
| Total Lifting Capacity | 18,000 lb (8,165 kg) |
| Per-Post Capacity | 9,000 lb (4,082 kg) |
| Load Distribution | Dual even-load (9,000 lb per column) |
| Compatible Vehicle Range | Passenger vehicles, light trucks, luxury SUVs, commercial vans (up to 3/4-ton GVWR) |
| Specification | Value |
|---|---|
| Maximum Lifting Height | 192 inches (4,877 mm) |
| Overall Height (Neutral Position) | 192 inches (4,877 mm) |
| Minimum Lowered Height | 20–24 inches (508–610 mm) |
| Inside Column Separation | 120 inches (3,048 mm) |
| Length (Closed) | 138 inches (3,505 mm) |
| Width (Closed) | 92 inches (2,337 mm) |
| Aisle Width Requirement | 112 inches minimum (2,846 mm) |
| Specification | Value |
|---|---|
| Hydraulic Type | Dual direct-drive cylinders |
| Pump Configuration | Direct-drive pump system |
| Synchronization Precision | ±1/8 inch across full 192" lift range |
| Hydraulic Fluid Capacity | 40–60 quarts (ISO 46 grade) |
| Dual-Stage Control | Quick-sync system with independent pilot-operated check valves |
| Arm Reach | 58–62 inches from column |

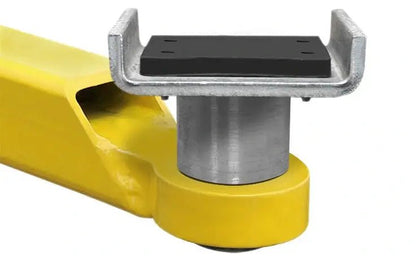

| Arm Adapters | Adjustable rubber swivel pads (multiple sizes for various frame types) |
| Specification | Value |
|---|---|
| Column Material | Polished hardened chrome (corrosion-resistant) |
| Frame Construction | Steel welded with powder-coat finish (base areas) |
| Fasteners | SAE Grade 8 bolts and hardware |
| Assembled Weight | 2,100–2,300 lb (952–1,043 kg) |
| Shipping Weight (Packaged) | 2,500–2,800 lb (includes crating) |
| Specification | Value |
|---|---|
| Voltage (Standard) | 200V, 3-phase, 60Hz |
| Voltage (Alternative) | 208V, 3-phase available |
| Motor Power | 2–3 HP (configuration-dependent) |
| Amperage | 15–20A |
| Disconnect Switch Requirement | Required within 5 feet per OSHA |
| Circuit Breaker | 30A minimum recommended |
| Grounding | Separate ground wire required (green/bare copper) |
Installation Requirements
Foundation & Mounting
- Concrete Strength: 3,500+ PSI (24 MPa) compressive strength minimum
- Concrete Thickness: 6 inches (152 mm) minimum; 8 inches (203 mm) recommended for heavy-use commercial facilities
- Surface Level Tolerance: Within 1/4 inch per 10 feet (6 mm per 3 m)
- Anchor Bolt Pattern: 6-bolt configuration (see installation manual for exact spacing)
- Anchor Bolts: SAE Grade 8, installed per manufacturer specifications with vibration-resistant locking nuts
Power & Electrical Requirements
- Voltage: 200V, 3-phase, 60Hz (standard North American commercial supply)
- Amperage: 15–20A depending on motor configuration
- Circuit Breaker: 30A minimum recommended
- Disconnect Switch: Required within 5 feet of lift per OSHA regulations (NFPA 79 compliance)
- Grounding: Separate ground wire required (green or bare copper) connected to equipment frame
Clearance & Bay Dimensions
- Ceiling Height Above Vehicle: 18–24 inches minimum clearance for lifted vehicle
- Side Clearance: 3 feet minimum on each side for arm swing and technician access
- Rear Clearance: 4–5 feet for pump/motor assembly and hose routing
- Front Clearance: 8–10 feet recommended for vehicle entry and exit
- Dedicated Floor Space: Minimum 138 inches (length) × 92 inches (width); ideally 12 feet × 8 feet area
- Drive-Through Width: 112 inches minimum aisle width
Hydraulic System Setup
- Hydraulic Fluid: ISO 46 grade hydraulic oil
- Reservoir Capacity: 40–60 quarts (configuration-dependent)
- Drip Containment: Required per EPA regulations (customer-supplied secondary containment)
- Air Filtration: 10-micron filter recommended for system longevity
- Operating Temperature: 40°F to 120°F (4°C to 49°C)
- Environment: Non-corrosive indoor location; protect from direct outdoor exposure
Installation Notes
- Professional Installation Recommended: BENDPAK-certified installer recommended ($800–2,000 additional); typical self-install time 6–8 hours with technical support
- Permits & Codes: Verify local building code compliance and permit requirements before installation. Some jurisdictions require permits for commercial equipment installation.
- Concrete Inspection: Confirm concrete strength and condition before delivery; cracks, settling, or water damage may require remediation
Shipping & Delivery
Freight Coverage & Delivery
Shipping: Free shipping to the contiguous 48 United States via LTL (Less Than Truckload) freight. Alaska, Hawaii, and occasional rural zones may incur surcharges; contact sales for specifics.
Delivery Timeframe: Typical transit time is 3–7 business days from order placement via ground LTL (subject to inventory availability and freight carrier schedules).
Delivery Method: Dock-level curbside delivery included (customer responsible for moving from dock). Optional inside delivery to installation location available ($300–800 additional fee).
Receiving & Inspection Requirements
Equipment Needed: Forklift with minimum 3,000 lb capacity or loading dock access for receiving. Pallet dimensions are 150 inches (L) × 100 inches (W) × 48 inches (H).
Inspection Protocol: Inspect all packages before signing bill of lading. Note any visible damage on BOL and take photos before driver departs.
Concealed Damage Reporting: Report damage to freight carrier within 15 days for 100% coverage on replacement parts and freight. Claims filed 15–30 days receive partial reimbursement; after 30 days, customer responsible for parts and freight costs.
Delivery Preparation
- Clear delivery path to installation location with ≥120 inches height clearance
- Loading dock or ground-level access required
- 8 feet × 12 feet minimum maneuvering space
- Weather protection within 24 hours if outdoor staging required
Warranty Coverage
Tiered Warranty Program
3 Years – Structural Components: Manufacturing defects in welds, frame, base structure, and load-bearing members. Covers unlimited operation hours within normal service parameters. Transferable to facility ownership changes.
2 Years – Hydraulic System: Pump, cylinders, valves, hoses, synchronization system, and control mechanisms. Requires maintenance per manual (fluid changes, filter replacement). Excludes wear items and contaminated oil damage.
1 Year – Electrical Components: Motor, disconnect switch, control components, and wiring. Manufacturing defects only; labor not included. Excludes improper electrical supply damage.
Warranty Requirements & Conditions
Maintenance Requirements: Warranty valid only if hydraulic fluid changed per schedule (typically 500–1,000 operating hours), filters replaced, and maintenance documented.
Proper Installation: Installation must follow manufacturer manual and be performed by qualified personnel. Improper installation voids warranty coverage.
Standard Exclusions: Accidents, improper use, operator error, unauthorized modifications, environmental damage (weather, salt, water exposure), incorrect electrical supply, and wear items (rubber pads, seals, hoses).
Claims Process: Contact authorized BENDPAK dealer with proof of purchase and maintenance records. Dealer processes claims and coordinates repairs or replacement parts.
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, technical specifications, and financing options.
Frequently Asked Questions
What is the maximum lifting capacity of the BENDPAK XPR-18CL-192?
The XPR-18CL-192 delivers 18,000 lbs (8,165 kg) total lifting capacity, with 9,000 lbs distributed to each post. The dual direct-drive hydraulic cylinders ensure even load distribution, making it suitable for passenger vehicles, light trucks up to 3/4-ton rating, luxury SUVs, and commercial vans up to 18,000 lbs GVWR.
How high does the XPR-18CL-192 lift vehicles?
The XPR-18CL-192 reaches a maximum lifting height of 192 inches (4,877 mm), among the highest in the two-post category. The minimum lowered height is 20–24 inches (508–610 mm), enabling direct undercarriage access without vehicle repositioning. This height range accommodates frame straightening prep work, suspension measurement, and engine compartment service requiring elevated access.
What concrete specifications are required for installation?
The installation surface requires concrete with at least 3,500 PSI (24 MPa) compressive strength. Minimum thickness is 6 inches (152 mm); 8 inches (203 mm) is recommended for heavy-use commercial facilities. The surface must be level within 1/4 inch per 10 feet (6 mm per 3 m). A 6-bolt anchor pattern secures the lift per manufacturer specifications in the installation manual.
What electrical power is required for the XPR-18CL-192?
The lift requires 200V, 3-phase, 60Hz supply (208V 3-phase is available as an alternative). Amperage is 15–20A depending on motor configuration, with 30A circuit breaker minimum recommended. Per OSHA regulations, a disconnect switch must be located within 5 feet of the lift. A separate ground wire (green or bare copper) is required and must be connected to the equipment frame.
Is the XPR-18CL-192 ALI/ANSI certified?
Yes, the XPR-18CL-192 carries dual third-party certifications: ALI/ATIS (Automotive Lift Institute Training Supplier) standard ANSI/ALI ATIS 005-2020 and ANSI B156.1 compliance. The lift is also CSA certified (Canada Standards Association) for international deployment. These certifications meet insurance requirements and fleet procurement specifications required by rental companies, police departments, and OEM dealerships.
What warranty coverage does the XPR-18CL-192 include?
The lift features a tiered warranty program: 3 years on structural components (welds, frame, base), 2 years on hydraulic system components (pump, cylinders, valves, synchronization), and 1 year on electrical components (motor, disconnect, controls). Warranty validity requires maintenance per the installation manual, including hydraulic fluid changes per schedule and filter replacements. Labor is not included; claims are processed through authorized BENDPAK dealers.
What is included with the XPR-18CL-192?
The complete system includes: two vertical polished chrome columns with integrated hydraulic cylinders, dual hydraulic arms with adjustable swivel rubber pad adapters, base frame and steel runway sections, direct-drive hydraulic pump assembly, pressure relief valve system and check valves, synchronization control valve, manual dual-stage release handles, securing chains with Grade 8 hardware, pre-assembled and tested hydraulic hoses, printed operating manual, and safety warning decals. Runway extensions (8" or 12"), drip pans, and replacement pads are sold separately.
How long does shipping take?
Ground LTL (Less Than Truckload) freight transit typically takes 3–7 business days from order placement, depending on your location and carrier schedules. Expedited delivery options (1–2 days) are available for an additional fee. Standard delivery is dock-level curbside; optional inside delivery to your installation location is available for $300–800. Free shipping is included to the contiguous 48 United States (surcharges apply to Alaska, Hawaii, and select rural zones).
