BendPak XPR-12CL-192 Two-Post Lift Overview

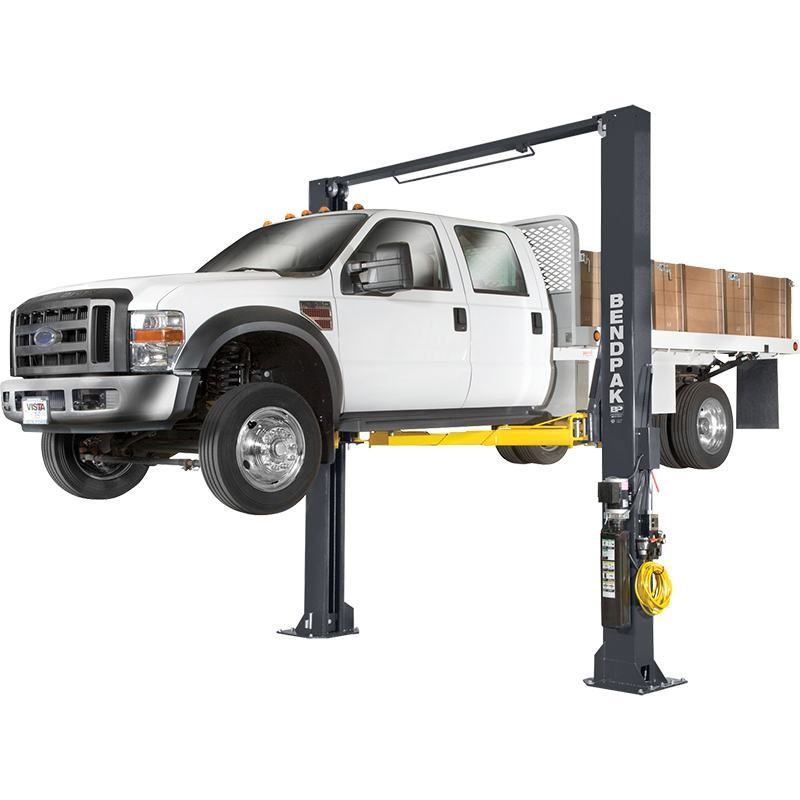

The XPR-12CL-192 was a 12,000 lb capacity clearfloor two-post lift featuring extended 192" column height and triple-telescoping arms. The tall-column design accommodated high-roof vehicles like sprinter vans, lifted trucks, and commercial vehicles while maintaining BendPak's Pure Direct-Drive performance.
XPR-12CL-192 Key Features
Extended 192" Column Height
The 192" tall columns provided additional overhead clearance for lifting high-roof vans, lifted trucks, and other tall vehicles that wouldn't fit under standard-height lifts. Essential for shops servicing fleet vehicles, sprinter vans, and lifted 4x4s.
Clearfloor Design
The clearfloor configuration eliminated floor obstructions between the columns, providing an unobstructed workspace for technicians and easier vehicle positioning compared to floorplate models.

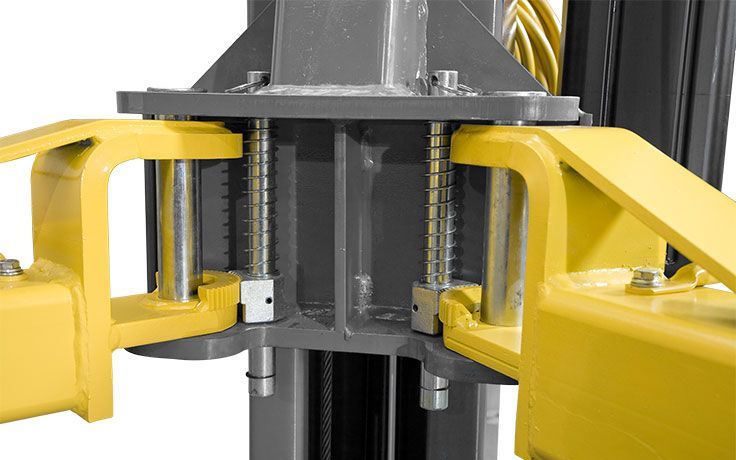

Triple-Telescoping Arms
Standard triple-telescoping arms provided versatile reach for a wide range of vehicle sizes and lift point configurations, from compact cars to full-size trucks within the 12,000 lb capacity.
Pure Direct-Drive Technology
BendPak's Direct-Drive hydraulic system delivered efficient, reliable lifting without the maintenance concerns of chain-over systems. Smooth operation throughout the full lifting stroke with consistent performance.
XPR-12CL-192 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Lift Design | Clearfloor Two-Post |
| Column Height | 192 in (extended height) |
| Arm Type | Triple-Telescoping Arms |
| Specification | Value |
|---|---|
| Motor | 220V / 50Hz / 1 Phase |
| Drive System | Pure Direct-Drive Hydraulic |
XPR-12CL-192 Documentation (Archive)
Frequently Asked Questions
Why was the XPR-12CL-192 discontinued?
BendPak replaced the XPR series with the new AP Series, which features significant safety and design improvements including the Automatic Swing Arm Restraint System (ASARS), Bi-Metric arms for both symmetric and asymmetric lifting, and enhanced EV-ready construction for heavier modern vehicles.
What is the direct replacement for the XPR-12CL-192?
The BendPak 12APX-192 is the direct replacement with the same 12,000 lb capacity and extended 192" column height, plus all the new AP Series safety and performance features.
What are the main differences between the XPR-12CL-192 and 12APX-192?
The 12APX-192 features BendPak's new AP Series technology including: ASARS (Automatic Swing Arm Restraint System) with 2,000+ lbs of holding force, Bi-Metric arms that work in both symmetric and asymmetric configurations without switching, enhanced safety lock system, and higher-tensile steel construction designed for heavier EVs.
Are XPR-12CL-192 replacement parts still available?
BendPak maintains parts support for discontinued models. Contact BendPak directly or an authorized dealer for replacement parts availability and pricing.
Is the XPR-12CL-192 still covered under warranty?
Original warranty coverage applies based on purchase date. Contact BendPak with your lift's serial number for warranty status verification.
