BENDPAK XPR-12CL-192-LTA Two Post Car Lift, 12,000 lb Capacity, Clearfloor 72" Long-Reach Telescoping Arms
View Original XPR-12CL-192-LTA Product Information & Specifications
BendPak XPR-12CL-192-LTA Two-Post Lift Overview

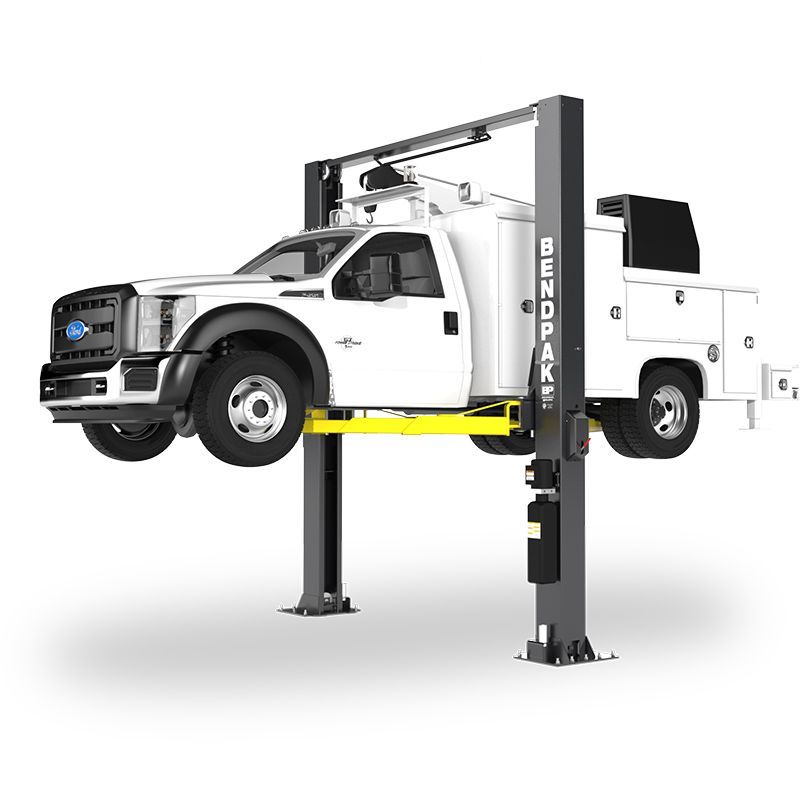

The XPR-12CL-192-LTA was a 12,000 lb capacity clearfloor two-post lift featuring extended 192" column height and BendPak's long-reach telescoping arms (LTA) with nearly 72 inches of reach. The tall-column design accommodated high-roof vehicles and lifted trucks, while the LTA arms reached hard-to-access lift points on vehicles with extremely long wheelbases.
XPR-12CL-192-LTA Key Features

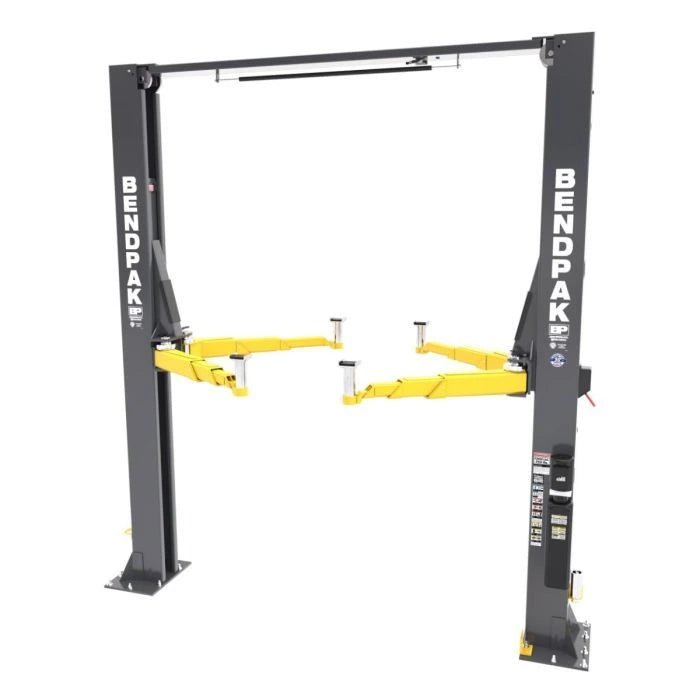

Extended 192" Column Height
The 192" tall columns provided additional overhead clearance for lifting high-roof vans, lifted trucks, and other tall vehicles that wouldn't fit under standard-height lifts. Essential for shops servicing fleet vehicles and lifted 4x4s.

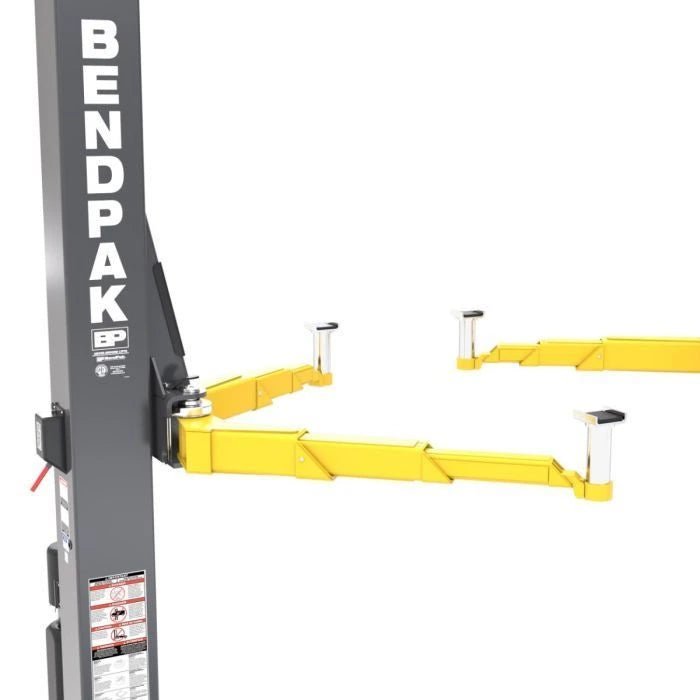

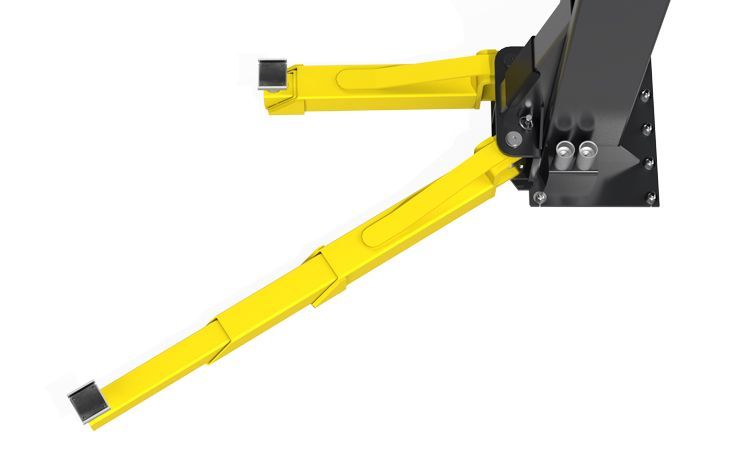

Long-Reach Telescoping Arms (LTA)
Nearly 72 inches of arm reach compared to 58 inches on standard triple-telescoping arms. This extended reach made it ideal for servicing vehicles with extremely long wheelbases and hard-to-access lift points that other two-post lifts cannot reach.
Clearfloor Design
The clearfloor configuration eliminated floor obstructions between the columns, providing an unobstructed workspace for technicians and easier vehicle positioning compared to floorplate models.
Pure Direct-Drive Technology
BendPak's Direct-Drive hydraulic system delivered efficient, reliable lifting without the maintenance concerns of chain-over systems. Smooth operation throughout the full lifting stroke with consistent performance.
XPR-12CL-192-LTA Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Lift Design | Clearfloor Two-Post |
| Column Height | 192 in (extended height) |
| Arm Type | Long-Reach Telescoping Arms (LTA) |
| Arm Reach | 72 in (1,829 mm) |
| Specification | Value |
|---|---|
| Motor | 220V / 50Hz / 1 Phase |
| Drive System | Pure Direct-Drive Hydraulic |
XPR-12CL-192-LTA Documentation (Archive)
Frequently Asked Questions
Why was the XPR-12CL-192-LTA discontinued?
BendPak replaced the XPR series with the new AP Series, which features significant safety and design improvements including the Automatic Swing Arm Restraint System (ASARS), Bi-Metric arms for both symmetric and asymmetric lifting, and enhanced EV-ready construction for heavier modern vehicles.
What is the direct replacement for the XPR-12CL-192-LTA?
The BendPak 12APX-192 is the recommended replacement with the same 12,000 lb capacity and extended 192" column height. However, the 12APX-192 uses Bi-Metric arms rather than long-reach telescoping arms (LTA). If your application specifically requires the 72-inch reach of the LTA design, contact us to discuss your requirements.
Does the 12APX-192 have the same arm reach as the XPR-12CL-192-LTA?
The 12APX-192 uses Bi-Metric arms which offer different reach specifications than the LTA design. The XPR-12CL-192-LTA featured nearly 72 inches of reach specifically for long-wheelbase vehicles. Contact our team to verify if the 12APX-192 reach meets your specific vehicle requirements.
Are XPR-12CL-192-LTA replacement parts still available?
BendPak maintains parts support for discontinued models. Contact BendPak directly or an authorized dealer for replacement parts availability and pricing.
Is the XPR-12CL-192-LTA still covered under warranty?
Original warranty coverage applies based on purchase date. Contact BendPak with your lift's serial number for warranty status verification.
Need Help Choosing a Replacement?
Our team can help you find the right AP Series lift for your shop. We'll walk you through the differences and help with installation planning - especially if you need to verify arm reach for long-wheelbase vehicles or ceiling clearance for the 192" columns.
