BendPak HD-9SWX 9,000 lb Extended Super-Wide Dual-Platform Four-Post Lift
The BendPak HD-9SWX is the extended-length, high-rise version of the super-wide series. It features 188" runways and 82" of rise for long-wheelbase trucks and taller mechanics who need more headroom. The 192" post-to-post clearance parks two vehicles side by side on the runways with room for two more underneath. Same 9,000 lb capacity as the standard HD-9SW, but with extra dimensions for extended cab trucks and full-size SUVs. ALI certified with a 5-2-1 warranty.
Who It's For
- Long-Wheelbase Vehicle Owners: Extended cab trucks, Suburbans, Expeditions, and other long vehicles that don't fit on standard 164" runways. The 188" runways handle wheelbases up to 135" at full capacity.
- Taller Mechanics: The 82" rise gives you an extra foot of headroom compared to the standard HD-9SW. If you're over 6 feet tall and tired of ducking, this is the model for you.

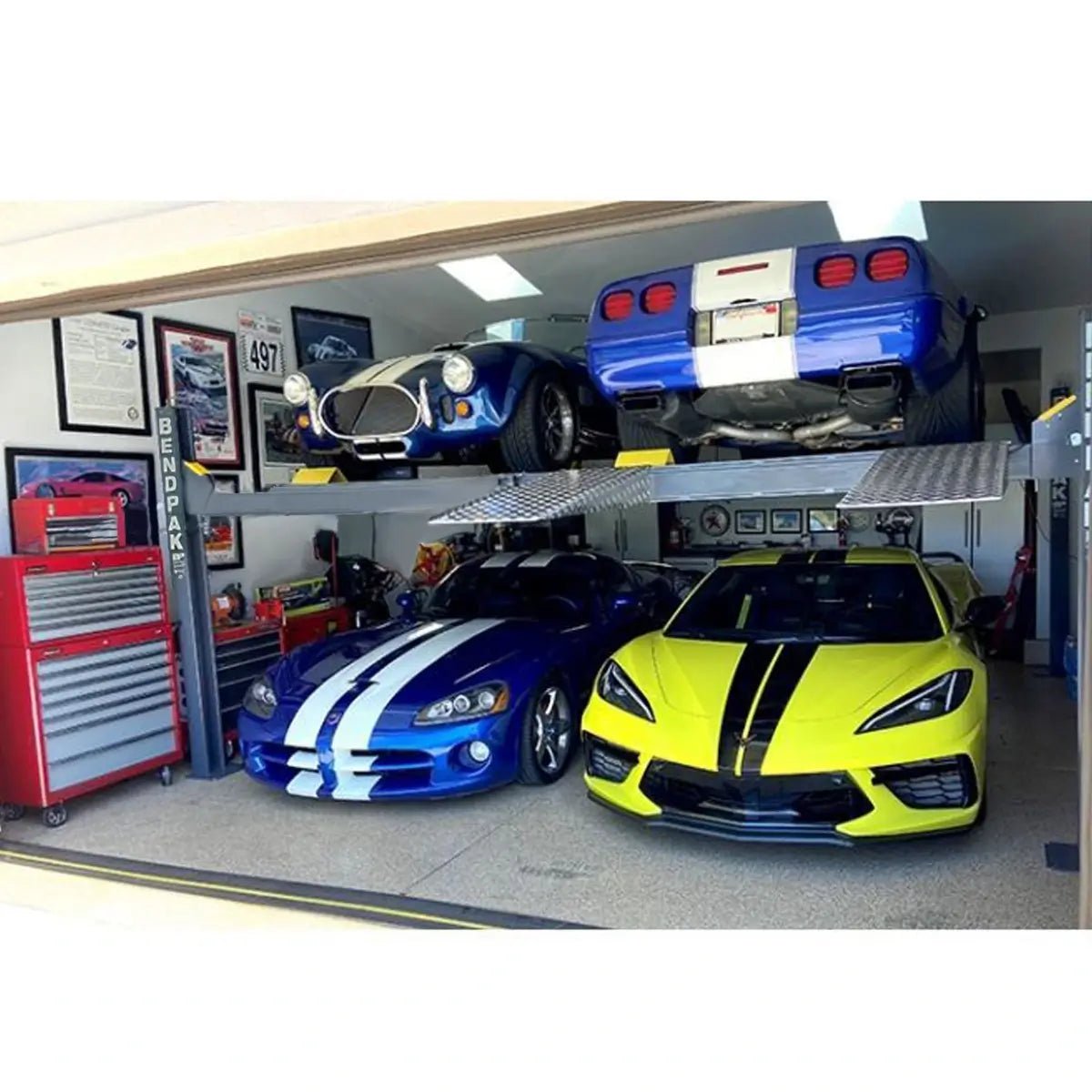

- Multi-Car Collectors: Stack four vehicles in a two-car space. The extended runways fit full-size trucks and SUVs alongside sports cars.
- Professional Shops: Service two vehicles at once on the open-center runways. The extra rise and runway length handle a wider range of customer vehicles.

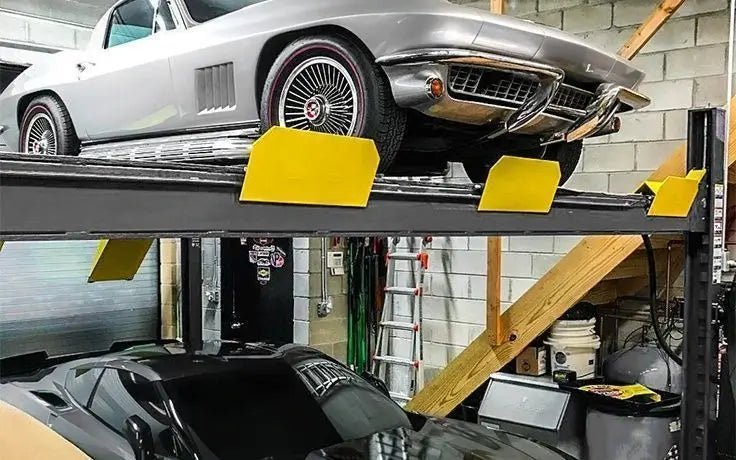

- High-Clearance Vehicle Storage: The 82" rise clears lifted trucks and SUVs for underneath parking. The 89" maximum lifting height provides room for taller vehicles on the lower level.
Features
Extended 188" Runways
The HD-9SWX runways are 24" longer than the standard HD-9SW. At 188", they handle vehicles with wheelbases up to 135" at full 9,000 lb capacity, covering most extended cab trucks, crew cab pickups, and full-size SUVs. Wheelbase requirements scale with load: 115" at 75% capacity, 95" at 50%, and 80" at 25%.
82" High Rise
82" maximum rise with 89" maximum lifting height, providing 12" more headroom than the standard HD-9SW. Column height is 102" (8.5 feet). The extra rise makes a real difference if you're tall or working on vehicles for extended periods, and clears taller trucks for underneath parking.
Super-Wide 192" Post-to-Post Clearance

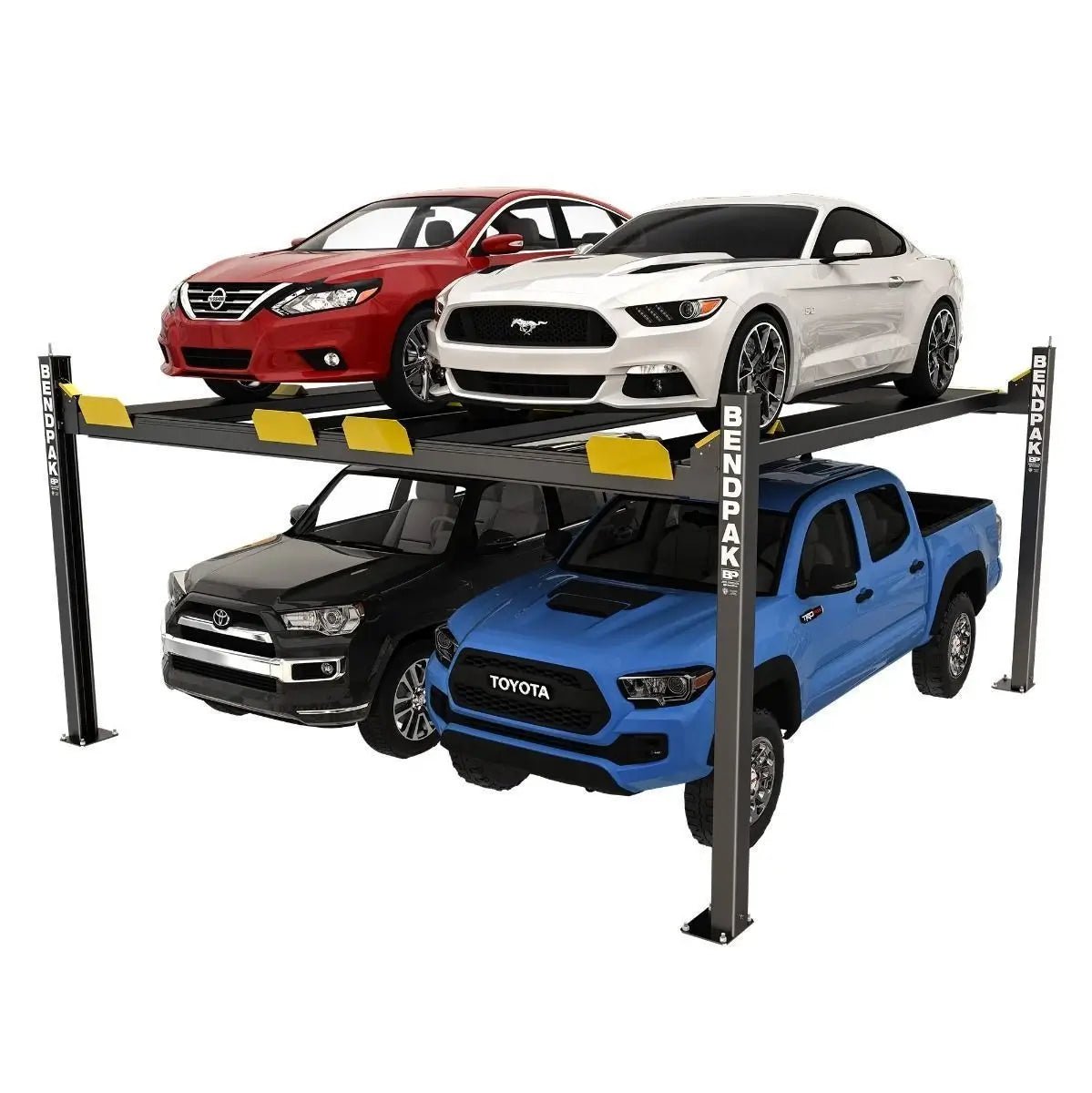

202" overall width with 192" between columns and 178" drive-thru clearance. This dual-platform design parks two vehicles side by side on the runways, then two more underneath. Four vehicles in the space of two is the core capability of the HD-9SWX.
9,000 lb Total Lifting Capacity
9,000 lb total capacity split across the dual platforms, with a maximum of 4,500 lb per side. Four heavy-duty 3/8" stainless steel aircraft cables provide over 640% of the lift's rated capacity. Handles sedans, sports cars, mid-size trucks, and most SUVs.
Open-Center Dual Runways
The runways are completely open-center, turning this parking lift into a dual-purpose service station for accessing the underside of both vehicles simultaneously. Adjustable runway spacing: 34.25" to 41" between runways, 56.25" to 62.75" centerline, 75.25" to 81.75" outside edge.
Cable-Driven Lifting System

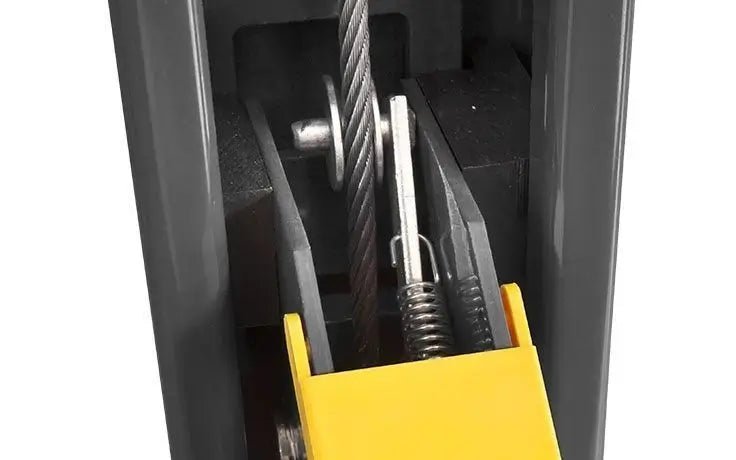

Four 3/8" stainless steel aircraft cables, each rated for 14,400 lb, with heavy-duty 1.25" roller axles and oversized self-lubricating cable rollers. All cables are fully enclosed within the columns with dual-hub cable sheaves reducing friction. Internal anti-sway slider blocks keep platforms tracking straight.
17-Position Safety Lock System
17 locking positions every 4" across the 82" rise. Spring-activated automatic safety locks engage simultaneously as the lift rises. Push-button pneumatic release disengages all locks simultaneously. Requires air supply: minimum 30 PSI / 3 CFM. Independent backup slack-cable safety latches provide secondary protection.
Single-Cylinder Hydraulic Design
Single hydraulic cylinder mounted under the runway with integrated electric-hydraulic power unit. 65 seconds to full rise at 45 dB operating noise. Power unit location is customizable during installation and requires no maintenance under normal operating conditions.
Low-Deck Runways
7" minimum runway height with extended approach ramps included. Sports cars and lowered vehicles load without scraping. Rail kit included for optional accessories. Removable approach ramps provide additional drive-under clearance when needed. Comes standard with one pair of aluminum ramps.
Specifications
| Lifting Capacity | 9,000 lb (4,082 kg) |
|---|---|
| Max Capacity Front Axle | 4,500 lb (2,041 kg) |
| Max Capacity Rear Axle | 4,500 lb (2,041 kg) |
| Motor | 220 VAC / 60 Hz / 1 Phase |
| Air Supply Required | Minimum 30 PSI / 3 CFM |
| Overall Width | 202" (5,131 mm) |
|---|---|
| Outside Length | 198" (5,029 mm) |
| Overall Length (with ramps) | 242.5" (6,159 mm) |
| Column Height | 102" (2,591 mm) |
| Width Between Columns | 192" (4,877 mm) |
| Drive-Thru Clearance | 178" (4,521 mm) |
| Runway Width | 19" (483 mm) |
|---|---|
| Runway Length | 188" (4,775 mm) |
| Width Between Runways | 34.25" to 41" (870 to 1,041 mm) |
| Runway Centerline | 56.25" to 62.75" (1,429 to 1,594 mm) |
| Outside Edge of Runways | 75.25" to 81.75" (1,911 to 2,076 mm) |
| Minimum Runway Height | 7" (178 mm) |
|---|---|
| Maximum Rise | 82" (2,083 mm) |
| Maximum Lifting Height | 89" (2,261 mm) |
| Time to Full Rise | 65 seconds |
| Locking Positions | 17 positions every 4" |
| Operating Noise | 45 dB |
| 100% Capacity (9,000 lb) | 135" (3,429 mm) |
|---|---|
| 75% Capacity (6,750 lb) | 115" (2,921 mm) |
| 50% Capacity (4,500 lb) | 95" (2,413 mm) |
| 25% Capacity (2,250 lb) | 80" (2,032 mm) |
| Shipping Weight | 3,038 lb (1,378 kg) |
|---|---|
| Shipping Dimensions | 205" x 22" x 51" |
Installation Requirements
Concrete Foundation
Minimum 4" thick, fully cured (28 days minimum), 3,000 PSI strength. Surface must be flat and level within 3 degrees of slope with no cracks or defects within 6" of anchor points.
Electrical & Air
Power: 220 VAC / 60 Hz / single-phase with dedicated breaker and main power disconnect within sight of operator. Licensed electrician required. Air: Compressor required for safety lock release, minimum 30 PSI / 3 CFM.
Space Requirements
Column height is 102" (8.5 ft). Plan for 12-14 ft minimum ceiling height for full functionality with vehicles elevated. Floor space: 242.5" length × 202" width (approximately 20 ft × 17 ft with ramps). Indoor use only in a dry, well-ventilated area.
Certification
The HD-9SWX is ALI certified to meet ANSI/ALI ALCTV standards. Verify current certification status at autolift.org. Check local permit, license, and code requirements before installation.
What's Included
- One pair of aluminum approach ramps (standard)
- Steel drive-up ramps with non-skid surface
- Tire stops
- Wedge anchors
- Rail kit for optional accessories
- Installation and operation manual

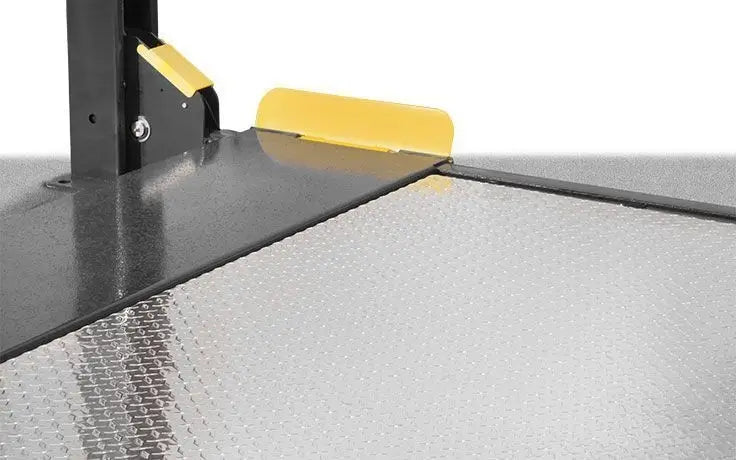

Optional Accessories: Additional aluminum ramp kits, 4,500 lb capacity air/hydraulic rolling jacks, drip trays, solid deck panels, drive-thru ramps.
Not a good fit if: Your garage is under 17 ft wide (202" overall width), under 20 ft long (242.5" with ramps), under 12 ft ceiling (102" columns plus vehicle height), you don't need the extra rise or runway length (standard HD-9SW costs less), or you cannot supply air (minimum 30 PSI / 3 CFM required).
Note: Professional installation recommended. Licensed electrician required for electrical connections. Air compressor required for operation (not included).
Documents
Click to open in a new tab.
Shipping & Delivery
Freight Shipping
Free shipping to direct shipping points within the 48 contiguous United States. LTL freight delivery with 5-10 business days typical transit time, subject to inventory and carrier scheduling.
Additional Services
Rural/remote areas (RATZ/DAS) may incur surcharges. Liftgate service available for locations without forklift access (additional fee). Residential delivery available for additional fee. 5% discount available with preferred carrier network.
Receiving & Damage Claims
Unloading: Forklift or equivalent required for this 3,038 lb shipment. Inspect all crates before signing the Bill of Lading and note any visible damage. Sign as "damaged" if there are issues. Damage coverage: Within 15 days: 100% coverage. Within 30 days: 50% coverage. After 30 days: No coverage.
Warranty
BendPak 5-2-1 Warranty
- 5 Years: Structural components
- 2 Years: Hydraulic cylinders and power unit
- 1 Year: Operating and electrical components
- 1 Year: Labor (on-site or factory)
- 1 Year: Free shipping on warranty parts (continental US)
Requirements: Proper installation per manufacturer's manual. Regular maintenance as specified. Non-transferable. Use of approved replacement parts only.
Questions About the HD-9SWX?
Extended runway requirements, ceiling height planning, or help choosing between the HD-9SW and HD-9SWX.
FAQ
What is the difference between the HD-9SW and HD-9SWX?
Both are super-wide dual-platform lifts with 192" between columns and 9,000 lb capacity. The HD-9SW has 70" rise and 164" runways. The HD-9SWX has 82" rise and 188" runways. Choose the SWX if you need more headroom, longer runways for extended-wheelbase vehicles, or both.
How many vehicles can this lift hold?
The HD-9SWX can hold up to four vehicles: two on the elevated runways side by side, and two parked underneath. This requires vehicles fit within the dimensional limits: 178" drive-thru clearance width, 188" runway length, and 89" maximum lifting height for lower-level vehicles.
What ceiling height do I need?
Column height is 102" (8.5 ft). For full functionality with vehicles elevated to maximum height (89"), plan for 12-14 ft minimum ceiling height depending on vehicle height.
How long and wide does my garage need to be?
The HD-9SWX requires 242.5" (approximately 20 feet) of length with ramps and 202" (approximately 17 feet) of width plus working clearance on the sides.
What vehicles fit on the extended runways?
The 188" runways handle vehicles with wheelbases up to 135" at full capacity. This covers most extended cab trucks, crew cab pickups like the Ford F-150 SuperCrew, Chevy Silverado Crew Cab, and RAM 1500 Quad Cab, as well as full-size SUVs like the Suburban, Expedition, and Tahoe.
Do I need an air compressor?
Yes. An air compressor is required to operate the pneumatic safety lock release. Specification: minimum 30 PSI / 3 CFM.
Can I use this lift for service work?
Yes. The open-center runways allow you to work on both vehicles simultaneously for oil changes, exhaust work, suspension, and other maintenance. Optional 4,500 lb air/hydraulic rolling jacks and drip trays enhance service capability.
Is the HD-9SWX ALI certified?
Yes. The HD-9SWX is certified by the Automotive Lift Institute (ALI) to meet ANSI/ALI ALCTV standards. Verify current status at autolift.org.
What are the concrete requirements?
Minimum 4" thick concrete slab with 3,000 PSI compressive strength. The floor must be level within 3 degrees of slope. Do not anchor into cracked concrete, expansion joints, or patched areas.
How long does it take to reach full rise?
65 seconds to full rise, about 10 seconds longer than the standard HD-9SW because the HD-9SWX travels an additional 12" (82" total rise vs 70").
What maintenance does the HD-9SWX require?
Regular maintenance includes visual inspection of cables for fraying or wear, lubrication of moving parts per the manual, checking hydraulic fluid levels, and testing safety lock operation. The power unit requires no maintenance under normal operating conditions.
How heavy is the shipping crate?
Shipping weight is 3,038 lb with dimensions of 205" x 22" x 51". You will need a forklift or equivalent equipment to unload.
