BendPak RJ45W Rolling Bridge Jack - 4,500 lb
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

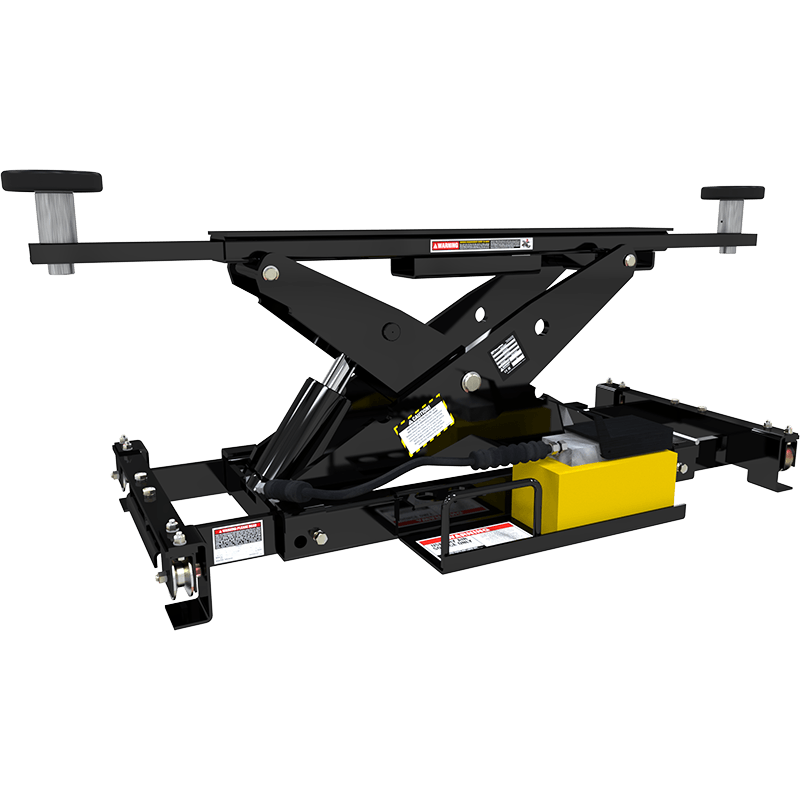

BendPak RJ45W 4,500 lb Rolling Bridge Jack with Easy Roll Wheels for HD-7, HD-9, and GP-9 Series Four Post Lifts
The BendPak RJ45W is a 4,500 lb capacity rolling bridge jack designed for use with HD-7, HD-9, and GP-9 series four post lifts. When you need to perform tire changes, brake jobs, or suspension work, the RJ45W lets you raise the wheels off the runways for full wheel service. Each jack is over-engineered to hold the weight of an entire vehicle, so when you use two jacks together you get an exceptional margin of safety. Features easy roll wheels that glide inside runway channels, rubber contact pads, stackable adapters for adjustable height, and an air/hydraulic power unit with foot pedal control. Three lock positions let you fine tune your working height. Backed by BendPak's 1 year warranty.
BendPak RJ45W Features
Easy Roll Wheels
The RJ45W comes standard with easy roll wheels that fit onto the runway channels on four post lift models with 7,000 lb lifting capacity or greater. The hardened stainless steel rollers are zinc plated for maximum durability and provide effortless gliding along the runways for easy positioning and adjustability.
Rubber Contact Pads
Durable rubber contact pads come standard with every rolling bridge jack. These pads adjust to engage the frame of your vehicle directly at the manufacturer recommended lift point. Frame cradle pads, sold separately, are a recommended accessory for wide bodied frames like trucks and SUVs.
Stackable Adapters
Some undercarriages require longer reach adapters, so BendPak manufactures stackable adapters to maximize the arm reach on four post rolling bridge jacks. Once your rubber contact pads are positioned under the manufacturer recommended lift points, you may find that high clearance vehicles need extra reach. The stackable adapter set bridges that gap and makes lifting easier.
Air/Hydraulic Power Unit
Welded to the side of each rolling bridge jack is a high pressure air/hydraulic pump that requires 125 PSI and 10 to 25 CFM. It's activated when you press the convenient foot pedal attached to the unit. In seconds your vehicle will be lifted to the desired height. Max operating hydraulic pressure is 2,490 PSI.
Three Lock Positions
Each rolling bridge jack can be raised to three different heights, so whatever your needs are, you can fine tune the height of your jack to meet them. The locks engage automatically as the jack scissor arms raise, and they release simultaneously when the arms are lowered. For maximum access to the undercarriage, raise your car lift to its max height, add the stackable adapters, and raise the rolling bridge jack as high as it will go.
BendPak RJ45W Specifications
| Lifting Capacity | 4,500 lbs (2,041 kg) |
|---|---|
| Compatible Lifts | HD-7 Series, HD-9 Series, GP-9 Series |
| Support Base Width | 35.5" to 46.5" (902 mm to 1,181 mm) |
|---|---|
| Arm Reach (Min to Max) | 42" to 57" (1,067 mm to 1,448 mm) |
| Drive Over Height (Pad Only) | 4.5" (114 mm) |
|---|---|
| Drive Over Height (Pad + 2.75" Adapter) | 7.25" (184 mm) |
| Drive Over Height (Pad + 5.5" Adapter) | 10" (254 mm) |
| Max Lifting Height (Pad Only) | 15.5" (394 mm) |
| Max Lifting Height (Pad + 2.75" Adapter) | 18.25" (464 mm) |
| Max Lifting Height (Pad + 5.5" Adapter) | 21" (533 mm) |
| Pump Type | Air/Hydraulic |
|---|---|
| Air Pressure Required | 125 PSI (10 to 25 CFM) |
| Max Operating Hydraulic Pressure | 2,490 PSI |
| Time to Full Rise | 55 seconds |
| Power Requirement | None (air operated) |
| Shipping Weight | 378 lbs (171 kg) |
|---|---|
| Shipping Dimensions | 42" x 24" x 12" (1,066 mm x 609 mm x 304 mm) |
BendPak RJ45W Documents
Click to open in a new tab.
BendPak RJ45W Warranty
BendPak 1 Year Rolling Bridge Jack Warranty
BendPak rolling bridge jacks are covered by a 1 year warranty from the date of purchase by the original purchaser. Coverage includes:
- 1 Year: Lift structure
- 1 Year: Hydraulic cylinder and power unit
- 1 Year: Operating components
- 1 Year: Labor (on site or at factory)
- 1 Year: Free ground shipping on warranty related freight (48 continental US)
Warranty covers manufacturer defects due to material and workmanship. Not covered: abuse, neglect, overloading beyond rated capacity, general wear parts (rubber pads/blocks), shipping damage, improper installation, corrosive environments, or unauthorized modifications. Claims must be made in writing within 15 days of discovering the defect. Dated proof of purchase and maintenance records required.
BendPak RJ45W Shipping and Delivery
Free Shipping
Free shipping to the contiguous 48 United States. Alaska, Hawaii, and rural areas (RATZ zones) may incur additional charges. Lift gate service, residential delivery, and other special handling may have additional fees.
Freight Service
Ships via LTL (Less Than Truckload) freight from BendPak distribution centers in Santa Paula, CA or Mobile, AL. Typical transit time is 1 to 2 weeks. Orders ship from the distribution center closest to your location when possible.
Receiving
Customer is responsible for unloading at delivery location. Forklift or lift gate service recommended. Inspect all packages before signing the Bill of Lading and note any visible damage before the driver departs. Contact BendPak immediately if hidden damage is discovered after receipt.
Questions About the BendPak RJ45W?
Need help with compatibility, capacity requirements, or choosing between rolling bridge jack models? We're here to help.
BendPak RJ45W Frequently Asked Questions
What is the RJ45W lifting capacity?
The RJ45W has a 4,500 lb lifting capacity. Each jack is over-engineered to hold the weight of an entire vehicle, so when you use two jacks together you get an exceptional margin of safety.
What lifts is the RJ45W compatible with?
The RJ45W is designed for use with BendPak HD-7 series, HD-9 series, and GP-9 series four post lifts with 7,000 lb capacity or greater.
What is the difference between the RJ45LP and RJ45W?
The RJ45LP and RJ45W rolling bridge jacks are essentially the same except for two specifications. The RJ45LP has a minimum drive over height of 4.25" while the RJ45W is 4.5". The RJ45LP has a maximum arm reach of 61" while the RJ45W reaches 57".
What are easy roll wheels?
Easy roll wheels are hardened stainless steel rollers that are zinc plated for durability. They fit onto the runway channels on lifts with 7,000 lb capacity or greater, providing smooth gliding for easy positioning.
What are the air requirements?
The air/hydraulic pump requires 125 PSI and 10 to 25 CFM. No electrical power is required since the unit is fully air operated.
What are the lifting height options?
With pad only, drive over height is 4.5" and max lifting height is 15.5". Adding the 2.75" adapter gives you 7.25" drive over and 18.25" max. Adding the 5.5" adapter gives you 10" drive over and 21" max lifting height.
What is the warranty on the RJ45W?
BendPak provides a 1 year warranty covering the lift structure, hydraulic cylinder, power unit, operating components, and labor. Free ground shipping on warranty related freight within the 48 continental US is included during the warranty period.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
