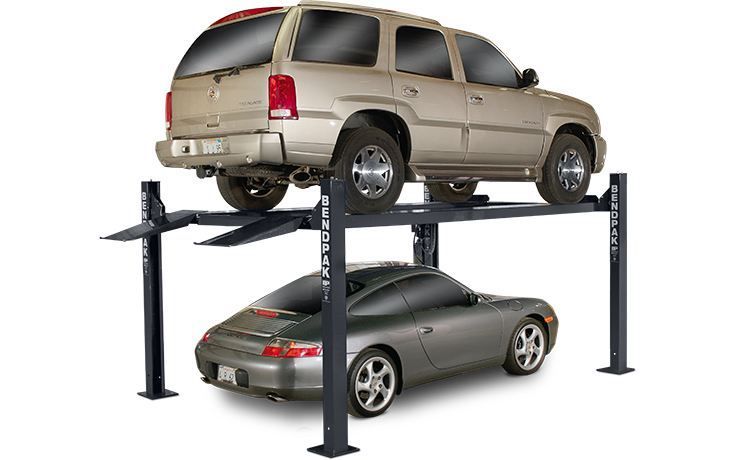

BendPak HD-7W 7,000 lb Wide Four-Post Parking Lift
The BendPak HD-7W is a 7,000 lb capacity wide four-post lift designed for versatile parking and light service. At 110.25" overall width with 86.5" drive-thru clearance, it accommodates larger vehicles including trucks with extended mirrors. Features 82" rise, 5" low-profile runways, and a compact footprint roughly the size of a standard parking space. Enclosed internal components for durability and clean aesthetics. 5-2-1 warranty.
Who It's For
- Home Garage Owners: Double your parking capacity in a footprint roughly the size of a standard parking space. Wide clearance accommodates trucks, SUVs, and vehicles with extended mirrors without tight maneuvering.
- Collectors and Enthusiasts: Store sports cars, classics, sedans, and light trucks safely elevated. Low-profile runways and extended ramps protect low-clearance vehicles during loading.
- Professional Shops: Versatile parking and light service lift for mixed vehicle fleets. Handles everything from sports cars to light-duty trucks without dedicated equipment for each.
- Commercial Parking Operations: Maximize parking density with enclosed, professional-appearing lifts. Side-by-side installations with minimal spacing requirements.
Features
Wide Design for Larger Vehicles
110.25" overall width with 100.25" between columns and 86.5" drive-thru clearance. Accommodates trucks with extended mirrors, wide-body vehicles, and SUVs without tight maneuvering. Same compact length as narrow models while providing significantly more interior clearance.
Low-Profile Runways with Extended Ramps
5" minimum runway height with gentle, extended approach ramps featuring non-skid surfaces. Runway length of 158.25" accommodates most passenger vehicles. Low-clearance sports cars and race cars load without scraping.
Heavy-Duty Aircraft Cable System
Four 3/8" stainless steel aircraft cables, each rated for 14,400 lb, collectively over 800% of lift capacity. Dual-hub oversized sheaves reduce friction and extend component life. All cables fully enclosed within columns for protection and clean appearance.
Multi-Position Automatic Safety Locks
17 locking positions every 4" across 82" of rise. Four independent safety locks engage automatically as the lift rises. Push-button pneumatic release disengages all locks simultaneously. Secondary slack-cable device provides backup protection.
Enclosed Internal Components
Lifting cables, airlines, safety latches, and sheaves are fully contained within the columns, protected from weather, chemicals, and physical contact. Professional appearance suitable for showrooms and homes. Side-by-side installations won't risk cable contact between units.
Electric-Hydraulic Power System
Single hydraulic cylinder mounted under the runway with integrated zero-maintenance power unit. Reaches full rise in 35 seconds. Internal anti-sway slider blocks in each column ensure smooth, stable lifting.
Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 7,000 lb (3,175 kg) |
| Front Axle Capacity | 3,500 lb (1,588 kg) |
| Rear Axle Capacity | 3,500 lb (1,588 kg) |
| Motor | 220 VAC / 60 Hz / 1 Phase |
| Air Supply Required | 3-25 CFM at 50-150 PSI (minimum 30 PSI) |
| Sound Level | <70 dB (operating) |
| Specification | Value |
|---|---|
| Overall Width | 110.25" (2,800 mm) |
| Outside Length | 174" (4,420 mm) |
| Overall Length (with ramps) | 200.5" (5,093 mm) |
| Column Height | 100" (2,540 mm) |
| Width Between Columns | 100.25" (2,555 mm) |
| Drive-Thru Clearance | 86.5" (2,197 mm) |
| Specification | Value |
|---|---|
| Runway Width | 19" (483 mm) |
| Runway Length | 158.25" (4,020 mm) |
| Width Between Runways | 37.5" - 44.375" (952 - 1,127 mm) |
| Runway Centerline | 56.75" - 63" (1,441 - 1,600 mm) |
| Outside Edge of Runways | 75.75" - 82" (1,924 - 2,083 mm) |
| Specification | Value |
|---|---|
| Minimum Runway Height | 5" (127 mm) |
| Maximum Rise | 82" (2,083 mm) |
| Maximum Lifting Height | 86.5" (2,197 mm) |
| Time to Full Rise | 35 seconds |
| Locking Positions | 17 positions every 4" |
| Load Percentage | Minimum Wheelbase |
|---|---|
| 100% Capacity (7,000 lb) | 115" (2,921 mm) |
| 75% Capacity (5,250 lb) | 100" (2,540 mm) |
| 50% Capacity (3,500 lb) | 85" (2,159 mm) |
| 25% Capacity (1,750 lb) | 70" (1,778 mm) |
Installation Requirements
Concrete Foundation
Minimum 4.25" thick, fully cured (28 days minimum), 3,000 PSI strength. Surface must be flat and level within 3 degrees of slope with no cracks or defects within 6" of anchor points.
Electrical & Air
Power: 220 VAC / 60 Hz / single-phase (other voltages available) with dedicated breaker (25A time-delay fuse recommended) and main power disconnect within sight of operator. Licensed electrician required. Air: Compressor required for safety lock release, minimum 30 PSI / 3 CFM.
Space Requirements
Column height is 100" (8 ft 4 in). Add vehicle height plus working clearance for total ceiling requirement. Floor space: 200.5" length × 110.25" width (with ramps). Multi-lift spacing: minimum 5" between baseplates. Indoor use only.
Anchoring & Certification
16 wedge anchors included (4 per post), 3/4" diameter × 4.75" length, torqued to 85-95 ft-lb. Anchoring strongly recommended; required if using rolling bridge jack. Not all BendPak models meet ANSI/ALI ALCTV standards. Verify status at autolift.org.
What's Included
- Steel drive-up ramps with non-skid surface
- Tire stops
- Utility rails for optional rolling jack
- 16 wedge anchors
- Installation and operation manual
Optional Accessories: 4-piece caster kit for lift mobility, 4,500 lb capacity rolling bridge jack (Model RJ-45), aluminum deck panels, rolling drain pan, jack tray, drip trays.
Note: Professional installation recommended. Licensed electrician required for electrical connections. Air compressor required for operation (not included).
Documents
Click to open in a new tab.
Shipping & Delivery
Freight Shipping
Free shipping to direct shipping points within the 48 contiguous United States. LTL freight delivery with 5-10 business days typical transit time, subject to inventory and carrier scheduling.
Additional Services
Rural/remote areas may incur surcharges. Liftgate service available for locations without forklift access (additional fee). Residential and inside delivery available for additional fees.
Receiving & Damage Claims
Unloading: Forklift or equivalent required. Inspect all crates before signing the Bill of Lading and note any visible damage. Damage coverage: Within 15 days: 100% coverage. Within 30 days: 50% coverage. After 30 days: No coverage.
Warranty
BendPak 5-2-1 Warranty
- 5 Years: Structural components
- 2 Years: Hydraulic cylinders and power unit
- 1 Year: Operating and electrical components
- 1 Year: Labor (on-site or factory)
- 1 Year: Free shipping on warranty parts (continental US)
Requirements: Proper installation per manufacturer's manual. Regular maintenance as specified. Non-transferable. Use of approved replacement parts only.
Questions About the HD-7W?
Installation planning, concrete requirements, or help choosing between narrow and wide models.
FAQ
What is the maximum weight capacity?
7,000 lb total with 3,500 lb front and rear axle ratings. Handles sports cars, sedans, SUVs, and light-duty trucks within the weight limit. Note that shorter wheelbase vehicles have reduced capacity.
How much wider is the HD-7W compared to the narrow model?
The HD-7W is 10" wider than the HD-7P. Overall width is 110.25" vs 100.25". Drive-thru clearance is 86.5" vs 76.5", providing significantly more room for trucks with extended mirrors.
Will this fit in my garage?
The HD-7W has a footprint of approximately 200.5" × 110.25" (16.7 ft × 9.2 ft) with ramps. Column height is 100" (8 ft 4 in). Add vehicle height plus working clearance for total ceiling requirement.
Can low-clearance sports cars use this lift?
Yes. The 5" low-profile runways combined with extended, gentle approach ramps allow most sports cars to drive on without scraping.
Do I need an air compressor?
Yes. An air compressor is required to operate the pneumatic safety lock release. Specification: minimum 30 PSI / 3 CFM, up to 25 CFM at 150 PSI max.
Can I move the lift after installation?
Yes, with the optional caster kit. The 4-piece caster kit with foot-lock casters allows repositioning with or without a vehicle on the runways.
Can I install this lift outdoors?
No. BendPak specifies indoor installation only. While the enclosed design protects components from weather, the lift is not rated for outdoor use.
What electrical power is required?
Standard configuration is 220 VAC / 60 Hz / single-phase. Other voltages available upon request. A dedicated circuit with time-delay fuse (25A recommended) and main power disconnect switch are required.
What optional accessories are available?
The HD-7W includes rail-kits for optional accessories: 4,500 lb rolling bridge jack (Model RJ-45), aluminum approach ramps, drip trays, jack tray, and aluminum deck panels for full platform coverage.
Is the HD-7W ALI certified?
Not all BendPak models meet ANSI/ALI ALCTV standards. Check autolift.org for current certification status.
What warranty coverage is included?
BendPak 5-2-1 warranty: 5 years structural, 2 years hydraulics/power unit, 1 year electrical/operating components, 1 year labor, 1 year free parts shipping (continental US).
What maintenance is required?
BendPak lifts are designed for minimal maintenance. Daily: Clean lift, inspect cables and locks. Monthly: Check fluid levels, lubricate posts and cables, inspect labels. Quarterly: Lubricate sheaves and bearings, inspect wire rope condition.
