Daytona TC-880 - Swing Arm Tire Changer for 10 to 23 Inch Rims, 120V
SKU: TC-880
$2,185.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- The swing arm head is set by hand
- Side bead breaker before clamping
- Bead seating air from the clamps
Talk to a tire equipment specialistExpert product and freight support before you order855-498-2147
- Authorized Daytona Lifts Dealer
- Manufacturer Warrantyincluded with purchase
- No Sales Tax Collected Outside PAPA orders include sales tax

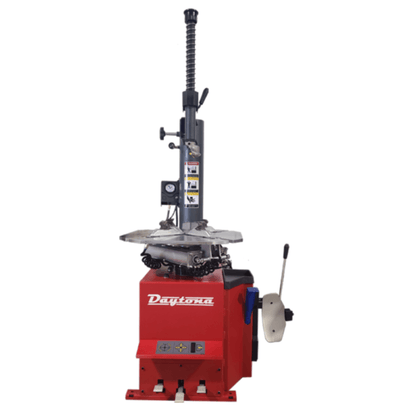

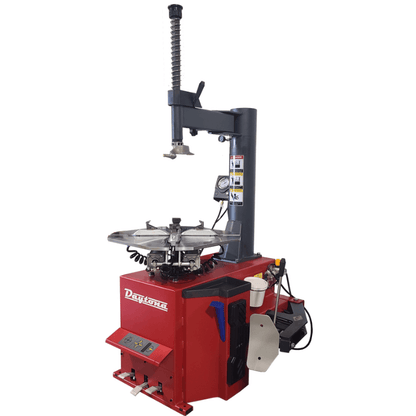

At 44 in wide and 46 in deep, the Daytona TC-880 swing arm tire changer is the most compact of Daytona's three car changers. The TC-890 requires 82 in of width, while the TC-890T has a 66 W x 69 D in working envelope. On the TC-880, the mount/demount head locks by hand and the side bead breaker applies 2.75 tons of force.
Four pneumatic clamps take rims up to 23 in. Tire diameter stops at 38 in and wheel width at 13 in. Compare other capacities in the tire changer collection.
Features
The swing arm head is set by hand
Position the mount/demount head at the rim with the hand wheel, then turn the lock handle. The head shifts about 2 mm up and right as it locks, leaving working clearance at the rim.
Side bead breaker before clamping
The blade separates the bead while the wheel is beside the cabinet, before the rim moves onto the turntable. Keep the turntable jaws fully closed while breaking beads, and repeat the blade stroke at other points around the tire until both beads are free.
Bead seating air from the clamps
Jets built into the clamping jaws direct air at the tire bead during inflation.
Pedal controlled pneumatic clamps
Four double-acting cylinders move the jaws. One press on the clamp pedal opens them; another closes them around the rim.
Air preparation serves the pneumatic controls
A water separator, lubricator and pressure regulator condition the incoming shop air for the clamps and bead breaker. The lubricator feed can be set to about one oil drop for every 3 to 4 clamp pedal presses.
Turntable reversal for a stuck bead
Press the rotation pedal down for clockwise mounting or demounting. If a demount jams, stop the operation and lift the pedal to turn the table counterclockwise and free it.
Best For
General repair shops
The TC-880 serves passenger-vehicle and light-truck tire work in general repair shops with rims up to 23 inches.
Powersports service
Optional ATV clamps extend the TC-880 to powersports wheels; they are sold separately. Ask us about that option for the wheels your shop handles.
Specifications
| Inside rim clamping | 12 to 23 in |
|---|---|
| Outside rim clamping | 10 to 22 in |
| Max tire diameter | 38 in |
| Max wheel width | 13 in |
| Clamps | Four, pneumatic, double-acting cylinders |
| Mount/demount tool | Swing arm, manually positioned and locked |
| Bead breaker | Side-mounted, 2.75 tons |
| Bead seating | Air jets built into the clamps |
| Space requirement | 44 W x 46 D x 72 H in |
|---|
| Power | 120V, 1.5 HP, 20 A, single-phase, 60 Hz |
|---|---|
| Air supply | 120 to 145 psi |
| Air preparation | Water separator, lubricator, pressure regulator |
What's Included
- Pneumatic rim clamps x4
- Swing arm mount/demount tool x1
- Side-mounted bead breaker x1
- Water separator x1
- Lubricator x1
- Air pressure regulator x1
Installation Requirements
Access to the side breaker
Allow 44 in of width, 46 in of depth and 72 in of height, and keep the breaker side of the cabinet accessible for positioning a wheel against its blade.
Power and air at the cabinet
The 1.5 HP motor needs 120V, 20 A, single-phase, 60 Hz on a fused, grounded supply. Shop air at the TC-880 must hold 120 to 145 psi.
Warranty
Documents
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
Can the Daytona TC-880 clamp both 10-inch and 23-inch rims?
Yes, but they use different clamping positions. Outside clamping covers 10 to 22 inch rims; inside clamping covers 12 to 23 inches.
Is the Daytona TC-880 a manual tire changer?
No. The TC-880 is a pneumatic tire changer with electric turntable drive. Shop air at 120 to 145 psi works its four rim clamps and side bead breaker, while a 120V, 1.5 HP motor turns the table. Only the mount/demount tool is operated by hand.
Can the Daytona TC-880 handle my 14-inch-wide wheel?
A 14-inch-wide wheel exceeds the TC-880's 13-inch limit. The TC-890 handles widths through 15 inches; the TC-890T stops at 14 inches.
What must be assembled before the Daytona TC-880 is used?
The column assembly bolts to the body at 70 N.m, and the bead breaker arm fits its bracket. The air regulator is fitted to the right side of the cabinet before the shop air connection is put into service.
How high can tire pressure go on the Daytona TC-880?
Do not exceed 3.5 bar (51 psi) while inflating on the machine. If the tire needs a higher pressure, remove it from the turntable and use an inflation cage. Stay within the tire's specified pressure limit.
