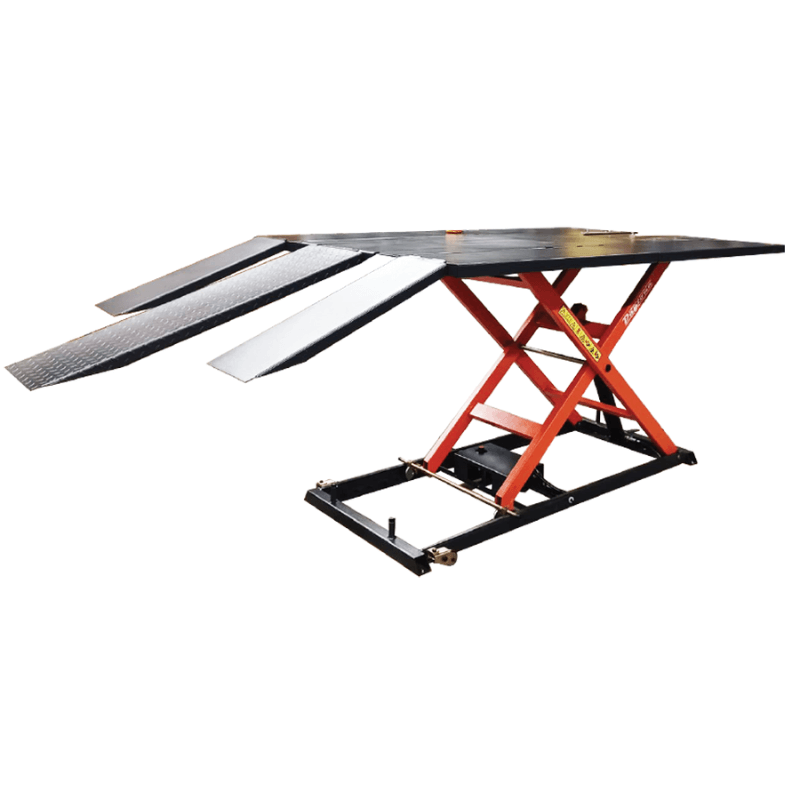

Daytona LMATV - 2,200 lb Motorcycle and ATV Lift, 120V Electric-Hydraulic, Removable Side Extensions
SKU: LMATV
$2,527.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- Choose a narrow or wide working deck
- Free either wheel at the deck
- Working height reduces bending
Talk to a lift specialistExpert product and freight support before you order855-498-2147
- Authorized Daytona Lifts Dealer
- Manufacturer Warrantyincluded with purchase
- No Sales Tax Collected Outside PAPA orders include sales tax
Standard 120V power runs the LMATV, a 2,200 lb electric-hydraulic motorcycle lift table that widens for ATV work with removable side extensions. The deck travels from 7.5 to 47.2 in. Shops and garages servicing motorcycles and ATVs can keep both kinds of work on one table.
The 2,200 lb rating suits almost all motorcycles and standard ATVs. Find this lift in the motorcycle lift collection.
Features
Choose a narrow or wide working deck
The 29.5 in center platform lets you work closer to a motorcycle. With both removable 86.5 x 13.5 in side extensions fitted, it becomes a 56.5 in wide quad lift for ATV service.
Free either wheel at the deck
Center drop-outs at the front and rear lower or come out, letting a motorcycle wheel hang free for axle and tire removal.
Working height reduces bending
The deck rises to 47.2 in for longer jobs, while its 7.5 in lowered position keeps the loading ramp angle gentle.
Side ramps adjust to ATV width
Two 29.5 x 10.5 in side ramps adjust for different ATV widths. A separate 45.5 x 15 in center ramp comes with the lift.
Operate the lift from a pendant
A two-button pendant safety control operates this electric motorcycle lift through its hydraulic drive, placing both controls in one handset.
Front wheel chock and mobility kit included
A front wheel chock and wheel mobility kit come with the LMATV. Powder coat gives the table a durable finish for repeated service work.
Best For
Motorcycle maintenance
For repeated motorcycle tire, brake and axle jobs, a free-hanging wheel saves time at each removal.
ATV service and storage
ATVs can be positioned steadily for service, then kept on the deck with the extensions left on for storage.
Specifications
| Lift capacity | 2,200 lb |
|---|---|
| Platform height | 7.5 to 47.2 in |
| Platform length | 86.5 in |
| Total width with extensions | 56.5 in |
| Center platform width | 29.5 in |
| Side platform extensions | 86.5 x 13.5 in, removable |
| Side ramps | 29.5 x 10.5 in, adjustable |
| Center ramp | 45.5 x 15 in |
| Wheel drop-outs | Center front and rear |
| Power | 120V, 1 HP, 8 A, single-phase, 60 Hz |
|---|---|
| Drive | Electric-hydraulic |
| Controls | Two-button pendant |
| Finish | Powder coat |
What's Included
- Lift with removable side platform extensions x1
- Adjustable side ramps x2
- Center ramp, 45.5 x 15 in x1
- Front wheel chock x1
- Wheel mobility kit x1
Optional Accessories
- Daytona front wheel viceLPYON-056Optional front wheel hold for the LMATV
- Daytona 1,100 lb center mini jackLPYON-057Optional center jack for the LMATV
Installation Requirements
Plan a dedicated 120V circuit
The LMATV's 1 HP motor runs on 120V, single-phase, 60 Hz power at 8 A. A dedicated 15 A or 20 A circuit is recommended.
Indoor, level floor for the full load
Use the LMATV indoors on a level floor able to carry the lift and its load.
Warranty
Documents
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
Can the Daytona LMATV serve as a UTV lift?
A UTV or side-by-side fits only if it is within all three limits: loaded weight, width across the outside tire edges, and front-to-rear tire span. Count fluids and any racks, plows, bags or gear, and leave a margin below 2,200 lb. Measure no more than 56.5 in across the outside tire edges, with every tire fully on the deck, and no more than 86.5 in from front tire to rear tire.
Does the Daytona LMATV need a compressor?
No. The LMATV uses an electric-hydraulic drive from a 120V outlet, so there is no shop-air connection to plan.
What holds a motorcycle upright on the Daytona LMATV?
The included front wheel chock holds a motorcycle upright. For a firmer hold when one person works alone, the LPYON-056 front wheel vice is an optional addition.
How much overhead room does the Daytona LMATV need?
Plan for the machine's height above the 47.2 in raised deck. At full lift height, the top of the front wheel chock reaches 63.3 in above the floor, so clearance must accommodate whichever reaches higher.
Is the center mini jack included with the Daytona LMATV?
No. The LPYON-057 center mini jack is an optional accessory rated for 1,100 lb. Its rating is separate from the lift table's 2,200 lb capacity.
