Daytona LFPP10 - 10,000 lb 4-Post Parking and Storage Lift, 120V, 79.5 in Clearance
SKU: LFPP10
$4,304.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- A mechanical lock at each post
- Set the runways to the vehicle's track
- One release point for lowering
Talk to a lift specialistExpert product and freight support before you order855-498-2147
- Authorized Daytona Lifts Dealer
- Manufacturer Warrantyincluded with purchase
- No Sales Tax Collected Outside PAPA orders include sales tax

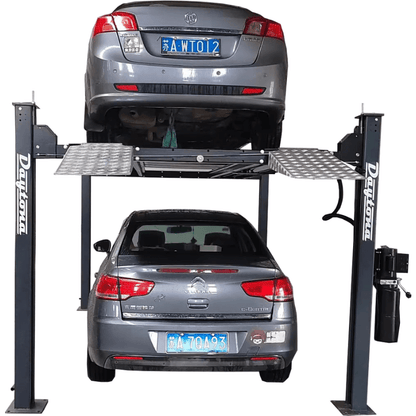

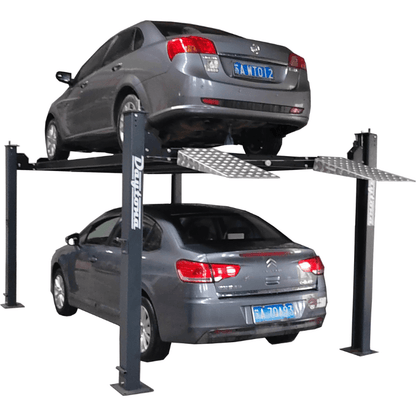

At full rise, the Daytona LFPP10 opens 79.5 in beneath its runways for a second parked vehicle. This 10,000 lb 4-post car storage lift serves cars, SUVs, and trucks in residential collections and commercial parking bays where one vehicle sits above another.
Its 197.6 in structural length grows to 230.06 in with the approach ramps fitted. Across the base plates it measures 122.0 in; the complete width including the power unit is 134.66 in. The LFPP9 spans 104.1 in across its base plates if 9,000 lb capacity and 70.9 in beneath the runways will cover the vehicles. Find other layouts in our 4-post lift collection.
Features
A mechanical lock at each post
The LFPP10 has four mechanical locking devices, one per post, each combining a primary lock with a secondary safety lock. Rest the runways on the locks before working on the vehicle.
Set the runways to the vehicle's track
The spacing between the 18.7 in wide runways adjusts for tire placement across the platform.
One release point for lowering
Once all four LFPP10 latches are lifted free of their column slots, hold its safety-release handle to keep them disengaged. Press the lowering handle on the power unit for descent; releasing the safety handle re-engages the latches.
A larger cylinder works through cables
The LFPP10 uses a 3.5 in cylinder and aircraft-quality lifting cables to raise its runways.
Lock ladders are adjusted during setup
Adjusting nuts on all four safety ladders levels the runways. The four locks are also set to engage and release at the same time.
Best For
Enthusiast collections
As a car storage lift for a home garage, the LFPP10 holds classic and modern vehicles on its matte powder-coated structure.
Commercial parking facilities
For a facility with changing vehicle sizes, the LFPP10's adjustable runway spacing lets staff set the tire tracks for each car, SUV, or truck parked on the platform.
Specifications
| Lift capacity | 10,000 lb |
|---|---|
| Clearance under runways | 5.9 to 79.5 in |
| Safety locks | Four mechanical locking devices, each with primary and secondary locks |
| Lock release | Single-point manual release |
| Lift drive | 3.5 in hydraulic cylinder with aircraft-quality lifting cables |
| Overall length | 197.6 in, not including ramps |
|---|---|
| Overall length with ramps | 230.06 in |
| Width at the base plates | 122.0 in |
| Overall width with power unit | 134.66 in |
| Overall height | 98.3 in |
| Concrete | 4 in (100 mm) minimum, 3,000 psi, fully cured, level, no cracks |
|---|---|
| Anchor bolts | Set at least 90 mm deep, torqued to 150 Nm |
| Location | Indoor use only |
| Runway width | 18.7 in |
|---|---|
| Runway length | 181.89 in |
| Runway spacing | Adjustable |
| Approach ramps | Removable, aluminum |
| Power | 120V, 1.5 HP, 26 A, single-phase, 60 Hz |
|---|---|
| Power unit location | Mounts on any post |
| Finish | Matte powder coat |
What's Included
- Lift posts, runways, and cross beams
- Power unit, 120V, 1.5 HP x1
- Removable aluminum approach ramps
Optional Accessories
- Daytona RAJ5 5,000 lb Rolling JackRAJ5Made for the LFPP10's runways.
- Daytona LFPP-WHL Wheel Kit for Parking LiftsLFPP-WHLFits the LFPP10.
Not Included
- Rolling jack (RAJ5, sold separately)
- Wheel kit (LFPP-WHL, sold separately)
- Installation, anchoring, and electrical connection
Installation Requirements
Account for the upper vehicle
Install and use the LFPP10 indoors. Its 98.3 in post height is only one part of the ceiling check. At full rise, allow for the space beneath the runways, their depth, and the height of the vehicle parked above, including clearance from overhead obstructions.
Slab strength and bolt setting
Installation requires level, crack-free, fully cured concrete at least 4 in (100 mm) thick with a minimum 3,000 psi test strength. Anchor bolts must be set at least 90 mm deep and torqued to 150 Nm.
Locate 120V service at a post
Any post can carry the 1.5 HP power unit. Provide 120V, 26 A, single-phase, 60 Hz power at the chosen position.
Choose the drive-on end
Select the entry direction during installation and leave approach space beyond the removable aluminum ramps.
Warranty
Documents
Browse Collections
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
Can the Daytona LFPP10 be a 4-post car lift with jacks for brake and tire work?
Yes. Pair the LFPP10 with an optional RAJ5 to lift wheels off its runways for brake and tire work. Each 5,000 lb jack is sold on its own and takes 110 to 150 psi shop air; two jacks serve front-and-rear lifting. Before lifting with an RAJ5, lower the LFPP10 onto its runway locks. Do not operate the LFPP10's raising or lowering controls until the jacks are unloaded.
Can the Daytona LFPP10 be a 4-post car lift with casters?
The optional LFPP-WHL wheel kit, sold separately, makes the LFPP10 a movable 4-post lift for repositioning. Its four wheel assemblies fit at the post bases, one per post.
Do I need the LFPP10-XLT instead of the Daytona LFPP10 for a longer truck?
Choose the XLT if the truck needs its longer runways or the lower parking position needs more height. Both lifts carry 10,000 lb; the XLT has 196.9 in runways and 85.0 in beneath them, against the LFPP10's 181.89 in runways and 79.5 in lower space.
Will a 20 A circuit power the Daytona LFPP10?
No. The LFPP10 needs 120V power (sometimes called 110V), 26 A, single-phase, 60 Hz, so a 20 A circuit is insufficient. Check the available supply at the post selected for the power unit.
What maintenance checks matter on the Daytona LFPP10?
Have the installer check cable adjustment after the first 50 loaded lift cycles, then after 300. Inspect cables, sheaves, and latch operation daily; check anchor bolt torque weekly and runway level monthly. Clean the cables with penetrating oil each month. Check power-unit fluid and lubricate the front wheel stop and ramp hinge pins every six months.
