Challenger Lifts 4P14EFX 14,000 lb Four Post Vehicle Lift for Professional Service Shops
The Challenger Lifts 4P14EFX delivers 14,000 lb lifting capacity in a closed-front four post design built for demanding professional service environments. This ALI/ETL certified lift features an industry-leading 78" rise height for maximum working clearance, 20" wide runways for confident vehicle positioning, and a 182.5" maximum wheelbase to accommodate full-size trucks and SUVs. Powered by a 2HP single-phase motor (208-230V) with approximately 75-second rise time, the 4P14EFX includes louvered approach ramps, 14-position safety locks, and automatic wheel stops. Backed by Challenger's comprehensive warranty and decades of proven reliability.
Challenger 4P14EFX Features
Industry-Leading 78" Rise Height
The 4P14EFX provides 78 inches of rise height, among the highest in the four post lift industry. This exceptional clearance gives technicians comfortable standing room for undercarriage work, transmission services, and exhaust system repairs without crouching or straining.
Heavy-Duty 14,000 lb Capacity
Rated at 14,000 lbs lifting capacity with hydraulic pressure at 2,800 PSI, this lift handles everything from passenger cars to full-size trucks, commercial vans, and fleet vehicles. The robust design ensures years of reliable service in high-volume shop environments.
20" Wide Runways with Louvered Approach Ramps
Extra-wide 20" runways provide confident drive-on positioning for vehicles of all sizes. The louvered approach ramps deliver superior traction even in wet conditions, preventing tire slip during loading and unloading operations.
14-Position Safety Lock System
The pneumatic lock release system features 14 locking positions allowing technicians to select the optimal ergonomic working height. This reduces fatigue during extended service procedures and increases productivity throughout the workday.
Solid Piece Column Construction
Challenger's solid piece column design provides exceptional structural rigidity and long-term durability. The 90.5" tall columns feature a powder coat finish for lasting corrosion resistance in demanding shop environments.
Alignment-Ready Design

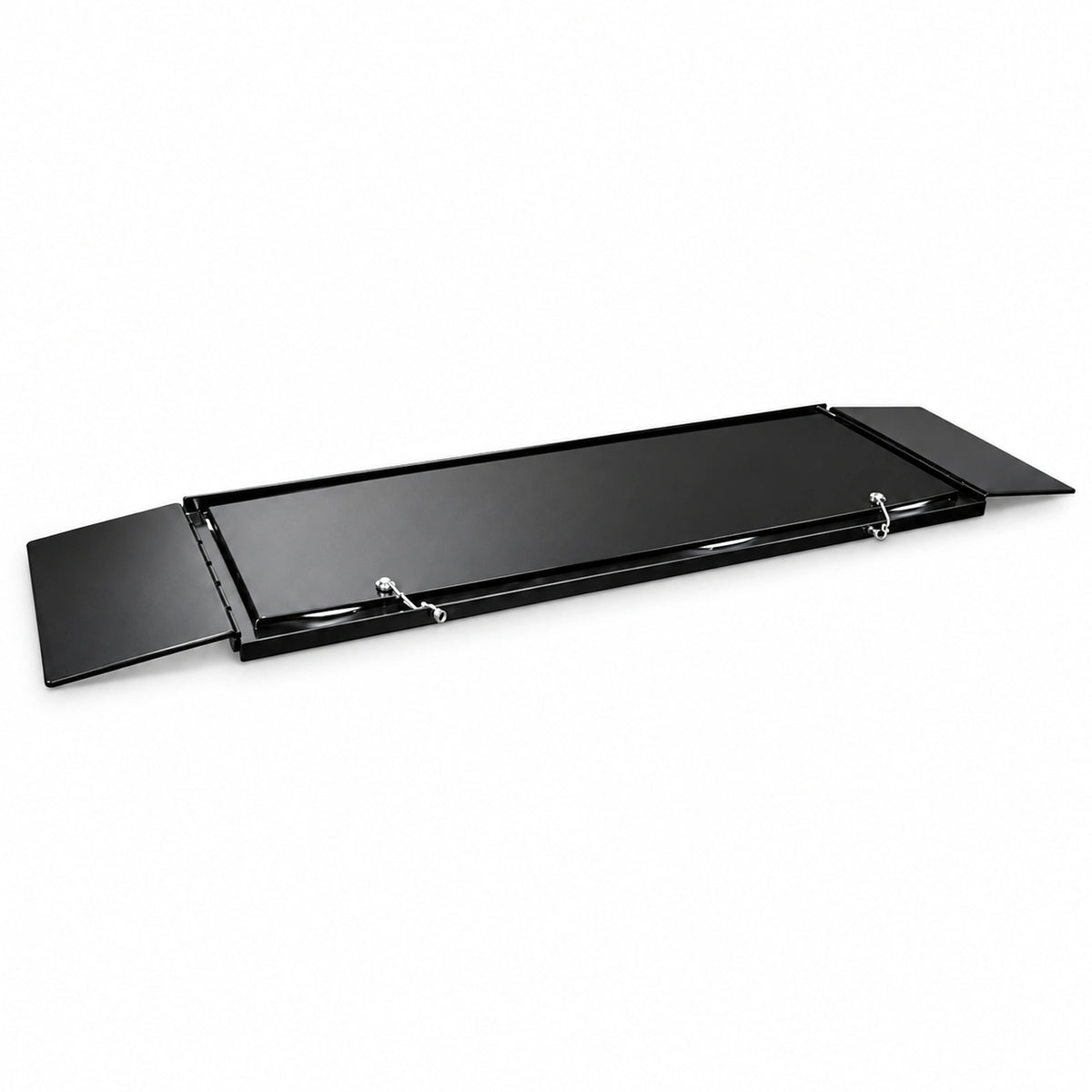

Transform your 4P14EFX into a complete alignment station with Challenger's optional bolt-on alignment kit. The 3D alignment compatible kit (Part #40200-3DSS) with stainless steel turning radius gauges enables fast, profitable wheel alignment services.
Challenger 4P14EFX Applications
- General Automotive Service: Ideal for oil changes, brake work, suspension repairs, and routine maintenance on passenger vehicles, trucks, and SUVs with the high rise height providing excellent access.
- Fleet Maintenance Facilities: The 14,000 lb capacity and durable construction handle the demands of fleet operations servicing commercial vans, delivery vehicles, and work trucks.
- Transmission and Drivetrain Work: The 78" rise height creates ample room for transmission removal and installation, differential service, and driveshaft repairs.
- Wheel Alignment Services: With the optional bolt-on alignment kit, the 4P14EFX becomes a complete alignment station capable of 3D alignment procedures for additional revenue streams.
- Storage and Display: The four post design doubles as vehicle storage, maximizing floor space in shops and garages by allowing vehicles to be stacked safely.
Challenger 4P14EFX Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 14,000 lbs |
| Hydraulic Pressure at Capacity | 2,800 PSI |
| Maximum Wheelbase | 182.5" |
| Specification | Value |
|---|---|
| Rise Height | 78" (6' 6") |
| Overall Length | 245.75" (20' 5-3/4") |
| Overall Width | 130.75" (10' 10-3/4") |
| Inside Columns | 116" (9' 8") |
| Between Columns | 196" (16' 4") |
| Height of Columns | 90.5" (7' 6-1/2") |
| Width of Runways | 20" |
| Height of Runways | 7.25" |
| Width Between Runways | 40" or 43" (adjustable) |
| Specification | Value |
|---|---|
| Motor | 2 HP |
| Voltage (Standard) | 208-230V, 60Hz, Single Phase |
| Optional Voltage | 3 Phase, 50/60Hz, 208V, 230V, or 460V |
| Air Supply Required | 90-120 PSI (clean, dry, lubricated) |
| Speed of Rise | Approximately 75 seconds |
| Specification | Value |
|---|---|
| Minimum Recommended Bay Size | 12' x 24' |
| Concrete Requirements | 4" minimum depth, 3,500 PSI, steel reinforced |
| Operating Temperature Range | 41-104°F (5-40°C) |
| ALI/ETL Certified | Yes |
| Specification | 4P14EFX (Standard) | 4P14XFX (Extended) |
|---|---|---|
| Maximum Wheelbase | 182.5" | 210" |
| Overall Length | 245.75" | 273.25" |
| Between Columns | 196" | 223.5" |
| Minimum Bay Size | 12' x 24' | 12' x 26' |
Challenger 4P14EFX Installation Requirements
Electrical Requirements
Power: 2HP motor requiring 208-230V, 60Hz, single phase with a dedicated circuit and circuit breaker or time delay fuse. Optional 3 phase configurations available in 208V, 230V, or 460V. A licensed electrician must install and verify the electrical supply meets all local codes.
Concrete Foundation
Anchoring: Minimum 4" thick concrete with steel reinforcement, 3,500 PSI compressive strength, cured for 28 days. Floor must be level within 1/2" side-to-side and 2-1/2" front-to-rear. No anchors may be installed within 8" of any crack, edge, or expansion joint. Anchor bolts torque to 150 ft-lbs.
Air Supply Requirements
Pneumatic System: Clean, dry, lubricated air supply regulated to 90-120 PSI required for the lock release system. Filter/Regulator/Lubricator (FRL) must be installed within 30 feet of the lift. Failure to provide proper air supply will void warranty on pneumatic components.
Space Requirements
Bay Size: Minimum 12' x 24' recommended. Ceiling Height: Calculate based on 90.5" column height plus vehicle height plus adequate clearance. Clearance: Minimum 2' to nearest obstruction from lift perimeter. Indoor use only with operating temperature range of 41-104°F.
Professional Installation
Professional installation by qualified personnel is strongly recommended. Installation requires proper tools including a hammer drill with 3/4" carbide bits, torque wrench capable of 150 ft-lbs, and transit level for alignment applications. Refer to the installation manual for complete procedures.
What's Included with the Challenger 4P14EFX
- Power runway assembly with hydraulic cylinder
- Idler runway assembly
- Four column assemblies (1 power, 3 idler)
- Two cross beam assemblies
- Two entrance ramp assemblies with louvered surfaces
- 2HP power unit (single phase standard)
- Air button valve assembly for lock release
- Two movable wheel chocks
- Two front wheel stops
- Complete hardware kit with anchor bolts
- Hydraulic hose and fittings
- Air line kit with fittings
- Safety decals and logo decals
- Installation, operation, and maintenance manual

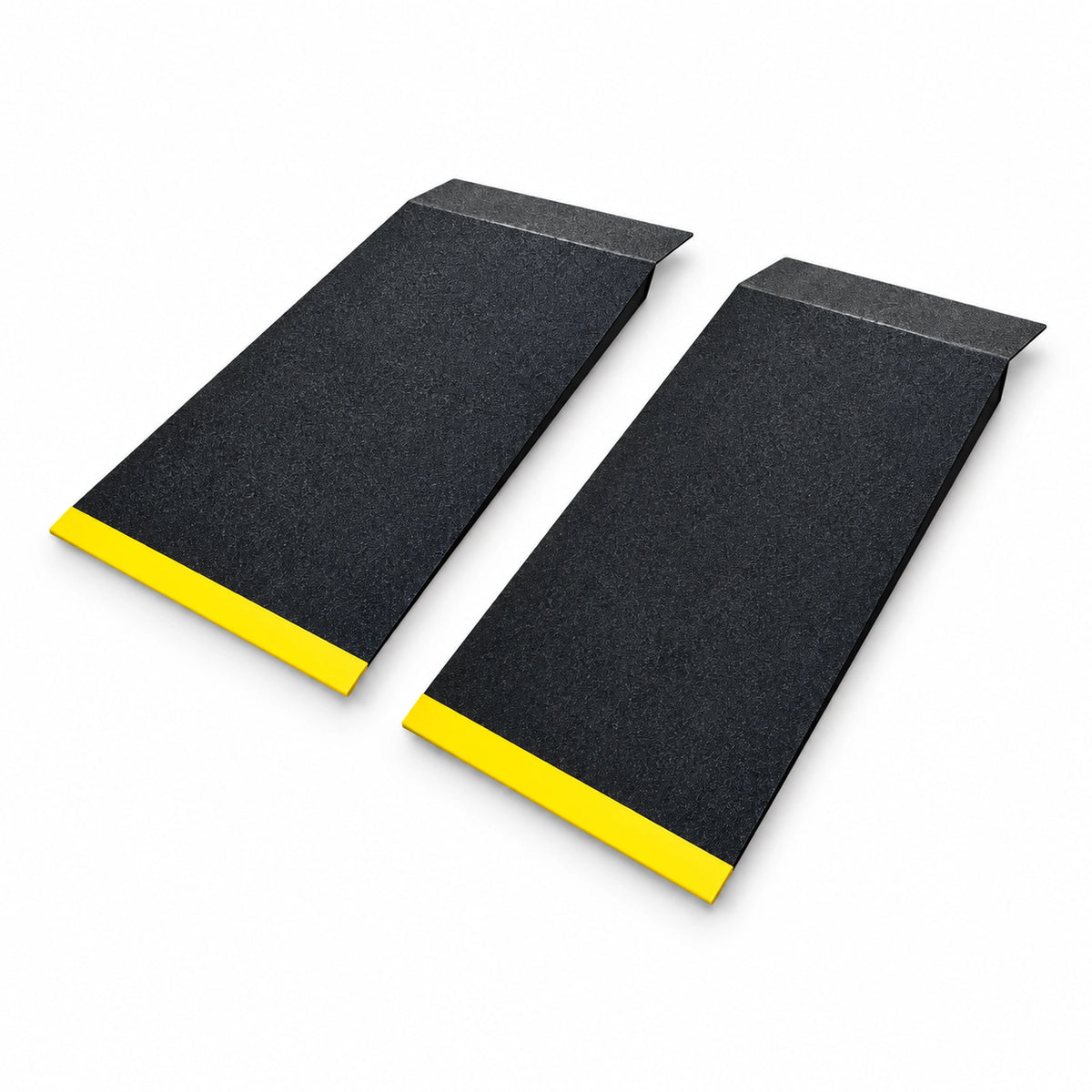

Optional Accessories: RJ7.5 rolling jacks (7,500 lb capacity), 40230-E airline kit, 10355-6 stack extensions (6"), 10355-9 stack extensions (9"), 10266 louvered ramp kit (36"), 10266L extended ramp kit (52"), 40200-3D bolt-on alignment kit, 40200-3DBK alignment kit with black turn plates, 40200-3DSS alignment kit with stainless steel turn plates, 10333-RJ Sprinter adapter kit.
Not Included: Electrical installation and wiring, compressed air supply and FRL unit, concrete work or floor preparation, hydraulic fluid (requires 3 gallons of 10wt anti-foam anti-rust hydraulic oil or Dexron III ATF), professional installation labor.
Challenger 4P14EFX Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships from Louisville, Kentucky. Contact us for current lead times. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. This is a heavy shipment consisting of multiple pallets and crates. Delivery Type: Curbside delivery standard at commercial addresses. Inspection: Thoroughly inspect all packages immediately upon receipt. Note any shortage or damage on the bill of lading before signing. Photograph any damage and contact Challenger Lifts promptly to file claims.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Contact customer service for return authorization.
Challenger 4P14EFX Warranty
Challenger Lifts Warranty Coverage
Challenger Lifts backs the 4P14EFX with comprehensive warranty protection for professional use:
- Structural Components: Coverage against defects in materials and workmanship
- Hydraulic Cylinder: Coverage for cylinder assembly
- Power Unit: Coverage for motor and hydraulic pump
- Cables and Sheaves: Coverage for lifting cables and pulleys
Requirements: Warranty requires proper installation per manufacturer specifications, use of recommended hydraulic fluid, and adherence to maintenance schedule. Pneumatic component warranty requires use of clean, dry, lubricated air at 90-120 PSI with FRL within 30 feet. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger 4P14EFX?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 4P14EFX FAQ
What is the lifting capacity of the Challenger 4P14EFX?
The Challenger 4P14EFX has a lifting capacity of 14,000 lbs, making it suitable for passenger cars, full-size trucks, SUVs, vans, and light commercial vehicles. The hydraulic system operates at 2,800 PSI at full capacity.
What is the difference between the 4P14EFX and 4P14XFX?
Both models have the same 14,000 lb capacity, but the 4P14XFX is the extended length version. The 4P14EFX has a 182.5" maximum wheelbase and 245.75" overall length, while the 4P14XFX accommodates up to 210" wheelbase with 273.25" overall length. Choose the XFX model for longer vehicles like extended cab trucks, full-size vans, and limousines.
What are the electrical requirements for the 4P14EFX?
The standard 4P14EFX requires 208-230V, 60Hz, single phase power with a dedicated circuit. The 2HP motor needs appropriate circuit protection with a circuit breaker or time delay fuse. Optional 3 phase configurations are available in 208V, 230V, or 460V for shops with three phase power.
What concrete specifications are required for installation?
The 4P14EFX requires a minimum 4" thick concrete floor with steel reinforcement, 3,500 PSI compressive strength, cured for at least 28 days. The floor should be level within 1/2" side-to-side and 2-1/2" front-to-rear. Anchors cannot be installed within 8" of any crack, edge, or expansion joint.
What is the minimum bay size needed for the 4P14EFX?
Challenger recommends a minimum bay size of 12' x 24' for the 4P14EFX. You also need at least 2' clearance to the nearest obstruction around the lift perimeter, plus adequate ceiling height for your tallest vehicles at full rise.
Can I add wheel alignment capability to the 4P14EFX?
Yes, Challenger offers bolt-on alignment kits that make the 4P14EFX 3D alignment compatible. Options include the 40200-3D kit without turn plates, 40200-3DBK with black powder coated turn plates, and 40200-3DSS with stainless steel turn plates. These kits allow you to perform profitable alignment services.
What air supply is required for the lock release system?
The pneumatic lock release system requires clean, dry, lubricated air regulated to 90-120 PSI. A Filter/Regulator/Lubricator (FRL) unit must be installed within 30 feet of the lift. Failure to provide proper air supply will void the warranty on pneumatic components.
What accessories are available for the 4P14EFX?
Available accessories include RJ7.5 rolling jacks with 7,500 lb capacity, airline kit (40230-E), 6" and 9" stack extensions, louvered ramp kits in 36" and 52" lengths, bolt-on alignment kits with various turn plate options, and Sprinter adapter kit for servicing Mercedes Sprinter vans.
How long does it take the lift to reach full height?
The 4P14EFX raises to full height in approximately 75 seconds. The lift provides 78" of rise height, which is among the highest in the industry for four post lifts, giving technicians excellent working clearance underneath vehicles.
Is the Challenger 4P14EFX ALI certified?
Yes, the 4P14EFX is ALI/ETL certified, meaning it meets the safety standards established by the Automotive Lift Institute (ALI) and has been tested to ANSI/ALI ALCTV standards. This certification ensures the lift meets rigorous safety and performance requirements.
What maintenance is required for the 4P14EFX?
Daily maintenance includes keeping components clean and checking for loose or broken parts. Weekly, inspect cables and sheaves for wear. Monthly, torque anchor bolts to 80 ft-lbs and lubricate cables and sheaves with light oil. Check hydraulic fluid level regularly and maintain clean, dry, lubricated air supply to the lock release system.
What type of hydraulic fluid does the 4P14EFX require?
The 4P14EFX requires 3 gallons of clean 10 weight anti-foam, anti-rust hydraulic oil or Dexron III ATF. Do not use oils containing detergents. Hydraulic fluid is not included with the lift and must be purchased separately.
