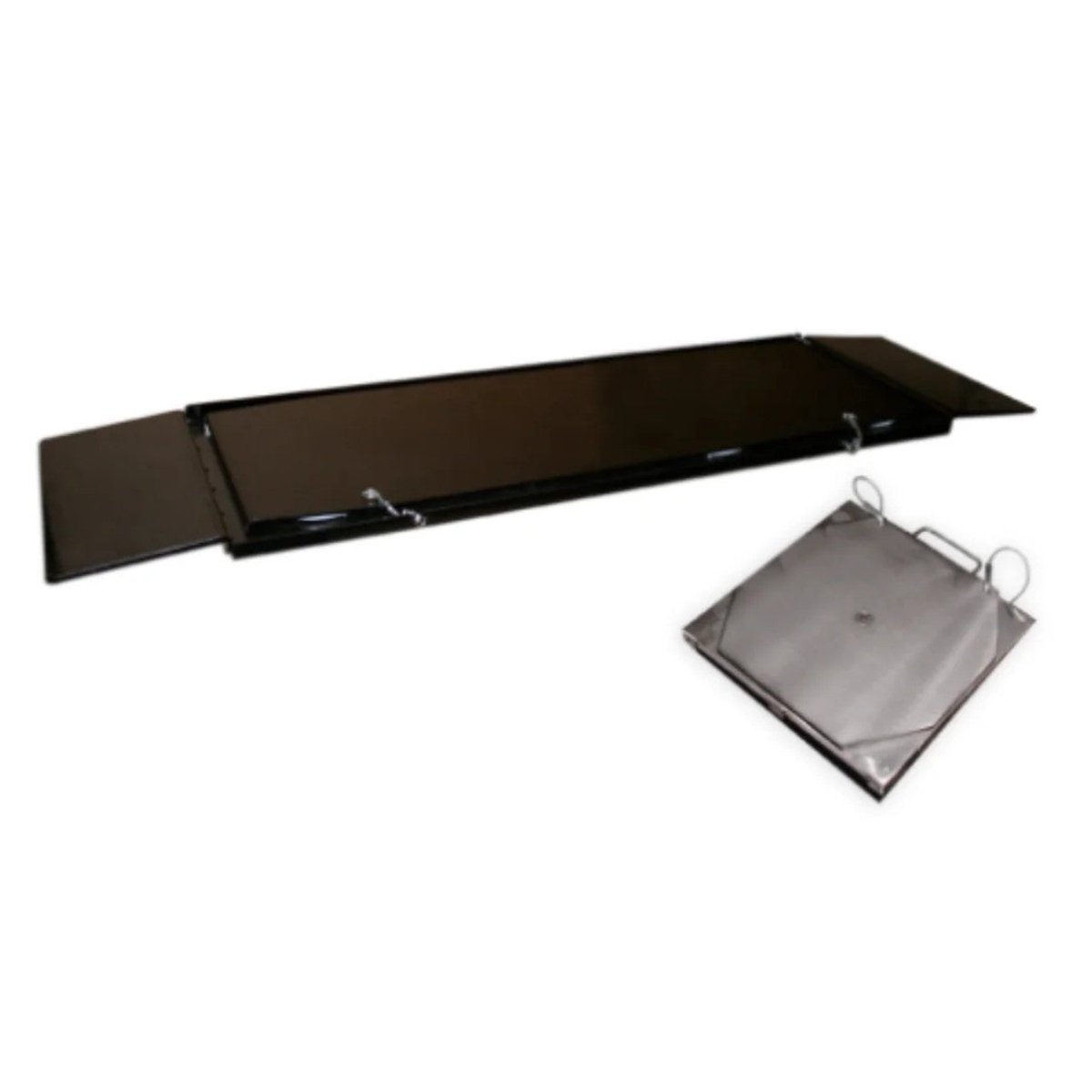

Challenger Lifts 40200-3DSS Stainless Steel Alignment Kit for Four-Post Lifts
The Challenger Lifts 40200-3DSS is a bolt-on alignment upgrade kit that transforms compatible Challenger four-post lifts into 3D alignment-capable workstations. Featuring 10500SS stainless-steel turn plates and radius gauges, this kit delivers corrosion-resistant performance for high-humidity service environments. The 40200-3DSS is compatible with 4P12, 4015, and 4115 series Challenger four-post lifts, enabling shops to expand alignment services without replacing existing equipment. Installation requires no welding or permanent modification, with all mounting hardware included for a straightforward 2-4 hour setup.
Challenger 40200-3DSS Features
10500SS Stainless-Steel Turn Plates
The kit includes 10500SS stainless-steel turn plates engineered for durability in demanding service environments. Stainless steel resists corrosion, surface pitting, and staining from moisture, cleaning agents, and salt-based road chemicals that accelerate degradation on standard powder-coated or carbon-steel alternatives. This extends service life and reduces maintenance cycles compared to non-stainless components.
Stainless-Steel Radius Gauges
Matching 10500SS stainless-steel radius gauges maintain precision over time by resisting corrosion-induced surface irregularities. Shops operating in humid climates, coastal regions, or using aggressive wash protocols benefit from gauge surfaces that stay accurate without the frequent replacement cycles required by carbon-steel alternatives.
3D Wheel Alignment System Compatibility
The 40200-3DSS interfaces with modern 3D camera-based alignment systems, providing mechanical turn-plate and radius-gauge platforms that create clean reference surfaces for alignment cameras and measurement sensors. This enables multi-axis alignment measuring toe, camber, and caster angles simultaneously to meet current OEM specifications.
Multi-Series Lift Compatibility
One kit design fits three major Challenger four-post lift families: the 4P12 compact series and the 4015 and 4115 extended-height variants. This standardized approach eliminates model-specific procurement, simplifies spare-parts inventory, and supports mixed lift fleets across multiple facility locations.
Bolt-On Retrofit Installation
The kit uses a bolt-on mounting approach that attaches directly to existing lift runway structures without welding, drilling, or permanent modification. Multi-point fastening distributes load across the runway structure, and installation typically requires only basic hand tools with completion in 2-4 hours depending on technician familiarity.
Complete Mounting Hardware Included
All standard fasteners and mounting hardware ship with the kit for immediate installation. This eliminates hardware sourcing delays and ensures proper fastener specifications for secure attachment to compatible Challenger lift frames.
Challenger 40200-3DSS Applications
- Independent Repair Shops: Add alignment services to existing Challenger four-post lifts without floor-space reallocation or dedicated alignment rack investment, expanding revenue capabilities from current equipment.
- Tire and Service Centers: Upgrade general-service bays to alignment-capable workstations, reducing customer wait times by performing alignments on the same lift used for tire installation.
- Dealership Service Departments: Maintain OEM alignment specifications using 3D-compatible equipment that integrates with modern camera-based systems required for warranty-eligible procedures.
- Fleet Maintenance Facilities: Standardize alignment capability across mixed Challenger lift installations with a single SKU that supports 4P12, 4015, and 4115 series equipment.
- High-Humidity and Coastal Shops: Deploy corrosion-resistant stainless-steel components that withstand moisture, salt air, and aggressive cleaning protocols without accelerated degradation.
Challenger 40200-3DSS Specifications
| Specification | Value |
|---|---|
| Model Number | 40200-3DSS |
| Kit Type | Bolt-on alignment upgrade kit |
| Alignment Capability | 3D wheel alignment compatible |
| Specification | Value |
|---|---|
| Compatible Lift Series | 4P12, 4015, 4115 (Challenger four-post lifts) |
| Specification | Value |
|---|---|
| Turn Plates Material | 10500SS stainless steel |
| Radius Gauges Material | 10500SS stainless steel |
| Specification | Value |
|---|---|
| Installation Method | Bolt-on (no welding required) |
| Mounting Hardware | Included |
| Typical Installation Time | 2-4 hours |
Challenger 40200-3DSS Installation Requirements
Compatible Lift Requirement
Lift Models: Challenger 4P12, 4015, or 4115 series four-post lifts. Verify your existing lift model before ordering to ensure compatibility with the 40200-3DSS alignment kit.
Tools Required
Basic Hand Tools: Standard wrenches and sockets for bolt-on installation. No welding equipment, drilling, or specialized fabrication tools required. Installation typically completed in 2-4 hours depending on technician familiarity with the specific lift model.
3D Alignment System
Alignment Equipment: A separate 3D camera-based alignment system is required to perform alignments. The 40200-3DSS provides the mechanical turn-plate and radius-gauge platform that interfaces with your alignment system.
Warranty Preservation
The bolt-on design preserves existing lift warranty when installed per manufacturer guidelines. No permanent modifications are made to the lift structure during installation.
What's Included with the Challenger 40200-3DSS
- 10500SS stainless-steel turn plates
- 10500SS stainless-steel radius gauges
- Complete mounting hardware and fasteners
- Installation instructions
Not Included: 3D wheel alignment system (cameras, software, and related equipment sold separately), compatible Challenger four-post lift (4P12, 4015, or 4115 series required).
Challenger 40200-3DSS Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-7 business days. International: Contact sales for quote.
Delivery Requirements
Unloading: Forklift or loading dock recommended for freight deliveries. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages for damage before signing BOL. Note any damage on delivery receipt.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger 40200-3DSS Warranty
Challenger Lifts Warranty
The 40200-3DSS alignment kit is covered under Challenger Lifts warranty terms. Challenger, an American manufacturer based in Louisville, Kentucky, backs their products with comprehensive warranty protection.
- Coverage: Defects in materials and workmanship
- Requirements: Proper installation per manufacturer guidelines
See Documents section below for complete warranty terms and conditions.
Documents
Click to open in a new tab.
Questions About the Challenger 40200-3DSS?
Our equipment specialists can help with compatibility verification, installation planning, and product selection for your shop.
Challenger 40200-3DSS FAQ
Which Challenger lifts are compatible with the 40200-3DSS?
The 40200-3DSS is compatible with three Challenger four-post lift series: the 4P12 compact series and the 4015 and 4115 extended-height variants. Verify your existing lift model number before ordering to ensure compatibility.
Does the kit include everything needed to perform alignments?
The 40200-3DSS includes the mechanical turn plates, radius gauges, and mounting hardware required to make your lift alignment-capable. However, you will need a separate 3D camera-based alignment system (cameras, software, targets, and related equipment) to actually perform alignment measurements and adjustments.
Why are the turn plates and radius gauges made from stainless steel?
The 10500SS stainless-steel construction resists corrosion, surface pitting, and staining that occurs with standard carbon-steel components when exposed to moisture, cleaning agents, and salt-based road chemicals. This is especially important for shops in humid climates, coastal regions, or facilities using aggressive wash protocols.
How long does installation take?
Installation typically requires 2-4 hours depending on the specific lift model and technician familiarity with the equipment. The bolt-on design uses standard hand tools with no welding or drilling required.
Will installing this kit void my lift warranty?
The bolt-on design preserves your existing Challenger lift warranty when installed per manufacturer guidelines. No permanent modifications are made to the lift structure during installation.
What tools are required for installation?
Basic hand tools including standard wrenches and sockets are all that's required. No welding equipment, drilling tools, or specialized fabrication equipment is needed. All mounting hardware is included with the kit.
How is the 40200-3DSS shipped?
The kit ships via freight carrier with free shipping to commercial addresses in the 48 contiguous United States. Lead time is typically 5-7 business days. A forklift or loading dock is recommended for unloading freight deliveries.
Can I return the kit if it doesn't fit my lift?
Returns are accepted within 30 days of delivery for unopened products in original packaging. A 20% restocking fee applies and the buyer is responsible for return freight costs. We recommend verifying your lift model compatibility before ordering.
What is the advantage of upgrading vs. buying a dedicated alignment lift?
The bolt-on approach enables faster commissioning of alignment capability, reduces costs compared to dedicated equipment purchases (which typically require 15 x 10 feet minimum floor space), preserves your existing equipment investment, and minimizes service interruption by allowing installation outside peak service hours.
What 3D alignment systems work with the 40200-3DSS?
The 40200-3DSS is designed to interface with modern 3D camera-based alignment systems. The stainless-steel gauge platforms provide clean, non-corrosive reference surfaces compatible with alignment cameras and measurement sensors from major alignment system manufacturers. Contact our equipment specialists for specific system compatibility questions.
How do I maintain the stainless-steel components?
Stainless-steel turn plates and radius gauges require minimal maintenance compared to carbon-steel alternatives. Regular cleaning with standard shop cleaners is typically sufficient. The corrosion-resistant material eliminates the need for protective coatings or frequent replacement cycles common with non-stainless components.
Can I install the kit myself or do I need professional installation?
The bolt-on design allows installation by shop personnel with basic mechanical skills and hand tools. Professional installation is not required but is available if preferred. Follow all manufacturer guidelines during installation to maintain warranty coverage.
