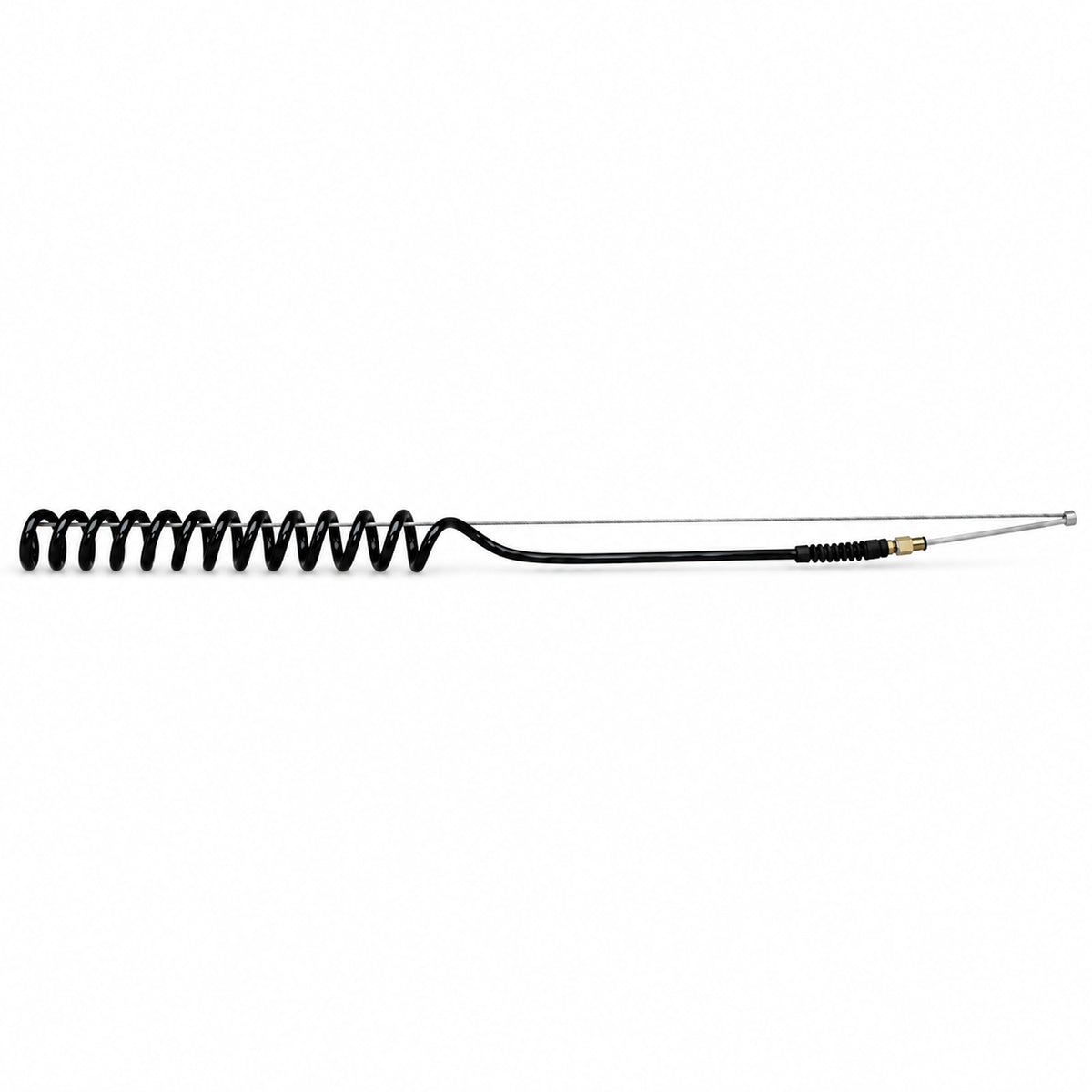

Challenger 40230-X Internal Air Line Kit for Dual Rolling Jack Operation (XFX Series)
Internal Air Line Kit for Dual Rolling Jack Operation - Challenger 40230-X (XFX Series)
Complete Under-Runway Air Supply System for Extended-Length 4-Post Lifts
Running air hoses across your shop floor between lift runways creates trip hazards and workspace clutter. The Challenger 40230-X internal air line kit eliminates this problem by routing compressed air beneath the runways of your XFX series four-post lift. This complete 22-component kit supplies air to two rolling jacks simultaneously from a single shop air source, keeping your work area clear during wheel service, brake jobs, and tire rotations.
Designed specifically for Challenger's extended-length lifts, the 40230-X includes 20 feet of main tubing and a 206.5-inch steel support cable to accommodate longer routing paths. Professional service centers, dealership bays, and fleet maintenance facilities rely on this OEM accessory to maximize technician efficiency while maintaining a safer workspace.
Key Features and Benefits
Dual Jack Air Supply from Single Source - One kit powers two rolling jacks simultaneously through a branch tee system. Each jack connects via its own 15-foot coiled air hose, providing independent reach across the full runway length.
Under-Runway Installation Eliminates Clutter - Airlines mount and secure beneath lift runways using the included steel cable support system. This keeps hoses off the floor and out of the technician work zone between runways.
Complete OEM Component Package - Includes all fittings, tubing, mounting hardware, and controls needed for installation. Every component carries a factory part number for easy replacement through the Challenger dealer network.
Integrated Jack Stop System - Two 1/2-13 bolt stops install at pre-measured positions (50.75 inches and 105.375 inches from runway front) to prevent jack overtravel during service operations.
Applications
- Wheel service operations on vehicles up to 15,000 lbs.
- Brake inspection and component replacement.
- Tire rotation and mounting services.
- Commercial auto repair and quick lube facilities.
- Fleet maintenance operations.
- Dealership service departments.
Specifications
| Specification | Details |
|---|---|
| Part Number | 40230-X |
| Function | Air supply for dual rolling jack operation |
| Air Capacity | Supplies two jacks simultaneously |
| Coiled Air Hose | 15 ft each (2 included) |
| Main Tubing | 3/8" OD x 20 ft plastic |
| Secondary Tubing | 1/4" OD x 4 ft plastic |
| Steel Support Cable | 1/8" diameter x 206.5" |
| Main Fitting Size | 1/4" NPT |
| Compatible Lifts | 4P14XFX, 4P12XFX, 4015X, 4115X (verify fitment with dealer) |
| Quantity | 1 complete kit |
Installation Requirements
Installation requires raising the lift to a comfortable working height with the lift resting in locks. The 3/8-inch plastic air hose routes alongside the hydraulic hose through the cloth sheath to the underside of the power runway. A 13/16-inch hole in the power runway wall accommodates routing, and all tubing is secured with the included zip ties and line clamps. Full step-by-step instructions are available in the Challenger installation manual (PDF).
Upgrade Your 4-Post Lift Setup
Add the Challenger 40230-X to your XFX series lift and eliminate air hose clutter while enabling efficient dual rolling jack operation. Backed by Challenger Lifts' 90-day accessory warranty.
Frequently Asked Questions
What is the difference between the 40230-X and 40230-E air line kits?
The 40230-X is designed for extended-length XFX series Challenger lifts, featuring longer tubing and cable to accommodate the extended runway dimensions. The 40230-E fits standard-length Challenger four-post lifts. Always verify your lift model before ordering to ensure proper fitment.
Which Challenger lift models are compatible with the 40230-X?
The 40230-X is compatible with Challenger extended-length four-post lifts including the 4P14XFX, 4P12XFX, 4015X, and 4115X models. Lift model naming conventions vary between sources, so confirm compatibility with your dealer or the manufacturer before purchase.
How many rolling jacks can this kit support?
The 40230-X kit provides air supply infrastructure for two rolling jacks operating simultaneously from a single shop air source. The kit includes two 15-foot coiled air hoses, one for each jack position, connected through a branch tee fitting system.
What is included in the 40230-X kit?
The complete kit includes over 22 components: two 15-foot coiled air hoses, 20 feet of 3/8-inch main tubing, 4 feet of 1/4-inch secondary tubing, a 206.5-inch steel support cable, all NPT fittings and connectors, a button valve and bracket assembly, jack stop hardware, line clamps, and zip ties.
What warranty covers the 40230-X air line kit?
Challenger Lifts provides a 90-day warranty on accessory products including the 40230-X. The warranty requires installation per Challenger specifications and registration at challengerlifts.com. Coverage extends only to the original purchaser and is non-transferable.
