BendPak LR-60P Portable Low-Rise Lift: 6,000 lb Capacity
Also searched as: LR60P / LR 60P / BendPak portable low-rise lift

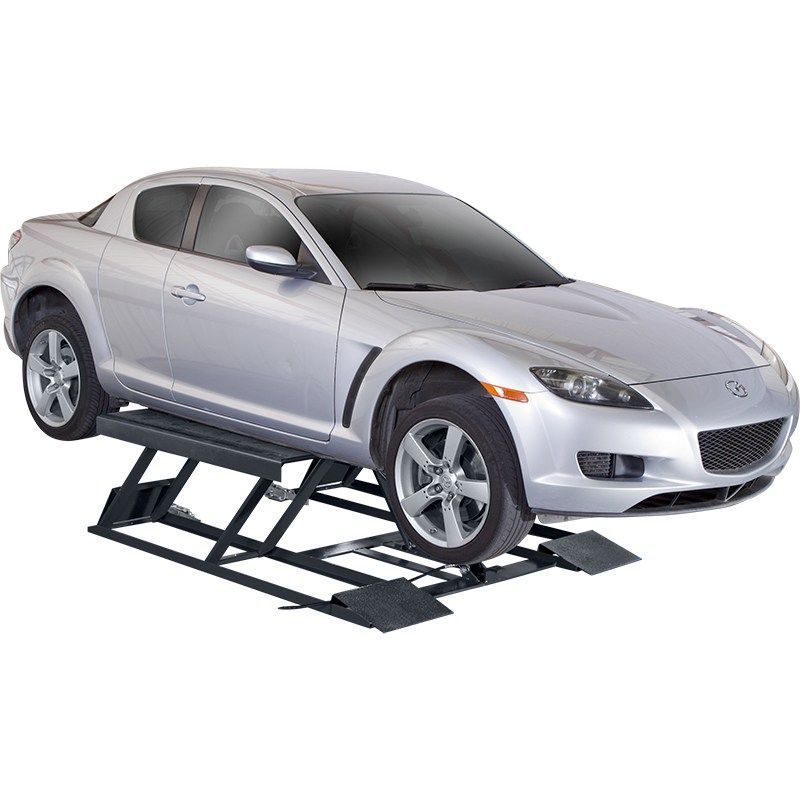

The BendPak LR-60P is a 6,000 lb capacity portable low-rise lift with UHMW rollers and an integrated tow handle for easy repositioning. The 4" collapsed height slides under most vehicles, while the 23" max lift height gives you working room for wheel service, brakes, and quick jobs. Runs on standard 110V power and lifts in 35 seconds. ALI certified with a 5-2-1 warranty.
Who It's For
Mobile Service Operations
Technicians who need to reposition equipment throughout the shop. The UHMW rollers and tow handle let you move the lift like a hand truck, bringing the lift to the vehicle instead of the other way around.
Multi-Bay Shops with Limited Equipment
Share one lift across multiple bays by rolling it where you need it. No need to buy a lift for every bay when one portable unit covers them all.
Home Garages
DIY mechanics who want a lift they can store out of the way when not in use. Roll it to the side and reclaim your parking space. Runs on standard 110V household power.
Tire and Wheel Service
Quick wheel service, brake jobs, and tire rotations without tying up a full-height lift. The low-rise design keeps vehicles accessible while freeing up bay space for bigger jobs.
Features
Portable Design with UHMW Rollers
High-density UHMW rollers and an integrated tow handle let you reposition the lift anywhere in your workspace. Move it like a hand truck. The 974 lb lift rolls smoothly on flat concrete, making it easy to clear floor space or share between bays.
Ultra-Low 4" Profile
4" collapsed height slides under most vehicles, including many sports cars and lowered trucks. The dropped crossbar design provides additional clearance for positioning under vehicles that won't clear standard lifts.
Multi-Position Safety Locks
Set the lift to your preferred working height with multiple locking positions. Maximum lifting height is 23", extendable to 24.5" with included 1.5" blocks or 26" with optional 3" blocks. Single-point safety release allows controlled lowering with one hand.
Vehicle Protection
Solid rubber lifting blocks provide a stable, non-marring surface that protects your vehicle's frame from scratches and dents. The 18" x 52" lift pads accommodate a wide range of vehicle lift points.
Industrial-Grade Hydraulics
One-piece machined steel piston with specialized seals delivers smooth, leak-free lifting. 35 seconds to full rise. The electric-hydraulic power system runs on 110 VAC / 50-60 Hz / single-phase power with no special electrical work required.
Heavy-Duty Steel Frame
Rugged steel channel frame handles the full 6,000 lb capacity with stability. The wide base ensures the lift stays planted during operation, even with the portable roller design.
Specifications
| Spec | Value |
|---|---|
| Lifting Capacity | 6,000 lbs (2,724 kg) |
| Max Capacity Front Axle | 3,000 lbs (1,361 kg) |
| Max Capacity Rear Axle | 3,000 lbs (1,361 kg) |
| Motor | 110 VAC / 50-60 Hz / 1 Ph |
| Lifting Time | 35 seconds |
| Spec | Value |
|---|---|
| Overall Length | 82" (2,083 mm) |
| Overall Width | 70.5" (1,791 mm) |
| Overall Pad Length | 53" (1,346 mm) |
| Lift Pad Dimensions | 18" x 52" (457 x 1,320 mm) |
| Spec | Value |
|---|---|
| Lowered Height | 4" (102 mm) |
| Max Lifting Height | 23" (584 mm) |
| Max Height + 1.5" Blocks | 24.5" (622 mm) |
| Max Height + 3" Blocks | 26" (661 mm) |
| Spec | Value |
|---|---|
| Shipping Weight | 974 lbs (442 kg) |
| Shipping Dimensions | 73" x 84" x 20" |
Installation Requirements
Concrete and Space
Concrete: Minimum 4" thick, fully cured (28 days), 3,000 PSI strength. Surface must be flat and level within 3 degrees of slope. No anchoring required for standard operation.
Space: Floor space of 82" x 70.5" (approximately 7 ft x 6 ft). The portable design lets you store it out of the way when not in use.
Electrical
Power: 110 VAC / 50-60 Hz / single-phase. Standard household outlet works for most home garages. A dedicated circuit is recommended for commercial use.
Certification
The LR-60P is ALI certified by the Automotive Lift Institute to meet industry safety and performance standards. Verify current status at autolift.org.
Shipping
Typically ships free to commercial addresses with a loading dock or forklift in the 48 continental U.S. This is a 974 lb shipment (73" x 84" x 20"). Residential delivery available with liftgate service for an extra fee. Got questions? Call us at +1 (855) 498-2147.
Warranty
Coverage
5 Years: Structural components (frame, platform). 2 Years: Hydraulic cylinder and power unit. 1 Year: Operating and electrical components, labor, and parts shipping.
What's not covered: Abuse, overloading, normal wear items, improper installation, cosmetic issues. Keep your receipt and maintenance records.
Buy the BendPak LR-60P
Questions about capacity, vehicle compatibility, or comparing low-rise lift models?
FAQs
What is the maximum weight capacity?
6,000 lbs total with 3,000 lb front and rear axle ratings. For heavier vehicles, consider the LR-10000 with 10,000 lb capacity.
How portable is the LR-60P?
Very. The UHMW rollers and integrated tow handle let you move the 974 lb lift like a hand truck on smooth concrete. Roll it to the vehicle, position it, and start working. When done, roll it out of the way.
What's the difference between the LR-60 and LR-60P?
Both have 6,000 lb capacity and run on 110V. The LR-60 has a 3.5" collapsed height while the LR-60P is 4". The key difference is portability: the LR-60P has UHMW rollers and a tow handle, while the LR-60 is stationary.
Is the LR-60P stable when lifted?
Yes. The robust steel frame and wide base ensure stability during operation. The UHMW rollers support the lift during movement, but once positioned, the lift rests on its frame for secure lifting.
What surfaces can I use it on?
Smooth concrete is ideal. The lift can work on other firm, level surfaces, but uneven or soft surfaces may compromise stability and make movement difficult.
Do the UHMW rollers require maintenance?
UHMW rollers are extremely durable and require minimal maintenance. Keep them clean and free of debris. Avoid harsh chemicals or extreme temperatures.
What electrical power is required?
110 VAC / 50-60 Hz / single-phase. Standard household power. No special electrical work required for most home garages.
Is the LR-60P ALI certified?
Yes. The LR-60P is certified by the Automotive Lift Institute (ALI) to meet industry safety and performance standards.
