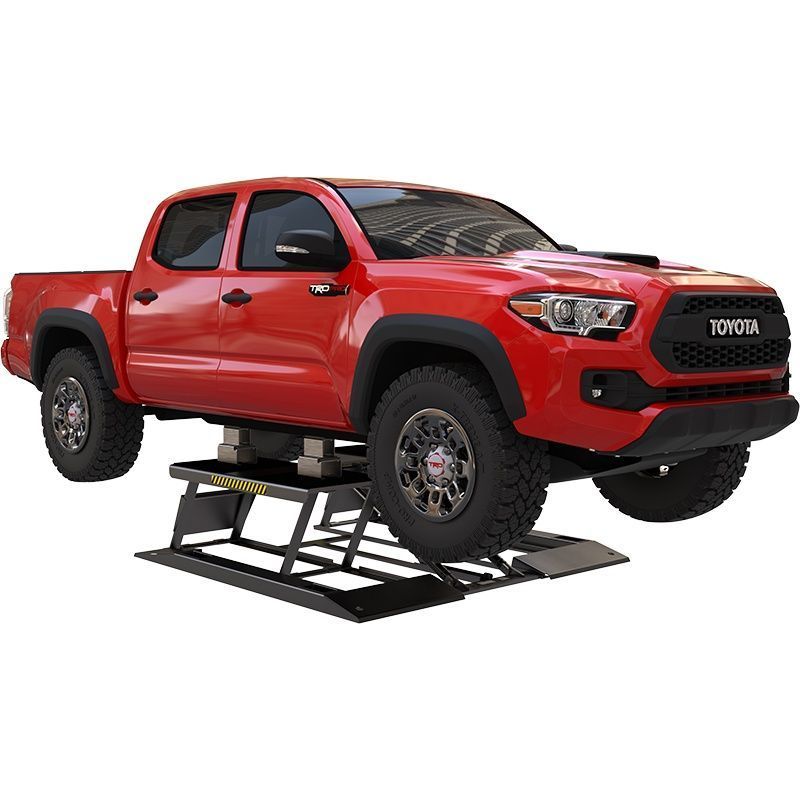

BendPak LR-10000 10,000 lb Low-Rise Lift
The BendPak LR-10000 is a 10,000 lb capacity low-rise lift built for trucks, SUVs, and heavy vehicles that standard low-rise lifts can't handle. The 4.5" collapsed height slides under most vehicles, while the 23" maximum lift height with four adjustable locking positions gives you flexible working heights. Features built-in storage trays, rubber-topped lifting pads with multi-height adapters, and a single-point safety release system. ALI certified with a 5-2-1 warranty.
Who It's For
- Shops Servicing Heavy Vehicles: Trucks, SUVs, and full-size vans that exceed the 6,000 lb capacity of standard low-rise lifts. The 10,000 lb rating handles heavy-duty pickups and commercial vehicles.
- Tire and Wheel Service Centers: Quick wheel service, brake jobs, and tire rotations without tying up a full-height lift. The low-rise design keeps vehicles accessible while freeing up bay space.
- Fleet Maintenance Operations: Service mixed fleets with vehicles ranging from sedans to heavy trucks. One lift handles the full range without switching equipment.
- Dealership Service Departments: Fast turnaround on wheel and brake service for trucks and SUVs. The 35-second lift time keeps vehicles moving through the bay.
- Home Garages with Heavy Vehicles: DIY mechanics with trucks or SUVs who need more capacity than standard low-rise lifts provide.
Features
10,000 lb Heavy-Duty Capacity
10,000 lb total capacity with 5,000 lb maximum per axle. This is nearly double the capacity of standard 6,000 lb low-rise lifts, handling heavy trucks and SUVs that other low-rise lifts can't manage. Dual hydraulic cylinders and a rugged steel channel frame provide stable, reliable lifting.
Ultra-Low 4.5" Profile
4.5" collapsed height slides under most vehicles, including many sports cars and lowered vehicles. Wide platform with diamond-plated approach ramps provides ample space and grip for safe vehicle positioning. The low profile maximizes the range of vehicles you can service.
Four Adjustable Locking Positions
Set the lift to your ideal working height with four locking positions: 14", 18", 20.75", and 22.75". Maximum lifting height is 23". Choose the height that reduces strain and improves access to the work area.
Built-in Storage and Lifting Pads
Integrated storage trays keep lug nuts and small parts within reach. Durable rubber-topped lifting pads and included multi-height adapters provide versatile contact points for lifting a wide range of vehicles safely without damage.
Single-Point Safety Release
Hands-free safety lock release operates away from the lift, allowing operators to safely deactivate the locks without reaching under the vehicle. Dead-man style controls provide smooth, level descent with instantaneous release.
Dual Hydraulic Power System
Industrial-grade dual hydraulic cylinders provide consistent ascents and descents. 35 seconds to full rise. The electric-hydraulic power system runs on 208-230 VAC / 50-60 Hz / single-phase power.
Specifications
| Lifting Capacity | 10,000 lb (4,545 kg) |
|---|---|
| Max Capacity Front Axle | 5,000 lb (2,273 kg) |
| Max Capacity Rear Axle | 5,000 lb (2,273 kg) |
| Motor | 208-230 VAC / 50-60 Hz / 1 Phase |
| Overall Width | 85" (2,159 mm) |
|---|---|
| Overall Length | 82.85" (2,094 mm) |
| Overall Pad Length | 53" (1,346 mm) |
| Lift Pad Dimension | 24" (610 mm) |
| Lowered Height | 4.5" (114 mm) |
|---|---|
| Max Lifting Height | 23" (584 mm) |
| 1st Lock Position | 14" (356 mm) |
| 2nd Lock Position | 18" (457 mm) |
| 3rd Lock Position | 20.75" (527 mm) |
| 4th Lock Position | 22.75" (578 mm) |
| Lifting Time | 35 seconds |
| Shipping Weight | 1,332 lb (604 kg) |
|---|---|
| Shipping Dimensions | 88" × 85" × 24" |
Installation Requirements
Concrete Foundation
Minimum 4" thick concrete, fully cured (28 days minimum), 3,000 PSI strength. Surface must be flat and level within 3 degrees of slope. No anchoring required for standard operation.
Electrical
Power: 208-230 VAC / 50-60 Hz / single-phase. Dedicated circuit recommended. Licensed electrician required for electrical connections.
Space Requirements
Floor space: 82.85" length × 85" width (approximately 7 ft × 7 ft). The portable design allows repositioning with a pallet jack. Indoor use recommended; can be used outdoors on level, solid surfaces but should be protected from elements when not in use.
Certification
The LR-10000 is ALI certified by the Automotive Lift Institute to meet industry safety and performance standards. Verify current status at autolift.org.
What's Included
- Complete lift assembly with dual hydraulic cylinders
- Diamond-plated approach ramps
- Rubber-topped lifting pads
- Multi-height adapters
- Built-in storage trays
- Installation and maintenance instructions
- Graphic safety decals
- Vehicle lifting point guide
Consider the LR-60 or LR-60P if: Your vehicles are under 6,000 lb and you want a lower collapsed height (3.5" or 4") or 110V power option.
Note: Professional installation recommended. Licensed electrician required for electrical connections.
Documents
Click to open in a new tab.
Shipping & Delivery
Freight Shipping
Free shipping to direct shipping points within the 48 contiguous United States. LTL freight delivery with transit time subject to inventory and carrier scheduling.
Additional Services
Rural/remote areas may incur surcharges. Liftgate service available for locations without forklift access (additional fee). Residential delivery available for additional fee.
Receiving & Damage Claims
Unloading: Forklift or liftgate required for this 1,332 lb shipment (88" × 85" × 24"). Inspect all packaging before signing the Bill of Lading and note any visible damage. Damage coverage: Within 15 days: 100% coverage. Within 30 days: 50% coverage. After 30 days: No coverage.
Warranty
BendPak 5-2-1 Warranty
- 5 Years: Structural components
- 2 Years: Hydraulic cylinders and power unit
- 1 Year: Operating and electrical components
- 1 Year: Labor (on-site or factory)
- 1 Year: Free shipping on warranty parts (continental US)
Requirements: Proper installation per manufacturer's manual. Regular maintenance as specified. Non-transferable. Use of approved replacement parts only.
Questions About the LR-10000?
Capacity requirements, vehicle compatibility, or help choosing between low-rise lift models.
FAQ
What is the maximum weight capacity?
10,000 lb total with 5,000 lb front and rear axle ratings. This is nearly double the capacity of standard 6,000 lb low-rise lifts.
What vehicles can this lift handle?
The LR-10000 handles cars, trucks, and SUVs up to 10,000 lb. This includes heavy-duty pickups, full-size SUVs, and commercial vans. Extremely low-riding vehicles with modified ground clearance may be challenging. Always compare your vehicle's ground clearance to the 4.5" collapsed height.
How does this compare to the LR-60 and LR-60P?
The LR-60 and LR-60P have 6,000 lb capacity versus the LR-10000's 10,000 lb. The LR-60 has the lowest collapsed height at 3.5", the LR-60P is 4", and the LR-10000 is 4.5". The LR-60 models run on 110V while the LR-10000 requires 208-230V. Choose the LR-10000 for heavy trucks and SUVs.
What are the four locking positions?
The four adjustable locking positions are 14", 18", 20.75", and 22.75". Maximum lifting height is 23". Choose the height that works best for the job to reduce strain and improve access.
Can I move the lift around my shop?
Yes. While the LR-10000 doesn't have built-in wheels, it can be moved with a pallet jack or similar equipment. Its manageable weight and footprint make it easier to reposition than larger fixed lifts.
Can this lift be used outdoors?
The LR-10000 is designed for indoor use but can be used outdoors on a level, solid surface. Protect it from the elements when not in use to prevent damage to electrical and hydraulic components.
What electrical power is required?
208-230 VAC / 50-60 Hz / single-phase. This is different from the LR-60 models which run on 110V. A dedicated circuit is recommended.
Is the LR-10000 ALI certified?
Yes. The LR-10000 is certified by the Automotive Lift Institute (ALI) to meet industry safety and performance standards. Verify current status at autolift.org.
How does the hands-free safety lock release work?
The single-point safety lock release operates away from the lift, allowing operators to deactivate the locks without reaching under the vehicle. This keeps the operator in a secure position during release and reduces the risk of injury.
What maintenance does the LR-10000 require?
Regular inspections of hydraulic systems and lubrication points. Check the owner's manual for your specific schedule, but monthly inspections of hydraulic components and lubrication are typical. The industrial-grade power system is designed for long-term durability.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
