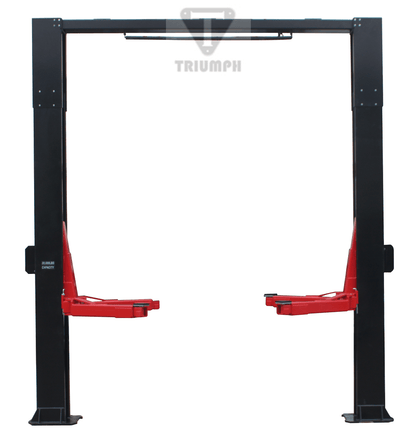

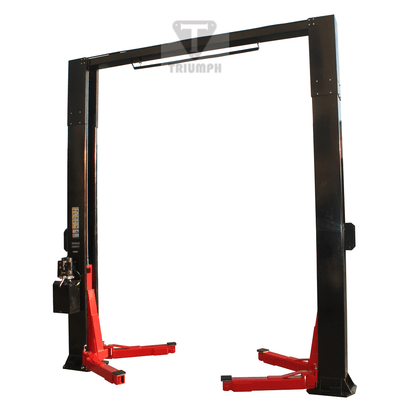

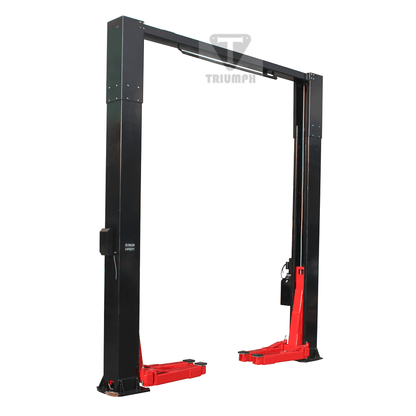

TRIUMPH NTO-20S, 20,000 lb Two Post Auto Lift
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Triumph NTO-20S 20,000 lb Two-Post Lift for Heavy-Duty Trucks and Commercial Vehicles
The Triumph NTO-20S is a heavy-duty overhead two-post lift designed to handle vehicles up to 20,000 lb, making it ideal for commercial trucks, fleet vehicles, and large SUVs. This lift features direct drive cylinders, an electrical override automatic safety shut-off, and a single-point lock release for smooth operation. With a lifting height of 74 in and a drive-thru width of 113 in, the NTO-20S accommodates a wide range of heavy vehicles. The lift runs on 220V power with a 3 HP motor and includes free truck adapters and mounting hardware. It comes with a 1 year parts warranty and is ISO 9001 and CE certified for quality assurance.
Triumph NTO-20S: Who It's For
- Commercial Fleet Operations: With 20,000 lb capacity, this lift handles box trucks, delivery vehicles, and large work trucks that exceed standard lift capacities.
- Heavy-Duty Repair Shops: Professional shops servicing commercial vehicles, heavy-duty pickups, and fleet trucks need the extra capacity this lift provides.
- Agricultural and Construction Equipment Services: The robust capacity accommodates larger utility vehicles and equipment used in farming and construction industries.
- RV and Motorhome Service Centers: Facilities that service Class B and Class C motorhomes benefit from the 20,000 lb rating and wide drive-thru clearance.
- Municipal and Government Garages: City and county maintenance facilities servicing heavy-duty emergency vehicles, utility trucks, and public works equipment.
Triumph NTO-20S Features
Direct Drive Cylinder System
The Triumph NTO-20S uses direct drive cylinders that connect directly to the lifting carriages, eliminating the cables and chains found in other lift designs. This results in smoother operation, reduced maintenance, and more consistent lifting performance. The direct drive system delivers the full 20,000 lb capacity with a 40-second rise time.
Electrical Override Safety Shut-Off
Safety is built into every aspect of the NTO-20S, including an automatic electrical safety shut-off system. This feature cuts power to the lift if it detects any irregularities during operation, preventing accidents and protecting both technicians and vehicles. The override provides an additional layer of protection beyond the mechanical safety locks.
Single-Point Lock Release
The single-point lock release system allows the operator to disengage all safety locks from one convenient location. This streamlines the lowering process and reduces the time spent walking around the lift to release individual locks. The system maintains full safety compliance while improving workflow efficiency.

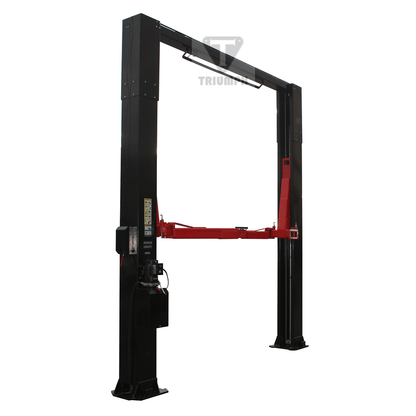

Overhead Design Configuration
The overhead style two-post design positions the connecting beam at the top of the columns, keeping the floor area completely clear for vehicle access. This configuration provides 113 in of drive-thru width and eliminates any obstacles that could interfere with longer wheelbase vehicles or impede technician movement.
Wide Drive-Thru Clearance
With 113 in of drive-thru width and 124 in between posts, the NTO-20S accommodates wider commercial vehicles that won't fit on standard automotive lifts. The generous clearance makes positioning large trucks, vans, and dual-rear-wheel vehicles straightforward without concern for mirror or body damage.
Heavy-Duty 3 HP Motor
The 3 HP motor powers the NTO-20S through demanding daily use in commercial environments. Running on 220V single-phase power, the motor delivers consistent performance and the torque needed to lift fully loaded commercial vehicles. The 40-second lift time keeps productivity high even with the heaviest loads.
Triumph NTO-20S Specifications
| Lifting Capacity | 20,000 lbs |
|---|
| Overall Height | 170.5 in |
|---|---|
| Overall Width | 155 in |
| Distance Between Posts | 124 in |
| Drive-Thru Width | 113 in |
| Lowered Height | 6 in |
| Base Plate Size | 21 x 20 in |
| Lifting Height | 74 in |
|---|---|
| Lift Time | 40 seconds |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Voltage | 220V |
|---|---|
| Motor | 3 HP |
Triumph NTO-20S Installation Requirements
Floor Requirements
- Surface: Reinforced concrete floor rated at minimum 4,000 PSI strength
- Thickness: 6 in concrete slab minimum
- Condition: Concrete must be fully cured and free of cracks or damage in anchor locations
Electrical Requirements
- Power: 220V single-phase electrical service
- Circuit: Dedicated circuit recommended for lift operation
- Installation: Electrical connections should be completed by a licensed electrician
Ceiling Height
- Minimum: The overall height of 170.5 in requires adequate ceiling clearance
- Recommended: Allow additional clearance above the lift for overhead beam and lighting access
Space Requirements
- Footprint: Overall width of 155 in with 21 x 20 in base plates at each column
- Work Area: Allow additional space around the lift for technician access and tool storage
- Professional Installation: Recommended to ensure proper anchoring and alignment
What's Included with the Triumph NTO-20S
- Two-post lift columns with overhead connecting beam
- Direct drive hydraulic cylinders
- Lifting arms with adjustable pads
- Truck adapters for heavy-duty applications
- Mounting hardware and anchor bolts
- Power unit with 3 HP motor
- Installation instruction manual
Triumph NTO-20S Documents
Click to open in a new tab.
Triumph NTO-20S Shipping and Delivery
LTL Freight Delivery
Your Triumph NTO-20S ships via LTL common carrier freight on a 48-foot semi truck. Shipping is free to the lower 48 United States. Transit time typically ranges from 3 to 14 days depending on your location. Once your lift ships, we will email you the carrier information and tracking number so you can monitor delivery progress.
Unloading Requirements
You are responsible for unloading the lift from the truck. The truck driver does not unload it for you, and lift gate delivery service is not available for auto lifts. You cannot unload an auto lift by hand. You must have machinery capable of lifting the full weight of the lift. Acceptable equipment includes a forklift, Bobcat, tractor, tow truck, or backhoe. If you cannot unload from a truck at your location, we can ship to the carrier's nearest freight terminal for you to pick up with a trailer or moving van.
Delivery Scheduling
You are responsible for contacting the freight company to schedule a delivery appointment. We cannot schedule this for you since we do not know your availability. The carrier will have contact information included with your shipment tracking details.
Shipping Exclusions
Free shipping does not include delivery to government secure locations, state and national parks, construction sites, islands, Alaska, or Hawaii. Additional shipping charges may apply to these destinations.
Triumph NTO-20S Warranty
1 Year Parts Warranty
- Coverage: The Triumph NTO-20S comes with a 1 year parts warranty. If you experience an issue, call us and we will troubleshoot the problem over the phone with you. We then ship you the replacement part free of charge, including free ground shipping.
- Labor: The warranty does not cover labor costs. You must install the replacement part yourself or pay someone to do it. Most repairs are straightforward for someone with mechanical experience.
- Cylinders: Hydraulic cylinders carry a 30-day full warranty. After 30 days, we provide a seal kit for cylinder repairs.
- Exclusions: Rubber lifting pads are not covered under the warranty as they are considered wear items.
Questions About the Triumph NTO-20S?
Need help determining if this 20,000 lb lift fits your shop? Have questions about floor requirements, electrical needs, or whether it will accommodate your specific vehicles? Our team is ready to help.
Triumph NTO-20S FAQ
What is the maximum lifting capacity of the Triumph NTO-20S?
The Triumph NTO-20S has a maximum lifting capacity of 20,000 lb, making it suitable for heavy-duty commercial trucks, large fleet vehicles, and other heavy equipment that exceeds the capacity of standard automotive lifts.
What are the concrete floor requirements for the NTO-20S?
The Triumph NTO-20S requires a minimum 6 in thick concrete slab with a rated strength of at least 4,000 PSI. The concrete must be fully cured and in good condition at the anchor points. These requirements are critical for safely supporting the lift and vehicles at full capacity.
What electrical power does the NTO-20S require?
The lift operates on 220V single-phase electrical power and is equipped with a 3 HP motor. A dedicated circuit is recommended for optimal performance. Have a licensed electrician handle the electrical connections during installation.
How long does it take to raise a vehicle on the NTO-20S?
The Triumph NTO-20S has a lift time of approximately 40 seconds to reach full lifting height. The 3 HP motor provides consistent performance even when lifting vehicles at or near the 20,000 lb capacity.
What is the maximum lifting height of the NTO-20S?
The NTO-20S provides a maximum lifting height of 74 in from the lowered position of 6 in. The overall height of the lift is 170.5 in, so ensure your ceiling has adequate clearance before installation.
Are truck adapters included with the NTO-20S?
Yes, the Triumph NTO-20S comes with truck adapters included at no additional cost. Mounting hardware is also included with the lift to simplify your installation process.
What is the drive-thru width on the NTO-20S?
The NTO-20S offers 113 in of drive-thru width with 124 in between the posts. This generous clearance accommodates wide commercial vehicles, dual-rear-wheel trucks, and large vans without concern for body or mirror damage during positioning.
How do I unload the lift when it arrives?
You are responsible for unloading the lift from the delivery truck. The driver does not assist with unloading, and lift gate service is not available. You will need equipment such as a forklift, Bobcat, tractor, tow truck, or backhoe capable of handling the full weight of the lift. If you cannot unload at your location, we can arrange delivery to a freight terminal for pickup.
What does the warranty cover on the NTO-20S?
The Triumph NTO-20S includes a 1 year parts warranty. If something fails, contact us for phone troubleshooting and we will ship replacement parts at no charge including free ground shipping. Labor costs are not covered. Hydraulic cylinders have a 30-day full warranty, after which we provide seal kits for repairs. Rubber lifting pads are not covered as they are wear items.
Is the NTO-20S certified for commercial use?
Yes, the Triumph NTO-20S is ISO 9001 and CE certified, meeting international quality and safety standards for commercial automotive service equipment. These certifications demonstrate that the lift is engineered and manufactured to rigorous quality standards.
