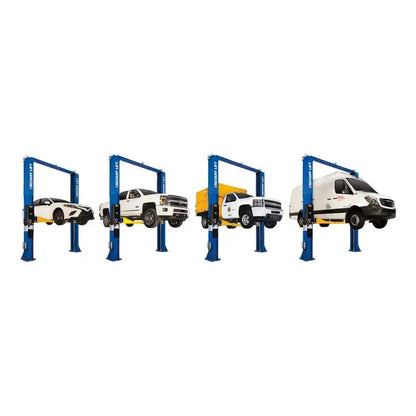

ROTARY SPO16-CARGO 16K Symmetric Two-Post Lift w/ Ext Arm
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Rotary SPO16-CARGO - 16,000 lb ALI Certified Two-Post Lift for Cargo Vans & Commercial Vehicles
The Rotary SPO16-CARGO delivers 16,000 lb lifting capacity in a symmetric two-post design engineered specifically for long-wheelbase cargo vans and Class 1-5 commercial vehicles. Featuring heavy-duty 3-stage arms with 74 13/16 inch maximum reach, patented Double "S" column construction, and ALI Gold certification, this lift handles Ford Transits, Mercedes Sprinters, RAM ProMasters, and full-size commercial trucks that standard lifts cannot properly support.
Key Features & Benefits
Extended 3-Stage Arm System for Long-Wheelbase Vehicles
The heavy-duty 3-stage arm configuration provides 74 13/16 inch maximum reach with a minimum of 36 13/16 inches, enabling proper pickup point contact on extended-wheelbase cargo vans that standard two-post lifts cannot accommodate. Each arm supports up to 4,000 lb for balanced lifting of fully-loaded commercial vehicles.
Standard two-post lifts with typical two-stage arms lack the reach to contact manufacturer-recommended lifting points on vehicles like Ford Transit Extended, Mercedes Sprinter 170-inch wheelbase, and RAM ProMaster 159-inch models. The SPO16-CARGO's extended reach addresses this industry-wide limitation for fleet service operations handling modern commercial van platforms.
This enables shops to properly service the growing fleet of delivery vans, service trucks, and commercial vehicles without compromising on lift point positioning or vehicle stability during service operations.
Patented Double "S" Column Design
The patented Double "S" column construction delivers superior torsional strength and load distribution compared to conventional column profiles. This engineering approach maintains column rigidity under 16,000 lb maximum capacity while preventing the flexing and twisting that can occur with standard box or I-beam column designs under heavy asymmetric loads.
When technicians remove heavy components from one side of a vehicle, such as engines or transmissions, the resulting load imbalance can stress column structures. The Double "S" profile's geometry resists these torsional forces, maintaining stable carriage travel throughout the lifting cycle and reducing long-term wear on slider components.
This improves service bay safety and extends the operational lifespan of the lift by minimizing the mechanical stress that leads to premature component wear in high-volume commercial environments.
Multi-Position Mechanical Safety Lock System
The mechanical safety lock system engages automatically during lift operation, providing multiple locking positions along the carriage travel path. Combined with the air-operated single-point lock release, technicians can position vehicles at precise working heights while maintaining positive mechanical engagement independent of hydraulic pressure.
Traditional single-position or hydraulic-only safety systems limit working height options and create potential failure points. The multi-position mechanical design ensures the lift remains locked even during complete hydraulic system failure, addressing safety requirements for fleet operations, government contracts, and insurance compliance.
This eliminates the risk of uncontrolled descent and provides the redundant safety systems required for ALI Gold certification and ANSI/ALI ALCTV compliance.
Symmetric Design for Rear-Heavy Commercial Vehicles
The symmetric column placement positions the vehicle's center of gravity directly between the columns, providing balanced lifting for cargo vans and commercial trucks loaded toward the rear. This configuration ensures stable operation when servicing delivery vehicles carrying heavy cargo or equipment installations.
Asymmetric lifts position vehicles with the center of gravity forward of the column centerline, which works well for passenger cars but creates stability concerns when lifting rear-loaded commercial vehicles. The symmetric design addresses this mismatch between passenger car lift geometry and commercial vehicle weight distribution.
This improves stability during service operations on loaded cargo vans and utility trucks, reducing the risk of vehicle movement during component work or undercarriage access.
Low Ceiling Configuration Available
The LC (Low Ceiling) model reduces the minimum ceiling height requirement from 15 ft 2 in to 13 ft 8 in, with overall lift height ranging from 13 ft 6 in to 14 ft 6 in. This configuration maintains the full 16,000 lb capacity while fitting in shop bays with constrained vertical clearance.
Many existing commercial buildings, particularly converted retail or warehouse spaces, have ceiling heights between 14 and 15 feet that cannot accommodate standard high-capacity two-post lifts. The LC configuration enables installation of heavy-duty cargo van lifting capability in facilities that would otherwise be limited to lower-capacity equipment.
This enables fleet operators and service shops to install proper cargo van lifting equipment in a wider range of facilities without requiring structural modifications or relocating to higher-ceiling buildings.
Complete Adapter Kit Included
The SPO16-CARGO includes a comprehensive adapter set: thread-up adapters with screw-up frame cradles, (4) 5-inch stack adapter extensions, (2) 10-inch stack adapter extensions, and (4) rubber clip-on pads. This configuration supports frame-engaging pickup points across the full range of Class 1-5 vehicles without requiring additional accessory purchases.
Many competing lifts ship with minimal adapter sets, requiring separate purchases of frame cradles, stack adapters, or rubber pads to properly service mixed vehicle fleets. The included adapter kit addresses the varied pickup point heights and frame configurations found in cargo van and commercial vehicle service applications.
This reduces the total acquisition cost and ensures the lift is ready to service the target vehicle range immediately upon installation, eliminating delays waiting for additional adapter shipments.
Product Demonstration
Applications & Use Cases
- Cargo Van Service: Full-size cargo van maintenance and repair including Ford Transit, RAM ProMaster, Mercedes Sprinter, and Nissan NV models requiring extended arm reach for proper lift point contact.
- Fleet Maintenance Operations: Commercial delivery vehicle service for logistics companies, courier services, and last-mile delivery fleets requiring high-throughput lifting capability.
- Class 1-5 Vehicle Service: Light-duty through medium-duty commercial trucks including service trucks, utility vans, box trucks, and passenger buses within the 16,000 lb capacity rating.
- Dealership Service Bays: OEM-certified service operations requiring ALI Gold certified equipment for commercial van and truck platforms with extended wheelbase configurations.
- General Automotive Service: Mixed vehicle type shops servicing both passenger vehicles and commercial trucks, requiring versatile lifting capacity and arm reach adjustment.
- Government and Municipal Fleets: Public sector vehicle maintenance facilities requiring third-party certified equipment meeting insurance and procurement compliance standards.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Capacity | 16,000 lb (7,258 kg) |
| Maximum Load per Arm | 4,000 lb (1,814 kg) |
| Arm Reach (Minimum) | 36 13/16 in (935 mm) |
| Arm Reach (Maximum) | 74 13/16 in (1,900 mm) |
| Specification | Value |
|---|---|
| Overall Height | 15 ft 0 in to 16 ft 6 in |
| Drive-Thru Clearance (Standard Width) | 111 11/32 in |
| Inside Columns (Standard Width) | 126 15/32 in |
| Overall Width - Narrow | 12 ft 11 in |
| Overall Width - Standard | 13 ft 5 in |
| Overall Width - Wide | 13 ft 11 in |
| Specification | Value |
|---|---|
| Overall Height | 13 ft 6 in to 14 ft 6 in |
| Ceiling Height Required | 13 ft 8 in to 14 ft 8 in |
| Certification | Status |
|---|---|
| ALI Gold Certified | Yes |
| ETL Listed | Yes |
| ANSI/ALI ALCTV Compliant | Yes |
Installation Requirements
Bay & Ceiling Requirements
- Minimum Bay Size: 15 ft x 30 ft
- Ceiling Height (Standard): 15 ft 2 in minimum (15 ft 2 in to 16 ft 8 in range depending on configuration)
- Ceiling Height (Low Ceiling): 13 ft 8 in minimum (13 ft 8 in to 14 ft 8 in range)
- Environment: Indoor use only
Foundation Requirements
- Concrete Strength: 3,000 PSI minimum
- Anchor Torque: 110 ft-lb
- Concrete Thickness: Verify with manufacturer documentation and local codes (requirements vary by jurisdiction)
Electrical Requirements
- Voltage: 208V-230V, single phase
- Circuit: Dedicated circuit required per local electrical codes
Installation Notes
- Unloading Equipment: Forklift required with 5,000 lb minimum capacity recommended for unloading and positioning
- Professional Installation: Installation must be performed by qualified personnel following manufacturer installation manual
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Delivery
Shipping Method: Ships via LTL freight carrier.
Delivery Type: Curbside delivery standard. Liftgate service, residential delivery, and limited-access location fees may apply depending on delivery address.
Free Shipping: Availability is dealer/seller-specific and not guaranteed by manufacturer. Confirm shipping terms at time of purchase.
Receiving Requirements
Unloading Equipment: Forklift or loading dock access required. Carrier does not provide unloading equipment or inside delivery.
Inspection: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs. Report concealed damage within carrier's specified timeframe.
Warranty Coverage
5-1-1 Warranty Program
5 Years - Equipment Structure: Columns, carriage assemblies, and arms are covered against defects in materials and workmanship.
1 Year - Functional Parts: Power units, hydraulic cylinders, and controls are covered against defects in materials and workmanship.
1 Year - Labor: Authorized labor coverage for warranty repairs during the first year of ownership.
Warranty Requirements
Registration: Product registration may be required to activate warranty coverage. Check manufacturer documentation for registration requirements.
Installation: Installation must be performed following manufacturer installation manual to maintain warranty eligibility.
Maintenance: Regular maintenance per manufacturer specifications required to maintain warranty coverage.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift configuration for your facility. Our team can help with product selection, installation planning, bay layout, and technical specifications for cargo van and commercial vehicle service operations.
Frequently Asked Questions
What is the maximum lifting capacity of the Rotary SPO16-CARGO?
The SPO16-CARGO has a maximum lifting capacity of 16,000 lb (7,258 kg) with a maximum load of 4,000 lb per arm. The heavy-duty 3-stage arm configuration provides arm reach from 36 13/16 inches to 74 13/16 inches, enabling proper pickup point contact on extended-wheelbase cargo vans and Class 1-5 commercial vehicles. This ALI Gold Certified capacity rating is third-party validated for commercial service operations.
What ceiling height is required for the SPO16-CARGO installation?
The standard configuration requires a minimum ceiling height of 15 ft 2 in (up to 16 ft 8 in depending on setup). The Low Ceiling (LC) configuration reduces this requirement to 13 ft 8 in minimum, making installation possible in facilities with constrained vertical clearance.
What adapters and accessories are included with the SPO16-CARGO?
The lift includes heavy-duty 3-stage front and rear arms, thread-up adapters with screw-up frame cradles, (4) 5-inch stack adapter extensions, (2) 10-inch stack adapter extensions, (4) rubber clip-on pads, power unit with hydraulic cylinder, overhead safety shutoff bar, air-operated lock release system, and installation hardware with anchor bolts.
What cargo vans is the SPO16-CARGO designed to service?
The extended 3-stage arm system with 74 13/16 inch maximum reach is specifically designed for long-wheelbase cargo vans including Ford Transit, RAM ProMaster, Mercedes Sprinter, and Nissan NV. The symmetric design provides stable lifting for rear-heavy commercial vehicles.
What are the concrete requirements for installing the SPO16-CARGO?
The lift requires a minimum concrete strength of 3,000 PSI with anchor torque of 110 ft-lb. Concrete thickness requirements vary by source (4 to 6 inches depending on local codes). Verify specific requirements with manufacturer documentation and local building codes before installation.
Is the Rotary SPO16-CARGO ALI certified?
Yes, the SPO16-CARGO is ALI Gold Certified by the Automotive Lift Institute, meaning it has been independently tested and validated to meet the 16,000 lb capacity rating under controlled conditions. The lift is also ETL Listed and compliant with ANSI/ALI ALCTV standards. These certifications are required by many fleet operations, government contracts, and insurance providers as proof of third-party safety validation for commercial automotive service equipment.
What is the warranty coverage on the SPO16-CARGO?
The lift includes a 5-1-1 warranty program: 5 years coverage on equipment structure (columns, carriage assemblies, arms), 1 year coverage on functional parts (power units, hydraulic cylinders, controls), and 1 year labor coverage for warranty repairs. Product registration may be required to activate warranty coverage, and installation must be performed following the manufacturer installation manual to maintain eligibility. Regular maintenance per manufacturer specifications is also required.
What is the Shockwave option for the SPO16-CARGO?
The optional Shockwave DC Power System features a 5 HP motor operating on 110V DC with a 60-second rise time compared to 81 seconds with the standard power unit. The system includes battery backup capability, allowing lift operation during power outages - a feature that maintains shop productivity when electrical service is interrupted. This upgrade is suited for high-throughput commercial shops requiring faster cycle times and operational redundancy.
