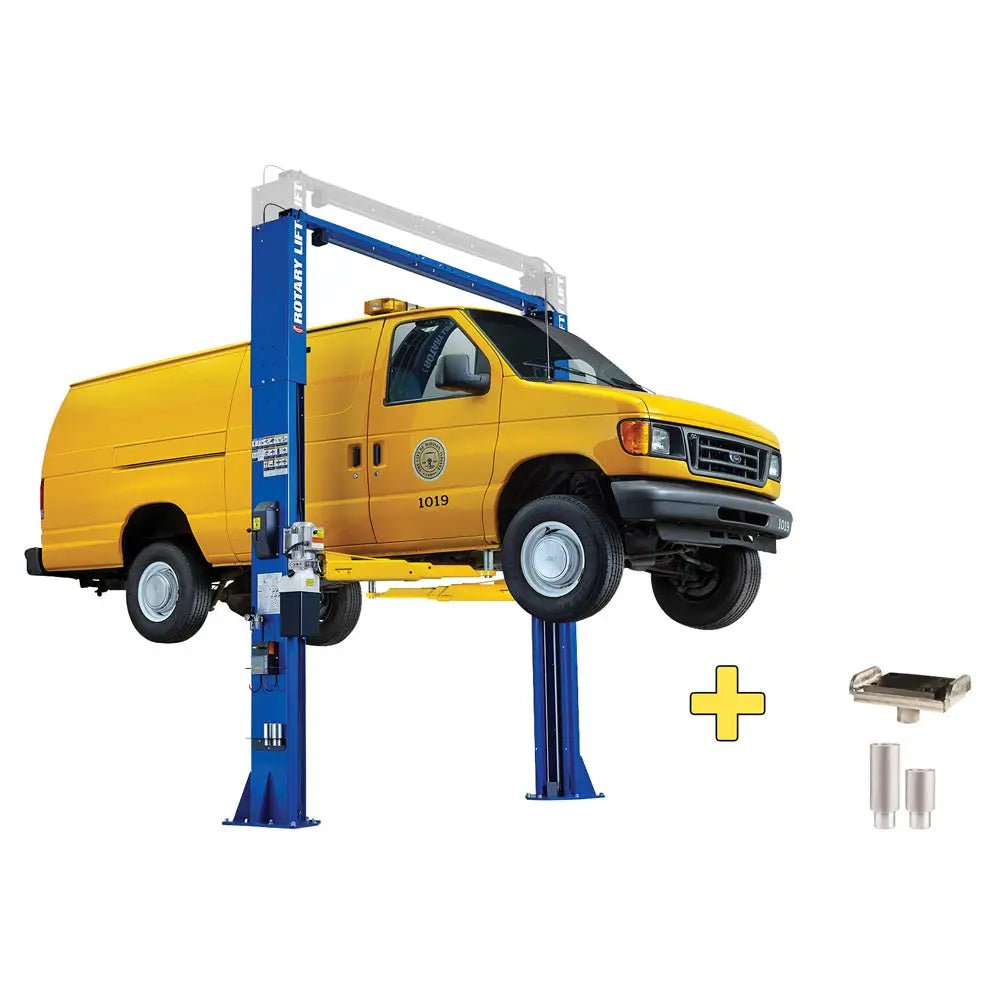

Rotary SPO12-TALC - 12,000 lb Two-Post Symmetrical Lift for Low Ceiling Applications
The Rotary SPO12-TALC delivers 12,000 lb lifting capacity in a low-profile design standing just 11' 8" overall height. Engineered for service facilities with restricted ceiling clearance, this ALI Gold Certified symmetrical lift features Rotary's single-piece "Double S" column construction, three-stage arms with 27-1/2" to 59" reach, and a complete truck adapter kit with stackable extensions. Made in Madison, Indiana by Vehicle Service Group.
Also listed as: SPO12-TACL, Rotary SPO12 Low Ceiling
Key Features & Benefits
Purpose-Built Low Ceiling Design
The SPO12-TALC stands at 11' 8" overall height, materially shorter than typical low-ceiling 12K two-post lifts in the market. This compact profile enables professional-grade lifting in height-restricted facilities without requiring structural modifications to existing buildings.
Many service bays in older buildings, converted retail spaces, and multi-level facilities cannot accommodate standard 14'+ lift heights. The SPO12-TALC addresses this constraint directly, requiring only 11' 10-3/4" minimum ceiling clearance for installation while maintaining full operational capability.
This enables shops to install a heavy-duty two-post lift in spaces previously limited to lower-capacity equipment. Facilities gain truck, van, and SUV service capability without costly building renovations or ceiling height modifications.
Single-Piece "Double S" Column Construction
Rotary's proprietary "Double S" column design uses a single-piece welded construction that eliminates the structural weak points found in multi-piece column assemblies. The distinctive S-shaped cross-section provides superior torsional rigidity and load distribution across the full height of the column.
Traditional two-post lifts often use columns assembled from multiple sections, creating potential flex points under heavy loads. The single-piece Double S column addresses this by maintaining consistent structural integrity from base to overhead, even when servicing vehicles approaching the 12,000 lb capacity limit.
This improves long-term reliability and reduces maintenance requirements. Self-lubricating UHMW slider blocks ride against the column surfaces, providing smooth carriage travel without metal-on-metal contact that causes wear over time.
Three-Stage Arms with Extended Reach
Front and rear swing arms feature three-stage telescoping construction with a reach range from 27-1/2" to 59". This 31-1/2" adjustment range accommodates wheelbases from compact cars to full-size pickup trucks within the symmetrical arm configuration.
Standard two-stage arm designs typically offer 15-20 inches of reach adjustment, limiting their ability to properly position under diverse vehicle types. The three-stage design extends reach capability without sacrificing arm rigidity, maintaining secure contact at the outermost extension settings.
This eliminates the need for multiple lift configurations or arm swaps when transitioning between vehicle types. Technicians can service a compact sedan followed by a full-size truck using the same arm setup with simple telescopic adjustment.
Complete Truck Adapter Kit Included
Every SPO12-TALC ships with a comprehensive adapter package: four thread-up truck adapters (FJ6197), four 3.5" tall extensions (FJ6171-1), four 5" tall extensions (FJ6171-2), and a dedicated storage rack kit with mounting hardware (FJ6127). These components are standard inclusions, not optional upgrades.
Framed vehicles like trucks and body-on-frame SUVs often require higher lift points than unibody passenger cars. Without proper adapters, technicians must improvise with blocks or spacers, creating safety risks and potential vehicle damage.
This enables immediate truck and van service capability out of the box. The stackable extension design provides height combinations from 3.5" to 8.5" additional reach, and the included storage rack keeps adapters organized and accessible at the lift location.
ALI Gold Certification and 20,000 Cycle Testing
The SPO12-TALC carries ALI Gold Certification from the Automotive Lift Institute, with performance validated through 20,000 lift cycle testing under rated load conditions. The lift is manufactured in an ISO 9001-certified facility in Madison, Indiana and complies with ANSI/ALI ALCTV standards.
Insurance carriers, OSHA inspectors, and fleet safety managers increasingly require third-party lift certification as a condition of coverage or compliance. Uncertified equipment may create liability exposure and fail safety audits regardless of actual construction quality.
This provides documented proof of safety performance for commercial insurance requirements and workplace compliance. The ALI Gold label serves as an immediately recognized trust marker for professional service operations.
Transparent 5-Year Structural Warranty
Rotary backs the SPO12-TALC with a 5-year structural warranty covering columns, carriage, yokes, and arms. Functional components including power units, cylinders, latches, adapters, and controls carry 1-year coverage, with 1-year labor warranty included.
Many lift manufacturers bury warranty terms in separate PDF documents or require contacting dealers to understand coverage scope. The SPO12-TALC warranty structure is explicitly documented with clear component categorization and duration tiers.
This reduces uncertainty during purchase decisions and provides clear expectations for long-term ownership costs. Enhanced warranty terms may be available through authorized installer programs with product registration.
Applications & Use Cases
- Independent Repair Shops: Full-service mechanical repair for trucks, SUVs, vans, and passenger vehicles in facilities with ceiling height restrictions.
- Auto Dealership Service Departments: Medium-duty lifting capacity for franchise and independent dealers servicing framed vehicles and heavier customer cars.
- Fleet Maintenance Facilities: Commercial van, delivery truck, and work vehicle service for fleets operating from height-constrained maintenance buildings.
- Tire and Quick-Service Operations: High-volume tire, brake, and undercar service requiring fast vehicle positioning and clearfloor workspace access.
- Collision Repair Shops: Frame-engaging lift points for body shops performing structural and undercarriage repair work.
- Converted or Multi-Story Facilities: Professional lifting capability in buildings with low ceilings that cannot accommodate standard-height equipment.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Capacity | 12,000 lb (5,443 kg) |
| Time to Full Rise | 60 seconds |
| Time of Descent | 40 seconds |
| Minimum Adapter Height | 4-3/4 inches |
| Specification | Value |
|---|---|
| Overall Height | 11' 8" (140 inches) |
| Overall Width | 11' 5-5/8" |
| Drive-Thru Width | 102-3/8" (8' 6-3/8") |
| Inside Columns | 114-7/8" |
| Front Arm Reach | 27-1/2" to 59" |
| Rear Arm Reach | 27-1/2" to 59" |
| Minimum Bay Size | 12' x 26' |
| Specification | Value |
|---|---|
| Motor | 2 HP |
| Voltage | 208V-230V, Single Phase |
| 3-Phase Option | Available |
| Shipping Weight | 2,200-2,300 lb |
Shockwave Option (If Equipped)
- Rise Time: 25 seconds
- Motor: 5 HP
- Voltage: 110V DC
What's Included
- Front and Rear Three-Stage Arms - Symmetrical configuration
- (4) Thread-Up Truck Adapters - Part Number FJ6197
- (4) 3.5" Tall Adapter Extensions - Part Number FJ6171-1
- (4) 5" Tall Adapter Extensions - Part Number FJ6171-2
- (1) Adapter Storage Rack Kit - Part Number FJ6127 with mounting hardware
- Single-Piece "Double S" Columns
- Self-Lubricating UHMW Slider Blocks
- Overhead Equalization Bar
- Hydraulic Power Unit
- Carriage Locks and Arm Restraints
- Control Lock-Outs
- Installation Hardware and Anchor Bolts
Installation Requirements
Bay & Ceiling Requirements
- Minimum Bay Size: 12' x 26'
- Minimum Ceiling Height: 11' 10-3/4"
- Environment: Indoor use only
- Operating Temperature: 41°F-104°F (5°C-40°C)
Concrete Requirements
- Compressive Strength: Minimum 3,000 PSI
- Thickness: 4-1/4" minimum (6" recommended)
- Condition: Fully cured, free of cracks or seams at mounting locations
- Anchor Bolts: 3/4" diameter, minimum 6" from expansion seams, control joints, or concrete inconsistencies
Electrical Requirements
- Voltage: 208V-230V single-phase (3-phase optional)
- Grounding: Motor must be grounded per local and national electrical codes
Installation Notes
- Forklift Required: 5,000 lb minimum lifting capacity on-site during installation
- Standards Compliance: Installation per ANSI/ALI ALIS safety requirements
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Coverage
Shipping: Ships via LTL freight on pallets. Free shipping language (where offered) generally applies to ground/LTL to lower 48 states.
Exclusions: LTL accessorials excluded from free shipping include liftgate, call-before-delivery, residential/limited access, and inside delivery.
Origin: Drop-shipped from manufacturer (Madison, Indiana or regional distribution).
Delivery Requirements
Forklift Required: Recipient must have forklift or means to unload. No liftgate service available for heavy shipments of this size.
Delivery Options: Buyers may need to select delivery handling options including forklift available on-site or freight terminal pickup.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Rotary Warranty Program
5 Years - Structural: Columns, carriage, yokes, and arms
1 Year - Functional: Power units, cylinders, latches, adapters, and controls
1 Year - Labor: Labor coverage for warranty repairs
Warranty Requirements
Registration: Warranty eligibility may require authorized installer and product registration.
Enhanced Terms: Extended warranty terms (e.g., 2nd-year parts) may be available through authorized installer programs. See manufacturer documentation for details.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Rotary SPO12-TALC?
The Rotary SPO12-TALC has a maximum lifting capacity of 12,000 lb (5,443 kg). This capacity handles trucks, vans, SUVs, and framed vehicles up to 12,000 lb GVWR. The lift maintains full rated capacity despite its low-ceiling design, with no performance reduction compared to standard-height SPO12 models.
What ceiling height is required for the SPO12-TALC low ceiling lift?
The SPO12-TALC requires a minimum ceiling height of 11' 10-3/4" for installation. The lift stands 11' 8" in overall height. Verify your actual ceiling height before ordering, accounting for any obstructions like HVAC ducts, lighting, or sprinkler systems. Measure from finished floor to the lowest overhead obstruction to confirm adequate clearance for the lift columns and overhead equalization bar.
What adapters are included with the Rotary SPO12-TALC?
The SPO12-TALC includes a complete truck adapter kit as standard equipment: four thread-up truck adapters (Part FJ6197), four 3.5" tall stackable extensions (Part FJ6171-1), four 5" tall stackable extensions (Part FJ6171-2), and one adapter storage rack kit with mounting hardware (Part FJ6127). These are included at no additional cost.
What are the concrete requirements for installing the SPO12-TALC?
Concrete must have minimum 3,000 PSI compressive strength with 4-1/4" minimum thickness (6" recommended). The slab must be fully cured and free of cracks or seams at mounting locations. Anchor bolts are 3/4" diameter and must be positioned at least 6" from expansion seams, control joints, or concrete inconsistencies.
Is the Rotary SPO12-TALC ALI certified?
Yes, the SPO12-TALC carries ALI Gold Certification from the Automotive Lift Institute. The lift has been performance tested to 20,000 lift cycles under rated load conditions and complies with ANSI/ALI ALCTV standards. It's manufactured in an ISO 9001-certified facility in Madison, Indiana.
What is the arm reach range on the SPO12-TALC?
Both front and rear three-stage arms extend from 27-1/2" to 59", providing 31-1/2" of reach adjustment. This range accommodates wheelbases from compact cars to full-size pickup trucks within the symmetrical arm configuration. The three-stage design exceeds typical two-stage competitor arms that offer only 15-20" of adjustment range.
What warranty coverage does the SPO12-TALC have?
The SPO12-TALC includes 5-year structural warranty coverage for columns, carriage, yokes, and arms. Functional components (power units, cylinders, latches, adapters, controls) carry 1-year coverage, with 1-year labor warranty included. Warranty eligibility may require authorized installer and product registration. Enhanced terms may be available through authorized installer programs.
What electrical requirements does the SPO12-TALC need?
The SPO12-TALC requires 208V-230V single-phase power for the standard 2 HP motor. A 3-phase option is available. The motor must be grounded per local and national electrical codes. If equipped with the optional Shockwave upgrade, power requirements change to 110V DC with a 5 HP motor for faster rise times.
