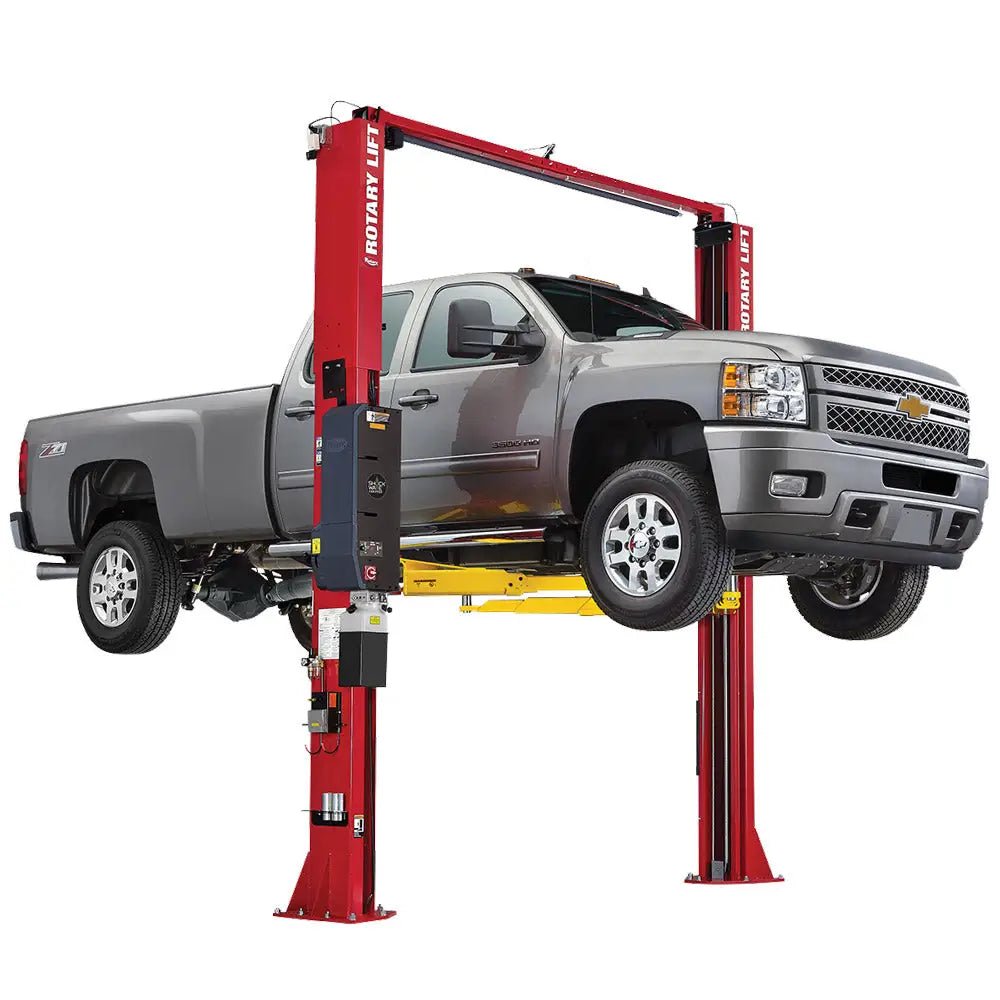

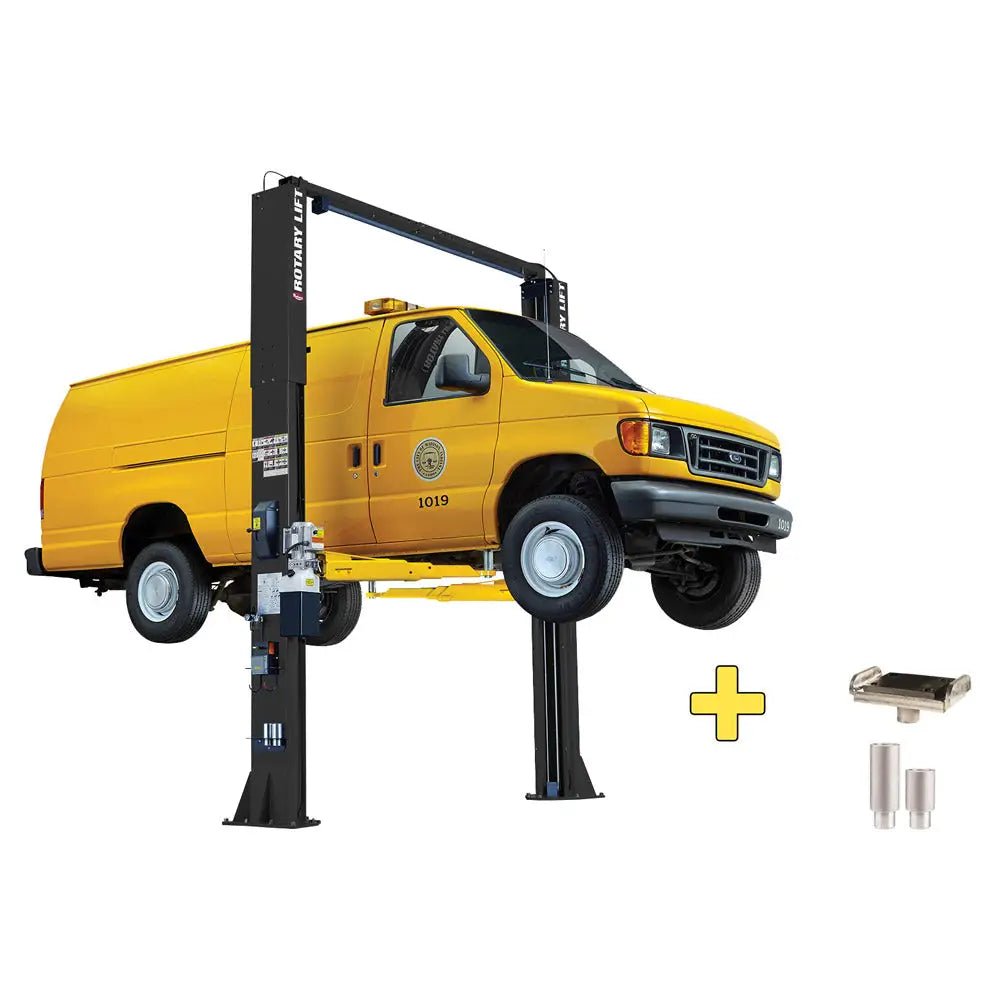

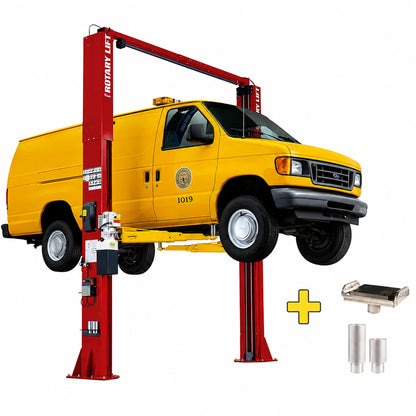

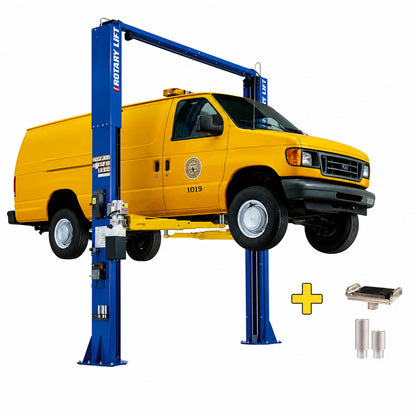

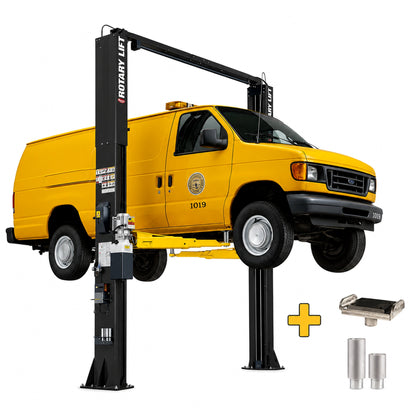

Rotary SPO12-TA - 12,000 lb ALI Certified Symmetrical Two-Post Lift for Trucks and SUVs
The Rotary SPO12-TA delivers 12,000 lb lifting capacity in a symmetrical two-post surface lift engineered for professional automotive shops servicing trucks, SUVs, vans, and medium-duty framed vehicles. Featuring the original single-piece Double S column design, front and rear three-stage arms with truck adapters included, and 8 feet 6-3/8 inches of drive-thru clearance, this ALI Gold Certified lift fits standard 12-foot bay widths while handling everything from Ford F-150s to commercial cargo vans.
Key Features & Benefits
Double S Column Design
The SPO12-TA features Rotary's original single-piece Double S column construction that maximizes steel strength and provides a superior carriage track. This proven structural approach has been an industry standard for decades, delivering consistent load distribution across the full 12,000 lb capacity.
Traditional two-piece column designs are prone to distortion over time as weld joints weaken under repeated load cycles. The Double S configuration eliminates this weakness by using a continuous formed steel section that maintains precise carriage alignment throughout the lift's service life.
This enables smoother carriage travel and extends equipment longevity. Technicians benefit from consistent lifting performance year after year, reducing maintenance requirements and maximizing shop uptime.
Three-Stage Arms with Truck Adapters Standard

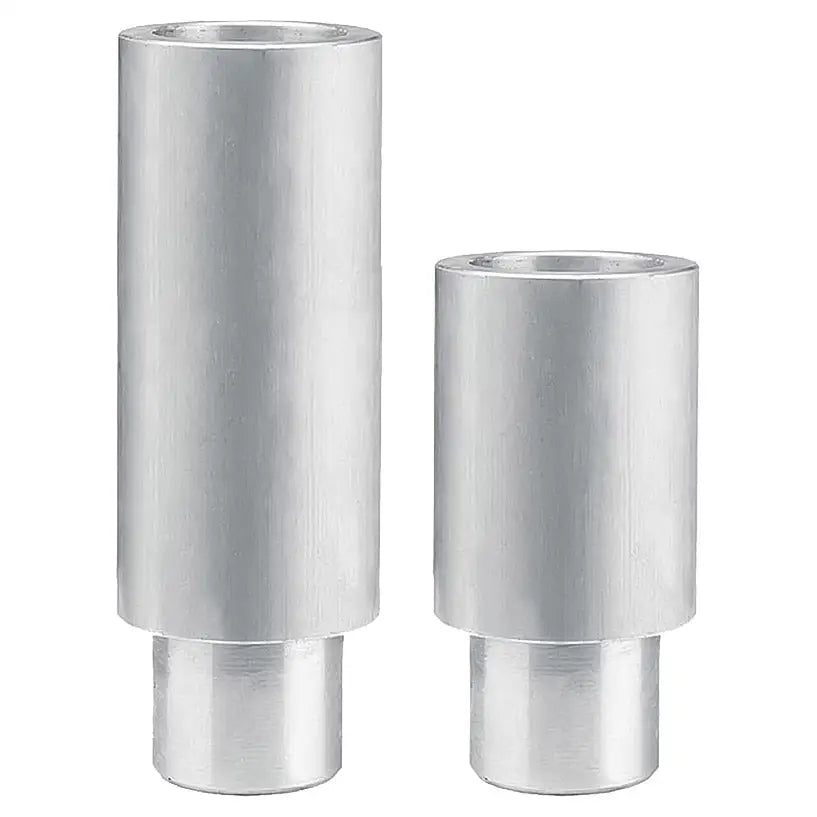

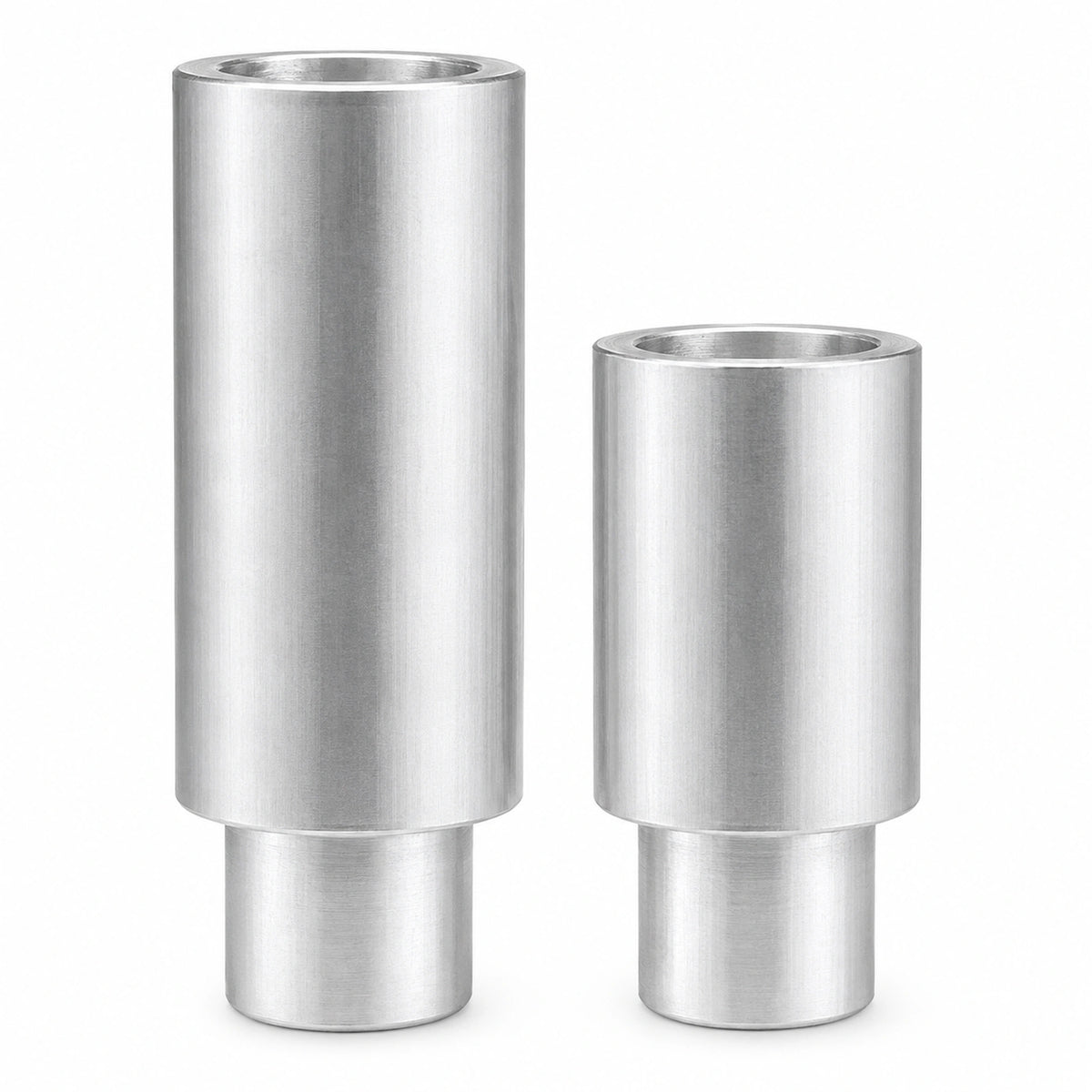

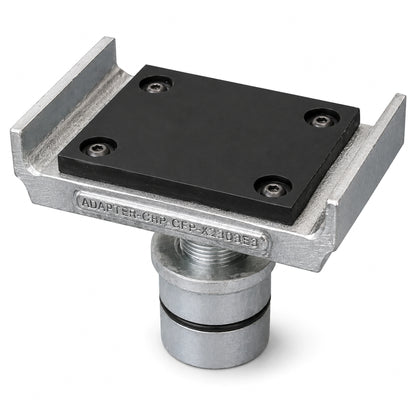

Front and rear three-stage arms provide 27-1/2 inch to 59 inch reach, accommodating a wide range of pickup points on framed vehicles. The SPO12-TA includes truck adapters with stackable inserts as standard equipment, eliminating the need for separate adapter purchases when servicing vehicles with varying frame heights.
Two-stage arm designs found on typical competitor lifts limit reach to 15 to 20 inches, requiring technicians to reposition vehicles or use extension accessories. The three-stage configuration addresses this limitation by providing 31-1/2 inches of additional reach adjustment in a single arm assembly.
This enables faster vehicle positioning and reduces setup time between jobs. The included adapter storage rack keeps stackable inserts organized and accessible, streamlining workflow for shops servicing mixed fleets of trucks, SUVs, and vans.
Industry-Leading Drive-Thru Clearance in Standard Bay
The SPO12-TA provides 8 feet 6-3/8 inches of drive-thru clearance while fitting standard 12-foot bay widths. This accommodates wide trucks with extended mirrors, dual rear wheels, and aftermarket accessories without requiring extra-wide bay configurations or column repositioning.
Many 12,000 lb capacity lifts sacrifice drive-thru width to achieve their load ratings, forcing shops to choose between capacity and accessibility. The SPO12-TA's column geometry maximizes usable clearance at the 11 feet 5-5/8 inch overall width, addressing this industry-wide tradeoff.
This enables higher lift density per shop footprint. Facilities can install SPO12-TA units in existing bays without structural modifications, maximizing revenue potential from available floor space.
ALI Gold Certified with 20,000-Cycle Testing
The SPO12-TA carries ALI Gold Certification per ANSI/ALI ALCTV standards, plus documented performance testing to 20,000 full lift cycles. This third-party verification provides safety and durability assurance exceeding typical shop usage over the equipment's service life.
Industry certification programs require lifts to pass rigorous structural and functional testing under controlled conditions. The 20,000-cycle test protocol subjects the lift to repeated full-capacity operations, validating long-term reliability under real-world service demands.
This reduces liability exposure and ensures compliance with OSHA workplace safety requirements. Shop owners gain documented proof of equipment integrity for insurance purposes and regulatory inspections.
American Manufacturing with Extensive Service Network
Manufactured in Madison, Indiana by Rotary Lift (Dover Corporation/Vehicle Service Group), the SPO12-TA is supported by a nationwide network of Rotary Authorized Installers (RAI) for professional installation, service, and extended warranty coverage. Rotary has operated continuously since 1925, providing nearly 100 years of industry experience.
Import lifts often lack domestic service infrastructure, leaving shop owners dependent on overseas parts shipments and limited technical support. The RAI network addresses this challenge by providing local expertise and parts availability throughout North America.
This improves equipment uptime and simplifies warranty service. RAI-installed units qualify for extended functional parts coverage of 2 years versus the standard 1-year term, providing additional protection for professional installations.
Overhead Equalization System
The SPO12-TA utilizes an overhead equalization system that synchronizes carriage travel between columns, maintaining level lifting throughout the full range of motion. Standard carriage locks and arm restraints provide multiple points of mechanical security at working height.
Cable-based equalization systems found on lower-tier lifts can stretch or wear unevenly, causing carriages to drift out of sync. The overhead design routes equalization components away from floor-level contamination while providing positive mechanical coupling between columns.
This eliminates the vehicle tilting and uneven wear associated with unbalanced lifting. Technicians can work confidently under raised vehicles knowing both sides are mechanically locked at the same height.
Applications & Use Cases
- Light and Medium-Duty Trucks: Ford F-150 through F-350, Chevrolet Silverado 1500 through 3500, RAM 1500 through 3500, and comparable pickup trucks with standard or extended cab configurations
- Full-Size SUVs: Chevrolet Tahoe, Suburban, GMC Yukon, Ford Expedition, and similar body-on-frame sport utility vehicles requiring frame-engaging lift points
- Commercial Cargo Vans: Ford Transit, Mercedes Sprinter, RAM ProMaster, and comparable high-roof cargo vans used in delivery and service fleet applications
- Fleet Maintenance Operations: Municipal vehicle fleets, utility company service vehicles, and commercial delivery operations requiring consistent medium-duty lifting capacity
- Pickup Trucks with Auxiliary Equipment: Work trucks with service bodies, utility beds, crane attachments, and other aftermarket equipment within the 12,000 lb capacity rating
- Automotive Dealership Service: New car dealerships servicing truck and SUV lineups requiring ALI certified equipment for warranty work and manufacturer compliance
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 12,000 lb |
| Time to Full Rise | 60 seconds |
| Time to Descend | 40 seconds |
| Front Arm Reach | 27-1/2 inches to 59 inches |
| Rear Arm Reach | 27-1/2 inches to 59 inches |
| Minimum Adapter Height | 4-3/4 inches |
| Specification | Value |
|---|---|
| Overall Height | 13 feet 8 inches (164 inches) |
| Overall Width | 11 feet 5-5/8 inches |
| Drive-Thru Width | 8 feet 6-3/8 inches (102.375 inches) |
| Minimum Bay Size | 12 feet x 26 feet |
| Required Ceiling Height | 14 feet minimum |
| Specification | Value |
|---|---|
| Motor | 2 HP |
| Voltage | 208V to 230V, Single Phase |
| Circuit Requirement | 20A dedicated circuit |
Installation Requirements
Bay Requirements
- Minimum Bay Size: 12 feet x 26 feet clear floor space
- Required Ceiling Height: 14 feet minimum clearance above finished floor
- Drive-Thru Clearance: 8 feet 6-3/8 inches between columns
Foundation Requirements
- Concrete Strength: 3,000 PSI minimum compressive strength
- Concrete Thickness: Consult current installation manual for specific requirements (varies by application)
- Surface Condition: Level, crack-free concrete suitable for anchor installation
Electrical Requirements
- Voltage: 208V to 230V, single phase
- Circuit: 20A dedicated circuit required

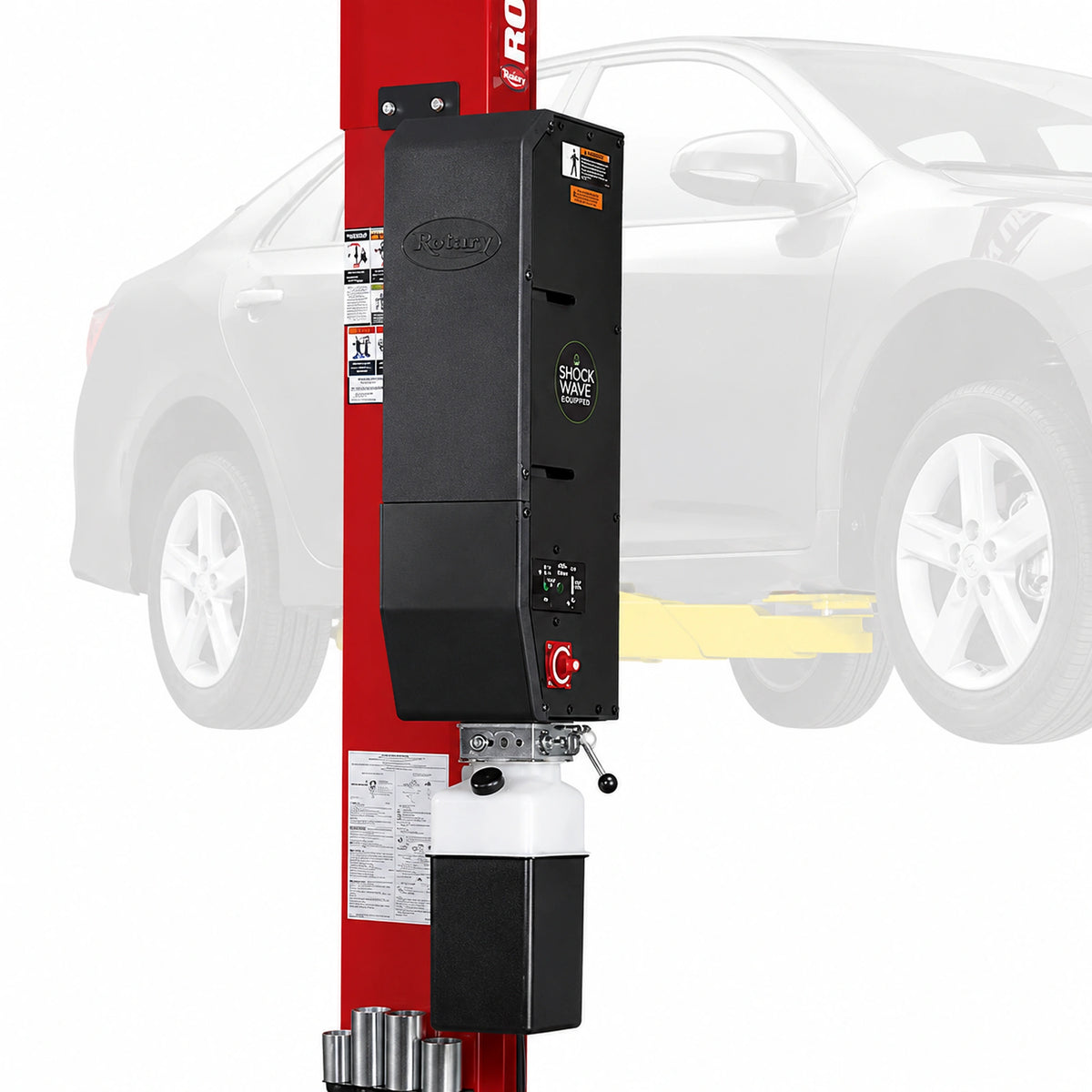

- Motor: 2 HP hydraulic power unit
Installation Notes
- Professional Installation: Rotary Authorized Installer (RAI) installation recommended for extended warranty coverage
- Equipment Required: Forklift required for unloading and positioning during installation
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Information
Shipping: Freight charges typically separate from equipment cost and vary by dealer and destination.
Delivery Method: Ships via commercial freight carrier. Contact dealer for specific delivery timeframe estimates.
Delivery Requirements
Forklift Required: Forklift or equivalent lifting equipment required for unloading at delivery location.
Terminal Pickup: Terminal pickup may be available as alternative to curbside delivery.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Rotary Lift Warranty Program
5 Years - Equipment Structure: Covers structural components including columns, carriages, and main frame assemblies against defects in materials and workmanship
1 Year - Operating/Functional Parts: Covers hydraulic components, electrical systems, and mechanical operating parts (extends to 2 years when installed by Rotary Authorized Installer)
1 Year - Labor: Covers labor costs for warranty repairs performed by authorized service personnel
Warranty Requirements
Extended Coverage: RAI installation extends functional parts warranty from 1 year to 2 years
Installation: Must be installed following manufacturer installation manual specifications
Maintenance: Regular maintenance per manufacturer guidelines required to maintain coverage
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Rotary SPO12-TA?
The Rotary SPO12-TA has a maximum lifting capacity of 12,000 lb, making it suitable for light and medium-duty trucks, full-size SUVs, and commercial cargo vans. This capacity handles vehicles like Ford F-350s, Chevrolet Suburbans, and Mercedes Sprinter vans. The lift features front and rear three-stage arms with 27-1/2 inch to 59 inch reach to accommodate varying pickup points on framed vehicles within the rated capacity.
What are the ceiling height requirements for the Rotary SPO12-TA?
The SPO12-TA requires a minimum ceiling height of 14 feet to accommodate the lift's 13 feet 8 inches (164 inches) overall height plus clearance for the overhead equalization system. The minimum bay size is 12 feet x 26 feet. Shops with lower ceilings should consider the SPO12-LC low-ceiling variant designed for facilities with height constraints, or the extended height EH1, EH2, and EH3 variants for shops with higher ceilings requiring additional rise.
What is included with the Rotary SPO12-TA?
The SPO12-TA includes front and rear three-stage arms with 27-1/2 inch to 59 inch reach, truck adapters with stackable inserts for varying frame heights, and an adapter storage rack to keep components organized. The 2 HP single-phase hydraulic power unit operates on 208V to 230V service. Installation hardware, anchoring components, and operation and maintenance manuals are included. All components needed for a complete installation are shipped with the lift.
What are the concrete requirements for installing the SPO12-TA?
The SPO12-TA requires concrete with a minimum compressive strength of 3,000 PSI for proper anchor holding capacity under the 12,000 lb load rating. Specific concrete thickness requirements vary by application and should be verified in the current installation manual for your facility. The concrete surface must be level, crack-free, and suitable for anchor installation. A minimum bay size of 12 feet x 26 feet with 14-foot ceiling clearance is required for the standard configuration.
Is the Rotary SPO12-TA ALI certified?
Yes, the SPO12-TA is ALI Gold Certified and compliant with ANSI/ALI ALCTV standards for automotive lift safety. The lift has been performance tested to 20,000 full lift cycles at the rated 12,000 lb capacity, providing third-party verification of safety and durability. This certification exceeds typical shop usage over the equipment lifetime and helps ensure compliance with OSHA workplace safety requirements. ALI certification also provides documented proof of equipment integrity for insurance and regulatory inspections.
What is the drive-thru width of the Rotary SPO12-TA?
The SPO12-TA provides 8 feet 6-3/8 inches (102.375 inches) of drive-thru clearance between columns, accommodating wide trucks with extended mirrors and dual rear wheels. The overall width is 11 feet 5-5/8 inches, allowing the lift to fit in standard 12-foot bay widths. This drive-thru clearance handles vehicles like Ford F-350 dually trucks and commercial cargo vans including Ford Transit and Mercedes Sprinter without requiring column repositioning or extra-wide bay configurations.
What is the warranty on the Rotary SPO12-TA?
The SPO12-TA includes a 5-year structural warranty covering columns, carriages, and main frame assemblies. Operating and functional parts including hydraulics and electrical systems carry a 1-year warranty, which extends to 2 years when installed by a Rotary Authorized Installer. Labor coverage is included for 1 year. RAI installation is recommended to receive the extended functional parts coverage and ensure proper setup per manufacturer specifications.
What electrical service does the SPO12-TA require?
The SPO12-TA requires 208V to 230V single-phase power on a dedicated 20A circuit to operate the 2 HP hydraulic power unit. This electrical configuration provides 60-second rise time and 40-second descent time at full 12,000 lb capacity. Verify your facility has appropriate electrical service before installation. A licensed electrician should install the dedicated circuit if one is not available, and all electrical connections must comply with local codes and the manufacturer installation manual specifications.
