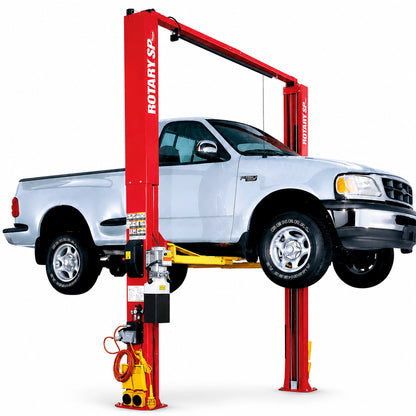

Rotary SPO10 - 10,000 lb ALI Certified Symmetrical Two-Post Lift
The Rotary SPO10 delivers 10,000 lb lifting capacity in a surface-mounted symmetrical configuration, engineered for professional automotive service environments. Featuring Rotary's patented Double-S single-piece column construction, 102-1/2 inch drive-through clearance, and ALI Gold certification, this two-post lift handles passenger vehicles, SUVs, light trucks, and cargo vans with balanced, centered lifting. The specification text and technical details below cover all installation requirements and configuration options.
Rotary SPO10 Features & Benefits

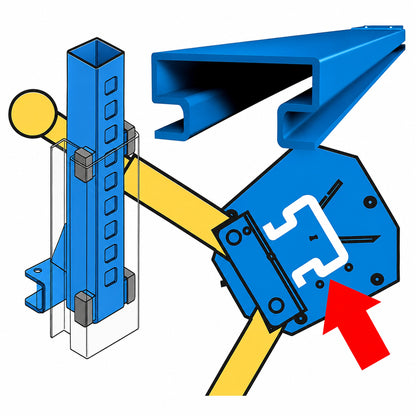

Patented Double-S Column Construction
The Double-S column design (US Patent No. 5,009,287) delivers structural integrity through a single-piece construction with multiple precision bends. This patented configuration maximizes column strength while maintaining a compact profile that minimizes workspace intrusion compared to wider conventional column designs.
Traditional two-post columns require wider footprints to achieve equivalent strength ratings, reducing technician access and maneuverability around the vehicle. The Double-S geometry addresses this by concentrating material where load forces are highest while keeping the column's cross-section narrow at working height.
This enables improved technician access to vehicle sides during brake, suspension, and undercarriage work. The compact profile allows closer positioning of tool carts and equipment without sacrificing the structural rigidity required for 10,000 lb lifting operations.

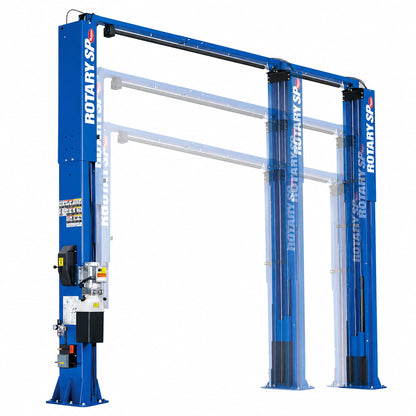

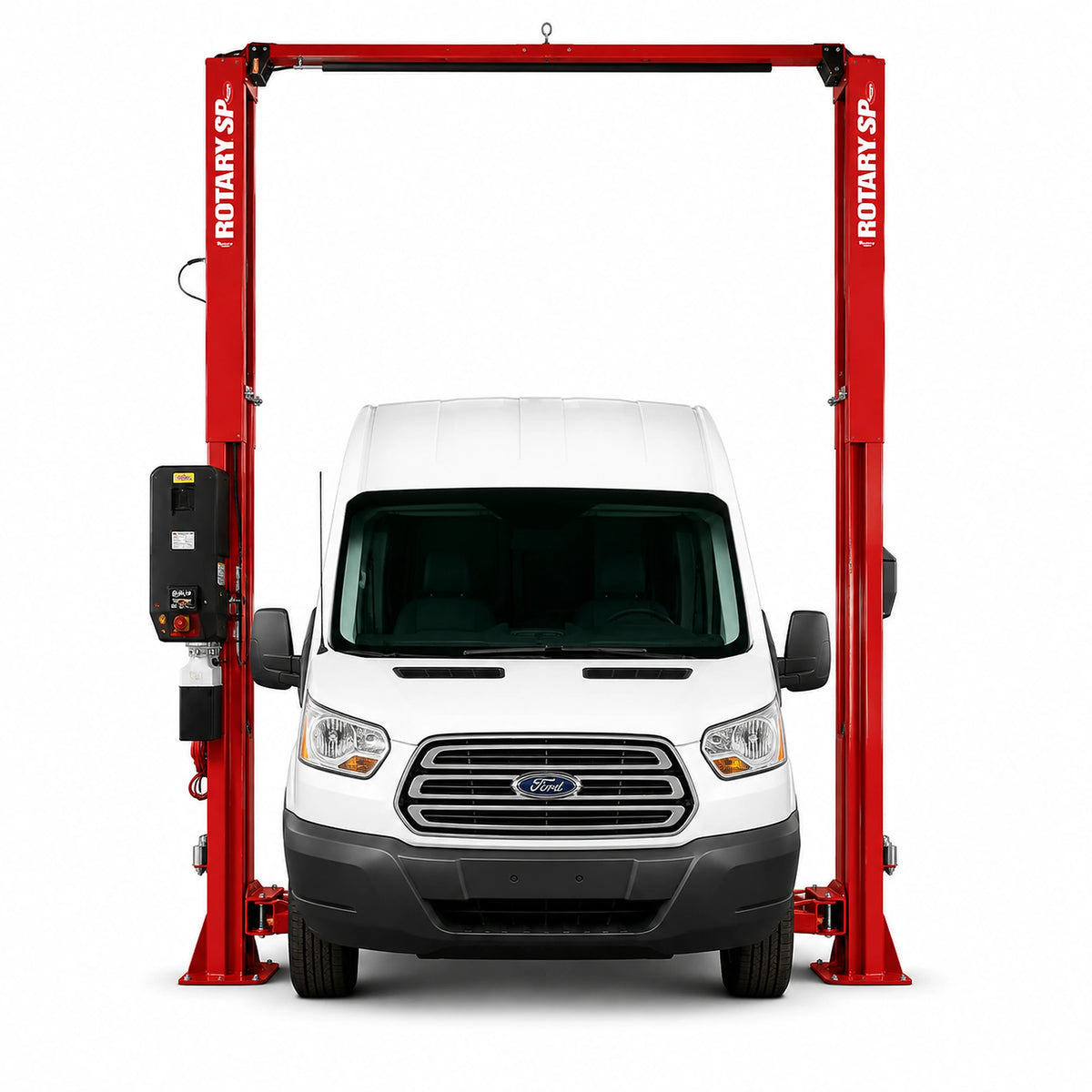

Widest Drive-Through Clearance in Symmetrical 10K Class
The SPO10 provides 102-1/2 inches (8 ft 6-1/2 in) of drive-through clearance between columns, accommodating full-size trucks, SUVs, and cargo vans that may be difficult to position on narrower competitor designs. This measurement represents the widest opening in the symmetrical 10,000 lb capacity class.
Shops servicing a mixed fleet of passenger cars and larger vehicles often struggle with narrower lifts that restrict positioning options for wide-body trucks and vans. The extended drive-through width eliminates the need to carefully thread larger vehicles between columns, reducing positioning time and door ding risks.
This improves daily throughput by allowing technicians to drive vehicles onto the lift without excessive maneuvering. The symmetrical design centers vehicle weight between columns for balanced, stable lifting regardless of vehicle width.

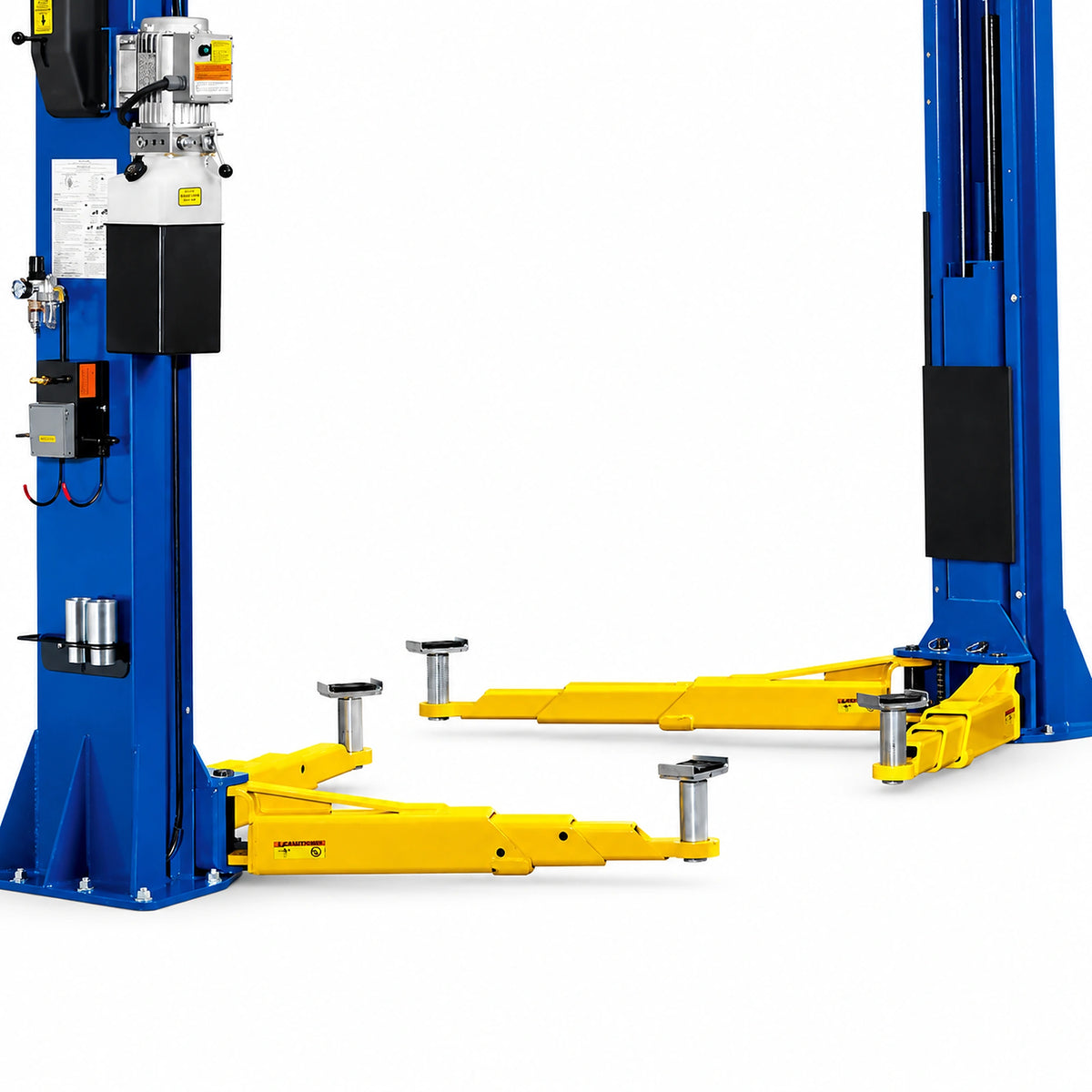

Configuration Flexibility with FA/TA/RA Adapters
Three adapter configurations are available at purchase to match your shop's typical vehicle mix: Flip-Up (FA), Truck (TA), and Round (RA). Rise height varies by adapter type - 78-1/4 inches with FA adapters, 80-1/4 inches with TA adapters, and 76-7/8 inches with RA adapters - allowing optimization for specific service applications.
Shops focused on passenger car service benefit from the FA configuration's three-position flip-up design for frame contact points. Fleet operations working primarily with trucks and commercial vehicles gain additional rise height with TA adapters. The RA round adapter configuration suits mixed-use environments requiring versatile contact options.
This eliminates the compromise of a one-size-fits-all adapter approach. Each configuration is factory-matched to specific arm types (2-stage conventional or 3-stage TRIO) for optimal reach and stability across the vehicle mix you service most frequently.

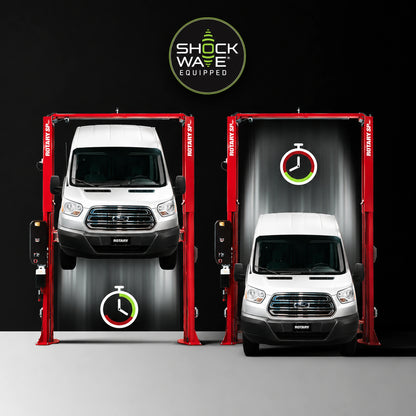

Shockwave Speed Upgrade Option
The optional Shockwave power system delivers 2x faster rise and descent times compared to standard operation. Standard configuration achieves full rise in 45 seconds and descent in 40 seconds. Shockwave-equipped units complete rise in 25 seconds and descent in 19 seconds using a 5 HP DC motor.
High-volume shops performing quick-service operations like tire rotations, brake inspections, and oil changes lose cumulative productivity waiting for standard-speed lift cycles. Over an 8-hour shift with 20+ lift cycles, slower rise and descent times add up to significant lost capacity.

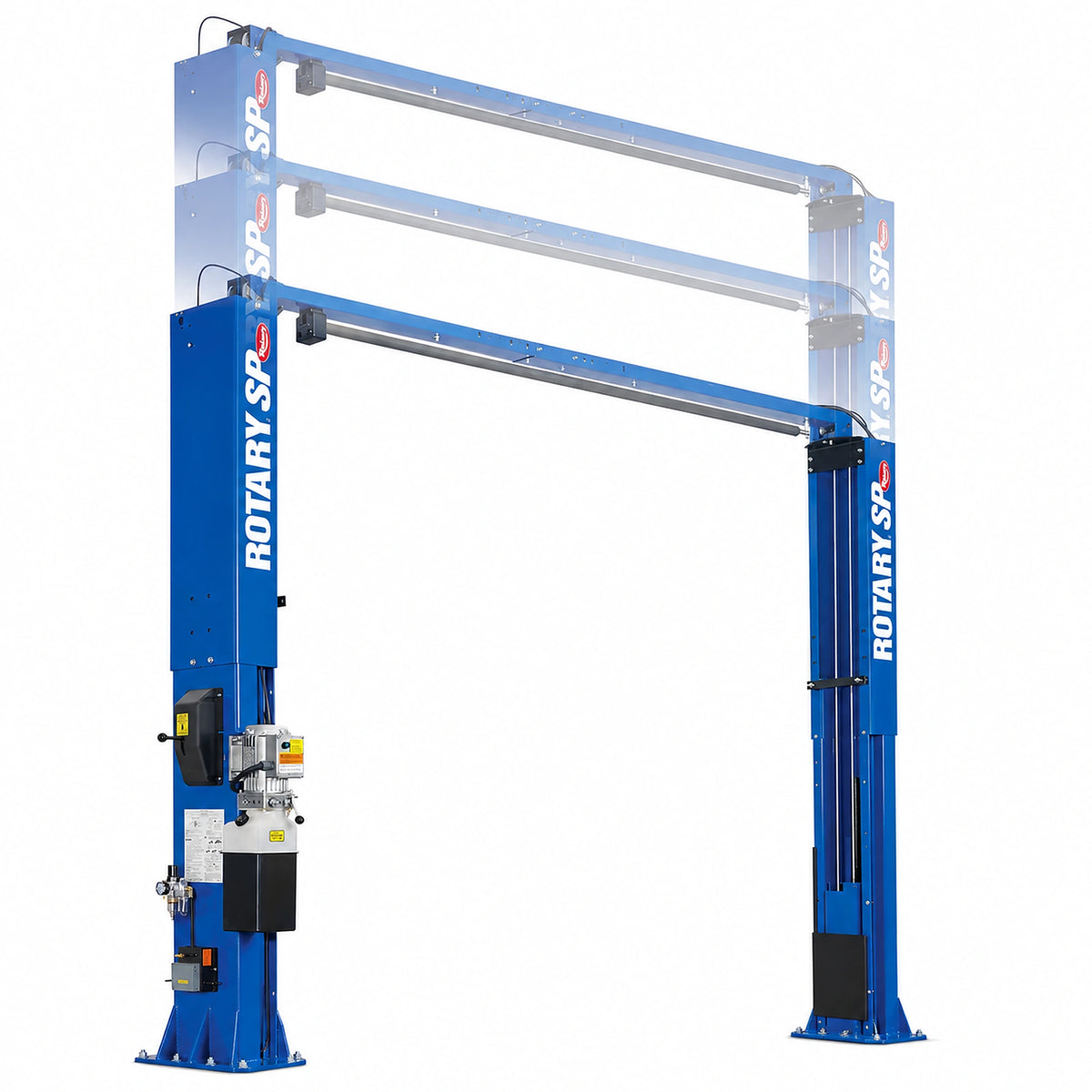

This enables measurably higher daily vehicle throughput for shops where lift cycle time directly impacts revenue. The Shockwave upgrade requires 12 ft 6 in minimum ceiling height (versus 12 ft standard) and increases overall lift height to 12 ft 4-1/2 in.
ALI Gold Certification with ETL Testing
The SPO10 carries ALI Gold Certification from the Automotive Lift Institute, verified through independent third-party testing by ETL (Electrical Testing Labs). This certification confirms compliance with ANSI/ALI ALCTV performance standards and ANSI/ALI ALIS safety requirements - the recognized benchmarks for automotive lift quality in North America.
Insurance carriers and regulatory inspectors increasingly require documented proof of lift certification. Shops operating uncertified lifts face potential liability exposure and may encounter difficulties obtaining or renewing business insurance coverage at standard rates.
This provides the compliance documentation required for shop insurance requirements and regulatory inspections. The certification confirms the lift has been tested beyond 20,000 lift cycles and meets published capacity ratings under controlled conditions.
USA Manufacturing with National Service Support
The SPO10 is manufactured at Vehicle Service Group's facility in Madison, Indiana, backed by parent company Dover Corporation (Fortune 500). This domestic production provides supply chain advantages for parts availability and reduces lead times compared to imported alternatives.
Shops investing in critical equipment face long-term serviceability concerns when manufacturers lack domestic parts inventory or technical support infrastructure. Lift downtime directly impacts revenue, making parts availability and service response time essential purchase considerations.
This enables faster parts sourcing and access to Rotary's national technical support network (800.445.5438) for troubleshooting and service guidance. The domestic manufacturing origin also supports shops with "Buy American" procurement requirements or preferences.
Applications & Use Cases
- Full-Service Automotive Repair: General mechanical work, brake service, suspension repair, and undercarriage inspection for passenger vehicles, light trucks, and SUVs within 10,000 lb capacity
- Car Dealership Service Departments: Warranty work, pre-delivery inspections, and routine maintenance for new and certified pre-owned vehicle inventory
- Independent Repair Shops: Mixed-vehicle service operations requiring reliable frame contact lifting for diverse makes and models
- Fleet Maintenance Centers: Scheduled maintenance and repair for commercial vehicle fleets including cargo vans and Class 1-2 commercial vehicles
- Tire and Wheel Service Centers: High-volume tire rotation, wheel balancing, and brake inspections benefiting from clear floor design and wide drive-through access
- Quick Lube Operations: Oil changes, fluid services, and multi-point inspections where lift cycle speed impacts daily throughput (Shockwave option recommended)
Technical Specifications text
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Max Load Per Arm | 2,500 lb (1,134 kg) |
| Motor (Standard) | 2 HP |
| Motor (Shockwave) | 5 HP DC |
| Voltage | 208-230V, Single Phase |
| Rise Time (Standard) | 45 seconds |
| Rise Time (Shockwave) | 25 seconds |
| Descent Time (Standard) | 40 seconds |
| Descent Time (Shockwave) | 19 seconds |
| Specification | Value |
|---|---|
| Overall Height (Standard) | 11 ft 8-1/2 in (140.5 in / 3,569 mm) |
| Overall Height (Shockwave) | 12 ft 4-1/2 in (148.5 in) |
| Overall Width | 11 ft 5-1/2 in (137.5 in / 3,493 mm) |
| Drive-Through Clearance | 102-1/2 in (8 ft 6-1/2 in / 2,603 mm) |
| Rise (FA Adapters) | 78-1/4 in (1,988 mm) |
| Rise (TA Adapters) | 80-1/4 in (2,038 mm) |
| Rise (RA Adapters) | 76-7/8 in (1,953 mm) |
| Front Arm Reach (FA Config) | 31 in - 54 in (787 mm - 1,372 mm) |
| Rear Arm Reach (FA Config) | 31 in - 54 in (787 mm - 1,372 mm) |
| Model Code | Arm Type | Adapter Type |
|---|---|---|
| SPO10N700 | 2-Stage Conventional | Flip-Up (FA) |
| SPO10N800 | 3-Stage TRIO | Flip-Up (FA) |
| SPO10N5T0 | 3-Stage Conventional | Truck (TA) |
| SPO10N5G0 | 3-Stage Conventional | Round (RA) |

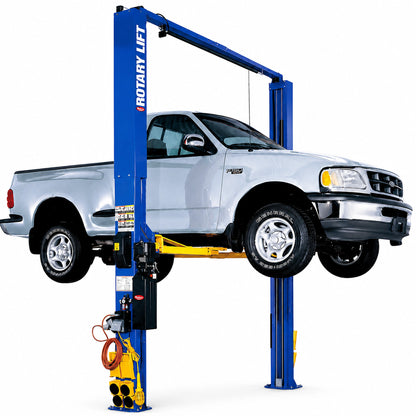

Color Options: Blue (BL), Red (RD)
Installation Requirements
Ceiling Height & Bay Dimensions
- Minimum Ceiling Height (Standard): 12 ft (144 in)
- Minimum Ceiling Height (Shockwave): 12 ft 6 in (150 in)
- Minimum Bay Size: 12 ft x 24 ft
Concrete Foundation Requirements
- Concrete Depth: 4-1/4 in minimum
- Concrete Strength: 3,000 PSI minimum
- Anchor Bolts: 3/4 in x 5-1/2 in (10 per lift)
- Anchor Torque: 150 ft-lb
Note: If existing concrete is inadequate, manufacturer recommends replacing with 4 ft x 4 ft x 6 in thick pad at 3,000 PSI minimum under each column.
Electrical Requirements
- Voltage: 208-230V, Single Phase
- Circuit: 20A dedicated circuit
Installation Notes
- Professional Installation: Recommended - generally not included in lift price
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Information
Origin: Ships freight from Madison, Indiana manufacturing facility
Method: Flatbed or LTL freight (typical)
Freight Cost: Calculated separately at order
Delivery Requirements
Forklift Required: 5,000 lb minimum capacity at delivery site for unloading
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Rotary 5-1-1 Warranty Program
5 Years - Equipment Structure: Covers carriage, columns, yokes, arms, runways, and plungers
1 Year - Operating/Functional Parts: Covers power units, cylinders, latches, adapters, and controls
1 Year - Labor: Labor coverage for warranty repairs during first year of ownership
Ready to Upgrade Your Shop?
Get expert guidance on the right lift configuration for your facility. Our team can help with model selection, adapter options, installation planning, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Rotary SPO10?
The Rotary SPO10 has a maximum lifting capacity of 10,000 lb (4,536 kg) with a maximum load of 2,500 lb per arm. This capacity handles passenger vehicles, SUVs, light trucks, and cargo vans within the rated weight limit. The symmetrical design centers vehicle weight between the two columns for balanced lifting, and the lift is ALI Gold Certified to confirm it meets published capacity ratings under controlled third-party testing conditions exceeding 20,000 lift cycles.
What are the concrete requirements for the Rotary SPO10?
The SPO10 requires a minimum concrete depth of 4-1/4 inches with a minimum compressive strength of 3,000 PSI. The lift uses ten 3/4 in x 5-1/2 in anchor bolts torqued to 150 ft-lb for secure mounting. If existing concrete is inadequate or of unknown quality, Rotary recommends pouring a replacement pad measuring 4 ft x 4 ft x 6 in at 3,000 PSI minimum under each column before installation. Always verify concrete condition with a qualified installer.
What ceiling height is required for the SPO10?
The standard SPO10 requires a minimum ceiling height of 12 ft (144 in) to accommodate the lift's overall height of 11 ft 8-1/2 in plus clearance for the overhead crossbar assembly. If equipped with the Shockwave speed upgrade option, minimum ceiling height increases to 12 ft 6 in (150 in) because the Shockwave configuration raises overall lift height to 12 ft 4-1/2 in. Measure from finished floor to the lowest ceiling obstruction when planning your installation.
What is the difference between SPO10 adapter types FA, TA, and RA?
FA (Flip-Up) adapters provide 78-1/4 in rise height with a three-position flip-up design optimized for passenger car frame contact points. TA (Truck) adapters provide the tallest rise at 80-1/4 in, designed for truck and commercial vehicle applications requiring additional clearance. RA (Round) adapters provide 76-7/8 in rise height for versatile mixed-use applications. Each adapter type is factory-matched to specific arm configurations, either 2-stage conventional or 3-stage TRIO arms.
What is included with the Rotary SPO10?
The SPO10 includes two lift columns with patented Double-S design, overhead crossbar assembly, electric-hydraulic power unit (2 HP motor, 208-230V single phase), carriage assemblies with self-lubricating UHMW polyethylene slider blocks, arm configuration per model variant (2-stage or 3-stage), adapter set per variant (FA, TA, or RA), heavy-duty arm restraint system, single-point lock release mechanism, mounting hardware with anchor bolts, hydraulic hoses and cables, and complete installation and operation manual.
Is the Rotary SPO10 ALI certified?
Yes, the SPO10 is ALI Gold Certified by the Automotive Lift Institute with ETL (Electrical Testing Labs) verification. It complies with ANSI/ALI ALCTV performance standards and ANSI/ALI ALIS safety requirements, providing documentation for insurance and regulatory compliance. This third-party certification confirms the lift has been tested beyond 20,000 lift cycles and meets all published capacity and safety specifications under controlled laboratory conditions.
What is the warranty on the Rotary SPO10?
The SPO10 includes a comprehensive 5-1-1 warranty program. The 5-year structural warranty covers major load-bearing components including carriage, columns, yokes, arms, runways, and plungers. Operating and functional parts such as power units, cylinders, latches, adapters, and controls are covered for 1 year. Labor coverage for warranty repairs is also included during the first year of ownership. This tiered structure reflects Rotary's confidence in the long-term durability of the Double-S column construction.
What is the drive-through width of the Rotary SPO10?
The SPO10 provides 102-1/2 inches (8 ft 6-1/2 in or 2,603 mm) of drive-through clearance between columns, which is the widest opening in the symmetrical 10,000 lb capacity class. This accommodates full-size trucks, SUVs, and cargo vans without tight maneuvering. The wide clearance reduces positioning time and minimizes the risk of door dings when driving larger vehicles onto the lift.
