ROTARY 2ft Height Extension for SPO10, Symmetric Lift

Q: What ceiling height do I need for the FJ5158 height extension? A: The Rotary FJ5158 requires a minimum ceiling height of 14 feet for proper installation and safe operation. Measure from the floor to the lowest obstruction including lighting, HVAC ducts, and sprinkler systems. Facilities with insufficient clearance cannot safely operate the extended lift configuration and should consider alternative solutions.

Q: What ceiling height do I need for the FJ5158 height extension? The Rotary FJ5158 requires a minimum ceiling height of 14 feet for proper installation and safe operation. Measure from the floor to the lowest obstruction including lighting, HVAC ducts, and sprinkler systems. Facilities with insufficient clearance cannot safely operate the extended lift configuration and should consider alternative solutions.

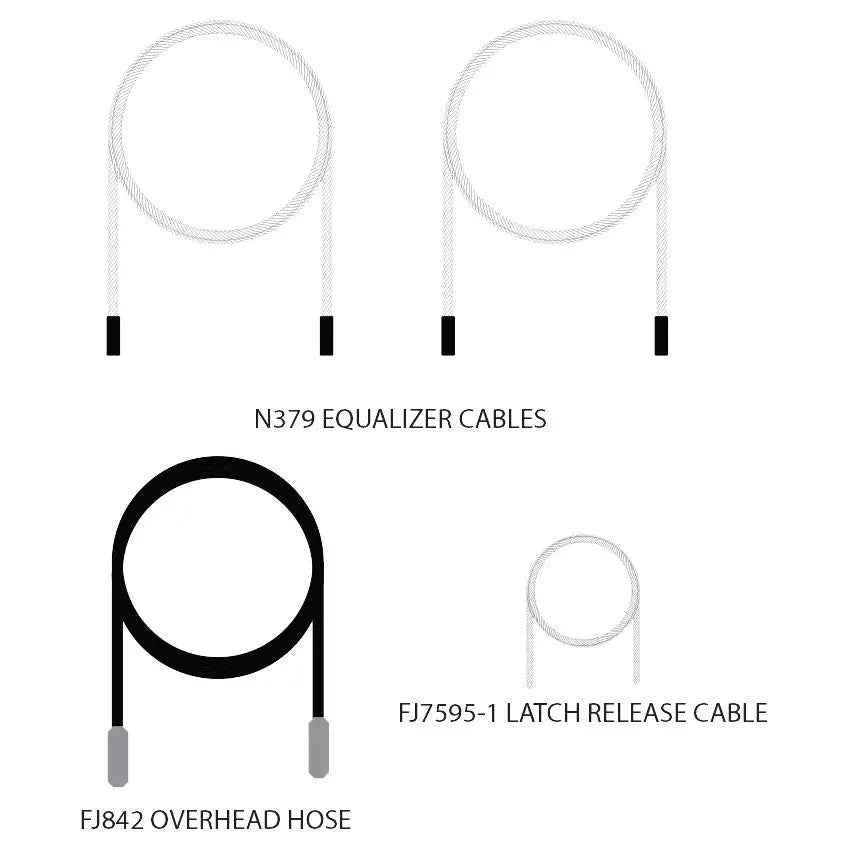

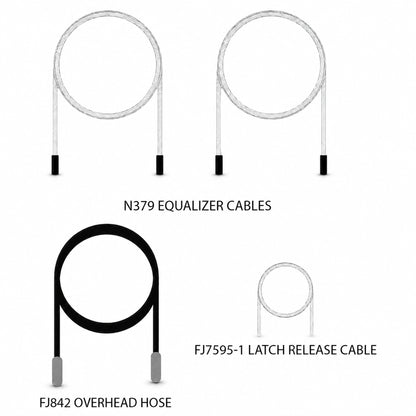

Q: What is included in the FJ5158 extension kit? A: The complete kit includes a pair of column extensions, extended equalizer cables, an extended overhead hydraulic hose, and a latch release cable. All components ship together under a single part number, eliminating the need to source individual hardware separately. This ensures proper fitment and maintains lift synchronization after installation.

Q: What is included in the FJ5158 extension kit? The complete kit includes a pair of column extensions, extended equalizer cables, an extended overhead hydraulic hose, and a latch release cable. All components ship together under a single part number, eliminating the need to source individual hardware separately. This ensures proper fitment and maintains lift synchronization after installation.

Q: Does the height extension reduce the lift capacity? A: No. The SPO10 maintains its full 10,000 lb lifting capacity after the FJ5158 extension is installed. Rotary engineers designed the kit to preserve original performance specifications and ALI certification compliance. The extended equalizer cables and hydraulic components are calibrated to match the additional column height without compromising safety or lifting power.

Q: Does the height extension reduce the lift capacity? No. The SPO10 maintains its full 10,000 lb lifting capacity after the FJ5158 extension is installed. Rotary engineers designed the kit to preserve original performance specifications and ALI certification compliance. The extended equalizer cables and hydraulic components are calibrated to match the additional column height without compromising safety or lifting power.

Q: Is the FJ5158 compatible with other Rotary lift models? A: The FJ5158 is designed exclusively for the Rotary SPO10 symmetric two-post lift with Double S column construction. It is not compatible with asymmetric lifts or other Rotary models. Contact an authorized dealer with your complete model and serial number to verify compatibility before purchasing, as SPO10 variants may have different requirements.

Q: Is the FJ5158 compatible with other Rotary lift models? The FJ5158 is designed exclusively for the Rotary SPO10 symmetric two-post lift with Double S column construction. It is not compatible with asymmetric lifts or other Rotary models. Contact an authorized dealer with your complete model and serial number to verify compatibility before purchasing, as SPO10 variants may have different requirements.

Q: Can I install the FJ5158 height extension myself? A: Professional installation through a Rotary Authorized Installer (RAI) is strongly recommended. Proper equalizer cable tensioning and column alignment are critical for safe, synchronized lift operation. RAI technicians have the specialized tools and training required for correct installation, and professional installation may be required for full warranty coverage on the extension kit.

Q: Can I install the FJ5158 height extension myself? Professional installation through a Rotary Authorized Installer (RAI) is strongly recommended. Proper equalizer cable tensioning and column alignment are critical for safe, synchronized lift operation. RAI technicians have the specialized tools and training required for correct installation, and professional installation may be required for full warranty coverage on the extension kit.

$1,295.00

1 total reviews

Color: Red

Red
Blue
Black

Product variants

$ Save 3% with ACH / Wire Payment — call for details

Authorized Online Dealer direct manufacturer relationship
No Sales Tax outside PA where applicable
Authorized Dealer Price Match verification required
Fast Delivery some products may have lead times
Manufacturer Warranty included with purchase
Questions? +1 (855) 498-2147

Rotary FJ5158 SPO10 Height Extension Kit (2 ft) - Expand Lift Clearance for High-Roof Vans

Service High-Roof Vans and Lifted Trucks Without Buying a New Lift

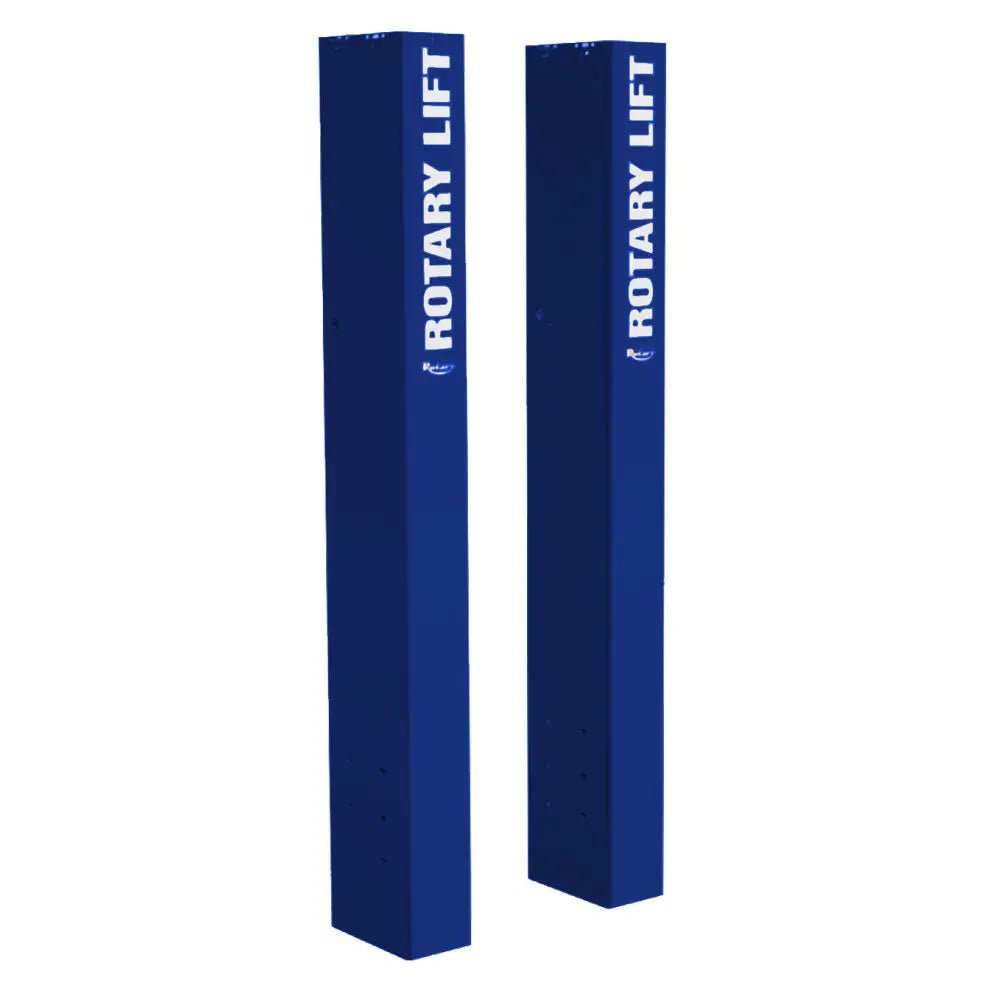

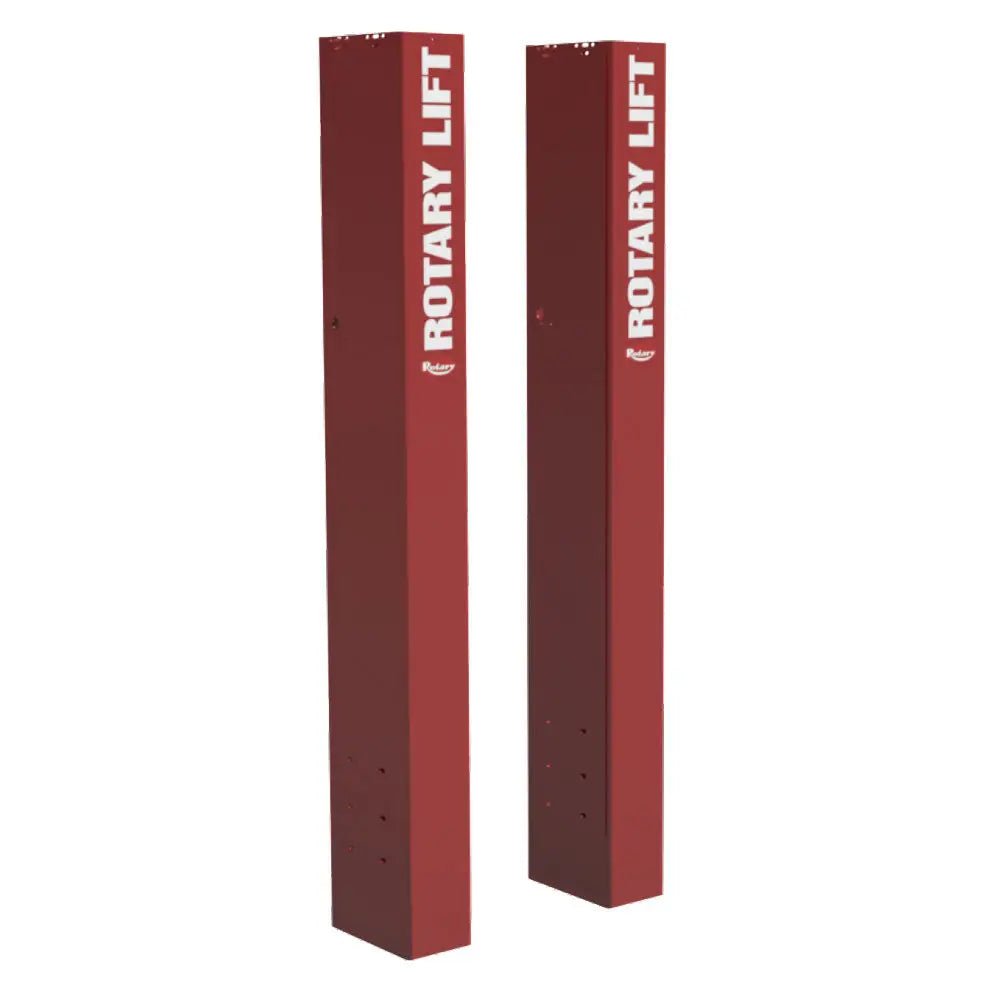

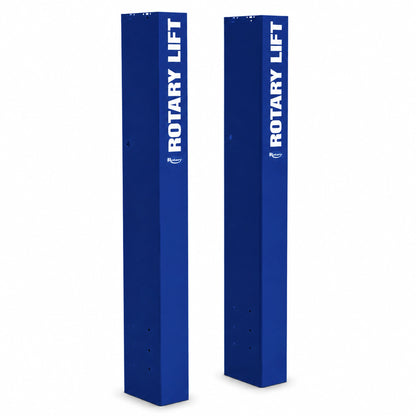

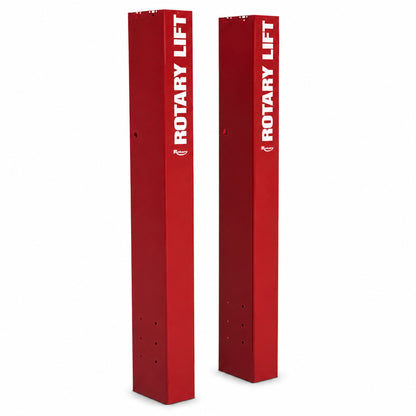

The Rotary FJ5158 2ft height extension adds 24 inches of overhead clearance to your existing SPO10 symmetric two-post lift. This complete retrofit kit lets automotive shops and fleet maintenance facilities service taller vehicles - including Ford Transit, Mercedes Sprinter, and RAM ProMaster high-roof cargo vans - while maintaining the full 10,000 lb lift capacity.

Designed by Rotary Lift engineers specifically for the SPO10's Double "S" column construction, the FJ5158 ships as a ready-to-install package. Every component needed for installation arrives in a single shipment: column extensions, extended equalizer cables, overhead hydraulic hose, and latch release cable. No additional parts to source separately.

Key Features and Benefits

Complete Retrofit Package: Ships with all required components including column extension pair, extended equalizer cables, overhead hose, and latch release cable. Single part number eliminates compatibility guesswork and separate hardware sourcing.

Maintains Full Lift Capacity: The 10,000 lb capacity of your SPO10 remains unchanged after installation. Continue servicing vehicles across the full weight range with confidence.

OEM-Engineered Fit: Factory-designed for precise integration with SPO10 Double "S" column architecture. Calibrated cable lengths maintain proper lift synchronization and ALI certification compliance when professionally installed.

Color-Matched Options: Available in Red, Blue, and Black to match your existing SPO10 column finish. Maintains professional shop appearance and equipment standardization across your facility.

Applications

Servicing high-roof cargo vans including Ford Transit, Mercedes Sprinter, RAM ProMaster, and Nissan NV models.
Fleet maintenance operations requiring increased overhead clearance for commercial vehicles.
Tall SUV and lifted truck service in automotive repair shops.
Dealership service bays handling Class 1-3 commercial vehicles.
Shops with adequate ceiling height seeking to expand vehicle service capabilities without purchasing new equipment.

Specifications

Rotary FJ5158 Technical Specifications
Part Number	FJ5158
Extension Height	2 ft (24 in)
Quantity	Pair (2 column extensions)
Compatible Lift	Rotary SPO10 Symmetric Two-Post Lift
Lift Capacity	10,000 lbs (maintained with extension)
Required Ceiling Height	14 ft minimum
Color Options	Red, Blue, Black

Installation Requirements

A minimum 14-foot ceiling height is required for proper installation and operation. Professional installation through a Rotary Authorized Installer (RAI) is recommended for proper cable tensioning and potential warranty coverage. Verify compatibility with your full model and serial number before ordering.

Extend Your Service Capabilities

Add 2 feet of overhead clearance to your SPO10 lift and start servicing high-roof vans and lifted trucks today.

Frequently Asked Questions

What ceiling height do I need for the FJ5158 height extension?

The Rotary FJ5158 requires a minimum ceiling height of 14 feet for proper installation and safe operation. Measure from the floor to the lowest obstruction including lighting, HVAC ducts, and sprinkler systems. Facilities with insufficient clearance cannot safely operate the extended lift configuration and should consider alternative solutions.

What is included in the FJ5158 extension kit?

The complete kit includes a pair of column extensions, extended equalizer cables, an extended overhead hydraulic hose, and a latch release cable. All components ship together under a single part number, eliminating the need to source individual hardware separately. This ensures proper fitment and maintains lift synchronization after installation.

Does the height extension reduce the lift capacity?

No. The SPO10 maintains its full 10,000 lb lifting capacity after the FJ5158 extension is installed. Rotary engineers designed the kit to preserve original performance specifications and ALI certification compliance. The extended equalizer cables and hydraulic components are calibrated to match the additional column height without compromising safety or lifting power.

Is the FJ5158 compatible with other Rotary lift models?

The FJ5158 is designed exclusively for the Rotary SPO10 symmetric two-post lift with Double S column construction. It is not compatible with asymmetric lifts or other Rotary models. Contact an authorized dealer with your complete model and serial number to verify compatibility before purchasing, as SPO10 variants may have different requirements.

Can I install the FJ5158 height extension myself?

Professional installation through a Rotary Authorized Installer (RAI) is strongly recommended. Proper equalizer cable tensioning and column alignment are critical for safe, synchronized lift operation. RAI technicians have the specialized tools and training required for correct installation, and professional installation may be required for full warranty coverage on the extension kit.
