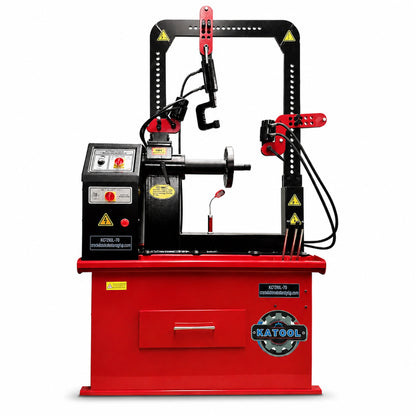

Katool KT-WL70 – Wheel Straightener (Hydraulic, 30 in)

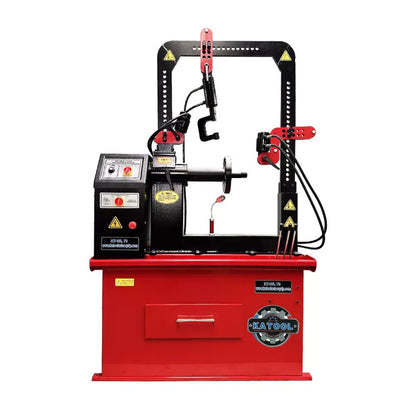

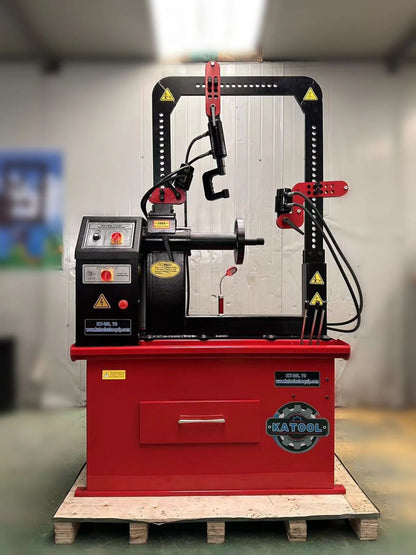

Katool KT-WL70 - Professional 30" Rim Straightening Machine with Integrated Lathe

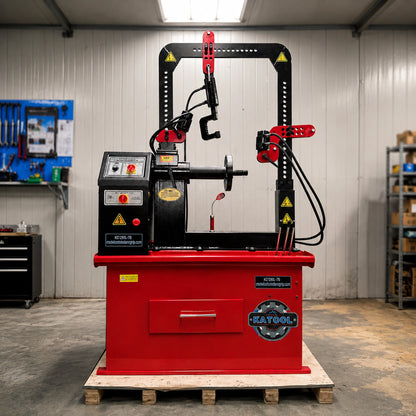

The Katool KT-WL70 is a professional rim straightening machine for complete wheel restoration in automotive workshops and wheel repair facilities. This wheel straightening machine delivers hydraulic rim repair with integrated lathe functionality, featuring 15 MPa working pressure, 15kW motor power, and capacity for wheels up to 30 inches diameter. Handles alloy and steel wheel rim straightening with precision operation under 79dB noise levels.
Rim Straightening Machine Features & Benefits
Superior Wheel Size Versatility
Handles wheels up to 30-inch maximum diameter with a 21.6-inch width capacity, exceeding most competitor wheel straightening equipment limited to 24-26 inches. This accommodates luxury vehicles, light trucks, and specialty aftermarket wheels that smaller rim repair machines cannot handle, enabling shops to service a complete range of passenger and light-truck wheels in-house.
Industrial-Grade Power Performance

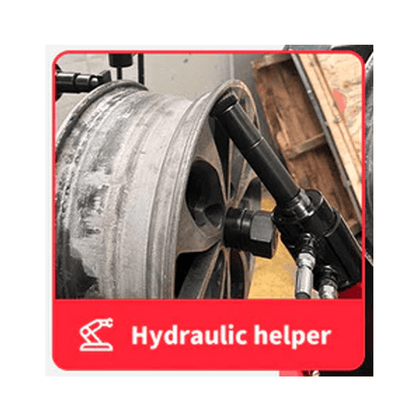

The 15kW motor delivers consistent high-force straightening capability with 15 MPa working pressure (150 bar), providing significantly more power than typical competitor rim straightening equipment. The hydraulic system maintains pressure control throughout the straightening process for consistent results even on severely damaged wheels and aluminum alloy wheels that require sustained pressure.

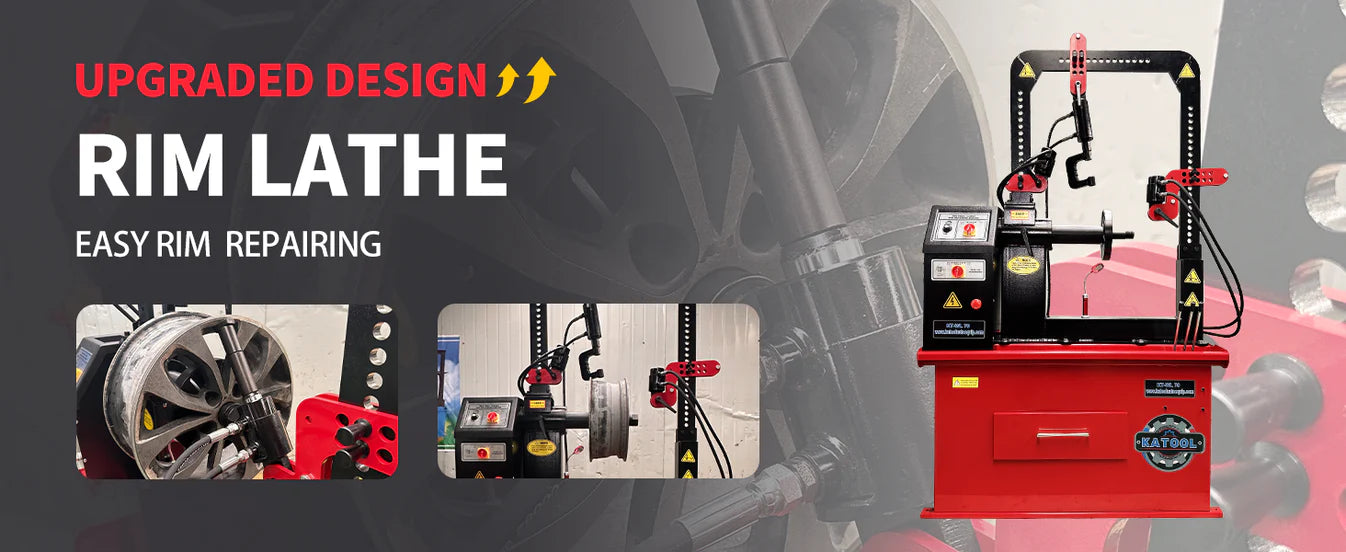

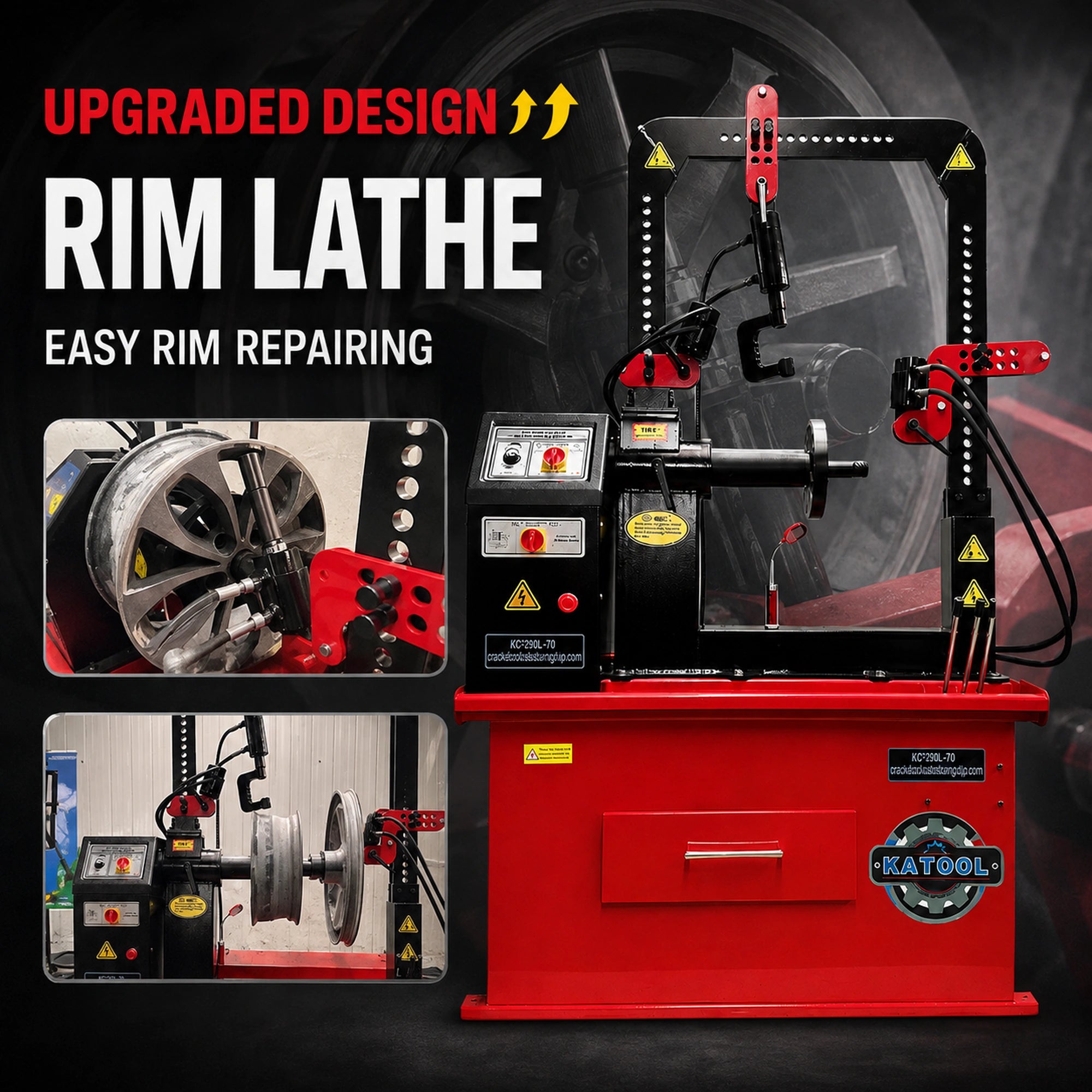

Integrated Dual-Function Alloy Rim Straightening

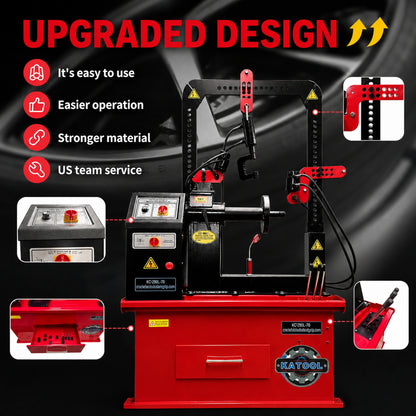

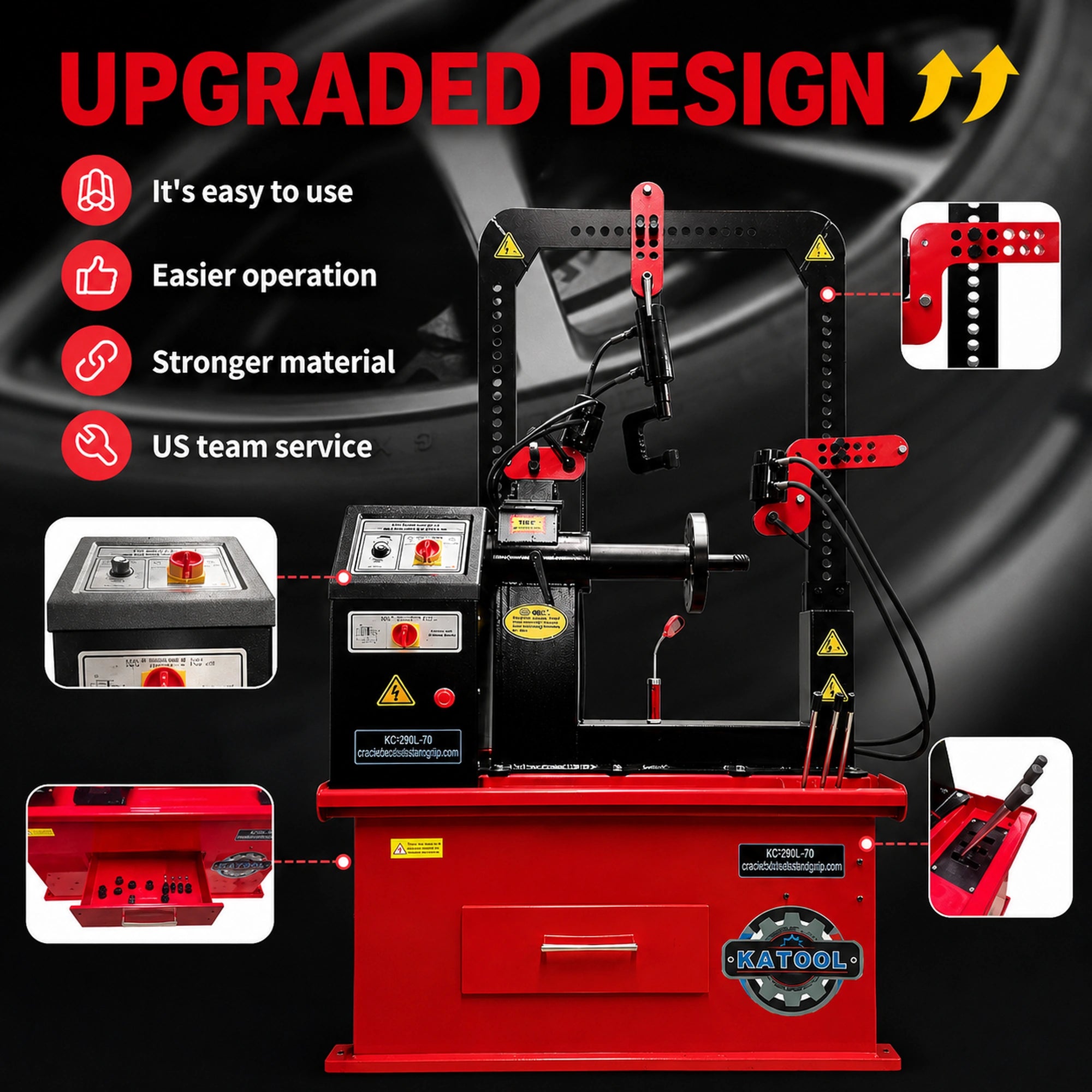

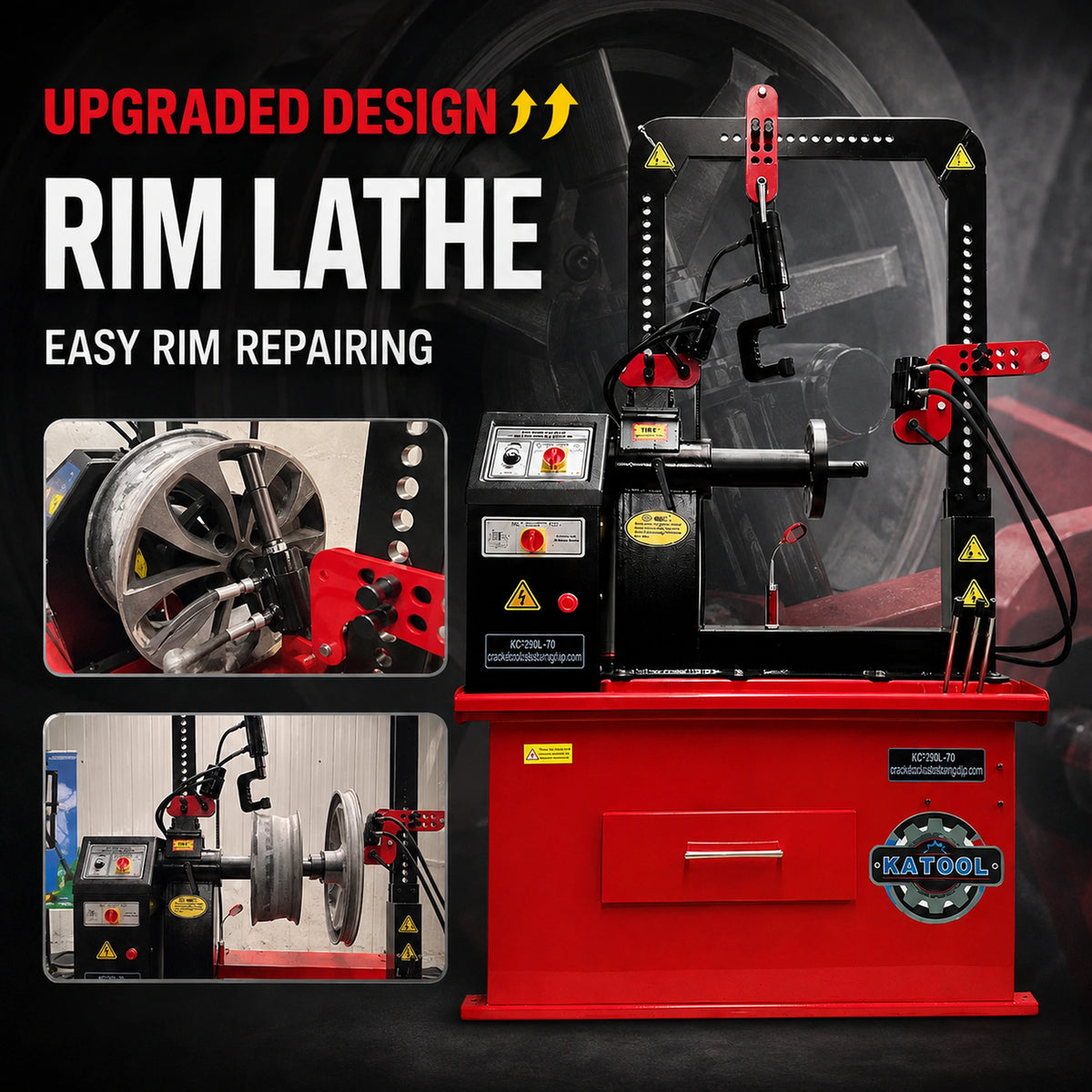

Combines hydraulic straightening and precision lathe finishing in a single 573-pound unit, eliminating the need for separate wheel repair equipment. This alloy rim straightening machine with integrated lathe enables technicians to perform hydraulic straightening and lathe-based repairs without moving wheels between different stations, reducing shop floor space requirements.
Professional Noise Control
Operates at documented noise levels under 79dB. The enclosed cabinet design and hydraulic system engineering minimize operational noise while maintaining full straightening capability. Enables operation in noise-sensitive commercial environments and supports extended operating hours.
Dual Voltage Flexibility
Accommodates both 220V single-phase and 380V three-phase power supply configurations. Eliminates electrical upgrade requirements for many facilities during installation, enabling installation in shops with either power configuration without extensive electrical work.
Heavy-Duty Construction Stability
The 573-pound operational weight provides superior vibration dampening and operational stability during high-pressure wheel straightening operations. Heavy-duty construction maintains precision during maximum pressure operations and reduces operator fatigue from machine vibration.
Product Demonstration
Applications & Use Cases
- Professional Wheel Repair Shops: Comprehensive rim straightening and finishing for alloy and steel wheels, reducing outsourcing for bent wheel repair
- Automotive Workshops and Dealerships: In-house bent wheel repair for luxury vehicles, pickup trucks, and performance cars up to 30-inch diameter
- Tire Service Centers: Complete wheel restoration services to complement tire mounting and balancing operations
- Light Truck and Fleet Operations: Wheel repair machine capabilities for commercial vehicle wheels, reducing downtime from bent rim damage
- Wheel Specialist Facilities: Professional-grade wheel straightening equipment for wheel restoration and high-end car rim straightening services

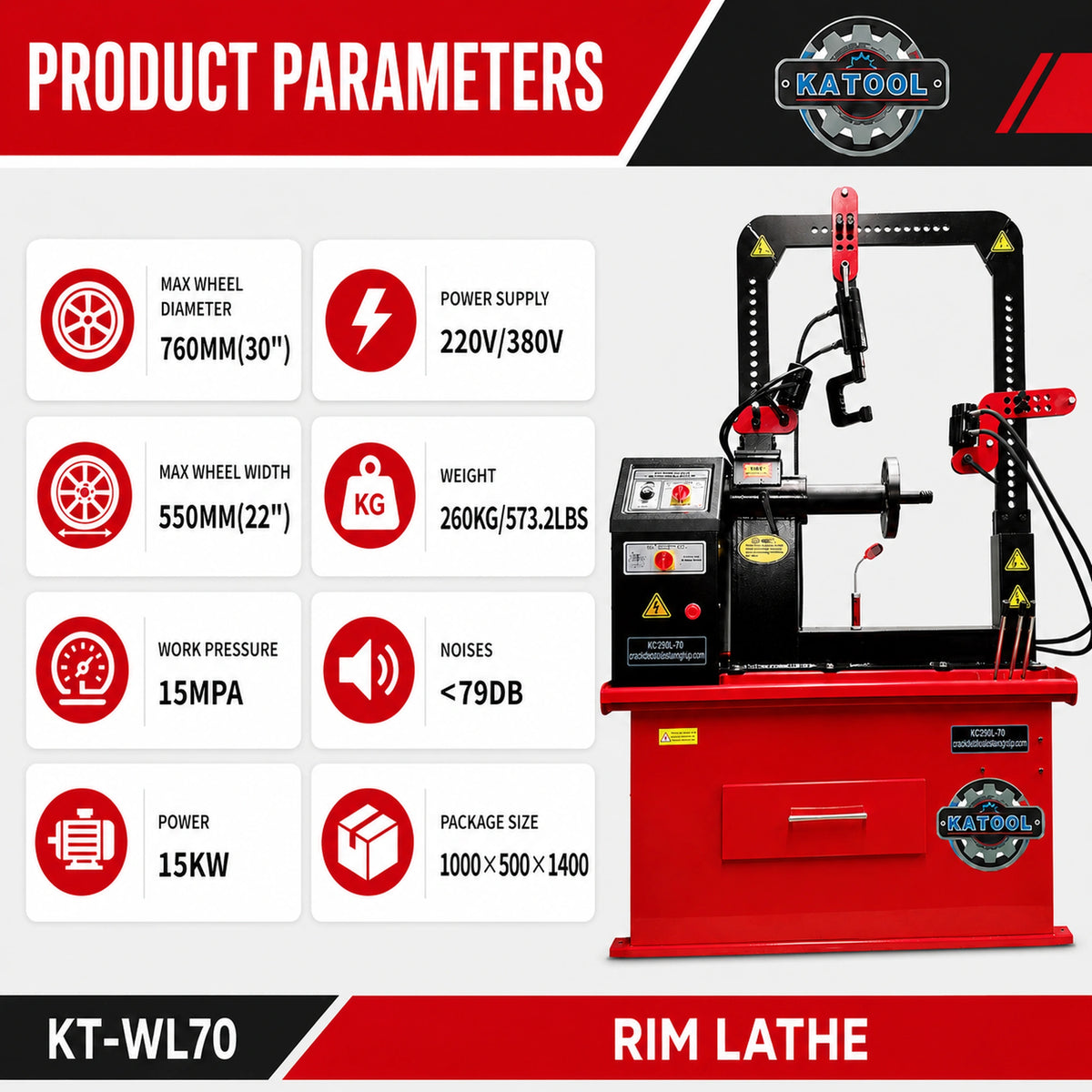

Technical Specifications
| Specification | Value |
|---|---|
| Working Limit Diameter | 26 inches |
| Max Wheel Diameter | 30 inches |
| Max Wheel Width | 21.6 inches (550mm) |
| Machine Dimensions | 1400mm L × 900mm W × 1390mm H |
| Package Dimensions | 40" L × 19.5" W × 55" H |
| Weight | 573.2 lb (260 kg) |
| Specification | Value |
|---|---|
| Motor Power | 15kW |
| Working Pressure | 15 MPa (150 bar) |
| Power Supply | 220V/380V |
| Noise Level | Under 79dB |
| Hydraulic Oil | AW-46 (AW-32 for cold climates) |

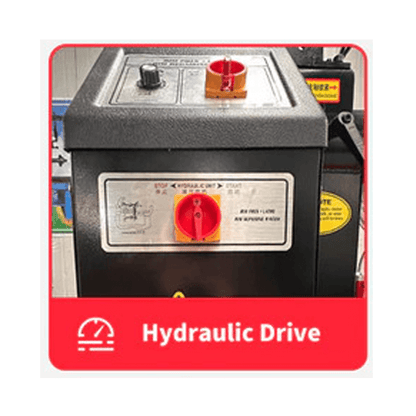

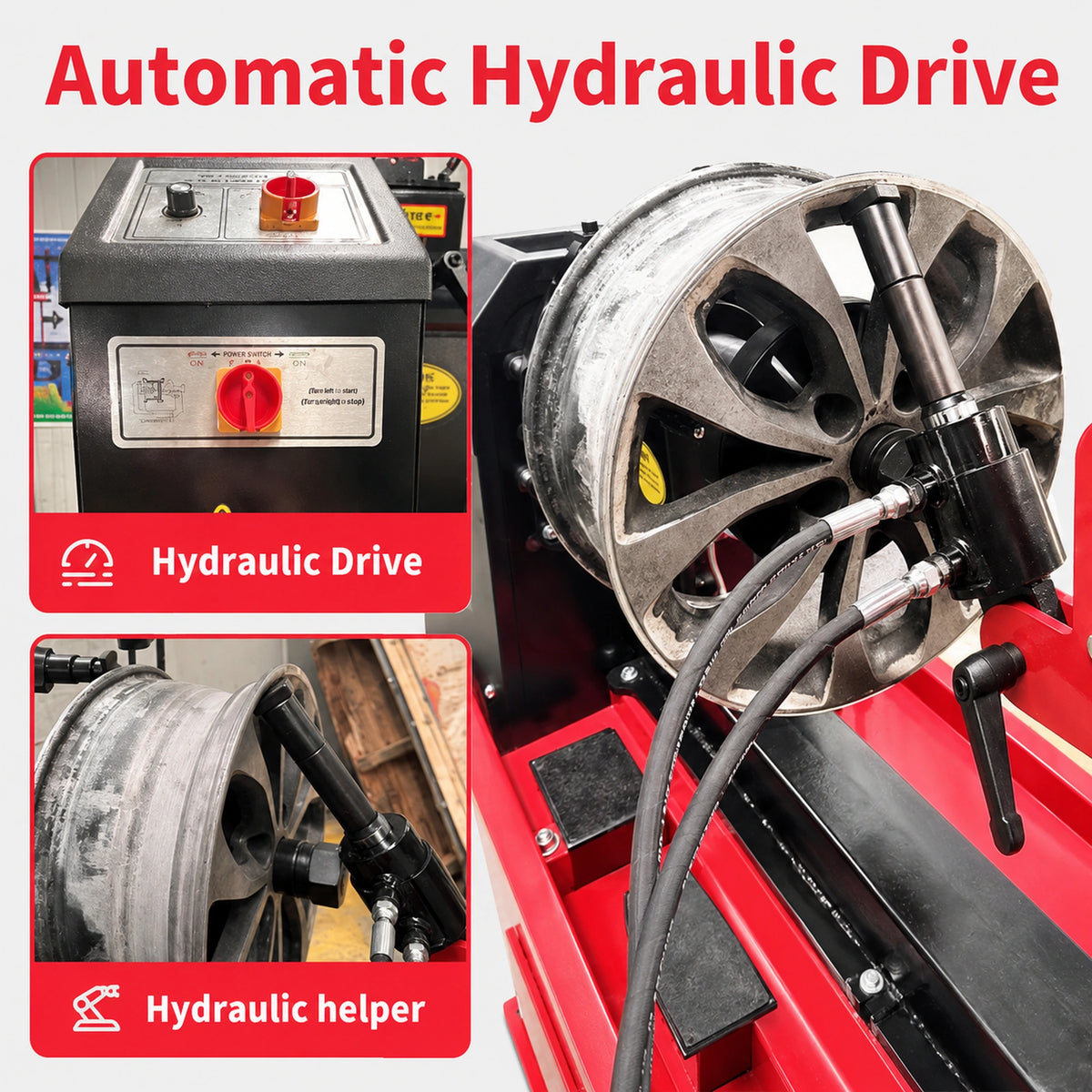

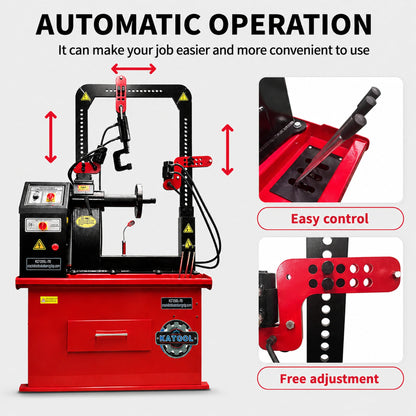

| Drive System | Automatic hydraulic drive |
Installation Requirements
Foundation & Mounting
- Foundation: Secure mounting to smooth, level concrete floor
- Anchor Bolts: 15mm anchor bolts torqued to 25 N·m
- Floor: Level concrete capable of supporting 573 lb operational weight
Power Requirements
- Electrical Supply: 220V single-phase or 380V three-phase
- Power Rating: 15kW motor
- Safety: Effective earth/ground connection and isolating switch with ≥3mm contact separation
Environmental Requirements
- Location: Indoor installation in covered location
- Operating Range: -10°C to +40°C
- Clearance: Adequate space for wheel handling and operator access
Shipping & Delivery
Freight Coverage
Shipping: Free shipping to commercial addresses for orders over $2,500 (48 contiguous US). Surcharges may apply for Alaska, Hawaii, and rural locations.
Delivery Timeframe: 3-7 business days (subject to inventory availability).
Delivery Requirements
Unloading: Forklift or equivalent required for 573 lb packaged unit. Customer responsible for unloading.
Residential Delivery: Available for additional fee ($90 typical).
Receiving: Inspect all packages before signing. Note any visible damage on BOL before driver departs.
Damage Reporting
Within 15 days: Full coverage for replacement parts and freight
Within 30 days: Shared cost coverage
After 30 days: No coverage
Katool Warranty Coverage
Katool Limited Warranty Program
1 Year - Parts & Defects: Complete parts coverage including cylinders, power units, displays, and electronics
3 Years - Structural Components: Extended structural warranty on frame and major assemblies (select dealers)
Exclusions: Motors explicitly excluded from guarantee coverage
Warranty Requirements
Eligibility: Original purchaser only (non-transferable); requires proof of purchase and original order documentation
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the right rim straightening equipment for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the maximum wheel diameter this rim straightening machine can handle?
Working limit diameter of 26 inches; maximum wheel diameter 30 inches; maximum wheel width 21.6 inches. Accommodates most passenger vehicles, SUVs, and light trucks.
What components and accessories are included with the KT-WL70?

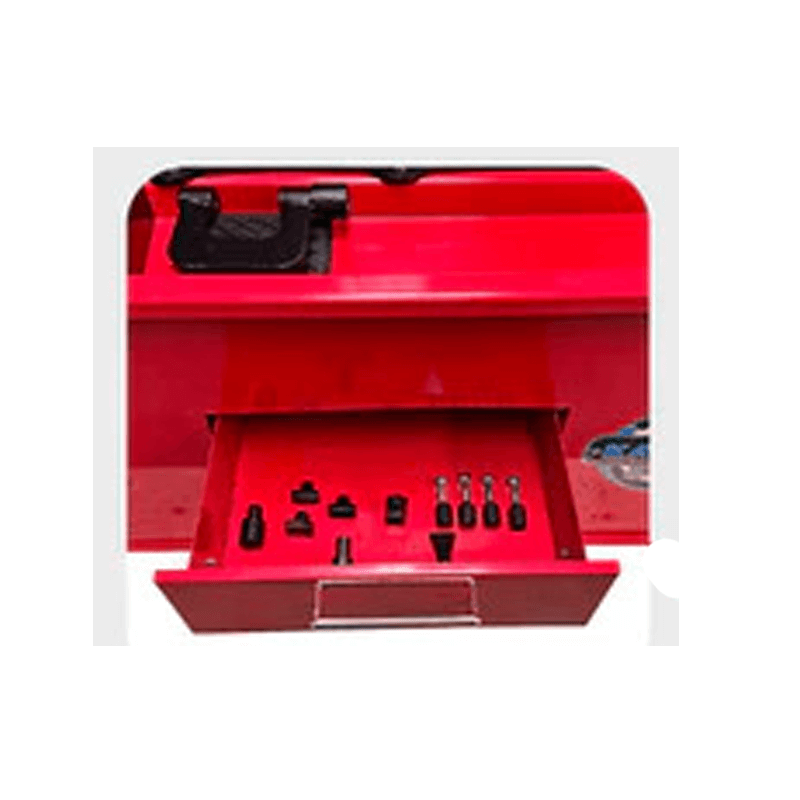

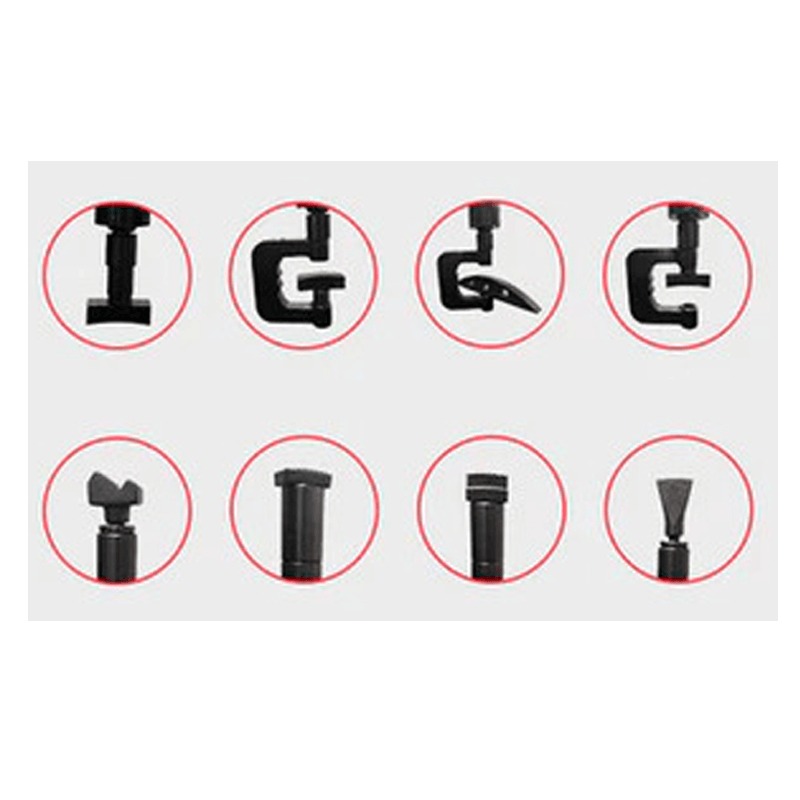

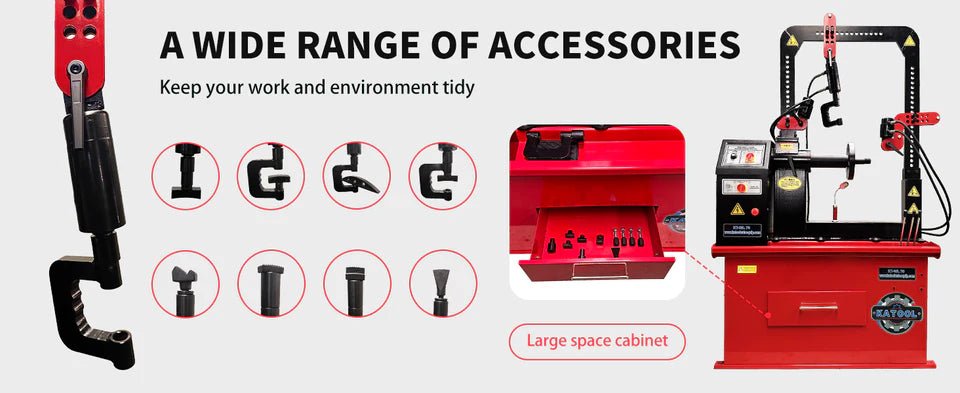

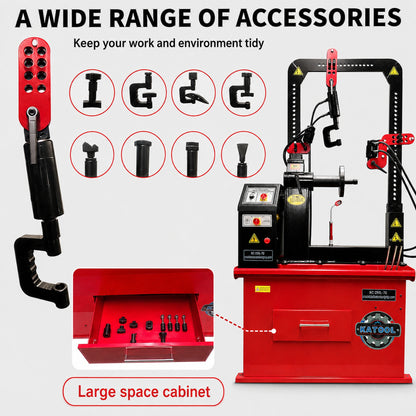

KT-WL70 machine assembly with hydraulic rim straightener and integrated lathe, rim connecting flange with multiple size adapters, hydraulic controlling unit with pressure gauge, shaped working tools and punches, tool kit and installation hardware, user manual and warranty documentation.
What are the electrical and installation requirements for the KT-WL70?
220V single-phase or 380V three-phase with 15kW power rating. Secure mounting to level concrete floor using 15mm anchor bolts torqued to 25 N·m. Requires effective ground connection and isolating switch with ≥3mm contact separation.
Can this wheel straightening machine fix a bent rim on alloy wheels?
Yes. The 15kW motor and 15 MPa working pressure provide sustained force to fix bent rims on aluminum alloy wheels without cracking. Integrated lathe enables precision finishing after straightening.
How does the KT-WL70's noise level compare to other rim repair machines?
Operates at under 79dB. Enables use in noise-sensitive commercial environments and supports extended operating hours.
What Katool warranty coverage is provided with the KT-WL70?
1-year warranty on all parts including cylinders, power units, displays, and electronics. 3-year structural warranty available through select dealers. Motors excluded. Non-transferable.
How does the dual voltage capability benefit installation?
Accommodates both 220V single-phase and 380V three-phase configurations. Eliminates electrical upgrade requirements for many facilities.
What are the freight delivery requirements and damage reporting procedures?
Forklift required for 573 lb unit. Free shipping to commercial addresses over $2,500. Inspect before signing BOL. Full damage coverage within 15 days; shared cost within 30 days; no coverage after 30 days.
