Katool KT-T850 + KT-B700 – Tire Changer + Wheel Balancer (Combo)
Katool KT-T850 and KT-B700 Tire Changer and Wheel Balancer Combo for Professional Tire Service

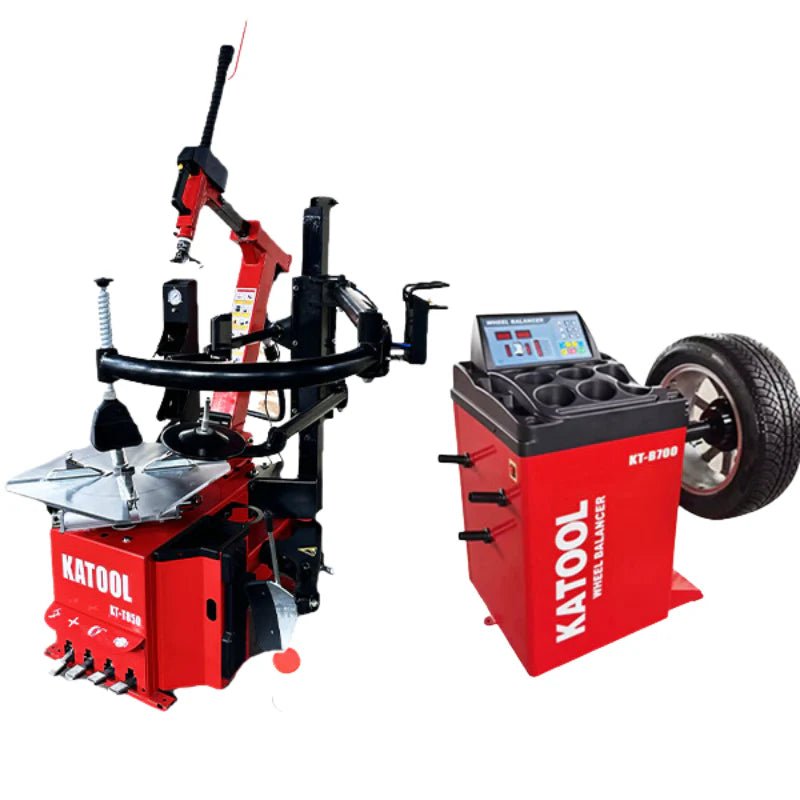

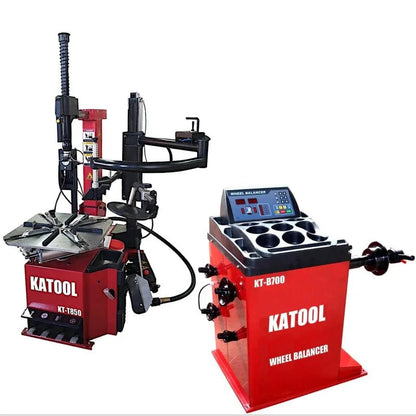

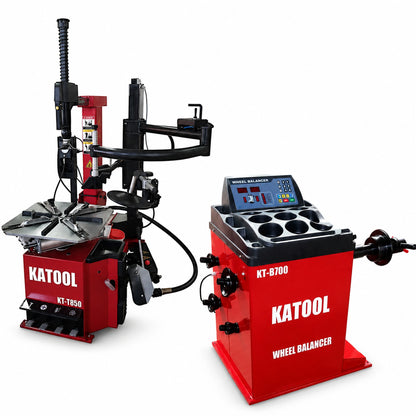

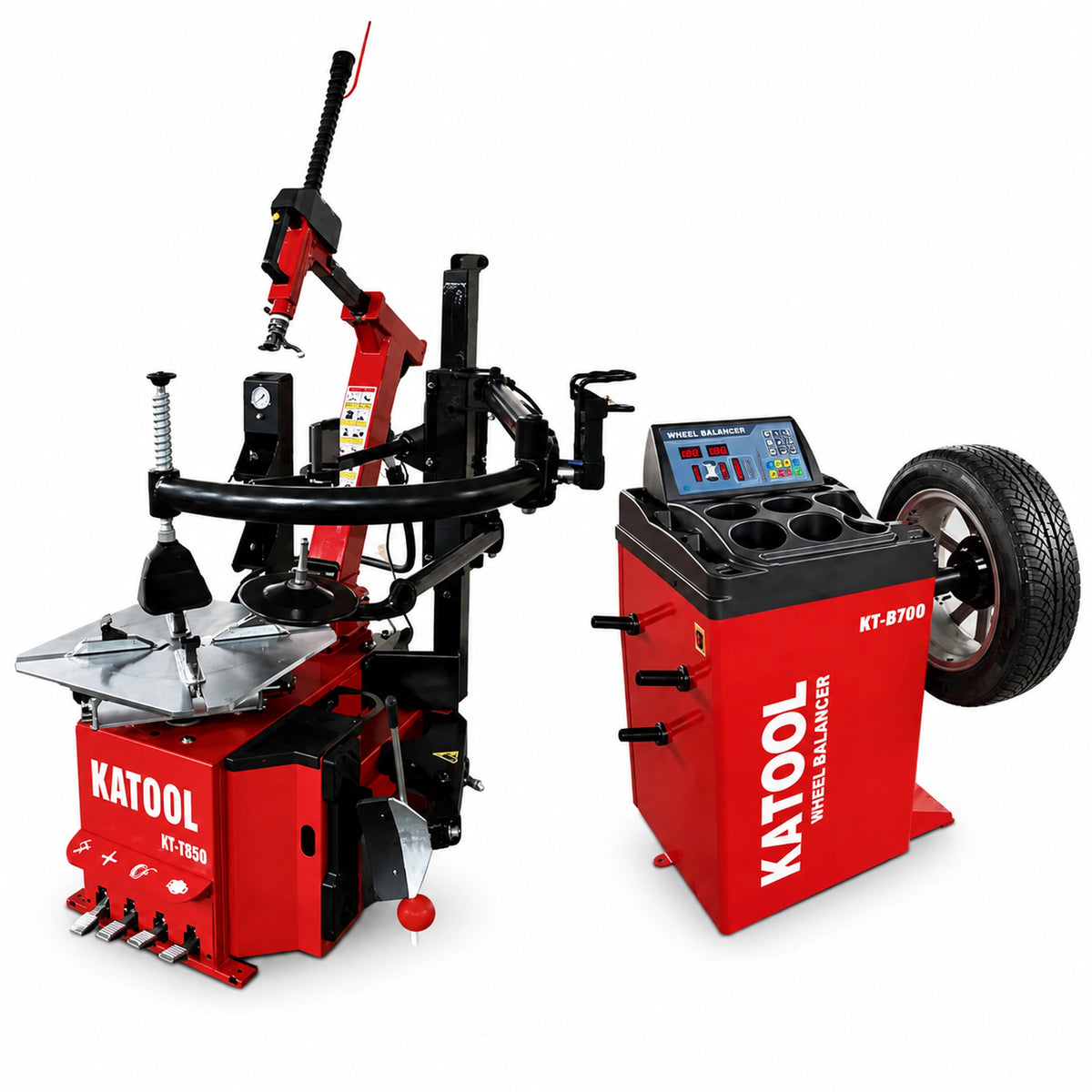

The Katool KT-T850 and KT-B700 tire changer and balancer combo pairs a tilt arm tire changer with a computer wheel balancer for complete tire service operations, handling passenger vehicles and light trucks with single phase North American power and a 47 inch maximum wheel diameter capacity.
Key Features & Benefits
Large Wheel Capacity Advantage

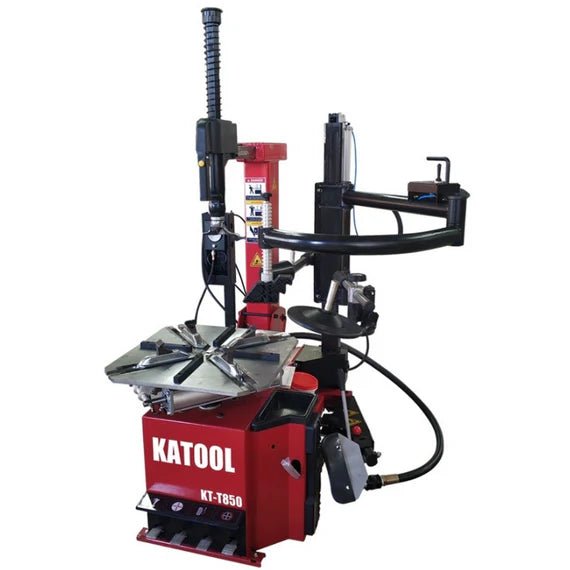

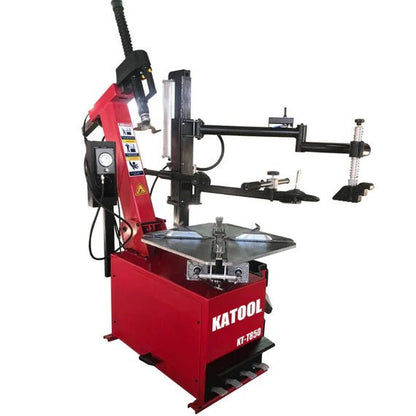

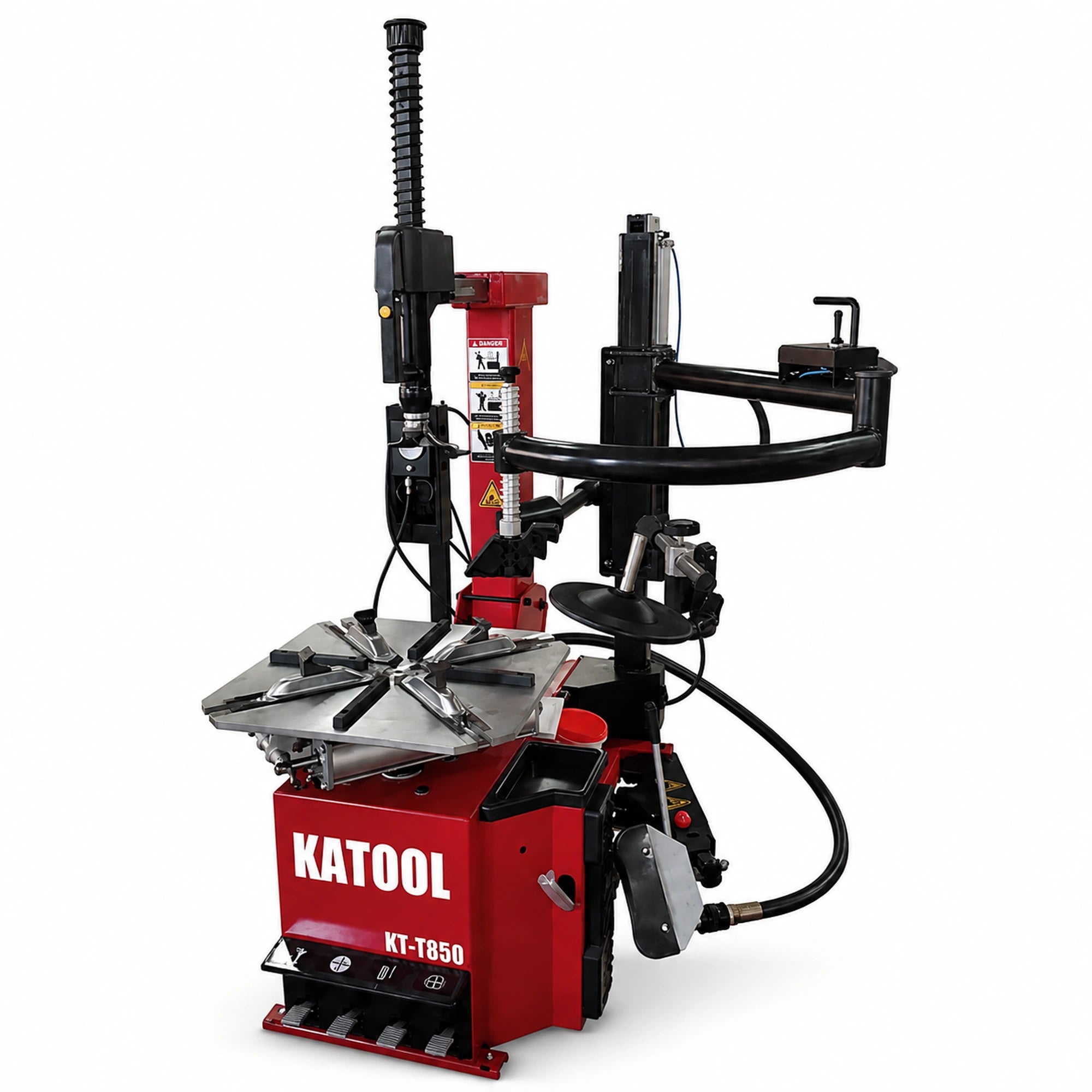

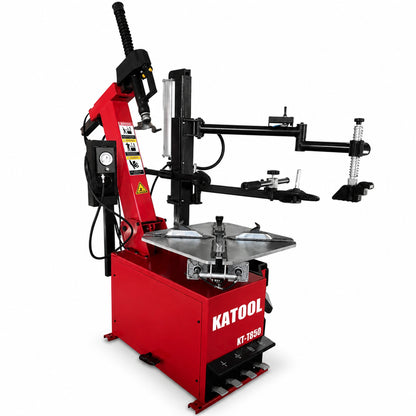

The KT-T850 tire changer handles wheels up to 47 inches (1,200mm) in diameter and 15 inches (380mm) wide, giving your shop capacity for oversized truck, SUV, and performance wheels that exceed typical mid market equipment limits.
Many mid market tire changers top out around 26 to 30 inches, so the KT-T850's extended capacity helps you capture growing demand for larger truck and SUV wheel packages without turning work away.
By keeping large wheel work in house, this tire changer and balancer combo reduces outsourcing, limits the need for extra machines, and helps maximize shop floor efficiency.
High-Speed Precision Balancing

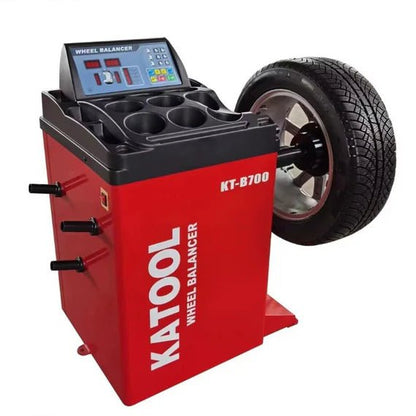

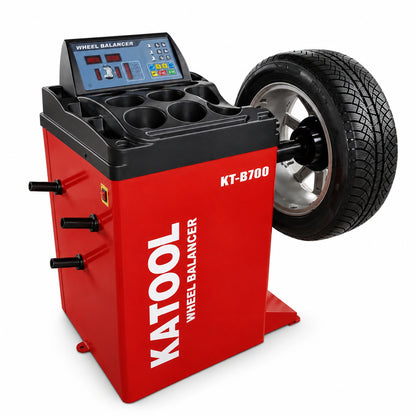

The KT-B700 wheel balancer delivers ±1g accuracy with a 7 second measuring time at 180rpm, giving you faster cycles than many mid market balancers that need 8 to 9 seconds for similar precision.
The KT-B700's computer controlled system is engineered to maintain both speed and accuracy in a single measurement cycle, helping reduce customer wait times at the balancer.
Faster, accurate balancing improves shop throughput so technicians can complete more tire jobs per day while still delivering smooth on road performance.
Advanced Material Construction
The KT-T850 uses carburization treated alloy steel jaws with 0.8 to 1.1mm depth treatment and full quenching to deliver longer service life than standard steel jaws on typical tire changers.
The hardened surface layer resists wear from repeated clamping and mounting while the flexible core helps prevent cracking, reducing the jaw replacement frequency that drives up operating costs.
Consistent clamping performance over thousands of tire changes helps cut maintenance spend and reduces downtime for jaw replacement.
Single-Phase Power Compatibility
Both units run on 110V/120V single phase power, with a 2 HP / 1.5kW motor on the KT-T850 and a 0.25kW motor on the KT-B700, so the combo plugs into standard North American service.
Where many higher capacity machines require three phase service, this single phase tire machine and wheel balancer combo is a practical fit for smaller shops with standard electrical panels.
Avoiding three phase upgrades helps control install costs and lets you get the combo up and running quickly on existing outlets.
Comprehensive Safety Integration
The system includes a stainless steel mounting head with plastic protector, integrated assist arms, bead blast seater, and a KT-B700 control board with moisture, dust, and anti static protection plus built in fault diagnosis and self calibration.
These integrated protections help reduce rim damage risk during service and protect sensitive electronics from common shop hazards.
By preventing common service issues, the combo helps limit rim damage liability, cuts unplanned downtime, and keeps your tire bay running efficiently.
Product Demonstration
Applications & Use Cases
- Professional Automotive Repair Shops: Complete tire service with a tire changer and balancer combo for passenger vehicles and light trucks, including mounting, balancing, and seasonal tire changes
- Tire Retailers: Full service tire installation and balancing with a tire machine and wheel balancer combo that handles standard and oversized wheels for customer vehicles
- Fleet Maintenance Facilities: Comprehensive tire service for commercial vehicle fleets requiring reliable equipment with consistent performance and minimal downtime
- Advanced Home Garage Enthusiasts: Commercial-grade tire service capabilities for specialty vehicles, performance cars, and truck applications requiring professional equipment standards
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Wheel Diameter | 47 inches (1,200 mm) |
| Maximum Wheel Width | 15 inches (380 mm) |
| Outside Clamp Range | 14" - 26" |
| Inside Clamp Range | 16" - 28" |
| Motor Power | 2 HP / 1.5kW |
| Power Supply | 110V Single-Phase |
| Rotation Speed | 6.8 rpm |
| Weight | 750 lb |
| Air Pressure Requirement | 0.8-1.0 MPa (116-145 psi) |
| Specification | Value |
|---|---|
| Maximum Wheel Weight | 143 lb (65 kg) |
| Maximum Rim Diameter | 30 inches |
| Wheel Width Range | 3" - 12" |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
| Balancing Speed | 180 rpm |
| Motor Power | 0.25kW |
| Power Supply | 110-120V Single-Phase |
| Rim Center Hole | Up to 135mm |
Product Documentation
Instruction Manuals
Download complete installation, operation, and maintenance instructions for your equipment:
- KT-T850 Tire Changer Manual: Download PDF
- KT-B700 Wheel Balancer Manual: Download PDF
Manuals include detailed specifications, setup procedures, operational guidelines, maintenance schedules, and troubleshooting information.
Installation Requirements
Power Requirements
- KT-T850 Tire Changer: 110V single-phase electrical service
- KT-B700 Wheel Balancer: 120V single-phase electrical service
- Installation: Standard North American electrical outlets, no three-phase service required
Air Supply
- Compressed Air Pressure: 0.8-1.0 MPa (116-145 psi)
- Application: Required for tire changer operation (bead seating, bead breaking, clamping functions)
- Source: Shop air compressor with adequate capacity for sustained operation
Foundation & Space
- Floor Surface: Solid concrete floor recommended for stable operation
- Clearance: Adequate overhead and surrounding space for wheel handling operations
- Access: Sufficient space for tire mounting and demounting procedures around equipment
Shipping & Delivery
Freight Coverage
Shipping: Free freight shipping to commercial addresses within lower 48 United States. Surcharges apply for residential delivery addresses.
Delivery Timeframe: Lead time 1-3 business days, shipping time 3-6 business days typical from order placement.
Delivery Requirements
Unloading Equipment: Forklift access recommended for safe unloading from delivery truck. Customer responsibility for equipment removal from truck.
Delivery Type: Freight delivery to loading dock or curbside location. Inside delivery not included.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Parts Warranty Program
12 Months - KT-T850 Tire Changer: Parts replacement coverage for tire changer components
15 Months - KT-B700 Wheel Balancer: Extended parts coverage for balancer components
Coverage Includes: Parts replacement with free shipping, labor excluded from warranty terms
Extended Warranty Options
Extended Coverage: 2-year warranty plans available through authorized dealers
Terms: Extended warranty provides additional coverage beyond standard manufacturer warranty period
Ready to Upgrade Your Shop?
Get expert guidance on the right tire service equipment for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and installation requirements for your specific application.
Frequently Asked Questions
What is the maximum wheel size the KT-T850 can handle?
The KT-T850 tire changer accommodates wheels up to 47 inches (1,200mm) in diameter with a maximum width of 15 inches (380mm). This capacity exceeds typical mid-market tire changers limited to 26-30 inches, enabling service of oversized truck and performance vehicle wheels. The outside clamp range is 14"-26" while inside clamp range is 16"-28" for comprehensive wheel size compatibility.
What components are included with the tire changer and wheel balancer combo?
The KT-T850 includes assist arms, bead blast seater, 200mm aluminum bead breaker cylinder, integrated air filter/lubricator, plastic jaw covers, and stainless steel mounting head with plastic protector for rim damage prevention. The KT-B700 includes computer control board with fault diagnosis and self-calibration system, 3mm steel body construction, and 8mm sensor support plates for precise measurements.
What are the electrical requirements for installation?
The KT-T850 tire changer requires 110V single-phase power with a 2 HP motor, while the KT-B700 wheel balancer requires 120V single-phase power with a 0.25kW motor. Both units operate on standard North American electrical service without requiring three-phase power installation, eliminating electrical upgrade costs and installation complexity for most shop installations.
What compressed air pressure is required for the tire changer?
The KT-T850 tire changer requires compressed air pressure between 0.8-1.0 MPa (116-145 psi) for proper operation of all pneumatic functions including bead seating, bead breaking, and clamping operations. This pressure requirement is typical for professional tire service equipment and should be maintained consistently by your shop's air compressor system to ensure reliable operation.
How accurate is the KT-B700 wheel balancer?
The KT-B700 provides +/- 1 g balancing accuracy with a 7 second measuring time at 180rpm, outperforming many mid market balancers that require 8 to 9 seconds for similar precision. It handles wheels up to 143 lb (65 kg) with rim diameters up to 30 inches, covering most passenger vehicle and light truck applications.
What vehicles can this equipment service?
This tire changer and balancer combo is designed for passenger vehicles and light trucks in professional shops, tire retailers, fleet maintenance facilities, and advanced home garages. The 47 inch wheel capacity handles oversized truck and performance applications that standard tire service equipment may not cover.
What warranty coverage is provided?
The KT-T850 tire changer includes 12-month parts warranty while the KT-B700 wheel balancer includes 15-month parts warranty, both covering parts replacement with free shipping. Extended 2-year warranty plans are available through authorized dealers for additional coverage beyond the standard manufacturer warranty period. Labor costs are excluded from all warranty coverage programs.
How is the equipment shipped and what are delivery requirements?
Free freight shipping to commercial addresses in lower 48 US with surcharges for residential addresses. Lead time is 1-3 business days with shipping time of 3-6 days typical. Forklift access is recommended for safe unloading from delivery truck, as customer is responsible for equipment removal. Inspect all packages before signing bill of lading and note any visible damage.
