Katool KT-T835 – Tire Changer (Wheel Clamp, Assist Arms)
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

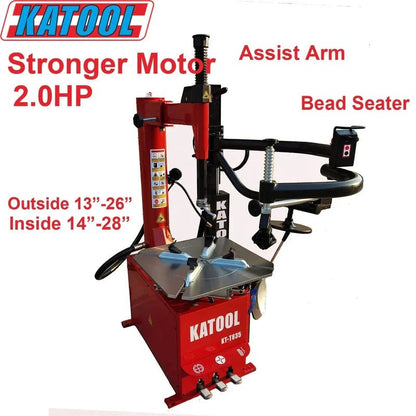

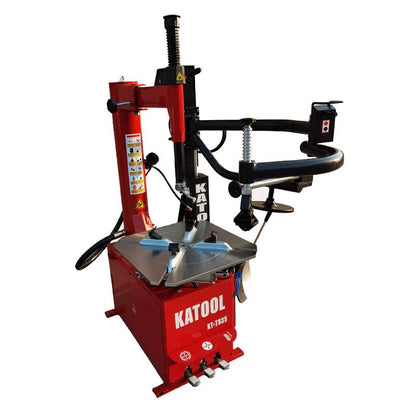

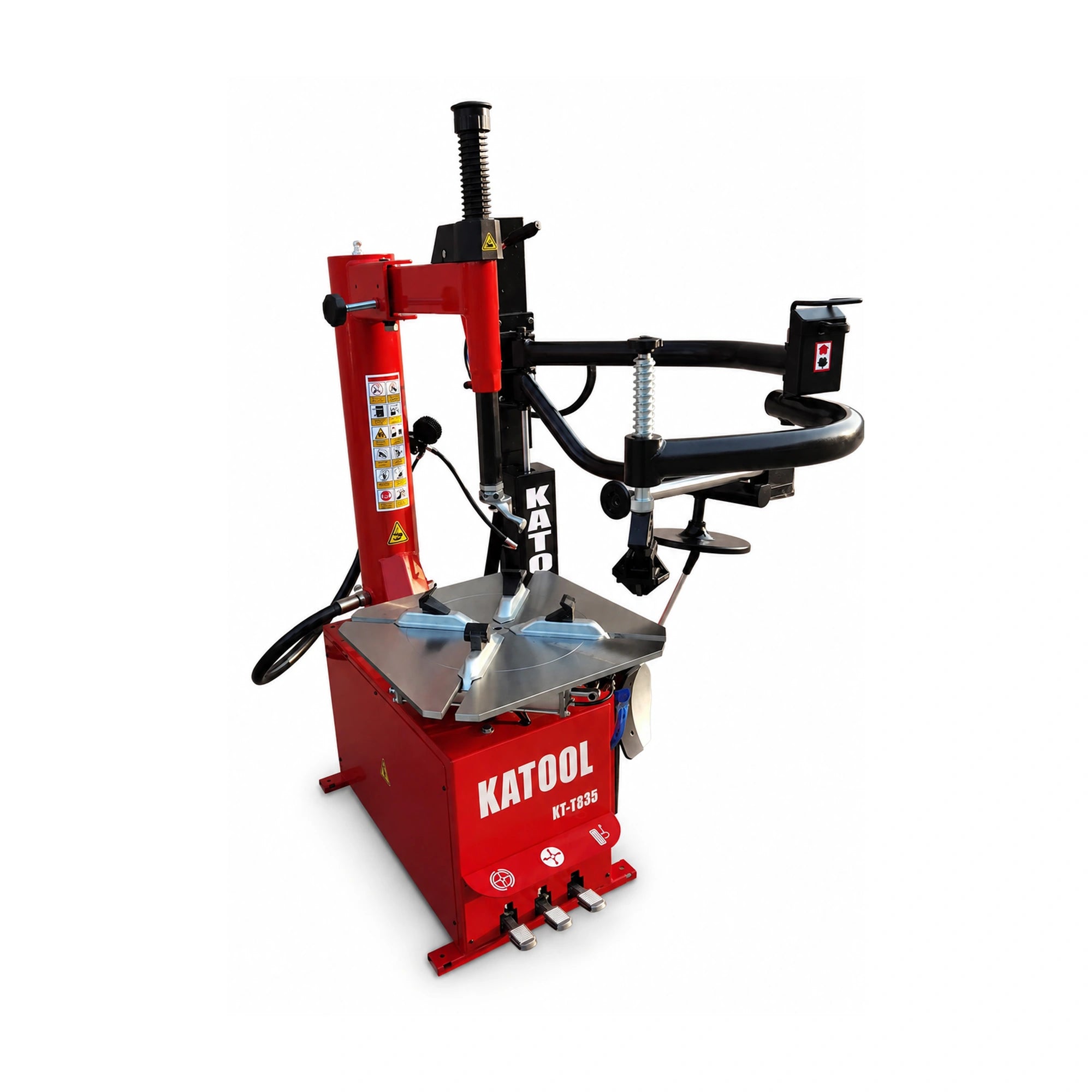

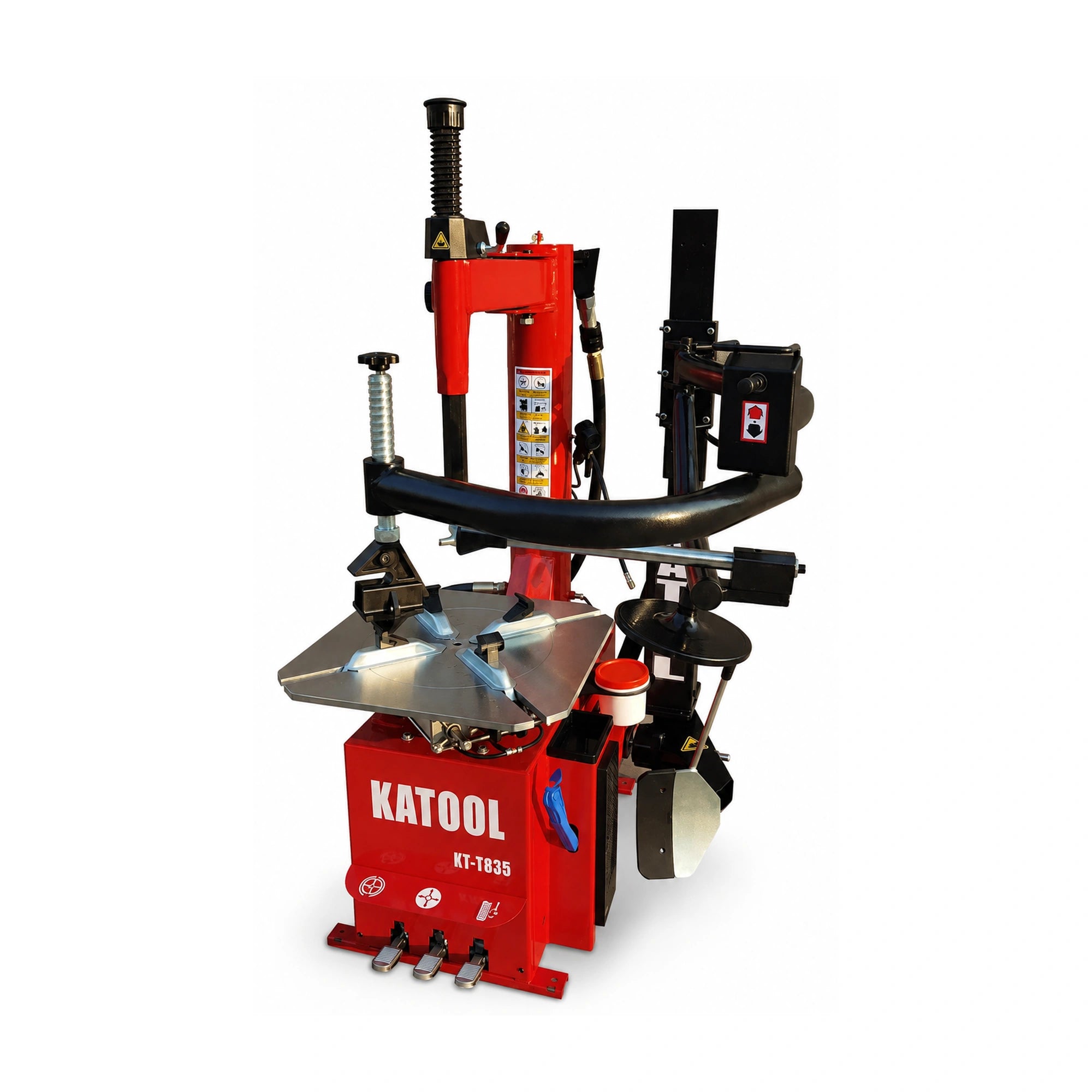

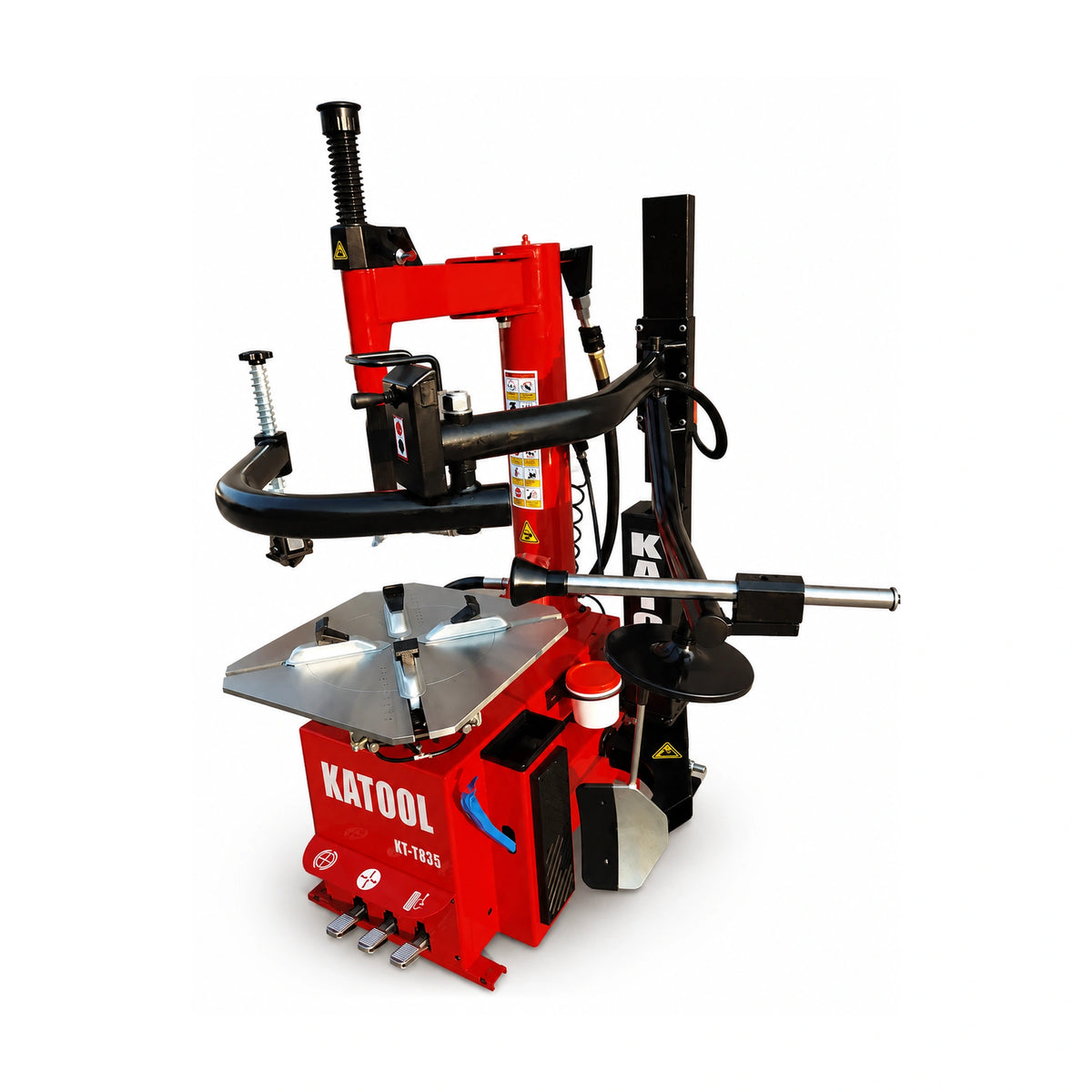

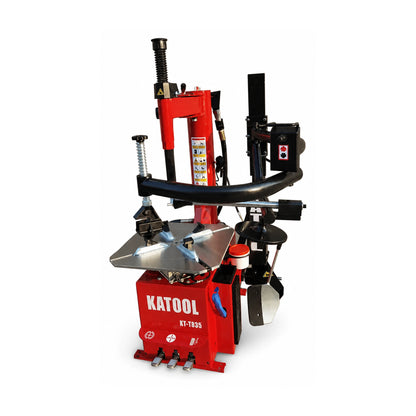

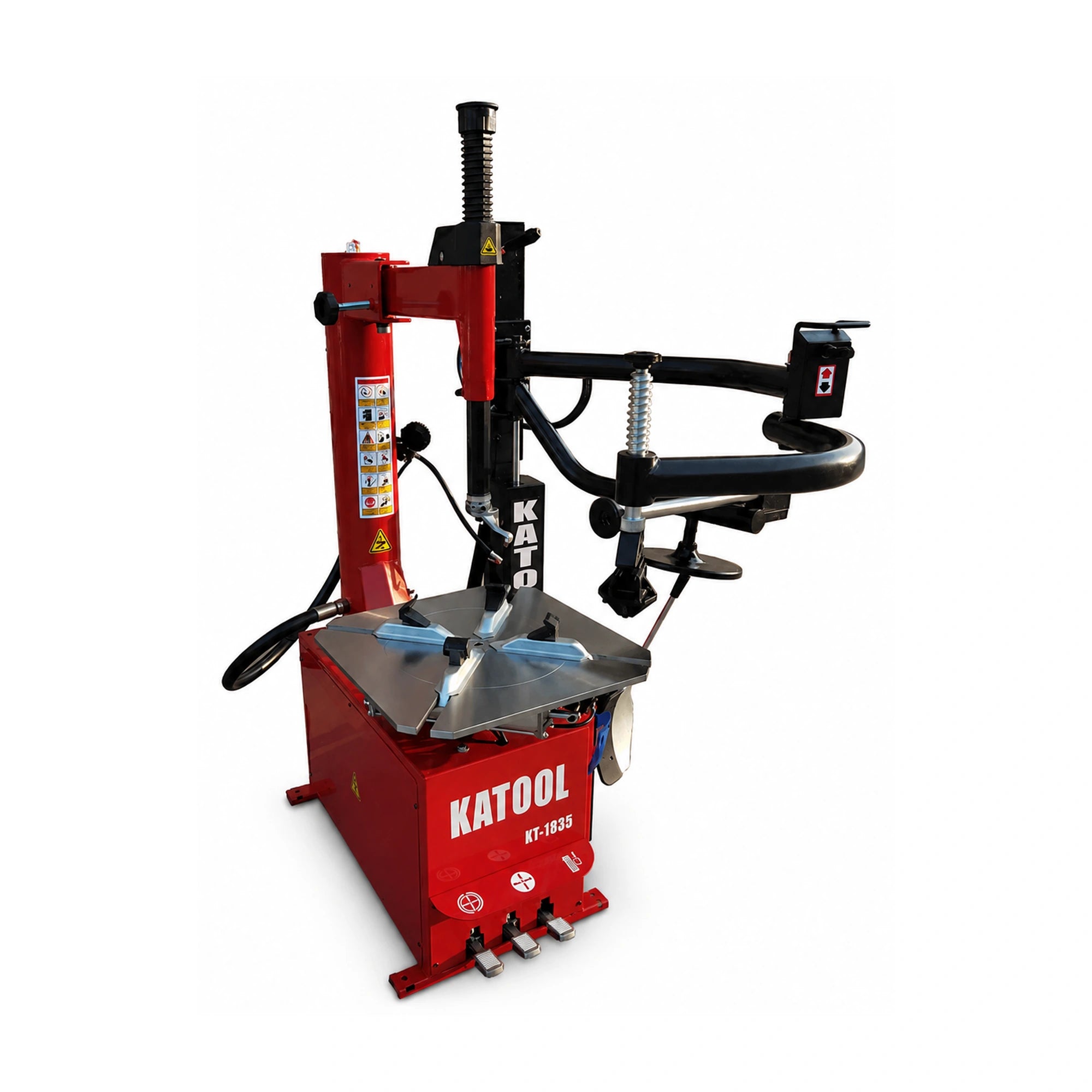

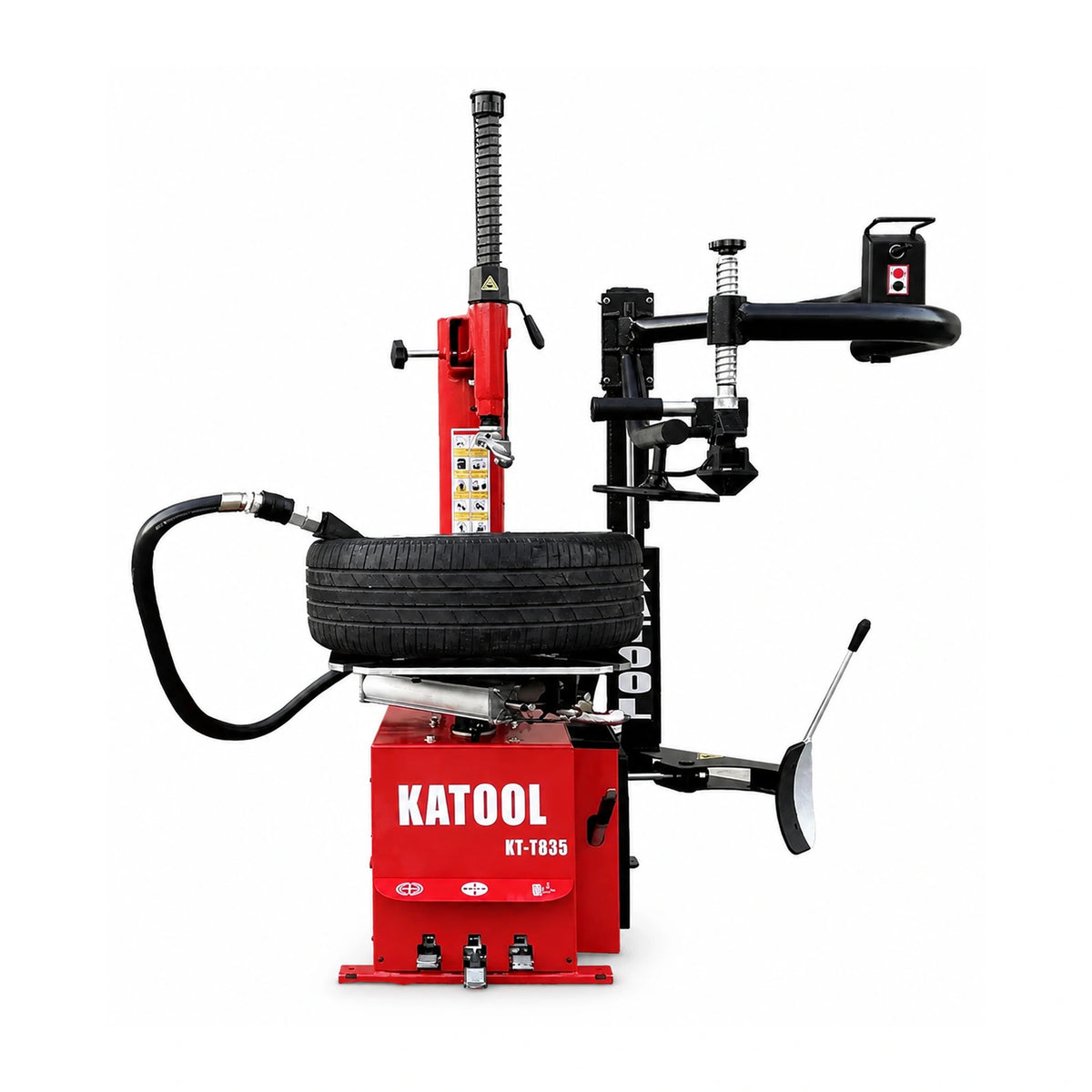

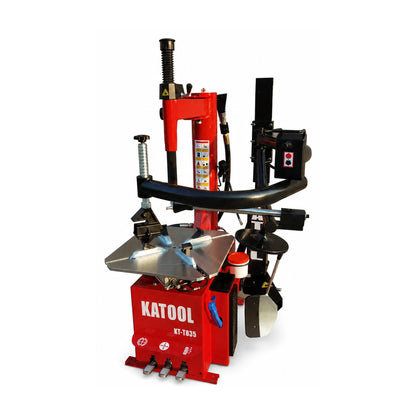

Katool KT-T835 Wheel Clamp Tire Changer Machine - 2.0 HP, 110V

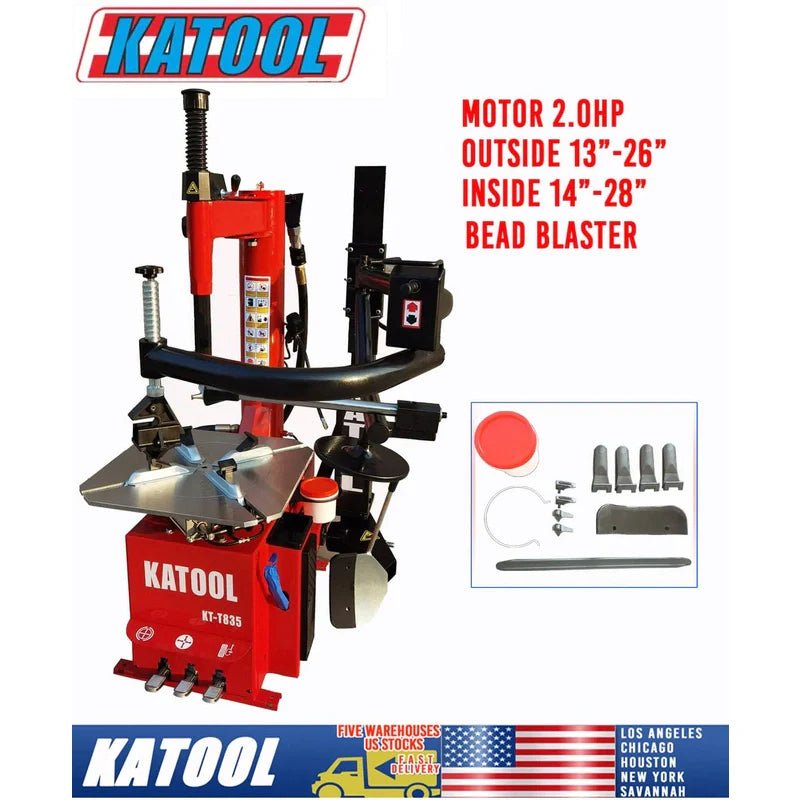

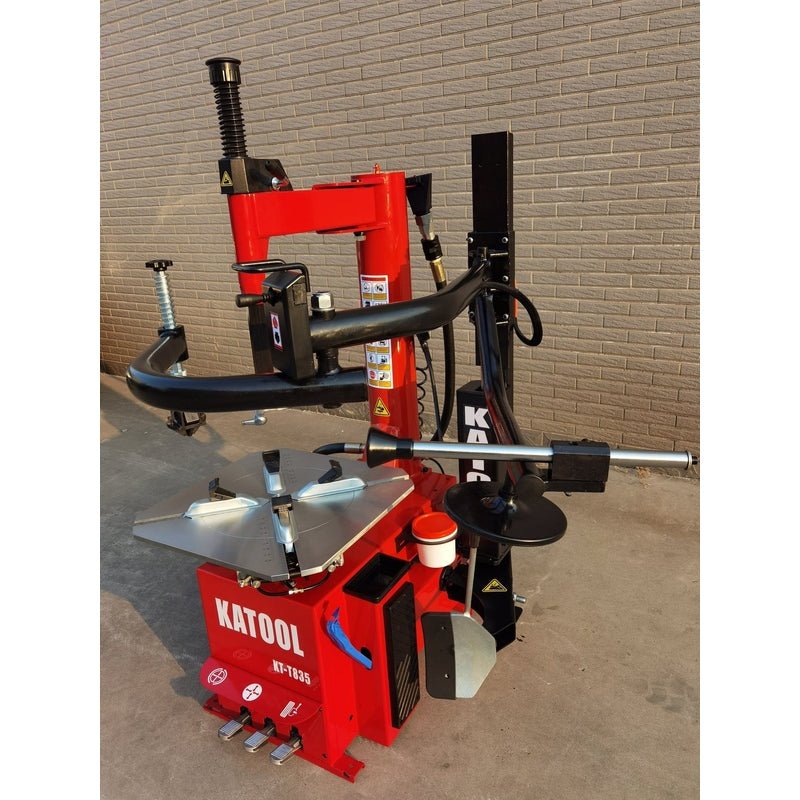

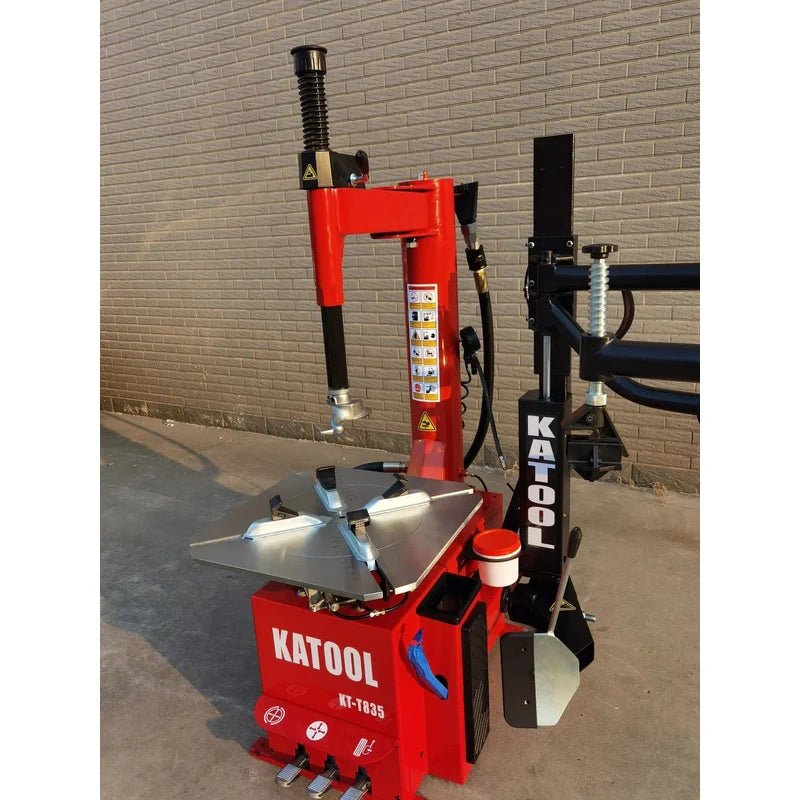

The Katool KT-T835 is a professional-grade tire changer designed for commercial shops and well-equipped home facilities. This unit combines a high-torque 2.0 HP, 110V motor with a pneumatic wheel-clamp system, bead-breaker, and double assist-arm configuration. It efficiently mounts and demounts tires on passenger cars, SUVs, and light trucks up to 41 inches in diameter and 15 inches in width.
Key Features & Benefits

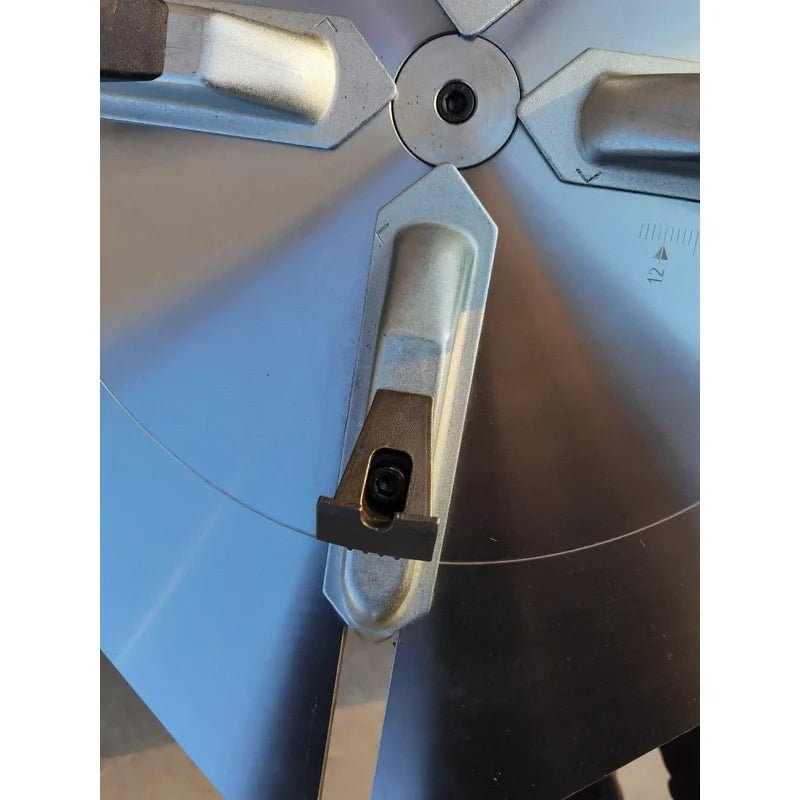

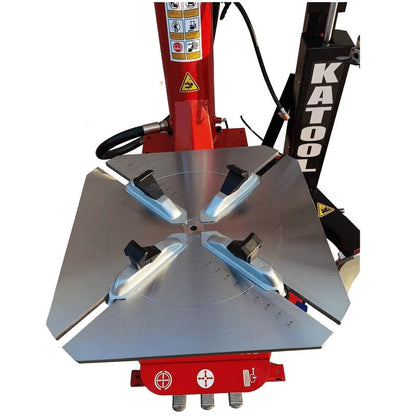

Carburized Alloy-Steel Jaws with Rim Protection

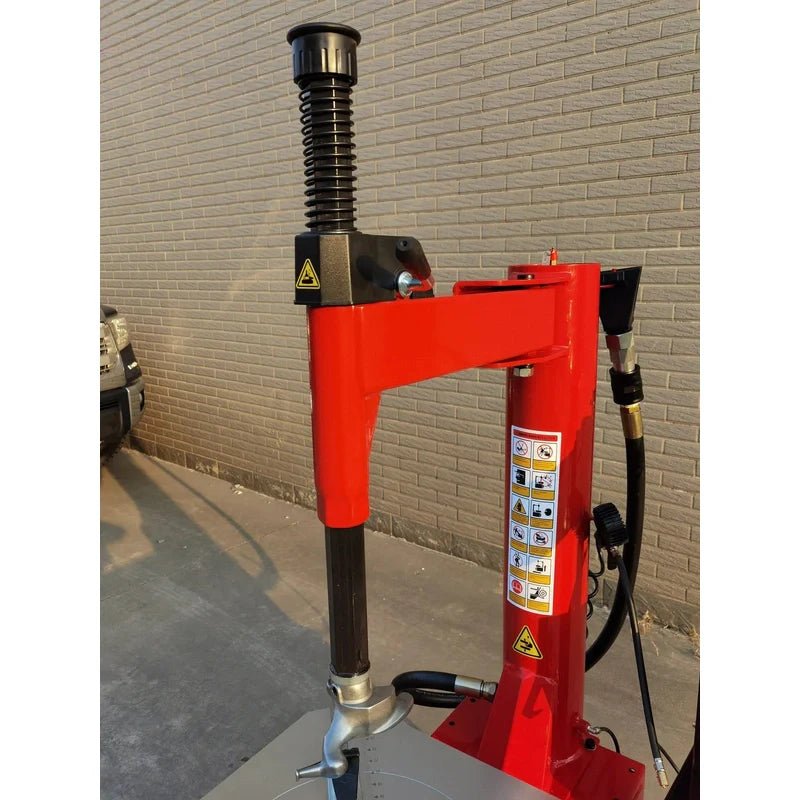

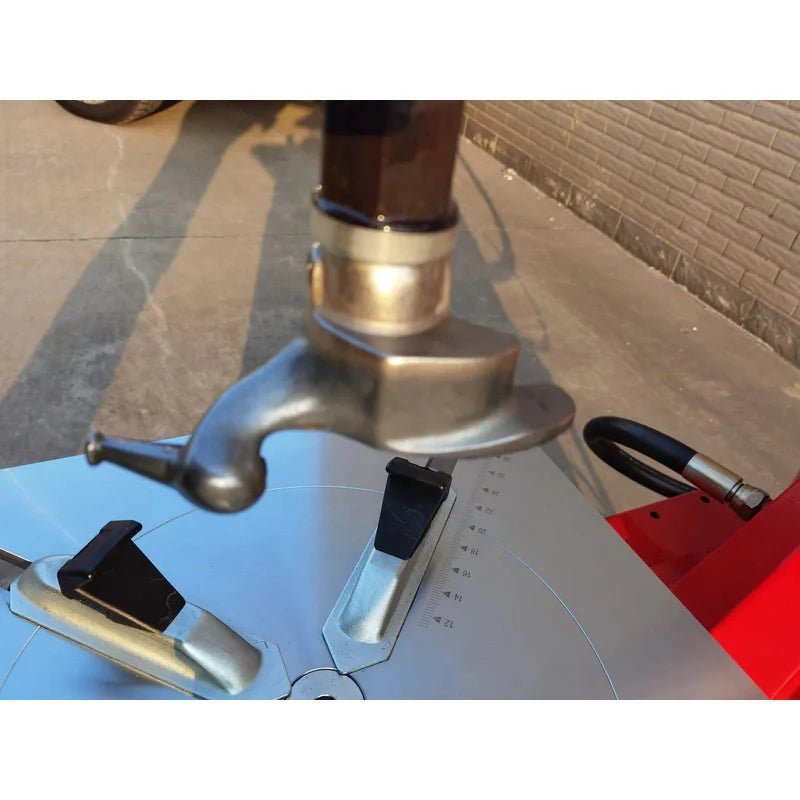

The KT-T835 jaws feature 0.8-1.1 mm carburization depth with full quenching treatment. This creates a combination of interior toughness and exterior hardness that resists jaw deformation under sustained clamping pressure. Replaceable plastic jaw covers and a stainless-steel mounting head with a polished interface further shield painted and polished alloy finishes from cosmetic damage.

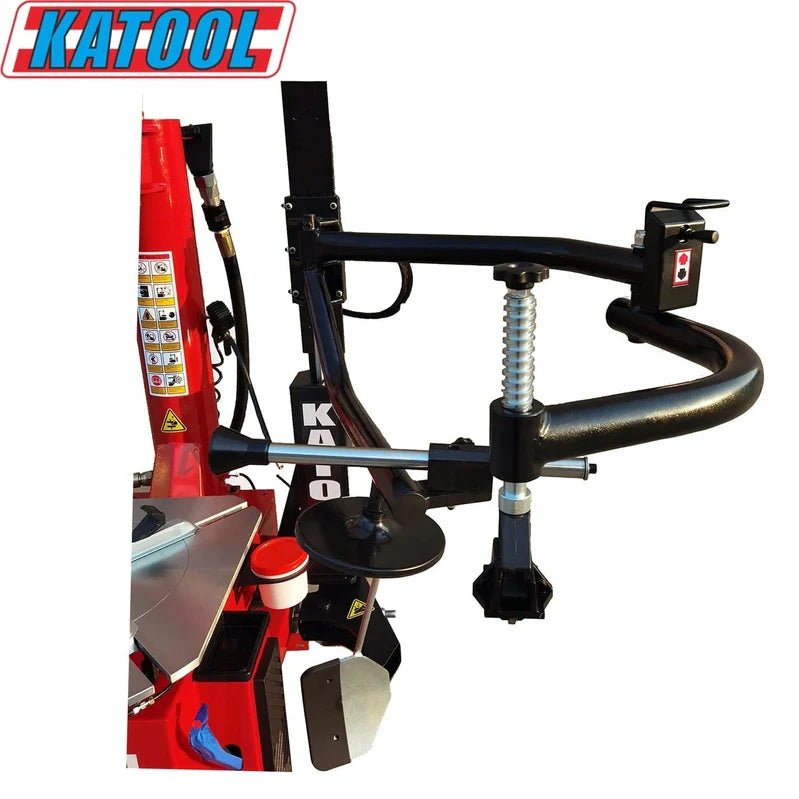

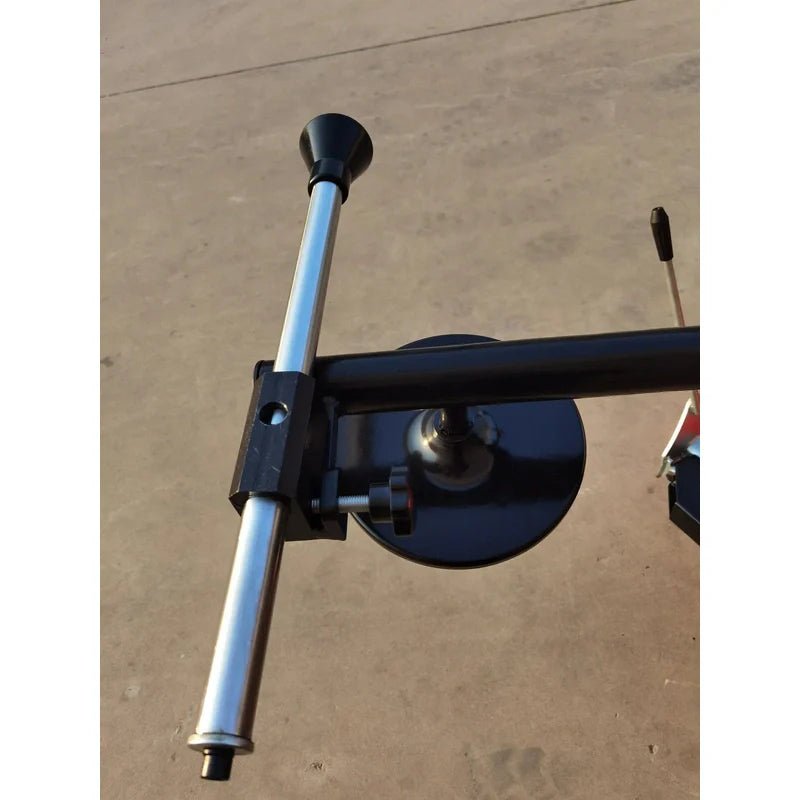

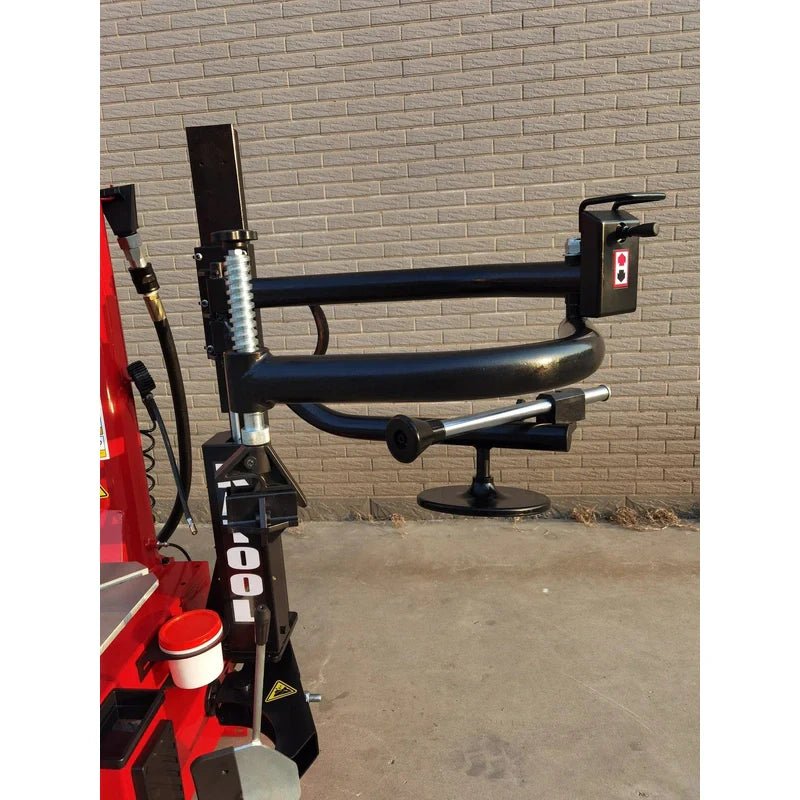

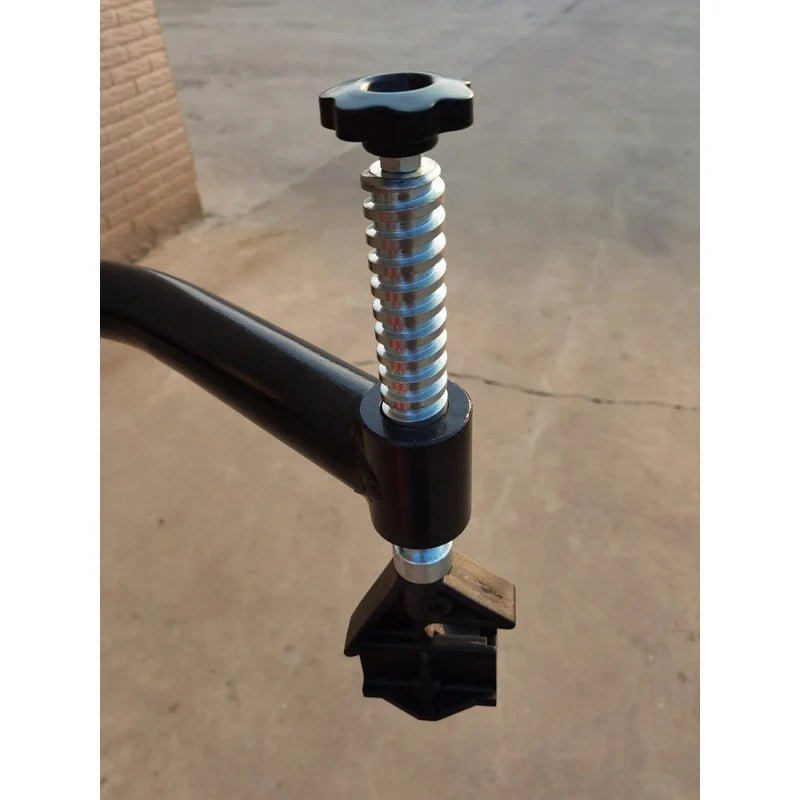

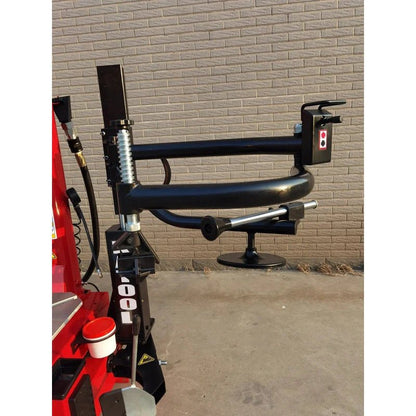

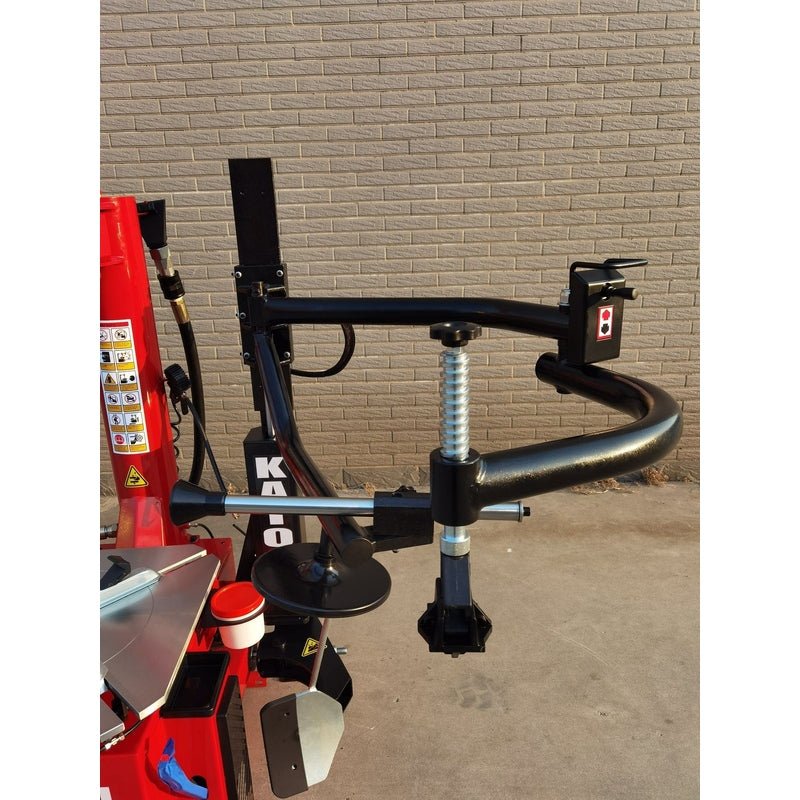

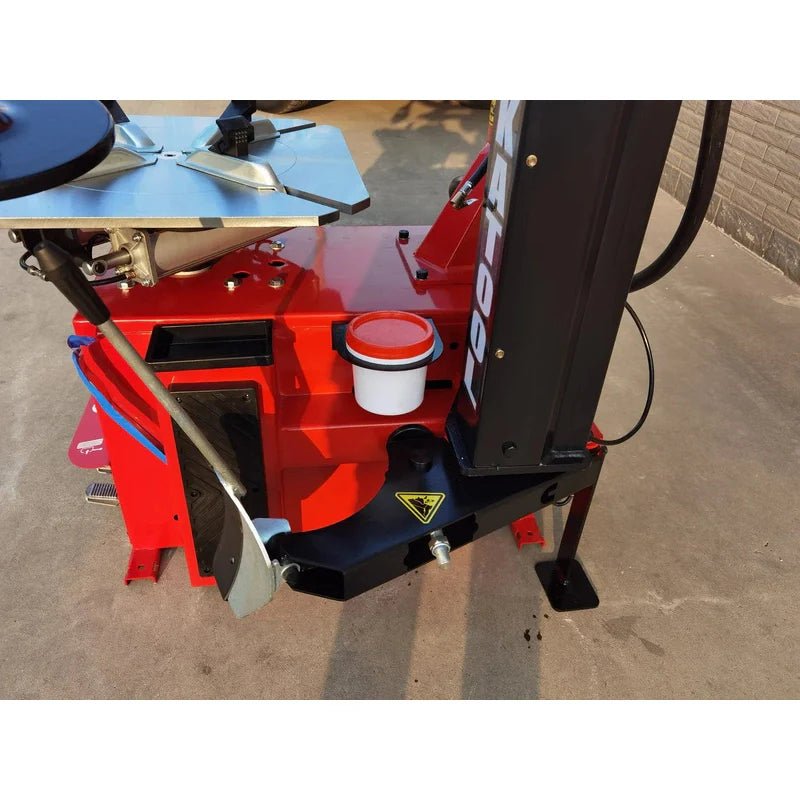

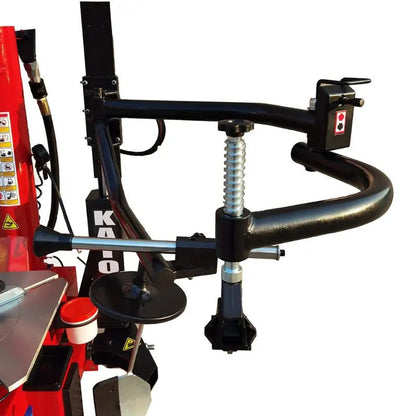

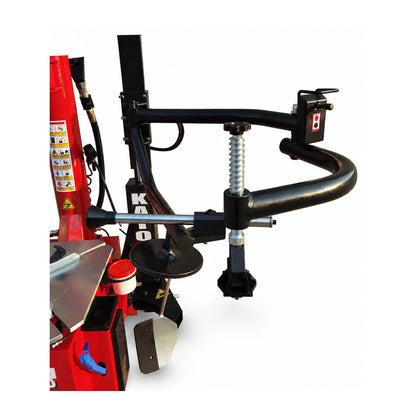

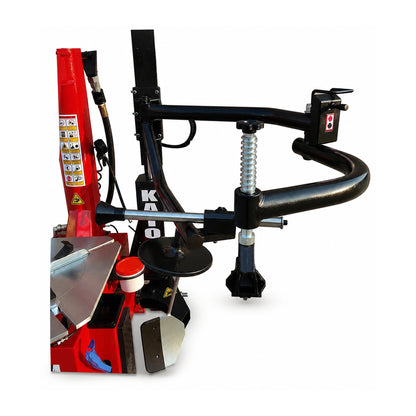

Double Side Assist Arms with Bead-Blast Seater System
The tire mounter includes double side assist arms plus a bead-blast seater with post air tank, enabling controlled bead manipulation. The φ186 mm stainless bead-breaker cylinder delivers consistent force for low-profile, run-flat, and stiff sidewall tires. This pneumatic system automates the most labor-intensive parts of tire service, allowing for faster cycle times and reduced technician fatigue.
2.0 HP Single-Phase 110V Motor
The KT-T835 delivers 2.0 HP (1.5 kW) from a standard 110V single-phase, 60 Hz power supply. This provides rotational torque typically found in commercial machines without requiring expensive 220V or three-phase electrical upgrades. The turntable rotation speed is optimized at approximately 6.1 revolutions per minute for controlled mounting.
Closed-Cabinet Design with Integrated Air Filtration
The machine features a fully enclosed body with an integrated pneumatic lubricator and filter unit. This shields internal mechanical components, hydraulic lines, and air distribution passages from airborne dust, grinding debris, and shop contaminants. The stainless-steel internal components are highly resistant to corrosion from moisture and salt exposure.

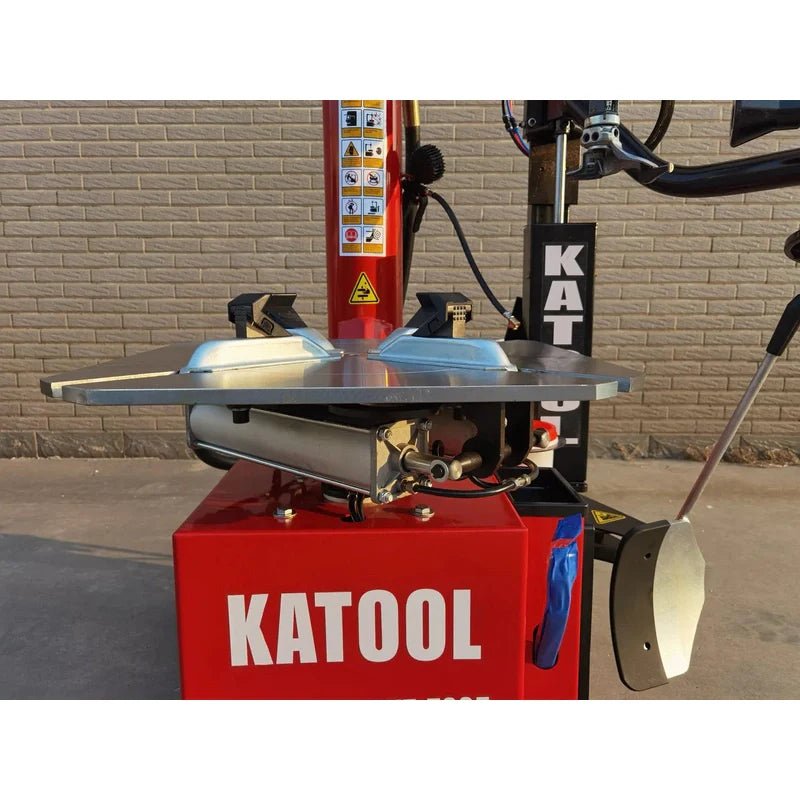

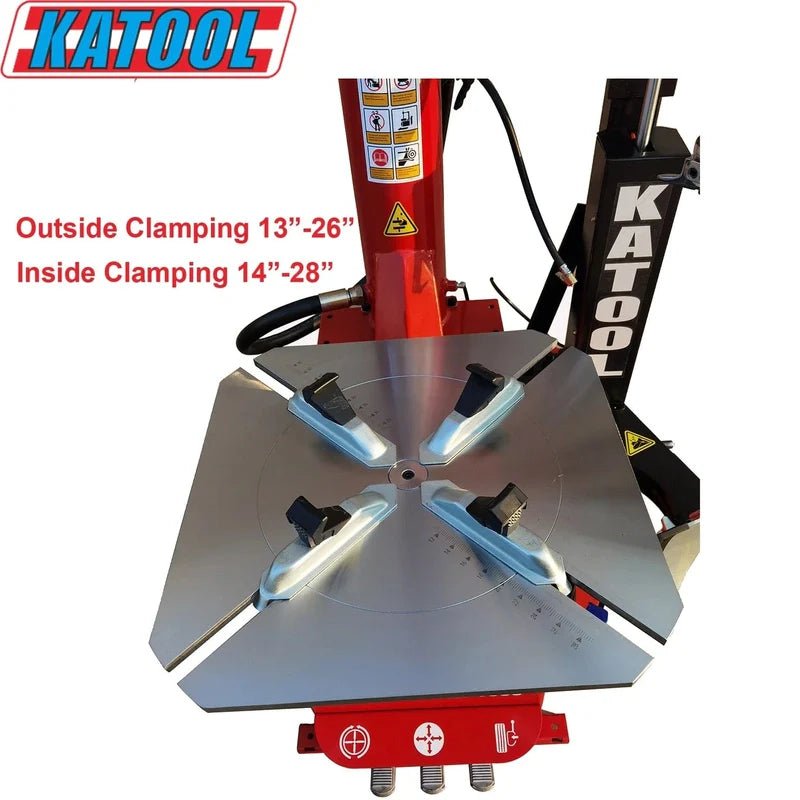

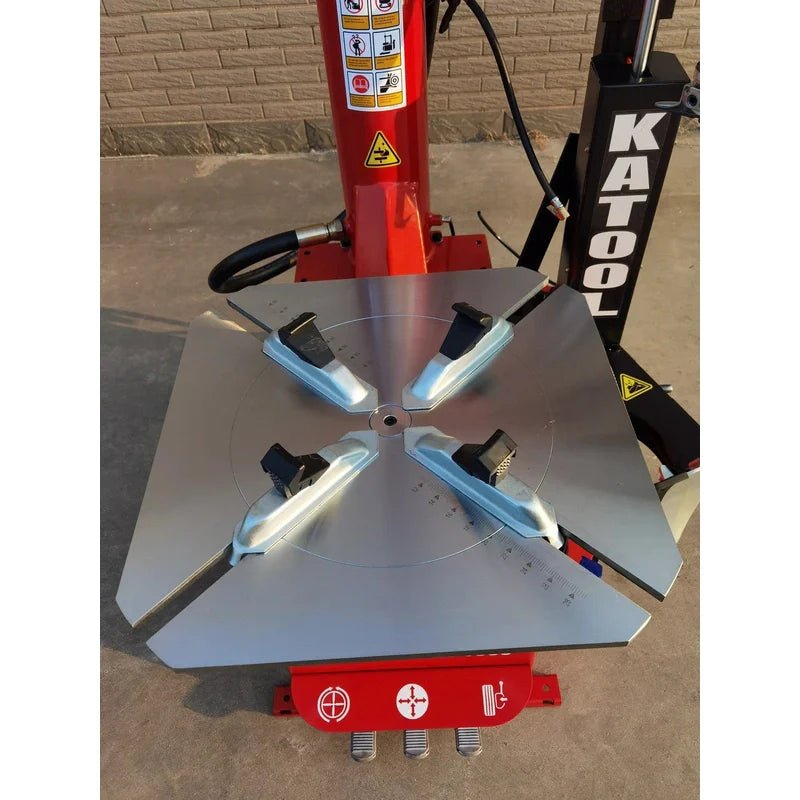

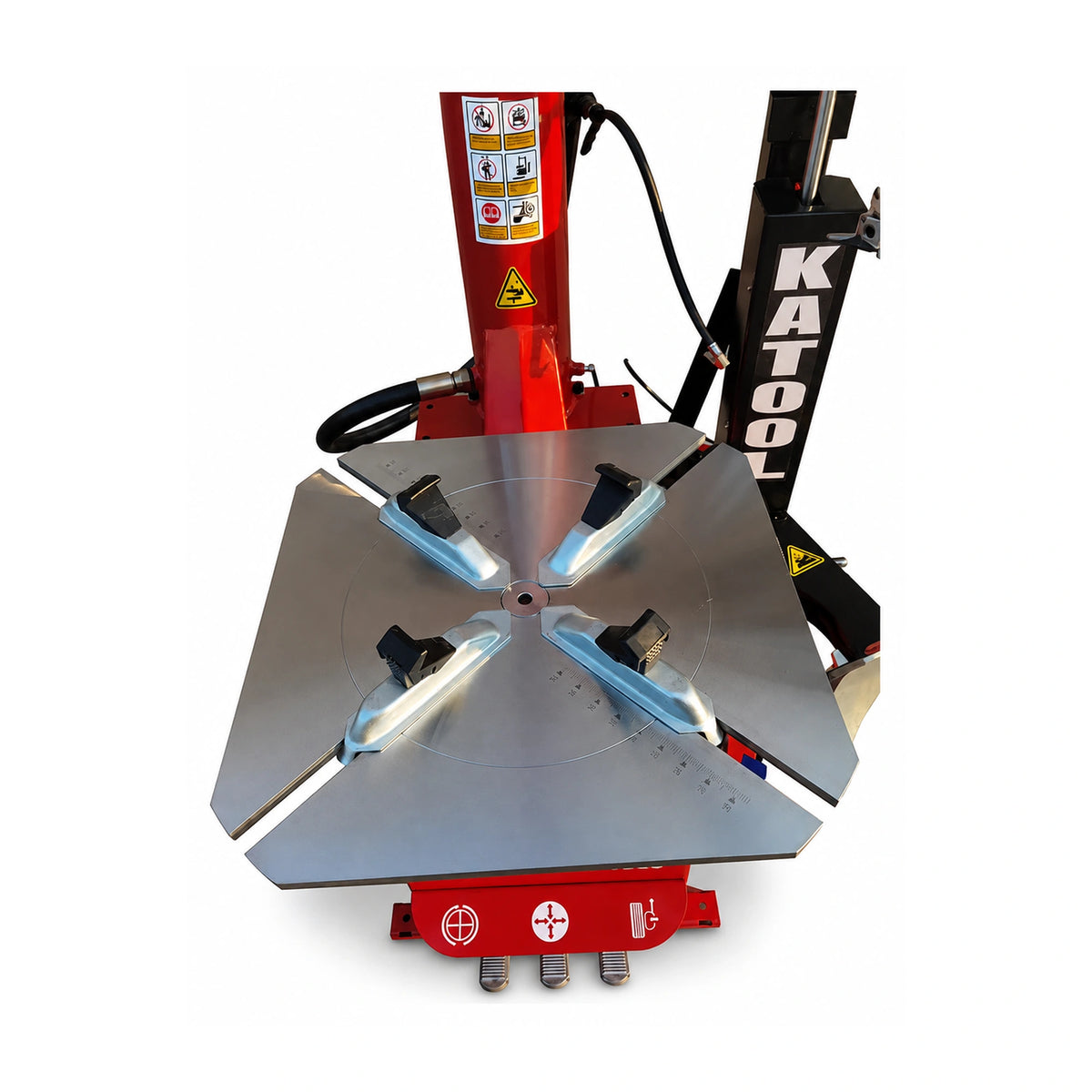

13-inch to 26-inch Outside Clamp Range
The outside clamp range spans 13 inches to 26 inches, while the inside clamp spans 14 inches to 28 inches. This geometry provides coverage across passenger car, SUV, and light-truck wheel sizing from compact vehicles to full-size pickup trucks. The unit accommodates a maximum wheel diameter of 41 inches and width of 15 inches without requiring additional adapters.

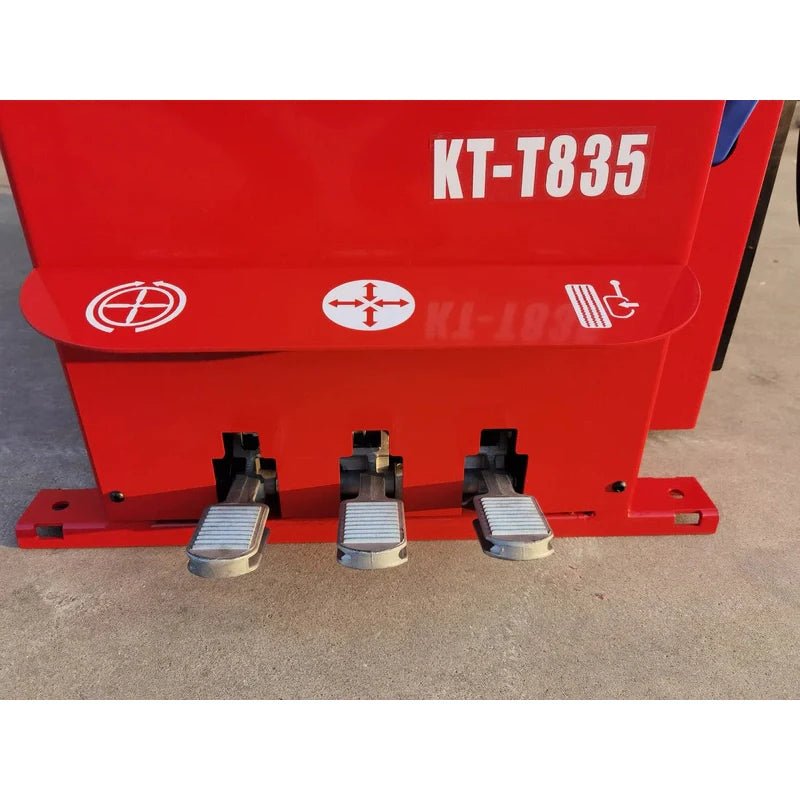

Pull-Type Pedal Control System
Operation relies on a pull-type pedal control system governing turntable rotation, wheel clamping, bead breaking, and inflation via a pedal-controlled gauge. All controls are foot-actuated, leaving both operator hands free for wheel positioning, tool handling, and quality monitoring during the service cycle.
Product Demonstration
Applications & Use Cases
- Commercial Tire Shops: High-volume facilities handling passenger cars, SUVs, and light trucks.
- General Repair Garages: Multi-service facilities offering in-house tire mounting and repairs.
- Fleet Maintenance: Commercial fleets and rental agencies servicing company vehicles.
- DIY & Home Garages: Enthusiasts requiring professional-grade equipment on standard 110V power.
- Specialty Shops: Operations handling low-profile, run-flat, and custom alloy wheels.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Wheel Diameter | 41 inches (1,040 mm) |
| Maximum Wheel Width | 15 inches (380 mm) |
| Outside Clamp Range | 13 inches to 26 inches |
| Inside Clamp Range | 14 inches to 28 inches |
| Specification | Value |
|---|---|
| Motor Power | 2.0 HP (1.5 kW) |
| Power Supply | 110V, single-phase, 60 Hz |
| Turntable Rotation Speed | 6.1 revolutions per minute |
| Net Weight | 582 lb (264 kg) |
| Specification | Value |
|---|---|
| Operating Air Pressure | 0.8-1.0 MPa (116-145 psi) |
| Bead-Breaker Cylinder Diameter | φ186 mm stainless steel |
| Air Supply Requirement | Compressed-air source capable of 0.8-1.0 MPa delivery |
| Component | Specification |
|---|---|
| Jaw Material | Alloy steel with 0.8-1.1 mm carburization depth, fully quenched |
| Jaw Covers | Replaceable plastic protective covers for rim protection |
| Mounting Head | Stainless steel with polished interface and plastic protective cover |
| Cabinet | Closed-body design with integrated pneumatic lubricator and filter unit |
| Control System | Pull-type pedal controls (rotation, clamping, bead breaking, inflation) |
Installation Requirements
Electrical Power
- Voltage: 110V, single-phase, 60 Hz (standard North American mains).
- Motor Rating: 2.0 HP (1.5 kW).
- Circuit: Properly grounded circuit required; verify local electrical code compliance.
Compressed Air Supply
- Operating Pressure: 0.8-1.0 MPa (116-145 psi) minimum maintained pressure.
- Supply Source: Dedicated compressor or shop air system capable of continuous delivery.
- Air Consumption: Consult the manual for exact CFM requirements to size compressor appropriately.
Foundation & Floor Requirements
- Surface: Level, solid concrete floor required for stability.
- Mounting: Machine must be bolted/anchored to prevent movement.
- Weight: 582 lb (264 kg) - ensure floor can support this load plus dynamic forces.
Shipping & Delivery
Freight Delivery
Shipping: Ships via LTL freight in the contiguous United States. Crated and palletized for protection.
Delivery Requirements & Unloading
Receiving Equipment: Forklift or pallet jack (min 600 lb capacity) required for unloading. Buyers without a dock should confirm liftgate service availability.
Receiving Responsibility: Buyer is responsible for unloading. Inspect all packages for visible damage before signing the bill of lading.
Damage Reporting & Claims
Within 15 Days: 100% coverage for replacement parts and freight for damage discovered within 15 days.
Within 30 Days: 50% shared responsibility for damage claims.
Warranty Coverage
Limited Parts Warranty
12 Months - Parts & Defects: Katool provides a limited one-year warranty on all parts covering defects in materials and workmanship, including cylinders, power units, motors, electronics, and pneumatic components. An optional 2-year extended warranty is available at checkout.
Warranty Requirements
Eligibility: Valid for the original purchaser only. Requires proof of purchase.
Claim Process: Warranty claims are subject to approval. Replacement parts are provided at no cost, including shipping.
Documentation & Resources
Related Equipment: Katool Tire Changers · Katool Wheel Balancers · Tire Changer & Balancer Combos
Shop by Brand: Browse all Katool automotive equipment including lifts, tire changers, and wheel balancers.
Ready to Upgrade Your Shop?
Get expert guidance on the right tire changer for your facility. Call to confirm included accessories and discuss air consumption requirements.
Frequently Asked Questions
What do reviews say about Katool tire changers?
Katool reviews highlight professional-grade construction, reliable pneumatic systems, and strong value. Users praise the carburized jaw durability and smooth assist-arm operation, noting that Katool machines offer performance comparable to premium brands with excellent parts support.
Is Katool a good brand for tire changing equipment?
Yes. Katool is known for heavy-duty construction and responsive warranty support. Many independent shops and mobile technicians choose Katool as a cost-effective alternative to premium European brands without sacrificing performance or reliability.
Are Katool tire changer parts available?
Yes. Parts are readily available through authorized dealers. Common replacement items like plastic jaw covers, mounting head covers, and seals are stocked to ensure minimal downtime for maintenance.
Does the KT-T835 require 220V three-phase power?
No. It operates on standard 110V single-phase, 60 Hz power. This allows for installation in standard shops and garages without expensive electrical conversion, while the 2.0 HP motor still delivers professional torque.
What is included with the KT-T835?
The unit includes the tire changer with closed cabinet, double assist arms, bead-breaker, bead-blast seater with air tank, jaw covers, mounting head cover, pedal controls, and lubricator/filter unit.
Can the KT-T835 handle low-profile and run-flat tires?
Yes. The double side assist arms and pneumatic bead-blast seater are specifically engineered to handle stiff sidewalls, low-profile, and run-flat tires safely and efficiently.
```
