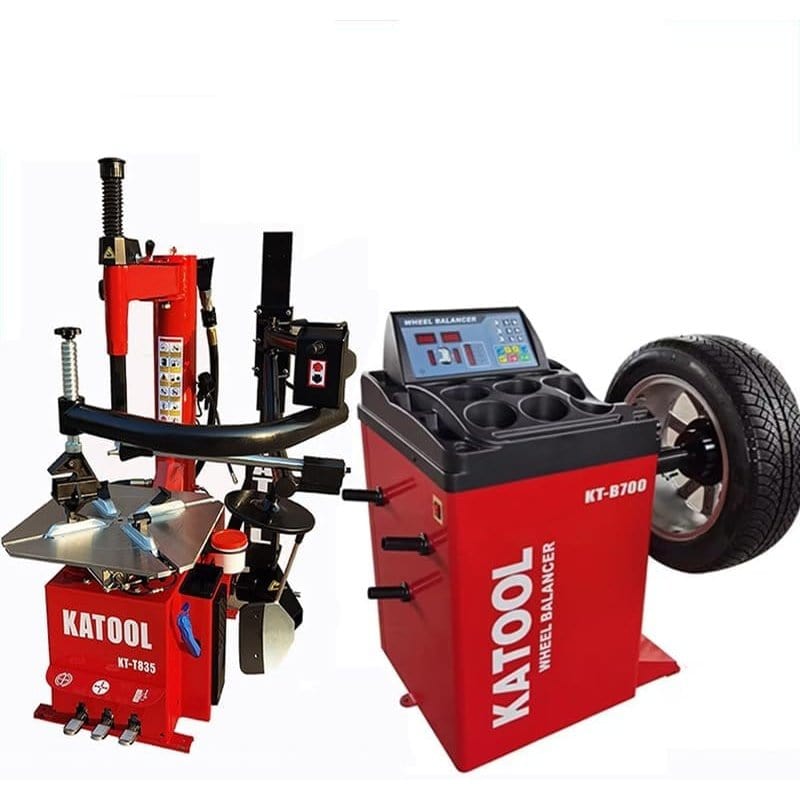

Katool KT-T835 + KT-B700 Tire Changer & Wheel Balancer Combo
A professional-grade two-machine wheel-service system for automotive shops and advanced home garages. The KT-T835 swing-arm tire changer delivers a 2.0 HP motor with up to 41-inch wheel capacity, while the KT-B700 automatic balancer provides fast, accurate balancing at +/-1 g precision. Both operate on standard 110-120V single-phase power, making this an ideal upgrade for shops needing high-capacity tire and wheel service without electrical infrastructure upgrades.
Key Features & Benefits

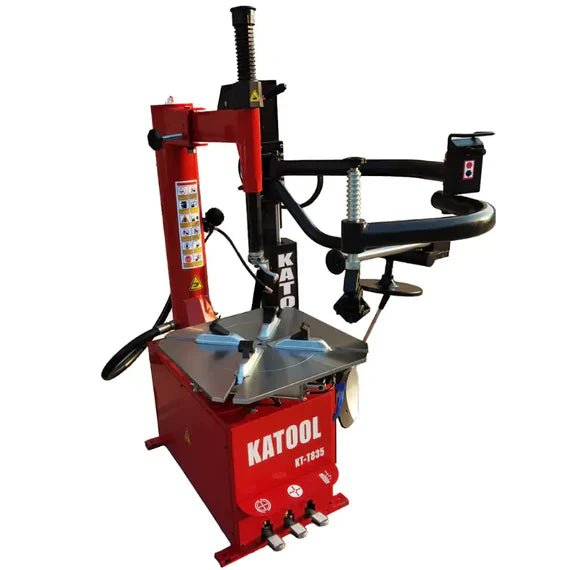

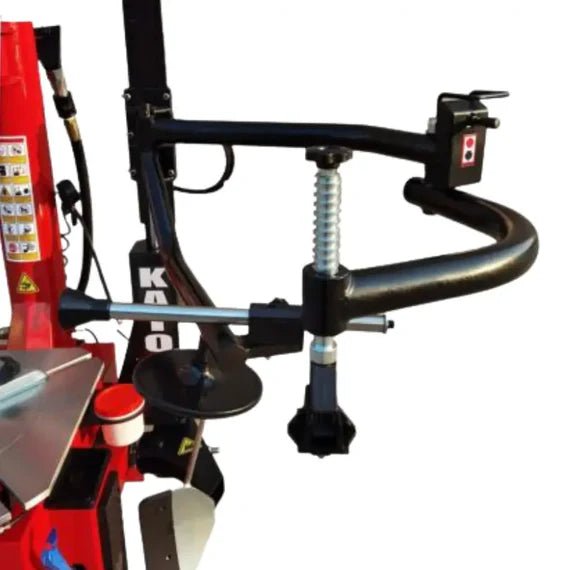

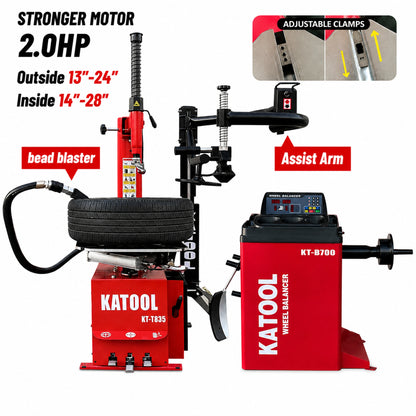

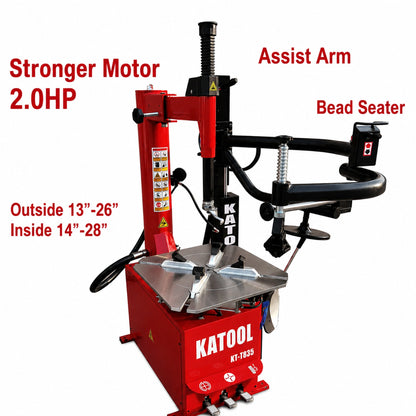

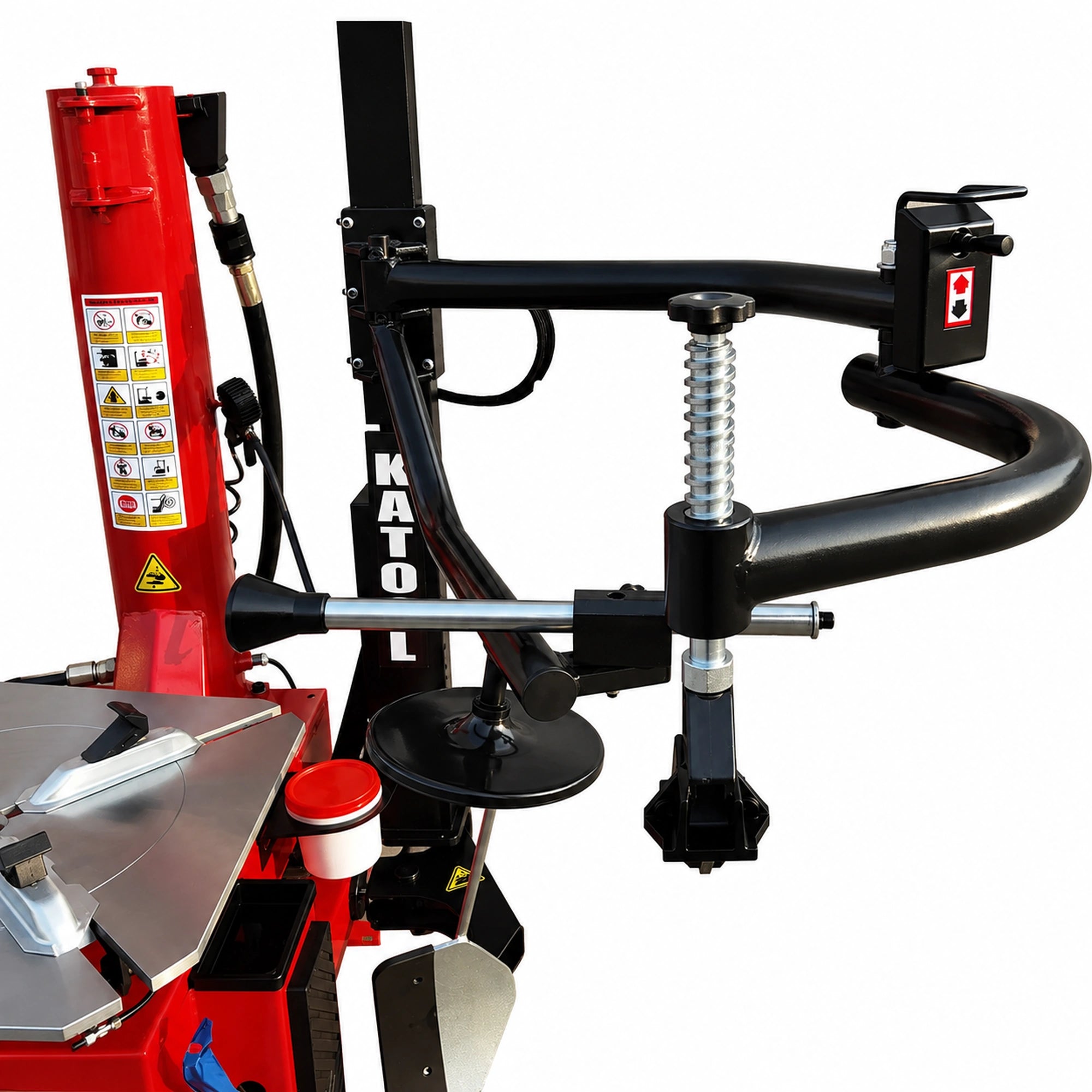

Wide-Capacity Swing-Arm Tire Changer with Assist Arm
The KT-T835 delivers 2.0 HP / 1.5 kW through a swing-arm design that accepts wheels up to 41 inches in diameter with width up to 15 inches. The outside clamp range of 13-26 inches and inside range of 14-28 inches covers most passenger vehicles, SUVs, and light trucks encountered in daily shop operations. Rotation speed of approximately 6.1 RPM provides controlled, steady power for consistent tire-mounting results.
Traditional single-arm designs create uneven load distribution and operator fatigue when handling stiff sidewalls, low-profile compounds, or beaded tires. Shops processing 50-100+ wheels weekly typically struggle with technician strain by mid-shift. This model's assist-arm configuration addresses that friction point by distributing mounting pressure across both contact points during the critical break-in phase.
This enables faster cycle times and reduced technician fatigue during high-volume tire-change operations. The bead-blast seater head with integrated post tank and solid rim-protection covers help prevent cosmetic wheel damage, supporting premium customer service and repeat business.

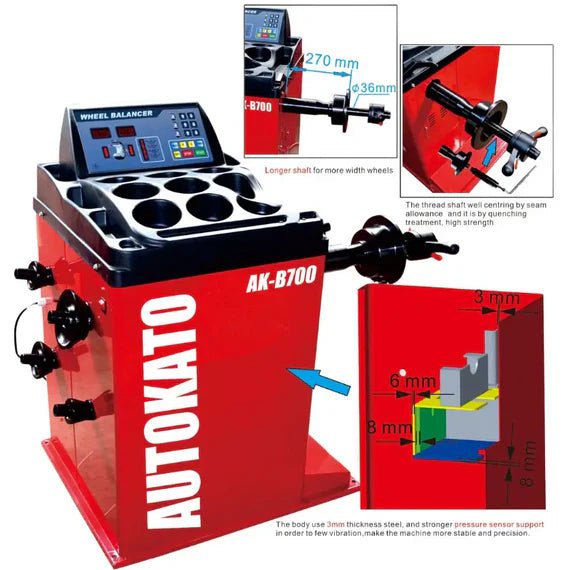

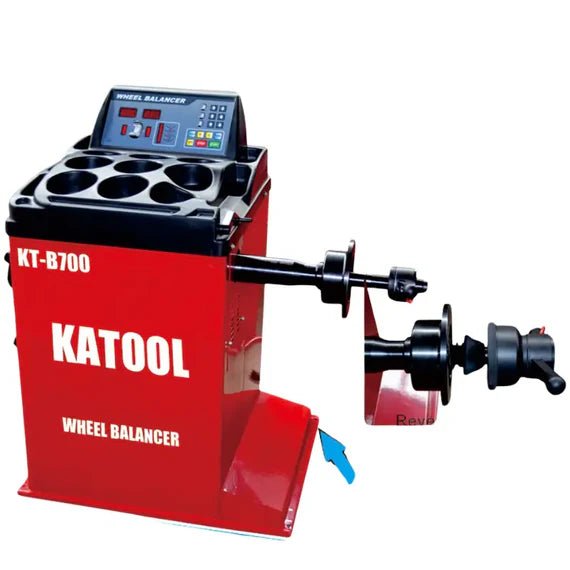

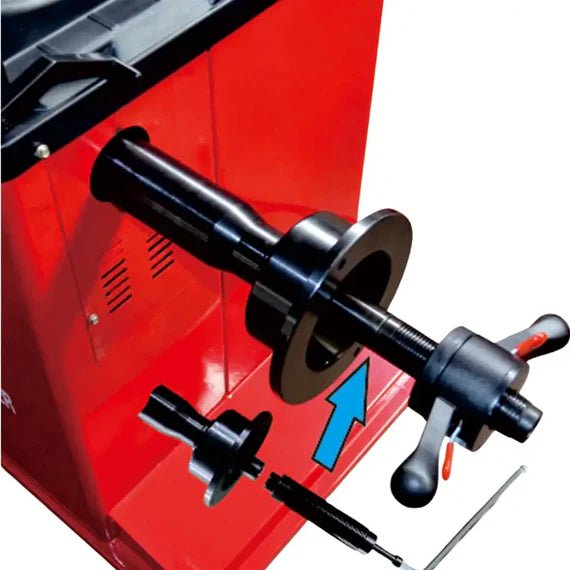

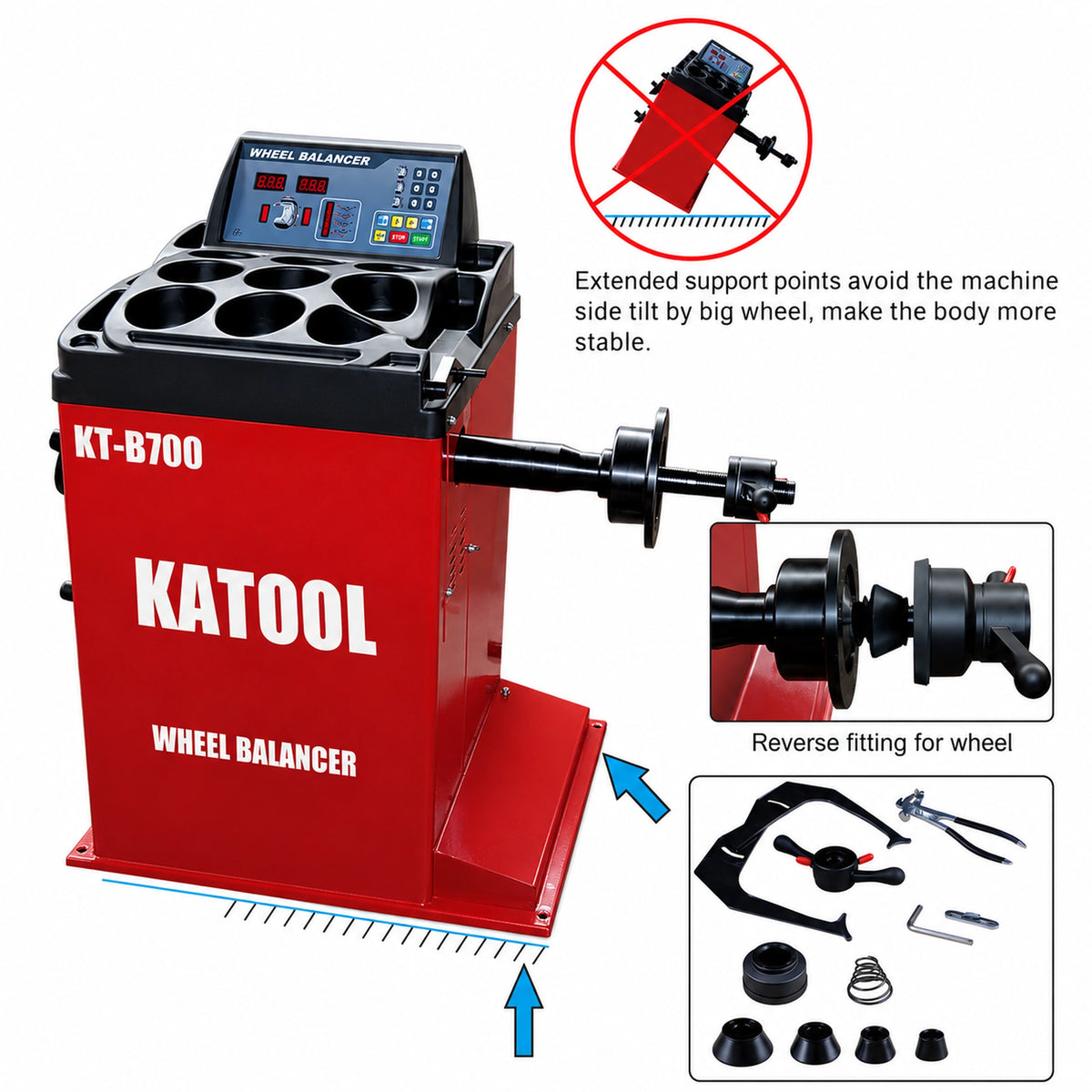

Fast, Precision Digital Wheel Balancer with Automatic Measurement
The KT-B700 combines +/-1 g accuracy with a 7-second measuring cycle, delivering professional-grade throughput suitable for mid-volume shop environments. The automatic A/D (static and dynamic) measurement ruler eliminates manual calculation steps, reducing data-entry errors and speeding handoff to the technician. Balancing speed of 180 RPM combined with self-calibration and integrated diagnostic functions ensures consistent results across different wheel types and operator skill levels.
Many smaller shops outsource wheel balancing due to time and complexity concerns, losing margin on each transaction. This built-in capability addresses that business challenge by enabling in-house balancing that directly improves invoice value and customer convenience. The integrated fault-diagnosis program reduces false readings and helps technicians quickly identify when calibration or maintenance is needed.
This improves shop profitability by internalizing a high-margin service, reduces customer wait times, and supports compliance-ready record-keeping for fleet and commercial operations. The 3mm-thick steel body with protective pressure-sensor design provides durability for daily shop use.
Durable Construction with Integrated Rim Protection
The tire changer's jaw system features alloy steel with carburization treatment (0.8-1.1 mm depth) and whole-quenching—a heat-hardening process that strengthens the gripping surface while preserving flex in the core. This produces jaws resistant to wear over thousands of service cycles. The stainless mounting head, combined with solution treatment and interface polishing, meets engineering principles for load distribution while protecting high-contact rim surfaces.
Many shops experience warranty claims and customer dissatisfaction when equipment leaves visible marks on aluminum, chrome, or specialty wheels. This design directly addresses rim-damage liability through material selection and protective geometry that shields vulnerable surfaces. The 582 lb net weight provides stable operation without requiring permanent anchoring in most workshop settings.
This extends equipment lifespan, reduces warranty disputes with customers, and supports premium service positioning. Fewer jaw replacements and consistent aesthetic results means lower maintenance costs and higher customer satisfaction on appearance-sensitive work.
Matched Combo Eliminates Equipment Incompatibility Risk
Sourcing separate tire changer and wheel balancer models requires navigating different vendors, potentially mismatched electrical specs, conflicting support documentation, and extended procurement timelines. This pre-validated combo arrives tested as an integrated system: both machines operate on standard 110-120V single-phase power (typical shop electrical infrastructure) and share a consistent parts ecosystem for cones, covers, and wear items.
Shops upgrading from tire-only service to complete wheel service often face decision paralysis over equipment pairing. Which balancer specs match the changer's wheel capacity? Will they share electrical circuits? This combo solution eliminates that complexity through pre-verification. Dealers pre-test the pairing and ensure compatibility across capacity ranges, with included standard cone sets and basic manuals (where provided) reducing learning curve and unbox-to-operation time.
This streamlines procurement, accelerates shop setup, simplifies staff training with consistent equipment logic, and reduces administrative overhead. Single-invoice purchasing also simplifies capital budgeting and warranty administration.
Single-Phase Electrical Power—No Infrastructure Upgrade
Both machines operate on standard 110-120V single-phase power supply, eliminating the need for expensive 220V electrical infrastructure upgrades common with commercial-tier equipment. The 0.25 kW balancer and 1.5 kW changer can operate from separate circuits or shared depending on panel capacity, providing flexibility in shop installations. This compatibility with typical garage electrical service broadens accessibility to small shops, independent tire service centers, and serious home garages.
Many shop owners defer equipment upgrades due to electrical service costs ranging from $2,000-$5,000+ for 220V installation and licensing. This barrier to entry keeps shops outsourcing balancing or using older equipment. This model eliminates that capital hurdle by working within existing single-phase circuits, enabling faster ROI and technology modernization.
This accelerates shop modernization timelines, expands equipment accessibility to smaller operators, and provides immediate financial advantage by avoiding electrical contractor fees and installation downtime.
Product Demonstration
Installation & Operation Manuals
Complete setup instructions, operational procedures, maintenance schedules, and troubleshooting guides are available in the manufacturer's documentation. Download the PDFs below before installation to ensure proper setup and safe operation.
KT-T835 Tire Changer Manual
Installation, operation, and maintenance guide for the tire changer unit.
Download PDFKT-B700 Wheel Balancer Manual
Instruction manual for setup, calibration, and operation of the wheel balancer.
Download PDFApplications & Use Cases
- Independent Tire Service Centers: Full-workflow tire shops handling 30-60 wheels daily that need in-house mounting and balancing. The 41-inch capacity and fast 7-second balancing cycle support competitive turnaround times without equipment constraints.
- Automotive Repair Shops: General-service shops that historically outsourced tire balancing can now internalize the service, improving customer retention, average invoice value, and service coordination. Works on passenger sedans, coupes, hatchbacks, and light-duty crossovers within size limits.
- Multi-Bay Service Facilities: Shops with multiple technicians needing dedicated tire equipment can deploy this combo at one service station while maintaining flexibility across multiple locations. The standard 110-120V requirement simplifies multi-unit installations.
- Light-Truck & SUV Specialists: Dealerships and shops focused on truck and SUV service can handle the full wheel-service workflow in-house. The 41-inch diameter support and 15-inch width capacity align with common light-truck OEM wheel specifications.
- Fleet Maintenance Facilities: Small-to-mid fleet garages managing company vehicle rotations benefit from high-throughput balanced tire service. The +/-1 g accuracy meets fleet compliance requirements for safety-sensitive operations.
- Advanced Home Garages & Custom Shops: Serious DIY enthusiasts, car-collection owners, and custom-build shops requiring professional tire-change and balancing capability in a compact footprint. The 110-120V compatibility supports standard garage circuits.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Wheel Diameter | 41 inches (1,040 mm) |
| Maximum Wheel Width | 15 inches (350 mm) |

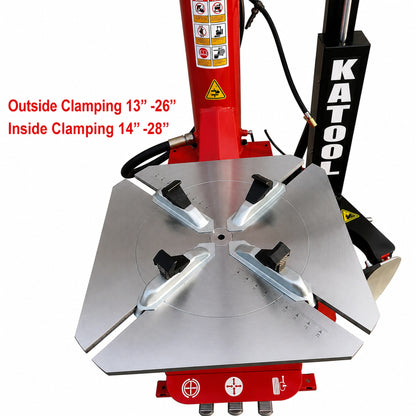

| Outside Clamp Range | 13-26 inches |
| Inside Clamp Range | 14-28 inches |
| Net Weight | 582 lbs |
| Specification | Value |
|---|---|
| Motor Power | 2.0 HP / 1.5 kW |
| Power Supply | 110V single-phase / 60 Hz |
| Rotation Speed | Approximately 6.1 RPM |
| Air Pressure Requirement | 0.8-1.0 MPa (116-145 psi) |
| Jaw Material | Alloy steel with carburization & quenching |
| Mounting Head Material | Stainless steel |
| Specification | Value |
|---|---|
| Motor Power | 0.25 kW |
| Power Supply | 120V single-phase |
| Balancing Speed | 180 RPM |
| Balancing Accuracy | +/-1 g |
| Measuring Cycle Time | Approximately 7 seconds |
| Maximum Rim Diameter | Up to 30 inches |
| Maximum Wheel Diameter | 880 mm (approximately 34.6 inches) |
| Wheel Width Capacity | 3-12 inches |
| Maximum Wheel Weight | 65 kg (143 lbs) |

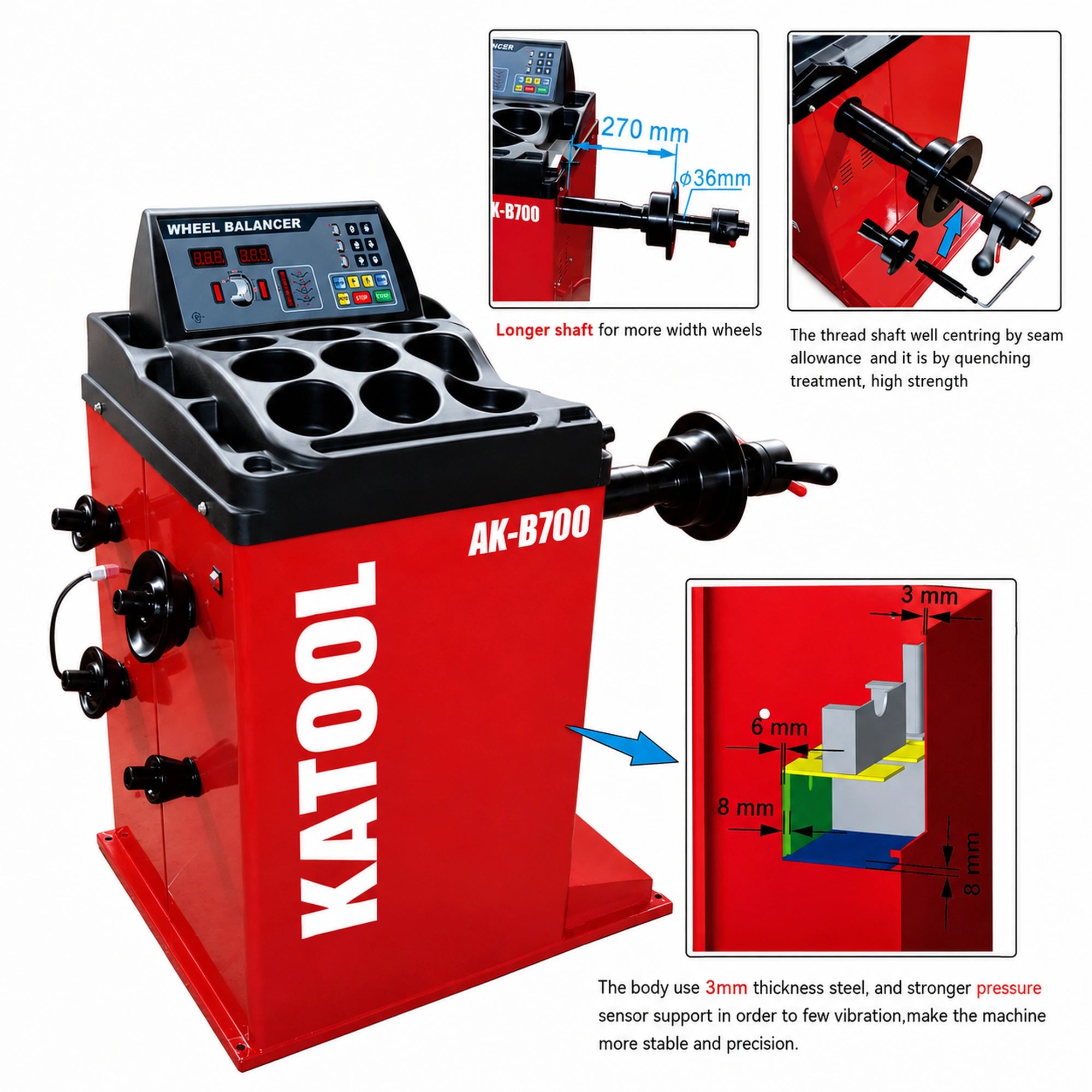

| Functional Features | Automatic A/D measurement; self-calibration; diagnostic program; 3mm steel body |
Installation Requirements
Electrical Requirements
- Power Supply: 110V single-phase outlet for tire changer; 120V single-phase outlet for wheel balancer. Each unit operates independently and can use separate circuits or be combined if total circuit amperage accommodates both loads.
- Outlet Proximity: Locate power outlets within 6-10 feet of equipment placement to minimize extension-cord use and voltage drop.
- Grounding: All outlets must include proper ground connections. Do not use adapters that remove or bypass ground pins.
Pneumatic System (Tire Changer Only)
- Air Supply: The KT-T835 requires filtered, regulated compressed air at 0.8-1.0 MPa (116-145 psi). Supply system must include moisture trap and oil separator to prevent water and contamination from damaging pneumatic components.
- Air Hose & Regulators: Standard 1/4-inch pneumatic hose is acceptable. Position regulators, moisture traps, and drain points at low locations to prevent water accumulation in the system.
- Compressor Capacity: A typical 3-5 HP compressor with 80-120 gallon tank is adequate for continuous tire-changer operation in single or dual-technician shops. Verify your compressor output matches the air pressure and flow requirements.
Foundation & Mounting
- Floor Surface: Level concrete floor capable of supporting the tire changer's net weight of 582 lbs without deflection. Minor unevenness under 0.25 inches per 10 feet is acceptable. Avoid soft flooring or areas prone to moisture pooling.
- Placement & Clearance: Position both machines with minimum 3-foot clearance on all sides to allow technician access for wheel handling, arm movement during operation, and routine maintenance. Allow additional space for compressed-air hose routing.
- Anchoring: Anchoring is not required for small-shop or home-garage use. Commercial shops with high-volume operations may elect to bolt the changer to concrete for additional stability.
Environmental & Critical Notes
- Operating Temperature: Machines operate reliably in controlled indoor shop environments (59-95 degrees Fahrenheit / 15-35 degrees Celsius). Do not operate in direct sunlight, unheated outdoor spaces, or areas with high humidity or moisture exposure.
- Freight Unloading: Both machines arrive crated on wooden pallets. A forklift or pallet jack rated for at least 600 lbs capacity is required to unload from freight vehicle. Plan equipment access before delivery arrives. Liftgate service may be available at additional cost depending on dealer.
- Permits & Inspections: Verify local electrical and equipment installation codes before setup. Some jurisdictions may require licensed electrician inspection or permits for commercial workshop installations. Verify compliance before operation.
Shipping & Delivery
Freight Coverage & Delivery
Shipping: Freight/LTL shipping only within the 48 contiguous United States. Free commercial-address shipping standard; residential addresses may incur surcharges. Remote areas (rural ZIP codes, Alaska, Hawaii) may require additional shipping fees.
Delivery Timeframe: Approximately 3-21 business days from order placement, depending on carrier availability, destination distance, and current freight volume. Exact timeline varies by dealer and logistics partner.
Liftgate Service: Availability and cost vary by dealer. Liftgate service lowers equipment to street level but does not provide inside delivery or placement. Confirm availability during checkout.
Delivery Requirements & Unloading
Unloading Equipment Required: A forklift, pallet jack, or similar equipment with minimum 600 lbs capacity is required. Crates cannot be safely hand-unloaded due to weight and configuration. Arrange equipment access before freight driver arrives.
Receiving Inspection: Inspect all packages and crates upon delivery, before signing the bill of lading or delivery receipt. Note any visible damage (crushed corners, torn strapping, moisture penetration) directly on the BOL. Document damage with photographs if possible.
Customer Responsibility: Buyer is responsible for unloading equipment from the truck unless liftgate service is purchased. Delivery typically stops at curbside; inside placement requires special arrangement and additional fees.
Damage Reporting & Concealed Damage Coverage
Concealed Damage - Within 15 Days: 100% coverage for replacement parts and freight costs for damage not visible until unpacking.
Shared Cost - Within 30 Days: 50% coverage for replacement parts and freight (buyer and seller share costs).
No Coverage - After 30 Days: Buyer assumes full responsibility for repair and replacement costs.
Warranty Coverage
Limited Warranty
1 Year - Parts Coverage: Replacement parts only for defects in material or workmanship. Coverage includes jaw assemblies, bearings, mounting-head components, spindle, motor components, balancer body, pressure sensors, and electrical switches. Labor, shipping, and installation costs are not included.
Warranty Requirements & Conditions
Eligibility: Valid for original purchaser only. Non-transferable to subsequent owners or secondary users. Proof of purchase is required for all warranty claims.
Installation & Maintenance: Installation must follow the manufacturer's installation manual. Failure to use proper compressed-air filtration, improper pneumatic system maintenance (water/oil contamination), or electrical misuse voids warranty coverage. Regular maintenance of air-system components (moisture-trap drains, filter changes) is required to maintain warranty validity.
Claim Process: Contact dealer or manufacturer for warranty claims. Provide proof of purchase, detailed description of defect, and photographs if applicable. Warranty claims are subject to approval by the warranty department before replacement parts are shipped.
Ready to Add Professional Wheel Service to Your Shop?
Get expert guidance on equipment selection, facility planning, installation requirements, and financing options. Call to confirm included accessories, discuss your shop's specific needs, or schedule a facility assessment before ordering.
Frequently Asked Questions
What wheel sizes and vehicle types does the KT-T835 handle?
The KT-T835 handles wheel diameters up to 41 inches (1,040 mm) and wheel widths to 15 inches (350 mm), with outside clamp range 13-26 inches and inside range 14-28 inches. This covers most passenger sedans, SUVs, light trucks, and crossovers. Check specific wheel specifications against the clamp and diameter ranges before service.
What does "+/-1 g accuracy" mean for the wheel balancer?
+/-1 g (gram) refers to the balancing precision tolerance. The KT-B700 can detect and correct imbalances of 1 gram or smaller, which is professional-grade accuracy suitable for street vehicles, fleet operations, and compliance-sensitive applications. A 7-second measuring cycle allows approximately 8-10 wheels per hour.
Do I need a 220V electrical service upgrade to install this equipment?
No. Both machines operate on standard 110-120V single-phase power (typical garage circuit voltage). This eliminates expensive 220V electrical infrastructure upgrades commonly required for commercial equipment. Locate outlets within 6-10 feet of equipment and verify sufficient circuit capacity for both units.
What compressed air pressure and equipment does the tire changer require?
The KT-T835 requires filtered, regulated air at 0.8-1.0 MPa (116-145 psi). A typical 3-5 HP compressor with 80-120 gallon tank is adequate. Air system must include moisture trap and oil separator. Improper air quality (water or oil contamination) is a common cause of equipment malfunction and voids warranty.

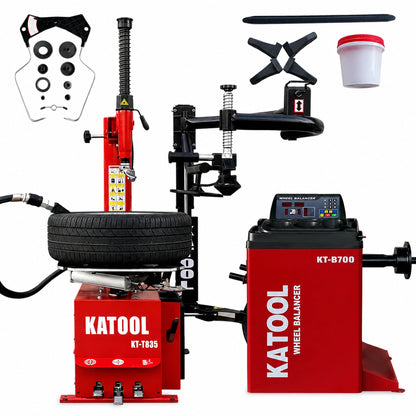

What is included with the KT-T835 and KT-B700 combo?

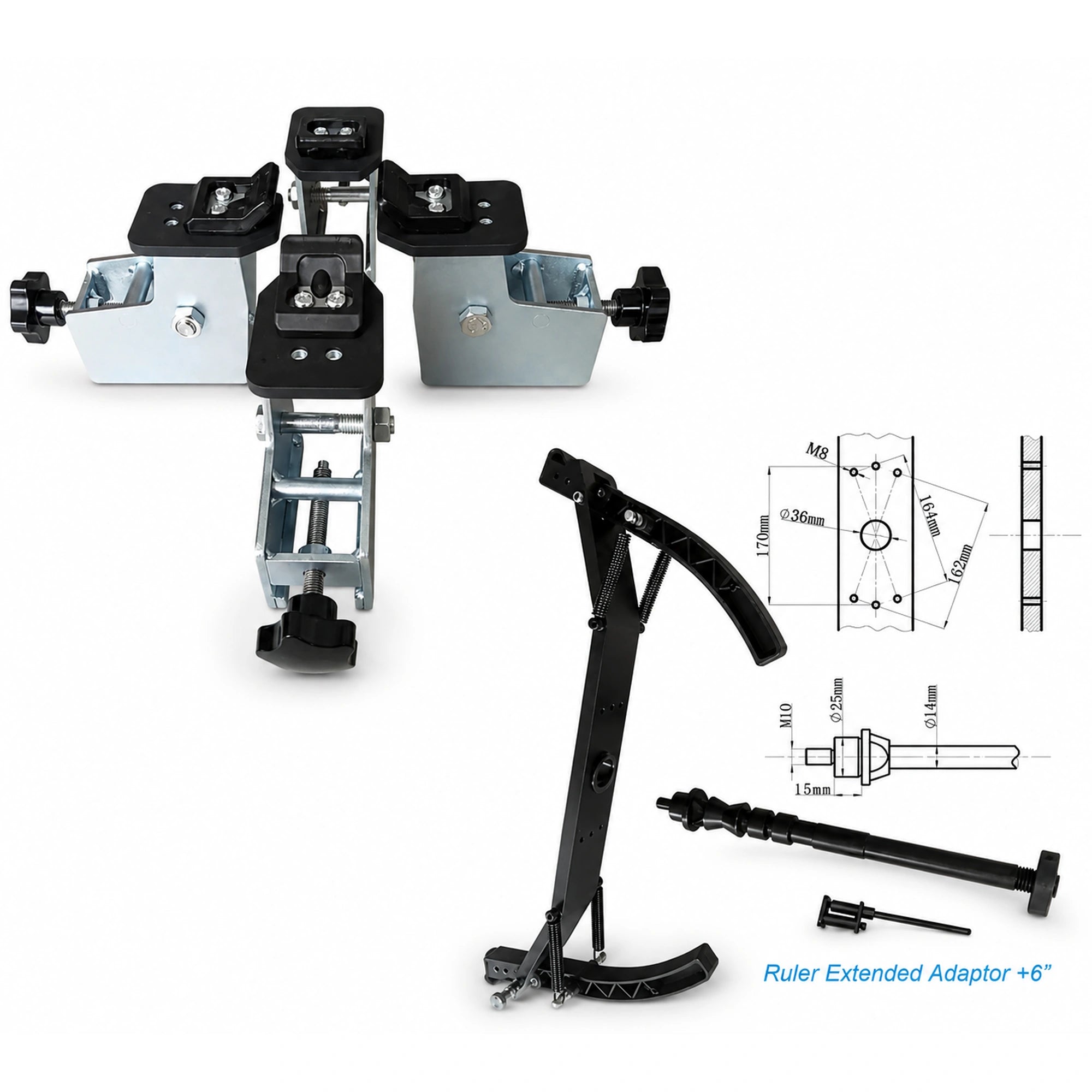

Typically included are the tire changer main unit, wheel balancer main unit, standard rim-protection covers for the changer, and a standard cone set for the balancer. Basic operating manuals are provided where included by your specific dealer. Call to confirm exact included accessories and components.
How long does delivery take and what unloading equipment do I need?
Delivery typically takes 3-21 business days from order placement. Both machines arrive crated on wooden pallets. You will need a forklift or pallet jack with 600 lbs minimum capacity to unload from the freight vehicle. Arrange equipment access before delivery. Concealed damage reported within 15 days receives 100% replacement coverage.
Is the 1-year warranty transferable if I sell the equipment?
No. The 1-year parts warranty is valid for the original purchaser only and is non-transferable to subsequent owners. Proof of purchase from an authorized dealer is required for any warranty claims. Warranty coverage ends if equipment transfers to a new owner.
Can I integrate this combo into my existing shop air system and electrical setup?
Most shops can integrate this combo with minimal upgrades. Verify you have 110-120V outlets within 6-10 feet with proper grounding, and a compliant compressed-air system with moisture trap and filtration. Improper air quality is a common cause of equipment issues and voids warranty. Call to assess your specific shop infrastructure before ordering.
