Katool KT-T830 + KT-B760 – Tire Changer + Wheel Balancer (Combo)
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

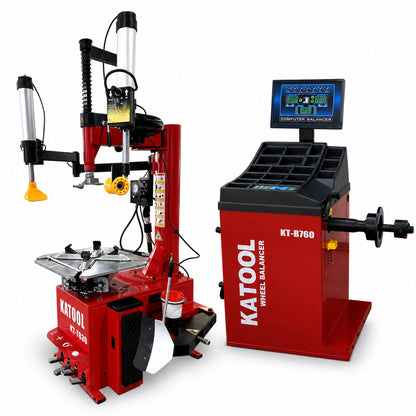

Katool KT-T830 and KT-B760 Tire Changer and Wheel Balancer Combo for Professional Tire Service
The Katool KT-T830 and KT-B760 tire changer and balancer combo pairs a wheel clamp tire changer with a precision electronic balancer for complete tire service, handling wheels up to 41 inches with 120V single phase power and ±1g balancing accuracy in 7 second cycles.
Complete Tire Service Solution
This tire changer and balancer combo pairs a wheel clamp tire changer (up to 41 inches) with an electronic balancer (7 second cycles). The system packages both functions with coordinated 120V power and unified 12 month warranty coverage.
The KT-T830 and KT-B760 deliver 41 inch wheel capacity, standard electrical compatibility, and ±1g precision balancing. This tire changer wheel balancer combo sits between entry level 30 to 35 inch systems and premium three phase commercial equipment.
Best Tire Changer and Balancer Combo: Buying Guide
How to Choose the Right Tire Machine Combo
Entry level units max out at 26 to 30 inch wheels (passenger cars only). Mid range systems like the KT-T830 extend to 41 inches (light trucks and performance vehicles). Premium systems reach 47+ inches but require three phase power.
The best tire changer and balancer combo depends on customer mix. Shops serving mainly passenger cars with occasional SUV or truck service benefit from 41 inch capacity. Commercial truck specialists need 47+ inches. High volume passenger car shops may prioritize balancer speed over wheel capacity.
Tire Machine and Wheel Balancer Combo vs Separate Units
Factory matched systems offer coordinated power requirements (both run on same electrical service), lower cost than separate units, and single manufacturer warranty and support.
Separate purchases allow mixing capacity levels. A shop might pair a high capacity tire changer with a standard balancer if they mount large wheels but mainly balance passenger tires. For most shops, coordinated specifications outweigh separate selection flexibility.
Key Specifications for Tire Changer Combo Selection
Wheel Diameter Capacity: This system handles 41 inches (covers passenger cars, SUVs, light trucks, performance vehicles). Passenger car focused shops can use 30 to 35 inches. Commercial facilities need 47+ inches.
Balancing Precision: ±1g precision prevents vibration comebacks. Entry level balancers at ±5g often require multiple attempts.
Power Requirements: Single phase 120V eliminates electrical upgrade costs that 220V or three phase systems require.
Cycle Time: 7 seconds processes 8 to 10 wheels hourly. Slower 15 to 20 second systems reduce throughput significantly.
Tire Changer and Balancer Combo for Sale: What to Look For
Professional systems range from basic 26 inch capacity units to premium three phase commercial equipment. Mid range packages like the KT-T830 and KT-B760 balance capacity and power requirements.
When comparing listings, verify included accessories (bead seaters, assist arms, rim protection, measurement rulers). Budget systems often exclude these items.
Key Features & Benefits

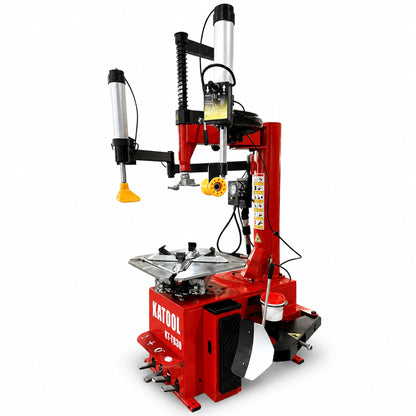

41 Inch Wheel Capacity
The KT-T830 handles wheels up to 41 inches in diameter and 15 inches in width, accommodating passenger cars, light trucks, and performance vehicles with oversized wheels.
Where typical mid market tire changers max out at 30 to 35 inches, this tire changing machine combo extends capacity for modern SUVs and truck applications.
Service a broader range of vehicles while maintaining competitive shop rates.
Carburized Steel Components
The alloy steel jaw features carburization treatment for enhanced durability and rim protection. The stainless steel mounting head includes plastic protective covers.
Carburized steel maintains surface hardness while preserving core flexibility, reducing wheel scratching or cracking during tire mounting compared to untreated steel components.
Minimize wheel damage claims and preserve customer satisfaction across different wheel types, from steel rims to expensive alloy wheels.

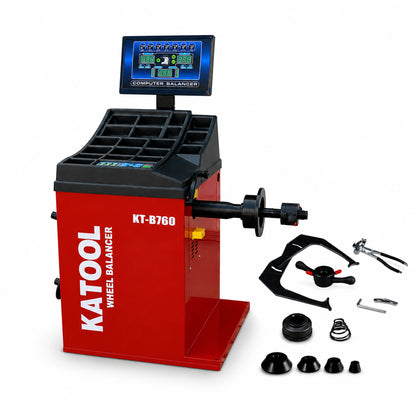

7 Second Measurement Cycles
The KT-B760 balancer completes wheel measurements in 7 seconds with ±1g accuracy. The automatic measurement ruler and pressure sensor supports streamline the balancing process.
Where typical balancers in this range require 15 to 20 seconds, the rapid cycle time becomes critical during busy periods or rush services.
Process more balancing jobs during peak hours, directly impacting revenue potential.
Standard Power Integration
Both units operate on standard 110 to 120V single phase power. The KT-T830 requires 2.0HP while the KT-B760 uses 0.25kW, both compatible with typical shop electrical systems.
Where premium equipment requires 3 phase installations, single phase compatibility enables installation in facilities with standard commercial electrical service.
Eliminate electrical contractor dependencies and permit complications that delay equipment deployment.
Comprehensive Feature Set

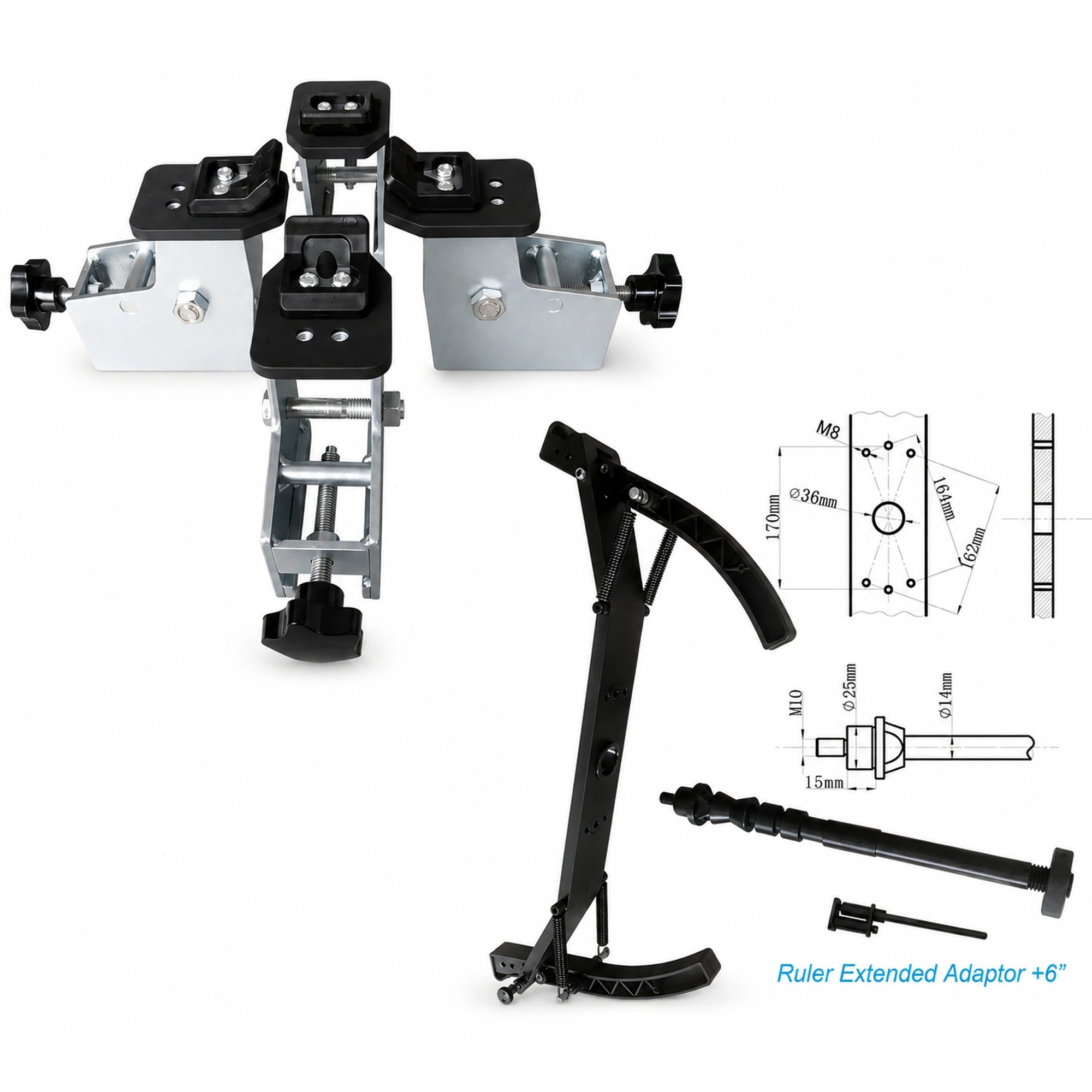

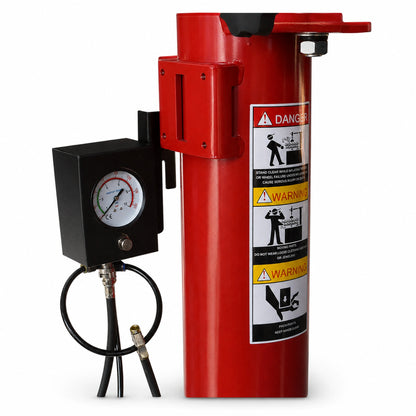

The KT-T830 includes double assist arms, bead blast seater with post tank, and automatic inflation gauge. The KT-B760 features automatic measurement ruler and fault diagnosis systems.
Where budget equipment often lacks assist arms or requires separate bead seating tools, complete feature integration reduces need for additional tooling purchases.
Enable efficient tire service operations from day one without supplemental equipment purchases.
Product Demonstration
Applications & Use Cases
- Professional Automotive Service Centers: Complete tire service with a tire changer combo for passenger cars and light trucks with precision balancing
- Independent Tire Shops: Equipment package with a tire machine and wheel balancer combo serving diverse vehicle types including performance cars with oversized wheels
- Commercial Fleet Service: Tire maintenance for delivery vehicles, service trucks, and company fleets up to light truck classifications
- Auto Dealership Service Departments: Professional tire service with a tire changer and balancer combo for new and used vehicle preparation
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Wheel Diameter | 41 inches (1,040 mm) |
| Maximum Wheel Width | 15 inches (380 mm) |
| Outside Clamp Range | 12-22 inches |
| Inside Clamp Range | 14-24 inches |
| Motor Power | 2.0HP (1.5kW) |
| Power Supply | 110-120V single-phase |
| Rotation Speed | 6.8 RPM |
| Air Pressure Requirement | 0.8-1.0 MPa (116-145 PSI) |
| Net Weight | 529 lb (240 kg) |
| Specification | Value |
|---|---|
| Maximum Rim Diameter | 30 inches |
| Wheel Width Capacity | 3-12 inches |
| Maximum Wheel Weight | 143 lb (65 kg) |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
| Balancing Speed | 180 RPM |
| Power Supply | 110V single-phase |
| Motor Power | 0.25kW |
Product Manuals
KT-T830 Tire Changer Manual
Complete installation, operation, and maintenance instructions for the KT-T830 tire changer including setup procedures, safety guidelines, and troubleshooting information.
KT-B760 Wheel Balancer Manual
Comprehensive operation manual for the KT-B760 wheel balancer covering calibration procedures, measurement modes, and maintenance requirements.
Installation Requirements
Power Requirements
- KT-T830: 110 to 120V single phase power with circuit capacity for 2.0HP motor
- KT-B760: 110V single phase power for 0.25kW motor operation
- Circuit Protection: Verify adequate circuit breaker capacity and electrical code compliance
Air Supply (KT-T830)
- Air Pressure: 0.8 to 1.0 MPa (116 to 145 PSI) compressed air supply
- Air Quality: Clean, dry air with lubricator for pneumatic system protection
- Supply Line: Adequate air line capacity to maintain consistent pressure
Foundation Requirements
- Surface: Level, stable surface supporting 529 lb tire changer weight
- Clearance: Adequate space around units for wheel handling and safety access
- Floor Condition: Non slip surface with appropriate load distribution
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping to commercial addresses within lower 48 United States. Surcharges apply for residential delivery addresses.
Delivery Type: Commercial address delivery standard. Residential delivery may require liftgate and handling charges.
Receiving: Buyer responsible for unloading with appropriate material handling equipment.
Delivery Requirements
Unloading Equipment: Forklift or equivalent required for safe unloading of tire changer (529 lb).
Inspection Protocol: Inspect all packages before signing bill of lading. Note visible damage on BOL before driver departs.
Damage Reporting: Photograph any damage and retain packaging materials for carrier inspection and claim filing.
Warranty Coverage
12 Month Parts Warranty
Coverage: Parts warranty covering motors, cylinders, electronics, and mechanical components for manufacturing defects
Exclusions: Labor coverage not specified, normal wear items subject to separate coverage terms
Warranty Requirements
Installation: Professional installation following manufacturer specifications required for warranty validity
Documentation: Retain purchase documentation and installation records for warranty claim processing
Ready to Upgrade Your Shop?
Get expert guidance on the right tire service equipment for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and installation requirements for your specific application.
Frequently Asked Questions
What is the maximum wheel diameter capacity of the KT-T830 tire changer?
The KT-T830 tire changer combo handles wheels up to 41 inches in diameter and 15 inches in width, with outside clamp range of 12 to 22 inches and inside clamp range of 14 to 24 inches. This accommodates passenger cars, light trucks, and performance vehicles with oversized wheels.
What components are included with the KT-T830 and KT-B760 combo package?
The KT-T830 includes main unit, double side assist arms, bead blast seater with post tank, mounting head with plastic rim protectors, inflation gauge, and alloy steel jaw covers. The KT-B760 includes main balancer unit, automatic measurement ruler, pressure sensor supports, balance mode selection, and fault diagnosis system.
What are the power requirements for installation?
The KT-T830 requires 110 to 120V single phase power for its 2.0HP motor. The KT-B760 operates on 110V single phase power with 0.25kW motor. Both use standard North American single phase electrical supply without 3 phase installations.
What types of vehicles can be serviced with this equipment?
This tire changer and balancer combo serves professional automotive service centers, tire shops, commercial fleet service, and auto dealership service departments for passenger cars, light trucks, and performance vehicles with wheels up to 41 inches diameter.
What safety features are included for rim protection?
The KT-T830 features alloy steel jaw with carburization treatment and stainless steel mounting head with plastic rim protectors. The carburization treatment provides enhanced durability while maintaining rim protection compared to untreated steel components.
What warranty coverage is provided with this equipment?
Both units include 12 month parts warranty covering motors, cylinders, electronics, and mechanical components for manufacturing defects. Professional installation following manufacturer specifications required for warranty validity. Labor coverage not specified in standard warranty terms.
How accurate is the KT-B760 wheel balancer measurement?
The KT-B760 provides +/- 1g balancing accuracy with 7 second measurement time at 180 RPM balancing speed with automatic measurement ruler and pressure sensor supports for consistent precision.
What air supply requirements does the KT-T830 tire changer need?
The KT-T830 requires 0.8 to 1.0 MPa (116 to 145 PSI) compressed air supply with clean, dry air and lubricator for pneumatic system protection. Adequate air line capacity needed to maintain consistent pressure during operation.
